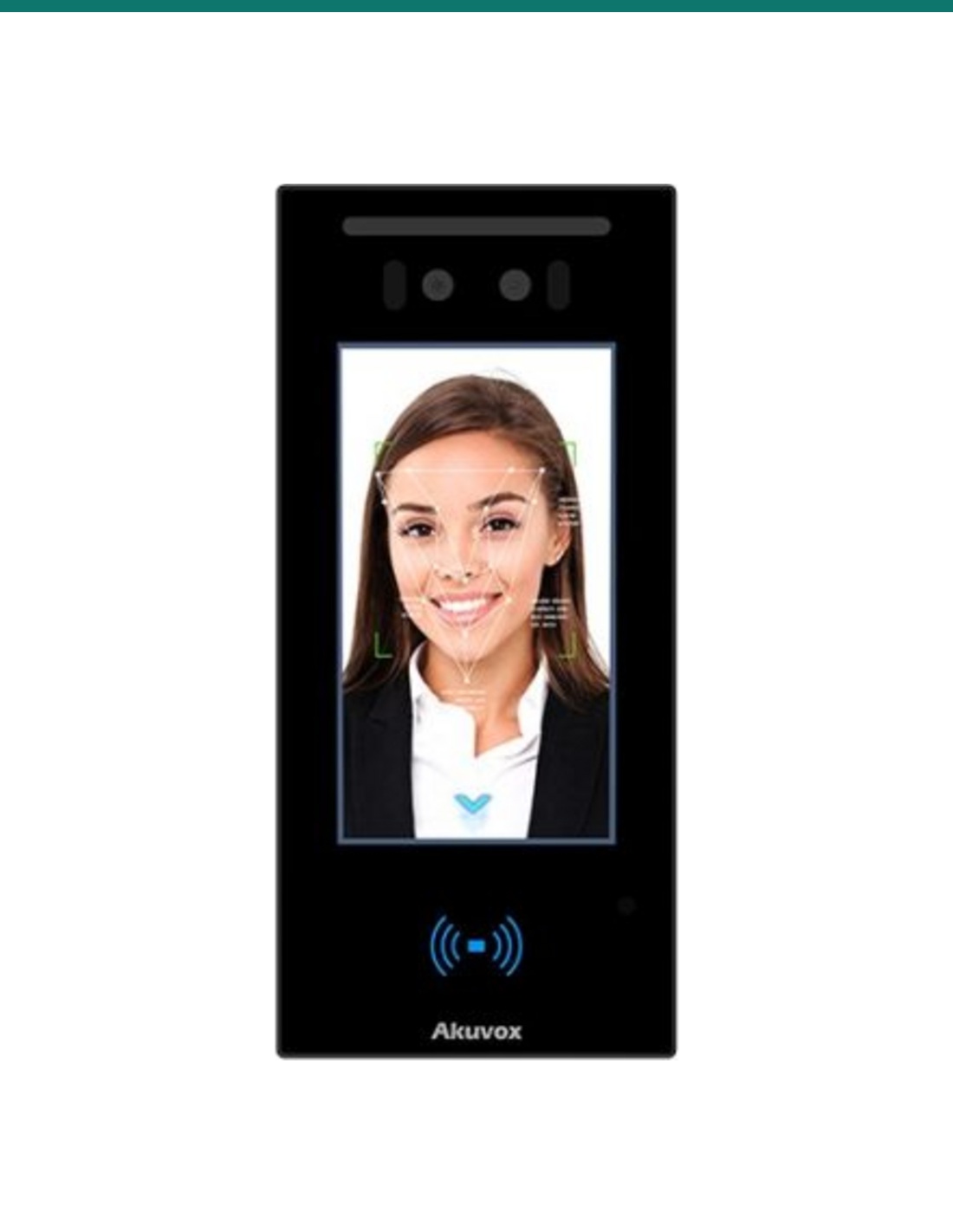

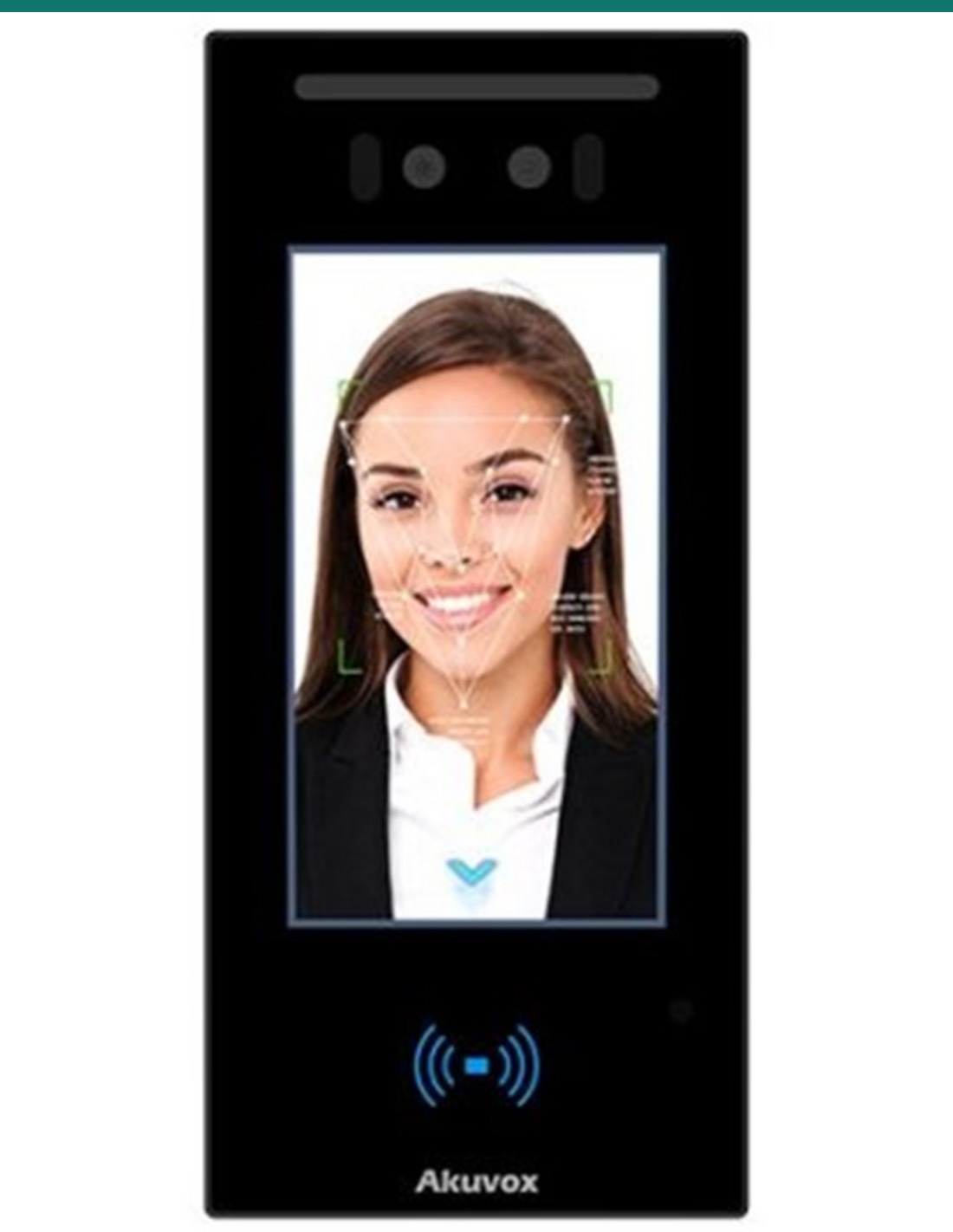

Akuvox A05C 5″ Facial Recognition Access Control Terminal with Bluetooth — AK-A05C

SKU AK-A05C In Stock - Ready to Ship
$558.50 inc GST

Akuvox A05C is a 5-inch facial recognition access terminal. A 2 MP WDR camera with infrared liveness detection recognises enrolled faces in under 200 ms and rejects photos and videos, while 13.56 MHz cards, NFC, Bluetooth and QR codes cover everyone else. IP65, PoE, Wiegand and RS485.

  • ✓Face recognition in under 200 ms with IR anti-spoofing
  • ✓Also opens by 13.56 MHz card, NFC (Android), Bluetooth 5.0 and QR code
  • ✓20,000 faces, 20,000 cards and 50,000 access logs
  • ✓PoE 802.3af or 12 V DC · IP65 · Wiegand · RS485 · 1 relay

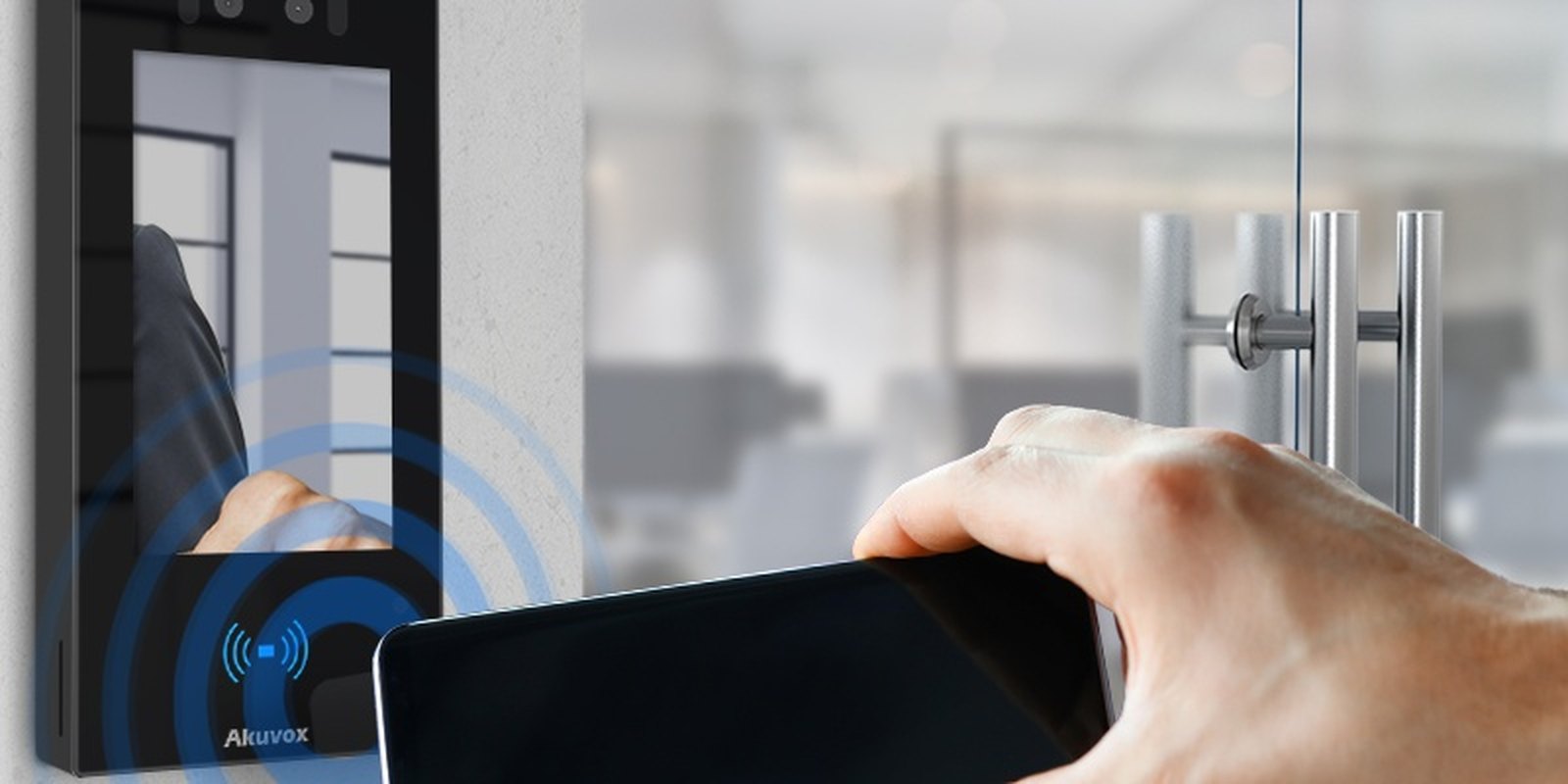

Phone unlocking an Akuvox A05C access terminal over NFC

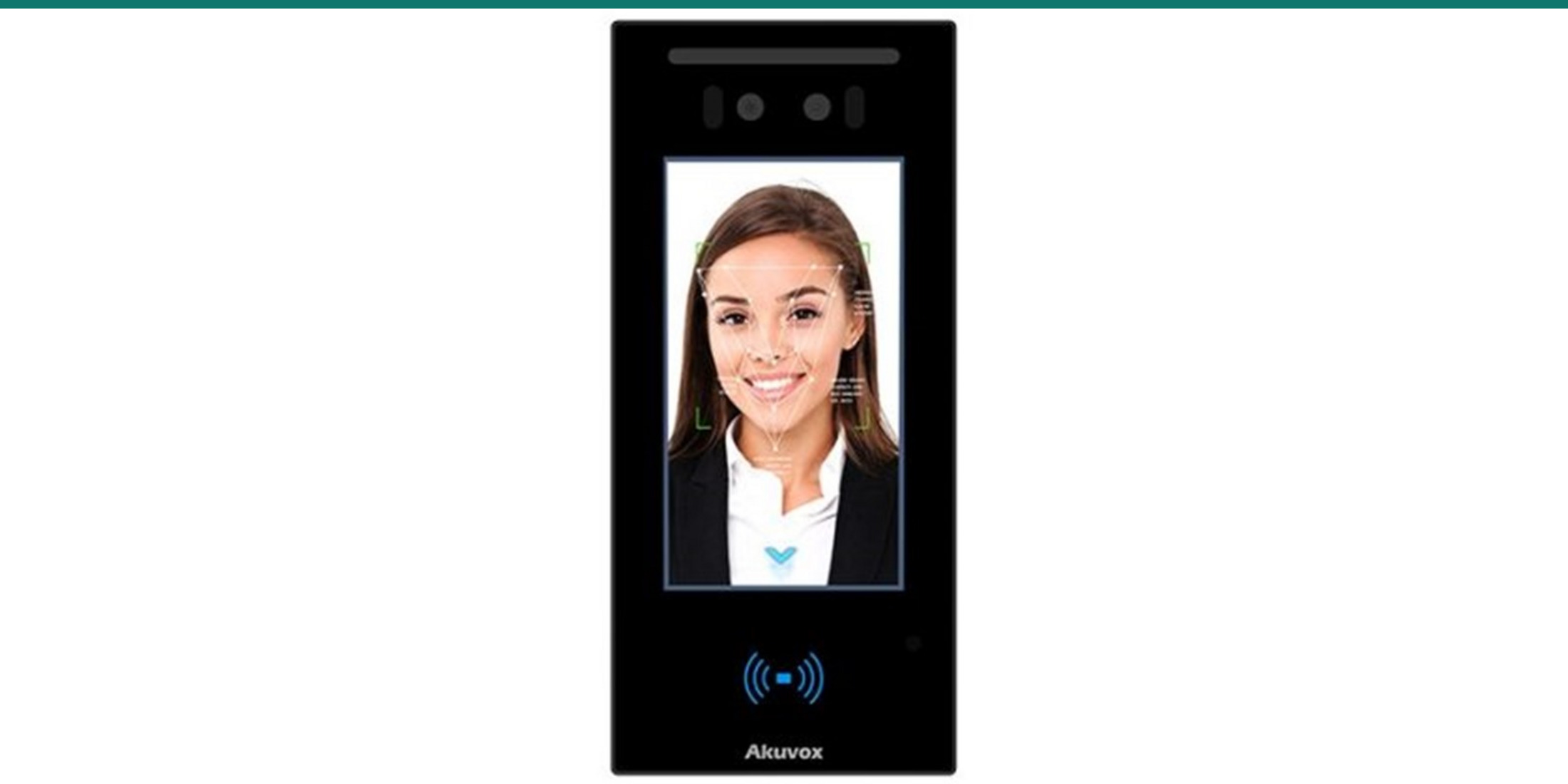

Akuvox · A05C · Facial recognition terminal

Walk up, look, walk in.
Face recognition in under 200 ms.

The AK-A05C is Akuvox’s A05C: a slim 5-inch access terminal that opens the door by face. An infrared liveness check stops photos and videos, and the same unit also reads cards, Android NFC, Bluetooth and QR codes — so nobody is left at the door.

This SKU is the access terminal only.

You receive the A05C terminal for surface mounting. The in-wall kit, rain hood, cards, Bkey fobs, exit button, lock and lock power supply are sold separately.

In the box
  • Akuvox A05C facial recognition terminal
  • Mounting hardware
  • Quick-start guide
What you also need (sold separately)
  • PoE 802.3af switch or injector (or a 12 V DC supply)
  • Electric strike or maglock with its own power supply
  • E16/A05 in-wall kit for flush mounting
  • E16/A05 rain hood for exposed surface installs

Hands-free entry that cannot be fooled by a photo.

Enrolled staff and residents simply look at the screen. For visitors, contractors and anyone not enrolled, a card, phone or QR code does the job — and every entry lands in the same log.

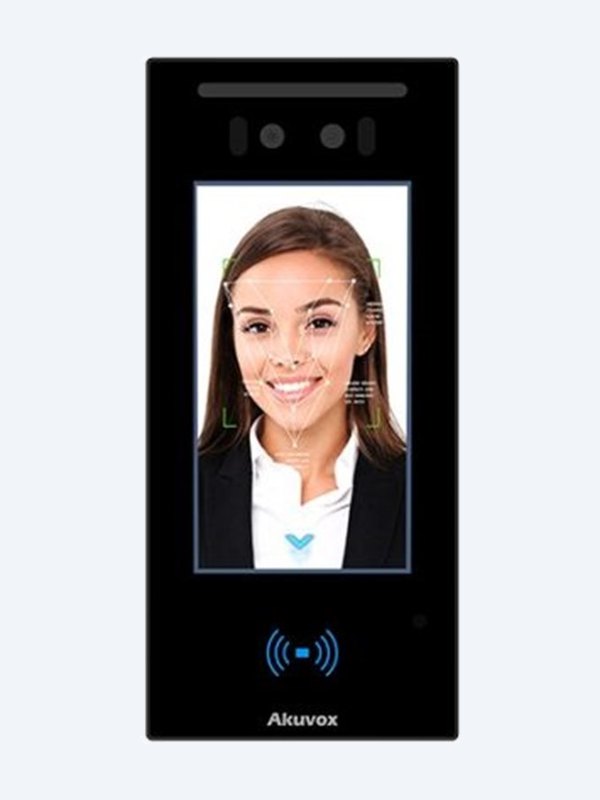

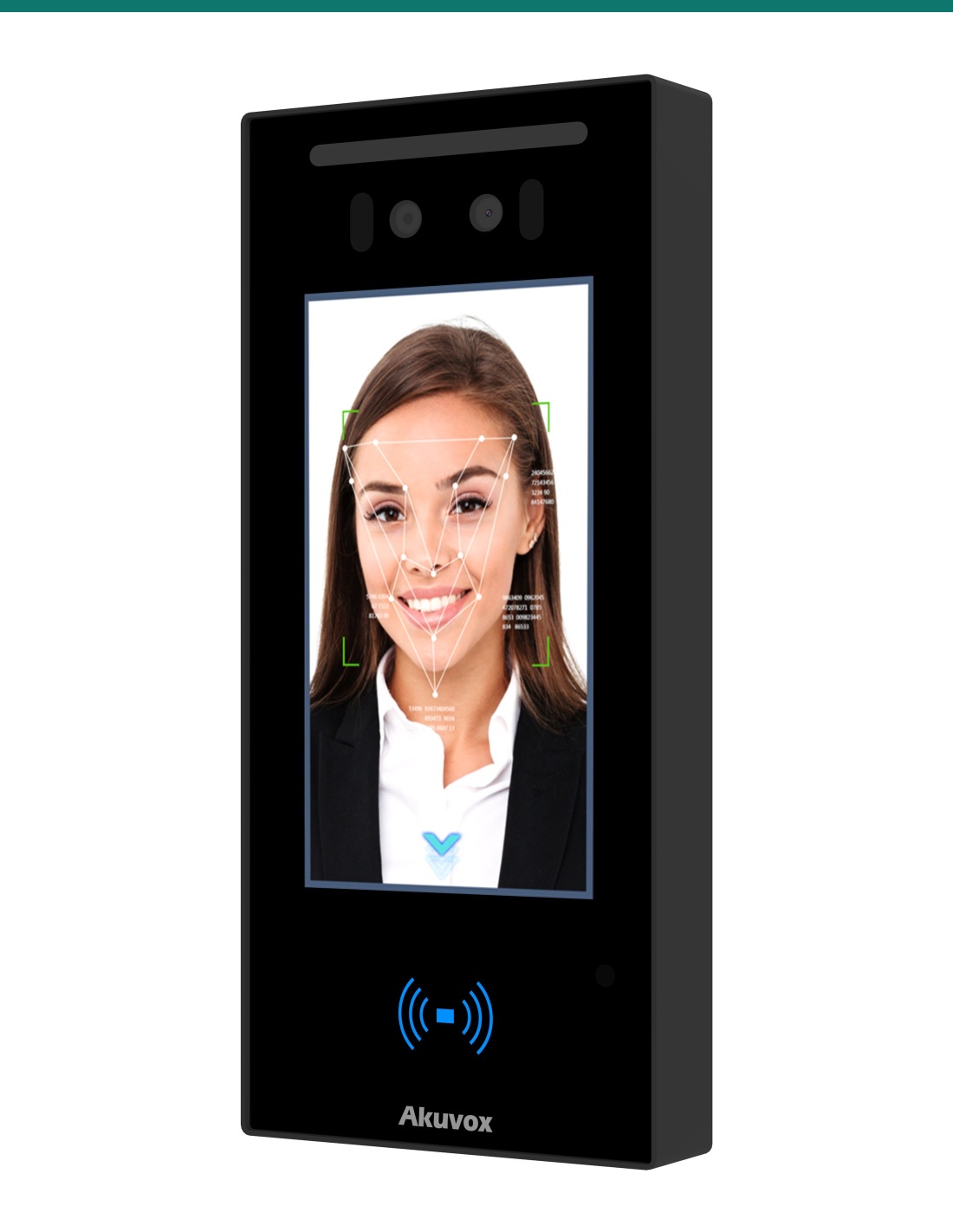

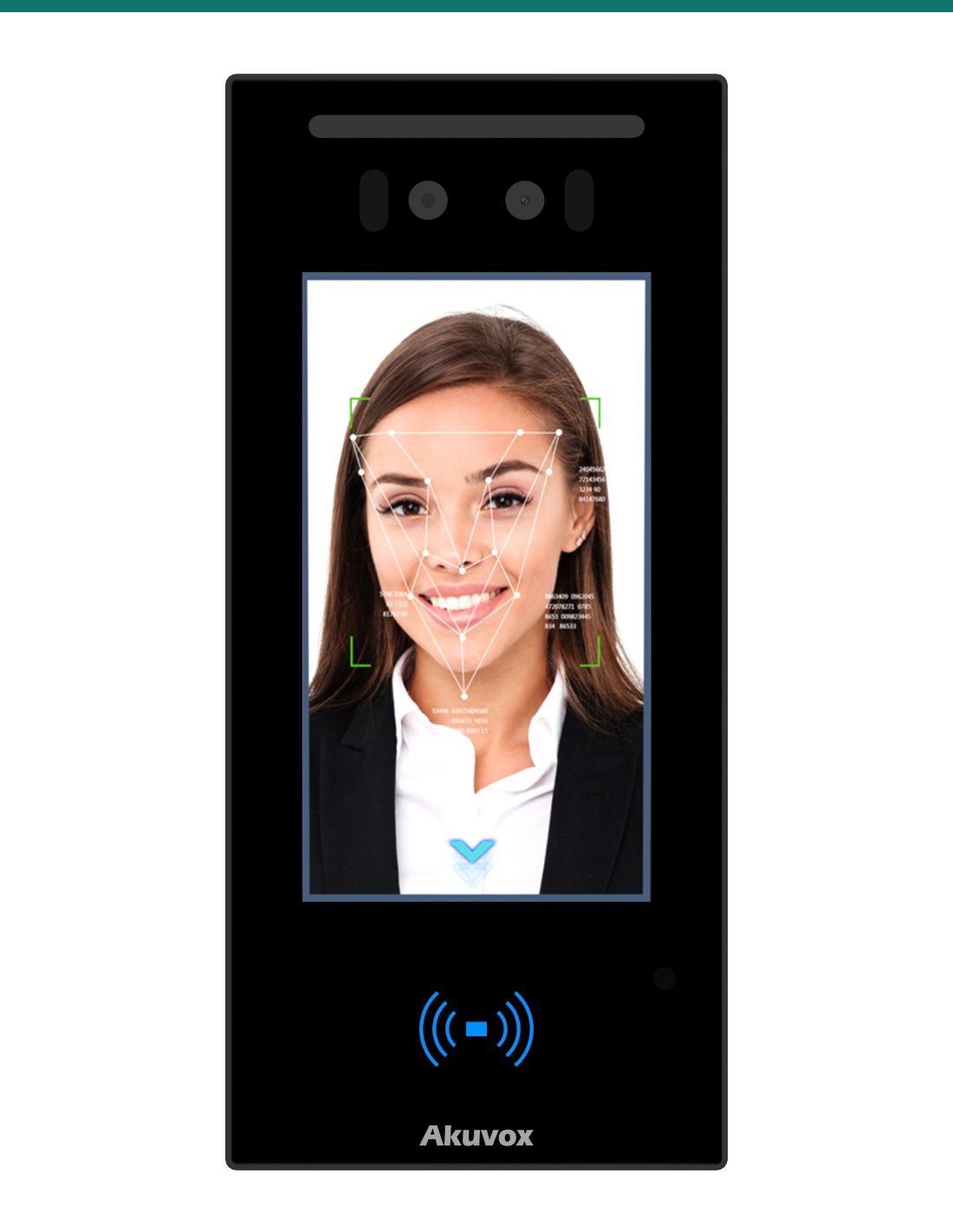

Akuvox A05C facial recognition terminal front view

Face

A 2 MP camera that checks for a real face.

The 2 MP WDR camera recognises an enrolled face in under 200 ms and stores up to 20,000 faces. Its view is 36° across and 62° top to bottom, so tall and short users are both in frame.

Infrared liveness detection rejects printed photos and videos on a screen. The 5-inch 720 × 1280 IPS display shows the user their result.

Every credential

Card, phone or QR when a face is not enrolled.

The reader takes 13.56 MHz cards — up to 20,000 — and Android phones over NFC. Bluetooth 5.0 lets enrolled phones and Akuvox Bkey fobs unlock too.

QR codes suit visitors and deliveries who have no card and are not enrolled for face access.

Wiring

Controller on board, readers off it.

A relay output drives the lock and an input takes an exit button. A tamper alarm covers removal from the wall.

Wiegand and RS485 connect it to an Akuvox or third-party access controller. IP65 lets it work outdoors from −20 °C to +60 °C.

How it works

From wall to face-only entry.

01

Mount

Surface-mount on the supplied bracket, or flush-mount with the E16/A05 in-wall kit. Add the rain hood on exposed walls.

02

Power and wire

Run PoE to the RJ45, then wire the relay to the lock supply and the input to the exit button.

03

Enrol faces

Enrol faces and cards through the web portal, Akuvox Cloud or ACMS, and set schedules and access levels.

04

Test

Check recognition for several users, try a photo to confirm it is refused, and test card, NFC and Bluetooth.

Pair it with

Builds a complete hands-free door

Flush

E16/A05 in-wall kit

Box, bracket and trim to recess the A05C into the wall.

Weather

E16/A05 on-wall rain hood

Shades the screen and camera on surface-mounted outdoor installs.

Bluetooth

Akuvox Bkey fob

A Bluetooth credential for users who prefer a fob to their face or phone.

Credentials

13.56 MHz cards

Akuvox 13.56 MHz cards for visitors and backup entry.

Works with

Platforms and integrations

Wiegand access controllers

The Wiegand port connects the A05C to an Akuvox or third-party access controller as a face and card reader.

RS485 devices

RS485 links the terminal to compatible controllers and relay modules on longer cable runs.

Bluetooth credentials

BLE 5.0 lets enrolled phones and Akuvox Bkey fobs open the door alongside face, card and QR code.

Watch

See it in action

Akuvox A05 access control terminal overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Can someone get in with a photo of an enrolled face?

No. The A05C uses dual infrared camera liveness detection to reject printed photos and videos played on a screen.

How many faces can it store?

Up to 20,000 faces, plus 20,000 cards and 50,000 access log entries. Recognition takes under 200 ms.

Which cards does it read?

13.56 MHz cards, plus NFC from Android phones. It does not read 125 kHz cards.

What else can open the door?

Bluetooth 5.0 from an enrolled phone or Akuvox Bkey fob, and QR codes — handy for visitors who are not enrolled.

Does it measure body temperature or detect masks?

No. Those functions are only on the A05C (MD01) and A05C (MD02) module versions; this SKU is the standard A05C.

How is it powered and wired?

IEEE 802.3af PoE or 12 V DC. It has one relay output, one input, Wiegand and RS485; the lock needs its own power supply.

Can it be flush-mounted?

It surface-mounts on the supplied bracket as standard. For a flush finish use the Akuvox E16/A05 in-wall installation kit, sold separately.

Facial recognition access.

Choose the A05C for offices, gyms and apartment lobbies where hands-free entry matters. Add the in-wall kit for a flush finish.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3af or 12 V DC
Colour
Black
Capacity
20,000 faces, 20,000 cards, 50,000 logs
Working Temperature
−20 °C to +60 °C
Brand
Akuvox
Display
5″ IPS LCD, 720 × 1280
Bluetooth
BLE 5.0
Protection
IP65
Camera
2 MP WDR, 36° (H) / 62° (V)
Size
192 × 88 × 27.5 mm (H × W × D)
Warranty
Australian warranty
Product Type
Facial recognition access control terminal
Model
A05C
Finish
Plastic housing
Unlock
Face, 13.56 MHz card, NFC (Android), Bluetooth, QR code
Interfaces
Wiegand, RS485, RJ45 10/100 Mbps
Anti-spoofing
Dual IR camera liveness detection
Recognition Speed
Under 200 ms
Relay In / Out
1 / 1
Akuvox EB11 silver stainless press-to-exit button with blue LED
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox EB11 Silver Stainless Steel Press-to-Exit Button with Blue LED — AK-EB11-SILVER

Akuvox
AK-EB11-SILVER
$ 25.00
Akuvox EB11 is a brushed stainless steel exit button with a vandal-resistant push button and blue LED ring. Clear “PRESS TO EXIT” wording, IK10 impact rating and a tall 115 × 70 mm plate for single-gang wall boxes.✓Vandal-resistant mechanical push button with blue LED✓Brushed 1.7 mm stainless steel plate, “PRESS TO EXIT” print✓IK10...
Akuvox Bkey Bluetooth key fob — front Akuvox Bkey Bluetooth key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox Bkey Black Bluetooth Door-Opening Key Fob — AK-BKEY

Akuvox
AK-BKEY
$ 19.50
Akuvox Bkey is a Bluetooth key fob with one button. Press it as you approach and a compatible Akuvox door phone or access terminal unlocks — up to 15 m away on long-range models. Encrypted BLE, a CR2032 battery and a key-ring loop. Sold as one fob.✓Press-to-open over encrypted Bluetooth Low Energy✓Akuvox-tested range up to 15 m (R29C, X915...
Akuvox S50 black MIFARE Classic 1K card — front Akuvox S50 black MIFARE Classic 1K card — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50

Akuvox
AK-CARD-S50
$ 6.20
Akuvox S50 is a 13.56 MHz MIFARE Classic 1K card in standard ISO card size, slot-punched for a lanyard. It is Akuvox’s everyday card for its door phones and access terminals. Sold as a single card.✓MIFARE Classic 1K (S50), 13.56 MHz, ISO 14443A✓Reads on Akuvox door phones and access terminals with 13.56 MHz readers✓Slot-punched PVC...
Akuvox MD02 forehead temperature module — front Akuvox MD02 forehead temperature module — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

Akuvox MD02 Forehead Temperature Detector Module for E16C, E18C and A05C — AK-MD02

Akuvox
AK-MD02
$ 420.50
Akuvox MD02 is the digital forehead temperature detector for the E16C and E18C face recognition door phones and the A05C access terminal. It checks forehead temperature at 0.3 to 1 m as people are recognised.✓Contactless forehead measurement at 0.3 m to 1 m✓Range 34 °C to 45 °C, 0.1 °C accuracy, ±0.3 °C deviation✓For Akuvox E16C and...
Akuvox E16 / A05 black on-wall rain hood — right three-quarter view Akuvox E16 / A05 black on-wall rain hood — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

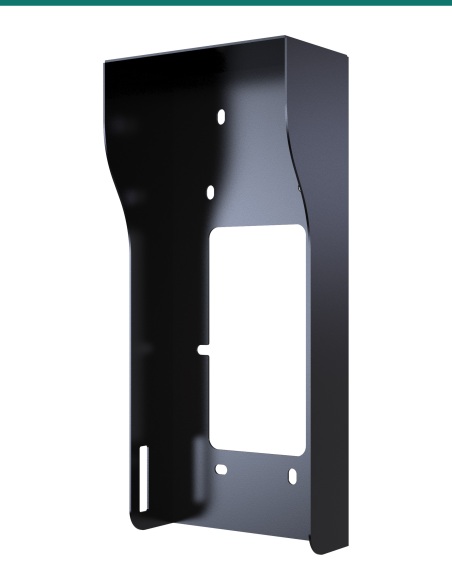

Akuvox E16 / A05 Black On-Wall Rain Hood — AK-E16-ONWALLH

Akuvox
AK-E16-ONWALLH
$ 57.30
Akuvox AK-E16-ONWALLH is the on-wall rain hood for the E16C facial recognition door phone and the A05C access terminal. The black hood shades the screen and cameras and keeps rain off the glass on surface-mounted installs.✓On-wall rain hood for the Akuvox E16C and A05C✓208 × 94 × 50 mm; fixes to an 86 × 86 mm wall box or straight to the...
Akuvox E16 / A05 in-wall box and decoration panel — right three-quarter view Akuvox E16 / A05 in-wall box and decoration panel — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

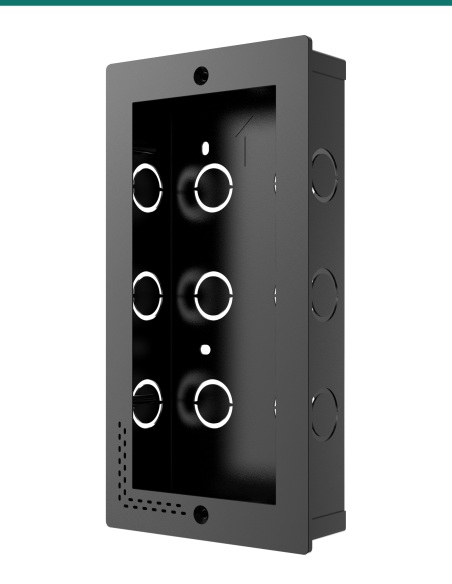

Akuvox E16 / A05 Black In-Wall Installation Kit for Flush Mounting — AK-E16-INWALL
