SIP door communication over a 2-wire platform

The key specification here is the combination of SIP communication and 2-wire connectivity. SIP matters because it places the entry station into a standards-based voice/video intercom environment rather than a closed analogue-only endpoint. For the installer, that improves system planning when the project also includes compatible indoor monitors, managed call routing and broader IP-based intercom architecture at the head end.

The 2-wire format matters just as much in refurbishment work. Existing cable pathways at doors and gates are often constrained, buried or finished behind masonry. A 2-wire solution can reduce disruption while still delivering the features the client now expects: visitor video, remote conversation and controlled release tied to a modern building entry workflow.

Single-button operation keeps the entry experience direct

A single call button is the right fit when the station is serving one tenancy, one office suite, one reception point or one gate destination. There is no scroll directory, no multi-resident lookup and no unnecessary complexity at the visitor interface. Press to call, verify by video, speak through the intercom path and release the door or gate if authorised.

Integrated RFID card reading adds an everyday access path for staff, residents or approved users. That means the entry panel is not only for visitor interaction; it also becomes part of the site’s regular credential workflow. For smaller managed premises, this can simplify hardware at the door by combining call, video and credential presentation in one outdoor station.

One outdoor station that handles calling, verification and presentation

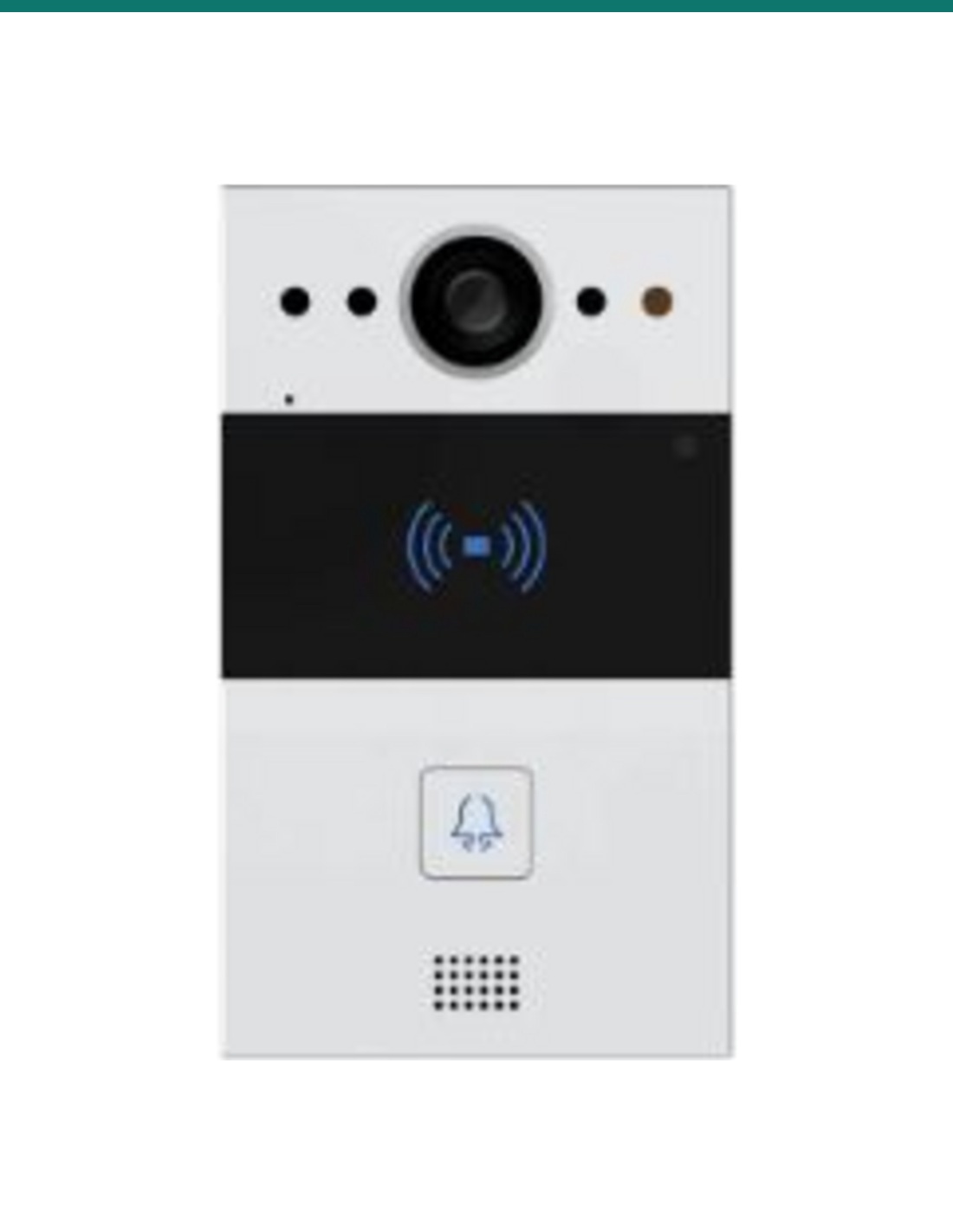

The AK-R20A-2 condenses several door-edge functions into a single enclosure. The integrated camera provides visual confirmation during a call, the single-button interface keeps operation obvious for visitors, and the built-in card reader supports repeat user access without needing a separate external reader nearby. That can help produce a neater entry elevation and reduce device count around the door frame.

For installers, this makes the product especially relevant where there is limited surface area, constrained conduit entry or a client preference for a minimal façade. It also suits projects where visitor communication and basic credential access need to be delivered together without moving into a full multi-module door station arrangement.

How the entry sequence works on site

Typical deployment is straightforward: visitor initiation, remote answer, visual verification and controlled release, with credential entry available for authorised users.

Indoor SIP monitor

For answering calls, viewing the camera feed and triggering door release from inside the premises.

Electric strike or gate release hardware

Matched locking hardware is required to convert intercom authorisation into a physical door or gate unlock event.

RFID cards or tags

Required where residents or staff need repeat access using the built-in reader rather than relying only on remote release.

Compatible 2-wire intercom system components

Appropriate distribution, conversion or system-side components should be selected to suit the overall Akuvox deployment topology.

Is this suitable for retrofit projects where only older door cabling is available?

It is intended as a 2-wire system device, which makes it relevant for retrofit scenarios where re-cabling with new network infrastructure may be difficult. Final suitability still depends on the broader system design and cable condition on site.

Does the panel support video as well as audio calling?

Yes. The supplied product context confirms an integrated camera, making it a video intercom entry station rather than an audio-only door phone.

What kind of access method is built into the station?

The unit includes a built-in RFID card reader, allowing authorised users to present a credential at the panel for access, subject to system programming and connected lock hardware.

Is the call button intended for multiple apartments or a single destination?

This model is described as a single-button calling station, so it is best aligned with one destination or a simplified call path rather than a directory-style multi-resident panel.

Can it be used at an external entrance?

Yes. It is identified as an outdoor entry station for door communication and access control, making it suitable for installation at external entry points subject to correct mounting and environmental practice.

What else should be confirmed before ordering?

Confirm system compatibility, indoor receiving device selection, required lock interface, credential type, mounting arrangement and any exact environmental or dimensional requirements from the official Akuvox documentation.
