Akuvox S562W-2 white 7-inch 2-wire indoor monitor — front

Akuvox S562W-2 White 7″ Wi-Fi 6 2-Wire Linux SIP Indoor Monitor — AK-S562W-WHITE-2

Name: Akuvox S562W-2 White 7″ Wi-Fi 6 2-Wire Linux SIP Indoor Monitor — AK-S562W-WHITE-2
Brand: Akuvox
SKU: AK-S562W-WHITE-2
Price: 274 AUD
Availability: InStock

Reference: AK-S562W-WHITE-2

In Stock - Ready to Ship

$ 274.00

inc-GST

or 4 interest-free payments of $68.50 with

Akuvox S562W-2 in white is a 7″ Linux touch monitor for the Akuvox 2-wire IP system — it runs over the two wires an old analogue intercom already uses, then joins the home network by Wi-Fi 6 or Ethernet. Stocked in Australia by Infront Technologies.

✓7″ capacitive touch screen, 1024 × 600, energy-saving mode
✓Two 2-wire ports plus Wi-Fi 6 (2.4 GHz) and a 10/100 RJ45 port
✓Powered by an Akuvox NS-2 over the 2-wire line, 48 V DC or PoE 802.3af
✓8 alarm inputs, 1 relay, bell input, RS485 · 216.4 × 118.8 × 21.7 mm

Akuvox · S562W-2 · White 2-wire indoor monitor

Keep the old intercom wires.
Get a 7″ smart monitor.

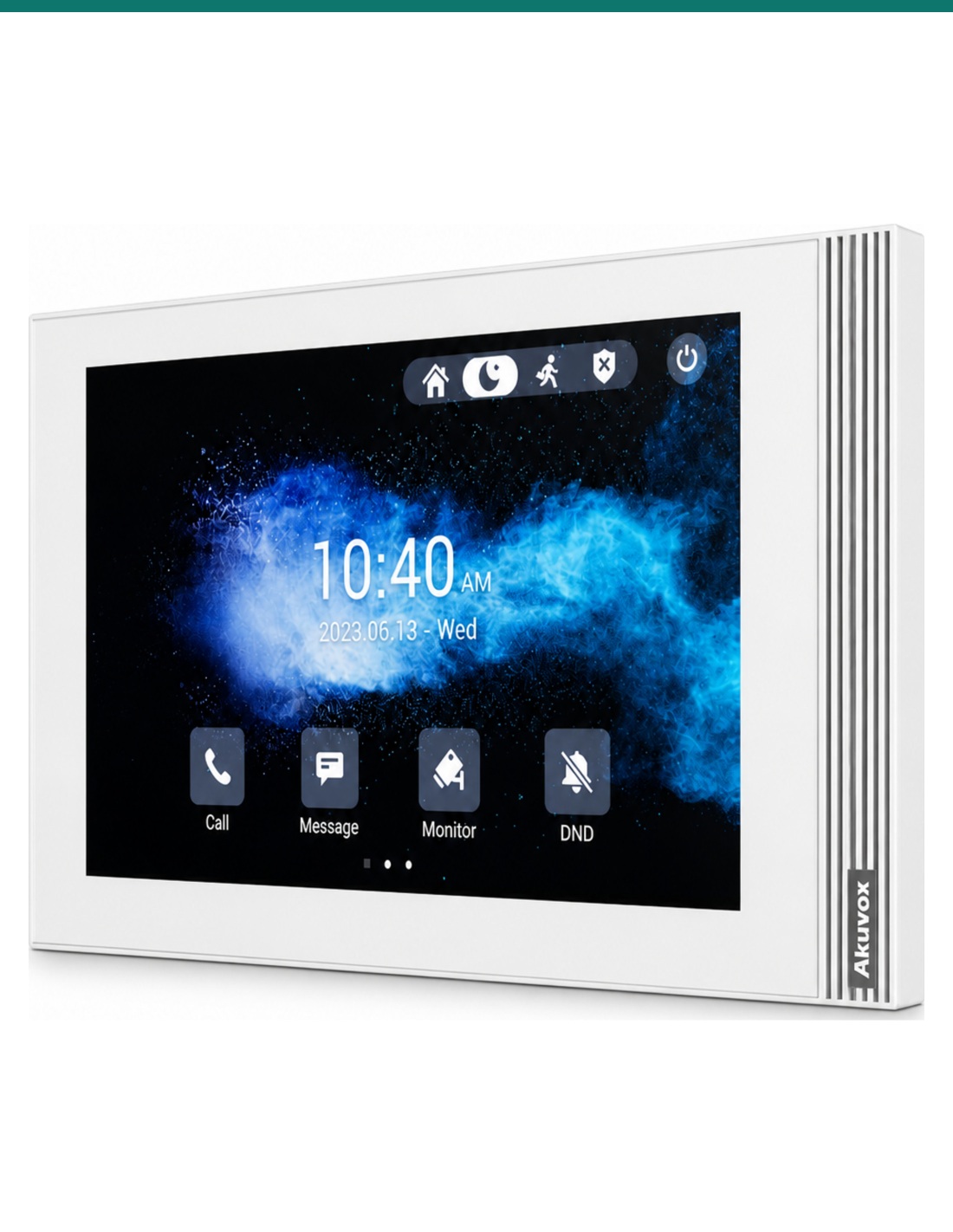

The AK-S562W-WHITE-2 is Akuvox’s S562W-2 in white: the slim 7″ S562 monitor with two 2-wire ports, so it can replace an analogue handset on the existing pair while still talking SIP to Akuvox door phones, the SmartPlus app and IP PBXs.

This SKU is the indoor monitor only.

You receive the white S562W-2 monitor and its wall bracket. The 2-wire door phone, NS-2 switch or power supply, and lock hardware are sold separately — or choose an Akuvox 2-wire kit.

In the box

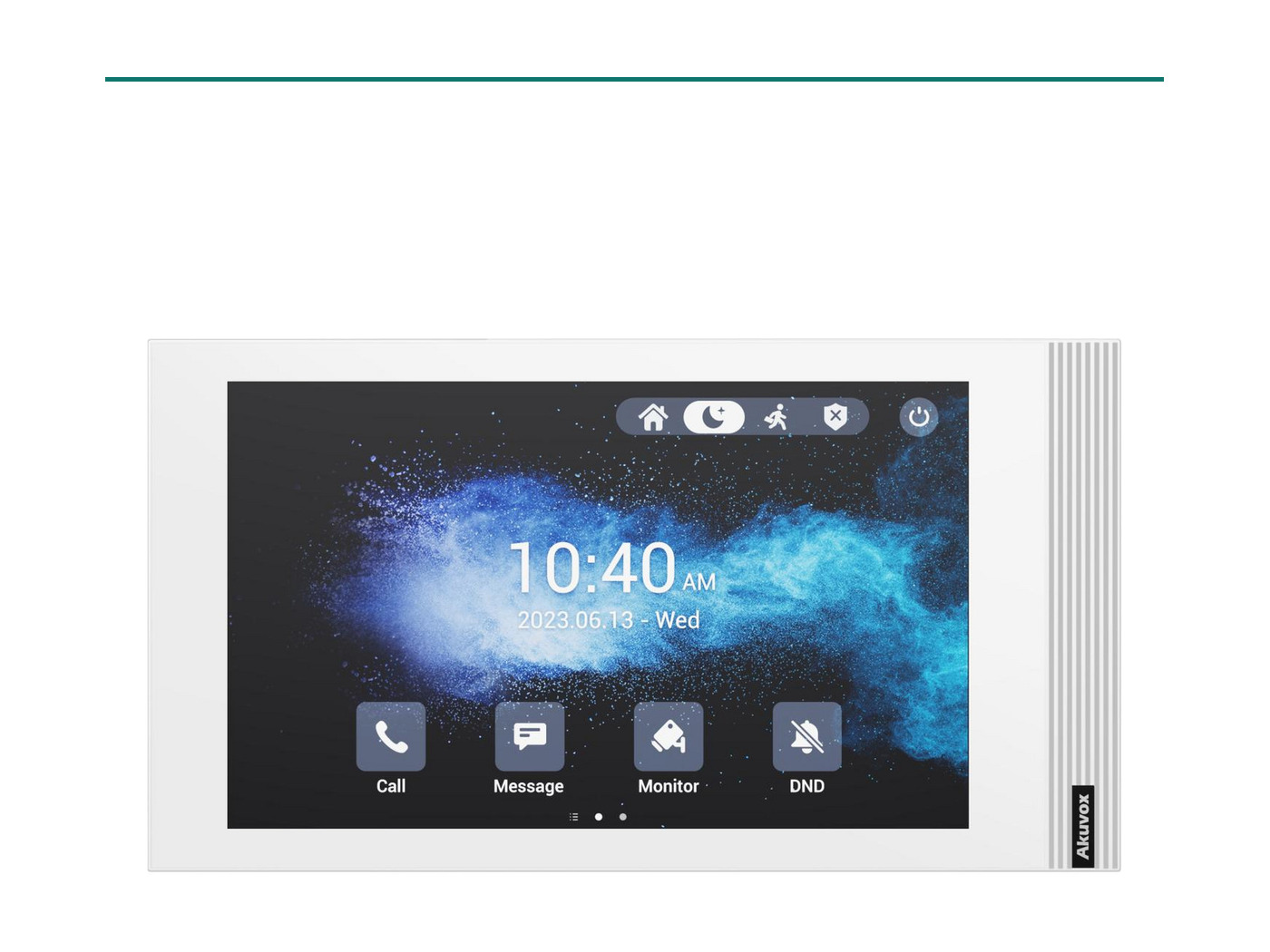

Akuvox S562W-2 indoor monitor (white)
Wall-mounting bracket
Wiring cables and fixings

What you also need(sold separately)

Akuvox 2-wire door phone (R20A-2, R20K-2 or E12S-2)
Akuvox NS-2 switch with 48 V DIN-rail supply, or a 48 V DC supply
S562 desk stand or surface-mount angle box if not using a wall box
Electric lock and lock PSU if the relay releases a door

A modern answering screen on old cabling.

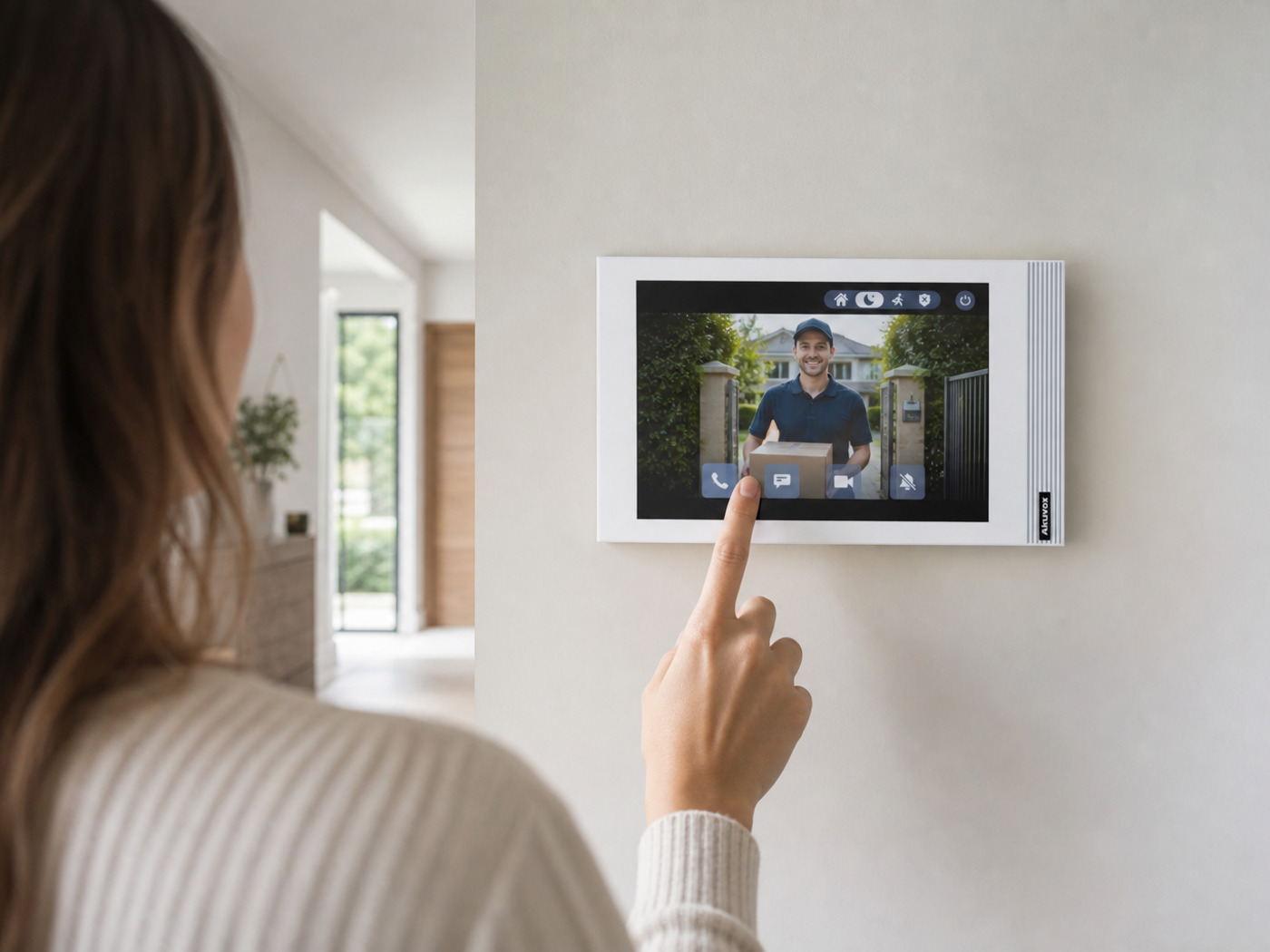

Residents see and talk to visitors, release the door and answer from their phones — without chasing new Cat6 through finished walls. The 2-wire pair carries both power and data.

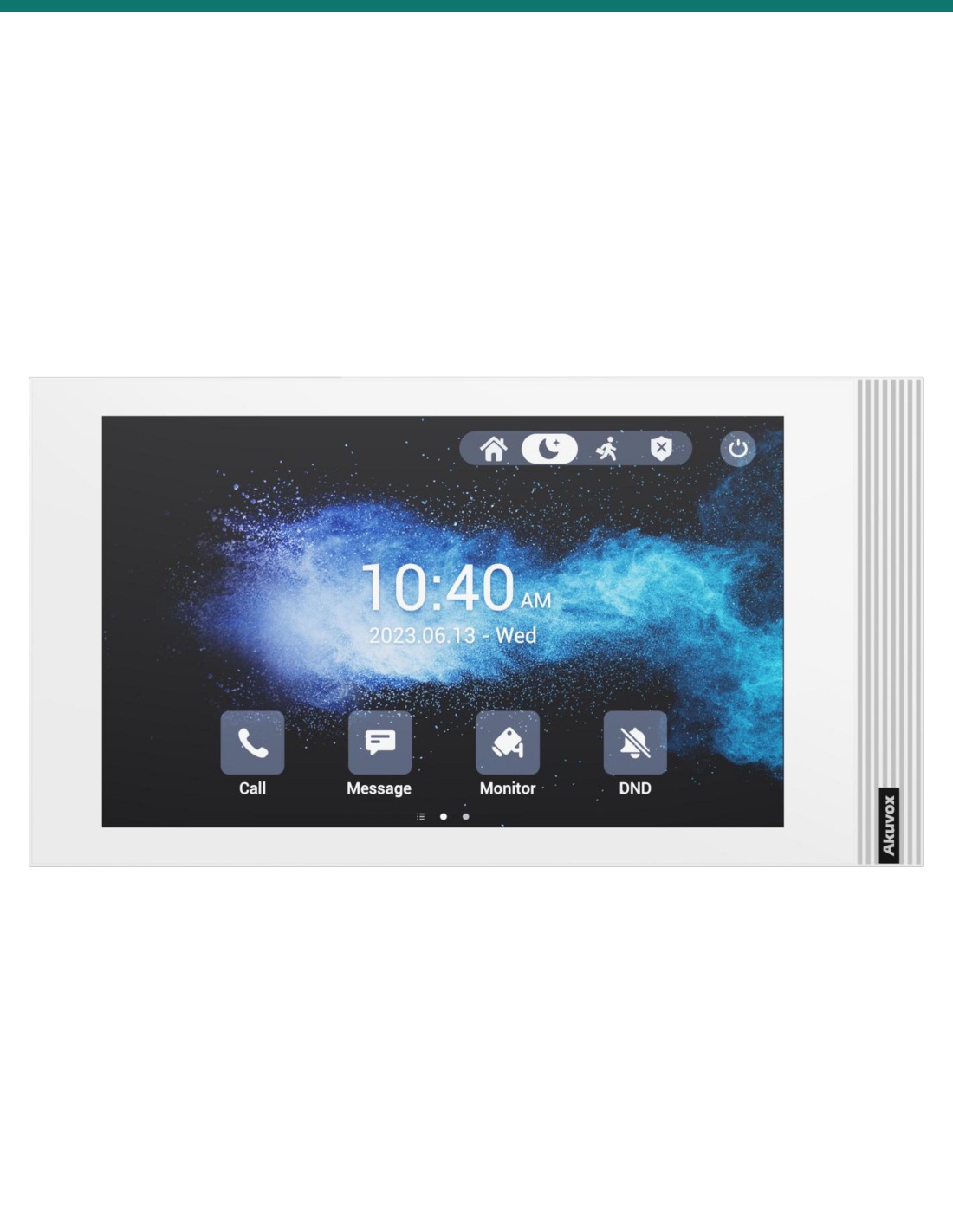

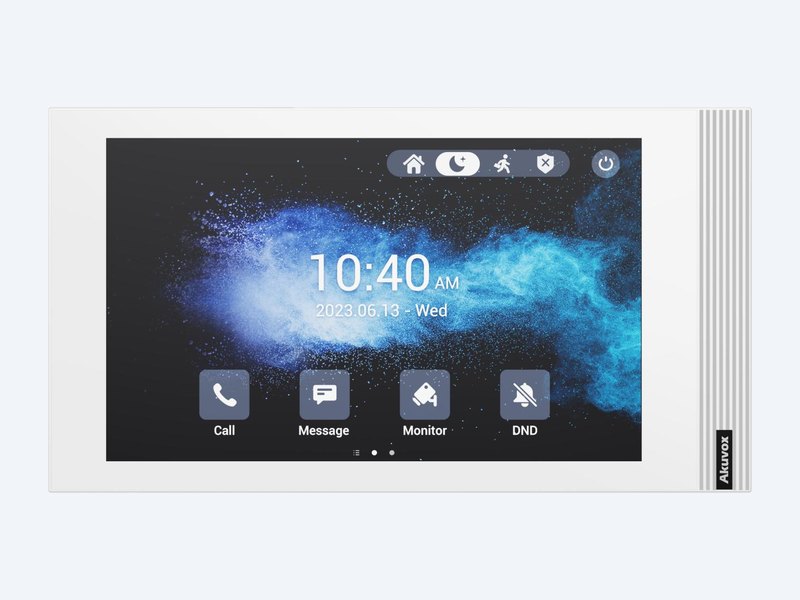

Akuvox S562W-2 white indoor monitor front view

2-wire

Two wires carry power and data.

Two 2-wire ports let the S562W-2 sit on the pair an analogue handset used, wired straight to an Akuvox 2-wire door phone or back to an NS-2 switch.

With an NS-2 on a 48 V supply, Akuvox rates runs of up to 300 m on 18–24 AWG cable when each device has its own pair.

Wi-Fi 6

Wi-Fi 6 for the SmartPlus link.

802.11 b/g/n/ax at 2.4 GHz connects the monitor to the home router without a data cable, so calls can also ring the Akuvox SmartPlus app.

A 10/100 RJ45 port is there when Ethernet is available, and it can also take PoE 802.3af power.

Wi-Fi 6 on the Akuvox S562W-2 indoor monitor

Screen

7″ touch with a sharper picture.

1024 × 600 capacitive touch screen at 250 nits, with an energy-saving mode. Two-way SIP audio and H.264 video with echo cancellation.

Eight alarm inputs, one relay, a bell input and RS485 add security sensors, a local door release and a doorbell. Mounts on US or European wall boxes, or on a desk stand.

How it works

From the old handset to video calls.

Reuse the pair

Connect the existing two wires to a 2-wire port — from the door phone directly, or from an NS-2 port.

Power

Let the NS-2 power it over the pair, or use a 48 V DC supply or PoE.

Join the network

Connect Wi-Fi 6 or Ethernet so SmartPlus and remote access work.

Call and release

At a glance

Key specs — AK-S562W-WHITE-2

Brand: Akuvox
Reference: AK-S562W-WHITE-2
Colour: White
Front panel: Plastic
Display: 7″ TFT LCD, 1024 × 600, 250 nits, 300:1
Touch screen: Projected capacitive
Wi-Fi: IEEE 802.11 b/g/n/ax (Wi-Fi 6), 2.4 GHz
2-wire ports: 2
Ethernet: 1 × RJ45, 10/100 Mbps
Power: NS-2 over 2-wire, 48 V DC connector, or PoE 802.3af
Consumption (48 V DC): Standby ≤4 W · full load ≤9 W
I/O: 8 alarm inputs, 1 relay out, 1 bell input, 1 × RS485
Audio: SIP v1 / v2, PCMU, PCMA, G.729, G.722, echo cancellation
Video: H.264
RAM / ROM: 128 MB / 128 MB
Installation: Wall-mounted (US or European wall box) or desktop
Size: 216.4 × 118.8 × 21.7 mm
Working temperature: −10 °C to +45 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a 2-wire video intercom

Door

Akuvox 2-wire door phone

R20A-2, R20K-2 or E12S-2 connect over the same 2-wire pair with video and door release.

Power hub

Akuvox NS-2

Feeds power and network to up to six 2-wire devices from one DIN-rail switch.

Desk

S562 desk stand

Stand the monitor on a bench or bedside table instead of the wall.

Watch

See it in action

Setting up the S562W-2 and R20-2 2-wire kit

Akuvox 2-wire SIP video intercom overview

Answers

Common questions

How is the S562W-2 different from the S562W?

Same 7″ screen and slim housing, but the S562W-2 adds two 2-wire ports and can be powered by an Akuvox NS-2 or 48 V DC, so it runs over existing analogue intercom wiring.

Which door phones does it work with over 2 wires?

Akuvox 2-wire door phones: R20A-2, R20K-2 and E12S-2. Standard IP door phones can join the 2-wire network through an Akuvox NC-2.

Do I need an NS-2?

Not for a single monitor and door phone — Akuvox kits pair the S562W-2 with a door phone and a 48 V power adapter. Use an NS-2 when connecting several 2-wire devices.

How is the white version different from the grey?

Only the front colour. Screen, ports, power and features are the same.

Can residents answer on their phones?

Yes. With the monitor online over Wi-Fi 6 or Ethernet, calls can also go to the Akuvox SmartPlus app.

A smart monitor for 2-wire retrofits, local stock.

Choose the white S562W-2 for light interiors; the grey S562W-2 is the same monitor in a darker finish. For a smaller budget, the C313W-2 also runs on 2-wire with an 800 × 480 screen. Order through Infront Technologies for Australian stock and wiring advice.

Installation & safety notice

Low-voltage product (SELV). Power over the 2-wire line from an Akuvox NS-2, from a 48 V DC supply on the DC connector, or from IEEE 802.3af PoE on the RJ45 (≤9 W full load at 48 V DC), as stated on the Akuvox S562W-2 datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
