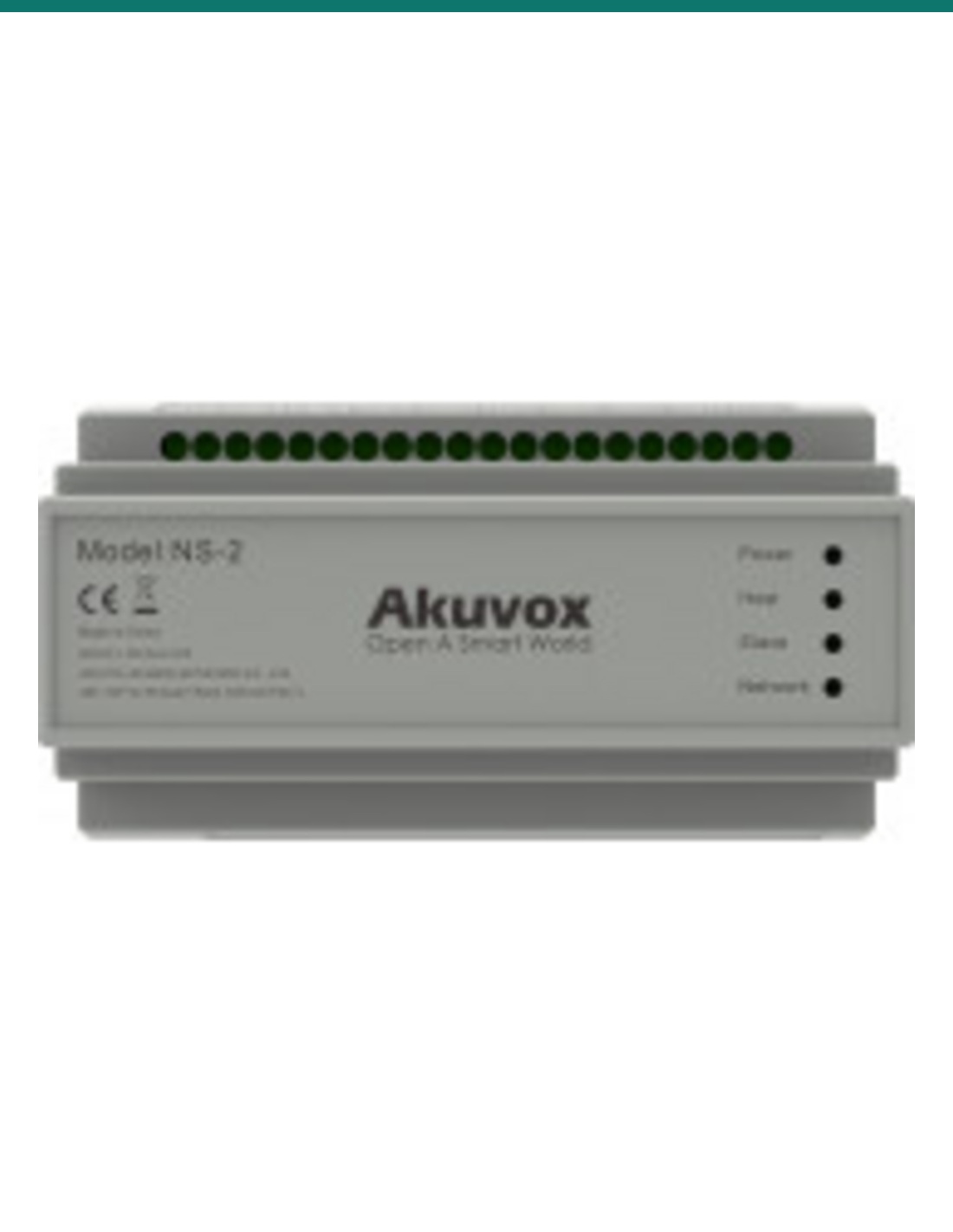

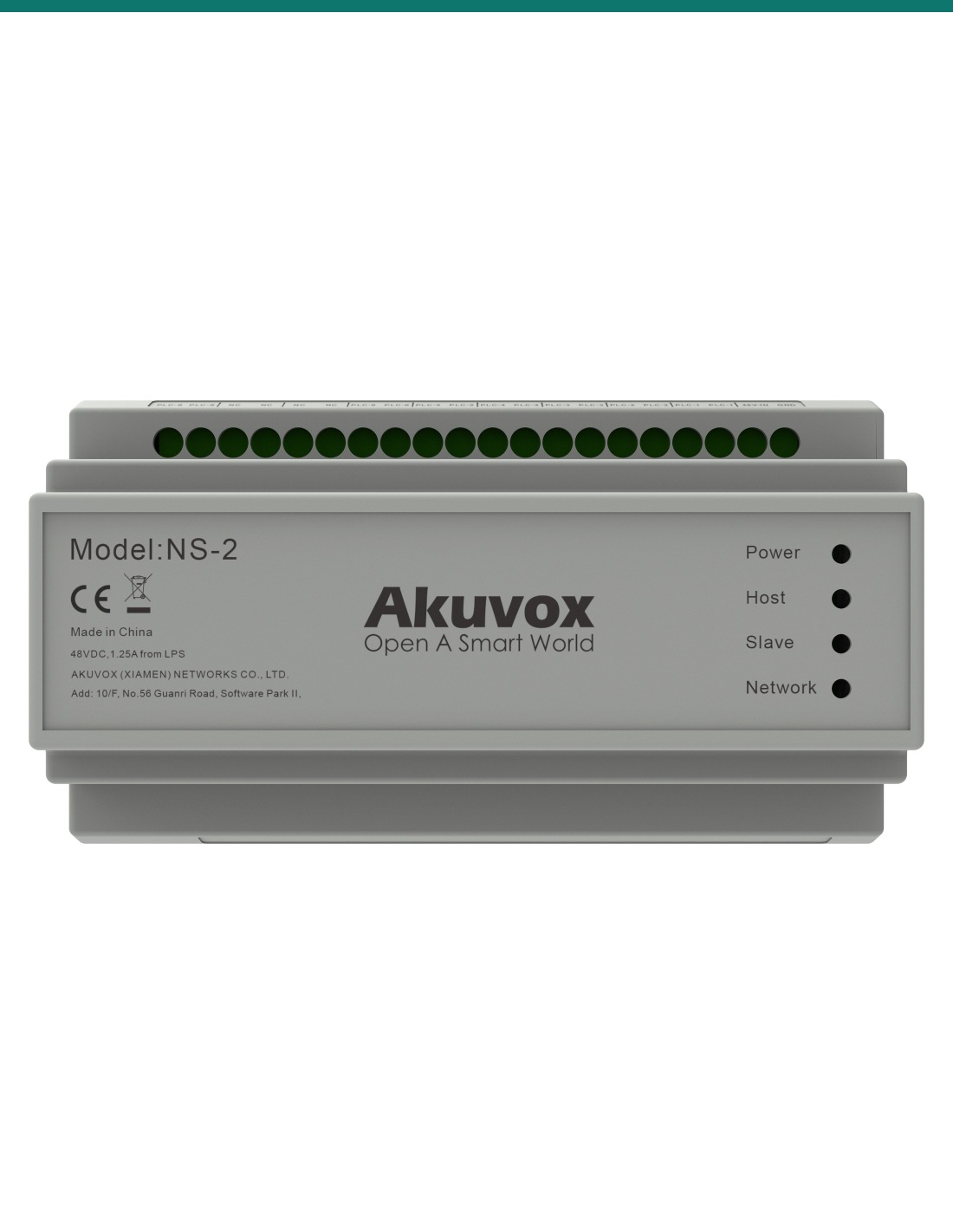

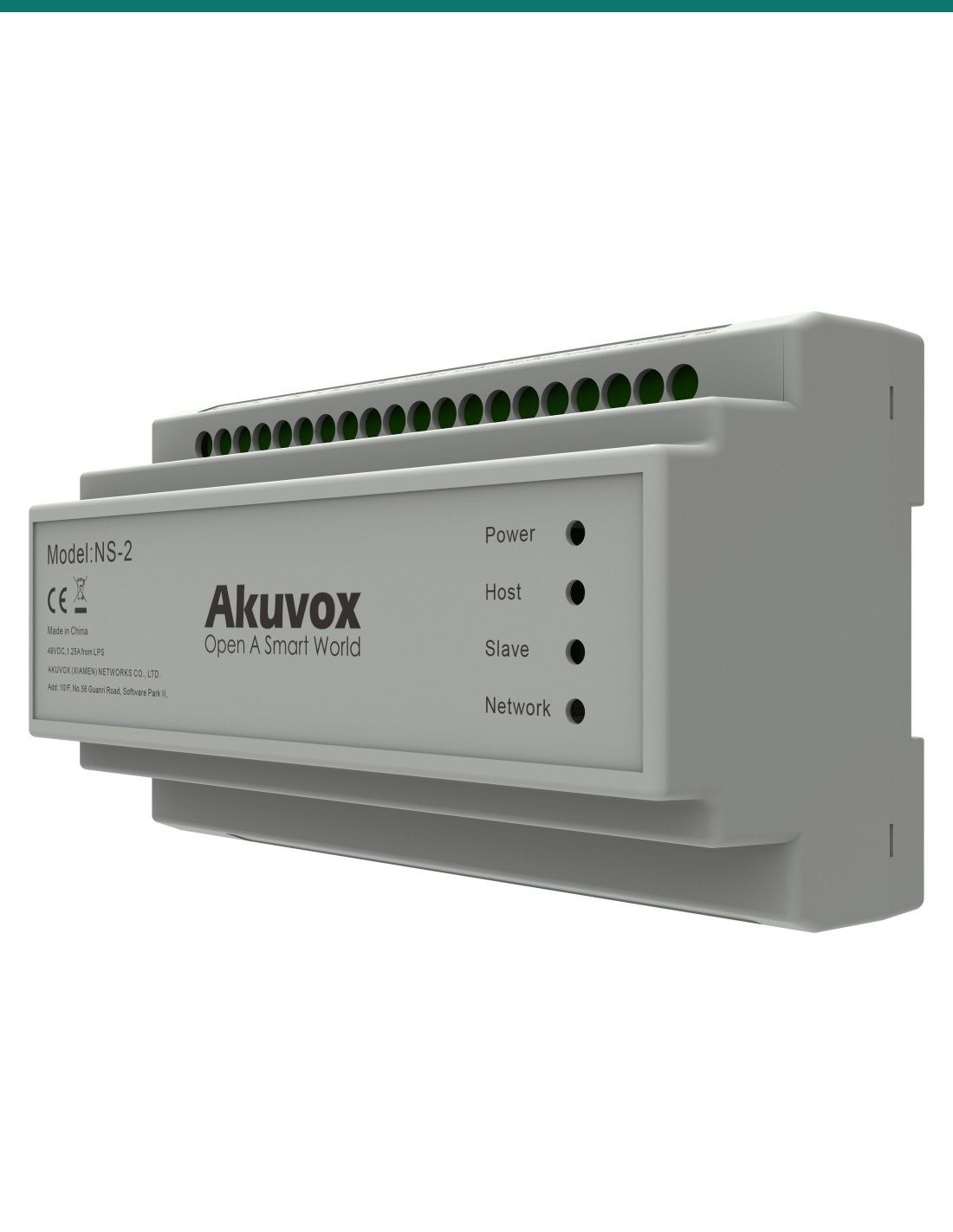

Akuvox NS-2 6-Port 2-Wire IP Network Switch for DIN Rail — AK-NS-2

SKU AK-NS-2 In Stock - Ready to Ship
$255.50 inc GST

Akuvox NS-2 is the heart of a multi-device Akuvox 2-wire system: a DIN-rail switch that connects to your LAN and sends both power and network down up to six existing two-wire pairs to Akuvox 2-wire door phones and monitors.

  • ✓6 × 2-wire ports plus 1 × RJ45 10/100 to the LAN
  • ✓Powers and networks R20A-2, R20K-2, E12S-2, C313W-2 and S562W-2
  • ✓48 V DC (1.25 A) or 24 V DC (2 A) input — supply sold separately
  • ✓Up to 300 m per run in star wiring at 48 V · DIN rail · 161 × 90 × 65 mm


Apartment tower — the kind of existing building the Akuvox NS-2 brings onto IP over its old intercom pairs
Akuvox · NS-2 · 2-wire IP network switch

Six old intercom pairs,
one IP network.

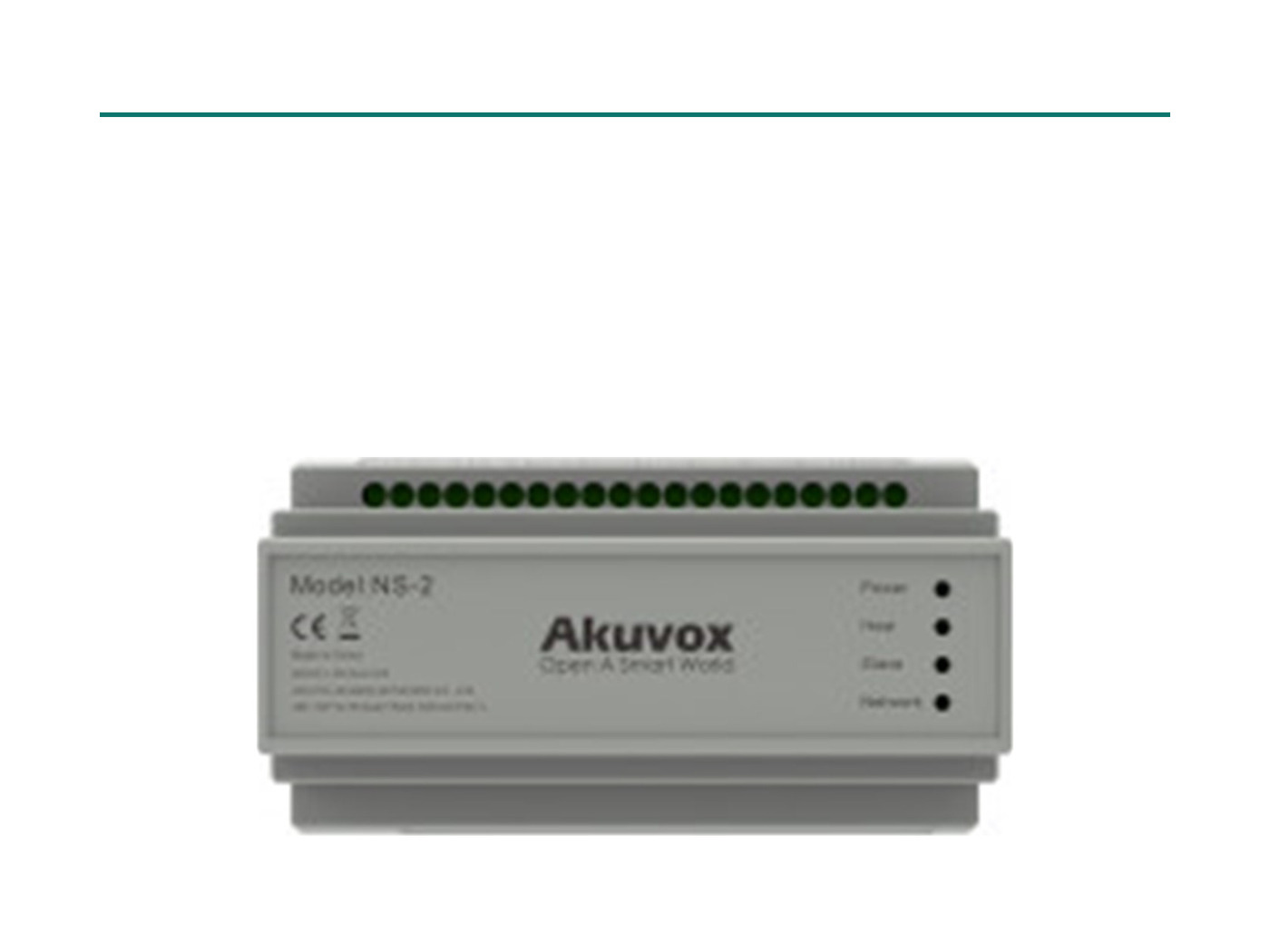

The AK-NS-2 is Akuvox’s NS-2 2-wire switch. It takes Ethernet from your network and a 48 V or 24 V DC supply, then feeds power and data to up to six Akuvox 2-wire devices over the pairs an analogue intercom used — so a whole house or small building can move to IP without rewiring.

This SKU is the NS-2 switch.

You receive the NS-2 and its DC power cable. The 48 V or 24 V DIN-rail power supply is not included — the Akuvox HDR-60 48 V supply suits it.

In the box
  • 1 × Akuvox NS-2 2-wire IP network switch
  • 1 × power cable with DC connector
What you also need (sold separately)
  • 48 V DC 1.25 A (or 24 V DC 2 A) power supply, e.g. Akuvox HDR-60
  • 35 mm DIN rail in a cabinet or enclosure
  • Ethernet connection to your router or switch
  • Akuvox 2-wire devices: R20A-2, R20K-2, E12S-2, C313W-2, S562W-2

Upgrade a whole building’s intercom.

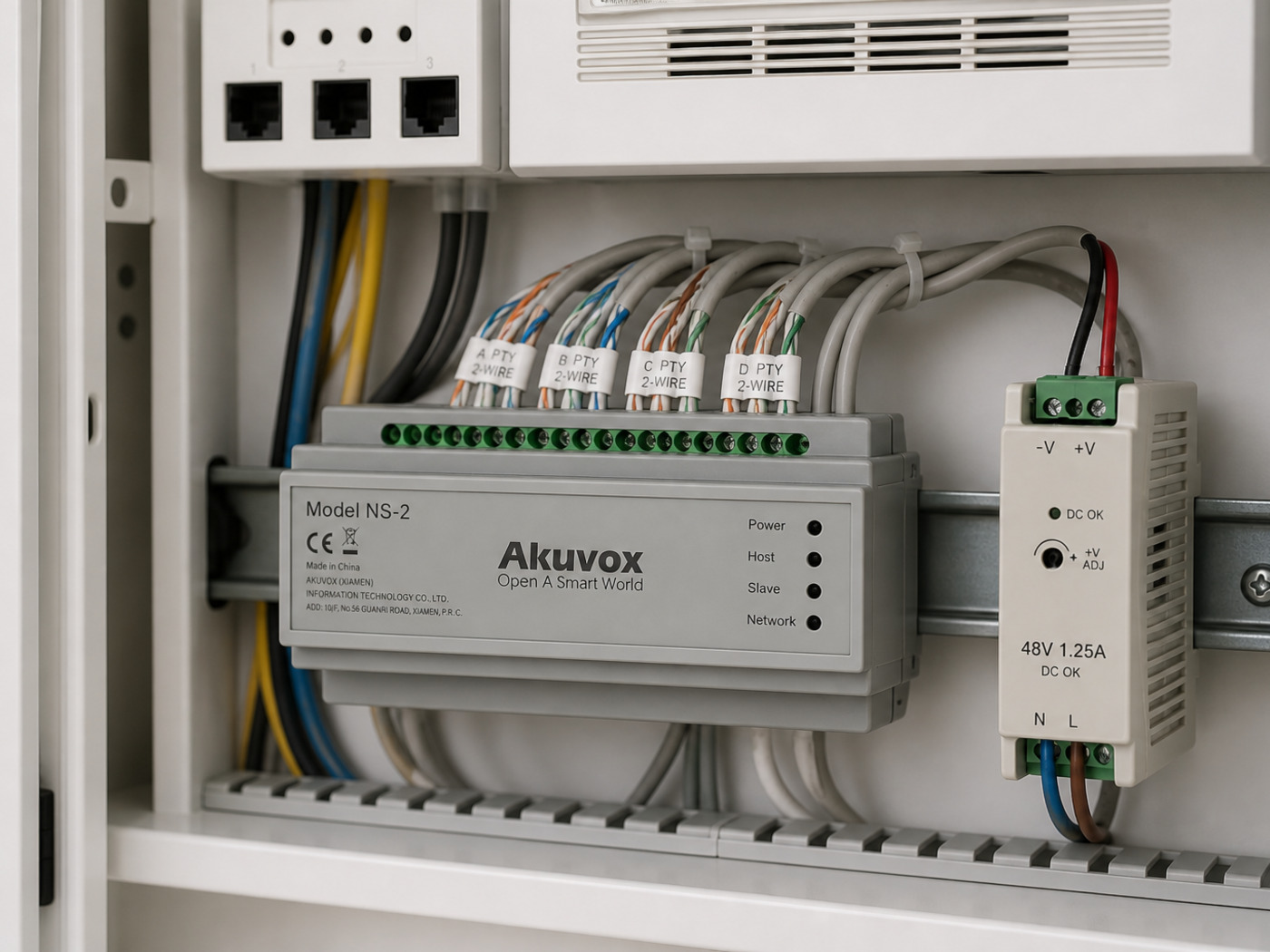

Put the NS-2 where the old intercom power supply lived. Each existing pair becomes an IP link for a door phone or monitor, with calls also reaching the Akuvox SmartPlus app.

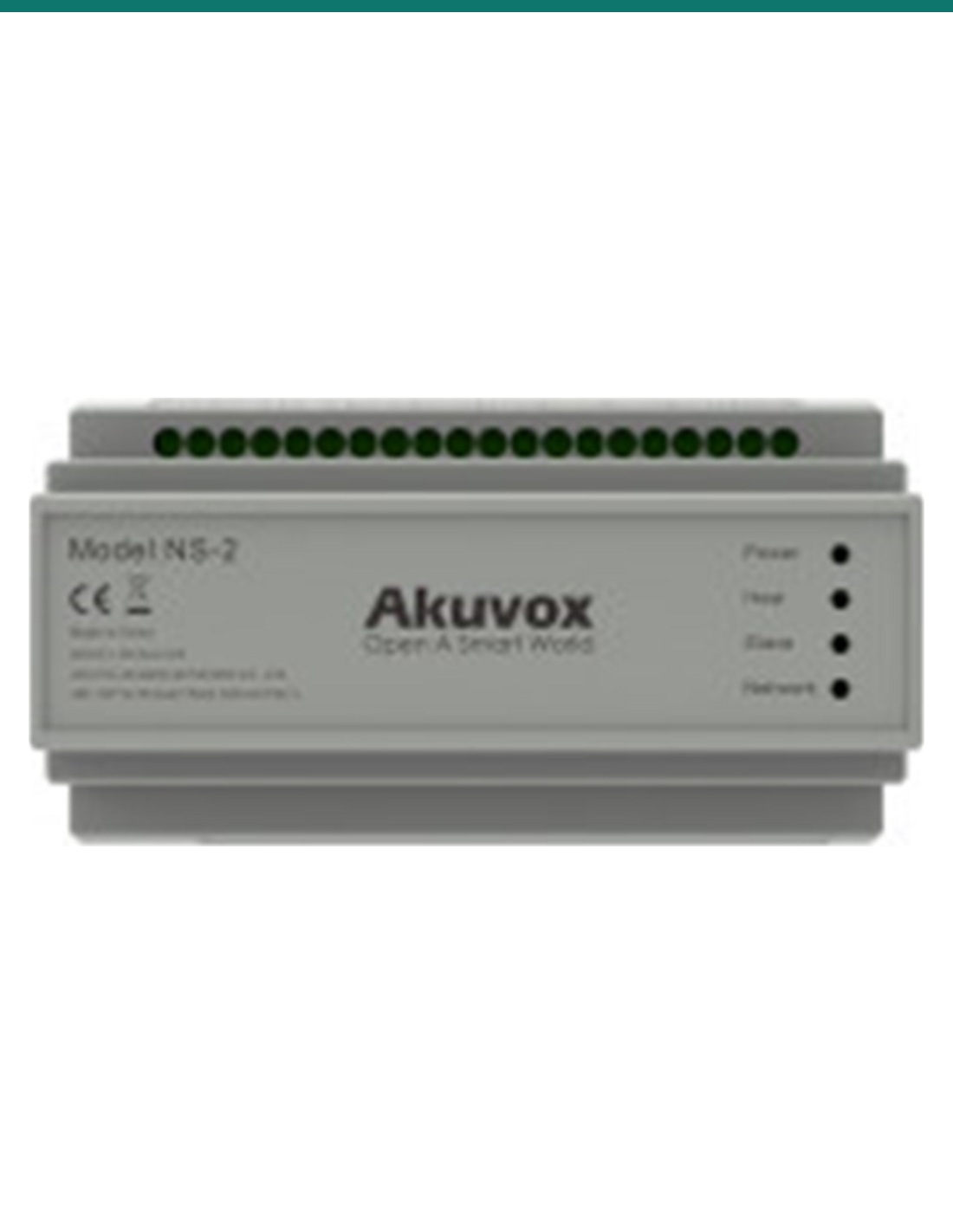

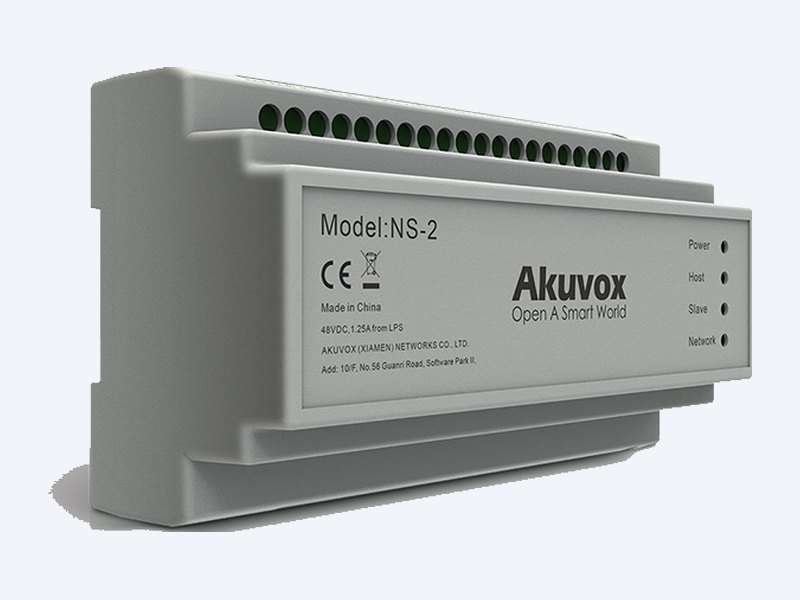

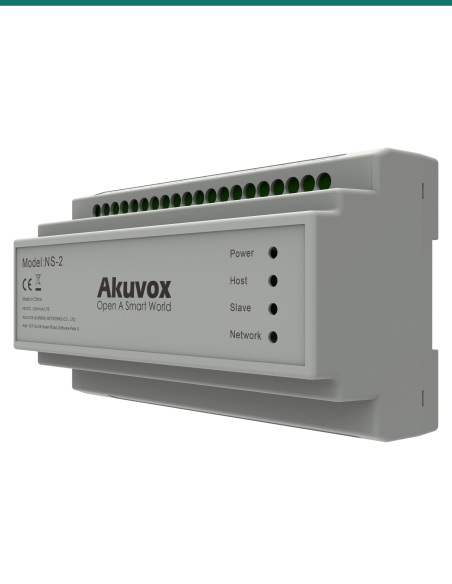

Akuvox NS-2 2-wire IP network switch, three-quarter view

Six ports

Power and data down each pair.

Six 2-wire ports each carry power and network to one Akuvox 2-wire device — up to six loads per NS-2 — with one 10/100 RJ45 uplink to your LAN.

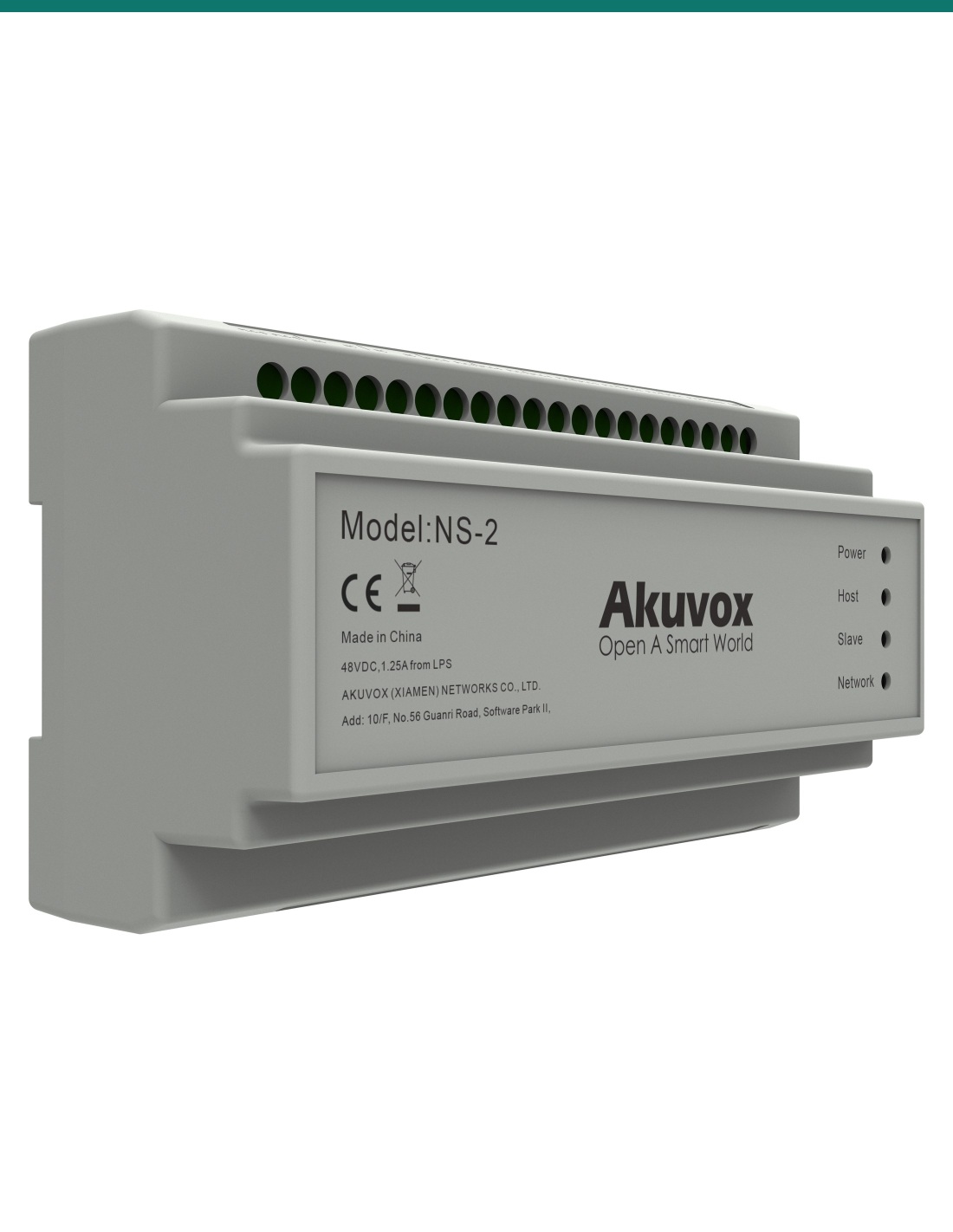

Power, Host, Slave and Network LEDs show status at a glance. Larger sites can cascade several NS-2 units over 2-wire.

Distance

Up to 300 m per run.

With a 48 V supply and star wiring (one pair per device), Akuvox rates 300 m on 24, 20 or 18 AWG cable. On 24 V it’s 150 m (24 AWG), 250 m (20 AWG) or 300 m (18 AWG).

Series (daisy-chain) wiring at 48 V: up to 6 devices over 100 m on 24 AWG, 250 m on 20 AWG or 300 m on 18 AWG.

Apartment buildings where 2-wire runs of up to 300 m reach each entrance and unit

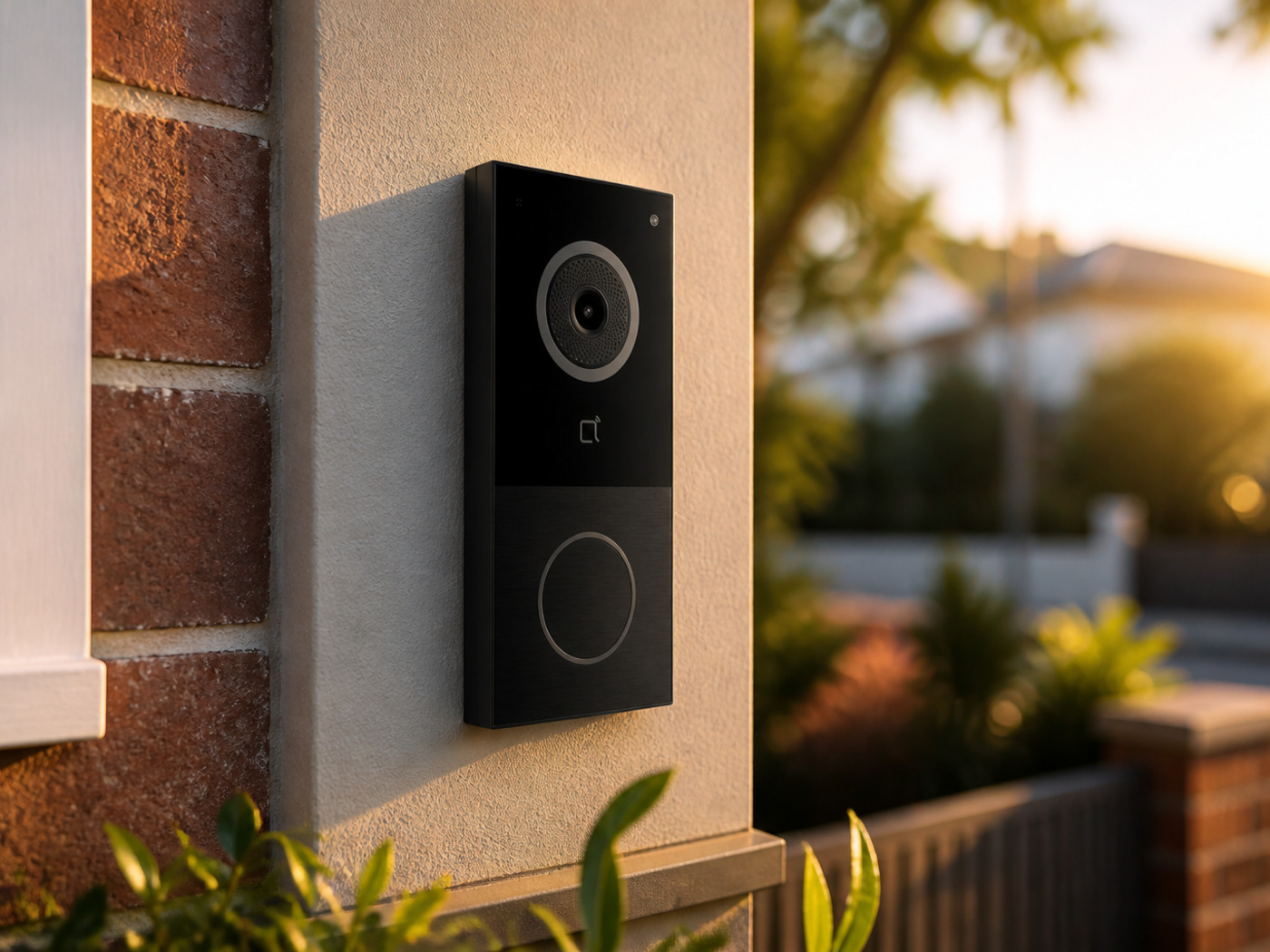

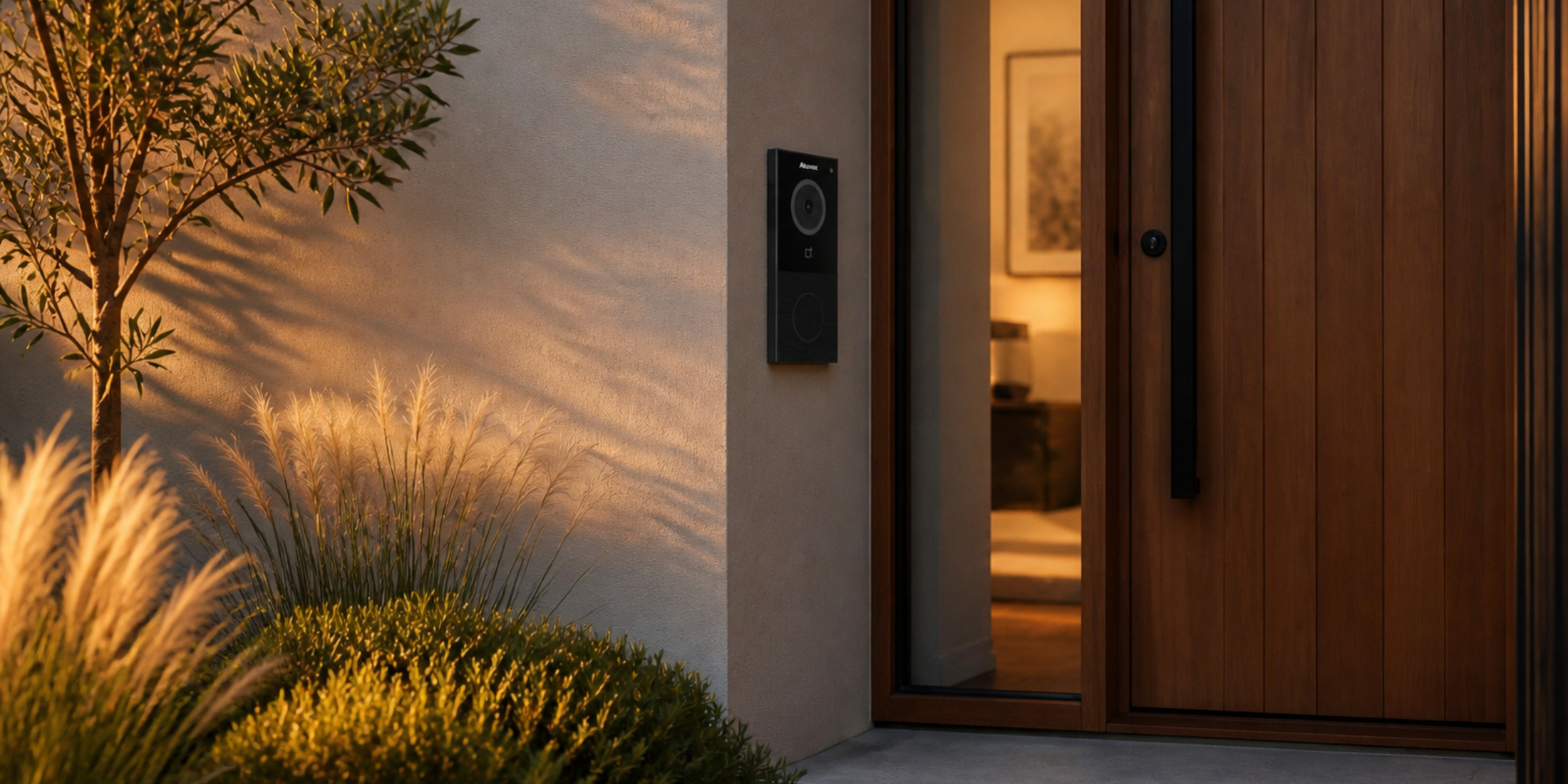

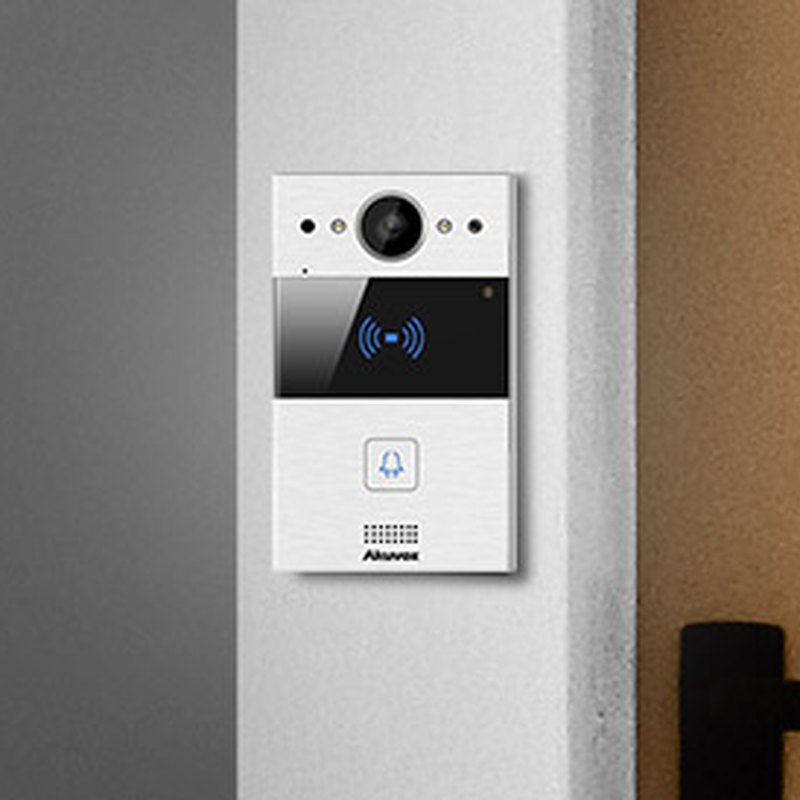

Akuvox 2-wire door phone installed beside an apartment entrance door

Compatibility

The whole Akuvox 2-wire range.

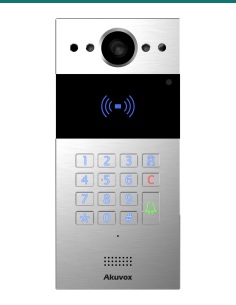

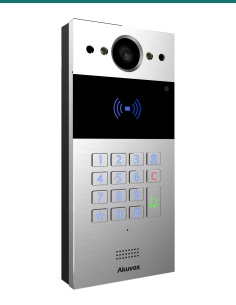

Works with R20A-2, R20K-2 and E12S-2 door phones and C313W-2 and S562W-2 indoor monitors.

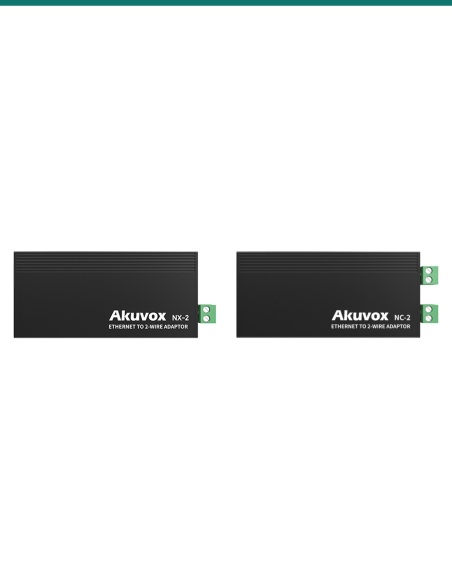

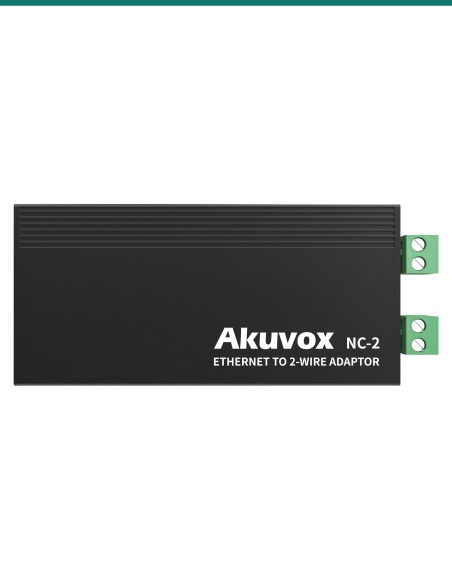

Add an NC-2 in Slave mode on a port to connect a standard PoE IP door phone such as the R20A.

How it works

Installing the NS-2.

01

Mount

Clip the NS-2 and its power supply onto a 35 mm DIN rail.

02

Power

Connect a 48 V or 24 V DC supply with the supplied DC cable.

03

Uplink

Patch the RJ45 port to your router or switch.

04

Land the pairs

Connect each device’s pair to a 2-wire port and check the LEDs.

Pair it with

Builds a 2-wire system

Power

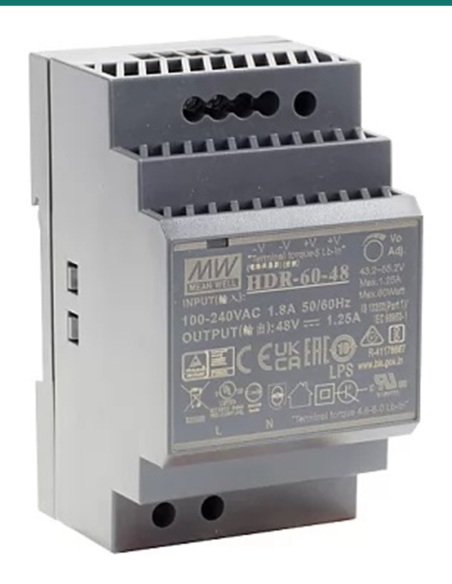

Akuvox HDR-60 48 V supply

DIN-rail 48 V 1.25 A supply that matches the NS-2 rating.

Door

R20A-2, R20K-2 or E12S-2

Akuvox 2-wire door phones powered from an NS-2 port.

Monitor

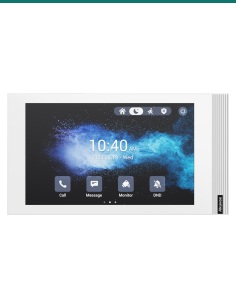

C313W-2 or S562W-2

Akuvox 2-wire indoor monitors on further ports.

Works with

Platforms and integrations

Akuvox 2-wire devices

Powers and networks R20A-2, R20K-2 and E12S-2 door phones and C313W-2 and S562W-2 monitors over existing pairs.

Standard IP door phones via NC-2

An NC-2 in Slave mode on a 2-wire port gives a PoE IP door phone such as the R20A its network and power.

Your LAN, SmartPlus and SIP PBX

The RJ45 uplink puts every 2-wire device on your network, so monitors can reach the SmartPlus app and a SIP PBX.

Watch

See it in action

Akuvox 2-wire SIP video intercom overview
Wiring Akuvox 2-wire devices for a villa
Wiring Akuvox 2-wire devices for an apartment building

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is a power supply included?

No. The NS-2 comes with a DC power cable; it needs a 48 V DC 1.25 A or 24 V DC 2 A supply. The Akuvox HDR-60 48 V DIN-rail supply suits it.

How many devices can it run?

Up to six Akuvox 2-wire devices. Larger systems cascade more NS-2 units over 2-wire.

48 V or 24 V?

48 V gives the longest runs: 300 m in star wiring on 24–18 AWG cable. 24 V reduces star runs on 24 AWG to 150 m.

Can I daisy-chain devices on one pair?

Yes, in series wiring. At 48 V Akuvox rates up to six devices over 100 m on 24 AWG, 250 m on 20 AWG or 300 m on 18 AWG.

Can a normal IP door phone connect?

Yes, through an Akuvox NC-2 adaptor in Slave mode, which gives the door phone PoE Ethernet from an NS-2 port.

Where does it mount?

On a 35 mm DIN rail inside a cabinet or enclosure. It is rated −20 °C to +50 °C, so keep it indoors or in a protected enclosure.

What do the four LEDs show?

Power, Host, Slave and Network status, so you can check supply, cascade and LAN connection at a glance.

The 2-wire switch.

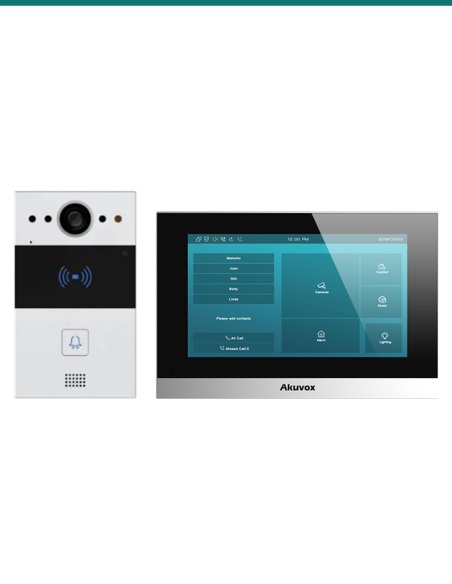

Pair the NS-2 with the Akuvox HDR-60 48 V supply for the longest runs. For a single door phone and monitor, the Akuvox 2-wire kit runs without an NS-2.

Installation & safety notice

Low-voltage product (SELV). The NS-2 needs a 48 V DC 1.25 A or 24 V DC 2 A supply (not included), and then powers connected Akuvox 2-wire devices over their pairs. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

The mains side of the DIN-rail power supply must be wired by a licensed electrician. Keep the PLC-S cascade lead at least 5 cm away from the PLC1–6 leads, as Akuvox specifies.

Ethernet
1 × RJ45 10/100 Mbps
Communication
TCP/IP
Power input
48 V DC (1.25 A) or 24 V DC (2 A) — adapter not included
Working Temperature
−20 °C to +50 °C
Brand
Akuvox
Working Humidity
10–90%
Indicators
Power, Host, Slave, Network
Mounting
DIN rail
Size
161 × 90 × 65 mm
Warranty
Australian warranty
Product Type
2-wire IP network switch
Model
NS-2
2-Wire Ports
6 pairs
Distance
Up to 300 m (star wiring, 48 V)
Max Devices
6 Akuvox 2-wire devices, cascadable
