One entrance station, multiple ways to authorise access

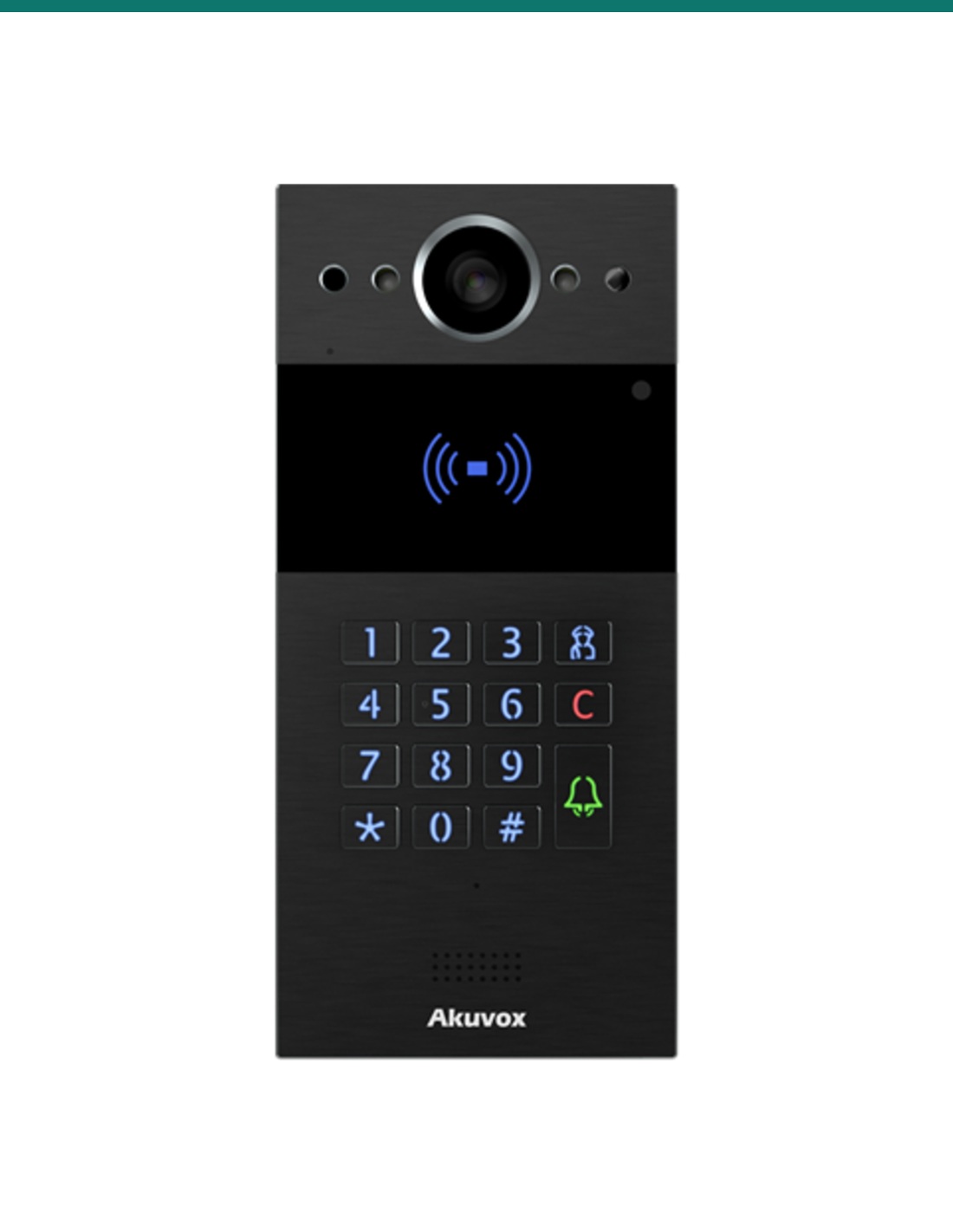

The AK-R20K-BLACK-L combines SIP intercom calling with local access credentials in a single black-finish door station. Instead of requiring separate keypad, card reader and call point hardware at the entry, installers can consolidate these functions into one device. That reduces wall clutter, simplifies user instruction at the gate or door and can streamline cabling and enclosure planning during new builds or retrofit upgrades.

The integrated keypad supports PIN-based access workflows, while the RF card reader allows tag or card-based entry for approved users. In practice, that gives sites flexibility to issue physical credentials, temporary PINs or both, depending on user class and operational policy. For mixed-use tenancy, office side entries or service access points, this combination is often more practical than relying on app-only or monitor-only unlocking methods.

LTE support expands deployment options beyond conventional fixed-network assumptions

LTE capability is the standout differentiator in this configuration. On remote perimeters, detached gates, temporary structures, transport compounds, civil works compounds or older buildings where structured cabling is costly to extend, mobile-network backhaul can be the deciding factor between a workable intercom deployment and a stalled project. LTE support gives system designers another path when PoE switching or nearby Ethernet outlets are unavailable.

For installers, this can shorten trenching requirements, reduce dependence on local network participation and create a more self-contained entry communication point. It is still important to validate carrier performance, antenna conditions, SIM provisioning, data policy and any remote-management implications during commissioning, but the presence of LTE support materially broadens where this intercom can be deployed across Australian sites.

A practical fit for apartment, office and perimeter entry scenarios

Because this model is built around SIP intercom operation, it can form part of an IP-based communication workflow rather than acting as an isolated standalone doorbell. That is valuable where incoming calls may need to ring internal devices, compatible indoor monitors, reception endpoints or other SIP-aware destinations. It also supports a more structured pathway for managing visitor communication at scale across multi-entry buildings or distributed sites.

The black housing is relevant in its own right for architects and installers working with darker facades, powder-coated gates or minimalist commercial entrances. On visible front-of-house installations, finish matters. A dark station can integrate more cleanly into modern external metalwork and cladding than lighter hardware, while still providing the keypad and credential presentation surface users expect at an access-controlled doorway.

Session Initiation Protocol, the common signalling standard used by many IP phones, intercoms and compatible communication platforms.

Long Term Evolution mobile data connectivity, used when the intercom needs network access through a cellular service rather than fixed Ethernet infrastructure.

A reader that detects compatible radio-frequency credentials such as cards or tags presented by an authorised user.

A numeric code entered on the keypad to request or permit access without a physical card.

The field device installed at the entry point that handles calling, user interaction and local credential input.

A means of proving authorisation, such as an RF card, tag, PIN or remotely approved unlock event.

The ability of the intercom to operate with other compatible SIP-capable devices or software in the broader communications environment.

The network path used to carry intercom traffic from the entry station back to the site network, cloud service or call destination.

The setup process where addressing, user credentials, calling logic, network parameters and release behaviour are tested and finalised.

The sequence defining how a user requests entry, how the system verifies permission and how the door or gate release is executed.

Compatible indoor SIP monitor

Pair with an indoor monitor where occupants need local answer, talk and unlock capability inside apartments, offices or concierge positions.

Electric strike or gate release hardware

Best matched with correctly rated locking hardware and power design so keypad, card and remote authorisation workflows can physically release the entry point.

SIP platform or hosted intercom endpoint

Use with a SIP-capable PBX, intercom server or compatible answering endpoint to direct calls where the site actually manages visitors.

RF cards or tags

Suitable card or tag stock is required to make full use of the integrated reader for staff, resident or contractor enrolment workflows.

Does this unit support both visitor calling and local access entry?

Yes. The listed features confirm SIP intercom operation for communication, plus an integrated keypad and RF card reader for local access workflows.

Why would I choose the LTE version?

LTE is useful where extending fixed network infrastructure is difficult, expensive or operationally impractical. Typical examples include remote gates, temporary compounds and retrofit sites with limited cabling paths.

Can users enter with a code instead of a card?

Yes. The integrated keypad is intended for PIN-based entry, giving the site another credential option alongside RF card presentation and remote release.

Is the card reader built into the same front panel?

Yes. The product is described as having an integrated RF card reader, which means card-based access is handled from the intercom station itself rather than a separate reader module.

Will it work in any access control setup?

Integration suitability depends on the broader system design, including lock hardware, power, network path, credential policy and SIP endpoint compatibility. Confirm these details before deployment on a live site.

Is the black finish relevant beyond appearance?

For many commercial and residential projects, yes. A black station can visually integrate better with dark aluminium joinery, gates, powder-coated posts and modern facade materials.
