Multiple entry methods without separate wall devices

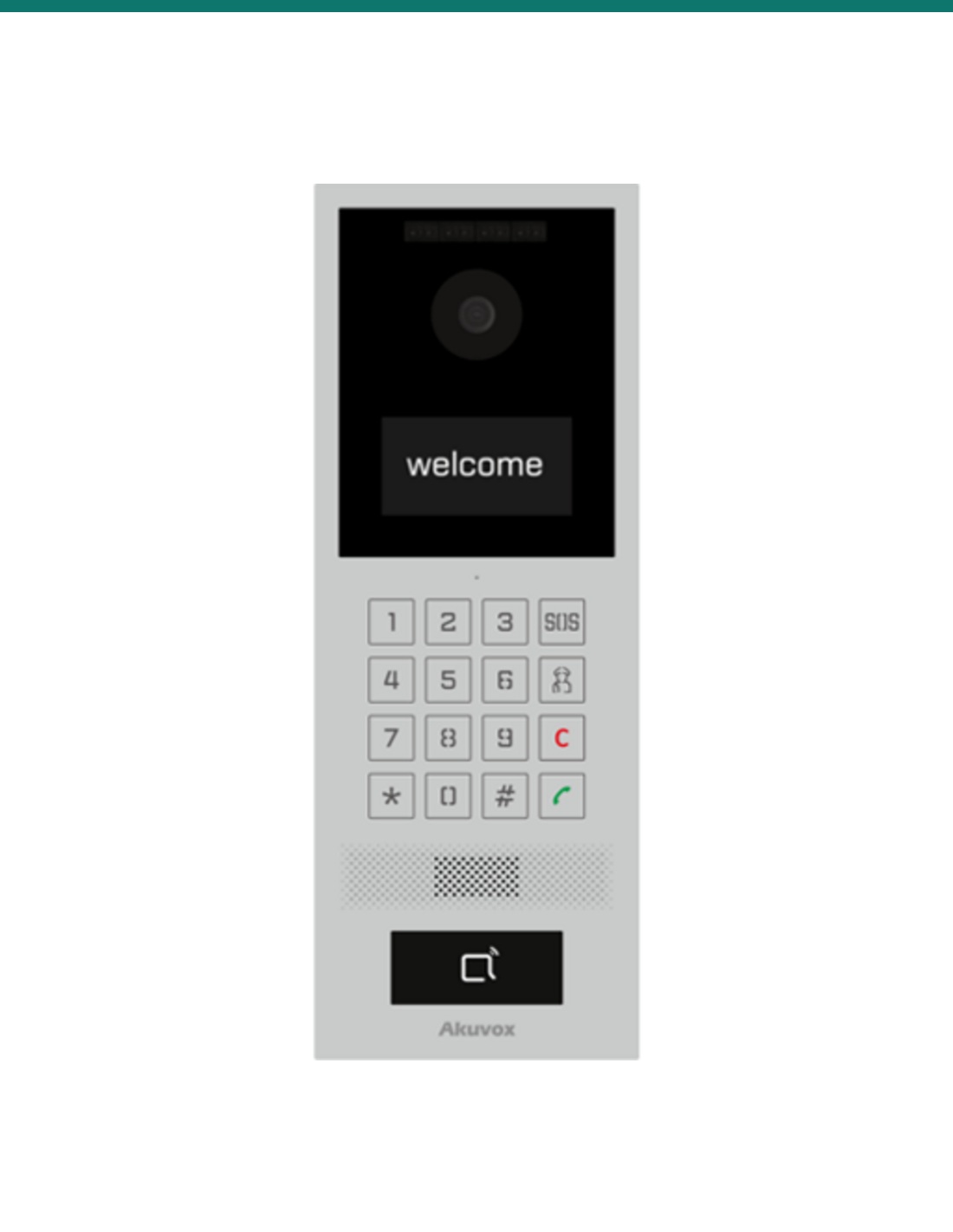

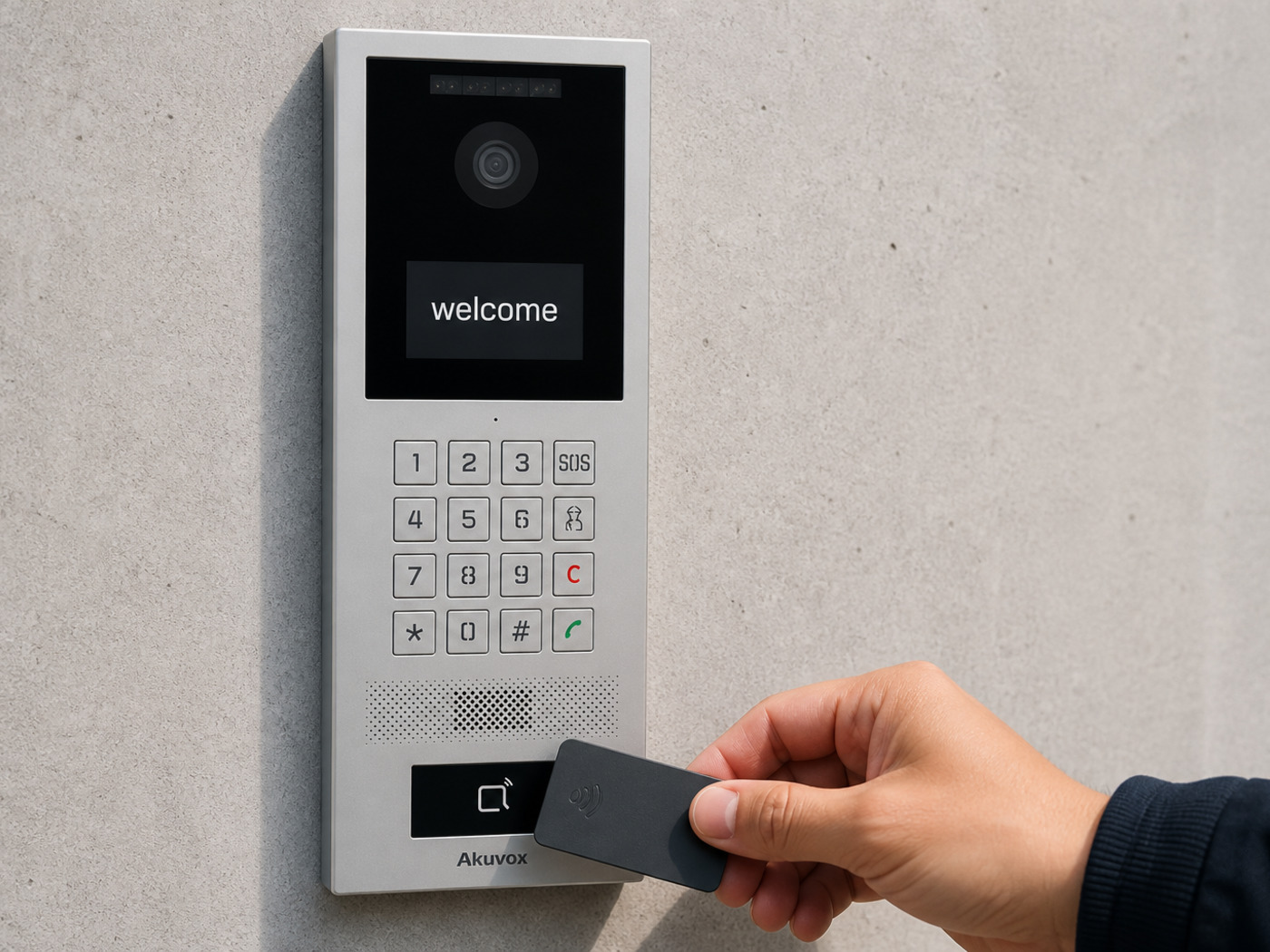

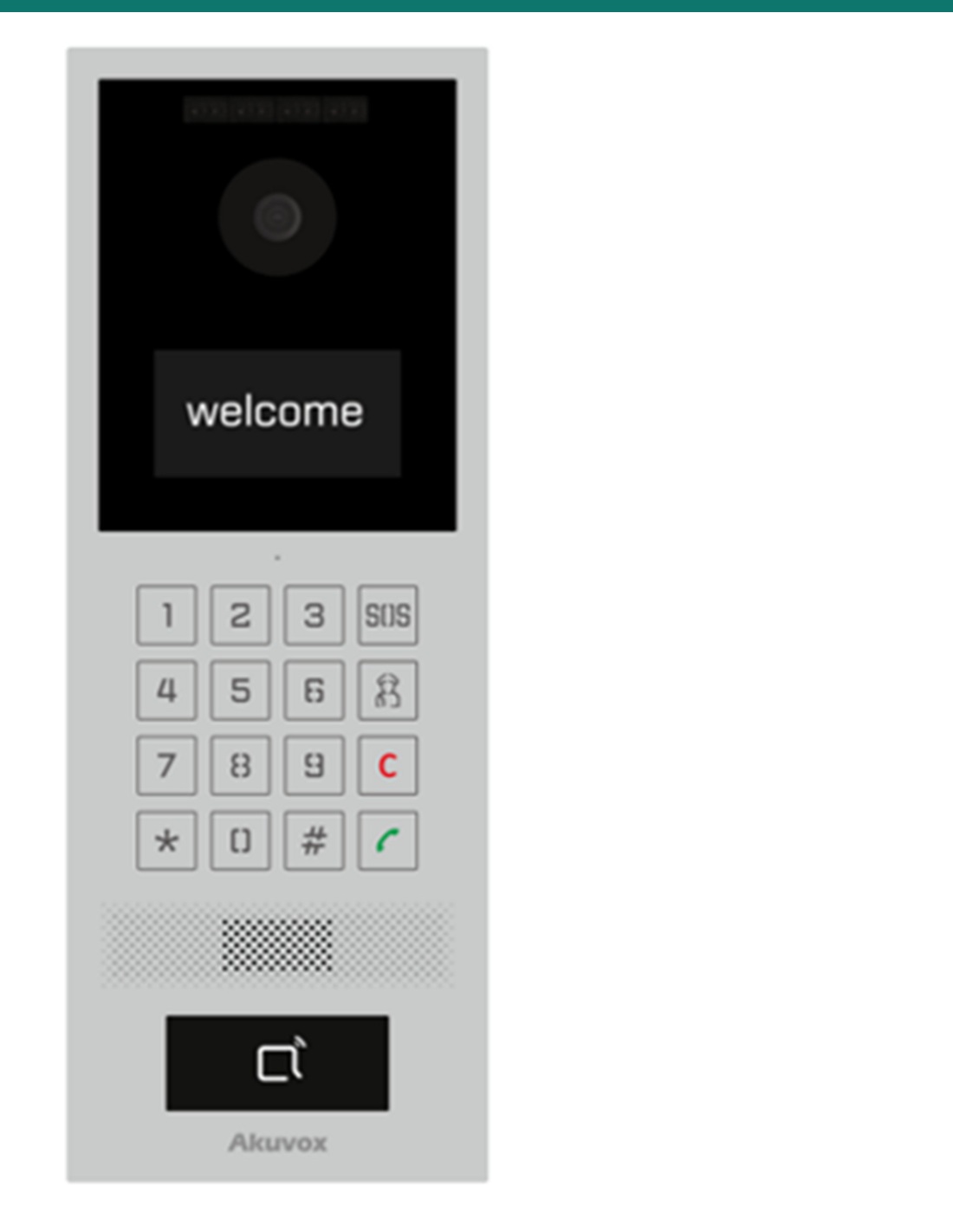

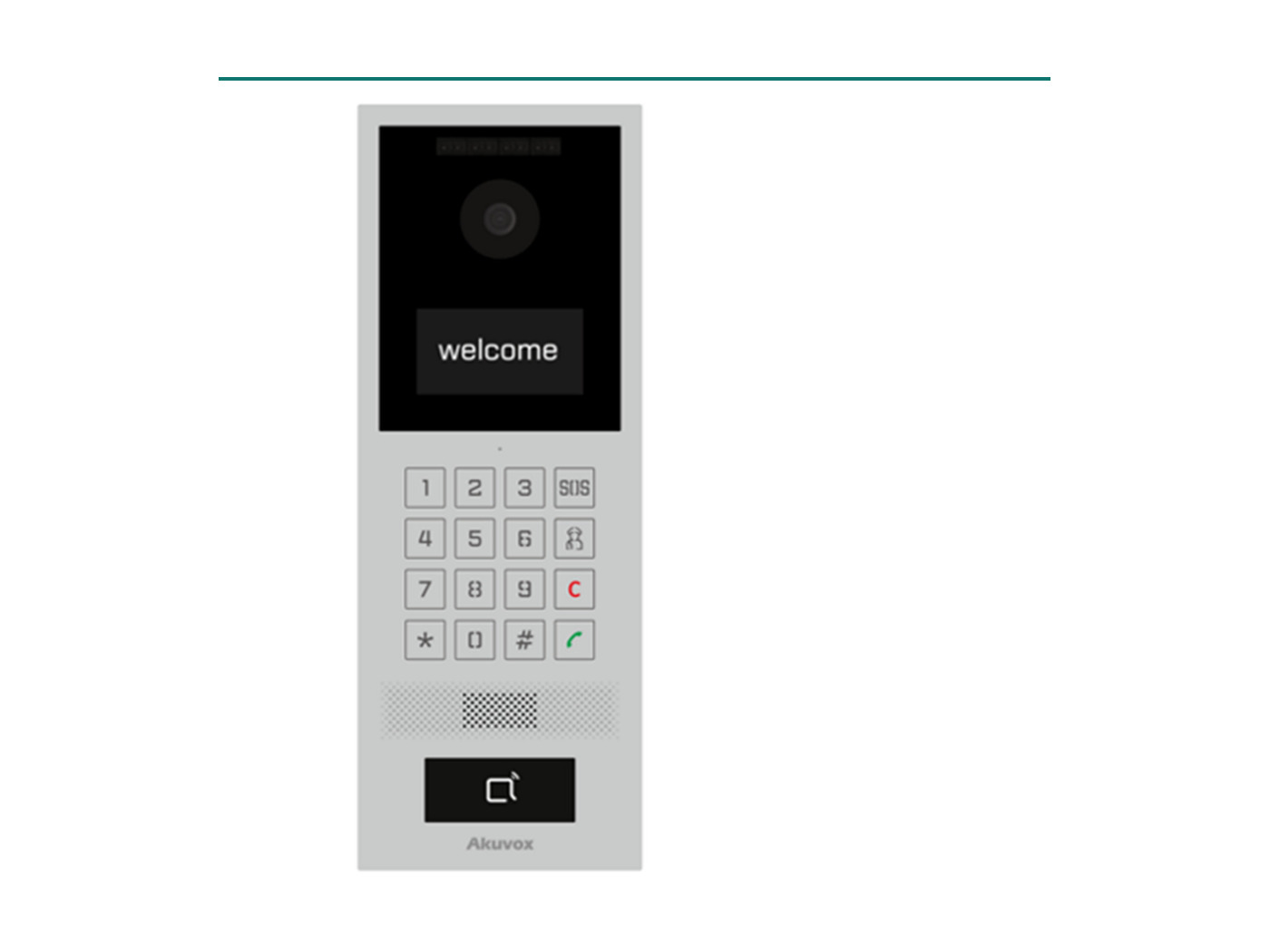

The AK-S532 brings together three common front-door actions in one housing: place an intercom call over SIP, enter a code on the keypad, or present an RF card to the built-in reader. For low-rise residential, office suites, storerooms, staff-only corridors and compact commercial receptions, that single-device approach can reduce facade clutter and cut down the number of penetrations, back boxes and termination points required at the entrance.

Because relay control is built in, the station is aimed at real door release duties rather than being only a call point. That makes it suitable where the intercom needs to trigger an electric strike, magnetic lock interface or other controlled door mechanism through the appropriate lock power and wiring design. Installers still need to size the overall lock circuit correctly, but the presence of local relay control keeps the access path direct and easy to understand during service work.

SIP-based door entry that fits structured IP deployments

SIP support gives the AK-S532 a clear role in IP-centric door entry projects where the intercom station may need to register to a compatible PBX, SIP server, indoor monitor ecosystem or networked access platform. For the integrator, that can mean more flexible call routing than analogue door stations, especially in mixed sites where voice, door release authority and occupant response points are already handled across the data network.

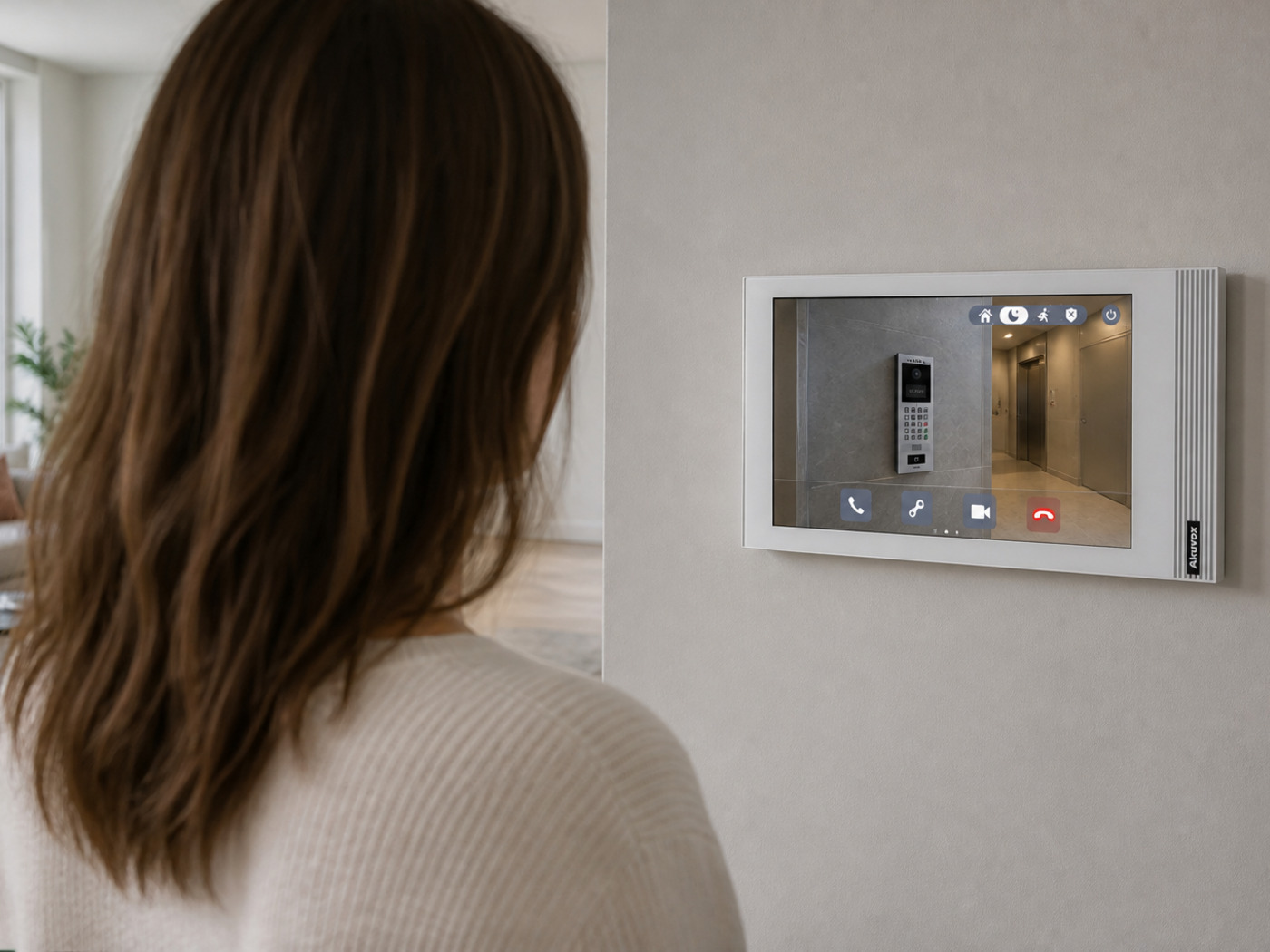

In practical terms, SIP also helps when a doorway needs to communicate with indoor screens, desk phones or software endpoints subject to the broader solution design. Rather than treating the entrance as a standalone island, the AK-S532 can sit within a managed communications architecture where provisioning, VLAN placement, QoS policy, credential workflow and call destination logic are considered as part of the same deployment.

Well suited to compact sites that still need disciplined access control

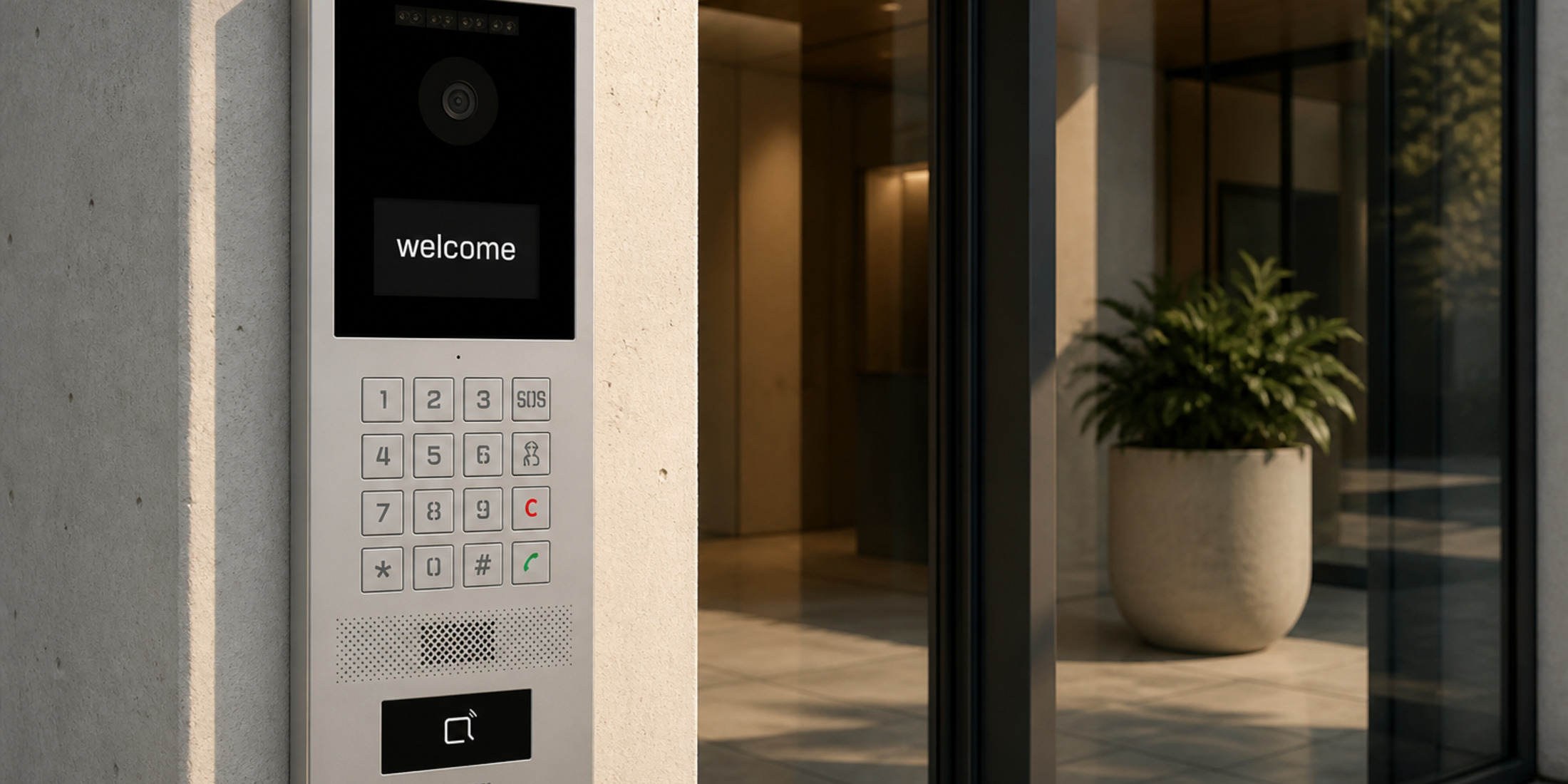

Not every site needs a multi-module entrance system, but many still need more than a simple push-button intercom. The AK-S532 suits that middle ground. A tenant entry, after-hours office door, warehouse side access point, plant room threshold or shared internal security door can all benefit from having visitor calling, card-based entry and backup code access available in a single station with a fixed wall-mounted form factor.

For maintenance teams, a combined unit also narrows down fault finding. If users report a call path issue, credential issue or release issue, the station is the primary logical touchpoint rather than one of several separate devices. That does not remove the need for proper network planning, lock power segregation and credential management, but it can simplify service documentation, installer handover and onsite user instruction.

How it works on a real entry point

A typical AK-S532 deployment follows a simple flow, but each step can be aligned with the site’s network, credential and lock-release policy.

Pairings to consider

A door station is only one part of a reliable entry system. These adjacent categories are usually considered alongside the intercom.

FAQ

Does the AK-S532 work as both an intercom and an access reader?

Yes. Based on the supplied specification, it supports SIP intercom communication while also providing keypad entry, an RF card reader and relay-based door control.

Can users open the door with a PIN code?

Yes. The integrated keypad is intended for code entry, making it suitable for sites that want PIN-based access alongside calling and card presentation.

What type of card reader is included?

The source information identifies it as a built-in RF card reader. Confirm card technology, frequency and credential compatibility before ordering cards for a live project.

Can it directly release a lock?

It includes relay control for door release, but the final lock circuit still needs correct design around voltage, current, fail-safe or fail-secure behaviour and egress compliance.

Is this a multi-tenant entrance panel?

The supplied description positions it as a single-unit access station rather than a large directory-style modular entrance system. It is best matched to controlled single entry points needing several authentication methods.

What should be confirmed before installation?

Confirm SIP compatibility, network topology, power method, reader credential format, mounting details, environmental suitability and the electrical requirements of the connected lock hardware.
