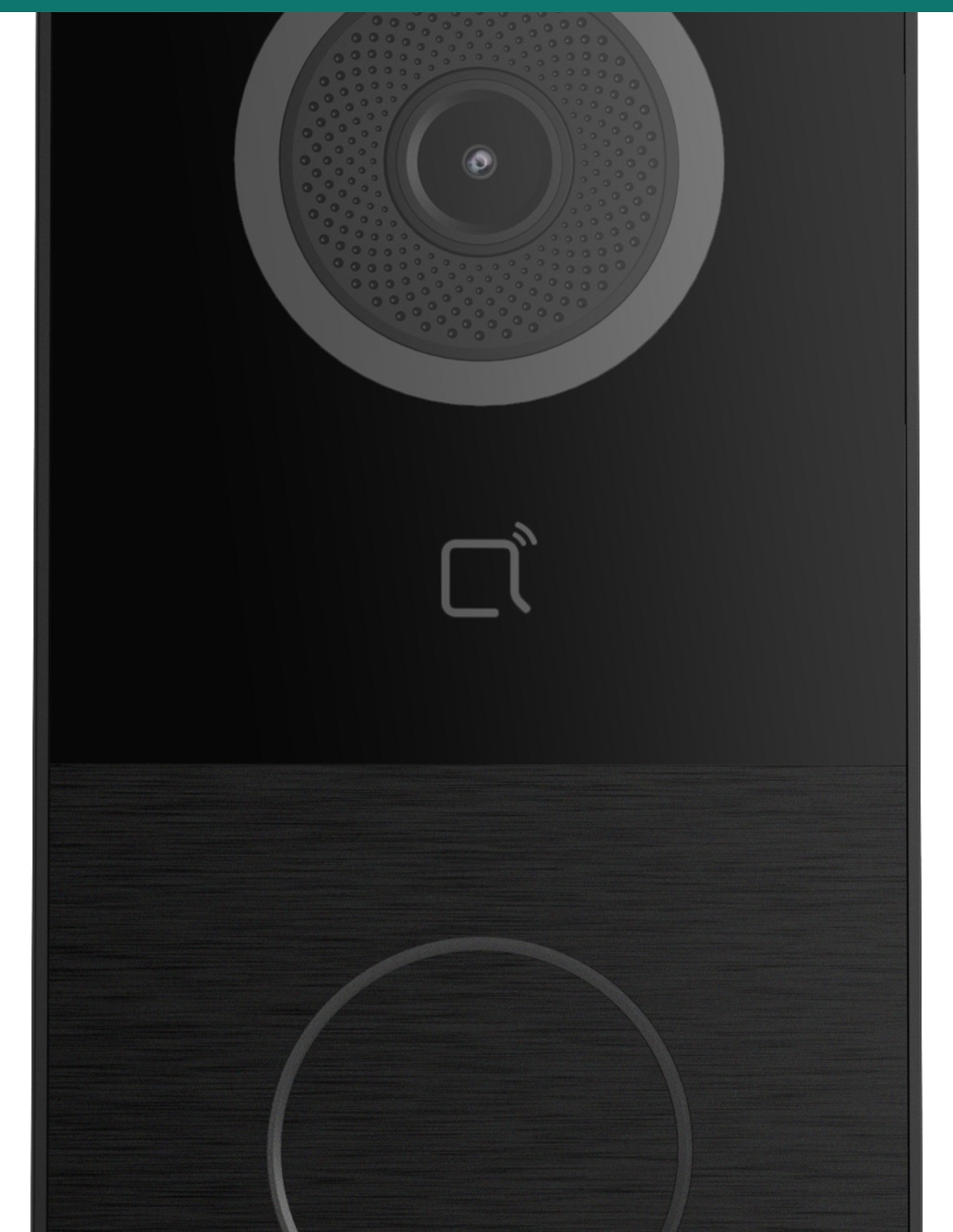

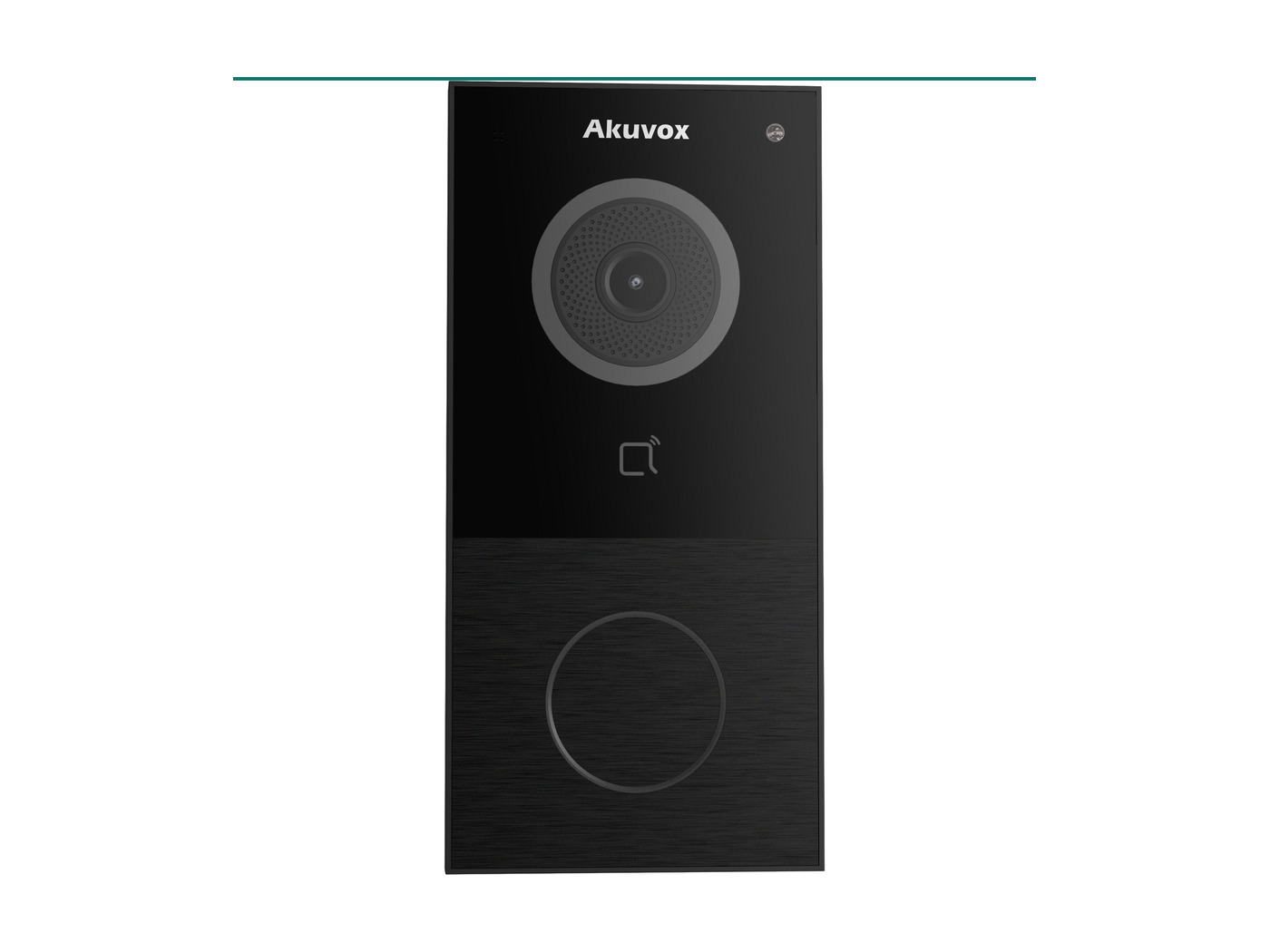

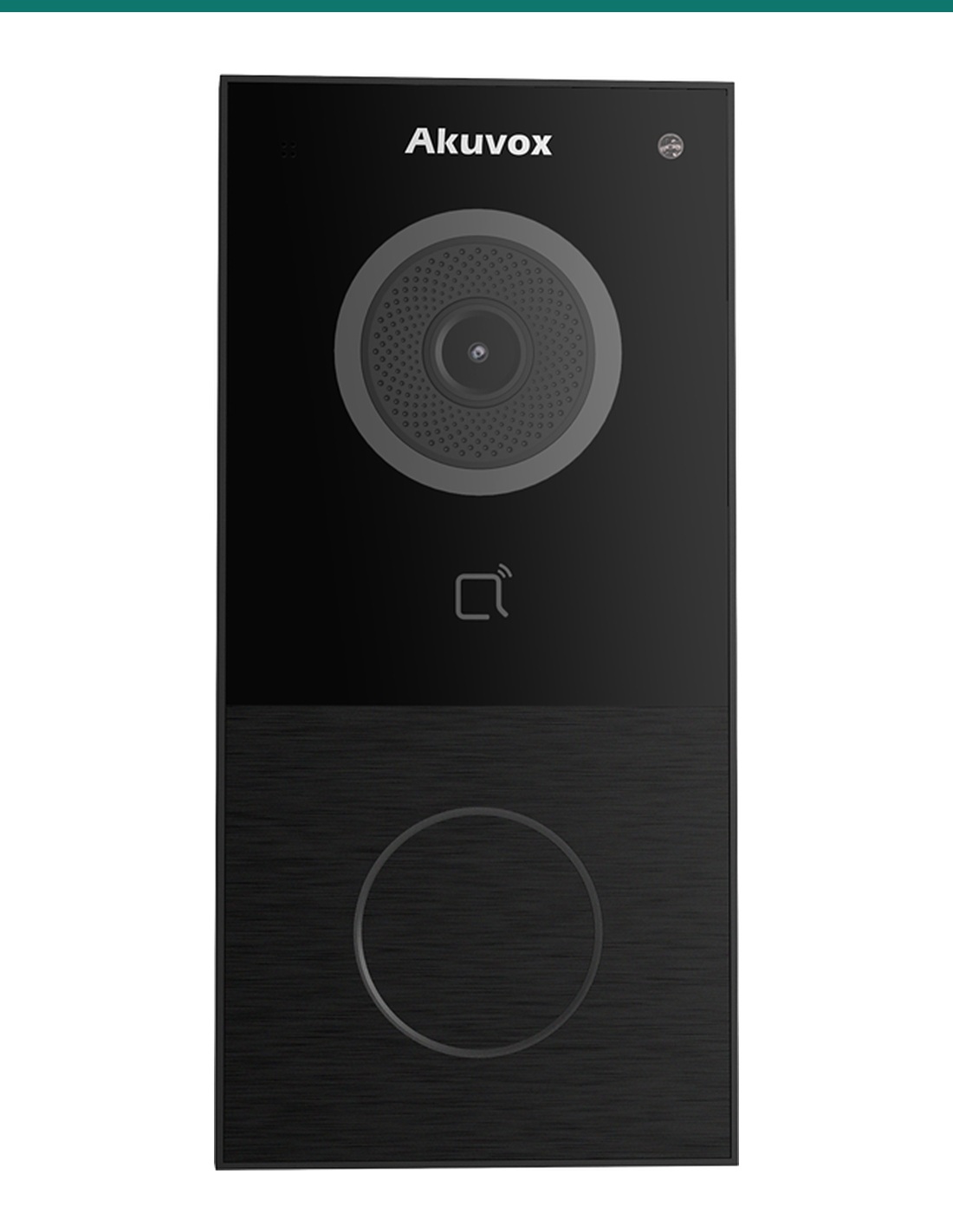

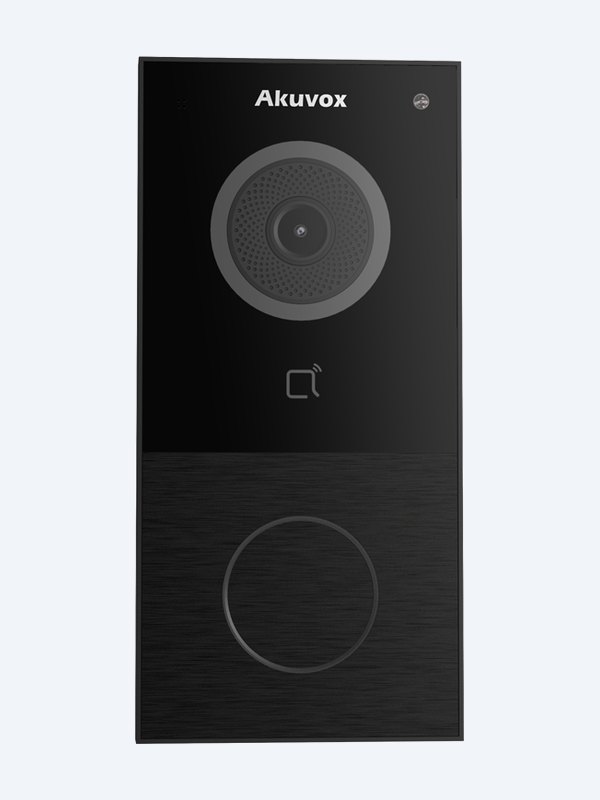

Akuvox E12W black SIP video doorbell — front

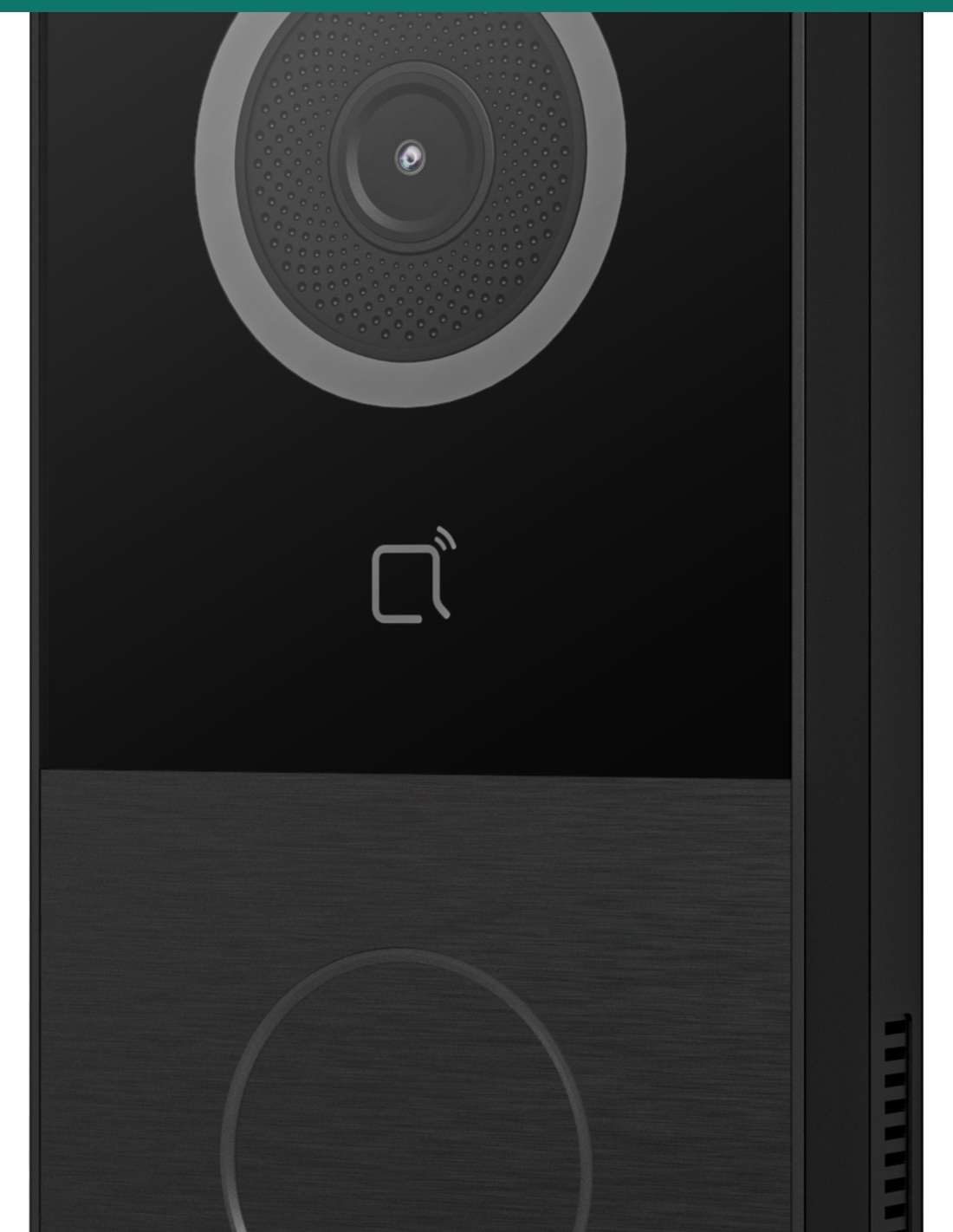

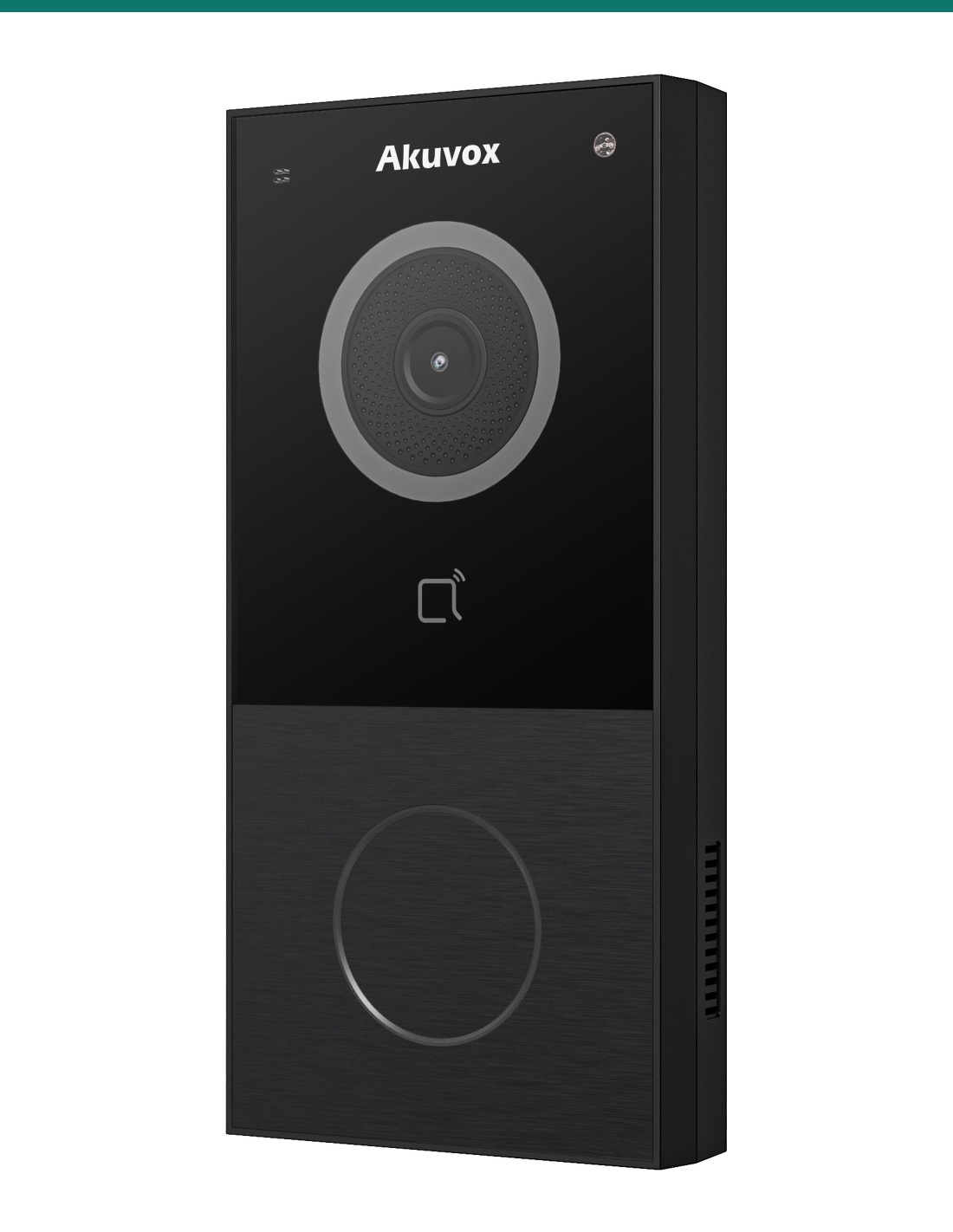

Akuvox E12W black doorbell — left three-quarter view

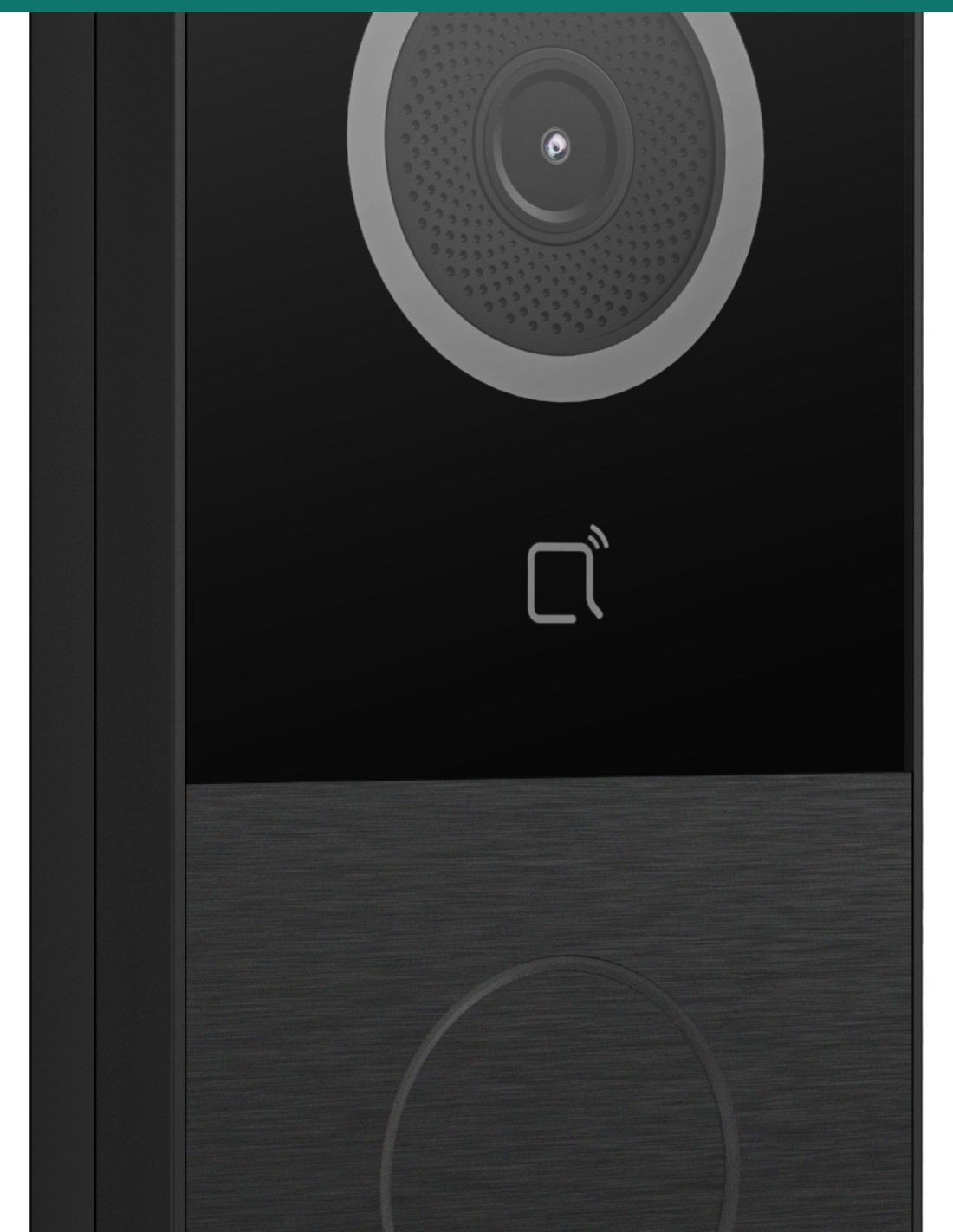

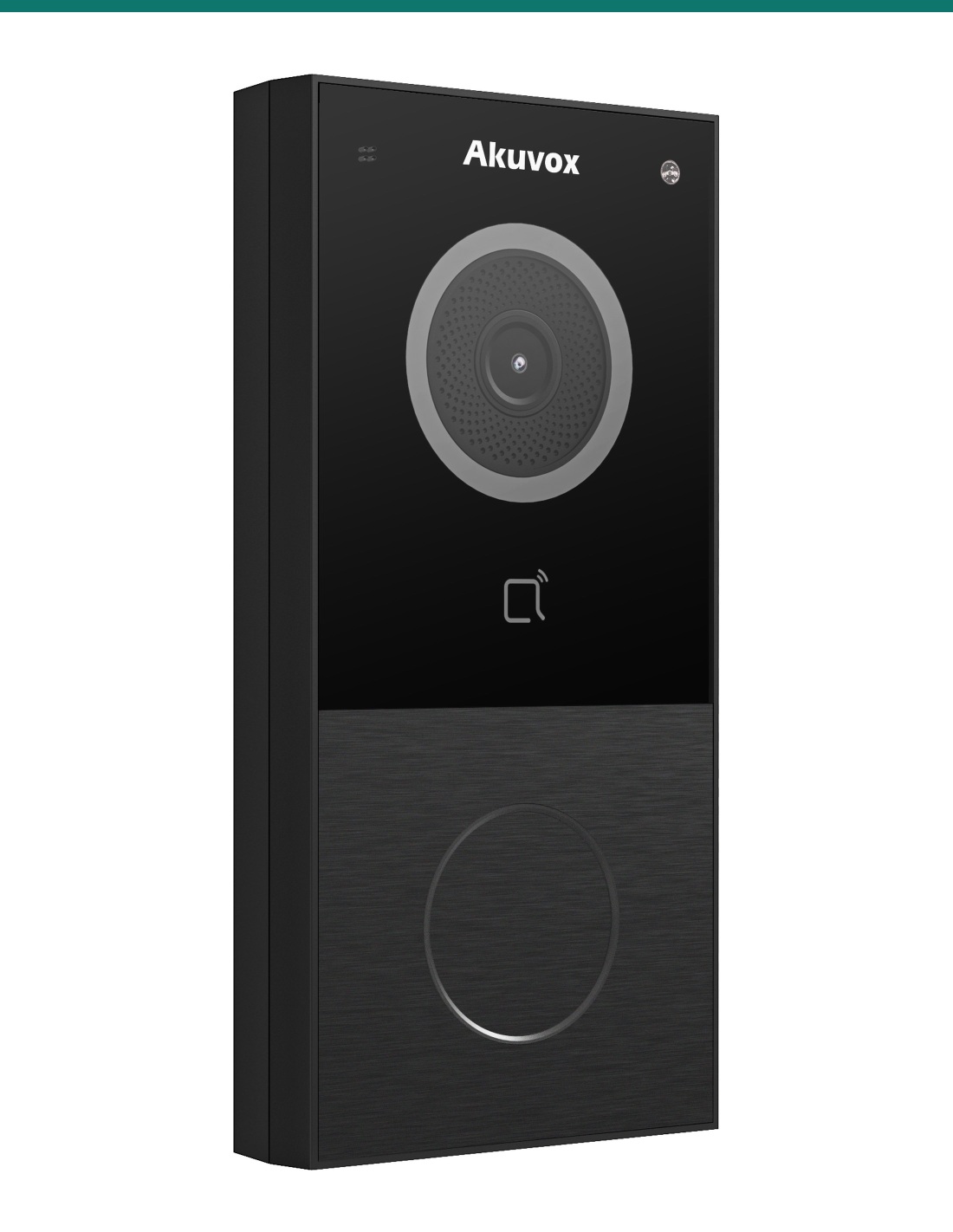

Akuvox E12W black doorbell — right three-quarter view

Akuvox E12W Black 2MP Wi-Fi 6 SIP Video Doorbell with Card Reader — AK-E12W-BLACK

Name: Akuvox E12W Black 2MP Wi-Fi 6 SIP Video Doorbell with Card Reader — AK-E12W-BLACK
Brand: Akuvox
SKU: AK-E12W-BLACK
Price: 242.5 AUD
Availability: InStock

Reference: AK-E12W-BLACK

In Stock - Ready to Ship

$ 242.50

inc-GST

or 4 interest-free payments of $60.62 with

Akuvox E12W in black is a single-button SIP video doorbell with dual-band Wi-Fi 6 — so it can go on a front door where running data cable is hard. 2 MP wide-angle camera, card, NFC and Bluetooth entry, one lock relay and an IP65 body. Stocked in Australia by Infront Technologies.

✓Wi-Fi 802.11ax on 2.4 GHz and 5 GHz, plus RJ45 if you have a cable
✓2 MP camera, 123° (H) / 69° (V), 1080p at 30 fps, white-light LED for night calls
✓13.56 MHz MIFARE / DESFire reader, NFC (Android) and Bluetooth 5.0
✓1 relay, 2 inputs, Wiegand · 12 V DC or PoE 802.3af · IP65 · 146 × 70 × 23 mm

Resident answering an Akuvox E12W door call on a smartphone

Akuvox · E12W · Black Wi-Fi video doorbell

A slim video doorbell that needs no data cable.
Wi-Fi 6, 2 MP, IP65.

The AK-E12W-BLACK is Akuvox’s E12W in black: the award-winning E12 single-button doorbell with dual-band Wi-Fi 6 built in. Give it 12 V DC at the door and it joins the home network without a data run — or plug in RJ45 and PoE if a cable is already there.

This SKU is the door station only.

You receive the black E12W surface-mount doorbell. Indoor monitors, rain hood, angle bracket, power supply and lock hardware are sold separately.

In the box

Akuvox E12W doorbell (black)
Wall-mounting hardware
Quick-start guide

What you also need(sold separately)

Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
12 V DC supply at the door (or PoE 802.3af if cabled)
Electric strike or maglock and lock PSU if the door is released
E12 rain hood or angle bracket where the door is exposed

One button. No data run.

Visitors press once and the call rings an Akuvox monitor or the SmartPlus app over Wi-Fi. Residents skip the call — tap a card, use NFC or Bluetooth, or unlock from the app.

Camera

See who is there, day or night.

A 2 MP 1/2.7″ CMOS camera covers 123° horizontally and 69° vertically and streams H.264 up to 1920 × 1080 at 30 fps.

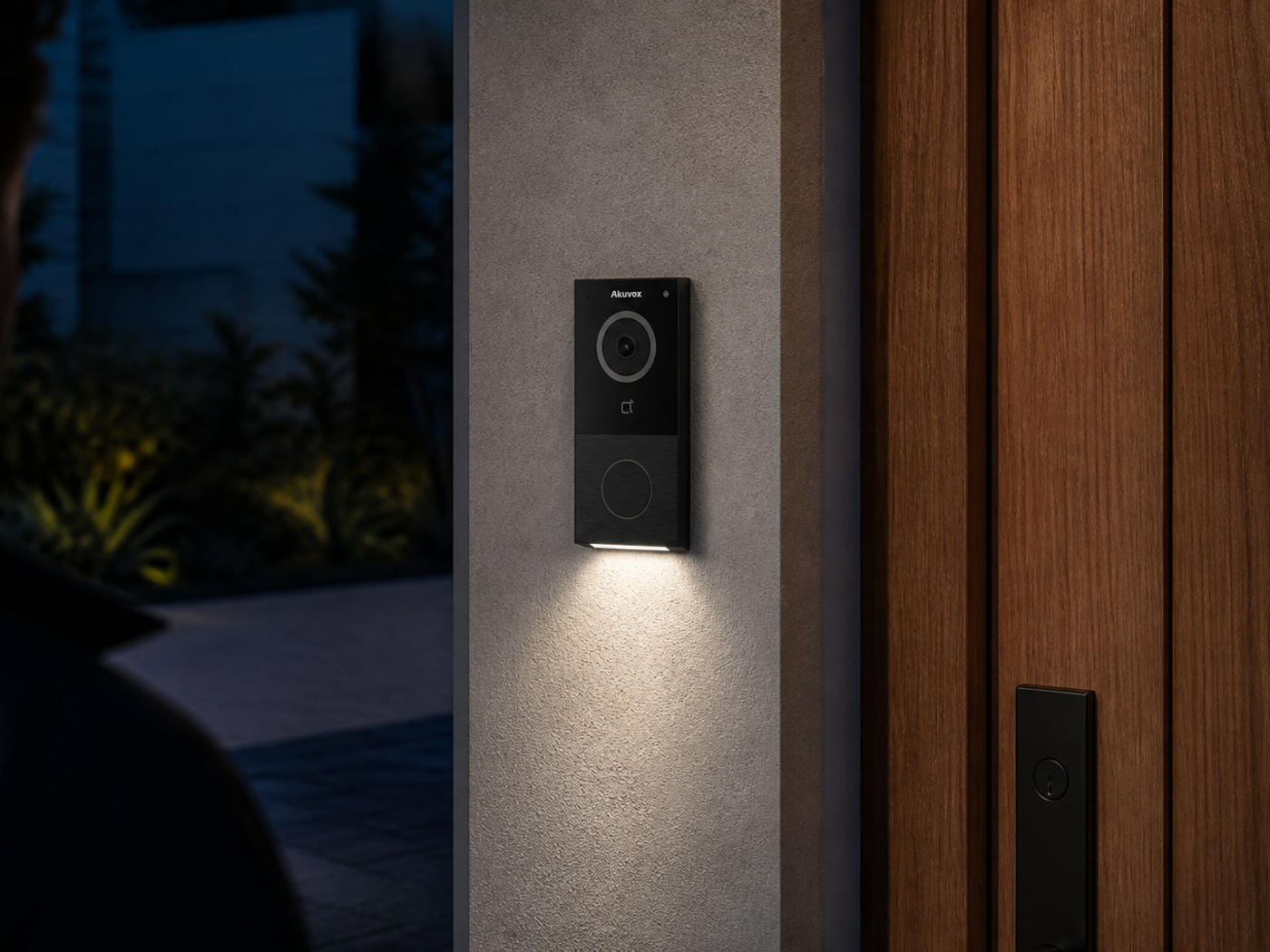

A light sensor switches on the white-light LED for night calls, down to 0.1 lux. Echo cancellation keeps two-way audio clear on a busy street.

Connection

Dual-band Wi-Fi 6 — or a cable.

E12W connects over 802.11a/b/g/n/ac/ax on 2.4 GHz or 5 GHz, so a retrofit only needs power at the door. It keeps an RJ45 10/100 port and 802.3af PoE for sites that have a cable.

Calls run over SIP to Akuvox indoor monitors, the SmartPlus app or a SIP PBX, and the camera streams over RTSP / ONVIF to an NVR.

Access

Card, phone, NFC or Bluetooth.

The 13.56 MHz reader takes MIFARE and DESFire EV1 / EV2 / EV3 credentials, Android phones unlock over NFC, and Bluetooth 5.0 supports phone-based entry. The station holds 1,000 users and 5,000 cards.

One relay releases a strike or maglock; two inputs take an exit button and door sensor, and the Wiegand port is selectable as input or output.

How it works

From button press to open door.

Mount

Fix the station to the door frame or pier. Add the E12 rain hood on exposed elevations or the angle bracket to aim the camera.

Power and join Wi-Fi

Land 12 V DC (or PoE if a cable is there), then join the station to the 2.4 GHz or 5 GHz network in the web portal.

Register

Pair it with Akuvox indoor monitors, SmartPlus or your SIP PBX and enrol cards and users.

Test the door

Press the button, check the picture day and night, and confirm the relay releases the lock.

At a glance

Key specs — AK-E12W-BLACK

Brand: Akuvox
Reference: AK-E12W-BLACK
Finish: Black glass and black brushed lower panel
Camera: 2 MP, 1/2.7″ CMOS, white-light LED
Field of view: 123° (H) / 69° (V)
Video: H.264, up to 1920 × 1080 at 30 fps
Night: Light sensor, auto night mode, 0.1 lux minimum
Button: 1 call button
RF reader: 13.56 MHz, NFC (Android)
Card types: MIFARE, DESFire EV1 / EV2 / EV3
Bluetooth: BLE 5.0
Capacity: 1,000 users · 5,000 cards
I/O: 1 relay, 2 inputs, Wiegand in/out, TF card slot, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: Wi-Fi 802.11a/b/g/n/ac/ax (2.4 GHz and 5 GHz) plus RJ45 10/100 Mbps
Protocols: SIP, ONVIF, RTSP
Power: PoE 802.3af or 12 V DC
Protection: IP65
Mounting: Surface (wall) mount
Size: 146 × 70 × 23 mm (H × W × D)
Working temperature: −40 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete front-door system

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP indoor monitor or the SmartPlus app.

Weather

E12 rain hood

Shelters the plate on an exposed door. The E12 angle bracket turns the camera towards the approach.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards and key fobs work with the E12 reader once enrolled.

Lock

Electric strike / maglock

The relay switches your lock power supply. Strike, maglock and lock PSU are separate items.

Watch

See it in action

Akuvox E12 video door phone overview

Mounting the E12 door phone

Answers

Common questions

What is the difference between E12S and E12W?

Same housing, camera and reader. E12W adds dual-band Wi-Fi 6 (2.4 / 5 GHz) alongside RJ45; E12S is the wired Ethernet version. This listing is the E12W.

Is there a silver version?

Yes. The E12 comes in silver (black glass over a brushed silver panel) and all black. This listing is black; the silver E12W is a separate SKU.

How is it powered?

12 V DC at the door, or PoE 802.3af over RJ45.

Can I unlock the door from my phone?

Yes. SmartPlus app users can answer and unlock, Android phones can unlock over NFC, and Bluetooth 5.0 supports phone-based entry.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

A video doorbell for doors without data, local stock.

Choose E12W when the front door has power but no network cable — or E12S when it does. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from a 12 V DC supply or IEEE 802.3af PoE as stated on the Akuvox E12W datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
