In Stock - Ready to Ship

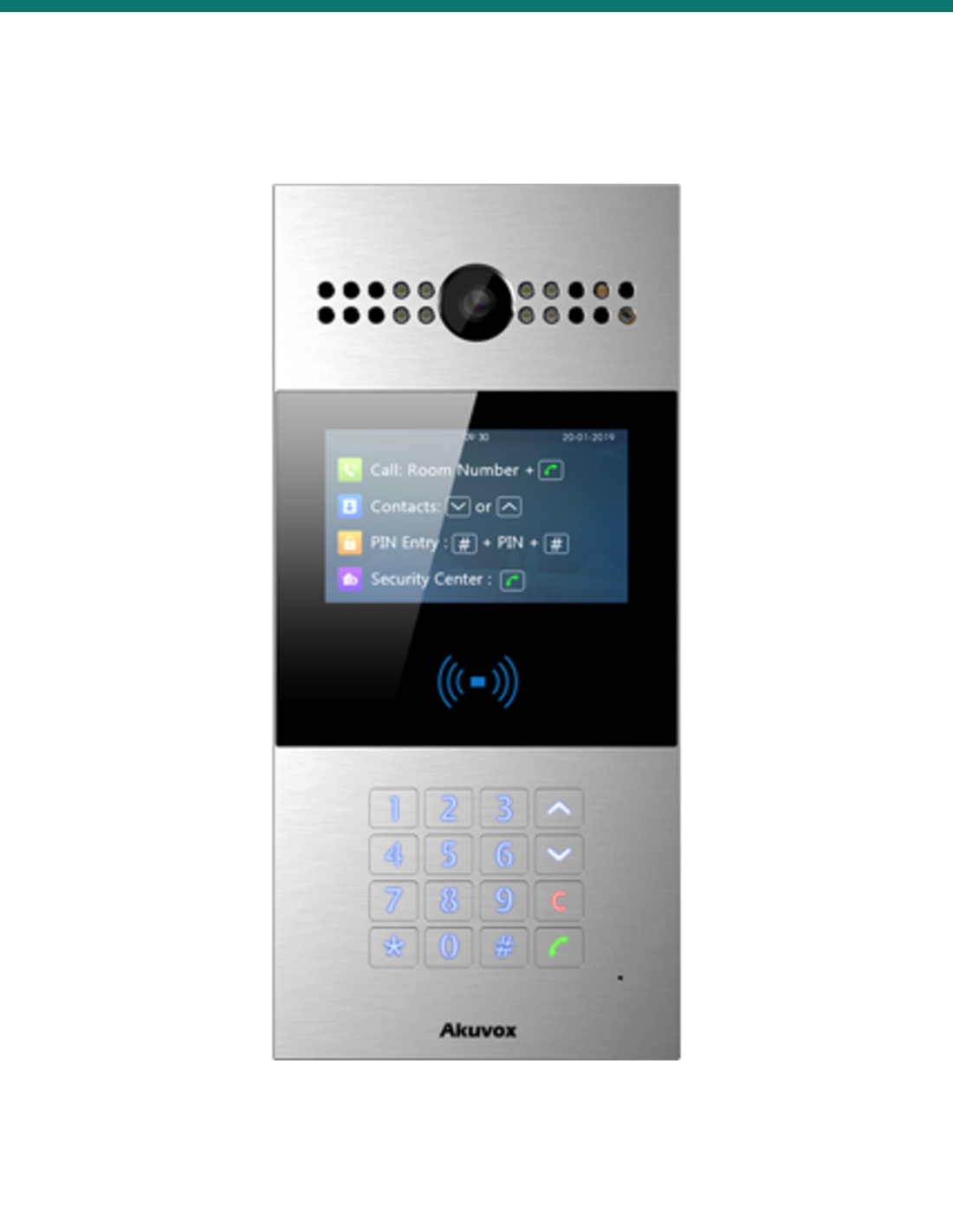

Akuvox R28A 4.3″ Screen SIP Video Door Phone with Keypad and Card Reader — AK-R28A
$988.50 inc GST
Akuvox R28A is an apartment SIP video door phone with a 4.3″ colour screen that guides visitors through calling, a full keypad, a 2 MP WDR camera and card, PIN and NFC entry. Three relays, IP65 / IK06 aluminium, PoE.
- ✓4.3″ colour TFT LCD (480 × 272) for on-screen instructions
- ✓2 MP WDR camera, 110° (H) / 58° (V), 1080p at 30 fps
- ✓Keypad, 13.56 MHz / 125 kHz card reader and NFC — up to 25,000 cards
- ✓3 relays, 3 inputs, Wiegand, RS485 · PoE 802.3af · IP65 / IK06
Akuvox · R28A · Screen and keypad door station
An apartment entry that explains itself.
4.3″ screen, keypad, three relays.

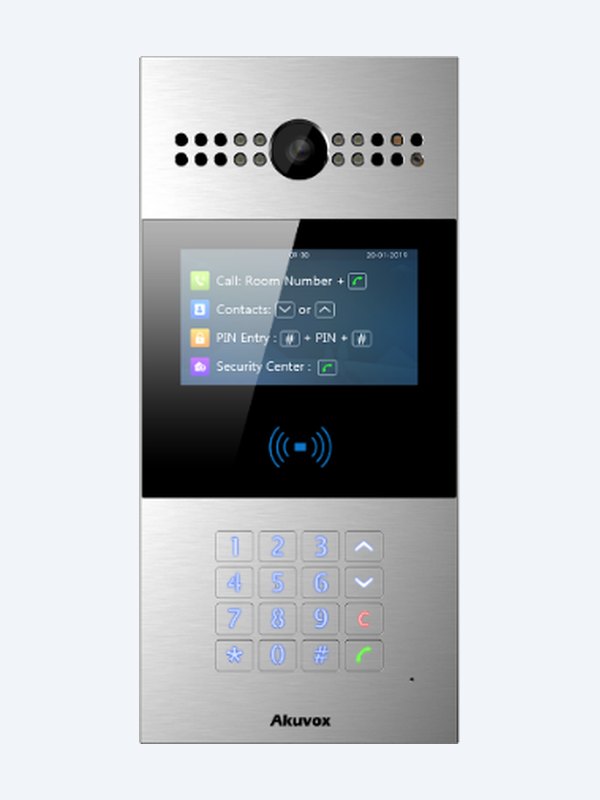

The AK-R28A is Akuvox’s R28 door station in silver aluminium. A 4.3″ colour screen shows visitors how to call and what is happening, while the keypad, card reader and three relays handle residents, staff and multiple doors.
This SKU is the door station only.
You receive the R28A door phone. Indoor monitors, on-wall or in-wall installation kit, rain cover, PoE switch and lock hardware are sold separately.
In the box
- Akuvox R28A door phone
- Accessory pack and quick guide
What you also need(sold separately)
- R27/R28 on-wall or in-wall installation kit
- Compatible Akuvox indoor monitors, SmartPlus app or SIP endpoints
- PoE 802.3af switch or injector
- Electric locks / maglocks and lock PSU
Clear for visitors. Fast for residents.
Visitors follow the on-screen prompts to dial a flat; residents see them in 2 MP before releasing the door. Residents and staff skip the call with a card, PIN, Android phone or the SmartPlus app.
Display
Instructions on the panel.

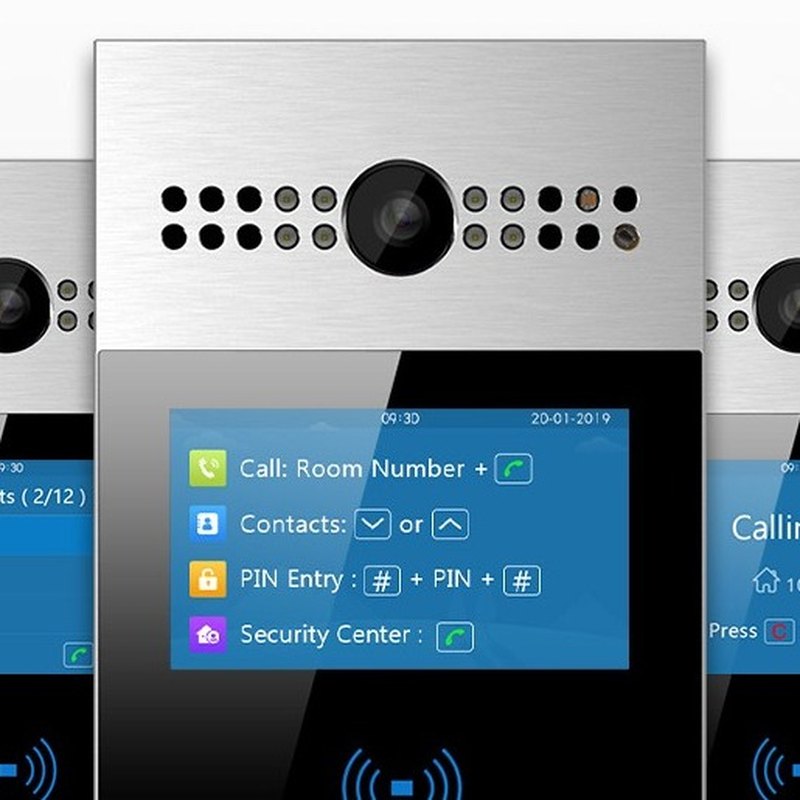

4.3″ colour TFT LCD at 480 × 272 shows calling instructions, call status and unlock feedback, so first-time visitors are not left guessing.

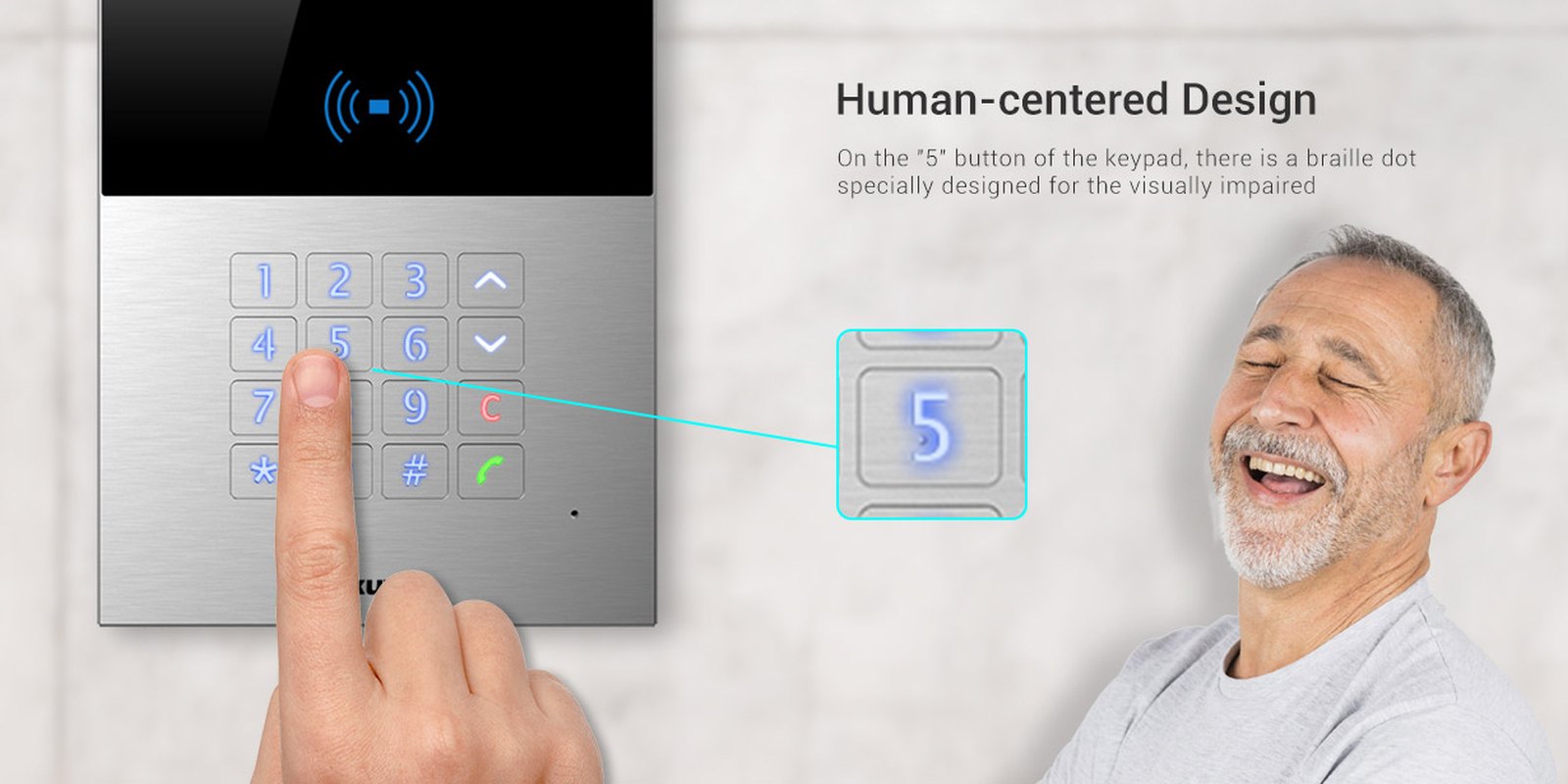

The numeric keypad with extra buttons handles flat numbers and PINs; the 5 key carries a raised dot for blind and low-vision users.
Camera and access
WDR picture, 25,000 cards.
2 MP 1/2.8″ CMOS with wide dynamic range, 110° (H) / 58° (V), 1080p at 30 fps, IR LEDs and a light sensor for night calls.
The 13.56 MHz and 125 kHz reader takes EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards plus Android NFC: up to 25,000 cards, 5,000 PINs and 5,000 users.
Built for outside

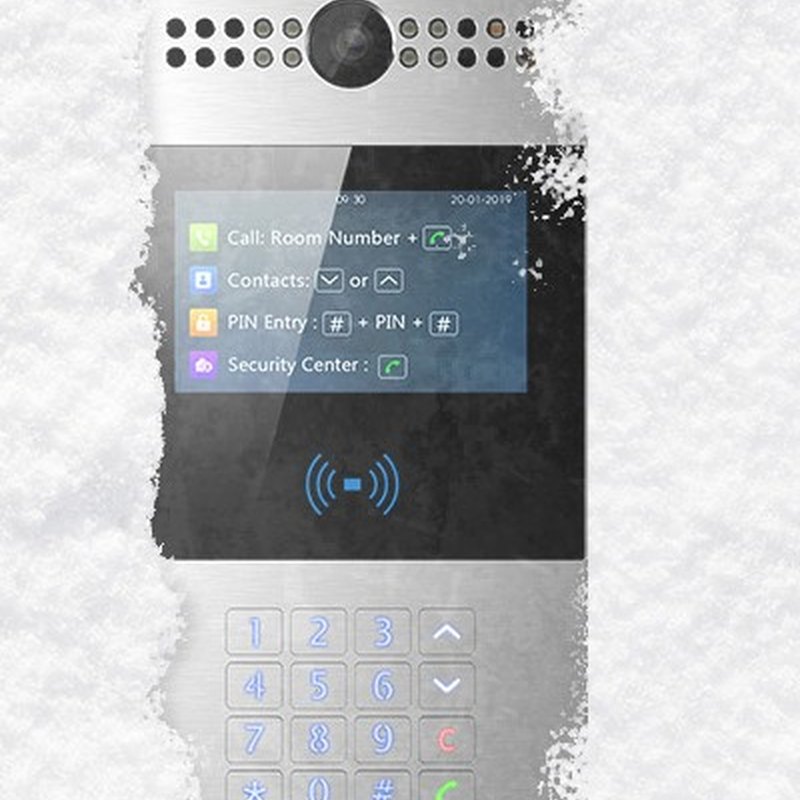

IP65, IK06, −40 °C to +55 °C.
Silver aluminium front, IP65 against rain and dust, IK06 impact rated, with a tamper alarm. 280 × 130 × 31.4 mm.
Three relays and three inputs run multiple doors and gates; Wiegand, RS485 and a 12 V / 400 mA output connect readers and accessories.
How it works
From first prompt to open door.
01
Mount
Fit the R27/R28 on-wall kit for surface mounting or the in-wall kit for flush; add the rain cover where exposed.
02
PoE and SIP
Run 802.3af PoE to the RJ45 and register the station to Akuvox indoor monitors, SmartPlus or your SIP PBX.
03
Load residents
Import flats, cards and PINs in the web portal: up to 25,000 cards and 5,000 PINs.
04
Test the doors
Call a flat, check the picture day and night, and confirm each of the three relays releases the right lock.
At a glance
Key specs — AK-R28A
Show all specifications
- Display
- 4.3″ colour TFT LCD, 480 × 272
- Camera
- 2 MP, 1/2.8″ CMOS, WDR
- Field of view
- 110° (H) / 58° (V)
- Video
- H.264, 1080p at 30 fps
- Unlock
- Card, PIN, NFC, SmartPlus app, DTMF
- Capacity
- 25,000 cards · 5,000 PINs · 5,000 users
- I/O
- 3 relays, 3 inputs, Wiegand in/out, RS485
- Power
- PoE IEEE 802.3af
- Protection
- IP65 · IK06
- Size
- 280 × 130 × 31.4 mm (H × W × D)
- Working temperature
- −40 °C to +55 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-R28A
Physical and power
- Front panel
- Aluminium
- Display
- 4.3″ colour TFT LCD
- Camera
- 2 MP with automatic lighting
- Keypad
- Numeric keypad with extra buttons
- Sensors
- Light sensor, motion sensor, tamper alarm
- Microphone / speaker
- 1 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- Power
- IEEE 802.3af PoE
- Power output
- 12 V / 400 mA max
- Ingress protection
- IP65
- Installation
- Flush or surface (wall) mounted
- Dimensions (H × W × D)
- 280 × 130 × 31.4 mm
- Working temperature
- −40 °C to +55 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces
- Relay outputs
- 3
- Inputs
- 3
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- RF reader
- 13.56 MHz and 125 kHz
- NFC
- Yes (Android phones)
Video
- Sensor
- 1/2.8″ CMOS
- Resolutions
- CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Maximum resolution
- 1920 × 1080
- Frame rate
- 1080p at 30 fps
- Codec
- H.264
- Wide dynamic range
- Yes (WDR)
- Viewing angle
- 110° (H) / 58° (V)
- Night lighting
- High-intensity IR LEDs with internal light sensor
- Minimum illumination
- 0.1 lux
- White balance
- Auto
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, voice activity detection, comfort noise generator
Door entry and capacity
- Unlock methods
- EM / MIFARE card, PIN
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Card types
- EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
- Users
- 5,000
- Cards
- 25,000
- PINs
- 5,000
Network and management
- Standards
- SIP and ONVIF
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
Pair it with
Builds a complete apartment entry
Surface
R27/R28 on-wall installation kit
Surface-mount back box for the R28A.
Flush
R27/R28 in-wall kit and rain cover
Recesses the panel into the wall; add the in-wall rain cover on exposed entries.
Indoor
Akuvox indoor monitors
Residents answer, see the visitor and release the door from compatible Akuvox SIP indoor stations or the SmartPlus app.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards and fobs work with the R28A reader once enrolled.
Works with
Platforms and integrations
SIP PBX and softphones
SIP v1 / v2 lets the R28A call Akuvox indoor monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Record the 2 MP entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Residents answer calls and open the door from the SmartPlus app on iOS or Android.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Downloads
Datasheets and guides
PDFR28 quick guideOfficial Akuvox R28 quick guide (PDF) · 5 MBPDFR28A DatasheetAkuvox R28A datasheet V5.0, September 2025 edition · 254 KBPDFR28 dimension drawingsPanel, wall box, flush box, bracket and rain cover drawings in mm, June 2024 · 1.4 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Is a mounting kit included?
No. Order the R27 / R28 on-wall kit for surface mounting or the R27 / R28 in-wall kit for flush mounting.
How is the R28A different from the R20K?
The R28A adds a 4.3″ colour screen, a WDR camera, a third relay and input, and higher card capacity, in a larger 280 × 130 mm panel.
What power does it need?
IEEE 802.3af PoE from a switch or injector. A 12 V / 400 mA output can run a small reader or lock accessory.
How many residents and cards does it hold?
Up to 5,000 users, 25,000 cards and 5,000 PINs, with access tables exported and imported through the web portal.
Will it work in cold or exposed sites?
It is rated −40 °C to +55 °C and IP65. Add the R27 / R28 rain cover on elevations that face the weather.
Will it record to my NVR?
Yes. The R28A supports ONVIF and RTSP, so ONVIF-capable NVRs can add it as a camera channel.
What mounting height does Akuvox show?
The R28 drawings place the camera centre at 1,500 mm and the bottom of the panel at 1,259 mm above ground.
Does this model support a hearing-aid induction loop?
No. Akuvox makes a separate R28A induction loop version; this SKU is the standard model.
The screen-guided apartment station.
Choose the R28A over the compact R20K when visitors need on-screen guidance, or when you need a third relay and higher card capacity.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Keypad
- Numeric keypad with extra buttons
- Power
- PoE 802.3af
- Colour
- Silver
- Capacity
- 5,000 users · 25,000 cards · 5,000 PINs
- Power Output
- 12 V / 400 mA max
- Working Temperature
- −40 °C to +55 °C
- Brand
- Akuvox
- Display
- 4.3″ colour TFT LCD, 480 × 272
- Field of View
- 110° (H) / 58° (V)
- Protection
- IP65, IK06
- Camera
- 2 MP, 1/2.8″ CMOS, WDR
- Size
- 280 × 130 × 31.4 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, up to 1920 × 1080 at 30 fps
- Product Type
- SIP door station
- Model
- R28A
- Finish
- Silver aluminium
- RF Reader
- 13.56 MHz and 125 kHz
- I/O
- 3 relays, 3 inputs, Wiegand in/out, RS485
- OS
- Linux
- Unlock
- Card, PIN, NFC (Android), DTMF, SmartPlus app
- Card Types
- EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
