Akuvox S535 is a 5-inch Linux door phone that opens for a known face in under 200 ms, and also takes cards, PINs, Bluetooth and QR codes. Aluminium, IP66 / IK08, PoE+ — with an expansion port for a fingerprint, induction loop or LTE module later.
- ✓5″ IPS touchscreen (720 × 1280) with 2 MP main and 2 MP face-liveness cameras
- ✓Face, EM / MIFARE / DESFire / FeliCa card, PIN, BLE, NFC and QR code entry
- ✓20,000 faces · 100,000 cards · 100,000 PINs · 20,000 contacts
- ✓PoE 802.3at or 12 V DC · IP66 / IK08 · −40 °C to +55 °C · 210 × 100 × 27 mm
Description
A compact door phone that knows your residents.
Face, card, PIN, phone — one 100 mm plate.

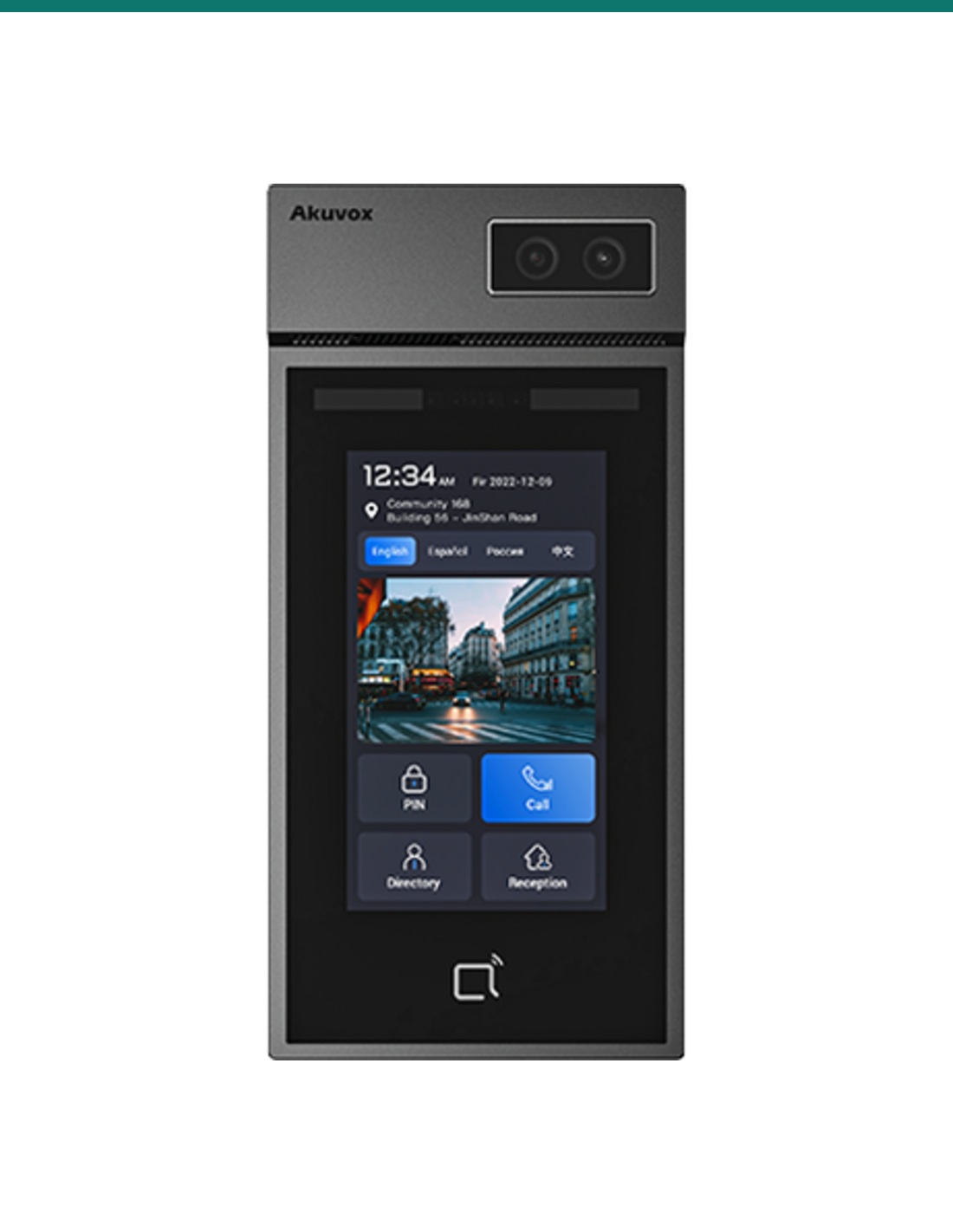

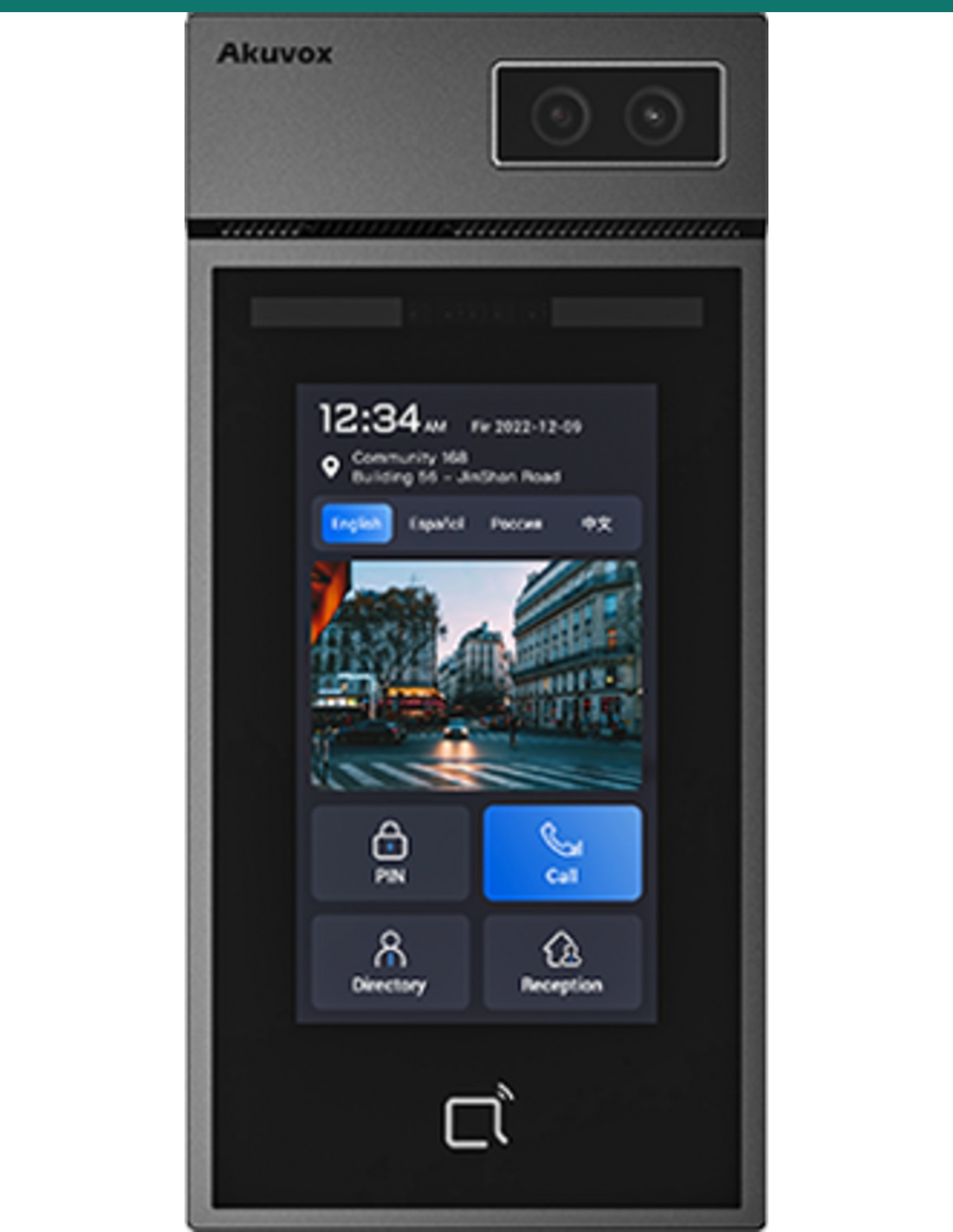

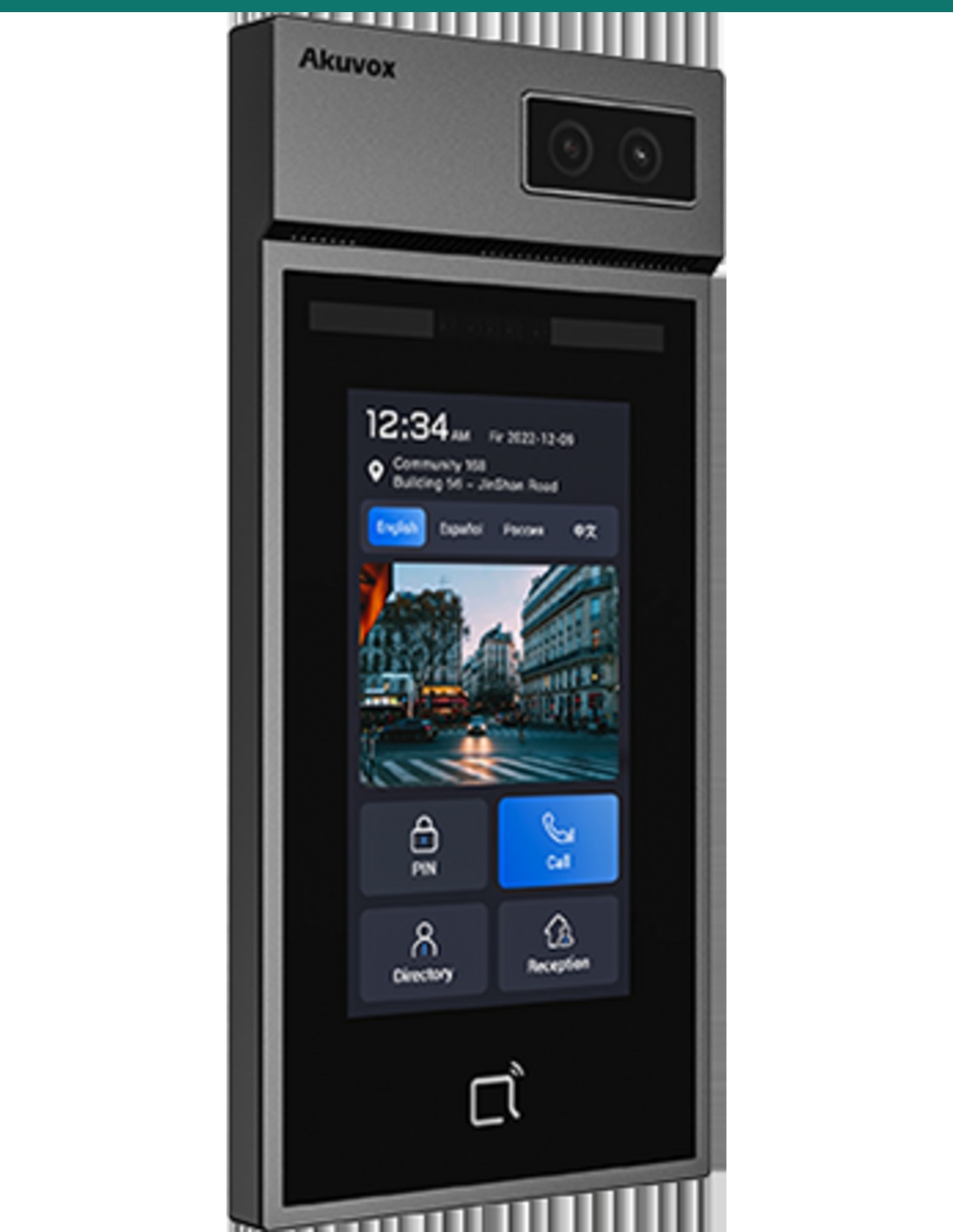

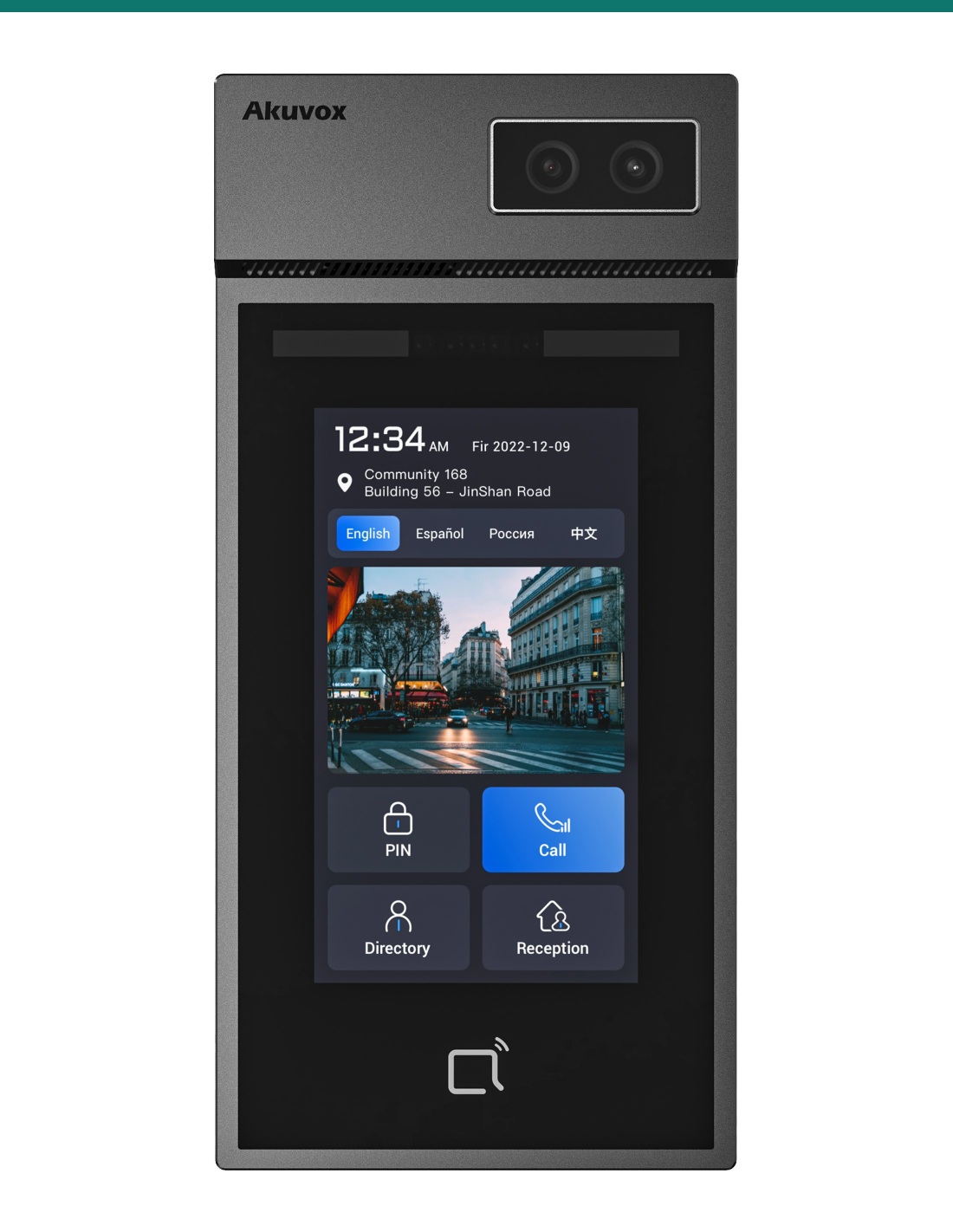

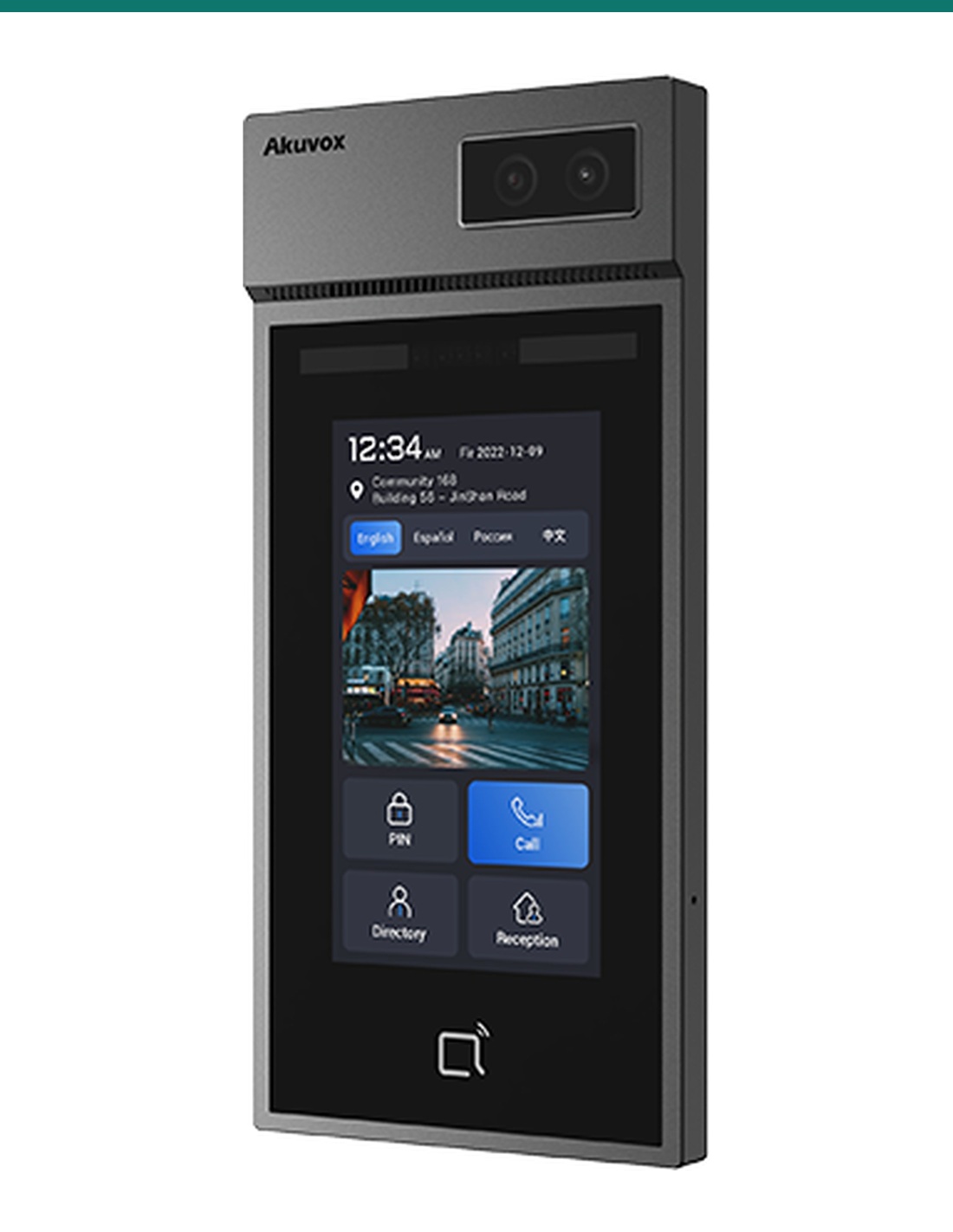

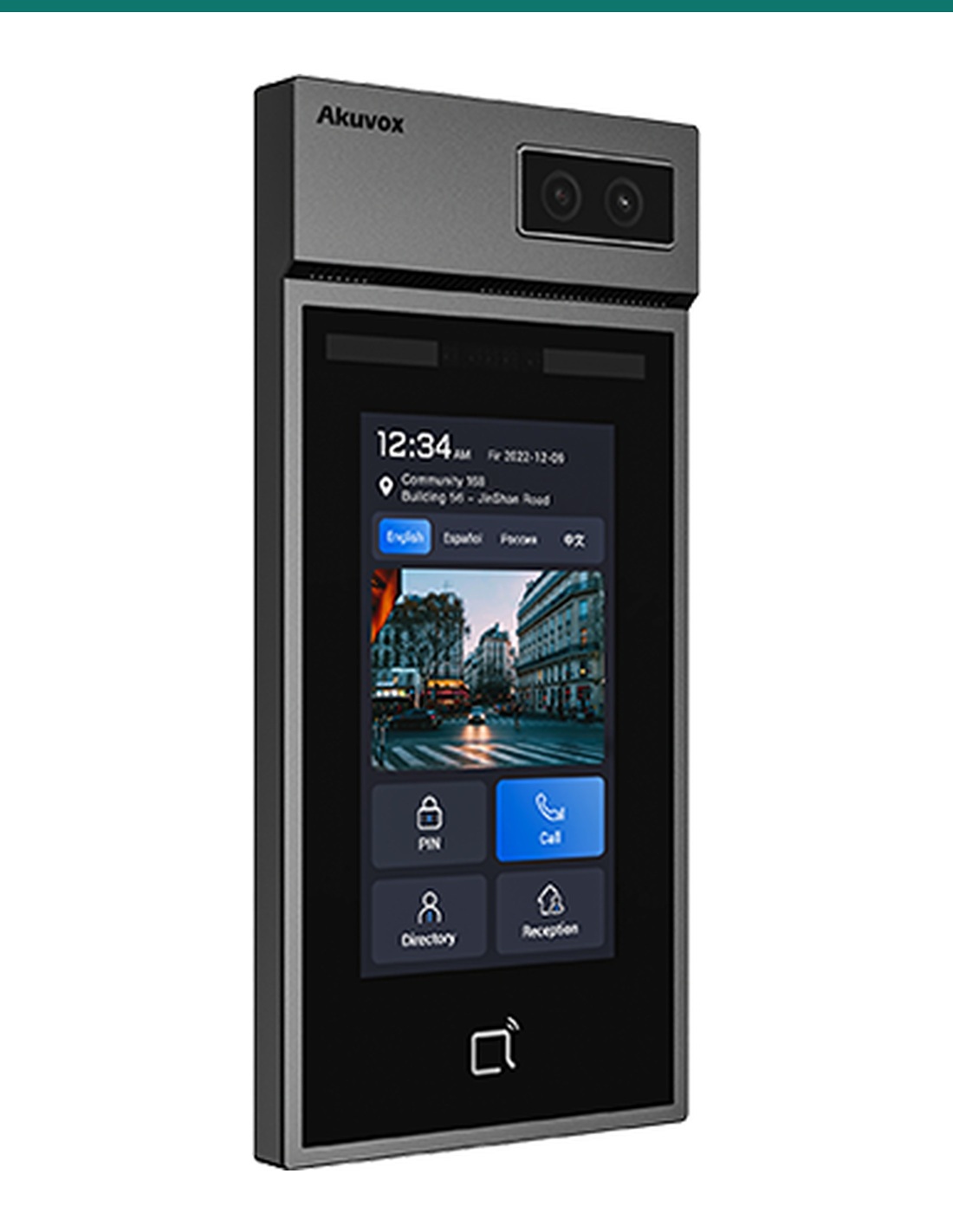

The AK-S535 is Akuvox’s modular 5-inch facial recognition door station. A Linux touchscreen, two 2 MP cameras and a dual-frequency card reader fit into a 210 × 100 mm aluminium plate, with an expansion port underneath for an optional fingerprint, induction loop or LTE module.
This SKU is the S535 door station only.
You receive the S535 main unit with its wiring accessories. Choose an on-wall or in-wall box to suit the site — they are sold separately, as are indoor monitors, PoE switch, lock hardware and any expansion module.
- Akuvox S535 door station
- Wiring cover, rubber cable plugs and screws
- 9-pin and 6-pin wiring cables
- Torx wrench and diode
- S535 on-wall box or in-wall box
- PoE 802.3at switch / injector, or 12 V DC 3 A supply
- Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
- Electric lock / maglock and lock PSU
Walk up. Look. Walk in.
Residents are recognised in under 200 ms and the door releases without them touching anything. Visitors tap the directory and call a flat. Staff and contractors use a card, PIN, phone or a one-time QR code.

Recognition
Under 200 ms from glance to green light.

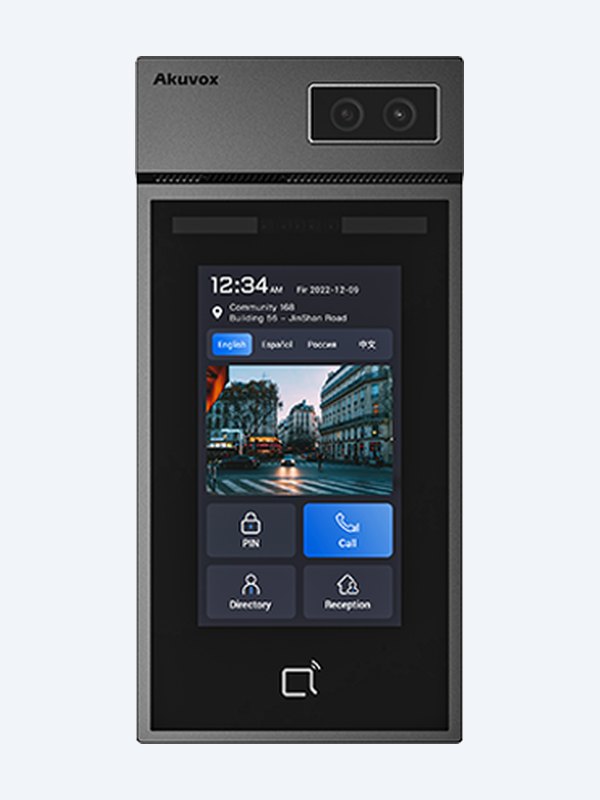

The 5-inch IPS touchscreen (720 × 1280) sits under a 2 MP main camera and a 2 MP auxiliary camera used for liveness detection. Akuvox quotes face matching in under 200 ms with 99.7% accuracy.
Up to 20,000 face templates, 100,000 cards and 100,000 PINs are held on the station. HDR video at up to 1080p / 30 fps streams over RTSP and ONVIF to your NVR.
Built for outside
IP66, IK08 and −40 °C rated.

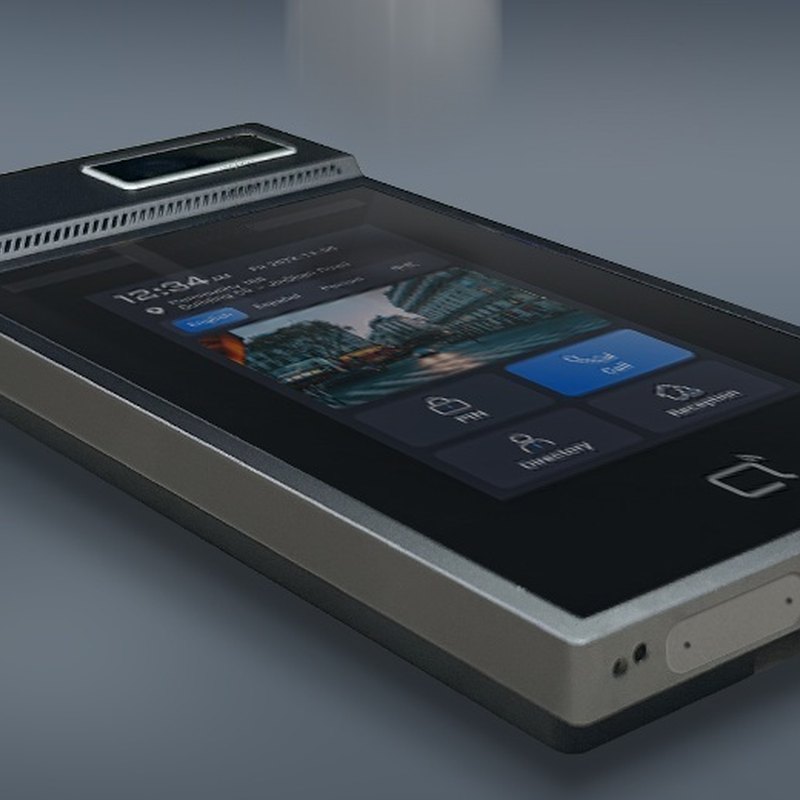

An aluminium front panel rated IP66 for water and dust and IK08 for impact. Working temperature runs from −40 °C to +55 °C.
IR and white-light LEDs, a light sensor and a motion sensor keep the picture usable at night and wake the screen as someone approaches. Surface-mount or flush-mount with the matching S535 box.


Modular
Add a module when the site needs it.

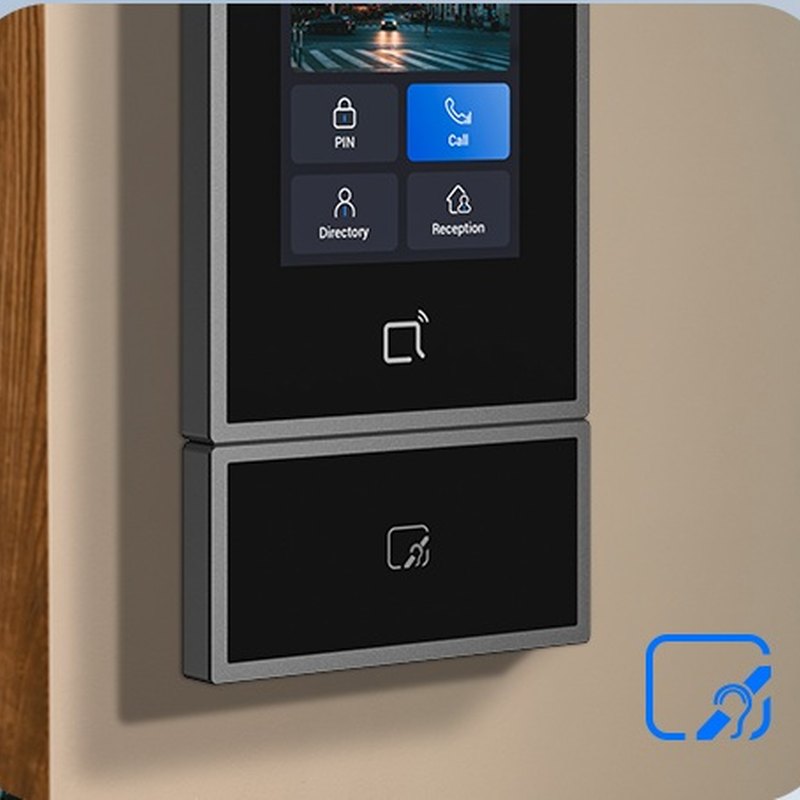

The expansion port under the screen takes one Akuvox module: fingerprint (20,000 finger templates), induction loop for hearing-aid users, or LTE for sites without a data cable.
Modules plug in directly — no extra wiring — and add 50 mm to the height. Use the S535 box for modules so the taller plate mounts as one panel.
How it works
From bare wall to recognised face.
01
Fit the box
Install the S535 on-wall or in-wall box — or the expansion version if a module will be fitted.
02
Wire and power
Connect PoE+ or 12 V DC, the lock relay and inputs using the supplied 9-pin and 6-pin cables.
03
Register and enrol
Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then enrol faces, cards and PINs in the web portal.
04
Test the door
Check face entry day and night, make a test call and confirm the relay releases the lock.
At a glance
Key specs — AK-S535
Show all specifications
- Display
- 5″ IPS touchscreen, 720 × 1280
- Cameras
- 2 MP main (HDR) + 2 MP face-liveness
- Field of view
- 116° (H) / 62° (V)
- Face recognition
- Under 200 ms, 99.7% accuracy
- Unlock
- Face, card, PIN, BLE, NFC, QR code
- Capacity
- 20,000 faces · 100,000 cards · 100,000 PINs
- I/O
- 1 relay, 2 inputs, Wiegand, RS485, 12 V / 500 mA out
- Expansion
- 1 port: fingerprint, induction loop or LTE
- Power
- PoE 802.3at or 12 V DC, 3–4 A
- Protection
- IP66 · IK08
- Size
- 210 × 100 × 27 mm (H × W × D)
- Working temperature
- −40 °C to +55 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-S535
Physical and power
- Front panel
- Aluminium
- Display
- 5″ IPS LCD touchscreen, 720 × 1280
- Main camera
- 2 MP with automatic lighting
- Auxiliary camera
- 2 MP face-liveness camera with automatic lighting
- Infrared LEDs
- Yes
- White-light LED
- Yes
- Light sensor
- Yes
- Motion sensor
- Yes (radar)
- Speaker / microphone
- 1 / 1
- Reset button
- 1
- Tamper alarm
- Yes
- Expansion port
- 1 — fingerprint, induction loop or LTE module
- Ethernet
- 1 × RJ45, 10/100 Mbps adaptive
- PoE
- IEEE 802.3at (PoE+)
- DC supply
- 12 V DC, 3 A (4 A with a loop or LTE module and the 12 V output in use)
- Power output
- 12 V, 500 mA
- Ingress protection
- IP66
- Impact rating
- IK08
- Installation
- Flush or wall (surface) mounted
- Dimensions (H × W × D)
- 210 × 100 × 27 mm
- Working temperature
- −40 °C to +55 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces
- Relay outputs
- 1
- Inputs
- 2
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- Bluetooth
- BLE 5.0
- RF reader
- 13.56 MHz and 125 kHz
- NFC
- Yes (Android phones)
Video
- Sensor
- 1/2.9″ CMOS (main camera)
- Resolutions
- CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Maximum resolution
- 1920 × 1080
- Frame rate
- 1080p at 30 fps
- Codec
- H.264
- Image technology
- HDR
- Viewing angle
- 116° (H) / 62° (V)
- Minimum illumination
- 0.1 lux
- White balance
- Auto
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, voice activity detection, comfort noise generator
Door entry and capacity
- Unlock methods
- Face, EM / MIFARE card, PIN, BLE, QR code, NFC, DTMF
- Relay control
- Relay controlled by DTMF tones
- Camera
- Permanently operational
- Face recognition speed
- Under 200 ms
- Face recognition accuracy
- 99.7%
- Card types
- EM, MIFARE, DESFire EV2 / EV3, FeliCa
- Users
- 20,000
- Contacts
- 20,000
- Face templates
- 20,000
- Cards
- 100,000
- PINs
- 100,000
- Finger templates
- 20,000 (with the fingerprint module)
Network and management
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
In the box
- Door station
- S535 with wiring cover
- Wiring
- 9-pin and 6-pin cables, diode
- Fixings and tools
- M2.5×5 crosshead screws, M3×6 Torx screw, Torx wrench
- Cable seals
- Rubber plugs A and B
- Mounting box
- Not included — choose the S535 on-wall or in-wall box
Pair it with
Builds a complete door entry system
Mount

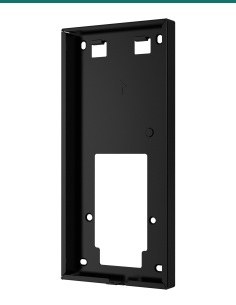

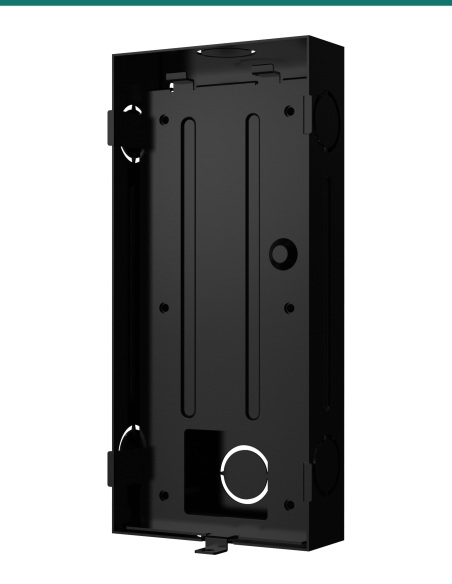

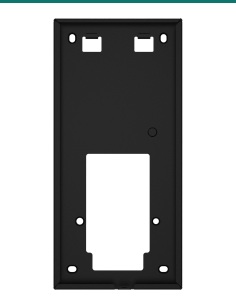

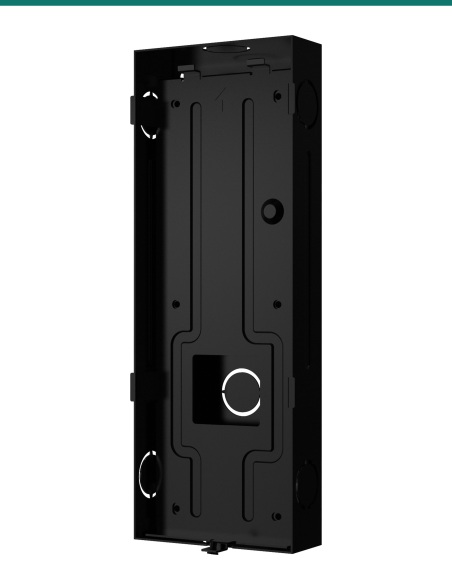

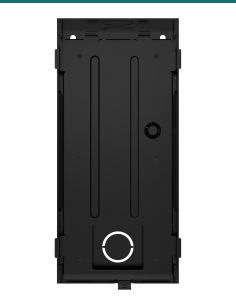

S535 on-wall or in-wall box

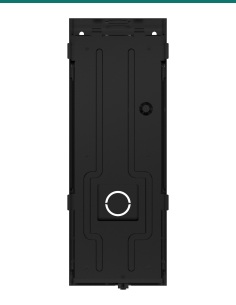

Required to mount the station. Use the expansion-module box if you plan to add a module.
Indoor
Akuvox indoor monitor
Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.
Expand
Fingerprint, loop or LTE module
Clip-on S535 modules add a finger reader, a hearing loop or a 4G connection.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards work with the S535 reader once enrolled.
Works with
Platforms and integrations
SIP PBX and softphones
Standard SIP v1 / v2 lets the S535 call Akuvox monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Record the 1080p HDR entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Residents answer video calls, open the door and use Bluetooth or QR-code entry from the SmartPlus app.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Watch
See it in action
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Is a mounting box included?
No. The S535 needs either the S535 on-wall box or the in-wall box, sold separately. If you will fit a module, use the box made for modules.
Can I add a fingerprint reader later?
Yes. The S535 has one expansion port for a fingerprint, induction loop or LTE module. Power the station off before fitting a module, and plan the taller box if you are flush-mounting.
What power does it need?
IEEE 802.3at PoE+, or a 12 V DC 3 A supply — 4 A if a loop or LTE module is fitted and the 12 V / 500 mA output is powering a lock or reader.
Can photos fool the face reader?
The S535 has a second 2 MP camera dedicated to face-liveness detection, which checks that a real person — not a photo — is in front of the station.
How many users does it hold?
20,000 users and face templates, 100,000 cards, 100,000 PINs and 20,000 directory contacts. With the fingerprint module it adds 20,000 finger templates.
Can residents open the door from their phone?
Yes. BLE 5.0 works with the Akuvox SmartPlus app, Android phones can also unlock over NFC, and visitors can be sent QR codes.
How big a hole does a flush install need?
203.5 × 94 × 34 mm for the S535 on its own, or 255.5 × 94 × 34 mm with a module fitted.
How is it different from the S532?
S532 is a keypad door phone with a 2.8″ display and no face recognition. S535 adds a 5″ touchscreen, facial recognition, QR codes and the expansion port.
Small plate, full access control.
Choose the S535 when you want facial recognition on a narrow door frame, and the option to add a module later.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3at PoE+ or a 12 V DC, 3 A supply (4 A with a loop or LTE module and the 12 V output in use). A 12 V / 500 mA output is available for a small lock or reader.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
