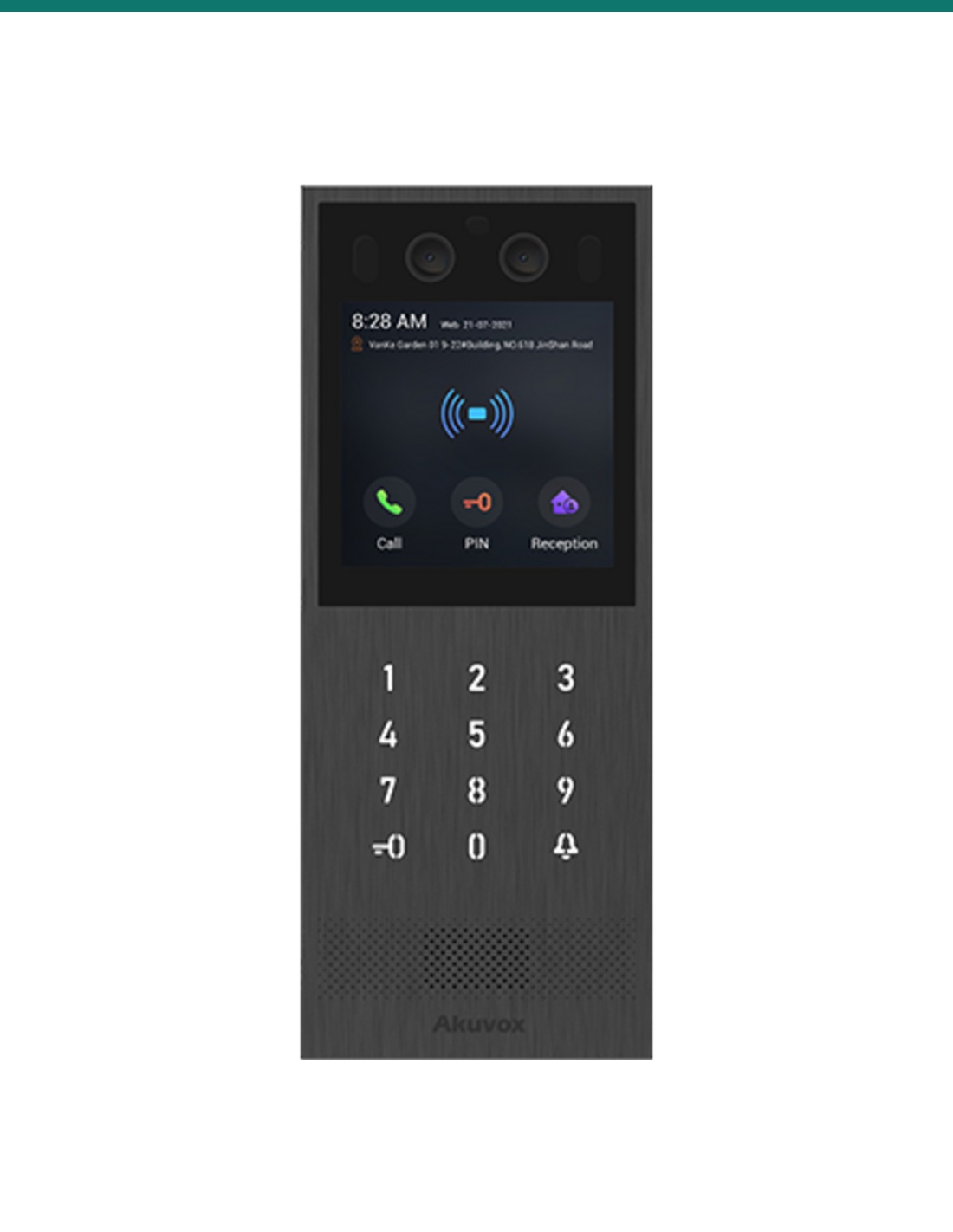

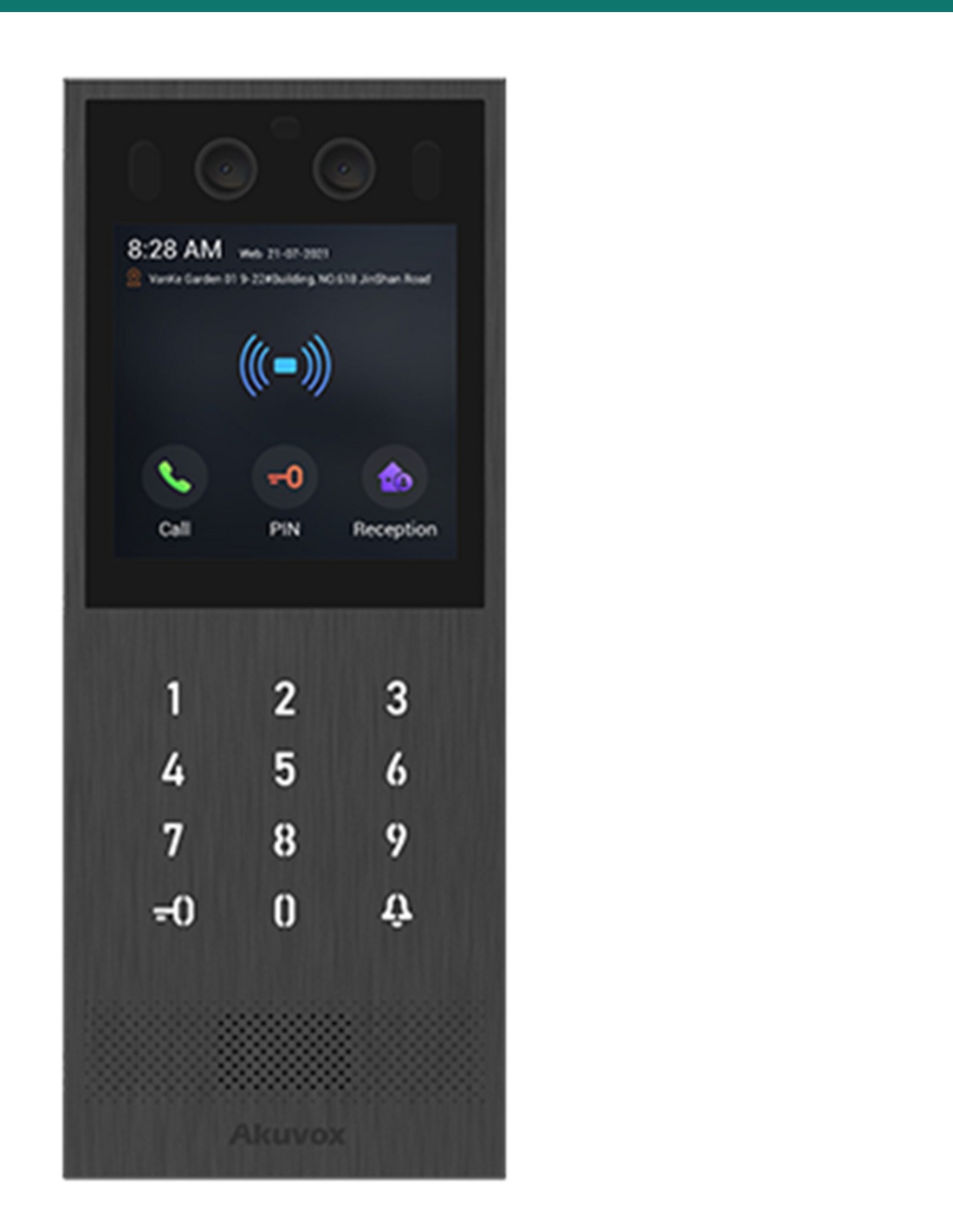

Akuvox X912S Stainless Steel 4″ Facial Recognition SIP Door Phone with Touch Keypad — AK-X912S

SKU AK-X912S In Stock - Ready to Ship
$1,988.50 inc GST

Akuvox X912S is the stainless steel version of Akuvox’s X912 door phone, with a flush touch keypad and IK10 vandal rating. A 4-inch touchscreen and dual 2 MP cameras with liveness detection handle face recognition, with card, PIN, Bluetooth and QR entry. IP65, PoE+.

  • ✓Stainless steel panel with a flush touch keypad — no moving keys
  • ✓4″ touchscreen (480 × 480), dual 2 MP cameras, face recognition under 200 ms
  • ✓20,000 faces · 100,000 cards · 20,000 PINs · 2 relays, 3 inputs
  • ✓PoE 802.3at or 12 V DC · IP65 / IK10 · wall bracket included

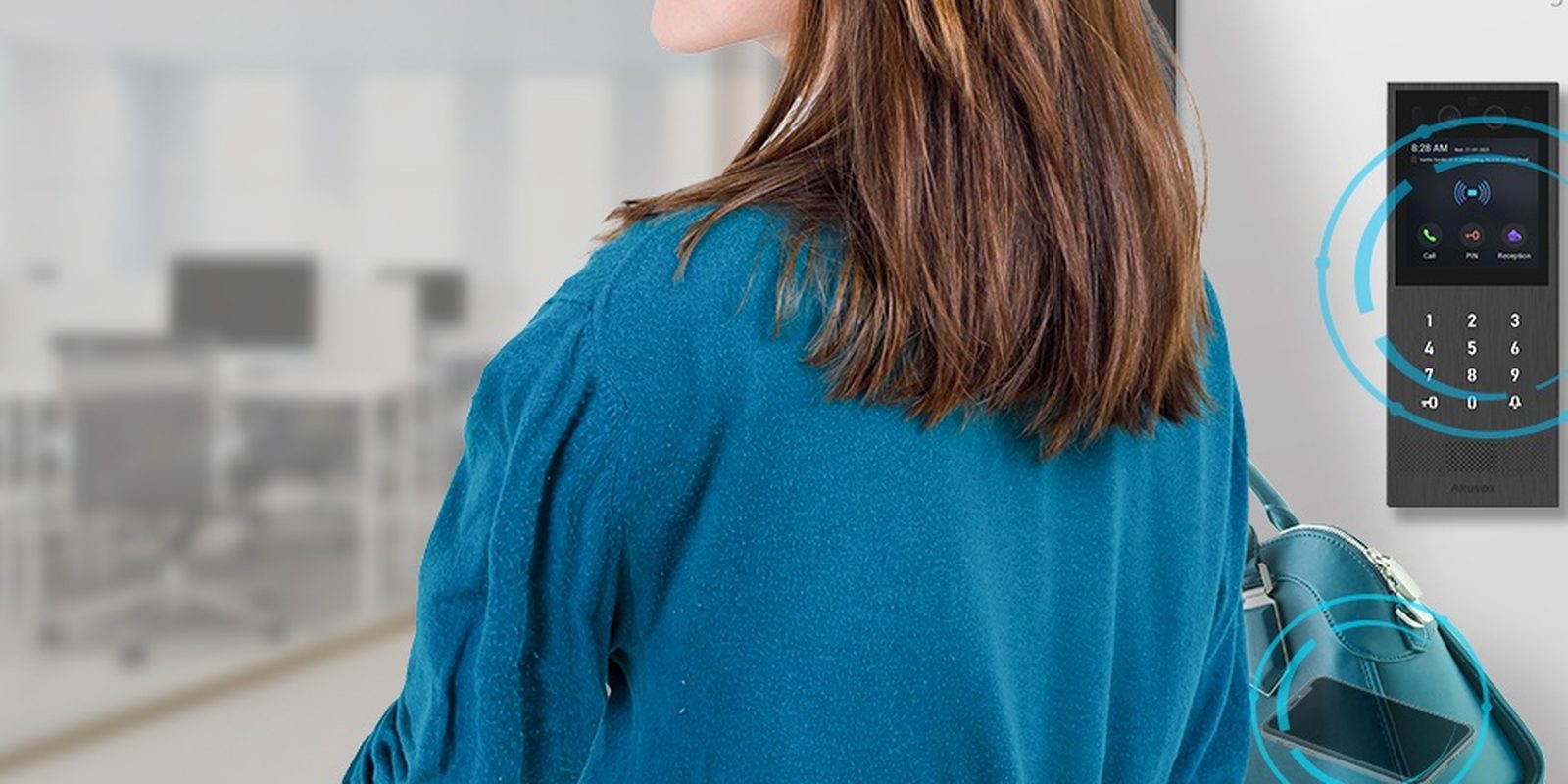

Woman walking up to an Akuvox X912 door phone for touchless Bluetooth entry
Akuvox · X912S · Stainless steel facial recognition door phone

Stainless steel, no keys to break.
IK10 face recognition in a 94 mm panel.

The AK-X912S is the stainless steel version of Akuvox’s X912 door phone. A 4-inch square touchscreen, two 2 MP cameras and a 13.56 MHz / 125 kHz card reader sit above a flush touch keypad in a 233.5 × 94 mm stainless panel rated IK10.

The X912S door station with its wall bracket.

You receive the X912S with its wall-mounting bracket, template, fixings and wiring accessories, ready to surface-mount. The in-wall kit, rain covers, angle bracket, indoor monitors, PoE switch and lock hardware are sold separately.

In the box
  • Akuvox X912S door station
  • Wall-mounting bracket, wall template, 5 screws and wall anchors
  • Wiring cover, cable plugs, sealing plugs and 2 diodes
  • Allen wrench, installation rope and cleaning cloths
What you also need (sold separately)
  • PoE+ 802.3at switch / injector, or 12 V DC supply
  • Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU
  • X912 in-wall kit for flush mounting; rain cover or angle bracket where needed

Walk up and walk in.

Residents enter by face, Bluetooth, card or QR code; the touch keypad handles PINs and calls with no mechanical keys to wear or jam. Bluetooth access lets residents simply walk up to the door.

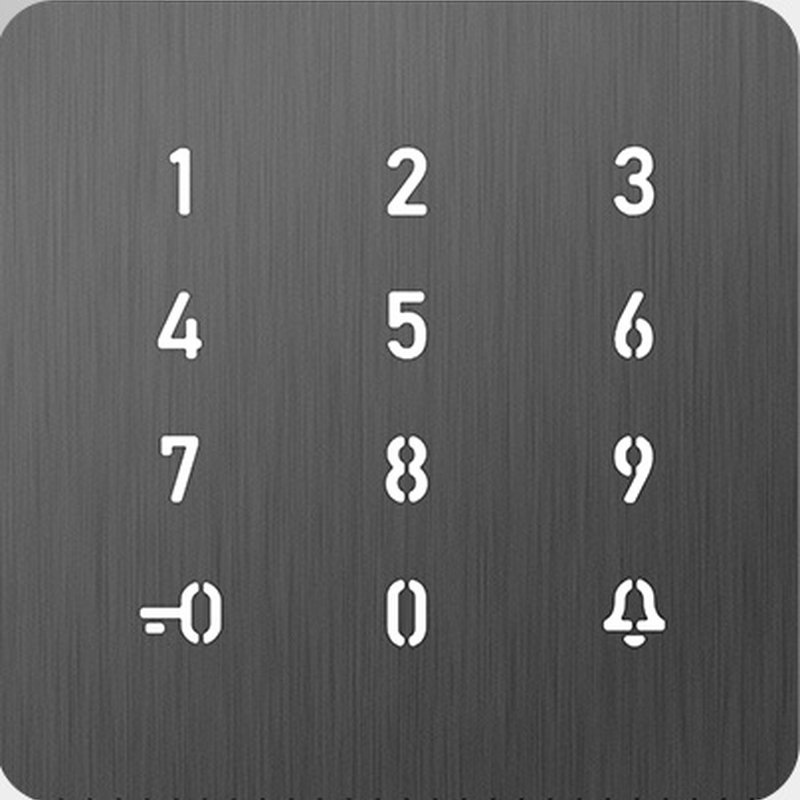

Akuvox X912S brushed stainless steel touch keypad

Design

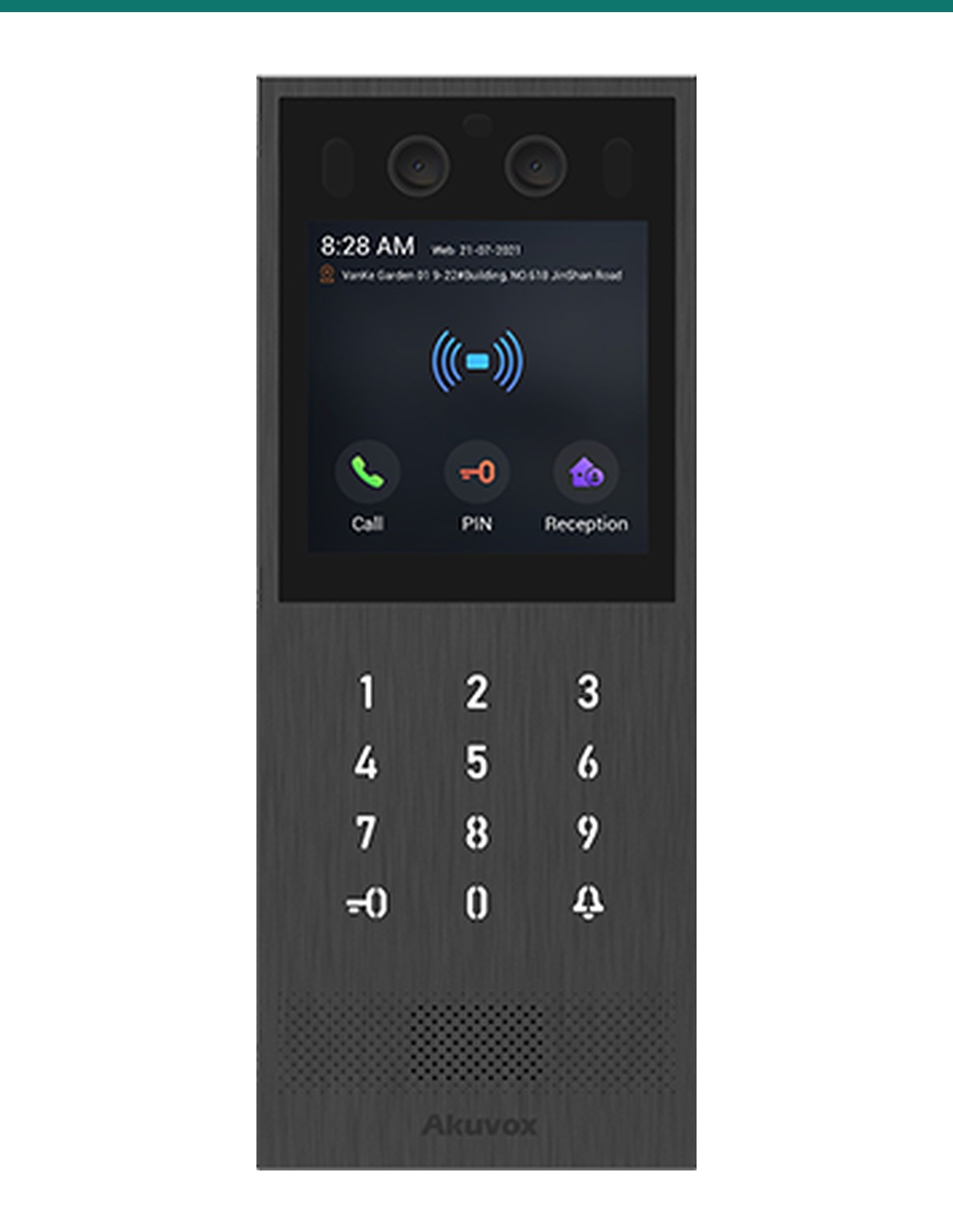

A flush touch keypad.

The clear-cut rectangular outline, brushed metal finish and touch-sensitive keypad leave no keys on the surface to prise or wear out.

The 4-inch touchscreen (480 × 480) shows call, PIN and reception options, and two microphones with echo cancellation keep calls clear.

Build

Stainless steel, IK10 and IP65.

The X912S front is stainless steel with a touch keypad, giving an IK10 impact rating and IP65 protection against dust and rain. It works from −20 °C to +60 °C.

Two relays, three inputs, Wiegand in/out and RS485 connect a door, a gate and access control panels. Up to 20,000 faces, 100,000 cards and 20,000 PINs are stored on the station.

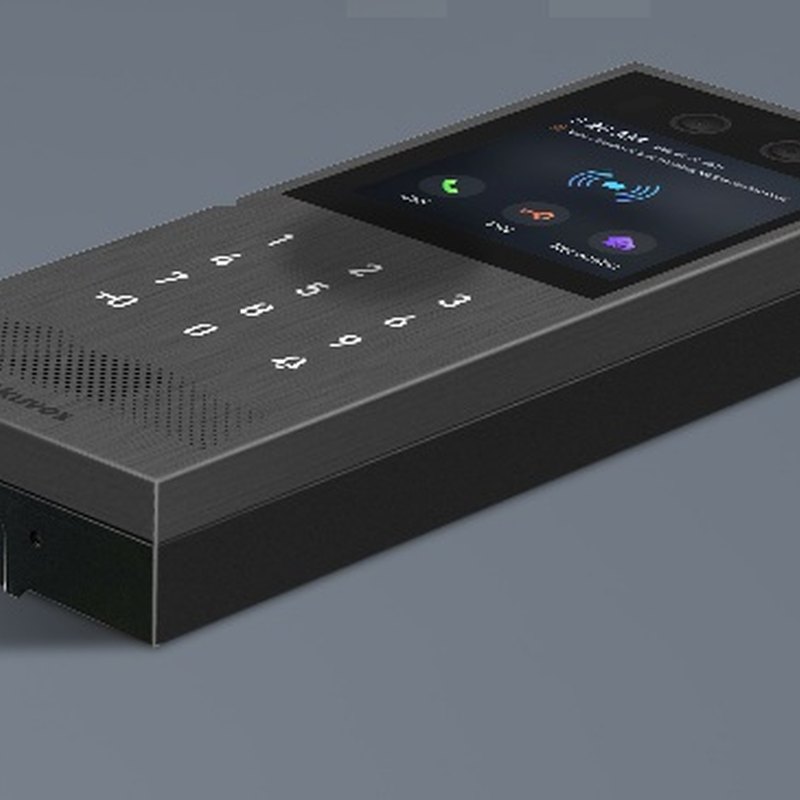

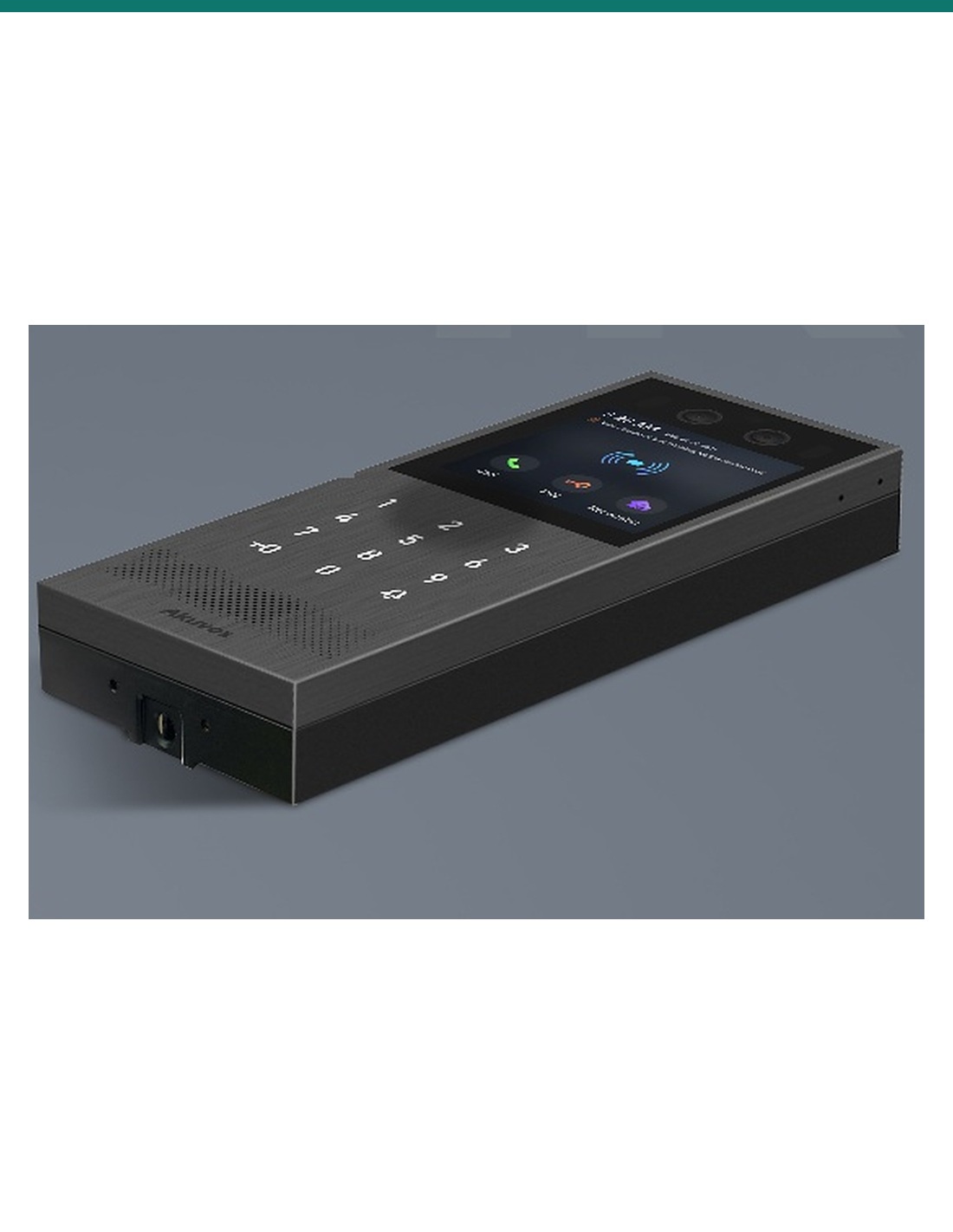

Akuvox X912S stainless steel door station

How it works

From bare wall to recognised face.

01

Fit the bracket

Fix the supplied wall bracket with the template, or install the X912 in-wall kit for flush. Add a rain cover or angle bracket where the site needs one.

02

Wire and power

Connect PoE 802.3at or 12 V DC, then the lock relays, exit buttons and door sensor inputs.

03

Register and enrol

Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then enrol faces, cards and PINs.

04

Test the door

Check face entry day and night, make a test call and confirm each relay releases its lock.

Pair it with

Builds a complete door entry system

Flush

X912 in-wall installation kit

Box, bracket and frame to recess the station; the surface bracket is already in the box.

Weather

X912 rain cover

On-wall and in-wall rain covers shelter the panel at exposed entrances.

Angle

X912 angle bracket

Mounts the X912 at an angle on the wall.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the X912 call Akuvox indoor monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

The door camera can be added to an ONVIF or RTSP-capable NVR and recorded alongside your CCTV.

Akuvox SmartPlus

Residents answer calls, unlock by Bluetooth and share QR-code keys from the SmartPlus app; SmartPlus can also link third-party emergency alarm systems to the X912.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Akuvox X912 door phone overview
Opening doors and making calls on the X912
Adding an admin card on the X912

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What is the difference between the X912K and X912S?

Same electronics, cameras, capacity and 233.5 × 94 × 34 mm size. The X912K has an aluminium-alloy front with a physical keypad, rated IK08. The X912S has a stainless steel front with a touch keypad, rated IK10.

How many users, faces and cards does it hold?

Up to 20,000 users, 20,000 face templates, 100,000 cards, 20,000 PINs and 5,000 contacts.

How does it stop someone using a photo to get in?

Alongside the 2 MP main camera, a second 2 MP camera and a TOF sensor handle face-liveness detection. Face recognition takes under 200 ms at 99.7% accuracy.

What power does it need?

IEEE 802.3at PoE+ or a 12 V DC supply. It also provides a 12 V / 1 A output for a lock or reader.

Is a mounting bracket included?

Yes. The box includes the wall-mounting bracket, template, screws and wall anchors for a surface mount. For a flush finish add the X912 in-wall installation kit; rain covers, a thick on-wall bracket and a 30° angle bracket are also available.

Is the touch keypad weatherproof?

The whole station is rated IP65 for dust and water. Add an X912 rain cover at fully exposed entrances to keep driving rain off the screen and keypad.

Which cards and phones can open the door?

13.56 MHz and 125 kHz EM, MIFARE and DESFire EV1 / EV2 / EV3 cards, NFC on Android phones, Bluetooth (BLE 5.0) and QR codes from the SmartPlus app, plus PIN and face.

Will it record to my existing NVR?

Yes. The X912 supports ONVIF and RTSP, so ONVIF-capable NVRs can add the door camera as a channel.

For entrances that take a beating.

Choose the X912S for exposed or high-traffic entrances where vandal resistance matters.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 12 V DC supply. A 12 V / 1 A output is available for a lock or reader.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Keypad
Touch numeric keypad
Power
PoE 802.3at or 12 V DC
Colour
Tarnish (dark grey)
Capacity
20,000 faces, 100,000 cards, 20,000 PINs
Working Temperature
−20 °C to +60 °C
Brand
Akuvox
Display
4″ colour touchscreen, 480 × 480
Protection
IP65 / IK10
Face Recognition
Under 200 ms, 99.7% accuracy, liveness detection
Camera
2 MP main + 2 MP auxiliary, 125° (H) / 65° (V)
Size
233.5 × 94 × 34 mm (H × W × D)
Warranty
Australian warranty
Product Type
Facial recognition SIP door station
Model
X912S
Finish
Stainless steel front panel
RF Reader
13.56 MHz and 125 kHz
I/O
2 relays, 3 inputs, Wiegand, RS485
OS
Linux
Unlock
Face, card, PIN, QR code, BLE, NFC, DTMF
