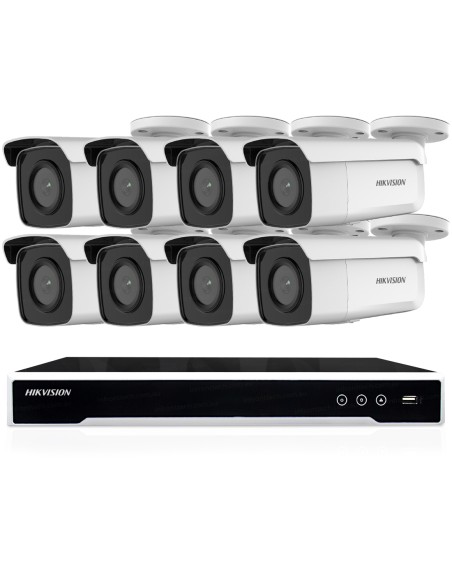

8 × Hikvision DS-2CD2T66G2-2I and DS-7608NI-M2/8P 8-channel NVR, true relative size

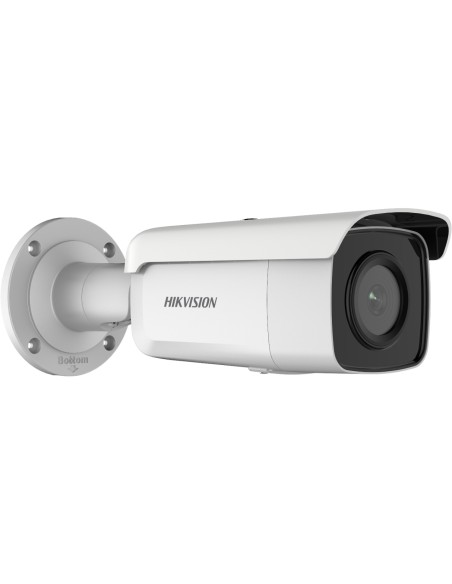

Hikvision 6MP AcuSense bullet camera with wall bracket, DS-2CD2T66G2-2I housing

Hikvision 6MP AcuSense bullet camera, other side, DS-2CD2T66G2-2I housing

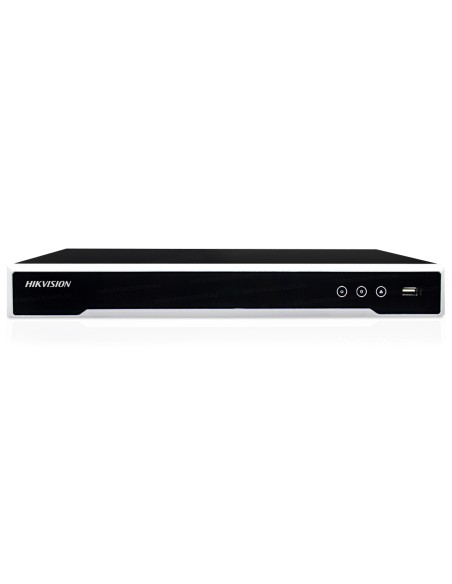

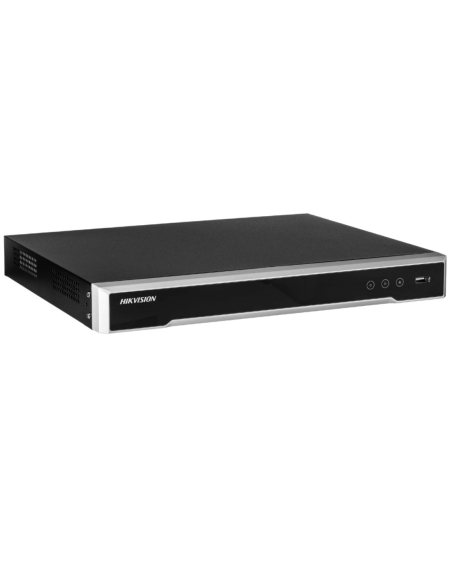

Hikvision DS-7608NI-M2/8P 8-channel PoE NVR, front

1 / 4

Hikvision 6MP AcuSense Bullet Kit — 8× DS-2CD2T66G2-2I + 8CH DS-7608NI-M2/8P NVR

Name: Hikvision 6MP AcuSense Bullet Kit — 8× DS-2CD2T66G2-2I + 8CH DS-7608NI-M2/8P NVR
Brand: HIKVision Australia
SKU: HIK86M-8B-386-4T
Price: 2849 AUD
Availability: InStock

SKU HIK86M-8B-386-0T In Stock - Ready to Ship

$2,849.00 inc GST

Hikvision 8-camera kit: 8 DS-2CD2T66G2-2I 6MP AcuSense bullet cameras and an 8-channel DS-7608NI-M2/8P PoE recorder, ready to record and watch from your phone.

✓8 × DS-2CD2T66G2-2I 6MP AcuSense bullet (6MP, 3200 × 1800)
✓8-channel DS-7608NI-M2/8P PoE NVR, every channel used
✓IR night vision to 60 m, AcuSense people and vehicle alerts
✓One cable per camera: PoE power and video
✓No HDD, or 2 to 10TB drive fitted
✓Free Hik-Connect app, 3-year Australian warranty

8 Hikvision DS-2CD2T66G2-2I 6MP AcuSense bullet cameras and the DS-7608NI-M2/8P 8-channel PoE NVR, shown at true relative size

Hikvision · 6MP · 8-camera kit

Eight 6MP AcuSense bullets.
One 8-channel PoE recorder.

Hikvision DS-2CD2T66G2-2I bullets with 60 m night vision and AcuSense human and vehicle detection, recorded by the DS-7608NI-M2/8P PoE NVR. One cable to each camera carries power and video.

In one sentence: A complete 8-camera Hikvision system: 6MP metal bullets that see 60 m in the dark, alert only on people and vehicles, and plug into a recorder you watch from the Hik-Connect app.

Complete kit. Hard drive optional, cabling separate.

Choose No HDD if you already have a 3.5" surveillance drive, or pick a 2, 4, 6, 8 or 10TB drive in the options and it arrives fitted.

In the box

8 × Hikvision DS-2CD2T66G2-2I 6MP AcuSense bullet cameras
Hikvision DS-7608NI-M2/8P 8-channel PoE NVR with a built-in power supply and mains lead
Mounting screws, plugs and drill template for each camera
Hard drive fitted and formatted if you choose a 2 to 10TB option

You also need

A Cat5e or Cat6 cable from the recorder to each camera (up to 100 m)
A TV or monitor with HDMI or VGA for setting up
Your internet router, for the Hik-Connect app

Alerts for people and vehicles, not leaves and cats.

AcuSense runs in each camera, so line crossing and intrusion alarms only fire for the targets you tick. The recorder tags those events, and you can search a day of footage for people or vehicles in seconds.

Hikvision DS-2CD2T66G2-2I 6MP AcuSense bullet camera

The cameras

6MP metal bullet, 60 m IR.

The DS-2CD2T66G2-2I records 3200 × 1800 through an F1.6, 2.8 mm lens with a 105° view. Its long hood shades the lens, and the 60 m IR reaches driveways, yards and fence lines.

Hikvision DS-2CD2T66G2-2I lens and night light, front view

Day and night

Clear faces, against the light.

120 dB true WDR keeps faces visible against a bright doorway or sky, and the smart IR dims close up so near faces are not washed out. H.265+ keeps the files small.

Hikvision DS-7608NI-M2/8P 8-channel PoE NVR

The recorder

8 PoE ports, 2 drive bays, 8K HDMI.

The DS-7608NI-M2/8P powers every camera through its own PoE port (120 W in total) and records them all at full resolution. It takes two 3.5" drives of up to 20TB each, with HDMI up to 8K and VGA for a local monitor.

How it goes in

From cables to phone alerts.

Run one cable per camera

Cat5e or Cat6 from the recorder to each camera, up to 100 m. PoE carries the power, so the cameras need no power point.

Mount the cameras

Screw the bracket base to the wall or eave with the template in the box, then aim the bullet and lock the joint.

Plug in the recorder

Connect it to your router and a screen, set the admin password, and the cameras appear on their PoE ports.

Set alerts and the app

Scan the QR code in Hik-Connect, then draw line crossing or intrusion zones and tick human, vehicle or both for phone alerts.

At a glance

8-camera kit at a glance

Show specs

Cameras

8 × Hikvision DS-2CD2T66G2-2I (6MP AcuSense bullet)

Resolution

6MP, 3200 × 1800, 1/2.4" CMOS

Lens and view

2.8 mm, F1.6, 105.1° horizontal

Detection range (DORI)

Detect 78.6 m, recognise 15.7 m, identify 7.9 m

Night vision

Smart IR up to 60 m (850 nm); 0.003 lux colour

Audio

None (no microphone or speaker)

Smart detection

AcuSense human and vehicle filtering for motion, line crossing and intrusion

Recorder

Hikvision DS-7608NI-M2/8P, 8 channels up to 32MP, 128 Mbps in

Channels

8 used, none spare

PoE power

8 ports, 120 W total; cameras up to 72 W at full load (802.3af)

Storage

No HDD standard, or 2 to 10TB fitted; 2 SATA bays, up to 20TB each

Recording on 4TB

Roughly 10 to 21 days, all cameras around the clock (H.265+)

Display

HDMI up to 8K, VGA 1080p

Camera body

IP67, metal, Ø105 × 290 mm, 1,085 g

Recorder size

385 × 315 × 52 mm

Remote viewing

Hik-Connect app (iOS, Android), iVMS-4200 on PC, ONVIF

Warranty

3 years, Australian warranty

Hikvision DS-2CD2T66G2-2I dimensions in mm

DS-2CD2T66G2-2I dimensions in mm (Hikvision drawing). Recorder: 385 × 315 × 52 mm.

Pair it with

Worth adding to this kit

Storage

A surveillance hard drive

Pick 2 to 10TB in the options and it arrives fitted and formatted. A 4TB drive holds roughly 10 to 21 days.

Cabling

Cat6 cable

One run per camera, up to 100 m. Outdoor-rated cable for runs outside the wall.

Security

24SECCAB lockable cabinet

Locks the recorder away so a burglar cannot take the footage with them.

Power

A small UPS

Keeps the recorder and cameras running through short blackouts and protects the drive.

Where it is used

Where this kit fits

Long driveways

60 m IR reaches far down the drive and AcuSense alerts on cars and people only.

Farm sheds and yards

Metal IP67 bullets for dust and weather, watching gates and machinery.

Factory and warehouse yards

Loading docks, roller doors and perimeter fences.

Car parks

Wide 105° view along rows of parked cars.

Fence lines and boundaries

Draw a line crossing rule along the fence and get an alert when someone climbs it.

Building sites

A visible bullet deters, and footage of the compound is on your phone.

This kit or the 8× 6MP AcuSense turret kit?

	This kit: 8× 6MP AcuSense bullet	8× 6MP AcuSense turret kit
Cameras	8 × DS-2CD2T66G2-2I	8 × DS-2CD2366G2-IU
Night vision	IR night vision to 60 m	IR night vision to 30 m
Audio	None (no microphone or speaker)	Built-in microphone (records sound)
Deterrence	None	None
Recorder	DS-7608NI-M2/8P (8CH)	DS-7608NI-M2/8P (8CH)
Channels	None spare	None spare
PoE at full load	72 W of 120 W	52 W of 120 W

Bullets see further at night; turrets have a microphone and suit eaves and walls near doors.

Common questions

Is a hard drive included?

Choose it in the options: No HDD, or a 2, 4, 6, 8 or 10TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive. The recorder takes two drives of up to 20TB.

How long will it record?

With all 8 cameras recording around the clock on H.265+, a 4TB drive holds roughly 10 to 21 days. Busy scenes and rain use more space; recording on events only stretches it much further. When the drive is full it records over the oldest footage.

Can I watch it on my phone?

Yes. The free Hik-Connect app for iPhone and Android shows live view, playback and AcuSense alerts. On a PC use iVMS-4200 or a web browser.

Do the cameras need a power point?

No. Each camera plugs into a PoE port on the recorder, and that one Cat5e or Cat6 cable carries power and video up to 100 m.

Can I add more cameras later?

Not on this recorder: all 8 channels are used. For more than eight cameras, ask us about a 16-channel recorder.

Is there enough PoE power?

Yes. At full load the 8 cameras draw up to 72 W, inside the recorder's 120 W PoE budget.

How good is the night vision?

Smart IR reaches up to 60 m in black and white, and the F1.6 lens gives colour down to 0.003 lux where there is some light, such as street lights.

Does it record sound?

No. The DS-2CD2T66G2-2I has no microphone or speaker. If you want sound, the 6MP turret kit has a microphone in every camera.

Will it stop false alarms from trees and animals?

Mostly. AcuSense classifies people and vehicles in each camera, so motion, line crossing and intrusion alarms can be limited to those targets. Large moving shadows or headlights can still trigger occasionally; tuning the zone fixes most of that.

Why a 2.8 mm lens?

It gives the widest view, about 105°, which suits most homes and shops. It detects a person to about 78 m and recognises a known face to about 16 m. For long narrow areas a 4 mm or 6 mm camera can be added later.

Can I install it myself?

Many owners do: the cameras mount with a few screws and the recorder finds them automatically. Concealed cabling inside walls and ceilings must be done by an ACMA-registered cabler under AS/CA S009.

Are the cameras weatherproof?

Yes. The DS-2CD2T66G2-2I is IP67 rated in a metal housing, made for outdoor use in rain and dust. The recorder lives indoors.

Supported by InFront Technologies.

Help choosing the kit, drive or cabling: call 1300 736 970 or email [email protected]. The camera and recorder datasheets are on the Attachments tab.

Installation and safety

Low-voltage cameras. The cameras run on PoE from the recorder (802.3af, up to 9 W each). There is no mains connection at the cameras.

Recorder power. The recorder has a built-in power supply and plugs into a standard power point with its mains lead. A new power point needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

What it does not do. The bullets have no microphone, speaker, strobe or alarm terminals.

Figures. From Hikvision's datasheets for the DS-2CD2T66G2-2I and DS-7608NI-M2/8P. Recording times are estimates.
