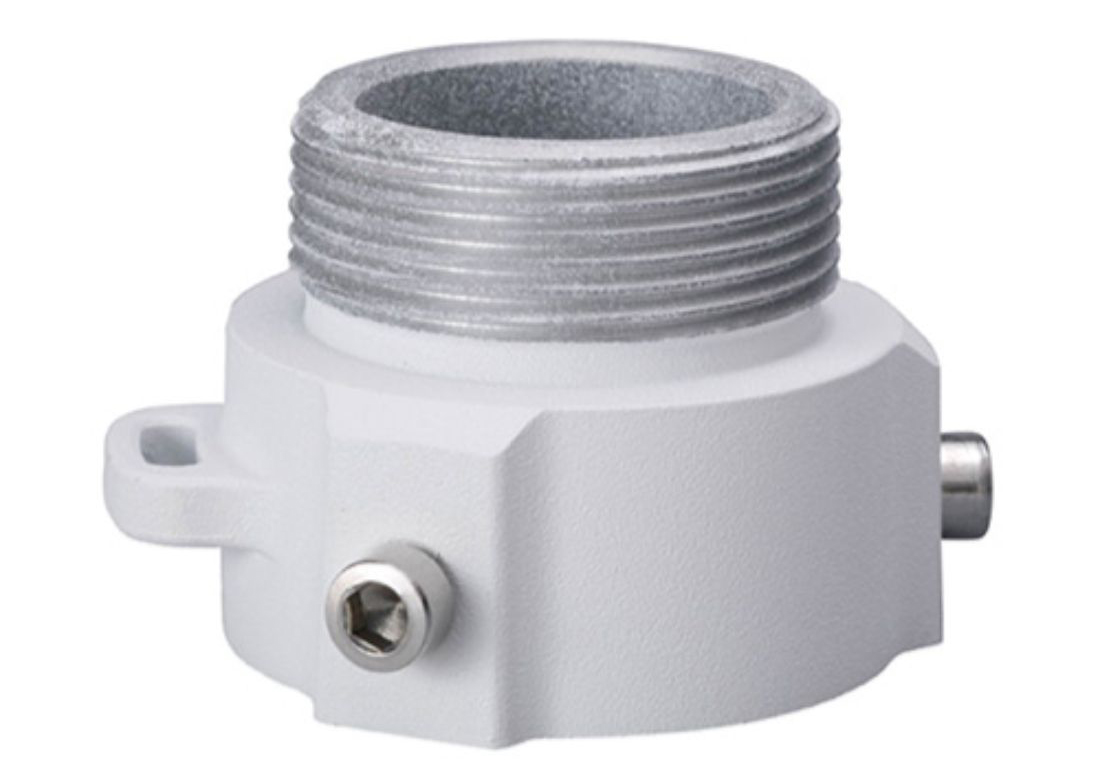

    VIP Vision VSBKTA111 PTZ mount adapter, white collar with threaded aluminium top
    Close-up of the VSBKTA111 1 1/2 inch PF thread

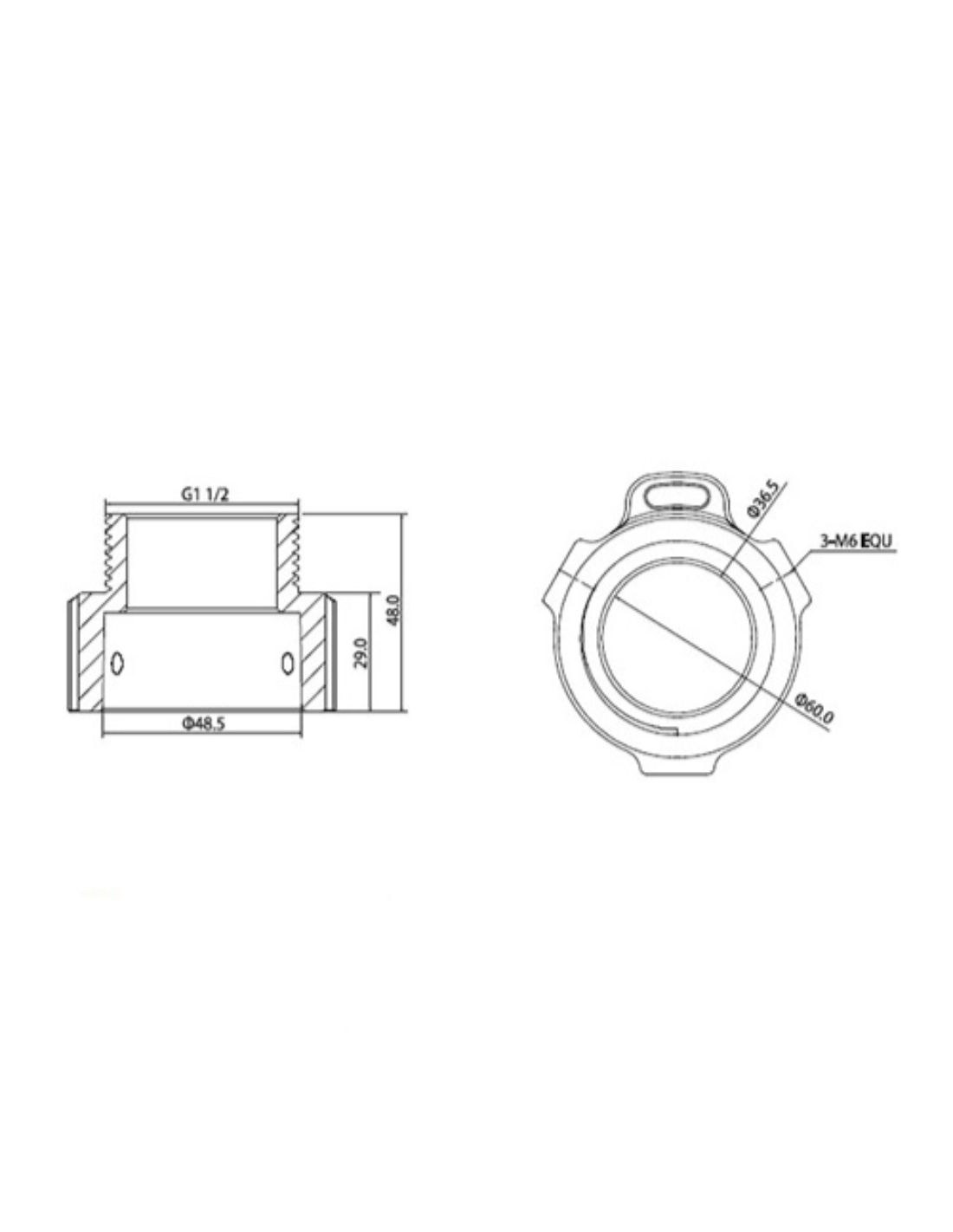

    VSBKTA111 dimension drawing, G1 1/2 thread, 60 x 48 mm, 3 x M6
    VIP Vision drawing of a PTZ dome hanging from a wall mount with the VSBKTA111 adapter
    1 / 4

    Ceiling/Wall Mount Adapter for PTZ Cameras - VSBKTA111

    SKU VSBKTA111 In Stock - Ready to Ship
    $17.50 inc GST

    VIP Vision VSBKTA111: an aluminium adapter that joins a listed PTZ camera to a VSBKTB303W wall, VSBKTB300C ceiling or VSBKTB303S parapet mount.

    • ✓1 1/2" PF (G1 1/2) thread on top
    • ✓Ø60 × 48 mm, 0.23 kg, aluminium
    • ✓Three M6 screw positions around the collar
    • ✓Listed for VSIPPTZ-IRP-I, VSCVIPTZ-IRU and VSIP8MPPADV2
    • ✓Check your camera with us before ordering



    Description

    VIP Vision VSBKTA111 PTZ mount adapter: white collar with a threaded aluminium top, a side loop and a hex socket screw
    VIP Vision · Camera mounting · PTZ adapter

    The join between a PTZ
    and its wall or ceiling mount.

    The VIP Vision VSBKTA111 is a hanging aluminium connector, Ø60 × 48 mm, with a 1 1/2" PF thread on top. It joins a PTZ camera to a threaded wall, ceiling or parapet mount.

    In one sentence: the VIP Vision VSBKTA111 is an aluminium PTZ ceiling and wall mount adapter, Ø60 × 48 mm and 0.23 kg, with a 1 1/2" PF (G1 1/2) thread on top and three M6 screw positions around its collar.

    Adapter only. Camera and mount are separate.

    This listing is the VSBKTA111 adapter. VIP Vision's 2021 and 2023 compatibility guides list it for older VIP Vision and Securview PTZ domes and the VSIP8MPPADV2 panorama dome; it is not in the 2025 guide. Check your camera model with us before you order.

    In the box
    • VSBKTA111 adapter
    You also need
    • A PTZ camera from VIP Vision's list (see At a glance), or confirm yours with us
    • A threaded mount: VSBKTB303W wall, VSBKTB300C ceiling or VSBKTB303S parapet
    • Thread sealant or tape for an outdoor join (confirm with us)

    For when the PTZ and the bracket don't meet.

    VIP Vision's wall and ceiling mounts end in a 1 1/2" PF thread. VIP Vision describes its PTZ adapters as converting that threaded join to a collar with grub screws for the camera. The VSBKTA111 screws onto the mount and the listed PTZ hangs below it, as VIP Vision's drawing shows.

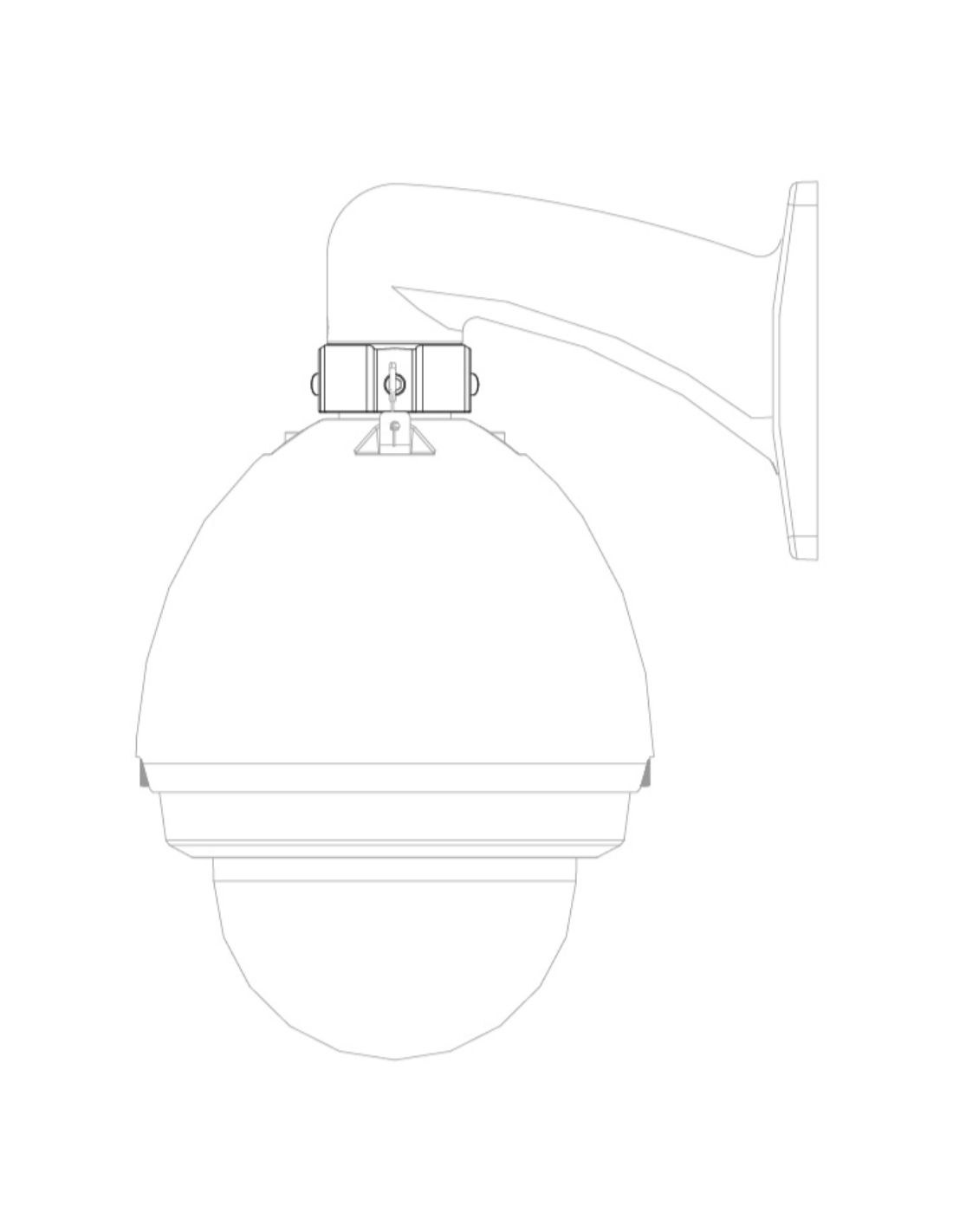

    VIP Vision line drawing of a PTZ dome hanging from a right angle wall mount with the VSBKTA111 adapter between them

    Fitted

    Between the dome and the mount.

    VIP Vision's drawing shows the adapter at the end of a right angle wall mount with the PTZ dome hanging below it. Its guides pair it with the VSBKTB303W wall mount, the VSBKTB300C ceiling mount and the VSBKTB303S parapet mount.

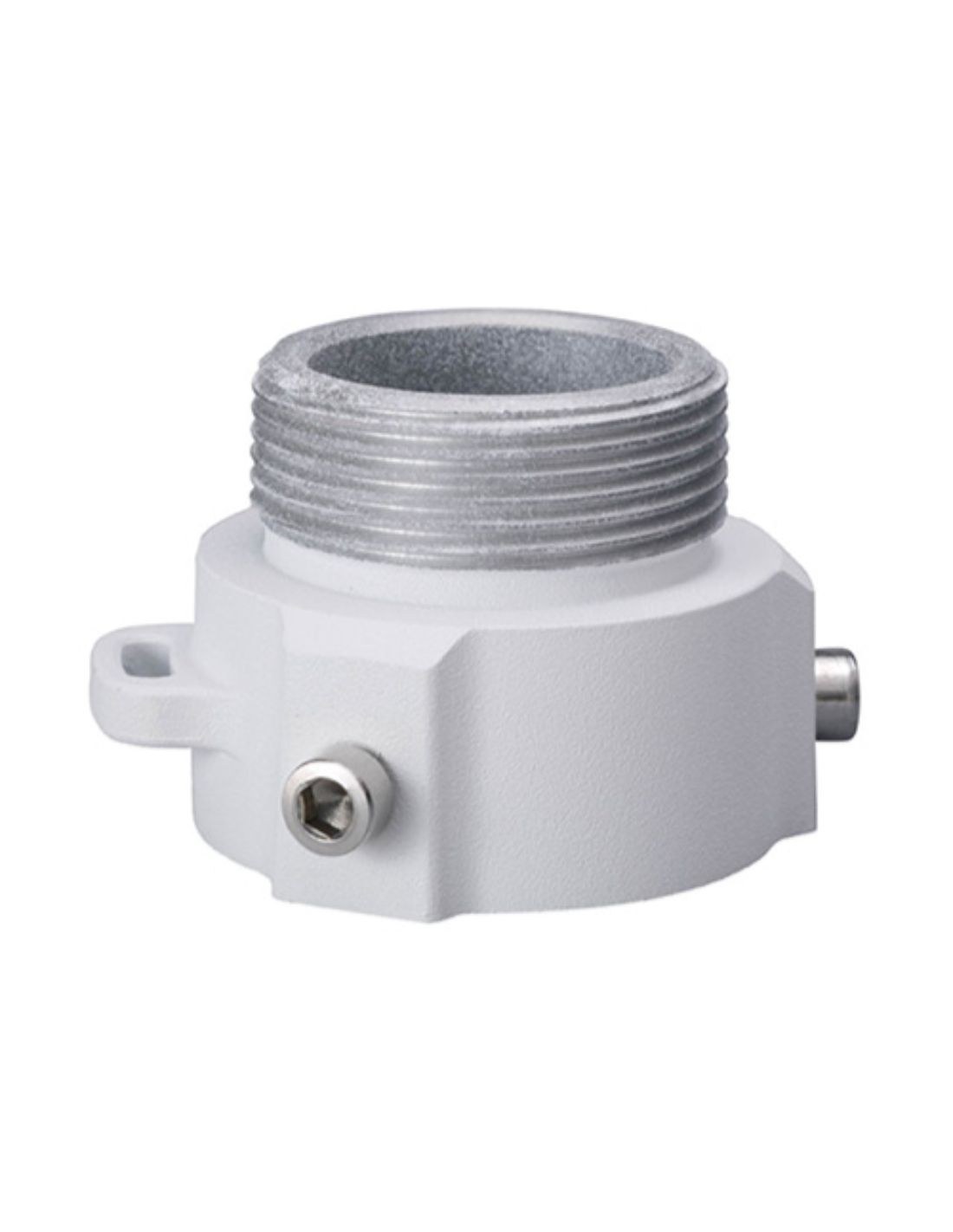

    Close-up of the VSBKTA111 white collar with its side loop and a hex socket screw, from VIP Vision's photo

    Collar

    Three M6 screw positions.

    VIP Vision's drawing shows three M6 positions spaced evenly around the collar, which is Ø60 mm across with a Ø36.5 mm bore. The photo shows a hex socket screw and a loop on the side.

    How it goes in

    Mount, thread, hang, tighten.

    01

    Check the camera

    Confirm your PTZ is on VIP Vision's list for the VSBKTA111, or ask us, and fix the wall, ceiling or parapet mount first.

    02

    Screw it onto the mount

    Feed the camera cables through, then screw the 1 1/2" PF thread into the mount until it is firm. Seal the thread on outdoor jobs.

    03

    Hang the camera

    Bring the cables through the adapter and seat the camera in the collar, supporting its weight while you work.

    04

    Tighten and test

    Tighten the M6 screws evenly around the collar, connect the camera and check it pans and tilts freely.

    Pair it with

    What this adapter works with

    Wall mount

    VSBKTB303W

    The PTZ right angle wall mount that VIP Vision's guides pair with the VSBKTA111.

    Ceiling mount

    VSBKTB300C

    The straight pendant ceiling mount with the same 1 1/2" PF thread, in the same guides.

    Junction box

    VSBKTA120

    Sits behind the VSBKTB303W wall mount in VIP Vision's guide, and takes a pole or corner mount.

    Pole

    VSBKTA150 pole mount

    For putting the wall mount and PTZ on a pole, through the junction box, as VIP Vision's guide shows.

    Where it is used

    Where this adapter is used.

    Replacing a lost adapter

    Getting an existing VIP Vision or Securview PTZ back on its mount.

    Moving a PTZ

    Shifting a listed PTZ from one wall or ceiling mount to another.

    Car parks

    PTZ domes hung from wall arms on building edges.

    Warehouses

    PTZ domes on pendant ceiling mounts over loading areas.

    Rooftops

    PTZ or panorama domes on a parapet mount at the roof edge.

    Shopping centres

    Panorama and PTZ domes hung from high ceilings.

    VSBKTA111 or VSBKTA110

    VSBKTA111 (this adapter)VSBKTA110
    Described by VIP Vision asCeiling/wall mount adapter for PTZ camerasCeiling/wall mount adapter for PTZ cameras
    DimensionsØ60 × 48 mmØ59 × 53 mm
    Weight0.23 kg0.20 kg
    Thread1 1/2" PF1 1/2" PF
    MaterialAluminiumAluminium
    In VIP Vision's 2025 guideNoYes

    The two adapters suit different cameras; use the one VIP Vision's guide lists for your PTZ. Figures from VIP Vision's VSBKTA111 and VSBKTA110 product pages and its 2021, 2023 and 2025 accessory compatibility guides.

    Common questions

    What does the VSBKTA111 do?

    It joins a PTZ camera to a threaded wall, ceiling or parapet mount. VIP Vision calls it a hanging aluminium connector for PTZ cameras and ceiling/wall mount brackets.

    Which cameras does it fit?

    VIP Vision's 2021 guide lists the VSIPPTZ-2IRP-I, 4IRP-I and 8IRP-I, the Securview VSCVIPTZ-2IRU and 4IRU, and the VSIP8MPPADV2. For any other camera, confirm with us.

    Does it fit the newer -I2 PTZ cameras?

    It is not in VIP Vision's 2025 guide, which covers the newer PTZ models. Tell us your camera model and we'll find the right adapter.

    What thread does it have?

    A 1 1/2" PF thread on top, marked G1 1/2 on VIP Vision's drawing. That matches the VSBKTB303W wall mount and the VSBKTB300C ceiling mount.

    How big is it?

    Ø60 × 48 mm, and it weighs 0.23 kg. The collar has a Ø36.5 mm bore and is 29 mm tall on VIP Vision's drawing.

    How is the camera held?

    VIP Vision's drawing shows three M6 screw positions spaced evenly around the collar. Tighten them evenly once the camera is seated.

    Is a wall or ceiling mount included?

    No. This listing is the adapter only. The VSBKTB303W wall mount and VSBKTB300C ceiling mount are sold separately.

    Can I use it outdoors?

    VIP Vision rates it for −40 °C to 60 °C but lists no weather rating. Seal the thread on outdoor installs, and ask us if you're unsure.

    How much weight can it hold?

    VIP Vision does not list a load rating for it. Confirm your camera's weight with us before you hang a heavy PTZ.

    What is the difference from the VSBKTA110?

    Both are VIP Vision PTZ adapters with a 1 1/2" PF thread. The VSBKTA110 is Ø59 × 53 mm and 0.20 kg and is in the 2025 guide; they suit different cameras, so use the one listed for yours.

    What is it made of?

    Aluminium, with a white collar and a bare aluminium thread, as pictured.

    What warranty does it have?

    VIP Vision lists a 1 year warranty for the VSBKTA111.

    Supported by InFront Technologies.

    Not sure which adapter your PTZ needs? Call 1300 736 970 or email [email protected] with the camera model. VIP Vision's compatibility guide pages are on the Attachments tab.

    Installation and safety

    Working at height. PTZ cameras are heavy and usually high up. Support the camera while you fit it and use safe access equipment.

    Fixings. Tighten the thread and every collar screw fully. A loose join can let a camera fall.

    Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    What it does not do. It is an adapter only: no mount, camera or junction box is included, and VIP Vision lists no load or weather rating for it.

    Figures. From VIP Vision's VSBKTA111 product page and drawing, and its 2021, 2023 and 2025 accessory compatibility guides.

    Dimensions
    Ø60 x 48mm
    Operating Conditions
    -40° ~ 60°C / 90% RH (max)
    Weight
    0.23kg
    Weather Resistance
    N/A
    Materials
    Aluminium
    Bracket Type
    Connector
    Load Bearing Capacity
    N/A
    Pipe Thread
    1 1/2" PF
