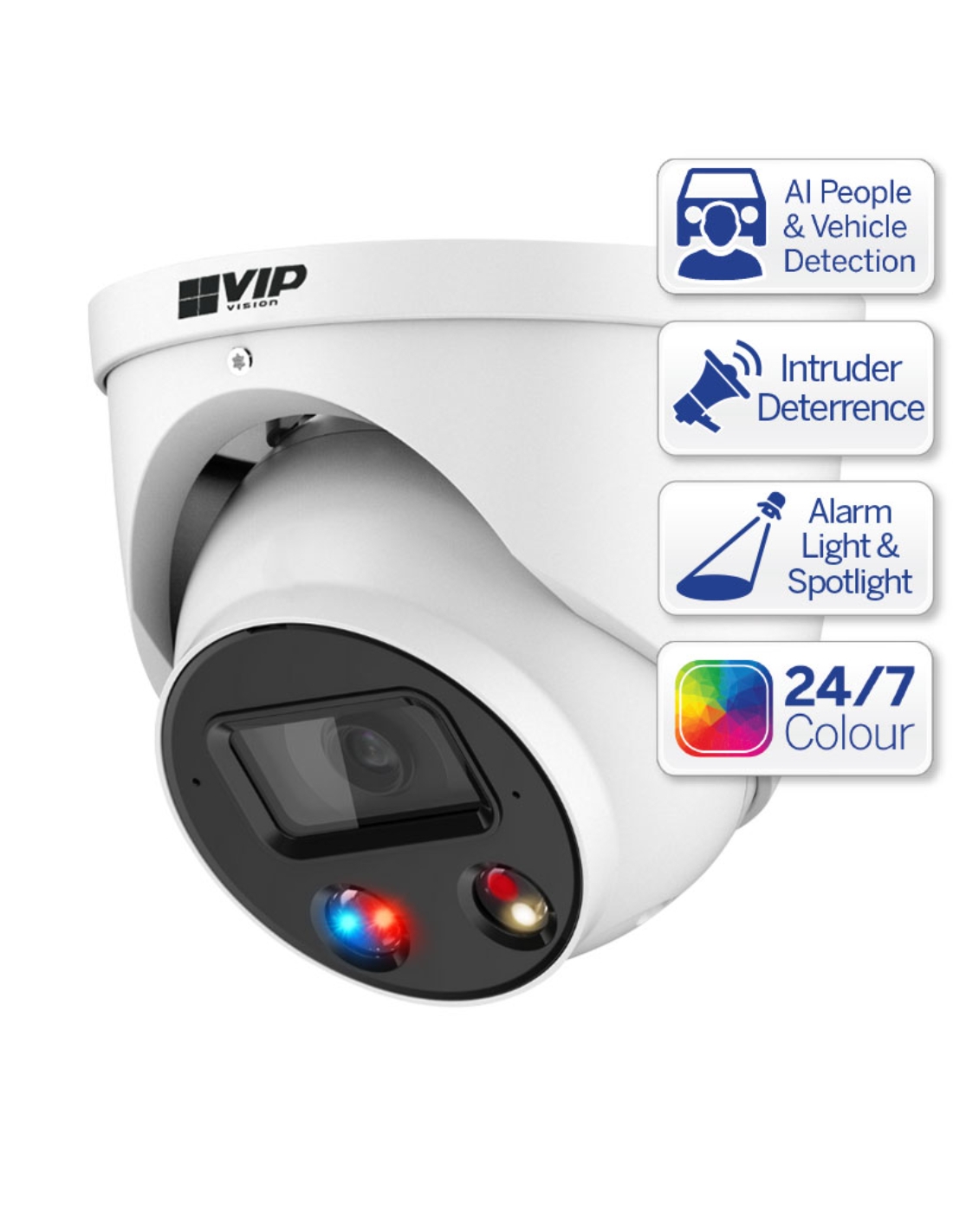

Model VSIPP-8DG-ID4 • 24/7 Colour • Spotlight | Strobe | Siren
The VSIPP-8DG-ID4 is more than a camera—it’s an intelligent crime-prevention device that combines 4K clarity, next-generation AI analytics and a three-stage active-deterrence arsenal. With one unit you can detect genuine threats, deter intruders in real time, and document every detail in vivid colour – day, night and everything in between.
Traditional CCTV is passive, capturing evidence after the fact. The VSIPP-8DG-ID4 flips the script with a built-in spotlight, red/blue strobe and 110 dB siren. When AI confirms a person or vehicle intrusion, the camera:
Result: most intruders turn and run before a crime is committed, reducing losses, downtime and investigative headaches.
The Professional AI Series is powered by Smart Motion Detection 4.0 and Perimeter Protection. Instead of triggering on every branch or spider, VSIPP-8DG-ID4 recognises human shapes and vehicle profiles in real time, yielding > 98 % accuracy and slashing false notifications.
When paired with a VIP Vision NVR, the camera’s Acupick Search lets you click on a target’s colour or type (e.g. “red ute” or “man in black”) and instantly track their path across the entire CCTV network—even weeks later.
A concealed high-gain microphone and integrated loudspeaker turn the dome into a two-way intercom. Challenge a courier, warn a loiterer or greet a client directly from the free DMSS mobile app or a connected NVR.
H.265+ encoding slashes file sizes by up to 70 % without sacrificing 4K clarity. Store weeks of footage on a microSD card in the camera, stream to a VIP Vision NVR or push to FTP/NAS in the cloud—your choice.
Retail shopfronts (deter smash-and-grabs), service stations (bright colour at fuel pumps), construction sites (voice warnings after-hours), schools (AI perimeter watch), residential driveways and farm gates—anywhere you need proactive protection, not just passive recording.
| Imager | 1/2.7″ 8 MP CMOS, 3840 × 2160 |
|---|---|
| Lens / FOV | 2.8 mm F1.0, 106° H / 55° V |
| Illumination & Deterrence | 30 m IR, white spotlight, red/blue strobe, 110 dB siren |
| AI Analytics | People/Vehicle SMD 4.0, Tripwire / Intrusion, Acupick search |
| Audio | Mic & speaker, RCA I/O, PCM/G.711/G.726/G.723 |
| Storage | MicroSD 256 GB, NAS/FTP/SFTP, H.265+ |
| Networking | RJ-45 10/100, ONVIF S/G/T, P2P, HTTP/RTSP/RTMP |
| Power / Draw | PoE (802.3af) or 12 V DC • ≤ 10.1 W |
| Environmental | IP67 metal, –40 °C ~ +60 °C, 0-95 % RH |
| Dimensions / Weight | Ø122 × 111 mm, 0.75 kg (0.90 kg boxed) |
| Warranty | 4 years |
Ready to achieve more than security™?
Deploy the VSIPP-8DG-ID4 today and let intelligent deterrence, vivid 4K colour and AI-driven evidence work together to protect what matters most.
Dahua equivalent: DH-IPC-HDW3849H-AS-PV-ANZ
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” 8 MP Progressive Scan CMOS |
| Max. Resolution | 8 MP (3840 × 2160) |
| Effective Pixels | 3840 (H) × 2160 (V) |
| RAM / ROM | 2 GB / 256 MB |
| Min. Illumination | 0.004 Lux @F1.0 (Color) · 0.0004 Lux @F1.0 (B/W, 30 IRE) · 0 Lux (IR) |
| S/N Ratio | > 56 dB |
| Infrared System | 1 × IR LED, 30 m range, Auto/Manual on-off |
| White-Light LED | 1 × Spotlight (warm-white), Auto/Manual on-off |
| Active Deterrence | 1 × Red & Blue strobe, 1 × Loudspeaker siren |
| LENS | |
|---|---|
| Lens Type | Fixed |
| Lens / Iris | 2.8 mm F1.0, Fixed iris |
| Field of View | H 106° · V 55° · D 125° |
| Focus | Auto-focus · 1.5 m min. distance |
| DORI* | Detect 66 m · Observe 26 m · Recognise 13 m · Identify 7 m |
| VIDEO | |
|---|---|
| Resolution Range | 8 MP (3840 × 2160) → CIF (352 × 288/240) |
| Frame Rate (Main) | 8 MP @ 1–25 fps |
| Frame Rate (Sub) | 704 × 576 @ 1–25 fps |
| Frame Rate (Third) | 1080p @ 1–25 fps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG |
| Bit Rate | H.265: 32–20480 kbps · H.264: 12–20480 kbps |
| Bit-Rate Control | CBR / VBR / ABR |
| Day / Night | Auto (ICR) / Color / B&W |
| Lighting Compensation | BLC / HLC / WDR (120 dB) |
| Smart Scene Adaptive | Yes |
| White Balance | Auto / Natural / Street-lamp / Outdoor / Manual / Regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| INTELLIGENCE (IVS) | |
|---|---|
| Functions | Motion Detection (4 zones); RoI (4 zones); Privacy Mask (4 zones); Smart Illumination; Defog; Object Abandoned/Missing |
| Perimeter Protection | Tripwire, Intrusion, Fast-moving, Parking (with Human & Vehicle classification) |
| Face / People / Heat-map | N/A |
| Event Triggers | Motion, Video Tampering, Scene Change, Network Disconnect, IP Conflict, Illegal Access, Storage Anomaly |
| Intelligent Search | NVR Smart-Search — filter by people/vehicle attributes with AcuPick tracking |
| NETWORK | |
|---|---|
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocols | IPv4/IPv6, HTTP, TCP, UDP, RTP/RTSP/RTCP/RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Streaming | Unicast / Multicast |
| Max. User Access | 20 users (Total 64 MB bandwidth) |
| INTERFACES | |
|---|---|
| Video | N/A |
| Audio | Built-in Mic & Speaker · RCA Audio In/Out · PCM, G.711a/μ, G.726, G.723 |
| Alarm I/O | 1 In (5 mA 3–5 VDC) · 1 Out (300 mA 12 VDC) |
| RS-485 | N/A |
| Edge Storage | MicroSD (up to 256 GB) · NAS · FTP/SFTP |
| Interoperability | ONVIF (Profile S/G/T) · P2P · CGI · Milestone |
| ENVIRONMENT & MECHANICAL | |
|---|---|
| Power Supply | 12 V DC / PoE |
| Power Consumption | < 8.6 W (12 V) · < 10.1 W (PoE) |
| Operating Conditions | -40 °C ~ +60 °C · ≤ 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Series | Professional AI Series |
| Camera Type | Turret |
| Housing | Metal |
| Pan / Tilt / Rotation | Pan 0–360° · Tilt 0–78° · Rotation 0–360° |
| ePoE | No |

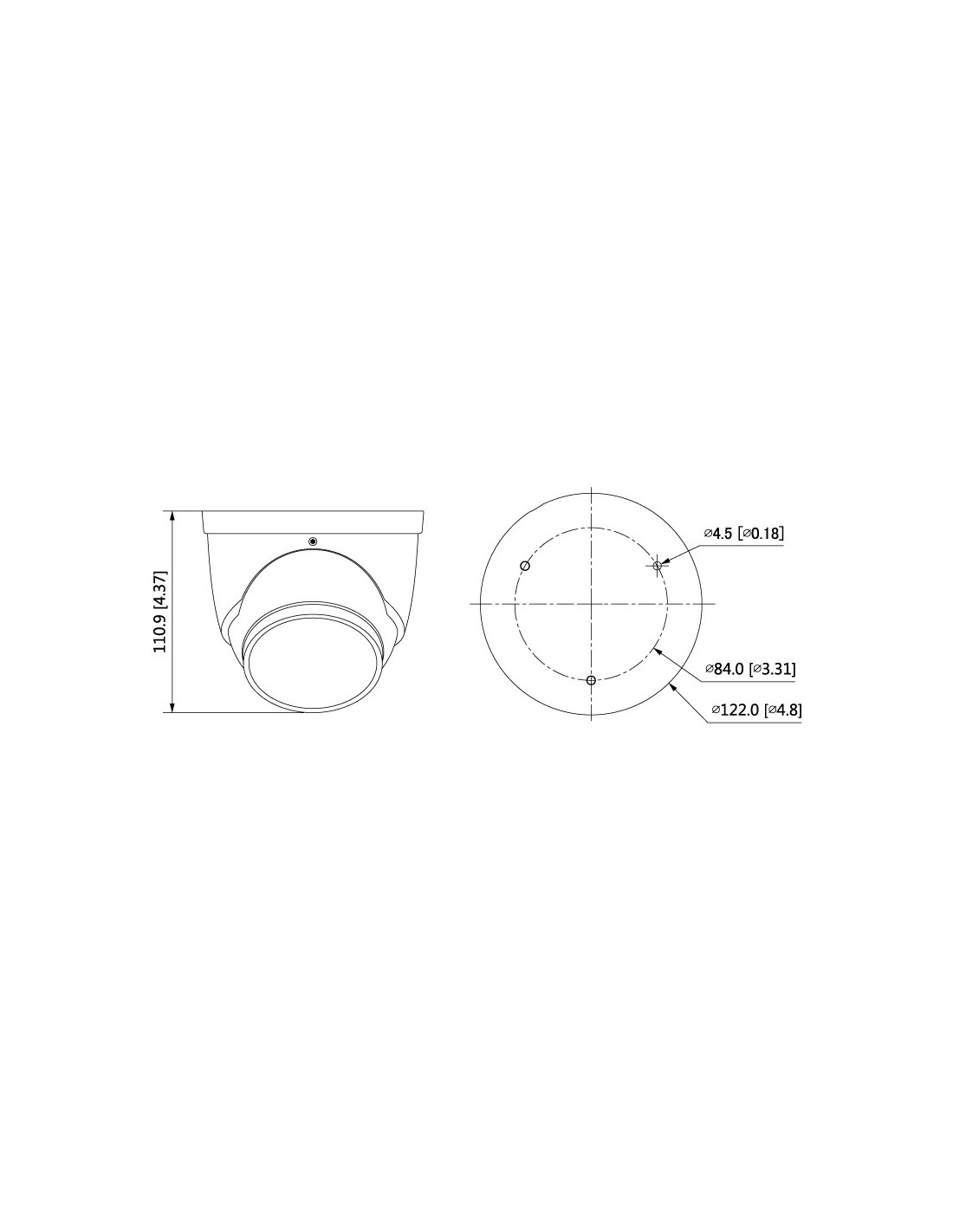

| Dimensions | Ø122 mm × 111 mm |
| Net Weight | 0.75 kg |
| Warranty | 4 years |
| SHIPPING WEIGHT & DIMENSIONS | |
|---|---|
| Width | 160 mm |
| Height | 160 mm |
| Depth | 140 mm |
| Weight | 0.90 kg (inc. packaging) |
