Right Angle Wall Mount Camera Bracket
VSBKTB2203W
In Stock - Ready to Ship $ 22.00
inc-GST
The VIP Vision VSBKTB2203W is a compact wall mount bracket designed for turret and dome cameras. Equivalent to the Dahua PFB203W, it provides a clean, low-profile mounting solution with internal cable management for professional CCTV installations.
- Compact wall mount for turret & dome cameras
- Equivalent to Dahua PFB203W bracket
- Clean, low-profile design with cable management
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
VIP Vision Compact Wall Mount Bracket
Model: VSBKTB2203W
Equivalent to Dahua DH-AC-PFB203W

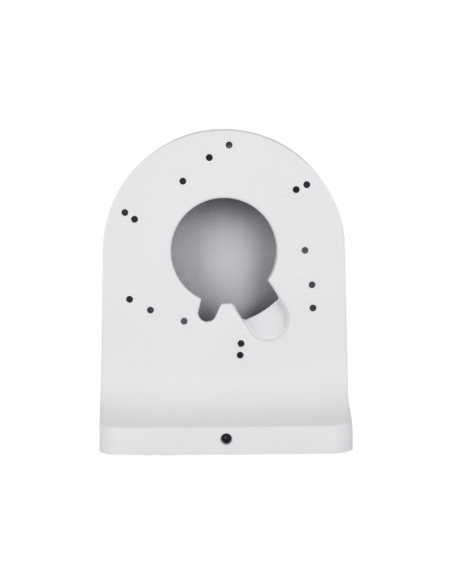

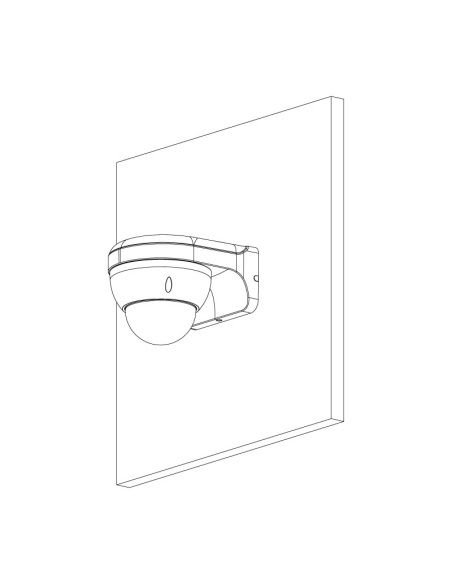

The VIP Vision VSBKTB2203W is a compact, low-profile wall mount bracket designed for turret and dome cameras. This bracket is the VIP equivalent of the Dahua PFB203W, making it a highly versatile solution across both VIP Vision and Dahua CCTV systems.
It is ideal for installations where space is limited or where a minimal visual footprint is required. The compact design allows for clean mounting while still providing internal cable protection and improved installation finish.
Key Features
- Compact wall mount bracket for CCTV cameras
- Equivalent to Dahua PFB203W
- Suitable for turret and dome cameras
- Low-profile design for discreet installations
- Internal cable routing for clean finish
- Durable aluminium construction
Why Use a Compact Bracket?
This bracket is perfect where a full arm-style mount (like PFB204W) is not required. It keeps the camera closer to the wall while still allowing proper cable concealment and improved mounting flexibility.
VIP Vision Compatibility
Compatible with a wide range of VIP Vision cameras including:
- VSIPP-4DIRG-I3 / VSIPP-6DIRG-I3 / VSIPP-8DIRG-I3
- VSIPP-4DIRMG-I3 / VSIPP-6DIRMG-I3 / VSIPP-8DIRMG-I3
- VSIPP-6DG-ID4 / VSIPP-8DG-ID4
- VSIPP-8DD-ID3
- VSIPU-4DIRG-IM (dual lens turret)
This bracket is listed in VIP compatibility guides as a standard wall mount option for turret cameras.
Dahua Compatibility
Equivalent to Dahua PFB203W, commonly used with:
- IPC-HDW3849 / 3549 / 3449 / 3249
- IPC-HDW2549 / 2449 / 2249
- IPC-HDW4231 / 4431 / 4831
- IPC-HDW2231 / 2431 / 2831
- IPC-HDBW dome series
Also suits:
- HAC-HDW1200 / 1400 / 1500 series
- Dahua T1A / T2A / T3A / T4A / T5A cameras
Note: Not suitable for bullet (HFW) cameras.
Installer Notes
This bracket is widely used in the field due to its flexibility.
- Installers often use tech screws if holes don’t align perfectly
- Bracket can be rotated slightly to suit mounting surface
- Ideal for tight installs where larger brackets won’t fit
- Frequently used with non-listed cameras successfully
This makes it a highly adaptable bracket across multiple brands and models.
IMPORTANT: Sealing & Waterproofing
Proper sealing is critical for outdoor installs.
- Apply silicone around bracket edges
- Seal all cable entry points
- Prevent water tracking into wall cavity
If not sealed:
- Water ingress and corrosion
- Camera failures and faults
- Mould and wall damage
- Costly service call-outs
Reminder: The bracket does not make the install waterproof — sealing does.

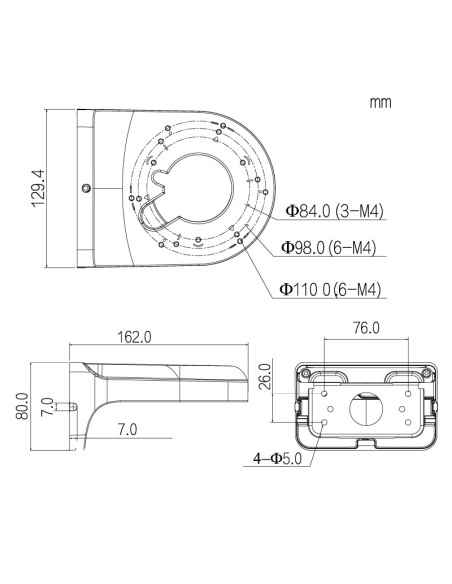

- Dimensions
- 162 x 129.4 x 80mm
- Operating Conditions
- -40° ~ 60°C / 90% RH (max)
- Weight
- 0.56kg
- Weather Resistance
- N/A
- Materials
- Aluminium
- Bracket Type
- Right Angle
- Load Bearing Capacity
- 1.00kg
- Pipe Thread
- N/A
