VIP Vision 4.0MP AI PTZ Dome Camera – 4× Optical Zoom, IR Night Vision - VSIPPTZ-4IRM-I2
• Stream up to 4.0MP (2560 x 1440) at 25fps
• 4x optical zoom lens (32°~97° H viewing angles)
• Low light colour performance at 0.005lx; 20m IR
• 355° panning with tilt adjust; flip 180°
• Intelligent AI detection to identify people & vehicles
• Next-Gen Smart Motion Detection (SMD 3.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
• MicroSD card slot for recording up to 512GB
• Supports Power over Ethernet (802.3af)
• IP66 weath

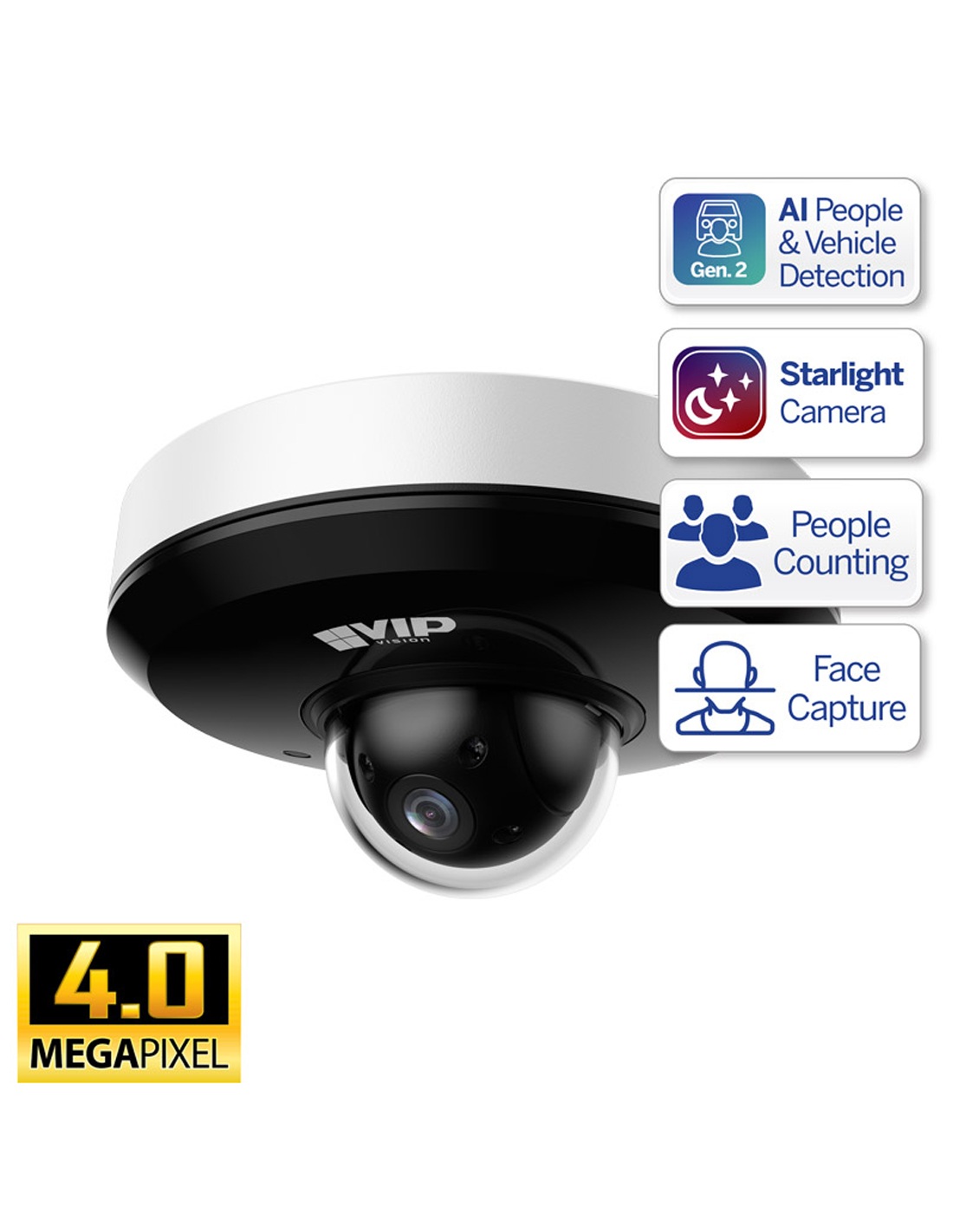

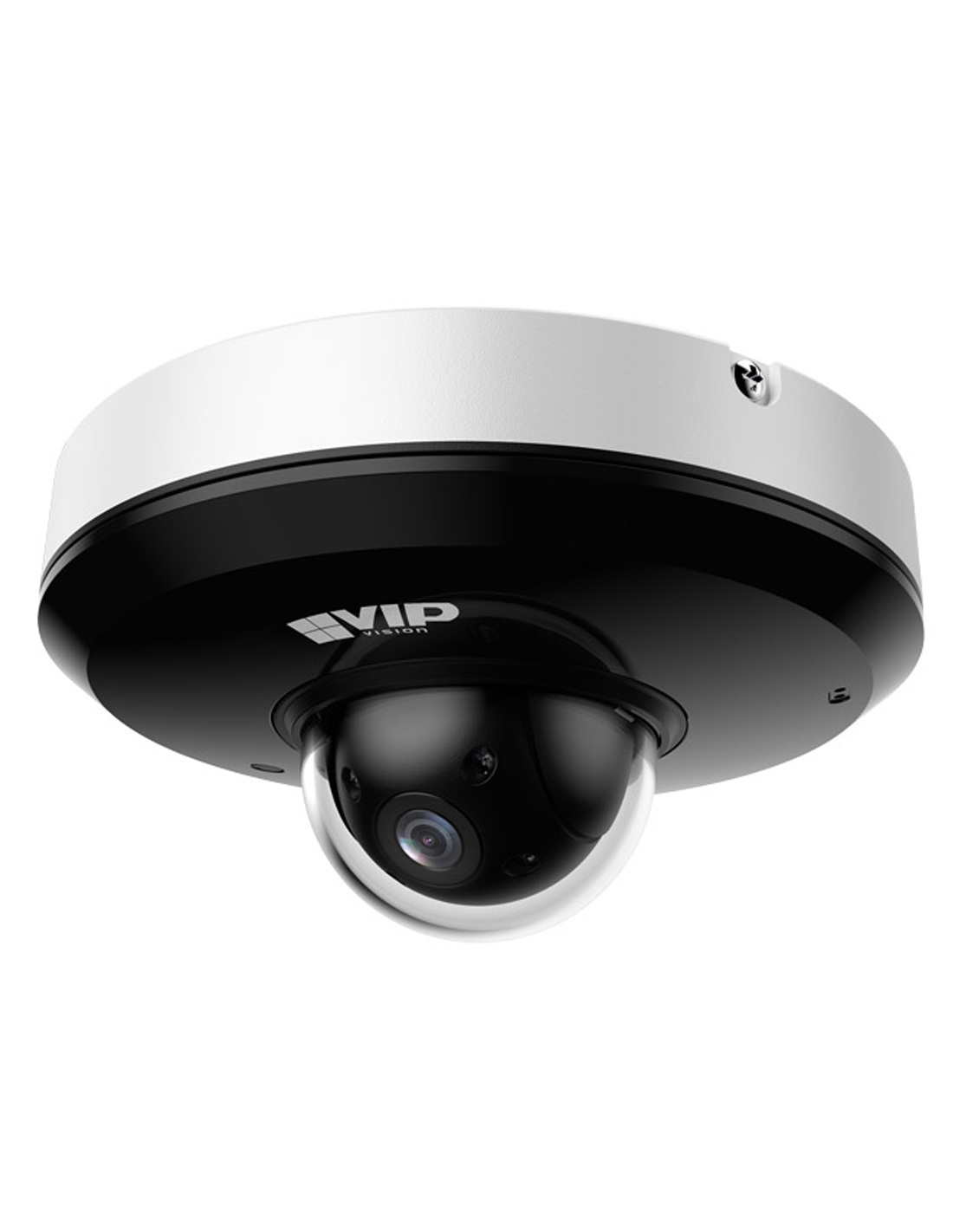

VIP Vision 4.0MP AI PTZ Dome Camera – 4× Optical Zoom, IR Night Vision
VSIPPTZ-4IRM-I2
High-Performance AI-Powered PTZ Surveillance
The VIP Vision VSIPPTZ-4IRM-I2 is a 4.0MP AI-enhanced PTZ dome camera, designed for advanced security applications requiring high-definition clarity, intelligent detection, and flexible remote control. Featuring a 4× optical zoom, 100m IR night vision, and specialist AI capabilities, this camera ensures uncompromising performance in both residential and commercial environments.
Key Features:
- 4.0MP High-Definition Imaging – Captures clear, detailed footage at 2560 × 1440 resolution.
- 4× Optical Zoom & 16× Digital Zoom – Get a closer look without losing quality.
- AI-Powered Smart Detection – Includes human & vehicle detection, perimeter protection, and intelligent event alerts.
- Powerful 100m Infrared Night Vision – Ensures crystal-clear footage even in total darkness.
- High-Speed PTZ Control – 355° pan, 90° tilt, and auto-tracking for full coverage.
- Weatherproof IP66-Rated Housing – Built for outdoor durability in all conditions.
- H.265+ Compression – Saves storage while maintaining excellent video quality.
- Easy Integration with NVRs – Seamless compatibility with VIP Vision NVR systems.
- Remote Access & Mobile Viewing – View live or recorded footage via smartphone, tablet, or PC.
Perfect For:
- Commercial & Industrial Sites – Monitor warehouses, car parks, and construction zones.
- Retail & Public Spaces – Enhance security in shops, shopping centres, and business premises.
- Residential Properties – High-performance home security with smart AI alerts.
What’s in the Box?
- VIP Vision 4.0MP AI PTZ Camera
- Mounting Accessories
- User Manual & Quick Setup Guide
Why Choose the VIP Vision VSIPPTZ-4IRM-I2?
With cutting-edge AI analytics, smart detection, and powerful zoom capabilities, this PTZ camera is designed to deliver superior surveillance in any environment. Whether you're securing a business, monitoring a large property, or enhancing your home security, the VSIPPTZ-4IRM-I2 offers professional-grade protection with easy remote access.
- Dimensions
- Ø128mm x 66mm
- Ethernet
- RJ-45 (10Base-T/100Base-TX)
- Housing
- Metal
- Net Weight
- 0.5kg
- Operating Conditions
- -30° ~ +60° C / ≤95% RH
- Power Supply
- 12VDC / 1.5A / PoE (802.3af)
- Ingress Protection
- IP66
- Vandal Resistance
- IK08
- Bit Rate
- H.264: 96 ~ 14,848Kbps / H.265: 38 ~ 8,960Kbps
- Frame Rate (Main)
- 4.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- D1 (1 ~ 25fps)
- Frame Rate (Third)
- 720p (1 ~ 25fps)
- Max. User Access
- 20 Users
- Power Consumption
- Video Compression
- H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
- Resolution
- 4.0MP (2560 x 1440) to CIF(352 x 288)
- Series
- Specialist AI Series
- Focus
- Auto/Manual / 0.2m Min. Focus Distance
- Interoperability
- ONVIF / CGI / SDK
- Effective Pixels
- 2560 (H) x 1440 (V)
- Image Sensor
- 1/2.8" 4.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- N/A
- Camera Type
- PTZ Dome
- Max. Resolution
- 4.0 Megapixel
- Field of View
- Horizontal: 32°~97°, Vertical: 18°~51°, Diagonal: 36°~116° (4x Optical Zoom)
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Pan / Tilt Range
- Pan: 0 ~ 355° / Tilt: 5 ~ 90°
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 240m
- Gain Control
- Auto / Manual
- Identify (250px/m)
- 24m
- Lens Type
- Motorised Varifocal
- Noise Reduction
- 2D / 3D
- Observe (63px/m)
- 95m
- Recognise (125px/m)
- 48m
- White Balance
- Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
- Audio Interface
- 1 Input, 1 Output / Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 512GB) / FTP / P2P
- ePoE
- No
- Infrared System
- 3 x Infrared LED, 20m range, Auto/manual on/off control
- Lens / Iris
- 2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
- Min Illumination
- 0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
- Pan/Tilt/Rotation
- N/A
- Picture Control
- Flip 180°
- Protocol
- IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
- RAM / ROM
- 512 MB / 256 MB
- S/N Ratio
- ≥55 dB
- Smart Scene Adaptive (SSA)
- No
- Streaming Method
- Unicast / Multicast
- Video Interface
- N/A
- Auto Tracking
- N/A
- Modes / Presets
- Up to 300 presets / 8 tour
- PTZ Speed
- Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
- Start-up Action
- Auto-restore to previous PTZ/lens status
- Heat Map
- N/A
- Intelligent Search
- Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
- People Counting
- Supports Line Crossing/Region/Queuing People Counting, Report Generation
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
- Digital Zoom
- 16×
- Event Triggers
- Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
- Face Capture
- Support
- Face Recognition
- N/A
- Image Stabilisation
- Electronic
- IVS Functions
- Abandoned object / Missing object
- Metadata
- N/A
- Optical Defog
- Support
- Privacy Masking
- N/A
- Region of Interest
- Support
