VIP Vision IP PTZ Control Keyboard – Precision Control for PTZ Cameras - VSIPPTZKB3
VSIPPTZKB3
In Stock - Ready to Ship $ 380.00
inc-GST
Master every pan-tilt-zoom with VIP Vision’s VSIPPTZKB3 control keyboard. Its three-axis joystick and rapid-fire keys put presets, tours and zoom at your fingertips, while the back-lit LCD shows live status. Connect via RJ45 IP, RS-485/232 or USB and command multiple PTZs or NVRs from one compact desk unit.
- New Version PTZ Controller
- Multi-protocol: ONVIF, Pelco-D/P, DH-SD
- Smooth pan-tilt-zoom, twist-to-zoom precision
- Preset, scan, pattern, tour & auto-tracking keys
- RJ45, dual RS-485, RS-232 & USB 2.0 I/O
- 12 V DC adaptor, ≤5 W draw, 4-year warranty

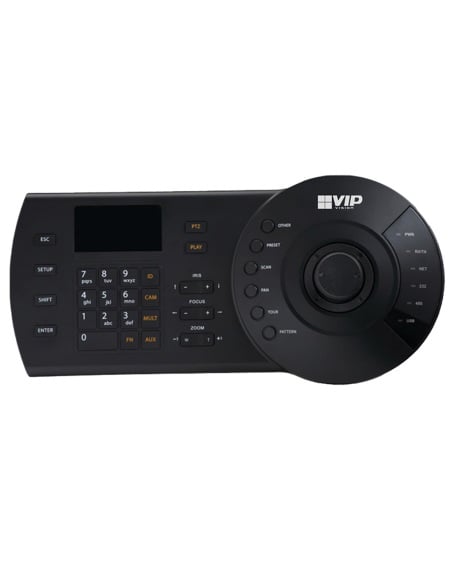

VIP Vision IP PTZ Control Keyboard
Model VSIPPTZKB3 • Multi-protocol • Network & RS485/232
Take precise command of pan-tilt-zoom cameras and recorders with the VSIPPTZKB3. Designed for VIP Vision, Securview and Watchguard PTZs, this professional keyboard offers three-axis joystick control, quick-access presets and an on-board LCD for real-time feedback. Connect via RJ45 IP, RS485/232 or USB and put every PTZ or NVR function at your fingertips.
Key Features
- Multi-brand compatibility – VIP Vision, Securview, Watchguard PTZs & DVR/NVRs.
- Three-axis joystick – pan, tilt & zoom with twist-to-zoom precision.
- Comprehensive auxiliary modes – preset, scan, pan, tour & pattern.
- 75 mm × 34 mm back-lit LCD – menu prompts plus live status tips.
- Flexible I/O – RJ45 IP, RS232, dual RS485, USB (SmartPSS / DSS).
- Broad protocol support – DH2, DH-SD1, Pelco-D/P.
- 12 V DC power adapter included; ≤ 5 W consumption.
- 4-year warranty for long-term reliability.
Quick Specs – VSIPPTZKB3
| Interfaces | RJ45 IP, 1 × RS232, 2 × RS485, USB 2.0 |
|---|---|
| Joystick | 3-axis vector, twist-zoom, auto-centre |
| LCD Display | 75.2 mm × 33.85 mm |
| Power / Consumption | 100–240 V AC in → 12 V DC 1 A out • ≤ 5 W |
| Operating Temp / RH | -10 °C ~ +55 °C • 10 % ~ 90 % RH |
| Dimensions (W×D×H) | 330 × 139 × 103 mm (including joystick) |
| Weight (inc. pack) | 1.3 kg |
| Warranty | 4 years |

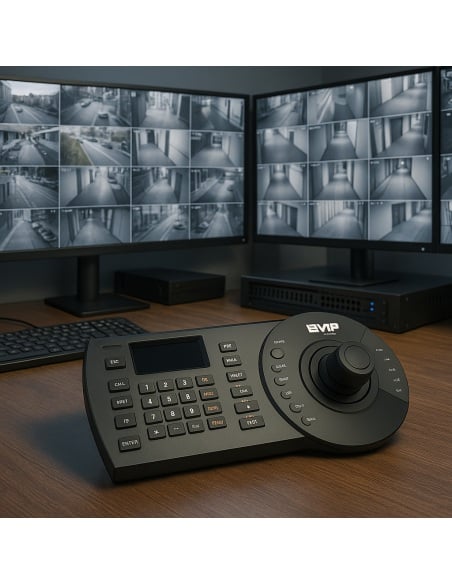

Dial in the perfect shot. Add the VSIPPTZKB3 to your control room and steer every PTZ with fingertip precision.
- Power Supply
- input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
- Weight
- 1.3kg (Including package)
- Power Consumption
- 5W
- Working Temperature
- -10?~+55?
- LCD Display
- 75.2mm x 33.85mm
- Working Humidity
- 10%~90%
- Atmosphere Pressure
- 86kpa~106kpa
- Direct Interface
- 1 RS232/2 RS485
- Joystick
- 3-axis, vector-solving, with twisting, return to-center head
- Network Interface
- RJ45
- Dimension (W×D×H)
- 330mm×139mm×53mm (not including joystick) 330mm×139mm×103mm (including joystick)
