OS3 5GHz 12dBi 867Mbps Outdoor CPE
Long-Range Wireless CPE for PtP & P2MP Applications
Deliver reliable, long-distance wireless connectivity with the OS3 5GHz 12dBi Outdoor CPE. Designed for point-to-point (PtP) and point-to-multipoint (P2MP) setups, this unit provides stable, high-speed links for CCTV surveillance or broadband sharing, with easy deployment and durable weather-resistant housing.
Key Features & Benefits
- 5GHz 11AC Wireless Technology — Delivers up to 867Mbps throughput.
- 12dBi Dual-Polarisation Antenna — Maintains stable long-range connections up to 5km.

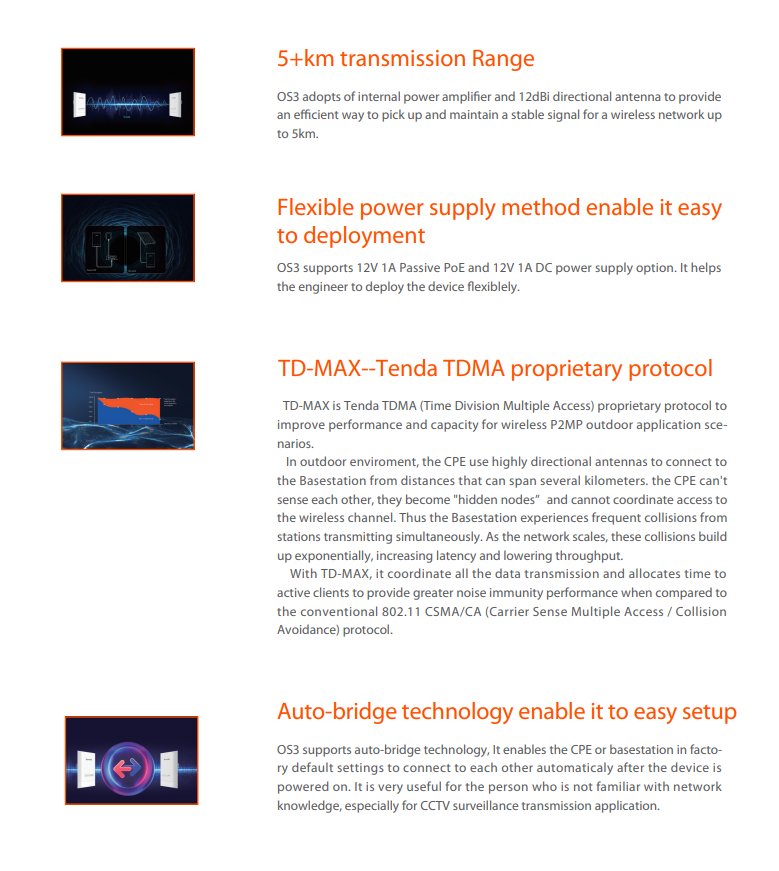

- TD-MAX Protocol — Proprietary Tenda TDMA technology enhances performance for P2MP deployments.
- Auto-Bridge Function — Simplifies setup by auto-connecting units out of the box.
- IP65 Waterproof Housing — Robust enclosure suitable for harsh outdoor environments.
- Flexible Power Options — Supports 12V DC and 12V Passive PoE for simplified installation.
- 6000V Lightning Protection — Ensures stable operation even in stormy conditions.
- Centralised Management Software — Easily manage your devices via PC-based CPE Assistant.
Designed for Long-Range, Reliable Wireless Links
Ideal for video surveillance, building-to-building internet sharing, or connecting remote networks with minimal technical expertise required.

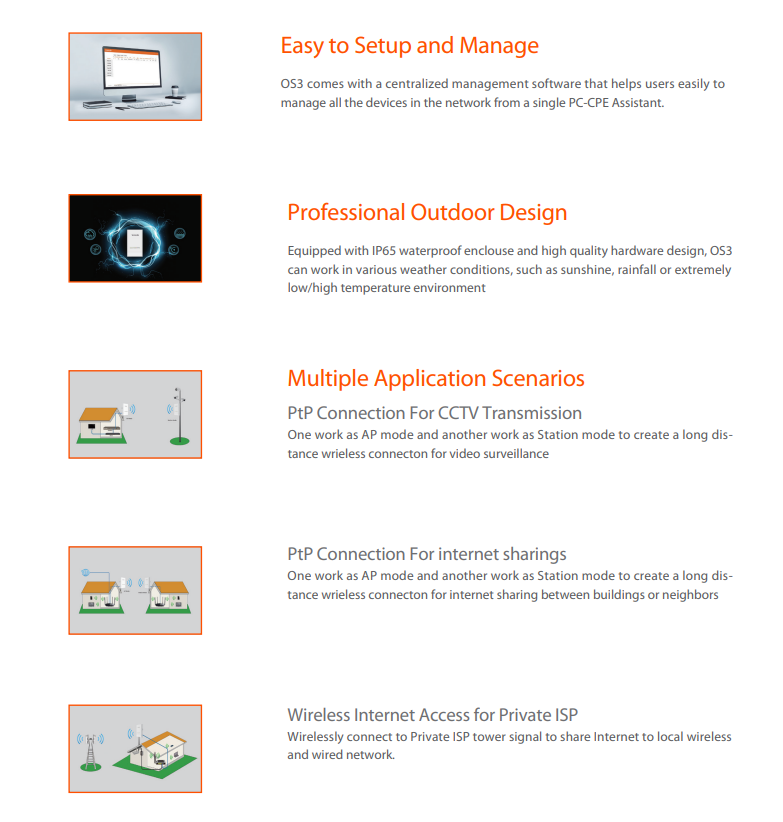

Real‑World Applications
Long-Distance CCTV Transmission — Create secure, high-speed links for video surveillance using PtP mode.
Building-to-Building Wireless Bridges — Share internet connections between neighbouring buildings or remote locations.
Private ISP Connectivity — Connect wirelessly to ISP towers for internet access to local wired and wireless networks.
Rural or Industrial Network Expansion — Extend networks to areas with limited infrastructure using robust outdoor units.
Quick Specs
| Wireless Frequency |
5GHz (11AC) |
| Max Wireless Speed |
867Mbps |
| Antenna |
12dBi Dual-Polarisation Directional |
| Transmission Range |
Up to 5km |

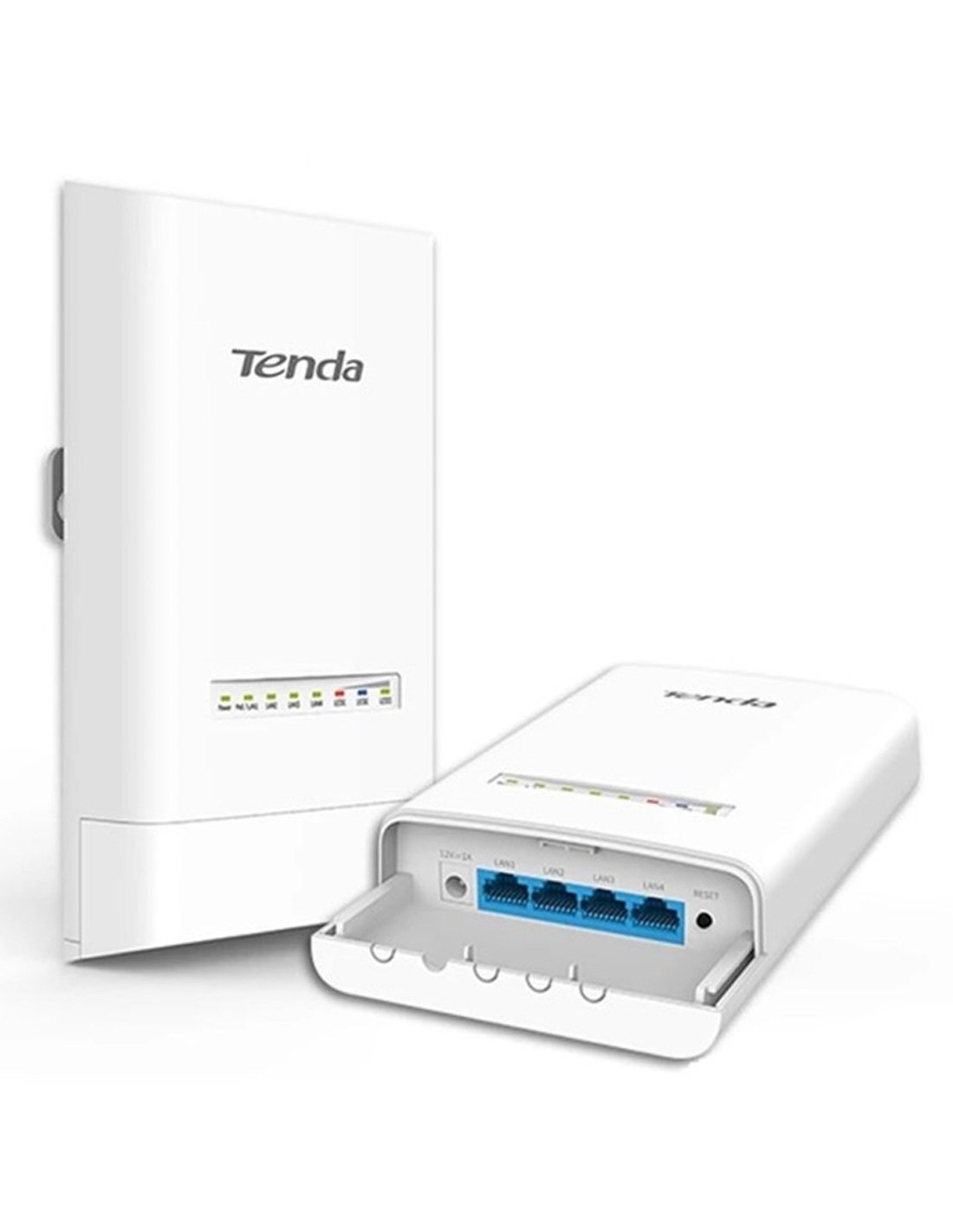

| Ethernet Ports |
4 x Fast Ethernet Ports |
| Power Supply |
12V 1A DC or Passive PoE |
| Waterproof Rating |
IP65 |
| Lightning Protection |
6000V |
| Management |
CPE Assistant Centralised Software |
Simplify long-distance wireless with the OS3 Outdoor CPE — engineered for reliable connectivity, easy setup, and rugged outdoor performance for surveillance and networking.
