- New
Ubiquiti Dual Band WiFi 7 Long Range (PoE) Access Point - WT5-U7LR
• 802.11n/ac/ax/be/ WiFi 4/5/6/7 supported WiFi standards
• 2x2 DL/UL MU-MIMO 2.4GHz 26dBm and 3x3 DL/UL MI-MIMO 5GHz 27dBm antennas
• High throughput rates up to 688Mbps (2.4GHz) and 4300Mbps (5GHz)
• Supports over 300 connected devices; concurrent clients
• 2.5GbE Gigabit Ethernet (2500M) RJ45 uplink/networking interface; management also via bluetooth
• PoE powered; 44~57V DC supported voltage range (PoE switch or injector sold separately)
• Polycarbonate construction with s
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
Ubiquiti UniFi U7‑LR | WiFi 7 Long‑Range Access Point • Dual‑Band 2.4/5GHz • 2.5GbE PoE
The UniFi U7‑LR (U7‑LR) is a compact, ceiling/wall‑mount WiFi 7 (802.11be) access point designed for extended indoor coverage. With 5 spatial streams (3×3 5 GHz + 2×2 2.4 GHz), a 2.5 GbE uplink and PoE power, it delivers long‑range performance and easy management via UniFi Network.
Key Features & Benefits
- WiFi 7 (802.11be) — Dual‑band 2.4/5 GHz with EHT channel widths up to 160 MHz
- Long‑range throughput — Up to 688 Mbps (2.4 GHz) and 4.3 Gbps (5 GHz)
- 5 Spatial Streams — 3×3 DL/UL MU‑MIMO (5 GHz) + 2×2 DL/UL MU‑MIMO (2.4 GHz)
- 2.5GbE Uplink — Single RJ45 for high‑speed LAN backhaul
- PoE Powered — Max consumption 14 W; PoE injector/switch sold separately
- 300+ concurrent clients — Ideal for high‑density offices, education and hospitality
- 160 m² coverage — Optimised RF with 6 dBi (5 GHz) / 4 dBi (2.4 GHz) antenna gain
- Enterprise features — WPA‑Enterprise, PPSK, band steering, fast roaming (802.11r/k/v), guest portal
- UniFi ecosystem — Managed via UniFi Network; supports wireless meshing and advanced radio management
Ideal Applications
- Open‑plan offices, meeting rooms & co‑working spaces
- Schools, libraries & tertiary campuses
- Hotels, cafés & venues with high client density
- Retail floors & hospitality back‑of‑house
Specifications at a Glance
- Model / SKU: U7‑LR / WT5‑U7LR
- WiFi Standard: 802.11be (WiFi 7), backward‑compatible with WiFi 6/5/4
- Radios & MIMO: 5 GHz 3×3 MU‑MIMO; 2.4 GHz 2×2 MU‑MIMO
- Max Data Rates: 5 GHz: 4.3 Gbps (BW160) • 2.4 GHz: 688 Mbps (BW40)
- Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160 MHz
- Coverage / Clients: Up to 160 m² • 300+ concurrent clients
- Uplink: 1 × 2.5 GbE RJ45
- Power: PoE (42.5–57 VDC); Max 14 W; Injector/switch not included
- TX Power: 27 dBm (5 GHz) • 26 dBm (2.4 GHz)
- Antenna Gain: 6 dBi (5 GHz) • 4 dBi (2.4 GHz)
- Security & VLAN: WPA‑PSK / WPA‑Enterprise (WPA/WPA2/WPA3) • 802.1Q VLAN
- Management: UniFi Network (v9.1.120+)

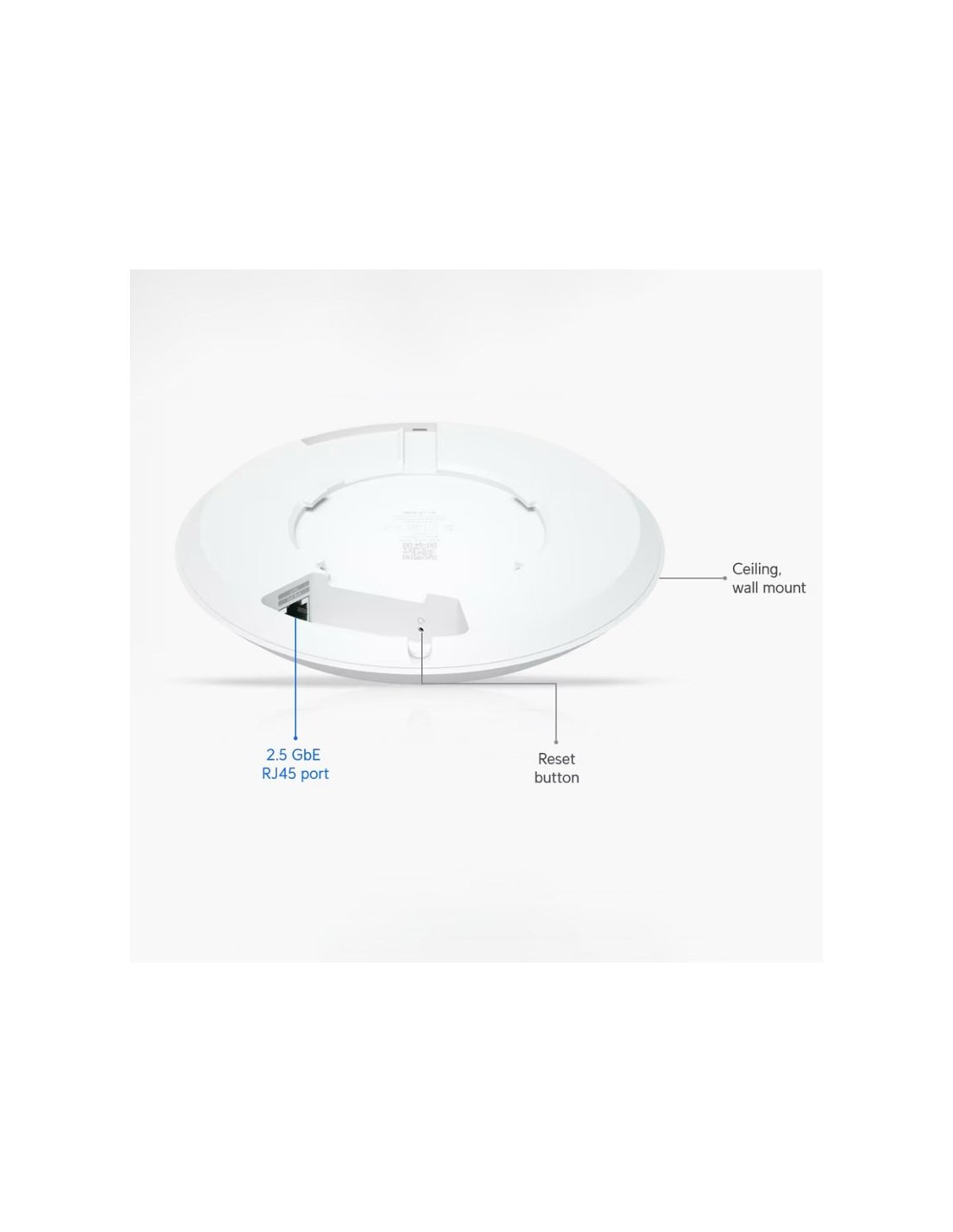

- LED / Buttons: White/Blue system LED • Reset button
- Enclosure: Polycarbonate body with stainless/SGCC mount plate
- Operating Conditions: −30 °C to +50 °C • 5–95% RH (non‑condensing)

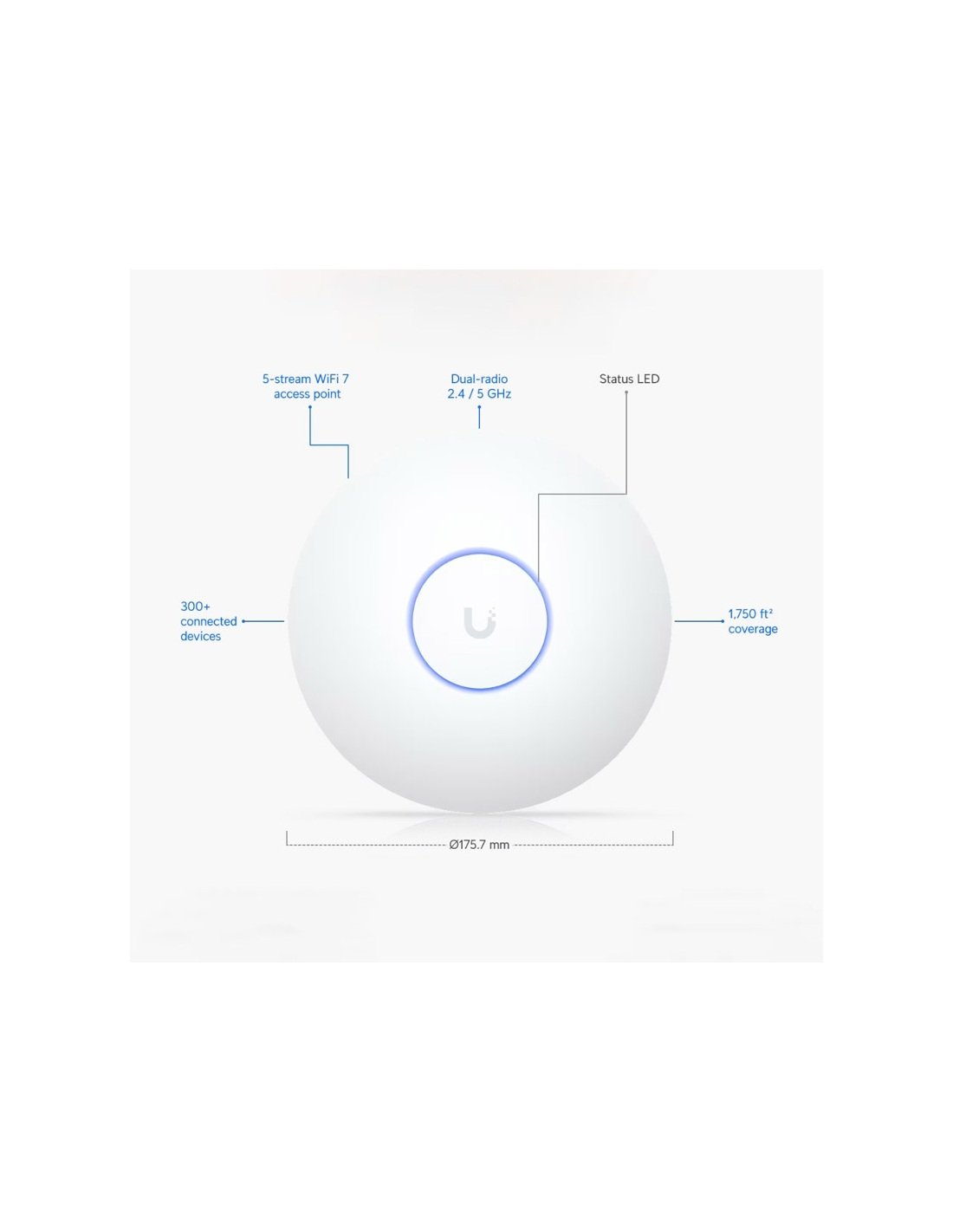

- Dimensions / Weight: Ø175.7 × 43 mm • 448 g
- Mounting: Ceiling/Wall (mounting plate included)
- Warranty: 1 Year
Upgrade to WiFi 7 range and capacity. The U7‑LR pairs 2.5GbE backhaul with long‑range 5‑stream radios for smooth, scalable enterprise Wi‑Fi.
- Dimensions
- 22(W) x 41(D) x 27(H) mm
- Power Supply
- 9~15VDC / 500mA
- Weight
- 0.16kg
- Operating temperature
- -25°C~+55°C
- WiFi Standards
- 802.11b/g/n
- Weather Resistance
- IP65 (silicone sealant required)
- Certifications
- N/A
- Wireless Security
- Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
- Management
- USB & RS232 (Windows 2000 to 10, Linux, Unix, MAC)
- Operating Humidity
- 0~95%(non-condensing)
- BSSID
- Up to Four per Radio
- Power Method
- Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
- Advanced QoS
- Per-User Rate Limiting
- Buttons
- Reset
- Concurrent Clients
- 250+
- Guest Traffic Isolation
- Supported
- VLAN
- 802.1Q
- Antenna Gain
- 1.6dBi (2.4GHz) / 4.0dBi (5GHz)
- Enclosure
- Outdoor UV Stabilized Plastic
- Max. Power Consumption
- 8.5W
- Supported Voltage Range
- 20 to 26VDC
- LED Indicators
- White/Blue LED
- Management Application
- UniFi Network Version 6.0.34 and later
- Max. Coverage
- 185m²
- Max. Transmission Power
- 26dBm (2.4GHz, 5GHz)
- MIMO Configuration
- 4 x 4 (2.4GHz, 5GHz)
- Mounting Components
- Wall, Ceiling Mount (included)
- Network
- 1 x GbE RJ45 port
- Throughput Rate
- 600Mbps (2.4GHz), 2400Mbps (5GHz)
- Zero-wait DFS
- N/A
