• New

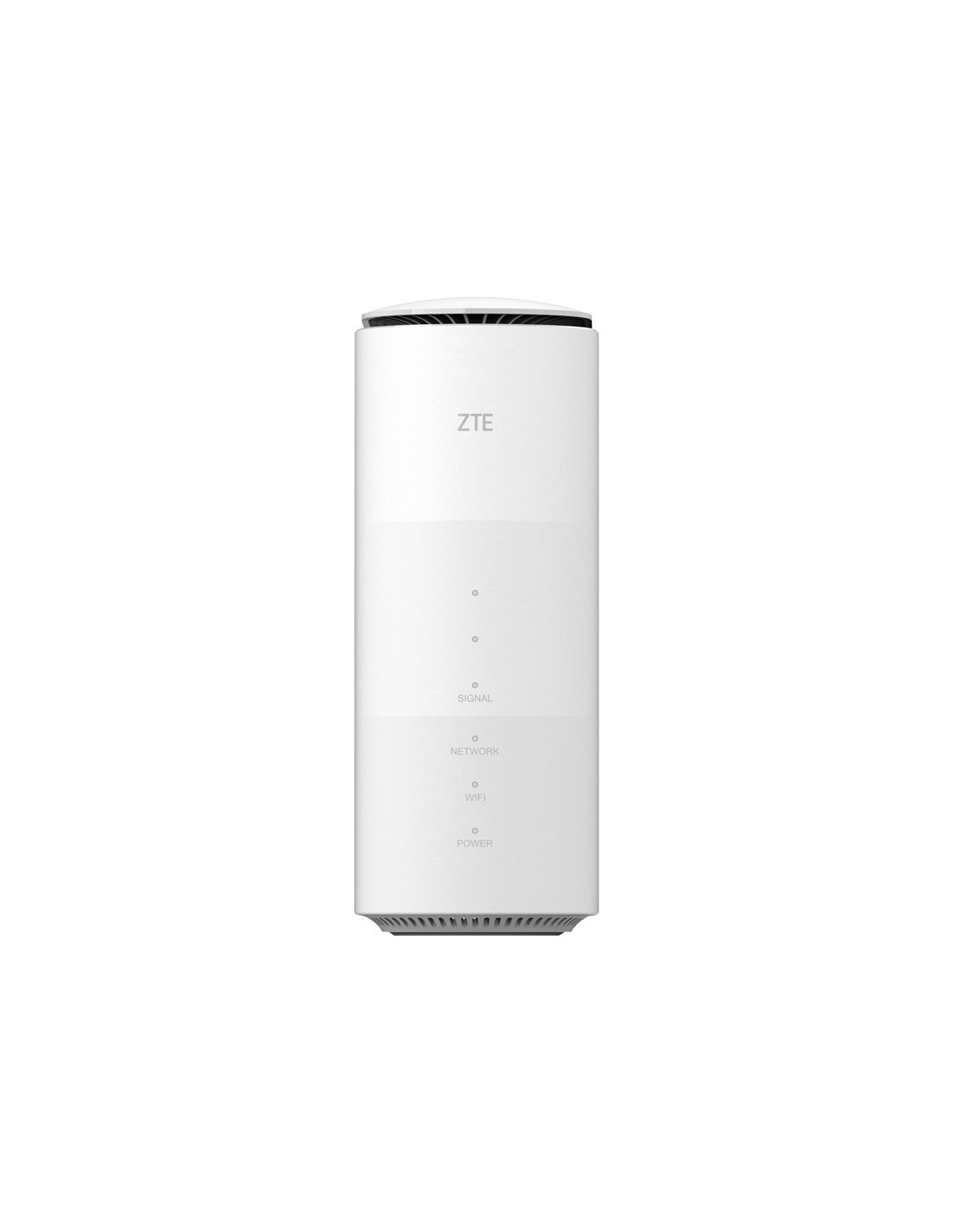

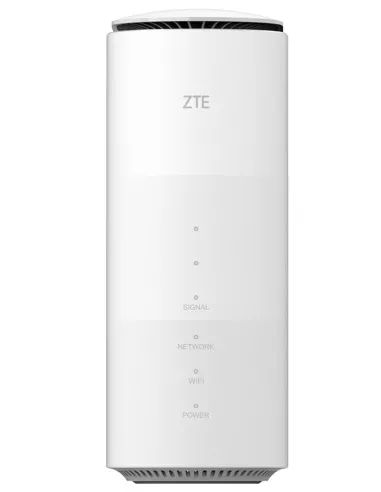

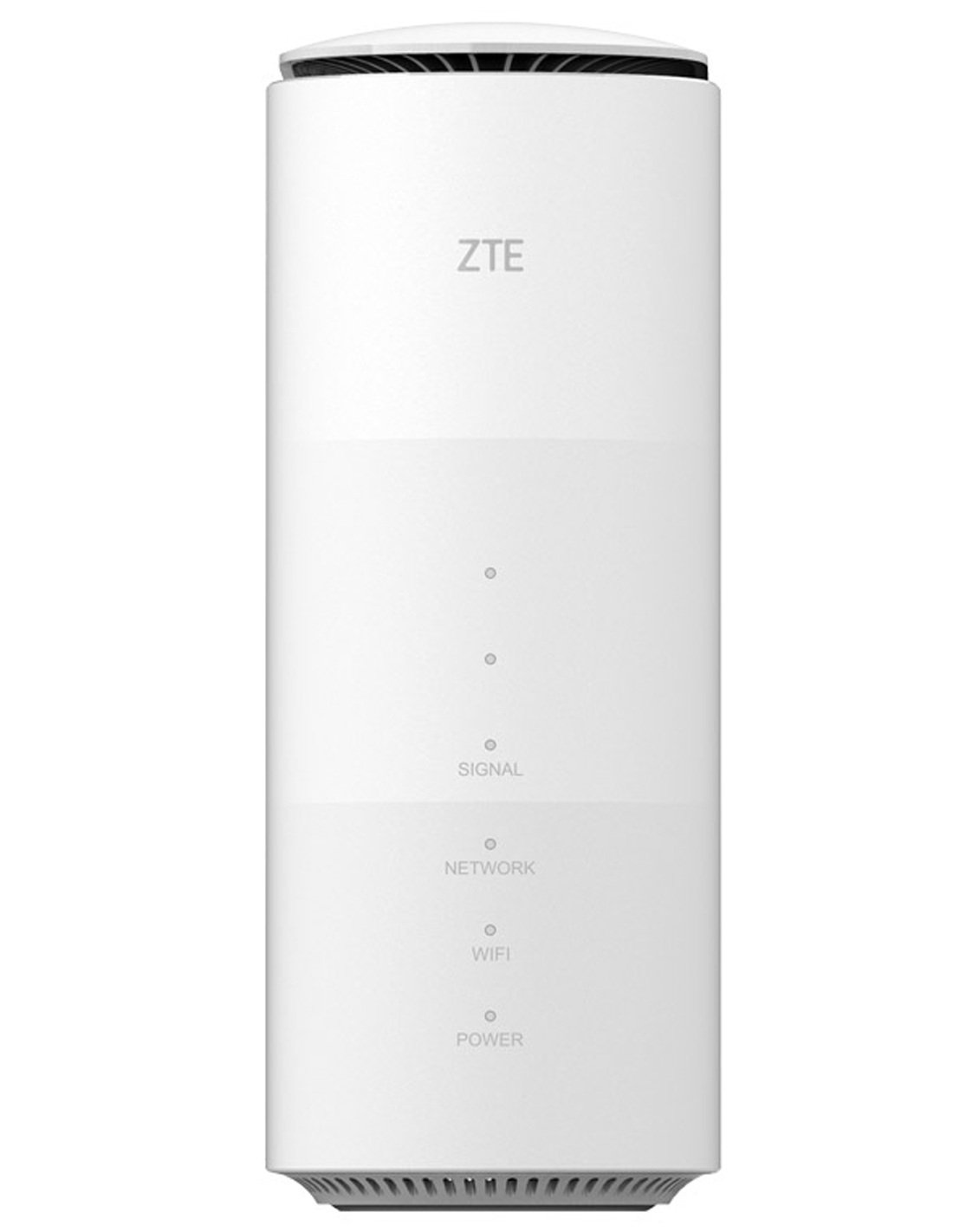

ZTE Ultra 5G/4G Dual Band Wireless Modem Router - RTR-ZL
ZTE Ultra 5G/4G Dual Band Wireless Modem Router - RTR-ZL
ZTE Ultra 5G/4G Dual Band Wireless Modem Router - RTR-ZL

ZTE Ultra 5G/4G Dual Band Wireless Modem Router - RTR-ZL

RTR-ZL
In Stock - Ready to Ship
$ 595.00
inc-GST


• 5G NR NSA/SA with carrier aggregation support; nano sized SIM slot
• 5G max. data throughput 3800/900Mbps download/upload*
• N1/3/7/8/20/28/38/40/41/75/77/78 5G band support
• 4G/LTE-A CAT16 with carr

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



RTR-ZL | Ultra 5G/4G Dual‑Band Wireless Modem Router • WiFi 6 • 64 Users

RTR‑ZL Ultra 5G/4G Dual‑Band Wireless Modem Router

The RTR‑ZL is a flagship 5G/4G wireless modem router delivering ultra‑fast mobile broadband and dual‑band WiFi 6 in a compact design. Powered by the Qualcomm® Snapdragon™ X62 platform with 5G carrier aggregation, it supports up to 64 concurrent users with gigabit Ethernet for flexible WAN/LAN backhaul.

Key Features & Benefits

  • 5G NR (NSA/SA) + 4G LTE‑A CAT16 — Up to 3.8Gbps/900Mbps (5G) & 1Gbps/150Mbps (4G)*
  • Dual‑Band WiFi 6 — 2×2 MIMO on 2.4/5GHz with rates up to 688Mbps (2.4G) & 2882Mbps (5G)*
  • 64 users — High‑density Wi‑Fi for homes, SOHO & SMB
  • Gigabit wired2 × RJ45 (1000M) incl. 1× WAN/LAN + RJ11
  • Nano‑SIM slot — Simple mobile broadband setup
  • Built‑in antennas — Integrated 5G/4G & Wi‑Fi antennas; up to 26dBm TX (N41/N78)
  • Strong security — WPA/WPA2/WPA3‑PSK; firewall; guest SSID
  • Smart management — Web UI & Smartlife app; watchdog; OTA

Ideal Applications

  • Primary or backup internet for offices, retail & hospitality
  • Rapid deployments & temporary sites
  • Remote cameras, intercoms & IoT where fixed lines aren’t available
  • Failover WAN for security head‑ends/NVRs

Specifications at a Glance

  • Model: RTR‑ZL
  • Cellular: 5G NR NSA/SA (5× CA), LTE‑A CAT16; max 5G 3800/900Mbps, FDD‑LTE 1000/150Mbps*
  • Bands (5G): N1/3/7/8/20/28/38/40/41/75/77/78
  • Bands (4G): FDD B1/3/4/5/7/8/20/28/32; TDD B38/40/41/42/43
  • Wi‑Fi: IEEE 802.11a/b/g/n/ac/ax (WiFi 6); 2×2 MIMO @ 2.4/5GHz; up to 688/2882Mbps*
  • Users: Up to 64 concurrent clients

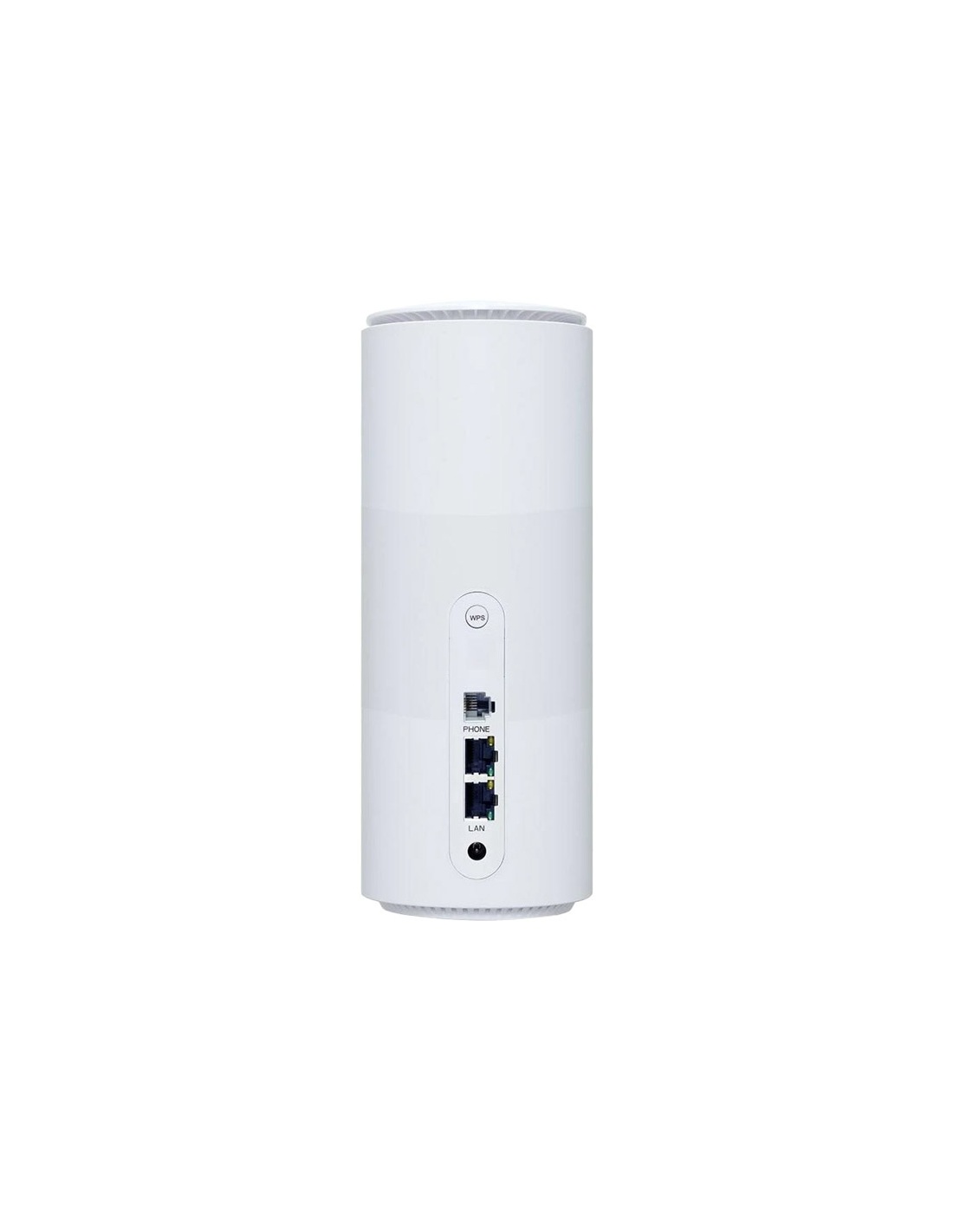

  • Interfaces: 2 × RJ45 Gigabit (1× WAN/LAN), 1 × RJ11, 1 × Nano‑SIM
  • Security: WPA/WPA‑PSK/WPA2/WPA2‑PSK/WPA3‑PSK; MAC filtering; VPN pass‑through; IPv4/IPv6; DMZ; firewall
  • Management: Web UI; Smartlife app
  • Power: 12V DC, 1.5A
  • Dimensions / Weight: 182 × 124 × 70 mm; 520 g
  • Operating Environment: −20 °C to +55 °C; 5–95% RH
  • Certifications: CE, WEEE, RoHS, Wi‑Fi
  • Warranty: 1 Year
  • Shipping (incl. packaging): 80 × 290 × 80 mm; 1.00 kg

5G speed. Wi‑Fi 6 capacity. RTR‑ZL delivers enterprise‑grade mobile broadband with gigabit ports and easy management.

*Theoretical maximums; actual performance depends on network, plan and environment.

Dimensions
22(W) x 41(D) x 27(H) mm
Operating Environment
-20°C ~ 70°C / RH95% (max)
Weight
0.16kg
Backup Battery
1 x 3.7V 600mA Li-ion backup battery (20 hrs standby)
Certifications
N/A
Input Power
100 ~ 240VAC
Network Interface
RJ45
WiFi Security
WPA-PSK/WPA2-PSK
WiFi Standard
IEEE802.11b/g/n
Cellular Antenna
Built-in 5G/4G Antenna, 26dBm (N41/78) and 23dBm Max. Tx Power
Cellular Category
5G NR NSA/SA with 5 Carrier Aggregation, 4G/LTE-Advanced CAT16
Device Indicators
Power/WiFi/Network LED Indicators, WPS/Reset Buttons
Management Platform
Web UI, Smartlife App
Max. Data Throughput (Down/Up)
5G 3800/900Mbps*, FDD-LTE 1000/150Mbps*
Software Functions
MAC address filtering, Wi-Fi encryption authentication, VPN Pass-through, IPV4/IPV6, VoLTE, VoIP, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP, APN, Firewall, Hybrid Mode (LAN/WLAN)
Support Frequencies
5G N1/3/7/8/20/28/38/40/41/75/77/78, FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43
WiFi Antenna
2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz
WiFi Concurrent Users
64
WiFi Data Rate
2.4GHz 688Mbps, 5GHz 2882Mbps*
