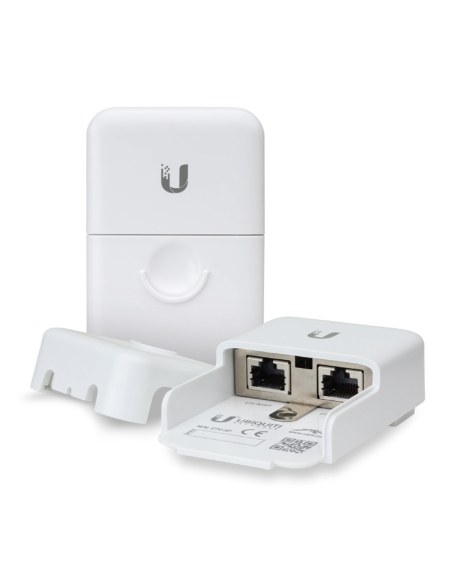

Ubiquiti VSETHSP Ethernet Surge ProtectorVSETHSP

Ubiquiti VSETHSP Ethernet Surge Protector

Name: Ubiquiti VSETHSP Ethernet Surge Protector
Brand: Ubiquiti Networks
SKU: VSETHSP
Price: 42.3 AUD
Availability: InStock

Reference: VSETHSP

In Stock - Ready to Ship

$ 42.30

inc-GST

ESD Protection for Outdoor High-Speed Networks
Ideal for WISP Networks
Fast Installation

Ubiquiti Ethernet Surge Protector

VSETHSP

The VSETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps. This is a great protection for outdoor POE devices when damaging electrostatic discharge attacks and surges are diverted to the VSETH-SP and safely discharged into the ground, so network devices are protected.

Dimensions: 91 x 61 x 32.5 mm
Weight: 80 g
Operating temperature: -30 to 65° C
Operating Humidity: 10 to 90% Noncondensing
Data Line Protection: RJ45 10/100/1000 Ethernet
DC Spark-Over Voltage: 90V @ 100V/s
Discharge Current: 10kA (Maximum), 0.5kA (Normal)
ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/?s
IEEE 802.3af PoE Support: Yes
Interface Connections: (2) RJ45 Female Connectors
Maximum Capacitance: 1.0 pF @ 1 MHz
Maximum Impulse Spark-over Voltage: 700V @ 1kV/?s
Maximum Insulation Resistance: 1G ohm @ 50V
Shock and Vibration Certification: ETSI300-019-1.4 Standard
