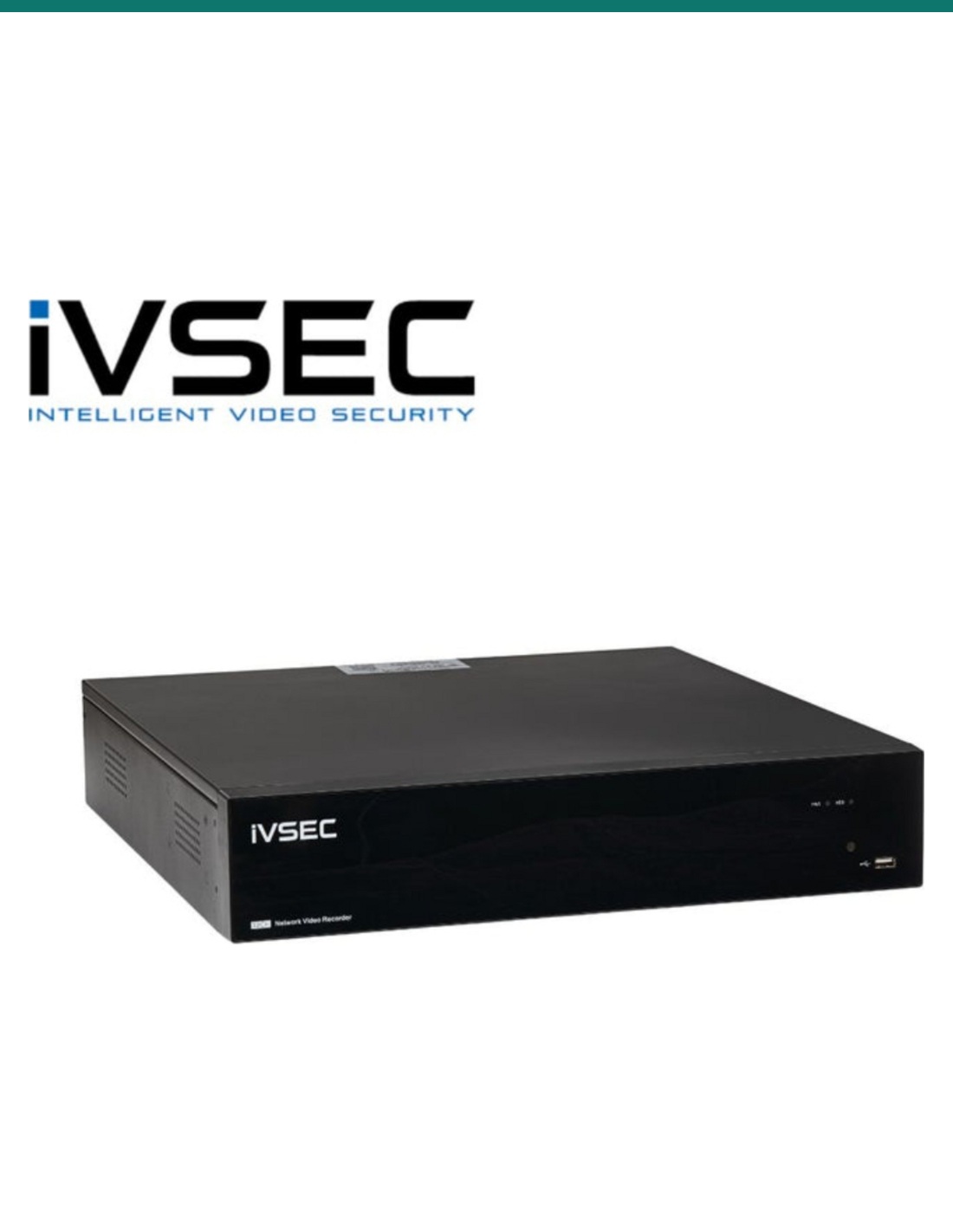

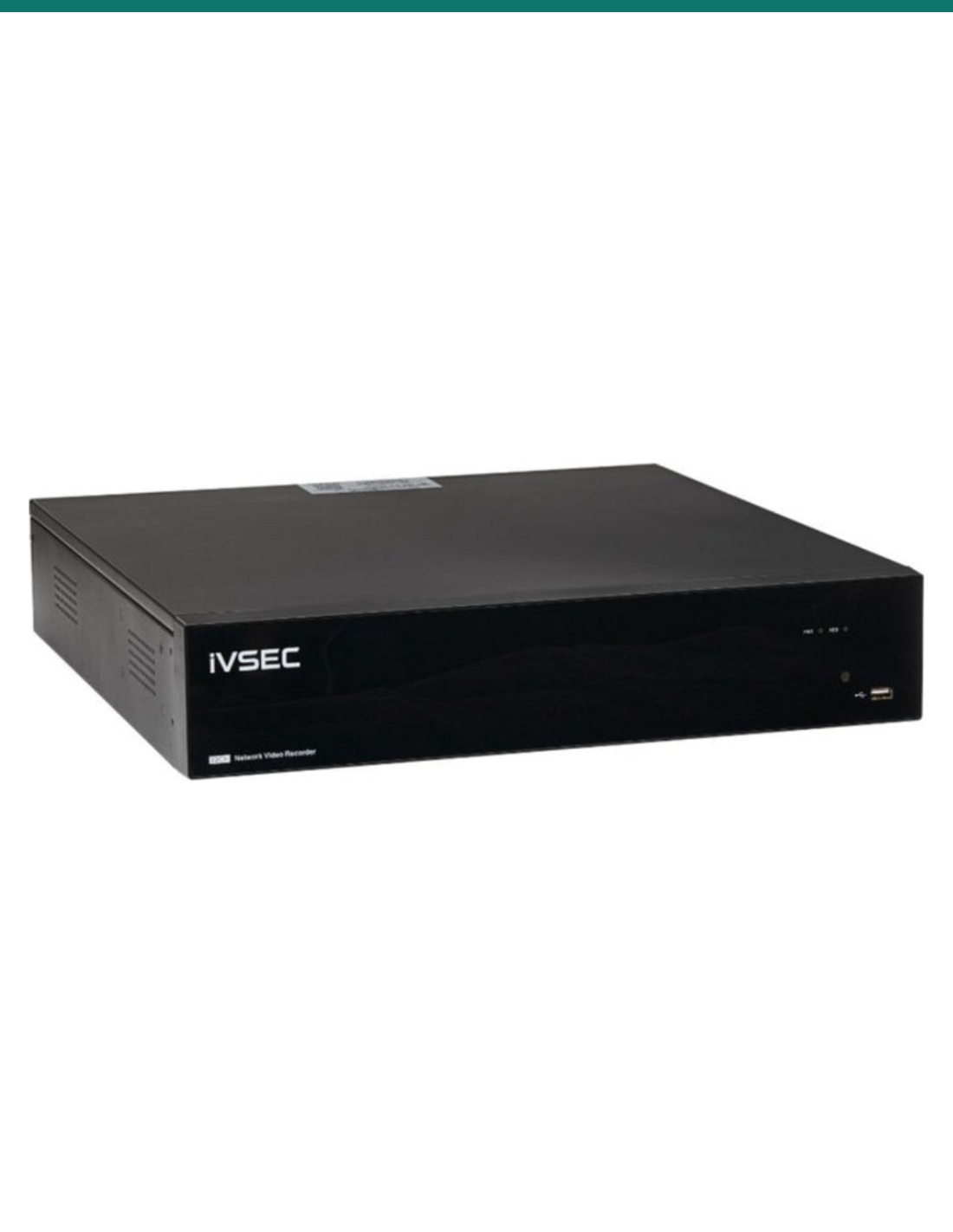

IVSEC NR6324EXA — 32-channel NVR front view

IVSEC NR6324EXA — front panel with status LEDs

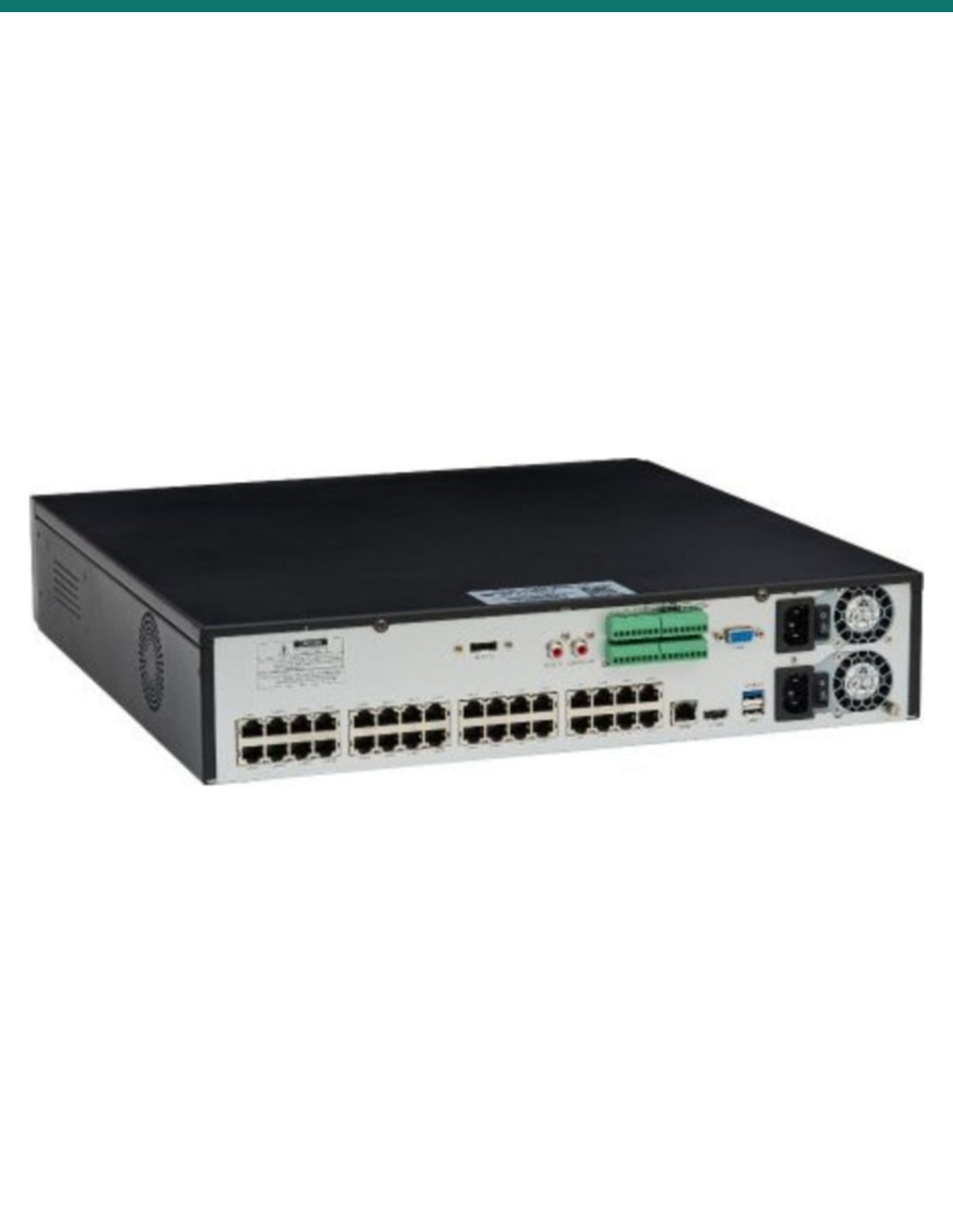

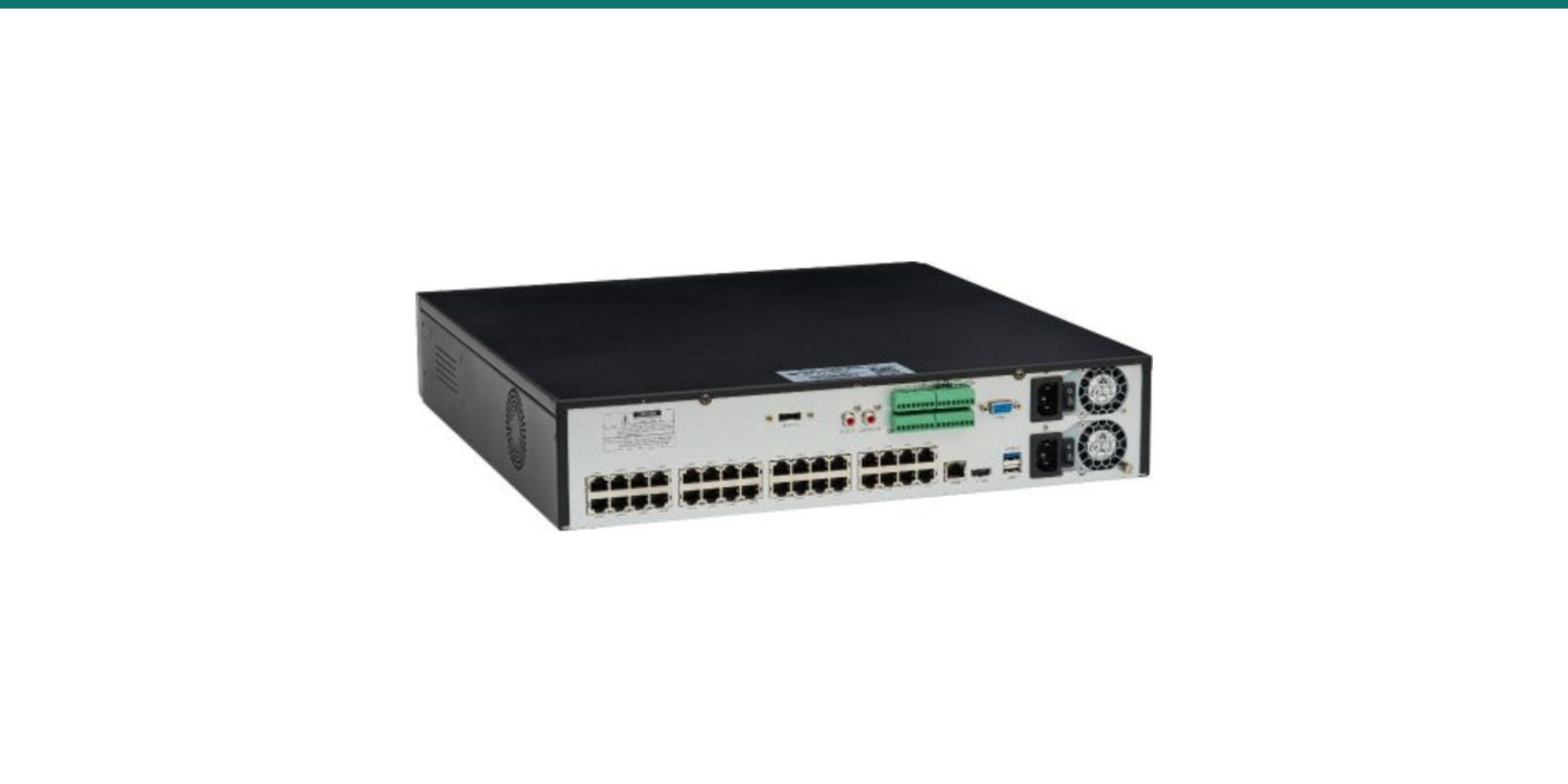

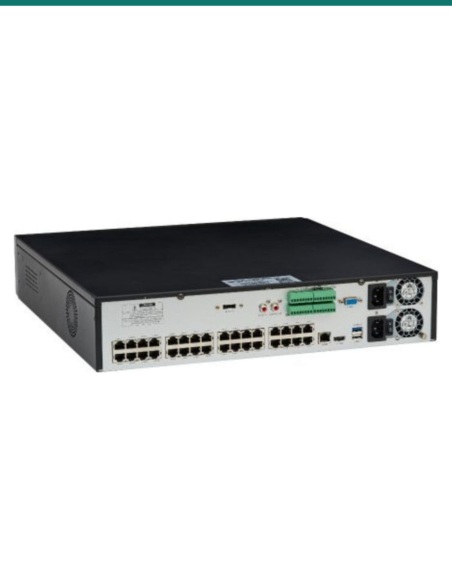

IVSEC NR6324EXA — rear connectivity panel

IVSEC 32 Channel 4K Ultra-HD/12MP Network Video Recorder - NR6324EXA

Name: IVSEC 32 Channel 4K Ultra-HD/12MP Network Video Recorder - NR6324EXA
Brand: IVSEC
SKU: IVNR6324EXA
Price: 852.5 AUD
Availability: InStock

Reference: IVNR6324EXA

In Stock - Ready to Ship

$ 852.50

inc-GST

32CH · 12 MP · H.265+ · 4-bay NVR.

Records up to 32 IP cameras with 320 Mbps incoming bandwidth, HDMI/VGA local view, 8 alarm inputs and ONVIF S/G/T.

✓32 channels @ up to 12 MP, H.265+ compression
✓4 × 3.5" SATA bays (up to 10 TB each per datasheet)
✓2 × gigabit uplink, HDMI/VGA, 8 alarm in / 1 out

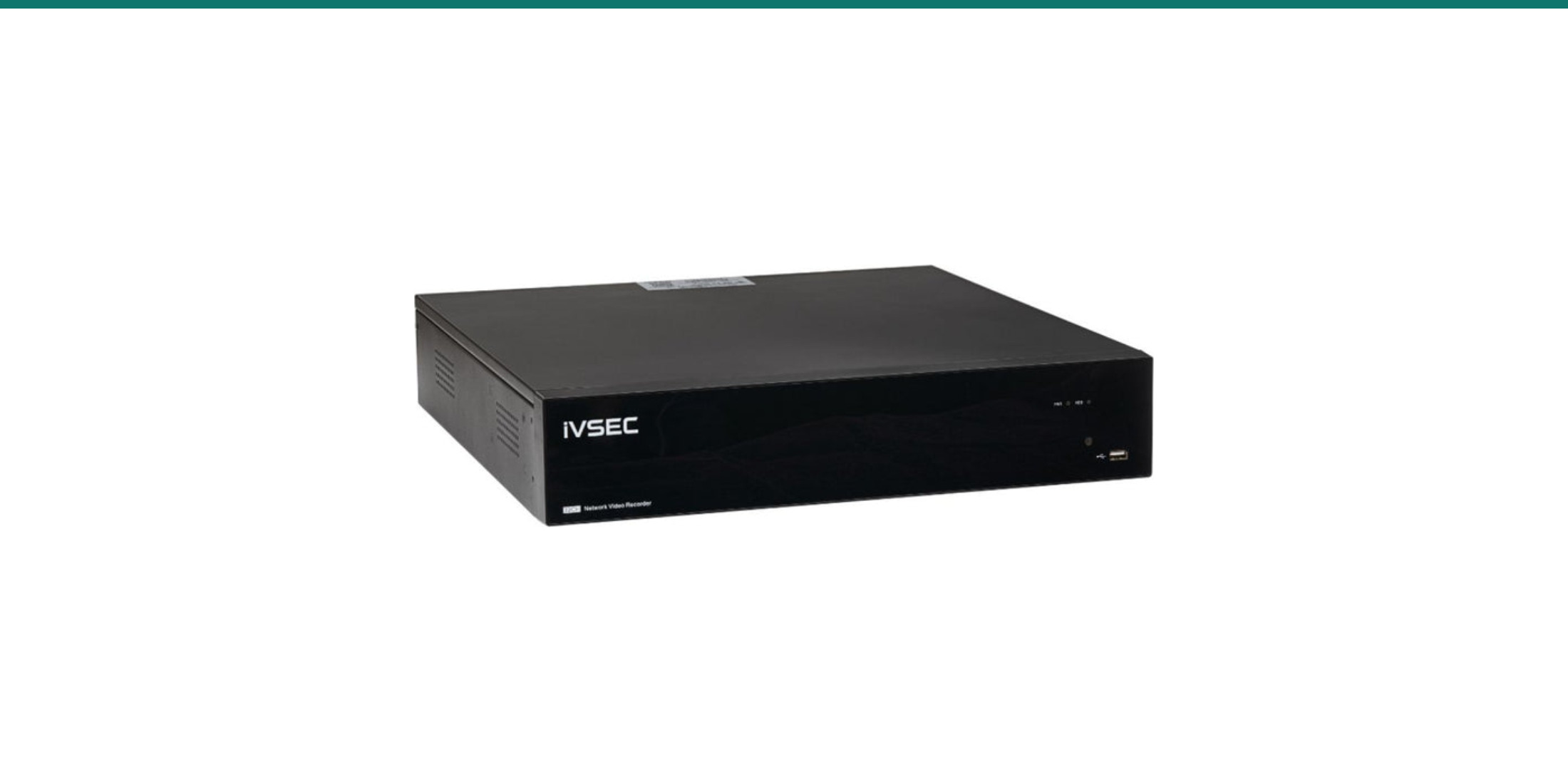

IVSEC NR6324EXA — 32-channel 12 MP NVR front view

IVSEC · 32-channel · 12 MP · H.265+

32-channel NVR.
4 bays. 320 Mbps.

The IVSEC NR6324EXA records up to 32 IP cameras at up to 12 MP with H.265+ compression, ONVIF S/G/T and IVSEC X-range plug-and-play.

ADD-ON RECORDER — NEEDS CAMERAS & HDD

This listing is the NVR only. It records IP cameras on your LAN but does not include cameras, structured cabling, surveillance hard drives or a PoE switch.

In the box

NR6324EXA network video recorder
12 V 5 A power supply
USB mouse, HDD screws, quick guide

What you also need (sold separately)

Up to 32 compatible IP cameras
1–4 surveillance-rated 3.5" SATA HDDs
PoE switch or injectors (datasheet: 2 non-PoE gigabit uplink ports)

Built for integrators who need a 32-channel head-end with local HDMI/VGA monitoring, alarm I/O and flexible search — without stepping up to enterprise VMS licensing on day one.

IVSEC NVR storage and multi-camera layout

Four-bay retention

Install up to four 3.5" SATA HDDs (up to 10 TB each per IVSEC datasheet) for a quoted 40 TB storage ceiling. H.265+ keeps bit-rates manageable on busy sites.

Size drives for your camera count, resolution and retention policy — we list SkyHawk surveillance HDDs separately.

Integrator I/O

HDMI and VGA local outputs, 8 alarm inputs / 1 output, RS485, audio out, eSATA and dual USB 2.0 ports give you standard security-install hooks.

Two gigabit RJ45 uplink ports (non-PoE per datasheet) connect to your core switch or router.

Search & remote access

Timeline, schedule, IVS/event, snapshot, tag, time-lapse and slice searches help you find incidents fast. IVSEC's CMS/VMS client and mobile app support remote live view and playback (P2P QR setup per datasheet).

Advanced analytics depend on the cameras you pair — the NVR records and surfaces IVS metadata when the camera supports it.

How it works

Install HDDs

Fit 1–4 surveillance-rated 3.5" SATA drives and initialise in the recorder menu.

Network cameras

Connect IP cameras via your PoE switch or LAN; IVSEC X-range cameras auto-discover.

Configure & record

Set schedules, motion/IVS rules and user accounts in the local UI or CMS client.

Monitor remotely

View live and playback on HDMI/VGA locally or via the IVSEC mobile app when configured.

At a glance

Model: NR6324EXA
Form factor: 32-channel network video recorder (NVR)
Maximum channels: 32 IP cameras
Maximum resolution: 12 MP per channel
Incoming bandwidth: 320 Mbps (per IVSEC datasheet)
Video compression: H.264, H.264+, H.265, H.265+
Live view layouts: 1, 4, 6, 8, 9, 10, 12, 13, 14, 16, 17, 19, 20, 22, 25, 32
Video outputs: HDMI and VGA
Storage: 4 × 3.5" SATA bays, up to 10 TB per drive (40 TB total per datasheet)
Network ports: 2 × gigabit RJ45 (non-PoE uplink ports per datasheet)
ONVIF: Profile S / G / T
Alarm I/O: 8 alarm inputs, 1 alarm output
Other I/O: RS485, audio out, eSATA, 2 × USB 2.0
Search: Continuous, schedule, IVS/event filters, snapshot, tags, time-lapse, slice, timeline
Software: Device search, config tool, CMS/VMS client, mobile app
Protocols: TCP/IP, HTTP/HTTPS, RTSP, ONVIF, P2P (QR code) and more
Power supply: DC 12 V, 5 A (included)
Power consumption: 12 W (without HDD)
Operating temperature: −10 °C to +50 °C, ≤90% RH
Dimensions (H × W × L): 66 × 326 × 378 mm
Weight: 3.50 kg net / 3.40 kg gross (per datasheet)
Warranty: 2-year parts (manufacturer)

Pair it with

CAMERAS

IVSEC IP cameras

IVSEC X-range for plug-and-play; any ONVIF S/G/T camera for core recording.

STORAGE

SkyHawk surveillance HDD

4–10 TB 3.5" drives rated for 24/7 write workloads.

NETWORK

PoE switch

Size switch PoE budget for your camera count and cable runs.

FAQ

Does this NVR include hard drives?

No. The NR6324EXA ships without surveillance HDDs. Install up to four 3.5" SATA drives (up to 10 TB each per the IVSEC datasheet) before commissioning recording.

Does it power IP cameras over PoE?

The IVSEC datasheet lists 2 non-PoE gigabit Ethernet ports for network uplink. Power your cameras with a compatible PoE switch or injector on the same LAN, or use cameras with local 12 VDC supplies.

How many cameras can I record at once?

Up to 32 IP channels at resolutions up to 12 MP, within the recorder's 320 Mbps incoming bandwidth budget (per datasheet). Size your bit-rate and HDD retention accordingly.

Will third-party ONVIF cameras work?

Yes for core streaming and recording via ONVIF Profile S/G/T. IVSEC plug-and-play and some analytics features are smoothest with IVSEC X-range cameras; test your exact models in the config tool first.

What is in the box?

Printed quick installation guide, USB mouse, HDD mounting screws and the 12 V 5 A power supply (per IVSEC datasheet). Cameras, cabling, HDDs and rack ears are not included unless ordered separately.

Genuine IVSEC, supported Australia-wide by Infront Technologies — 1300 736 970 · [email protected].

Installation & safety notice

Mains-powered equipment. The NR6324EXA uses the supplied 12 V DC 5 A adapter on a general-purpose outlet. No electrician is required to plug in the adapter, but route cabling neatly and do not overload the circuit with multiple recorders on one GPO.

Structured cabling. Concealed data runs between cameras, PoE switches and the NVR are customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. New GPOs or hard-wired mains work requires a licensed electrician under AS/NZS 3000.

Specifications & imagery in good faith. Specifications, firmware features and published imagery can change without notice at IVSEC's discretion. Verify the attached datasheet for your firmware revision before ordering.

By placing an order you confirm the product is fit for your intended use and that concealed cabling or third-party integration will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer's specifications.

Net Weight: 3.50 kg
Power Supply: DC 12V, 5A
Operating temperature: -10 °C to +50 °C
Maximum Resolution: 12 MP
Power Consumption: 12W (without HDD)
Video Compression: H.264, H.264+, H.265, H.265+
Audio Output: Yes
Brand: IVSEC
Video Outputs: HDMI and VGA
USB Ports: 2 x USB 2.0
Network Ports: 2 x Gigabit RJ45 (non-PoE)
Incoming Bandwidth: 320 Mbps
RS485: Yes
Protocols: TCP/IP, HTTP, HTTPS, RTSP, ONVIF, P2P (QR code)
ONVIF: Profile S, Profile G, Profile T
Gross Weight: 3.40 kg
Warranty: 2 years parts
Product Type: Network Video Recorder (NVR)
Model: NR6324EXA
Maximum Channels: 32
Video Output Resolution: 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP, 1.0MP (720P)
Live View Layouts: 1, 4, 6, 8, 9, 10, 12, 13, 14, 16, 17, 19, 20, 22, 25, 32
Intelligent Video: Camera-dependent IVS (intrusion, line cross, face, LPR, heat map and more)
Search Methods: Continuous, schedule, IVS/event, snapshot, tags, time-lapse, slice, timeline
Total Storage Potential: 40 TB (4 bays x 10 TB per datasheet)
HDD Bays: 4 x 3.5 inch SATA
RAID: Not listed on datasheet
Plug and Play: With IVSEC X-range cameras (per manufacturer)
eSATA: Yes
Alarm Inputs: 8
Alarm Outputs: 1
Software: Device search, config tool, CMS/VMS, mobile app
Languages: English, French, Spanish, Portuguese, German, Italian and more
Humidity: Less than 90% RH
Dimensions (H x W x L): 66 x 326 x 378 mm
In The Box: Quick guide, mouse, HDD screws, power supply
