- New

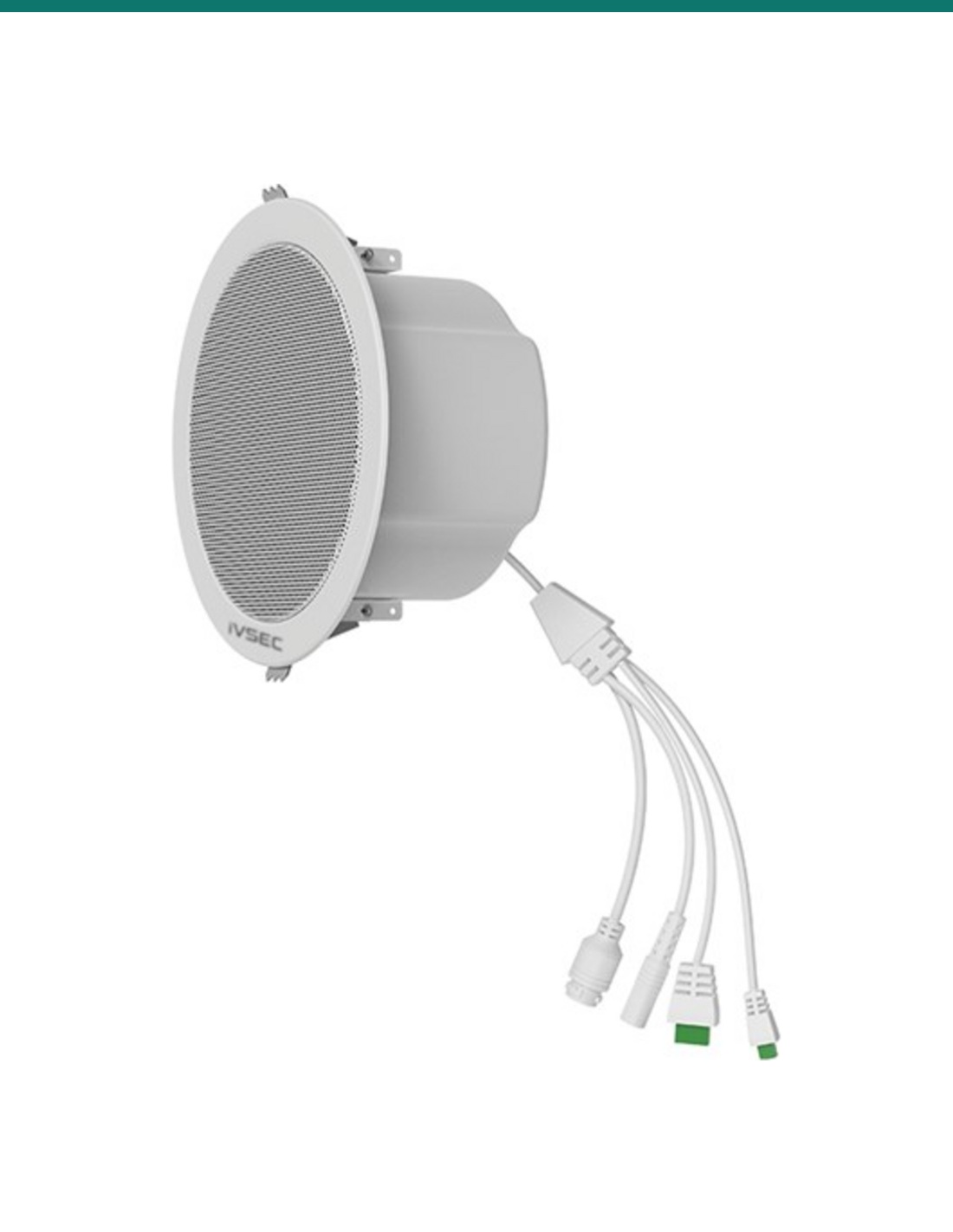

IVSEC IVNS300YA: a white in-ceiling SIP speaker with 10 W, a 25 Hz to 20 kHz response, a built-in microphone for two-way intercom, multicast paging and relay input and output.
- ✓10 W on PoE+ or 12 to 24 V DC, 6 W on PoE
- ✓25 Hz to 20 kHz, voice and music
- ✓Built-in microphone, two-way intercom
- ✓2 SIP accounts, 20 multicast groups
- ✓Relay in and out, HTTP / webhook, ONVIF
- ✓White, indoor, 2-year parts warranty
Description

Paging from the ceiling.
10 W SIP speaker with a microphone.
The IVSEC NS300YA is a white in-ceiling IP speaker for offices, schools and shops: 10 W, a 25 Hz to 20 kHz response, a built-in microphone for two-way intercom, SIP and multicast paging, and relay input and output.
In one sentence: the IVSEC IVNS300YA is a white in-ceiling SIP speaker with 10 W output on PoE+ or 12 to 24 V DC, a 25 Hz to 20 kHz response, a built-in microphone, 2 SIP accounts, 20 multicast groups and relay input and output.
Speaker only. Power, cable and phone system are separate.
This listing is one ceiling speaker. It needs a network cable, PoE, PoE+ or a 12 to 24 V DC 2 A supply, and a SIP phone system or paging software to call it.
- IVSEC NS300YA SIP ceiling speaker
- Quick guide
- Cat5e or Cat6 cable
- A PoE+ port or 12 to 24 V DC 2 A supply for the full 10 W (6 W on PoE)
- A SIP phone system (IP PBX) or paging software
- A ceiling cut-out: the hole size isn't on the datasheet, so confirm it with us before cutting
Sits flush, sounds full.
A 25 Hz to 20 kHz response handles music as well as voice, and IVSEC lists MP3 and WAV playback. It runs on PoE, joins up to 20 multicast groups, and its relay input and output tie it to alarms, doors and other systems.

Front
10 W, 25 Hz to 20 kHz.
6 W on PoE, 10 W on PoE+ or 12 to 24 V DC 2 A, with 10 W maximum consumption. Sensitivity 90 ± 3 dB at 8 Ω. The spec table rates maximum sound pressure at 100 dB; IVSEC's overview quotes up to 105 dB.

Connections
Network, power and relays.
One RJ45 10/100 port, a 2.1 mm DC input, one relay input and one relay output for linking to alarms and other systems. 200 × 200 × 90 mm overall, for indoor ceilings from −25 °C to 55 °C.
How it goes in
From ceiling to first page.
01
Plan the cut-out
Pick a spot clear of joists and services. Confirm the cut-out size with us before cutting the ceiling; the speaker is 200 × 200 × 90 mm overall.
02
Run cable and power
Run Cat5e or Cat6 to a PoE+ switch for 10 W, or use a 12 to 24 V DC 2 A supply. Wire the relay input and output if you are linking it to other systems.
03
Register it
Open the web interface, give it a SIP account on your phone system (up to 2), or use auto-provisioning, and join it to multicast paging groups.
04
Test and schedule
Run the self test, load custom audio or music, then set scheduled broadcasts and emergency alerts.
At a glance
IVNS300YA
Show specs
Type
SIP / IP ceiling speaker, white, indoor
Speaker output
6 W (PoE), 10 W (PoE+), 10 W (12–24 V DC 2 A)
Maximum sound pressure
100 dB in the spec table (overview quotes up to 105 dB)
Sensitivity and impedance
90 ± 3 dB, 8 Ω
Frequency response
25 Hz – 20 kHz
Microphone
Built in, sensitivity −38 ± 3 dB; two-way intercom
SIP
2 SIP accounts, SIP 2.0, auto answer, DTMF
Paging
20 multicast partitions; scheduled broadcasts and emergency alerts
Playback
MP3 and WAV; custom audio, on-board storage listed as 500 Mb
Audio codecs
G.722, Opus
Management
Web GUI, auto-provisioning, HTTP / webhook, ONVIF, self test
Protocols
DHCP, FTP/TFTP, HTTP/HTTPS, IPv6, L2TP, OpenVPN, PPPoE, RTP/RTCP/SRTP, SIP 2.0, SNTP, STUN, TR-069
Connectors
RJ45 10/100, 2.1 mm DC input, 1 relay input, 1 relay output
Power
12–24 V DC 2 A, PoE or PoE+; 10 W maximum consumption
Use
Indoor only
Operating range
−25 °C to 55 °C, 10–95% RH (storage −30 °C to 60 °C)
Size
200 × 200 × 90 mm overall
Warranty
2 years parts
Pair it with
What this speaker does not include
Power
A PoE+ switch or DC supply
PoE gives 6 W; PoE+ or a 12 to 24 V DC 2 A supply gives the full 10 W.
Calling it
A SIP phone system or paging software
Any IP PBX or SIP server that can register the speaker's accounts, or software that sends multicast pages.
Wall option
The IVNS200YA wall speaker
Where there is no ceiling space, the 15 W NS200YA mounts on the wall with the same paging features.
Where it is used
Where it is used.
Offices and meeting areas
Pages and background music from a flush ceiling speaker.
Schools
Corridors, libraries and classrooms with bells and announcements.
Retail stores
Music and announcements without a speaker box on the wall.
Clinics and receptions
Patient calls and waiting room messages.
Hotels and venues
Lobbies, corridors and function rooms on one paging network.
Linked to alarms and doors
The relay input and output start or follow a message from another system.
IVNS300YA or IVNS200YA
| IVNS300YA (this speaker) | IVNS200YA | |
|---|---|---|
| Mounting | Ceiling | Wall |
| Speaker output | 10 W (PoE+ or 12–24 V DC) | 15 W (PoE+ or 24 V DC) |
| Maximum sound pressure | 100 dB (spec table) | 105 dB |
| Frequency response | 25 Hz – 20 kHz | 100 Hz – 20 kHz |
| SIP accounts | 2 | 8 |
| Audio codecs | G.722, Opus | G.711, G.722, G.723, G.726, G.729, iLBC, Opus |
| Extra connections | Relay input and relay output | 8 Ω output for one extra speaker |
Both from IVSEC datasheets updated 6 November 2026. Choose the NS300YA to sit flush in a ceiling, the NS200YA for walls and a little more volume.
Common questions
How loud is it?
IVSEC's spec table rates it at 100 dB maximum sound pressure, while its overview quotes up to 105 dB, so plan on 100 dB. Output is 10 W on PoE+ or DC.
Can it run on PoE?
Yes. It gives 6 W on standard PoE and 10 W on PoE+ or a 12 to 24 V DC 2 A supply.
What size hole does it need?
The datasheet gives the overall size, 200 × 200 × 90 mm, but not the cut-out. Confirm the cut-out with us before cutting the ceiling.
Can it play music?
Yes. It covers 25 Hz to 20 kHz and IVSEC lists MP3 and WAV playback as well as voice paging.
Does it have a microphone?
Yes. The built-in microphone allows two-way intercom. Check your state's surveillance laws before listening in or recording.
What phone systems does it work with?
It is a SIP 2.0 endpoint that registers up to 2 SIP accounts on an IP PBX or SIP server, with auto answer and DTMF. Ask us to confirm a particular phone system.
Which audio codecs does it support?
G.722 and Opus. If your phone system only offers G.711 or G.729, choose the NS200YA or NS100YA, which support those as well.
Can it do group paging?
Yes. It supports 20 multicast partitions, so one page can reach a group of speakers at once.
Can it link to my alarm or door system?
Yes. It has a relay input and a relay output, plus HTTP / webhook support and ONVIF.
Can it go outside?
No. IVSEC lists it for indoor use only. For outdoors, the IVNS100YA horn speaker is rated IP66.
What is in the box?
The SIP ceiling speaker and a quick guide. Cable and power supply are not listed.
What warranty does it have?
Two years on parts, as IVSEC lists it. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
Supported by InFront Technologies.
Help with the cut-out, PoE switches or connecting it to your phone system: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Ceiling work. Check for cables, pipes and joists before cutting, and use safe access equipment in the ceiling space.
Low-voltage device. Runs on PoE or a DC supply. The supply plugs into a normal power point; a new power point needs a licensed electrician.
Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Microphone and privacy. The built-in microphone can pick up conversations. Listening to or recording private conversations is covered by state and territory surveillance laws, so check them and tell people.
What it does not do. Not for outdoor use, no Wi-Fi and no gigabit port (10/100 Mbps). IVSEC's datasheet lists no AS 1670.4 emergency warning certification, so don't use it as a building fire evacuation system.
Figures. From IVSEC's NS300YA datasheet, updated 6 November 2026. Its spec table rates maximum sound pressure at 100 dB and its overview at 105 dB. The datasheet's net weight figure (14.00 kg) looks out of line for a speaker this size, so we've left weight off; confirm with us if it matters for your mounting.
- Network Functions
- SIP, multicast
- Audio Input
- 1 x input
- Audio Output
- 1 x output
- Rated Input Power
- 10W
- Built-in Microphone
- Yes
