IVSEC 8MP PTZ Speed Dome IP Camera, 37x Zoom 5.5–202mm, Active Deterrence, Auto-Tracking, IP67 IK10 - NC693ADX

Name: IVSEC 8MP PTZ Speed Dome IP Camera, 37x Zoom 5.5–202mm, Active Deterrence, Auto-Tracking, IP67 IK10 - NC693ADX
Brand: IVSEC
SKU: IVNC693ADX
Price: 2785 AUD
Availability: InStock

SKU IVNC693ADX In stock

$2,785.00 inc GST

IVSEC NC693ADX: an 8MP PTZ speed dome with a 37x optical zoom, red and blue deterrent lights, a speaker and auto-tracking, in an IP67, IK10 housing.

✓8MP 4K, 1/1.8" sensor, up to 25 fps
✓37x optical zoom, 5.5–202 mm, 360° pan
✓IR up to 200 m, red and blue plus white deterrent lights
✓Auto-tracking, line crossing, intrusion and plate recognition
✓Built-in microphone and speaker
✓IP67 and IK10, PoE, 36 VDC or 24 VAC

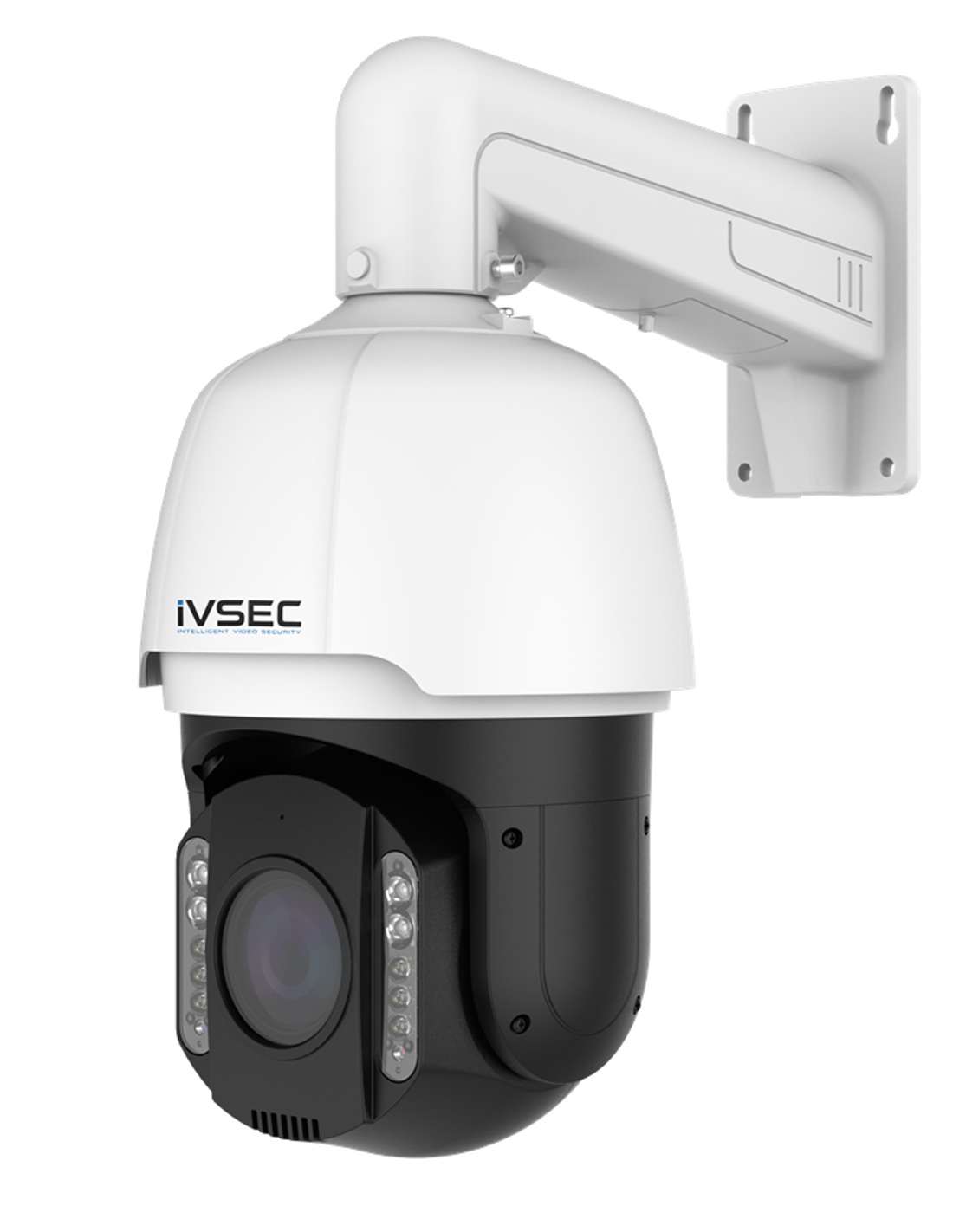

IVSEC NC693ADX 8MP PTZ speed dome camera on its wall arm, white dome and black zoom head

IVSEC · PTZ · Active Deterrence

37x zoom. 8MP detail.
Lights, sound and auto-tracking.

The IVSEC NC693ADX is a full-size PTZ speed dome for big sites: a 5.5 to 202 mm zoom on a 1/1.8" sensor, red and blue deterrent lights, a speaker and microphone, and IP67 and IK10 protection.

In one sentence: the IVSEC NC693ADX is an 8MP 4K PTZ speed dome with a 37x optical zoom from 5.5 to 202 mm, a 1/1.8" sensor, IR to 200 m, red and blue plus white deterrent lights, auto-tracking and an IP67, IK10 housing.

Camera only. Recorder, cabling and power supply are separate.

This listing is one PTZ camera. It needs a recorder or VMS, a cable run and a power source sized for up to 45 W.

In the box

NC693ADX PTZ camera
Printed quick user guide
Installation template
Mounting bracket screws and plugs

You also need

An NVR or VMS (ONVIF Profile S, G, T or M)
Cat5e or Cat6 cable to the camera
A 36 VDC or 24 VAC supply, or a PoE port that can deliver up to 45 W
IV2488X pole mount bracket if it goes on a pole

One camera that covers the whole yard.

Pan 360° and zoom from a 52° wide view down to 1.5°, close enough to read a plate or see a face far across a car park. When someone crosses a line it can follow them, flash red and blue, light the scene and talk to them through the built-in speaker.

IVSEC NC693ADX close-up of the 5.5 to 202 mm zoom lens with the IR and deterrent light strips either side

Lens and lights

5.5 to 202 mm, 37x optical.

3840 × 2160 at up to 25 fps from a 1/1.8" progressive CMOS sensor. The light strips either side of the lens carry the IR illuminators plus the red and blue and dual white deterrent LEDs. Day and night switching is automatic.

IVSEC NC693ADX white dome and wall arm, close-up from IVSEC's product photo

Housing

IP67 and IK10, built for poles and walls.

338 × 207 × 207 mm and 5.27 kg, rated IP67 for weather and IK10 for impact, from −30 °C to 60 °C. The wall arm is shown in IVSEC's photo; confirm with us whether it ships in the box. For poles, add the IV2488X pole mount bracket.

How it goes in

From pole to first patrol.

Plan the mount

Pick a solid wall or pole with a clear 360° view. The camera weighs 5.27 kg and stands 338 mm tall; use the IV2488X bracket on a pole.

Run cable and power

Cat5e or Cat6 to the recorder or switch. Power it from 36 VDC, 24 VAC or a PoE port that can supply up to 45 W.

Add it to the recorder

Find it with the IVSEC Device Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.

Set presets and rules

Save preset views and patrols, then draw line crossing or intrusion zones and choose tracking, lights and sound for each alarm.

At a glance

NC693ADX

Show specs

Resolution

8MP, 3840 × 2160, up to 25 fps

Image sensor

1/1.8" progressive CMOS

Lens

5.5–202 mm motorised, 37x optical zoom

Field of view

52° to 1.5° horizontal

Movement

Motorised pan, tilt and zoom, 360° pan

Night vision

IR up to 200 m (spec table), auto day/night

Deterrence

Red and blue lights, dual white LEDs

Audio

Built-in microphone and speaker, plus audio in and out connectors

Video analytics

Face recognition, human and vehicle detection, perimeter intrusion, line crossing, region entry and exit, stationary object, crossing counting, heat map, licence plate recognition

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Image settings

Defog, 3D noise reduction, backlight, white balance, shutter, mirror and flip

Storage

microSD / SDHC card slot

Network

RJ45 10/100 Mbps; IPv4/IPv6, ONVIF Profile S/G/T/M (firmware 21.12 or later), HTTP API

Connectors

RJ45, DC power input, audio in, audio out, alarm in and out

Power

PoE (IEEE 802.3af listed), 36 VDC or 24 VAC; under 45 W

Protection

IP67 weatherproof, IK10 vandal resistant

Size and weight

338 × 207 × 207 mm, 5.27 kg

Operating range

−30 °C to 60 °C, humidity 90% or less

Software

IVSEC Device Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app

Warranty

3 years

Pair it with

What this camera does not include

Recorder

An IVSEC NVR

Records the 8MP stream and controls the PTZ, presets and patrols. Any ONVIF Profile S, G, T or M recorder can also be used.

Power

A 36 VDC or 24 VAC supply

The camera draws up to 45 W. Use a matching supply or a high-power PoE port; ask us which suits your run.

Mounting

IV2488X pole mount bracket

IVSEC's listed accessory for fixing the camera to a pole or post.

Storage

A microSD card

Optional, for recording in the camera or as a backup when the network drops.

Where it is used

Where a 37x PTZ earns its keep.

Car parks

Zoom in on plates and faces across a large lot, with licence plate recognition on board.

Construction sites

Watch the whole site from one pole, with lights and a voice warning after hours.

Warehouses and yards

Follow movement along fences, gates and loading docks with auto-tracking.

Farms and rural properties

Cover sheds, machinery and long driveways with long-range zoom and IR.

Schools and councils

Ovals, car parks and public spaces from a single high mounting point.

Marinas and depots

IP67 and IK10 protection for exposed poles near water or heavy vehicles.

NC693ADX or NC692XA

	NC693ADX (this camera)	NC692XA
Optical zoom	37x, 5.5–202 mm	25x, 5–125 mm
Image sensor	1/1.8" CMOS	1/2.8" CMOS
Frame rate at 8MP	25 fps	30 fps
IR distance	Up to 200 m	Up to 100 m
Deterrent lights	Red and blue, dual white	IR only
Audio	Built-in mic and speaker	External mic input
Licence plate recognition	Yes	Not listed
Protection	IP67, IK10	IP66, vandal resistant
Power	PoE (802.3af listed), 36 VDC, 24 VAC; under 45 W	PoE 802.3at, 12 VDC; under 26 W
Size and weight	338 × 207 × 207 mm, 5.27 kg	276 × 160 × 127 mm, 2.52 kg

Figures from IVSEC's NC693ADX datasheet (March 2025) and NC692XA datasheet (March 2025).

Common questions

How far can it zoom?

37x optical, from 5.5 mm to 202 mm. The view narrows from 52° across at the wide end to 1.5° at full zoom.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G, T or M recorder, or a microSD card in the camera.

How is it powered?

From 36 VDC, 24 VAC or PoE, and it draws up to 45 W. IVSEC lists the PoE standard as IEEE 802.3af, but at 45 W you need a supply or PoE port that can deliver that much, so ask us before you order.

How far does it see at night?

IVSEC's spec table rates the IR to 200 m, while its overview text quotes 100 m, so plan on about 100 m for a reliable picture. Day and night switching is automatic.

What does active deterrence do?

When an alarm rule triggers, the camera can flash its red and blue lights, switch on its dual white LEDs and play a warning through the built-in speaker.

Can it follow a person or vehicle?

Yes. IVSEC lists auto-tracking, so the camera can pan, tilt and zoom to follow a target after an intrusion or line crossing alarm.

Does it read number plates?

Yes. Licence plate recognition is one of its built-in analytics, along with face recognition, human and vehicle detection, line crossing and intrusion.

Does it record sound?

Yes. It has a built-in microphone and speaker, plus connectors for an external microphone and speaker. Check your state's surveillance laws before recording audio.

Can it be mounted outside?

Yes. It is rated IP67 against weather and IK10 against impact, and runs from −30 °C to 60 °C.

How do I mount it on a pole?

Use the IV2488X pole mount bracket, which IVSEC lists as the accessory for this camera. The camera weighs 5.27 kg, so the pole must be solid.

What is the difference from the NC692XA?

The NC693ADX has a longer 37x zoom, a larger 1/1.8" sensor, IR to 200 m, deterrent lights, a speaker and IP67. The NC692XA has a 25x zoom, IR to 100 m and runs at 30 fps.

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Any new power point needs a licensed electrician.

Supported by InFront Technologies.

Help choosing the recorder, power or mounting: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs from 36 VDC, 24 VAC or PoE, up to 45 W. A new power point for the supply needs a licensed electrician.

Working at height. The camera weighs 5.27 kg and usually goes on a pole or high wall. Use a rated pole and safe access equipment.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording conversations and filming beyond your boundary are covered by state and territory surveillance laws. Check them and use signage.

What it does not do. No Wi-Fi, no built-in recorder beyond the microSD slot, and no gigabit network port (10/100 Mbps).

Figures. From IVSEC's NC693ADX datasheet, updated 25 March 2025.
