The standard VIGI junction box for most listed cameras.
Overview

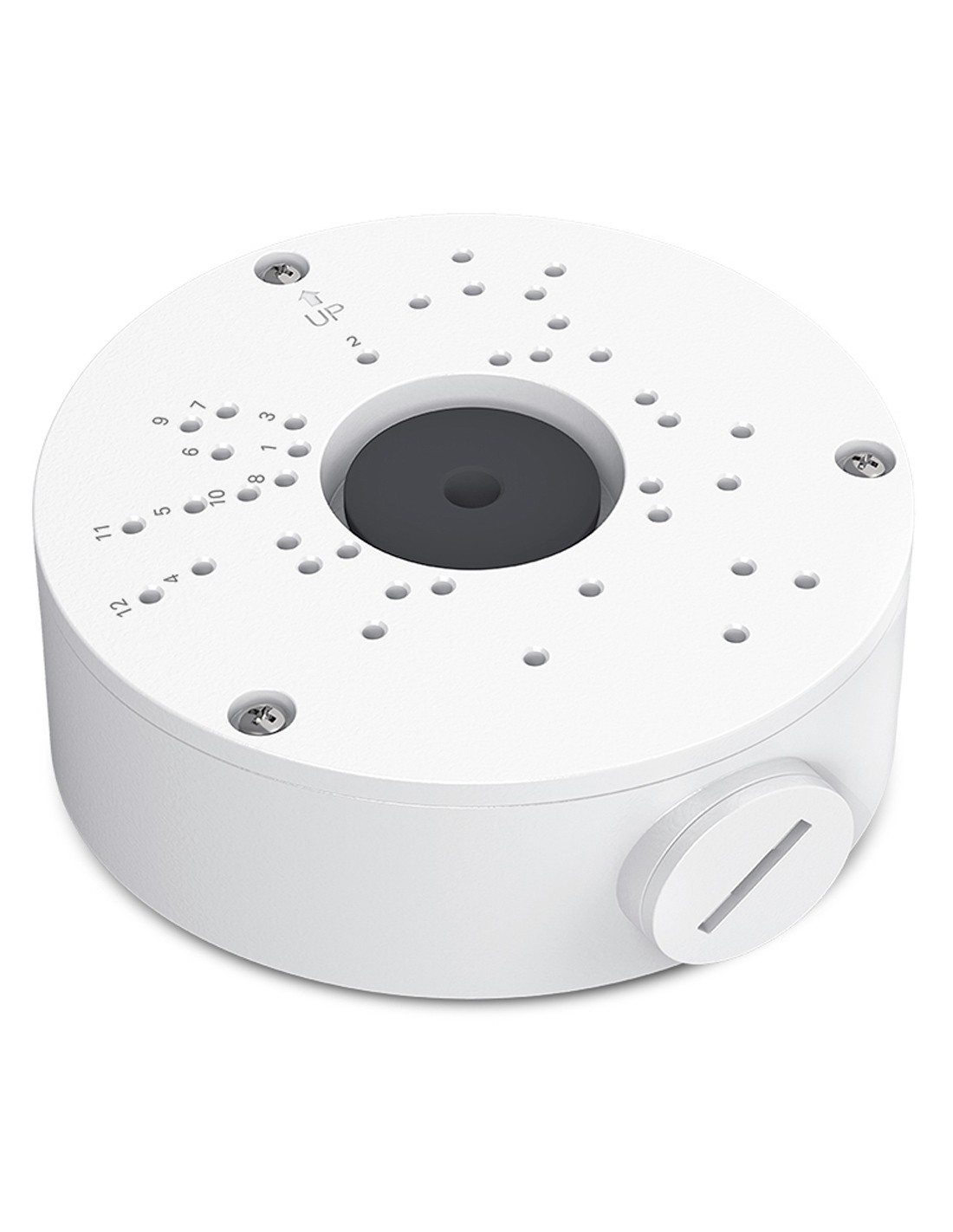

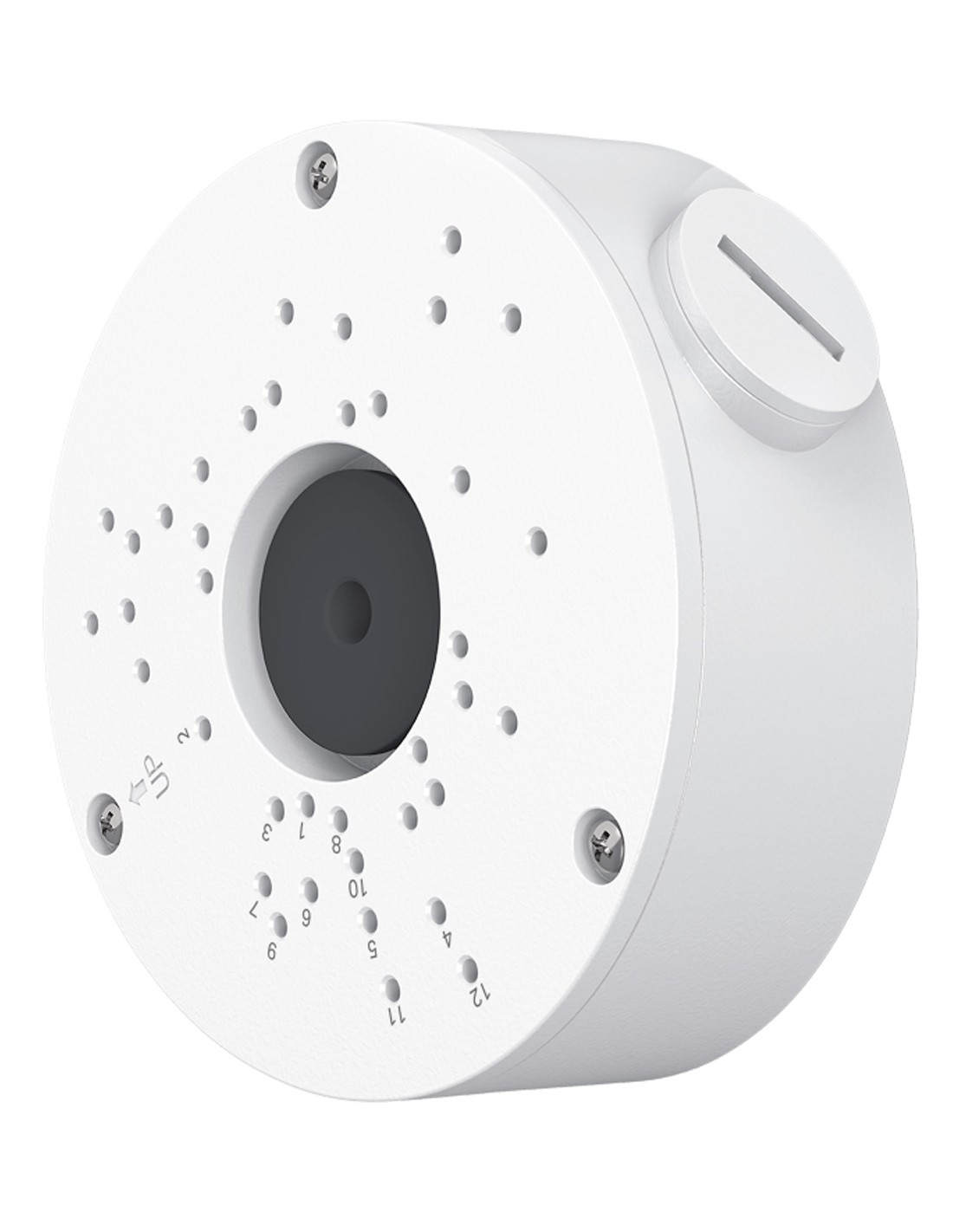

The standard aluminium VIGI junction box — ∅125 × 130.47 × 45.7 mm, 364 g — for listed bullets, turrets, domes, pan-tilt and many InSight models. Waterproof accessories in the box; no published IP rating.
ADD-ON ACCESSORY — CAMERA SOLD SEPARATELY
Confirm your camera on the list below. Some InSight bullets (S345ZI / S385PI and similar) use VJB-305 instead.
In the box
VIGI VJB-300 junction box
Mounting accessories
Waterproof accessories
What you also need (sold separately)
Compatible VIGI / InSight camera
Cat 5e / Cat 6 Ethernet
PoE NVR or PoE switch
BUILD

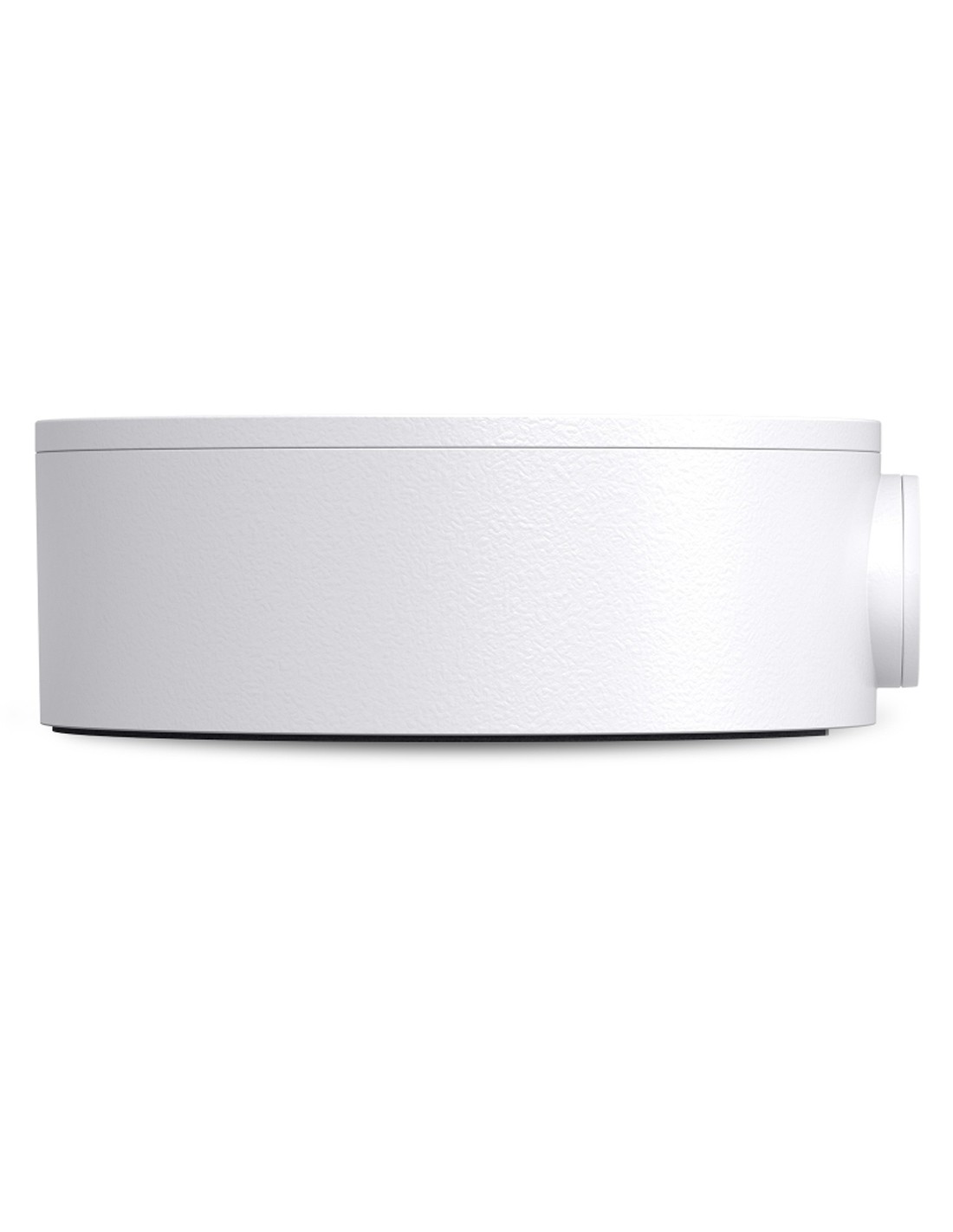

Compact aluminium. 364 g.
∅125 × 130.47 × 45.7 mm — smaller than VJB-240 / VJB-305. Waterproof accessories included; no published IP rating.
MOUNT
Wall or ceiling.

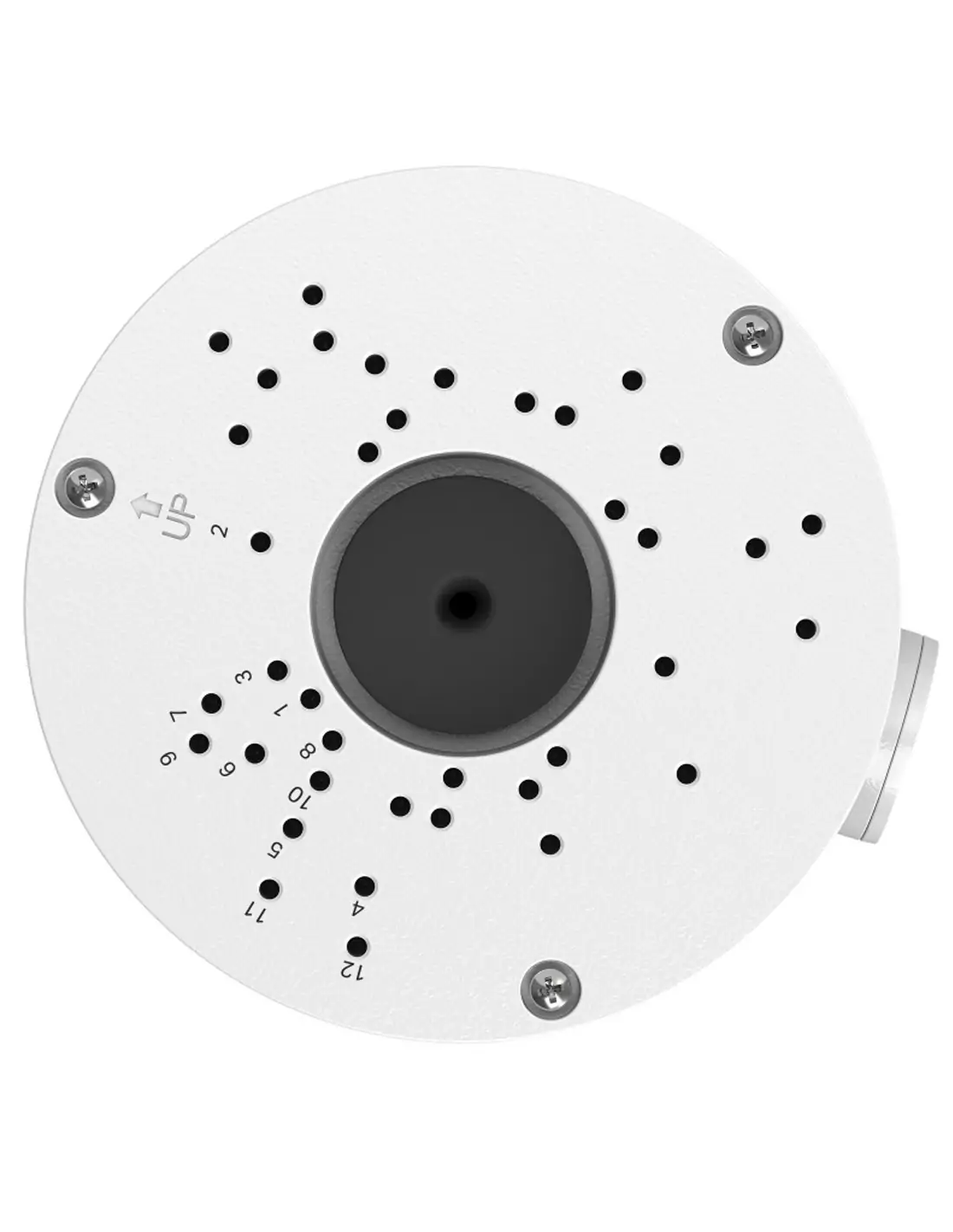

Indoor or outdoor. Hole patterns for listed bullet, turret, dome and C540 pan-tilt bodies.
FIT
Most C-series. Check InSight.
Listed C2xx / C3xx / C4xx / C540 + many InSight. S345ZI / S385PI / LPR345Z and similar → VJB-305.
Install in four steps
TemplateStick the template; drill fixings and a cable hole if routing through the wall or ceiling.

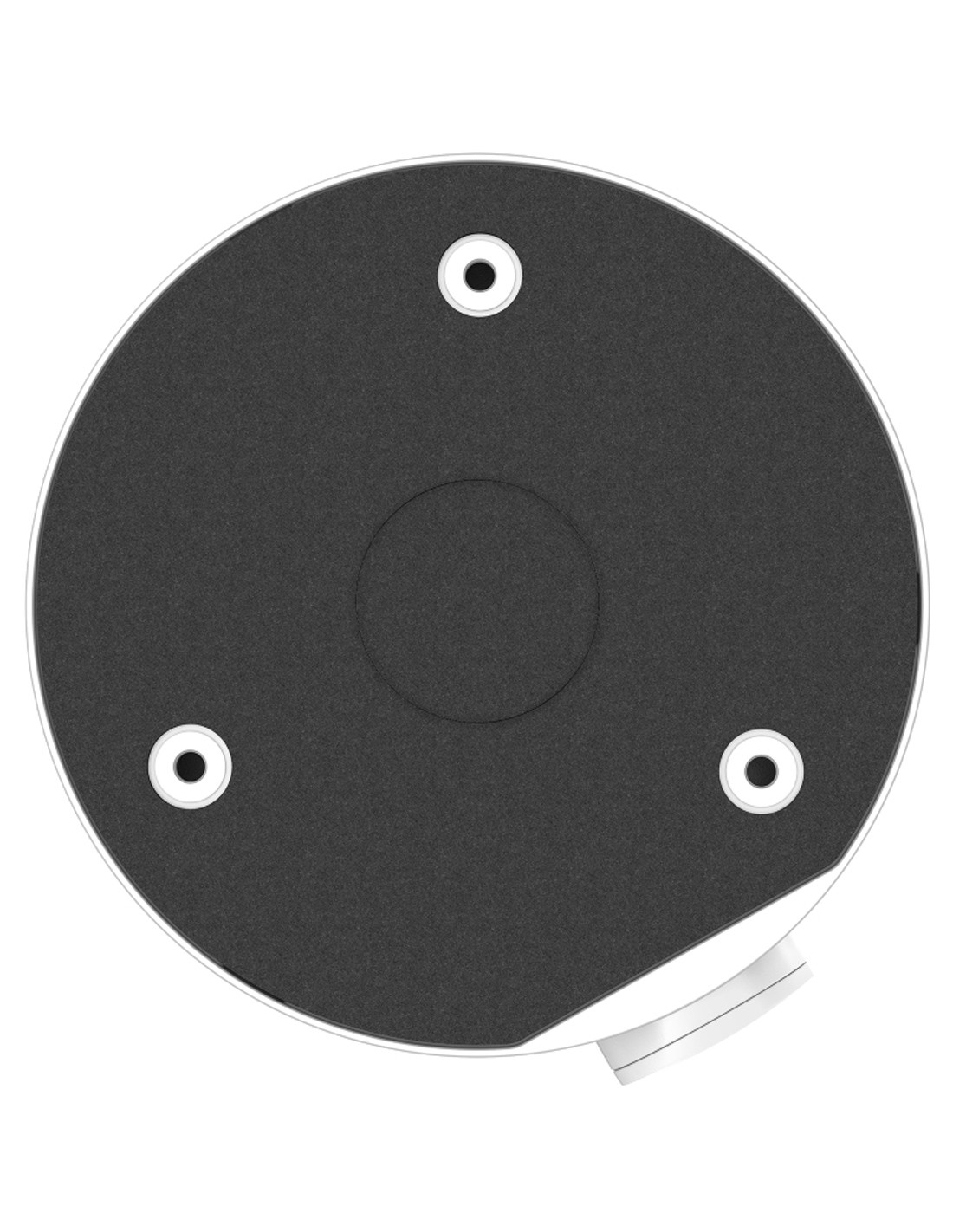

Mount the baseFix the box base. Choose side outlet or through-wall cable path.
Waterproof & landFit waterproof accessories, then terminate Ethernet / power inside.
Attach cameraPick the hole pattern for your model (QIG), bolt on, close the cover.
Compatible camera models
From TP-Link Australia’s VIGI accessory matrix. Listed models and higher hardware versions are supported.
BULLET: VIGI C355 / C385 — Standard full-colour bullets on the VJB-300 matrix — also pair with VMB-350 for poles.
TURRET / DOME: VIGI C455 / C485 / C250 — Turrets and domes share this junction pattern on the AU list.
PT: VIGI C540 series — C540 / C540-W / C540S / C540V / C540-4G are listed for VJB-300.
POLE: VMB-350 pole bracket — When the camera is on a 70–130 mm pole, add VMB-350 (bullet / PT models).
Frequently asked questions
Is VJB-300 IP66?
No published IP rating. TP-Link describes aluminium build with waterproof capabilities and includes waterproof accessories — do not specify IP66/IP67 unless TP-Link publishes it.
Does it fit InSight S345ZI?
No — S345ZI (and S345-4G / S385PI / S385DPS / LPR345Z) use VJB-305 on the AU matrix.
VJB-300 vs VJB-240?
VJB-240 is the larger wall box for dome / turret / fisheye only. VJB-300 is the compact general junction covering bullets and PT as well.
Can I use it outdoors?
Yes — TP-Link lists indoor or outdoor wall / ceiling mounting. Follow the waterproofing steps in the QIG.
Standardise your VIGI terminations with VJB-300?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected] for a compatibility check before you order.
Installation note. The VJB-300 is a passive mounting accessory. Confirm the wall or pole can support at least three times the combined camera + mount weight. Concealed customer cabling must be installed by an ACMA-registered cabler (AS/CA S009). Verify your camera against the current AU matrix before ordering.
