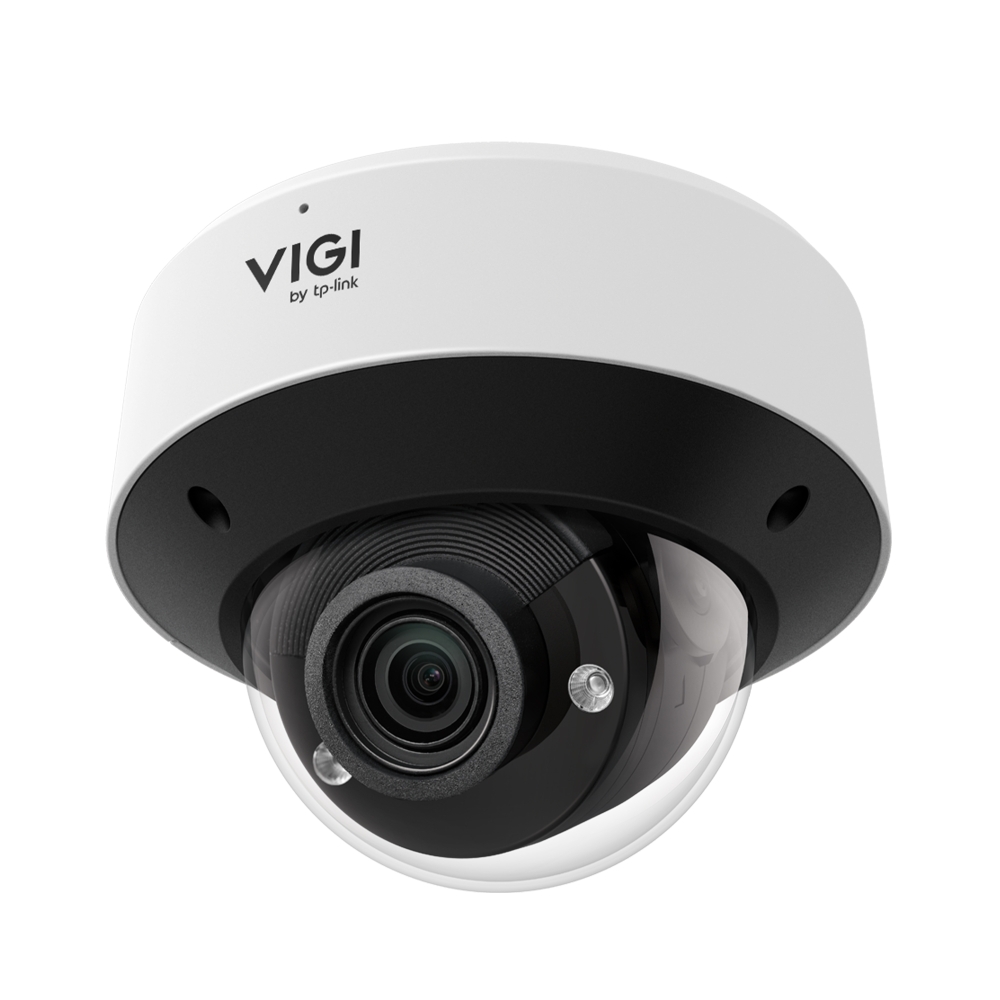

TP-Link VIGI 4MP IR Motorised Varifocal Dome IP Network Camera - Insight-S245ZI
Insight-S245ZI
In Stock - Ready to Ship $ 263.20 $ 329.00-20%
inc-GST
- 4MP motorised varifocal dome
- Weather / protection: IP67 · IK10
- Max resolution: 2688x1520
- See specifications for lens options
- Standalone camera — NVR and mounts sold separately
TP-Link VIGI InSight S245ZI
4MP motorised varifocal dome
Overview
The Insight-S245ZI is a InSight AI dome with optical zoom, IP67 + IK10 for tougher installs.
Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

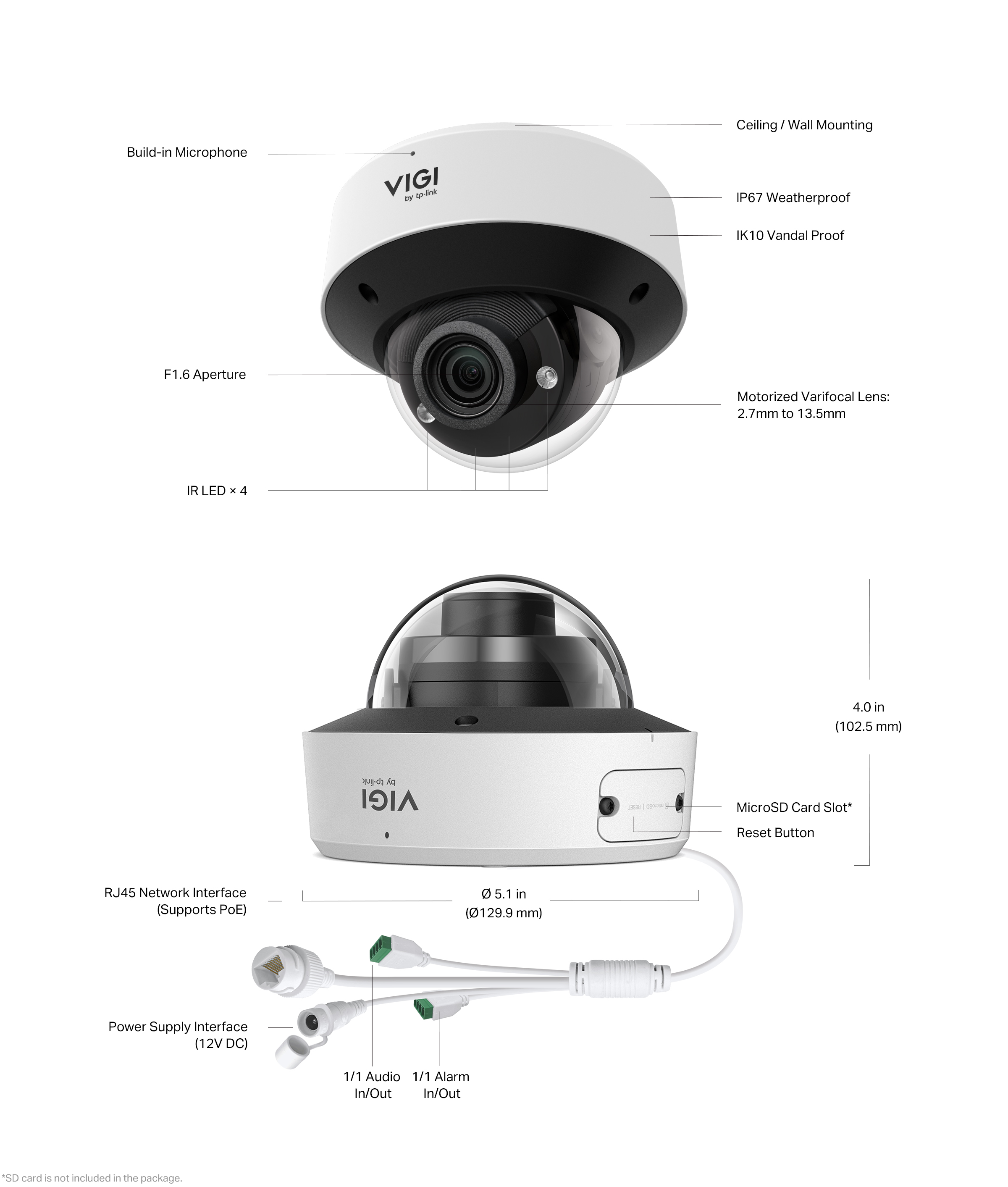

BUILD
4MP motorised varifocal dome
InSight AI dome with optical zoom, IP67 + IK10 for tougher installs. Official protection: IP67 · IK10.

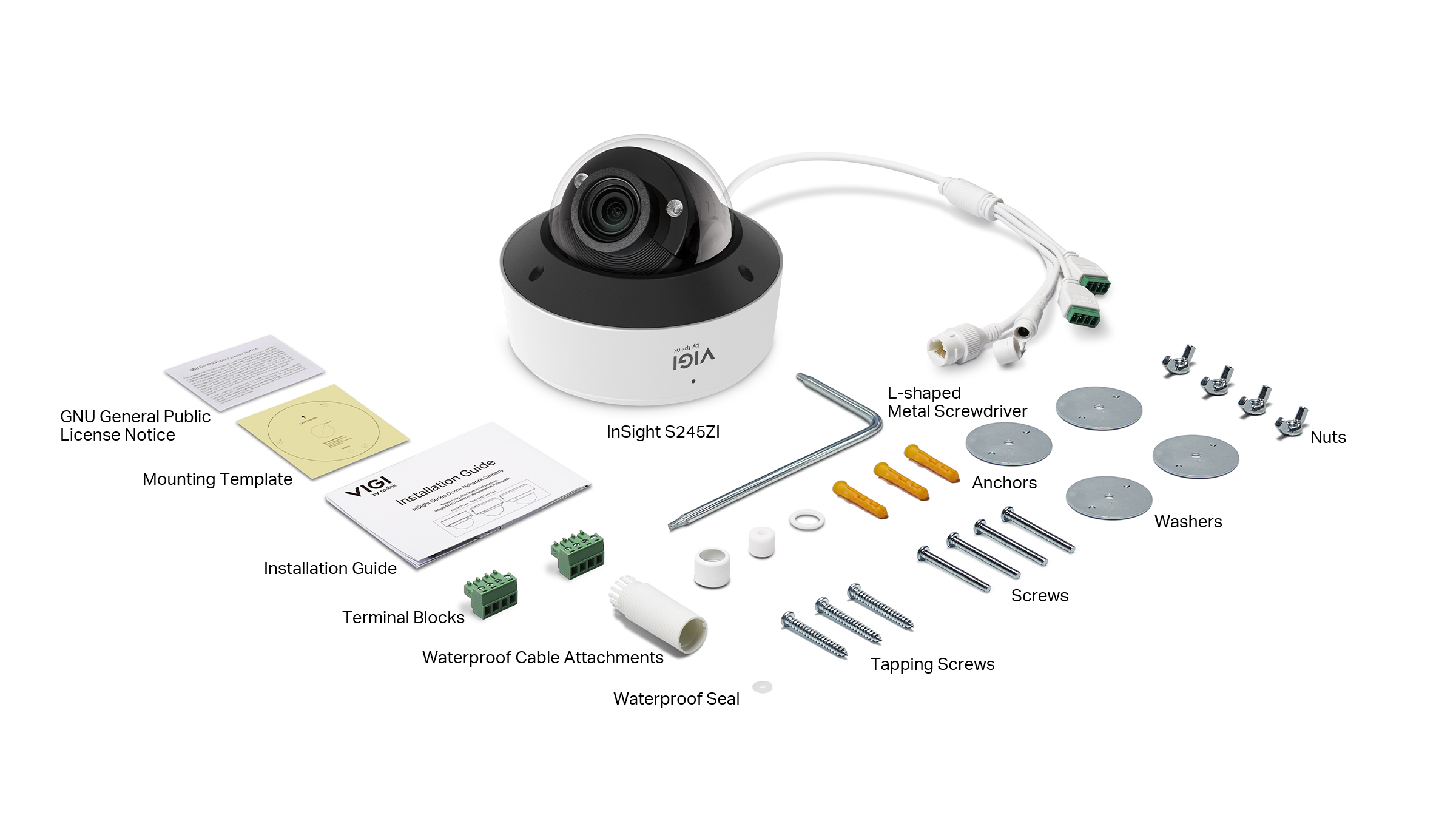

IN THE BOX
What ships with the camera
• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories
Key specs
| Specification | Detail |
|---|---|
| Max. resolution | 2688x1520 |
| Focal length | 2.7-13.5 mm (5X Optical Zoom) |
| Image sensor | 1/2.9” Progressive Scan CMOS |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Power | • 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max.12 W |
| Net weight | 0.775 Kg |
Full specifications are in the Specifications tab. Source: TP-Link Australia.
Recommended mounts
Official AU accessory matrix. Confirm your exact model before ordering.
- VJB-240 — wall junction for listed dome / turret / fisheye bodies
- VJB-305 — larger InSight junction box where listed
Frequently asked questions
What weather / vandal rating does TP-Link publish?
TP-Link Australia lists IP67 · IK10 for this model.
Which junction box or pole mount do I need?
On the AU accessory matrix this camera maps to: VJB-240 — wall junction for listed dome / turret / fisheye bodies; VJB-305 — larger InSight junction box where listed.
Is this a kit?
No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.
Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].
Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.
- Net Weight
- 0.775 Kg
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Power
- • 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max.12 W
- Brand
- TP-Link
- Image Sensor
- 1/2.9” Progressive Scan CMOS
- Lens
- 2.7-13.5 mm (5X Optical Zoom)
- Max. Resolution
- 2688x1520
- Warranty
- Australian Warranty via Infront Technologies
- Product Family
- VIGI InSight
- Model
- S245ZI
In Stock - Ready to Ship
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7-13.5 mm:• Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8°• Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | 2.7-13.5 mm:• Detect: 203-656 ft (62-200 m)• Observe: 89-276 ft (27-84 m)• Recognize: 43-131 ft (13-40 m)• Identify: 23-69 ft (7-21 m) |
| ILLUMINATOR | |
| Illuminator Type | 4× IR LED |
| IR LED | • Quantity: 4• Range: 197 ft (60 m)*1• Wavelength: 850 nm |
| Illuminator Distance | 197 ft (60 m)*1 |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688x1520 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support microSD Card, up to 512 GB*3 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30°C to 60 °C |
| Storage Temperature | -40°C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.775 Kg |
| Power Supply | • 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max.12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 |
