-20%

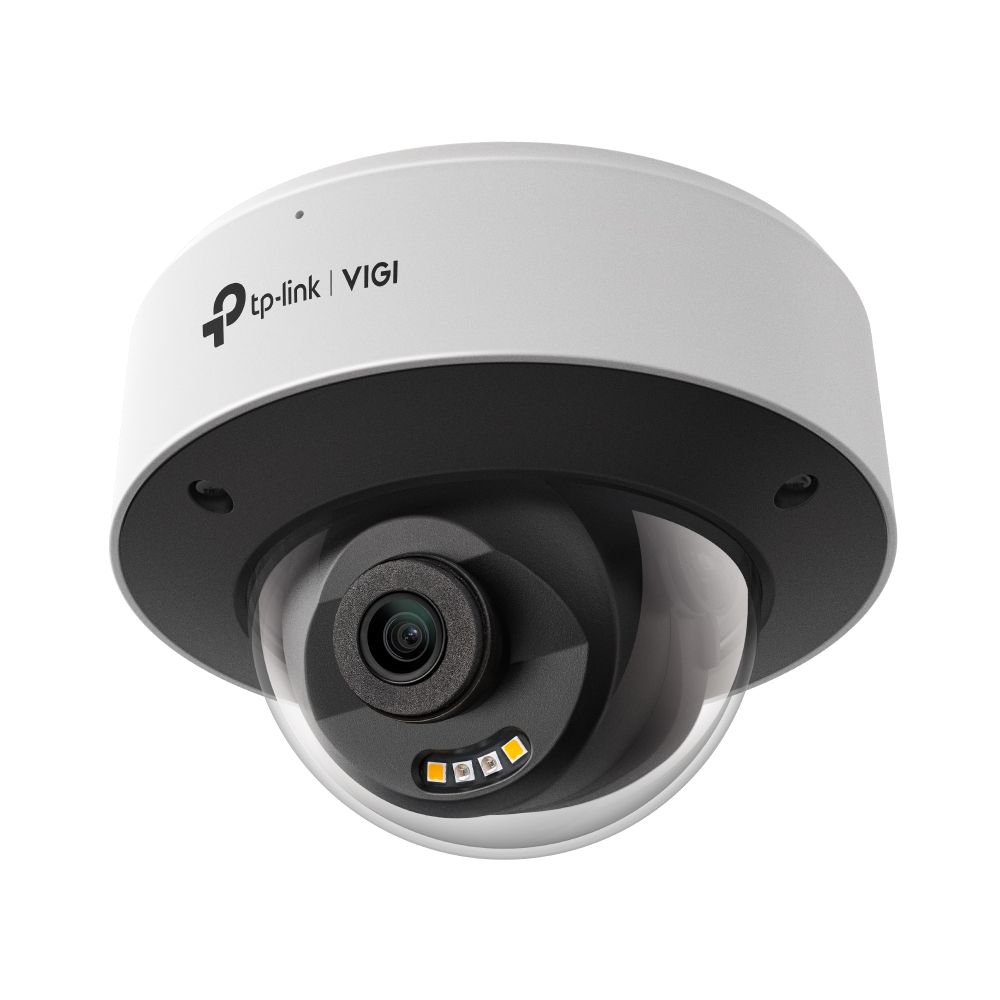

TP-Link VIGI 8MP Full-Colour Dome Network Camera Insight-S285(2.8mm)

TP-Link VIGI 8MP Full-Colour Dome Network Camera - Insight-S285(2.8mm)

Name: TP-Link VIGI 8MP Full-Colour Dome Network Camera - Insight-S285(2.8mm)
Brand: TP-Link
SKU: Insight-S285(2.8mm)
Price: 191.2 AUD
Availability: InStock

Reference: Insight-S285(2.8mm)

In Stock - Ready to Ship

$ 191.20 $ 239.00 -20%

inc-GST

Ends in

8MP full-colour dome
Weather / protection: IP67 · IK10
Max resolution: 3840 x 2160
Lens: 2.8 mm
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S285(2.8mm)

8MP full-colour dome · 2.8 mm

Overview

The Insight-S285(2.8mm) is a 4K InSight dome with colour night vision and IK10 vandal resistance.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

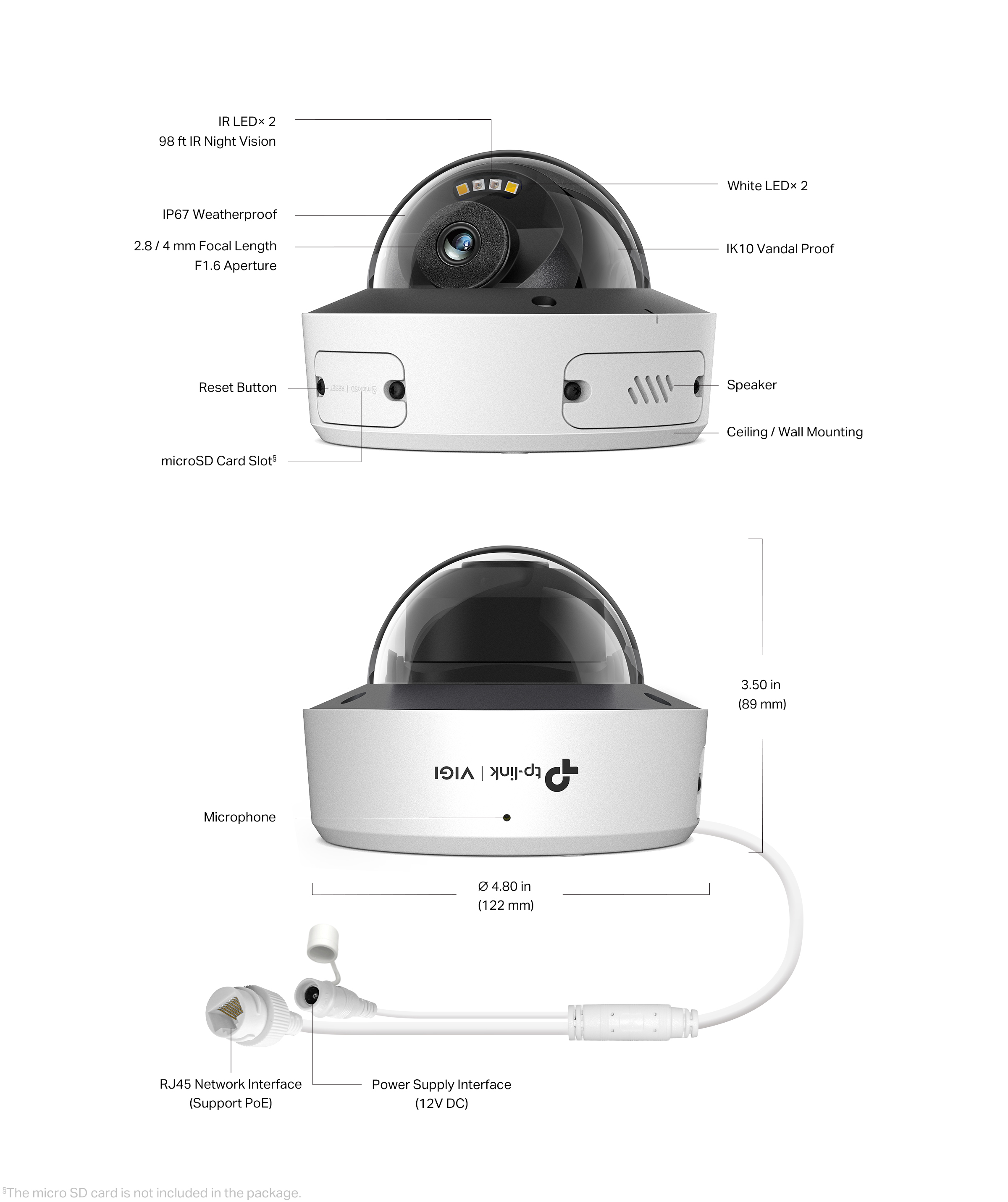

BUILD

8MP full-colour dome

4K InSight dome with colour night vision and IK10 vandal resistance. Official protection: IP67 · IK10.

PERFORMANCE

Resolution 3840 x 2160

Designed for Australian installs with PoE-friendly networking and VIGI / InSight management apps.

Key specs

Specification	Detail
Max. resolution	3840 x 2160
Lens	2.8 mm
Image sensor	1/2.7” Progressive Scan CMOS
Protection	IP67 Waterproof, IK10 Vandal Proof
Power	• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.3 W
Net weight	0.62 Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-240 — wall junction for listed dome / turret / fisheye bodies
VJB-300 — compact general junction box on the AU matrix

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP67 · IK10 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-240 — wall junction for listed dome / turret / fisheye bodies; VJB-300 — compact general junction box on the AU matrix.

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 0.62 Kg
Ingress Protection: IP67
Vandal Resistance: IK10
Power: • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.3 W
Brand: TP-Link
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 2.8 mm
Max. Resolution: 3840 x 2160
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S285

Insight-S285

Download (895.58KB)

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-240

TP-Link

VJB-240

$ 34.00

Aluminium alloy + SGCC network camera junction box Wall mounting for listed dome, turret and fisheye cameras Dimensions: 181 × 134 × 59 mm (7.1 × 5.3 × 2.3 in) Weight: 533 g · VIGI White Hides cables and connectors for a clean install Compatible models listed in full description (InSight + VIGI C2xx/C4xx)

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-300

TP-Link

VJB-300

$ 43.00

Aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: ∅125 × 130.47 × 45.7 mm (4.92 × 5.14 × 1.80 in) Weight: 364 g · VIGI White Waterproof design for cable concealment Compatible models listed in full description (broad VIGI / InSight range)

VIGI Insight S445ZI 4MP AI PTZ Camera

Category	Specification
CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F1.6
FOV	• 2.8 mm:Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°• 4 mm:Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mmDetect: 85 m (278 ft)Observe: 35 m (116 ft)Recognize: 17 m (56 ft)Identify: 8 m (28 ft)• 4 mmDetect: 107 m (350 ft)Observe: 44 m (146 ft)Recognize: 21 m (70 ft)Identify: 11 m (35 ft)
ILLUMINATOR
IR LED	• Quantity: 2• Range: 30m• Wavelength: 850nm
White LED	• Quantity: 2• Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	3840 x 2160
Main Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If HDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:848x480, 704x576, 640x480, 640x360, 352x288, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If HDR is turned on, the frame rate can only support up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 512 Kbps
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories
Material	Metal
Net Weight	0.62 Kg
Power Supply	• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.3 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)
Certifications	CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
