VIP Vision Residential Series Large 10" IP PoE Intercom Kit Mobile Remote Viewing - INTIPRKITM

VIP Vision Residential Series Large IP Intercom Kit with PoE Switch

INTIPRKITM

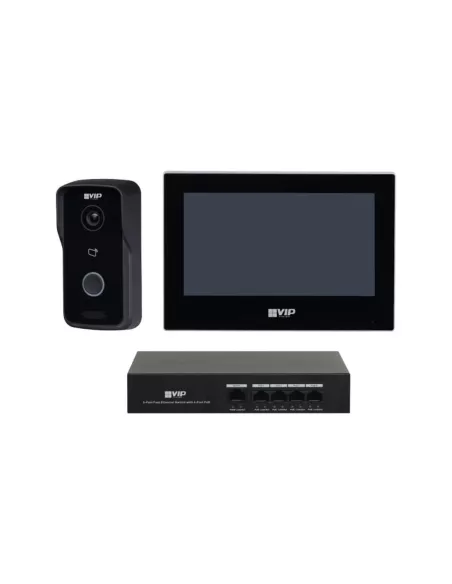

This Kit Includes: INTIPMONGBL, INTIPRDSJ, VSPOE-SWA4

4 Years Warranty!

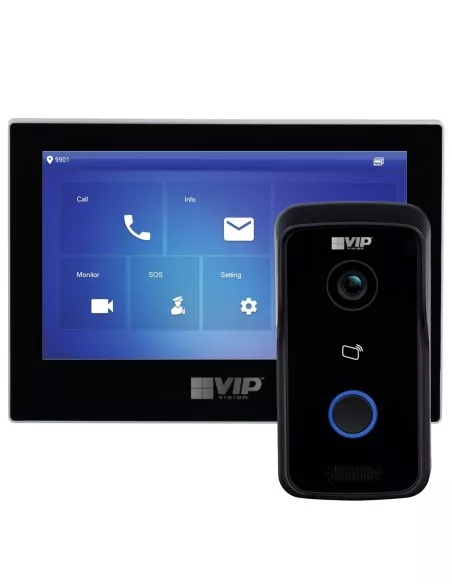

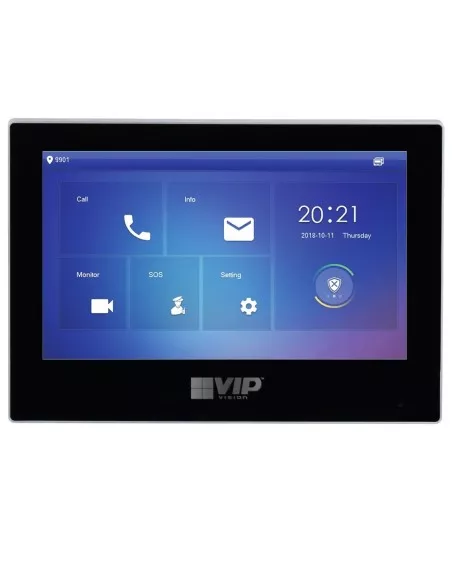

The INTIPMONGBL is a large touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for a two-way talk with an apartment door station, featuring a live view of the door station camera.



Product Features:



• Record and snapshot video calls/messages

• All calls and messages logged

• Prevent unwanted calls with Do Not Disturb mode

• Alarm system integration

• 10" TFT capacitive touch screen

• Power over Ethernet (12VDC, 802.3af)

• SD card storage (up to 8GB)

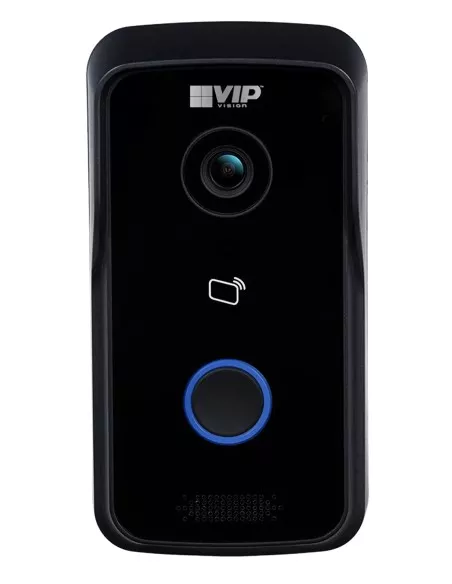

Model:  INTIPRDSJ



It features door station camera monitoring, visitor logging, and audio/video messages It can also voice calls to other monitors across the same network.

• 1/4’’ 1.0MP camera with 122° FOV

• Built-in microphone and speaker for the 2-way talk

• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)

• Connect with intercom monitor(s) via Ethernet

• Door control, alarm and RS485 input/output relays

• Intuitive, easy-to-use interface

• Power over Ethernet (12VDC, 802.3af)

• IP65 rated weather resistant matte plastic body (front plate)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.

* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

How Technical Is It To Use?

The door station functions with a single backlit button for communication, and the monitor operates via the touch-screen. The system can handle missed, placed and received call details, visitor video & audio messaging, and group calling.

As you can see, the intercom can be used as a fully operational messaging service alongside a day-to-day door unit. What’s more – it offers full support of compatible door sensors and strikes integration.

VSPOE-SWA4



The VSPOE-SWA4 is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:



• 4 x PoE+ device ports with 10/100Mbps per port

• 1 x Hi-PoE device port with 10/100Mbps per port

• Total PoE power load up to 60W

• Extend mode takes Ethernet cable runs up to 250m

• Unmanaged switch for plug & play applications

• Desktop mount for home and SOHO use

• Professional appearance full metal enclosure
