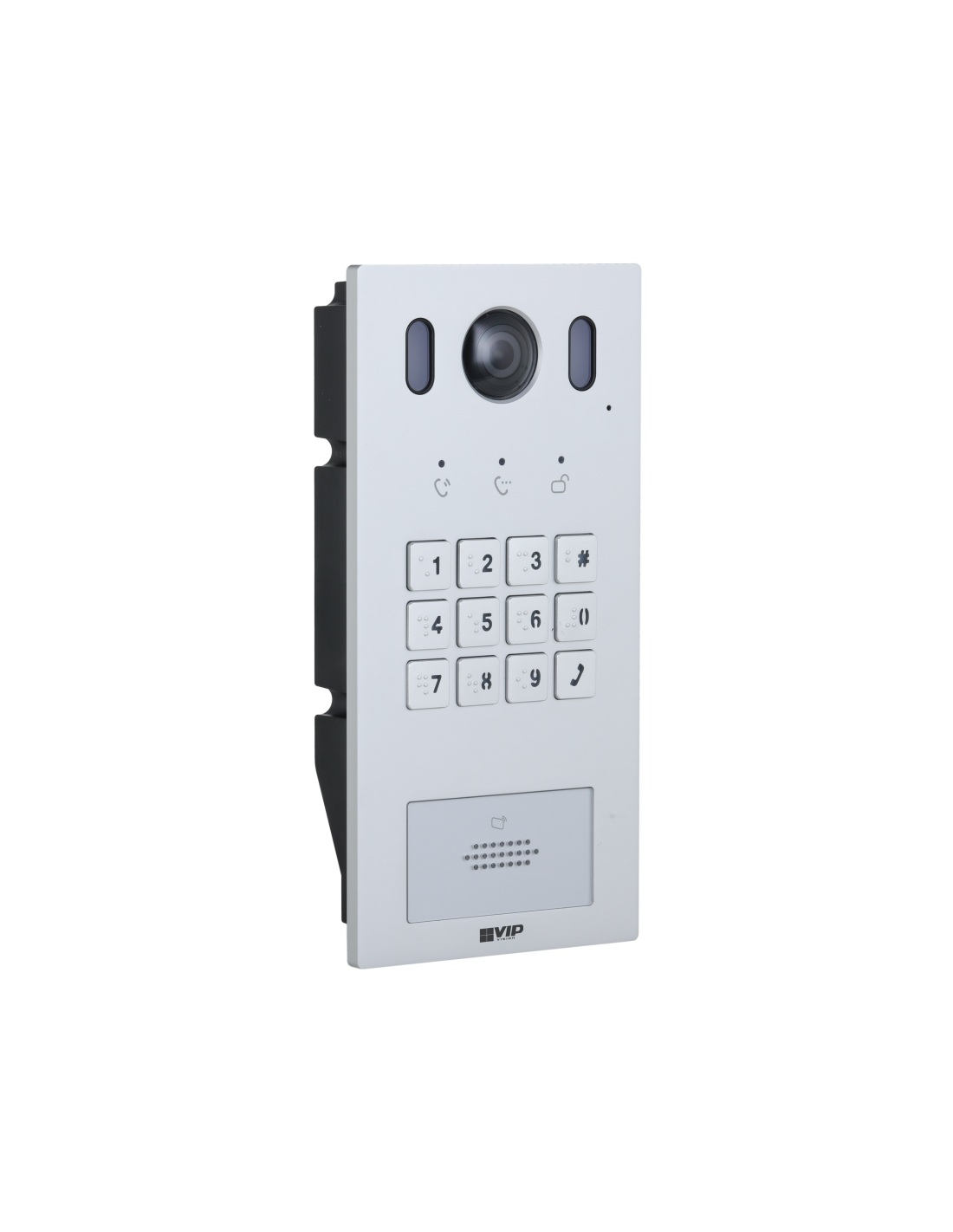

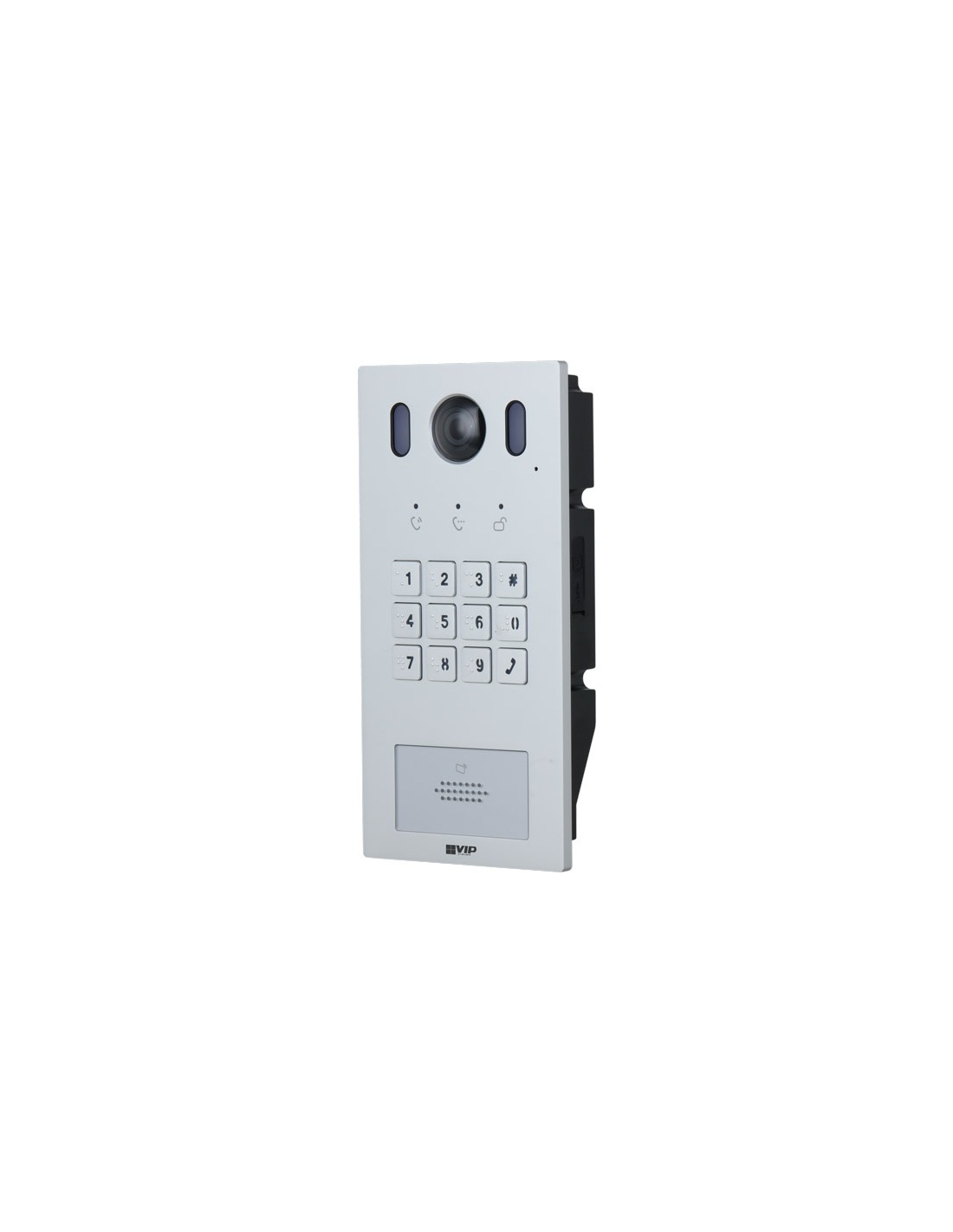

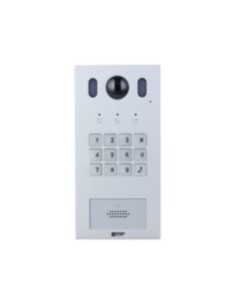

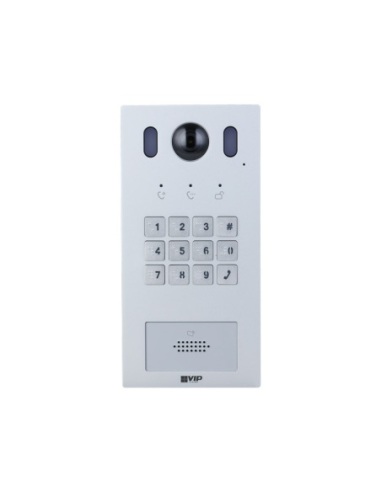

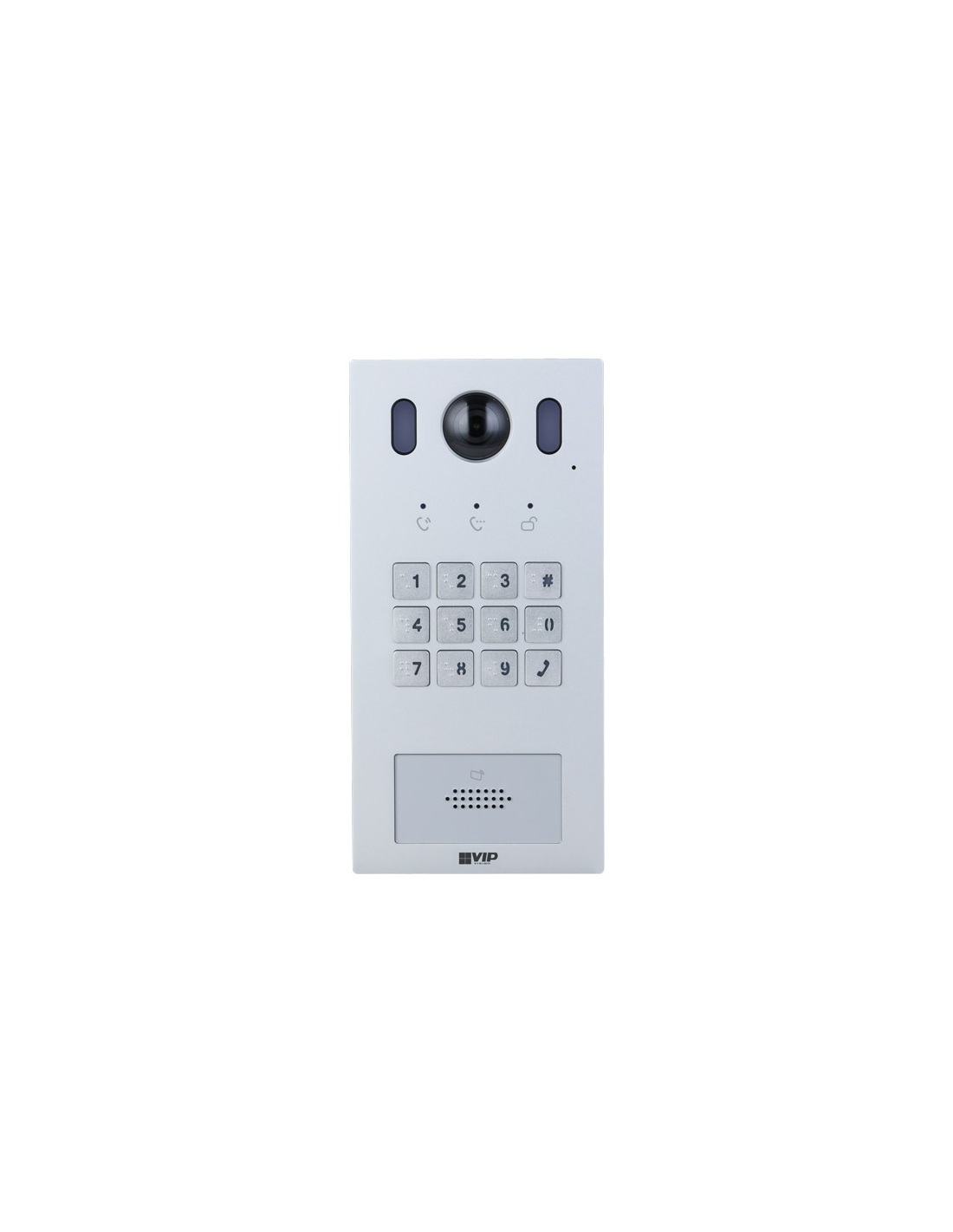

The VIP Vision Residential Series door station, INTIPRDSD2, is a perfect multi-functional access and communication control solution for large single-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.
Product features:
• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Rings all monitors on call; add up to 10 monitors
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Supplemental white light for illuminating visitors

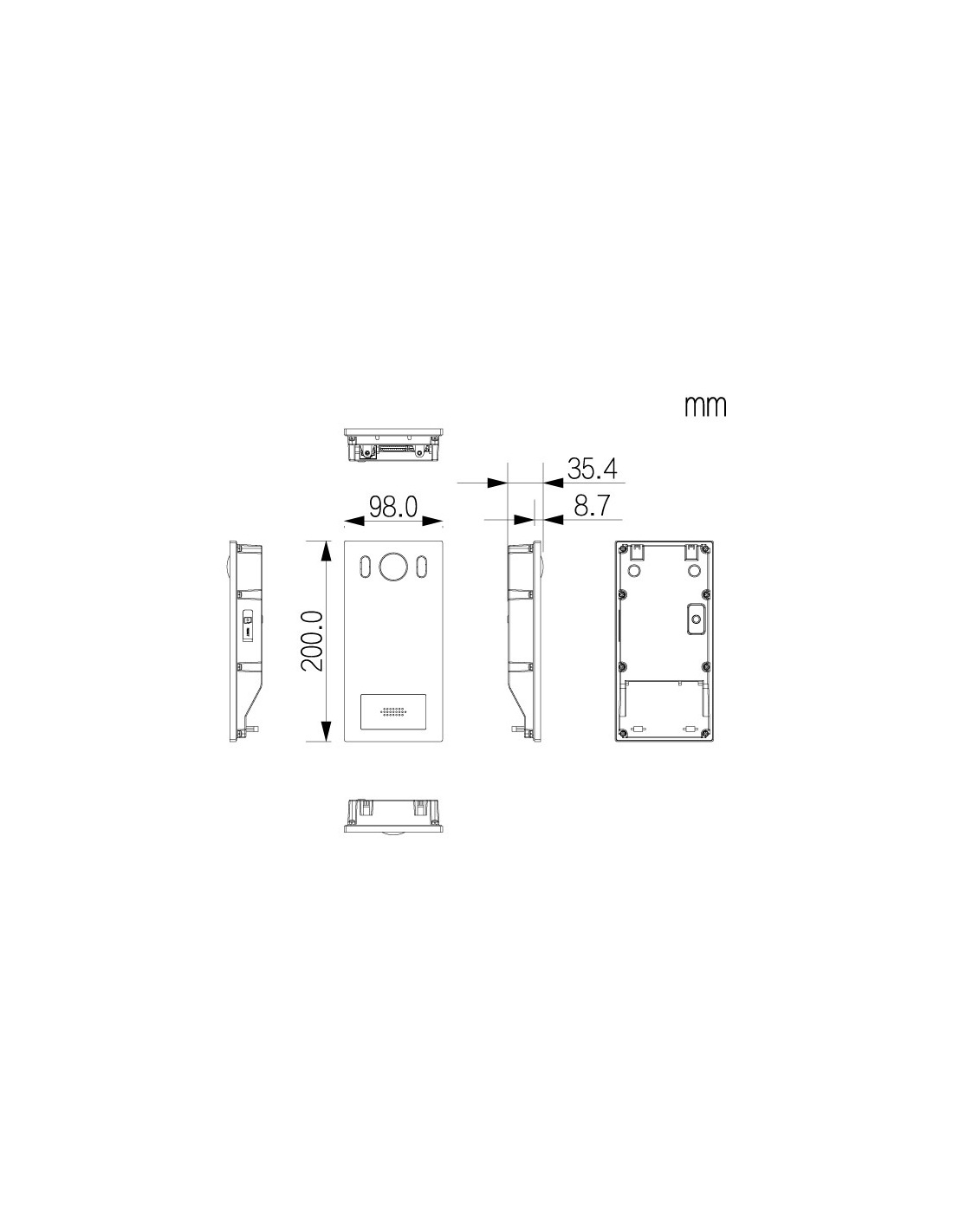

- Dimensions
- 200 x 98 x 35mm
- Main Processor
- Embedded Microprocessor
- Construction
- N/A
- Power input
- 48VDC, PoE (802.3af/at)
- Ingress Protection
- IP65 (Front plate)
- Operating Environment
- -40°C ~ +60°, 10~90% relative humidity
- Weight
- 0.69kg
- Power Consumption
- Standby
- Interface
- 1 x Door Chime, 1 x Exit Button, 1 x Lock Control
- App Connection
- QR Code
- Button Illumination
- Supplemental White Light (AGC) with backlit keypad
- Camera System
- 1/2.9" 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
- Card Support
- Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
- Max. Additional Door Stations
- 20
- Max. Indoor Monitors
- 10
- Tamper Detection
- Yes
- Vandal Resistant
- IK08
- Audio / 2-Way Talk
- Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
- Ethernet / Network
- 10M/100Mbps Self-adaptive / TCP/IP protocol
- Input / Output
- 1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485

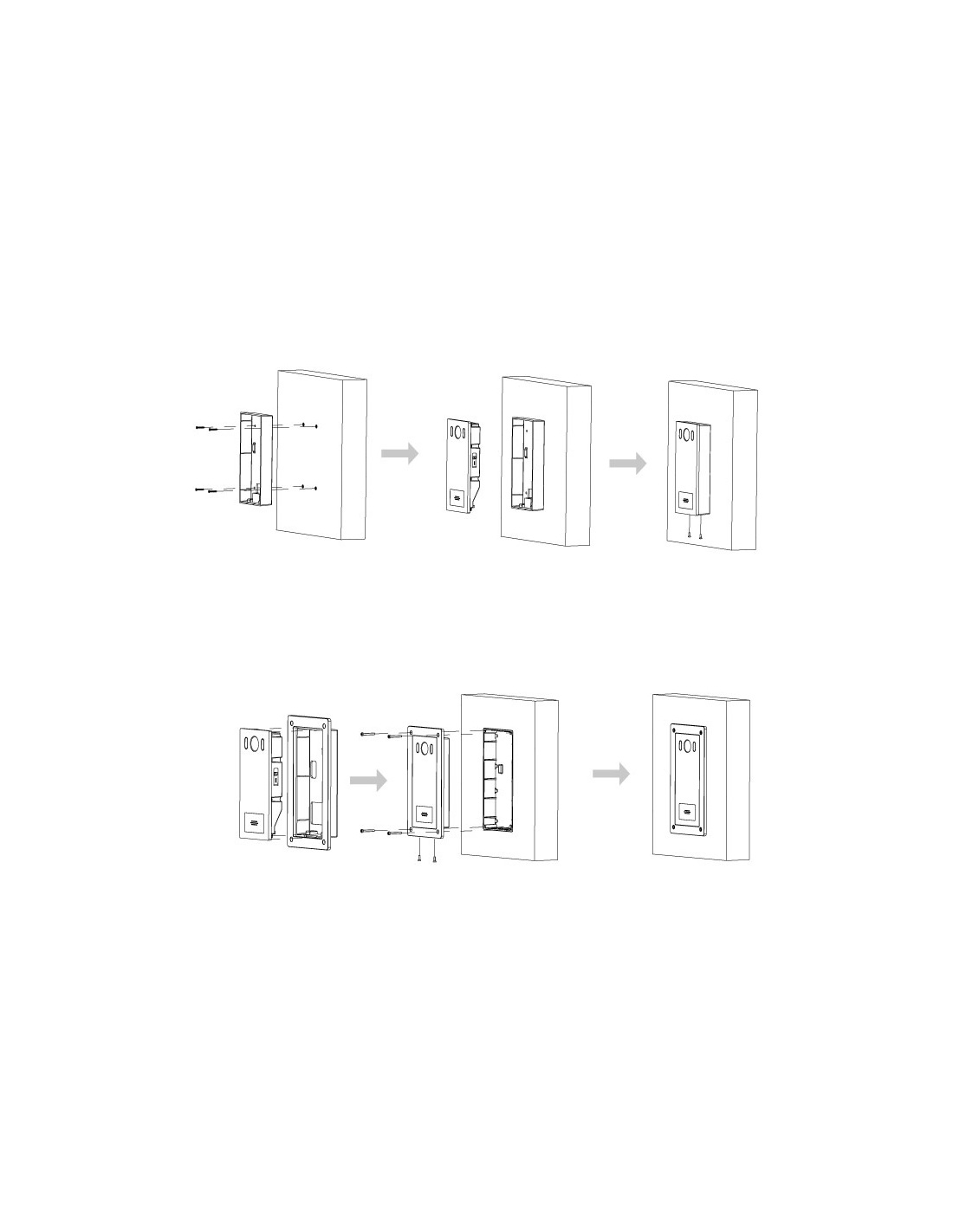

- Installation Options
- Surface mount / Flush mount (sold separately)
- Internal MicroSD Slot
- MicroSD Slot, up to 256GB (sold separately)
- Low-Light Application
- N/A
