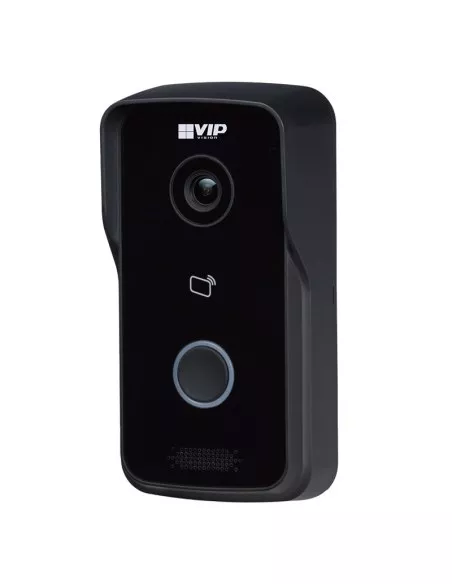

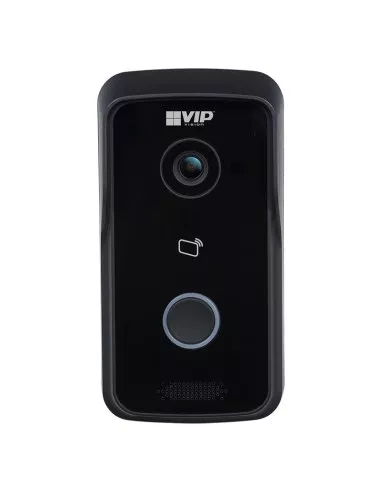

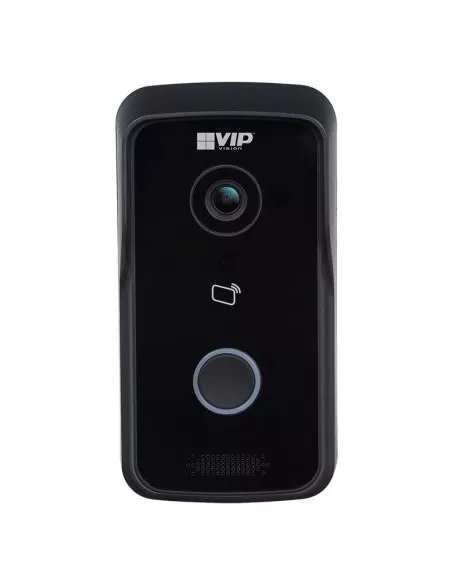

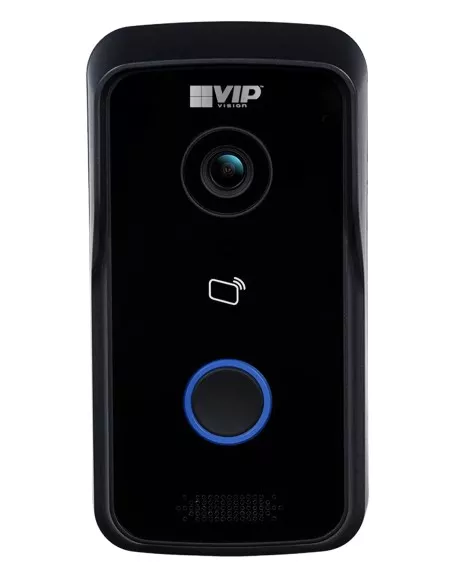

VIP Vision IP 1MP Residential PoE Video Intercom Black Door Station - INTIPRDSJ
- 1/4’’ 1MP camera with 122° FOV
- Integrate with VIP NVR recorder or use as stand-alone
- Stylish black design to suit any modern home
- Built-in microphone and speaker for 2-way talk
- Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
- Connect with intercom monitor(s) via Ethernet
- Door control, alarm and RS485 input/output relays
- Intuitive, easy-to-use interface
- Power over Ethernet (12VDC, 802.3af)
- IP65 rated weather resistant matte plastic body (front plate)
- Many accessories available in our VIP Residential intercom series
- Mobile live viewing, no ongoing fees
Residential IP Intercom Door Station
INTIPRDSJ
4 Years Warranty!
The INTIPRDSJ is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via an NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone, and visitor audio/video messaging functions.
Residential IP Intercom Door Station
Model: INTIPRDSJ
It features door station camera monitoring, visitor logging, and audio/video messages It can also voice calls to other monitors across the same network.
- 1/4’’ 1.0MP camera with 122° FOV
- Built-in microphone and speaker for the 2-way talk
- Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
- Connect with intercom monitor(s) via Ethernet
- Door control, alarm and RS485 input/output relays
- Intuitive, easy-to-use interface
- Power over Ethernet (12VDC, 802.3af)
- IP65 rated weather resistant matte plastic body (front plate)
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
How Technical Is It To Use?
The door station functions with a single backlit button for communication, and the monitor operates via the touch-screen. The system can handle missed, placed and received call details, visitor video & audio messaging, and group calling.
As you can see, the intercom can be used as a fully operational messaging service alongside a day-to-day door unit. What’s more – it offers full support of compatible door sensors and strikes integration.

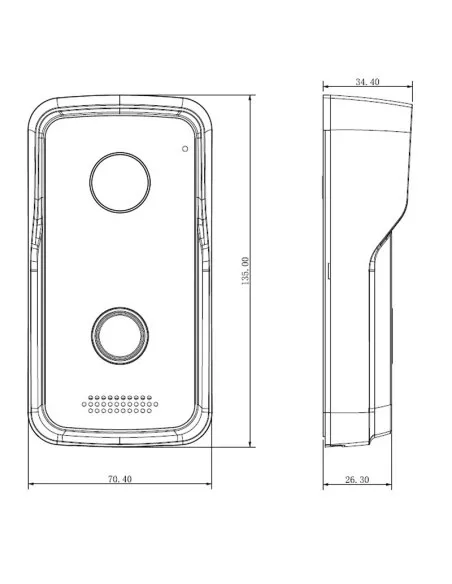

- Dimensions
- 71 x 35 x 135mm
- Main Processor
- Embedded Microprocessor
- Construction
- Matte Plastic
- Power input
- 12VDC 1A, PoE (802.3af)
- Ingress Protection
- IP65 (Front plate)
- Keypad
- N/A
- Weight
- 0.32kg
- Power Consumption
- App Connection
- QR Code
- Button Illumination
- Backlit Interface
- Camera System
- 1/4" 1.0 Megapixel CMOS (Diagonal FoV: 122°)
- Card Support
- Built-in NFC Card Reader, Supports up to 10,000 NFC cards
- Max. Additional Door Stations
- 20
- Max. Indoor Monitors
- 10
- Tamper Detection
- Yes
- Vandal Resistant
- N/A
- Audio / 2-Way Talk
- Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
- Ethernet / Network
- 10M/100Mbps Self-adaptive / TCP/IP protocol
- Input / Output
- 1 x alarm input / 1 x alarm output / 1 x RS485
- Installation Options
- Surface Mount
- Internal MicroSD Slot
- No
- Low-Light Application
- Day/Night ICR
- Series
- J Series
