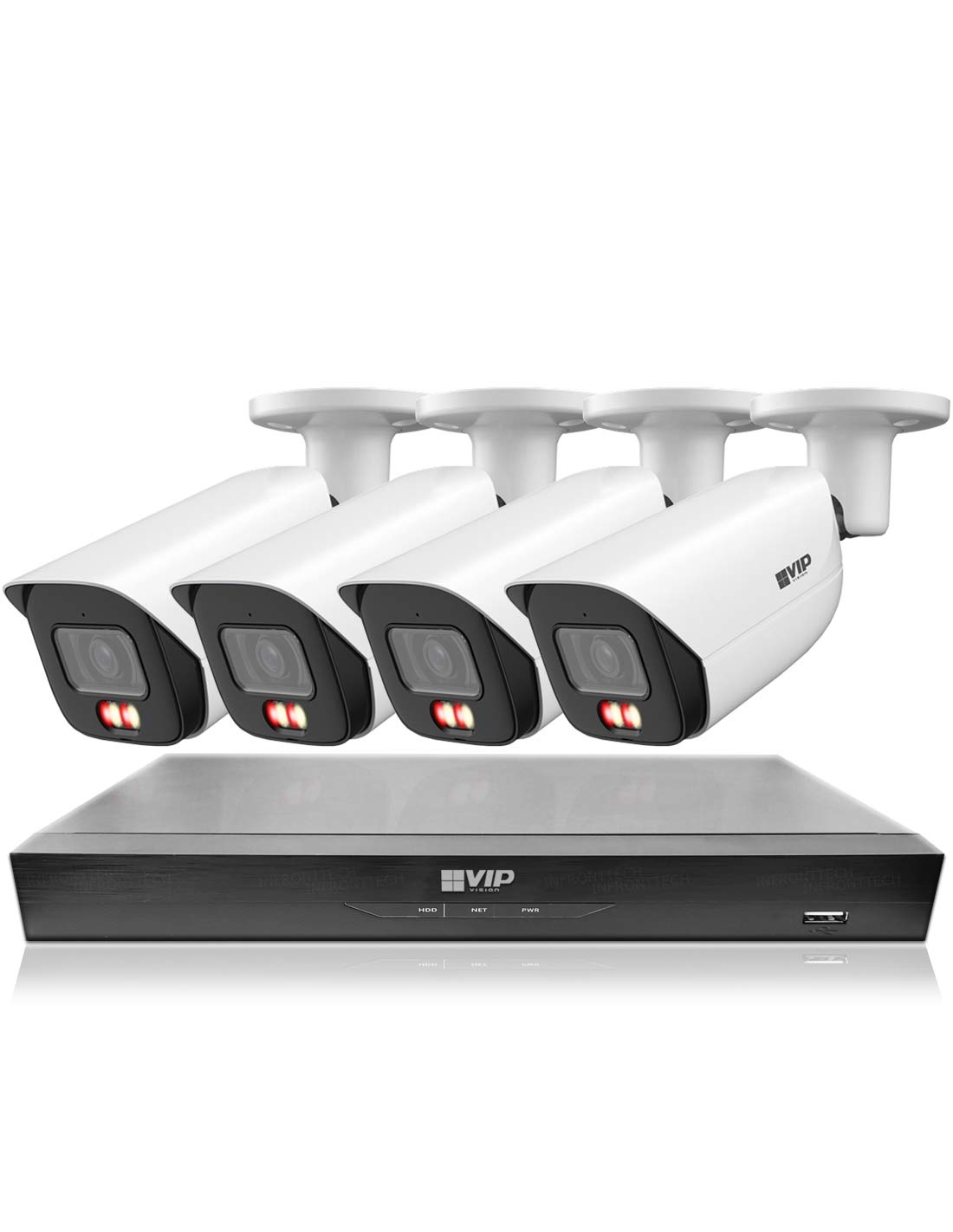

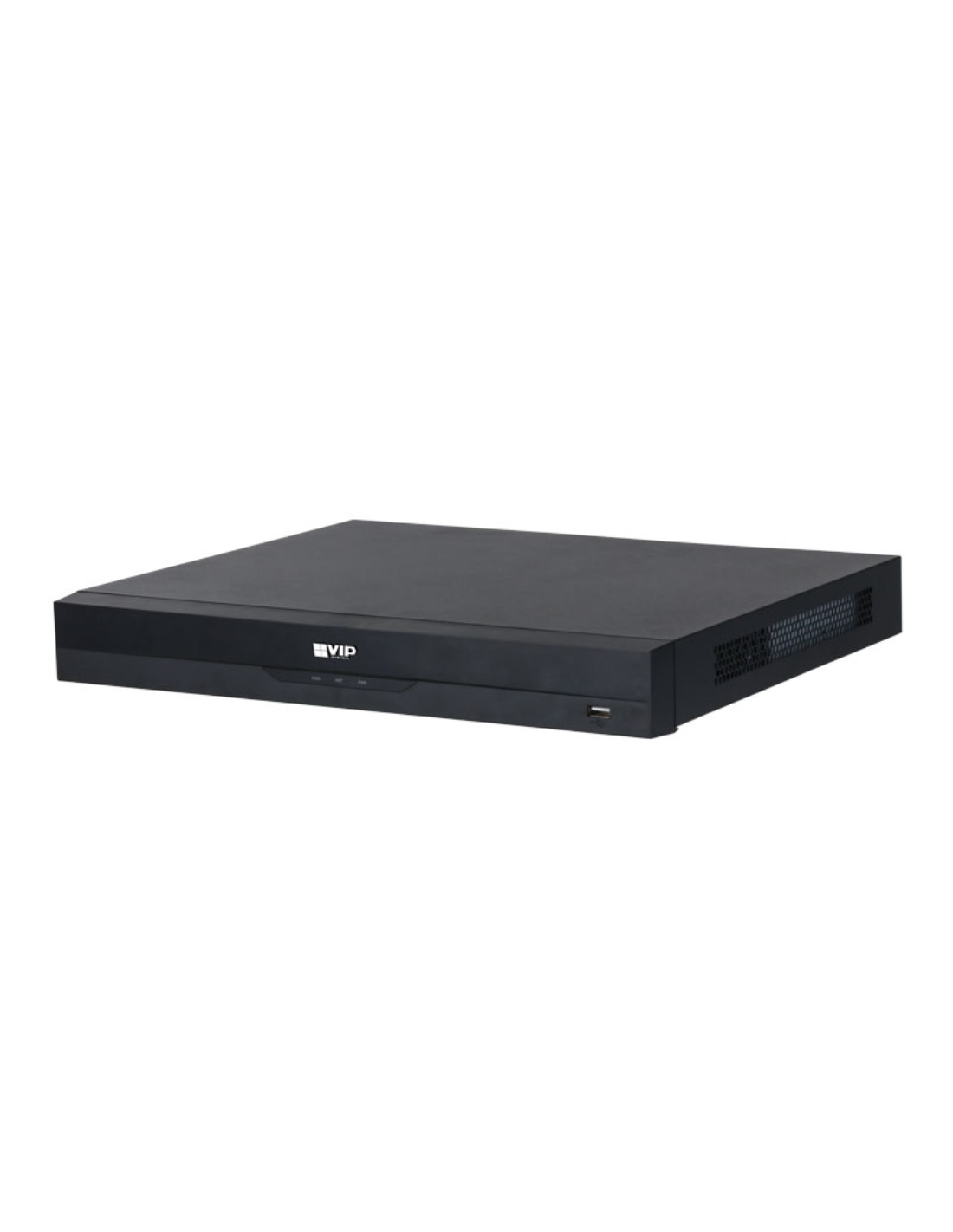

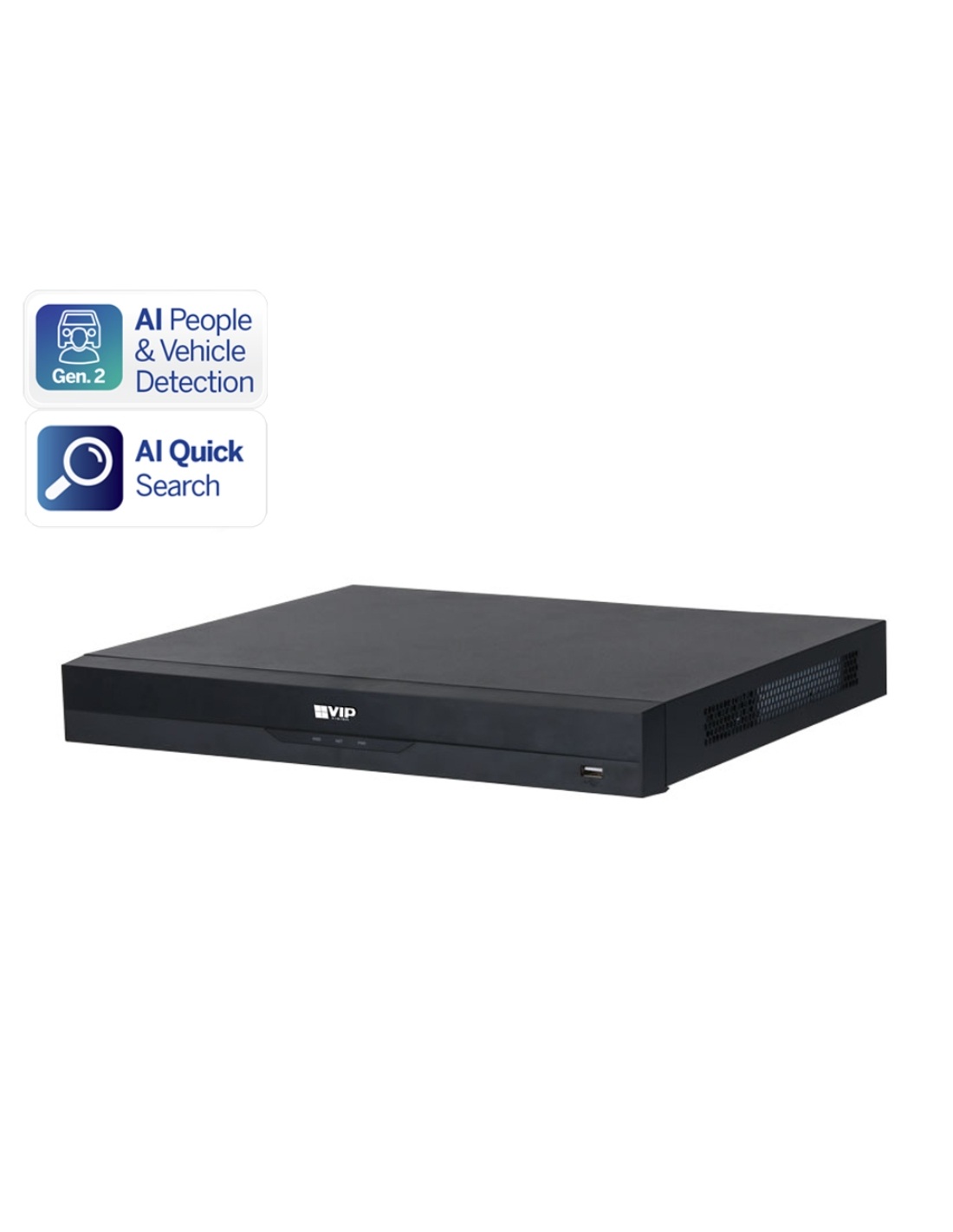

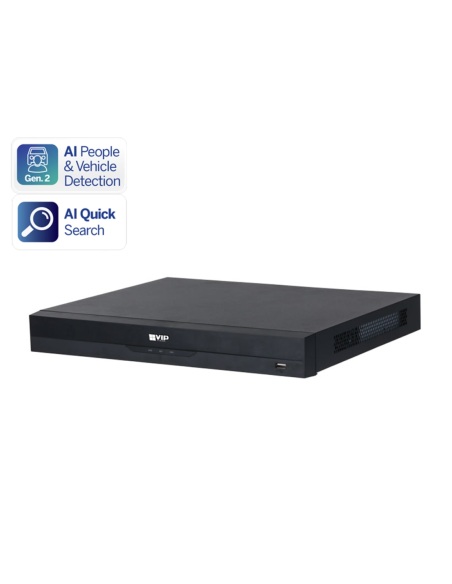

• 1 × VIP Vision Professional AI NVR8PRO-I 8-channel PoE recorder with 2TB surveillance drive fitted

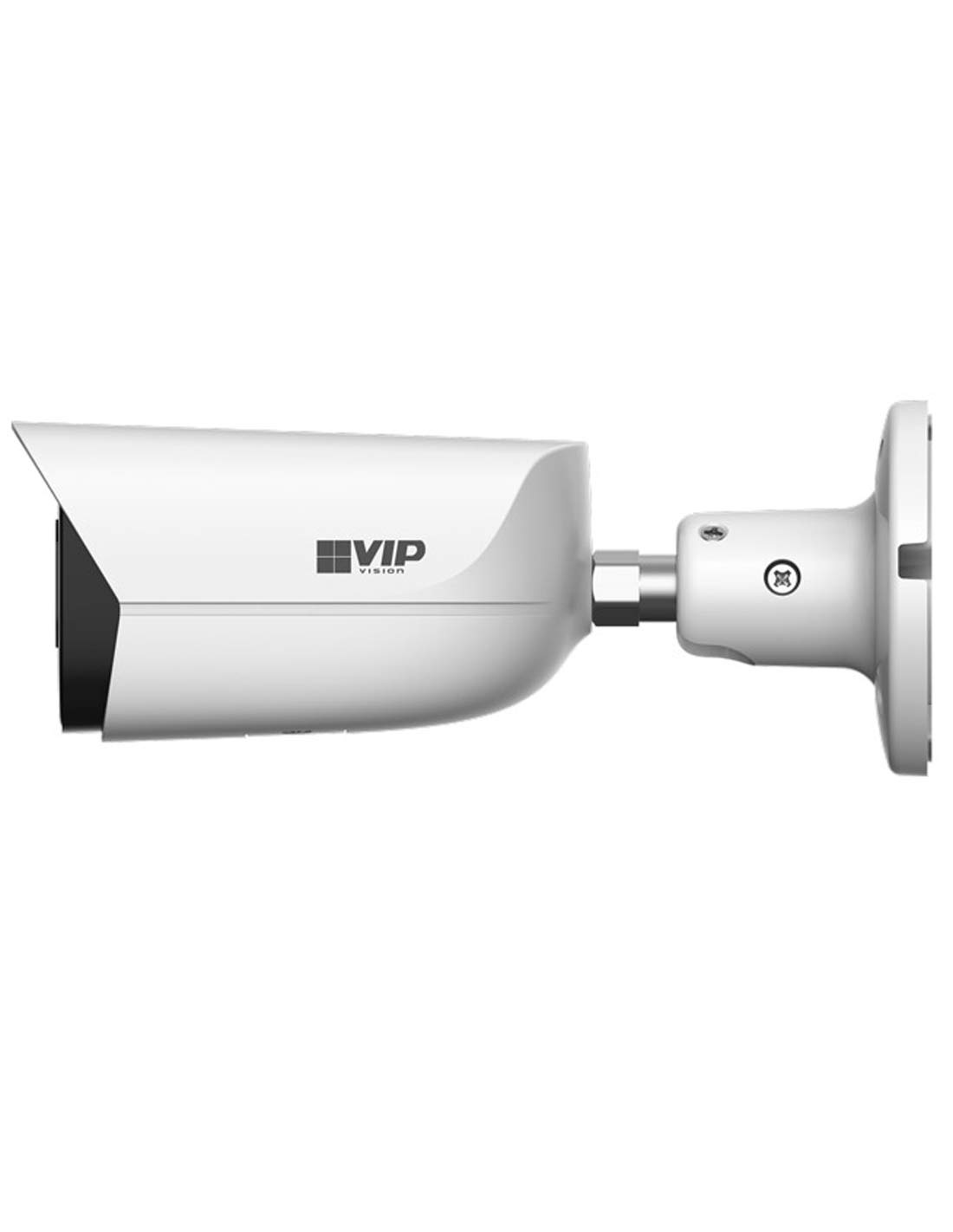

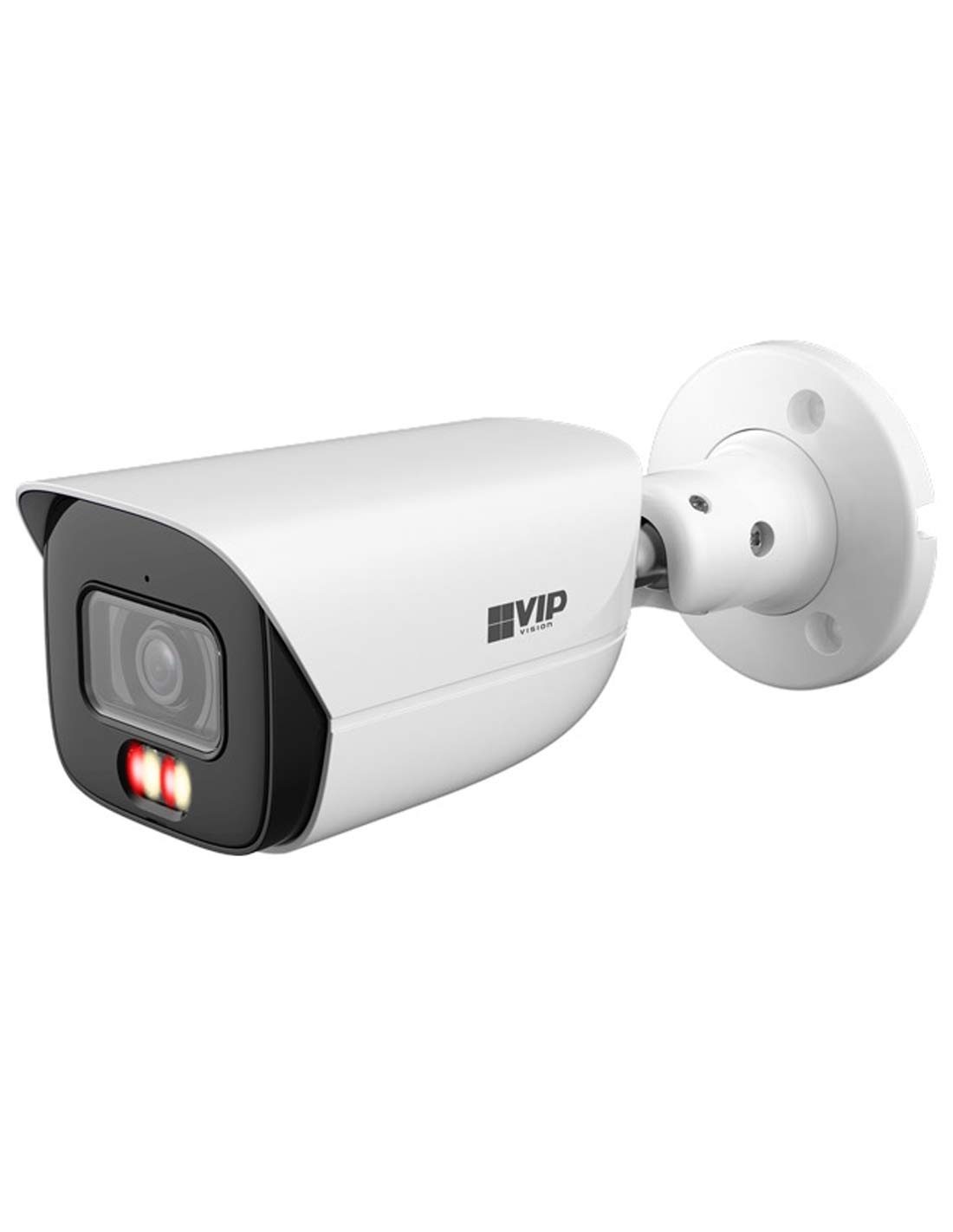

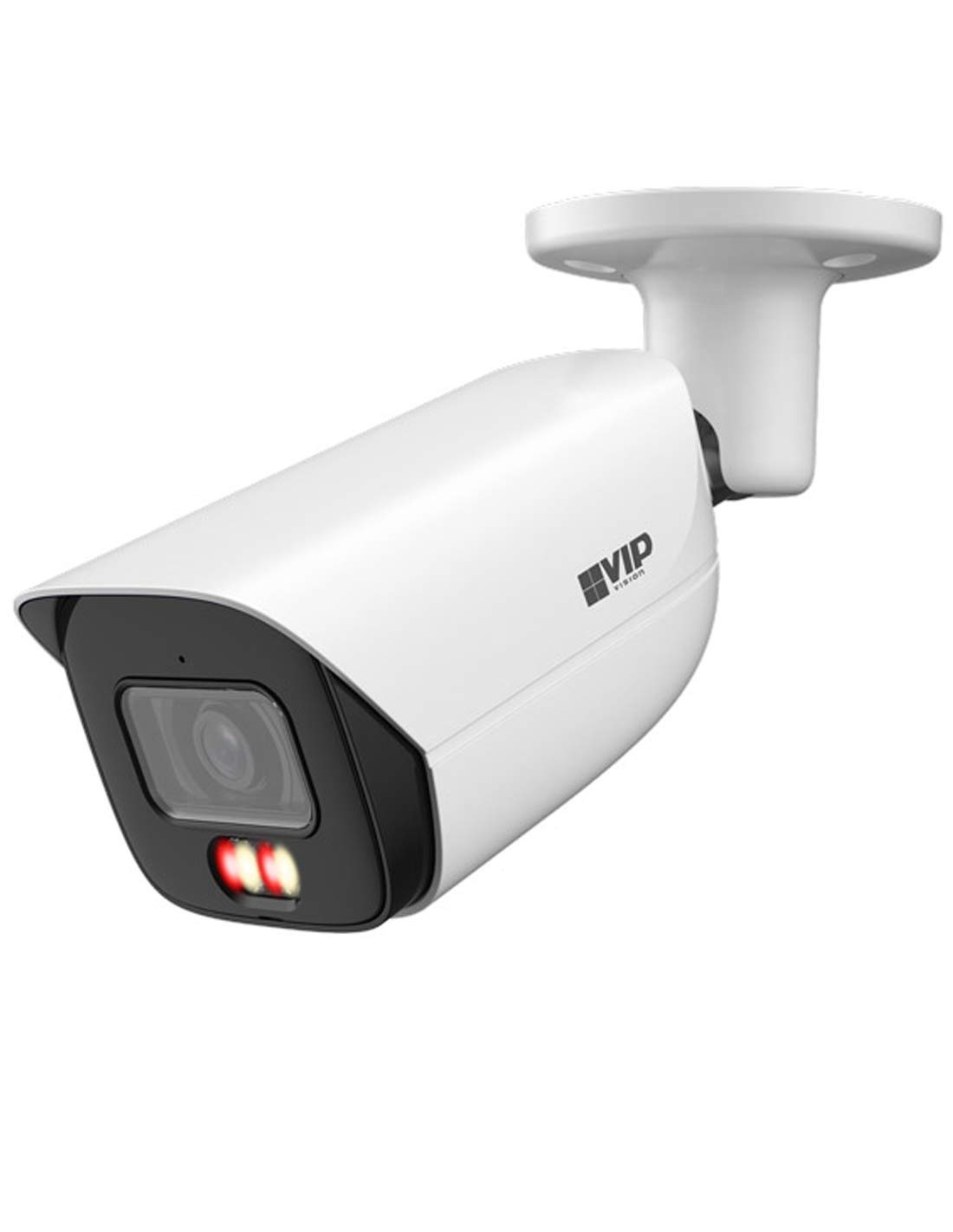

• 4 × VIP Vision VSIPP-6BIRG-I3 6MP bullet
• Recorder power cable, HDMI cable, 1 m network cable and USB mouse
• Screws, plugs and a mounting template for each camera
• Quick start guides

• A monitor or TV with HDMI or VGA
• Your router and internet connection, for the phone app
• Cat5e or Cat6 cable from the recorder to each camera (up to 100 m per run)
• Optional junction boxes for a neat, sealed cable entry

01

Plan the positions

Mount the cameras about 2.4–3 m high, under eaves where you can. Aim them at doors, gates and paths rather than open sky.

02

Run the cables

Run one network cable from each camera back to the recorder. PoE works on runs up to 100 m.

03

Connect the recorder

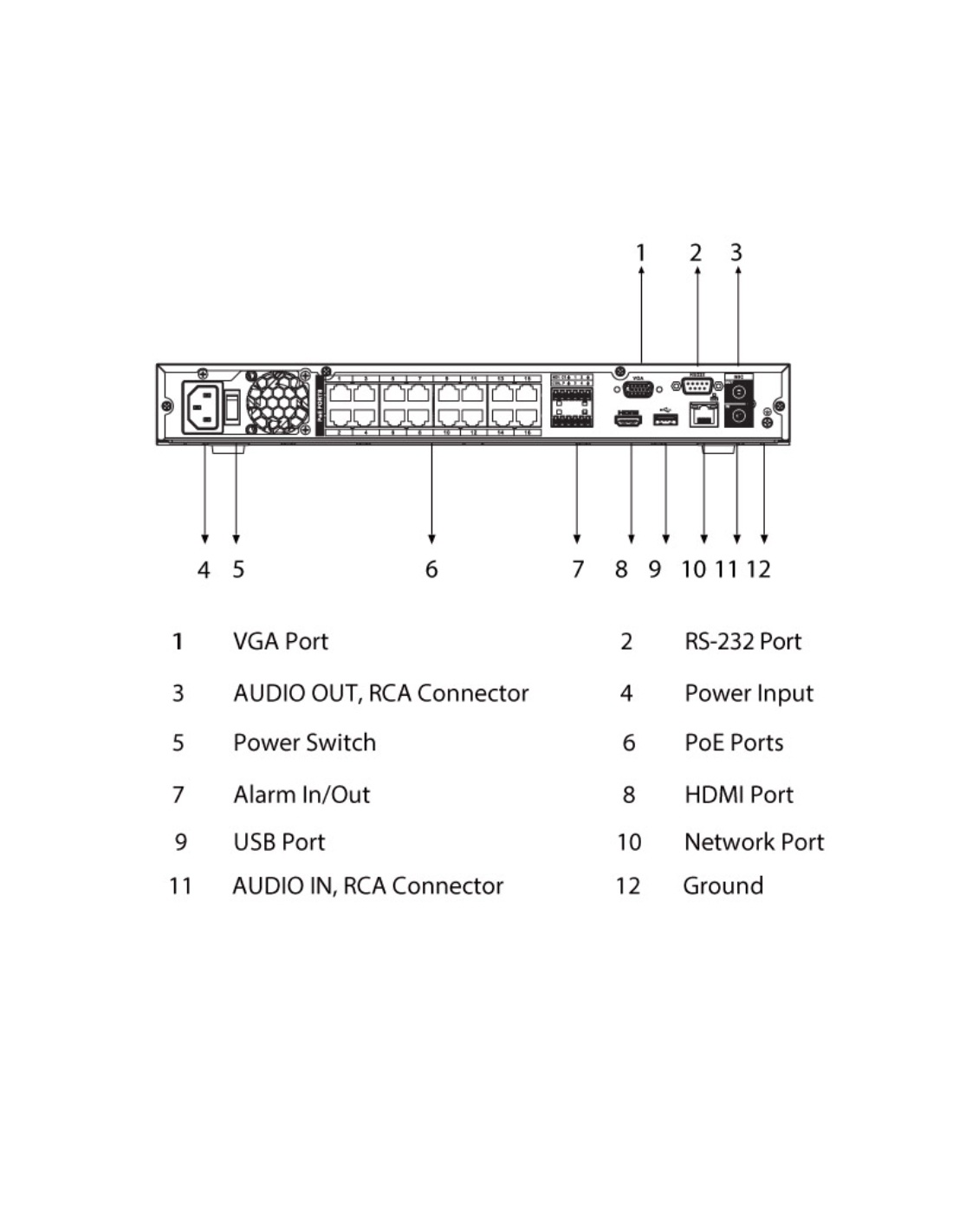

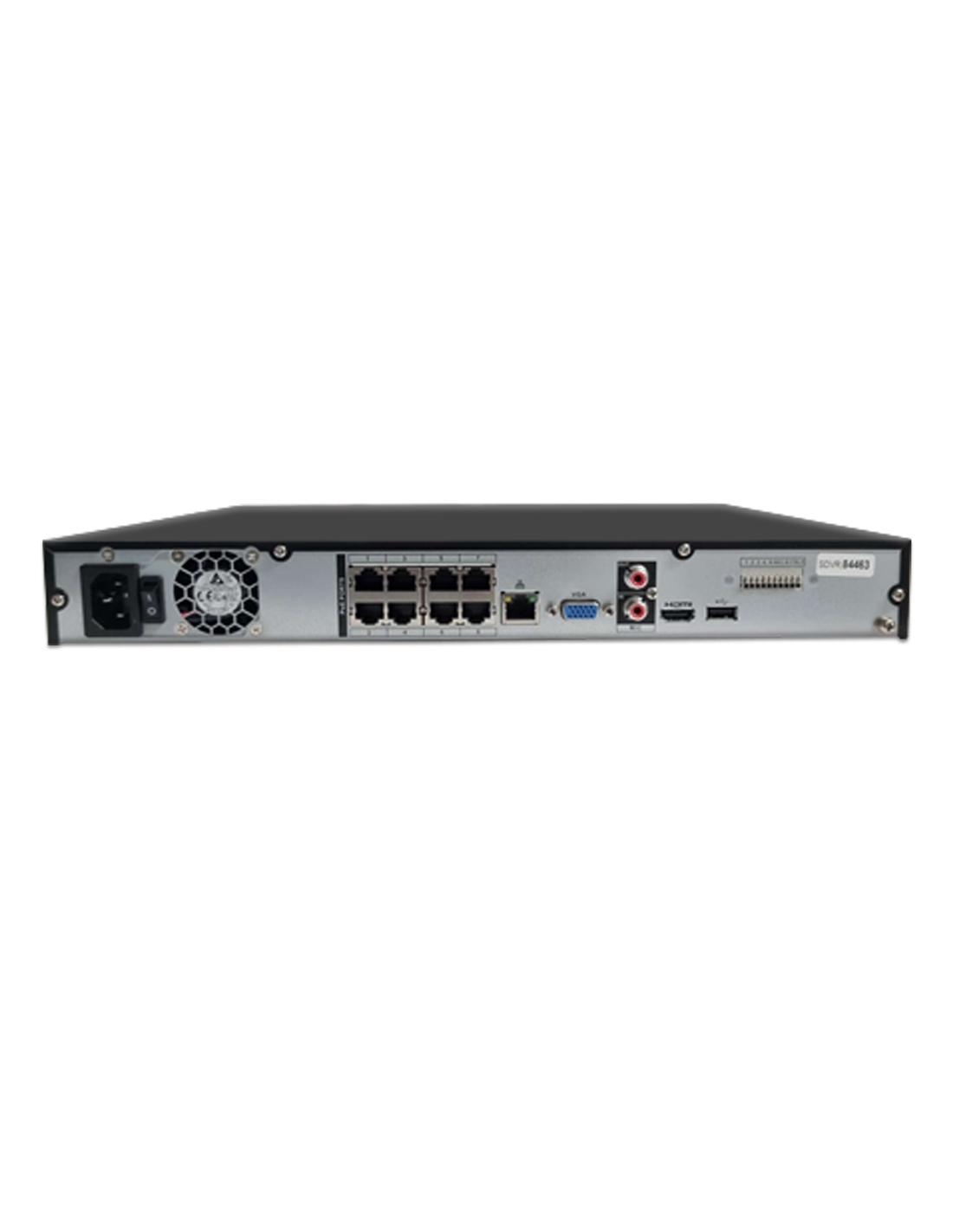

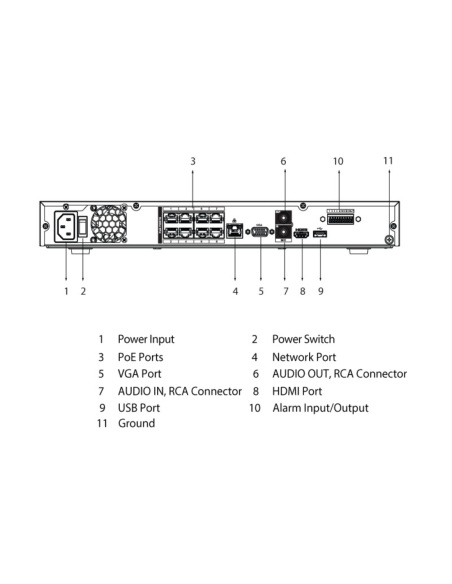

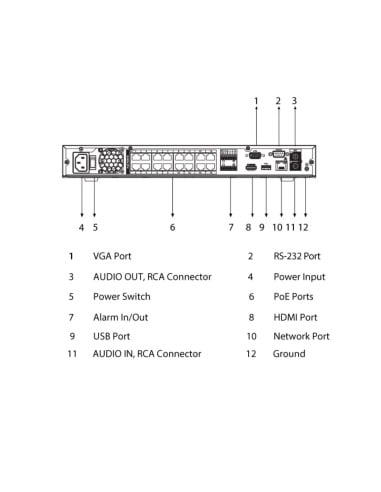

Plug the cameras into the PoE ports, the screen into HDMI or VGA and the network port into your router, then power on and follow the startup wizard.

04

Set the app and zones

Scan the recorder’s QR code with the DMSS app, then draw tripwire lines or zones so alerts only fire for people and vehicles.

More cameras

VSIPP-6BIRG-I3 bullet

Another bullet for a second door, gate or driveway. Four channels are free.

Mounting

Junction boxes

A matching VIP Vision junction box hides and seals the cable join behind each camera. Ask us for the right one for each model.

Cabling

Cat6 cable box

Cable is not included in this kit. A 305 m box of solid-copper Cat6 covers most homes.

Family homes

Front door, driveway and back yard covered from the eaves.

Units and townhouses

Entry, garage and courtyard in a small footprint.

Small shops

Shopfront and rear door, with alerts after hours.

Home offices

Entry and parking for a business run from home.

Sheds and workshops

Roller door and yard, with alerts to your phone.

Rentals and granny flats

A small system now, with channels to grow into.

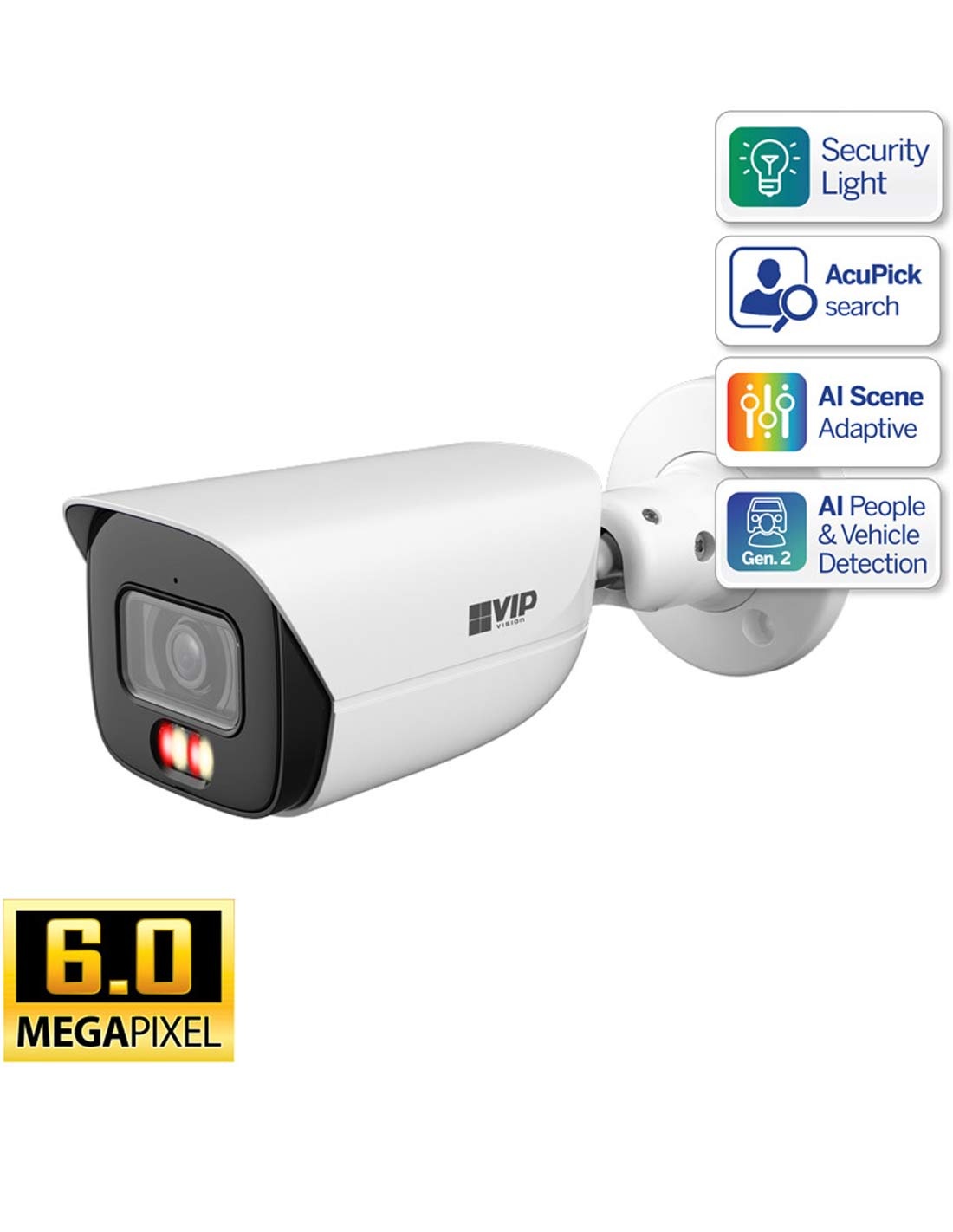

What is the VSIPP-6BIRG-I3 best at?

The VSIPP-6BIRG-I3 is a fixed 6MP bullet with a 110° view, a visible camera for yards, paths and fence lines. It identifies a face at about 8 m and detects a person out to 85 m.

Is the hard drive included?

Yes. A 2TB surveillance drive is fitted in the recorder. There is a second bay, and each bay takes a drive of up to 16TB. Bigger drives are in the options.

How many days will it record?

As a rough guide, about 14 to 22 days with all 4 cameras recording around the clock on H.265 on the 2TB drive. Recording on events, or adding a bigger drive, stretches that a long way.

Are the cables included?

No, because every site needs a different length. Each camera needs its own Cat5e or Cat6 run of up to 100 m back to the recorder.

Do the cameras need power points?

No. The recorder powers the cameras through the network cable (PoE), so the only power point needed is at the recorder.

Will the cameras see in colour at night?

Yes, using their warm white lights for colour, or infrared for black and white if you prefer the lights off.

Do the cameras record sound?

Yes. Each camera has a built-in microphone, recorded with the video. Recording conversations is covered by state surveillance laws, so check before turning it on.

Can I add more cameras later?

Yes. Four channels are free on the NVR8PRO-I, with 4 PoE ports to match. VIP Vision Professional AI cameras plug straight in.

Can I watch it on my phone?

Yes. Connect the recorder to your router and scan its QR code in the free DMSS app for live view, playback and alerts on iPhone and Android.

How far do they see at night?

Infrared reaches 30 m in black and white, and the warm white lights give colour closer in.

Can I install it myself?

Many customers do, because each camera needs one cable and the recorder finds it automatically. In Australia, cable run inside walls and ceilings should be installed by a registered cabler.

What is the warranty?

4 years, supported in Australia by Infront Technologies. Contact us first and we will organise any claim.
