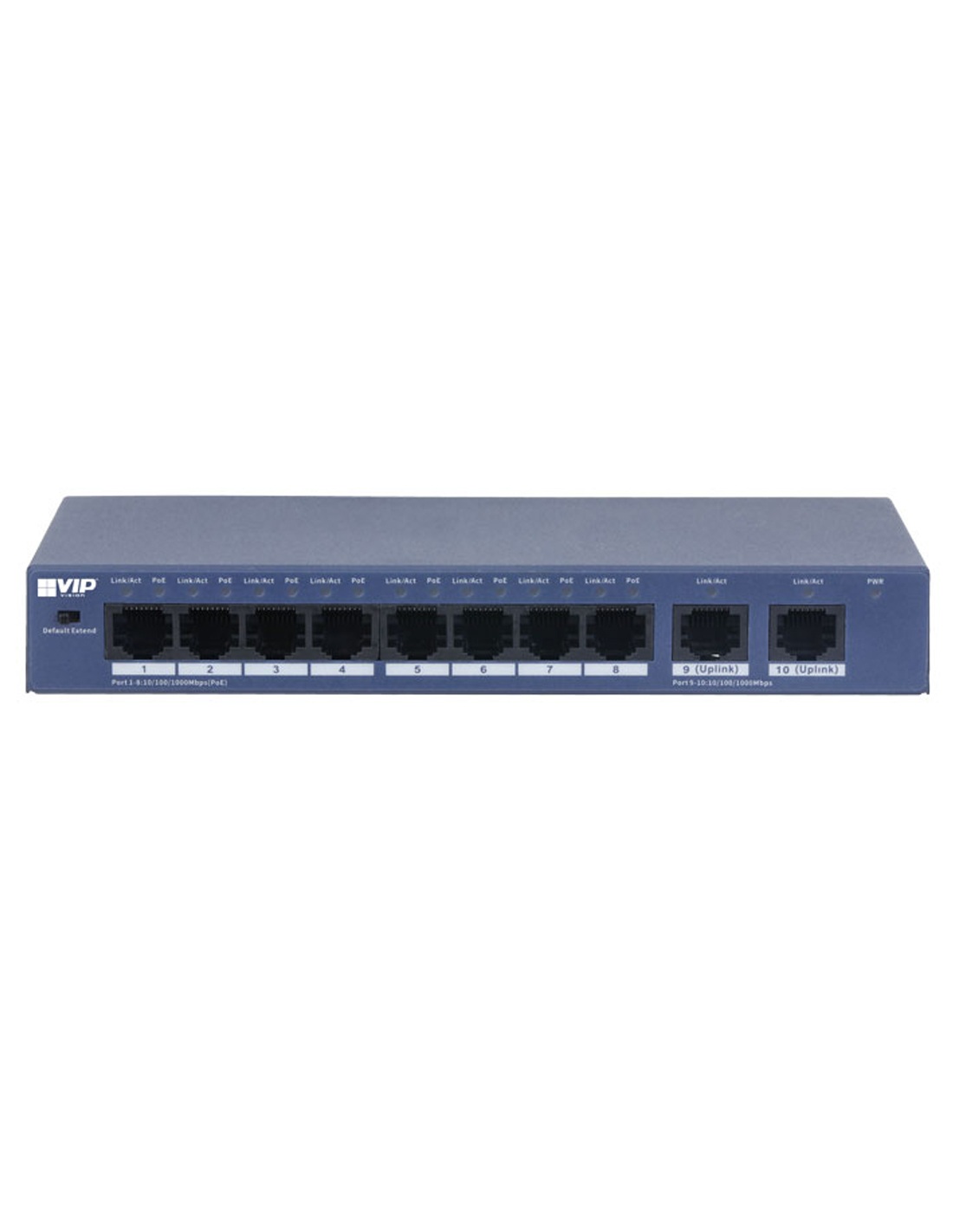

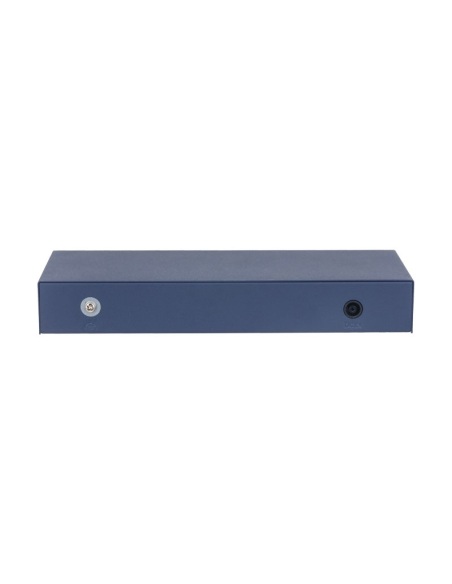

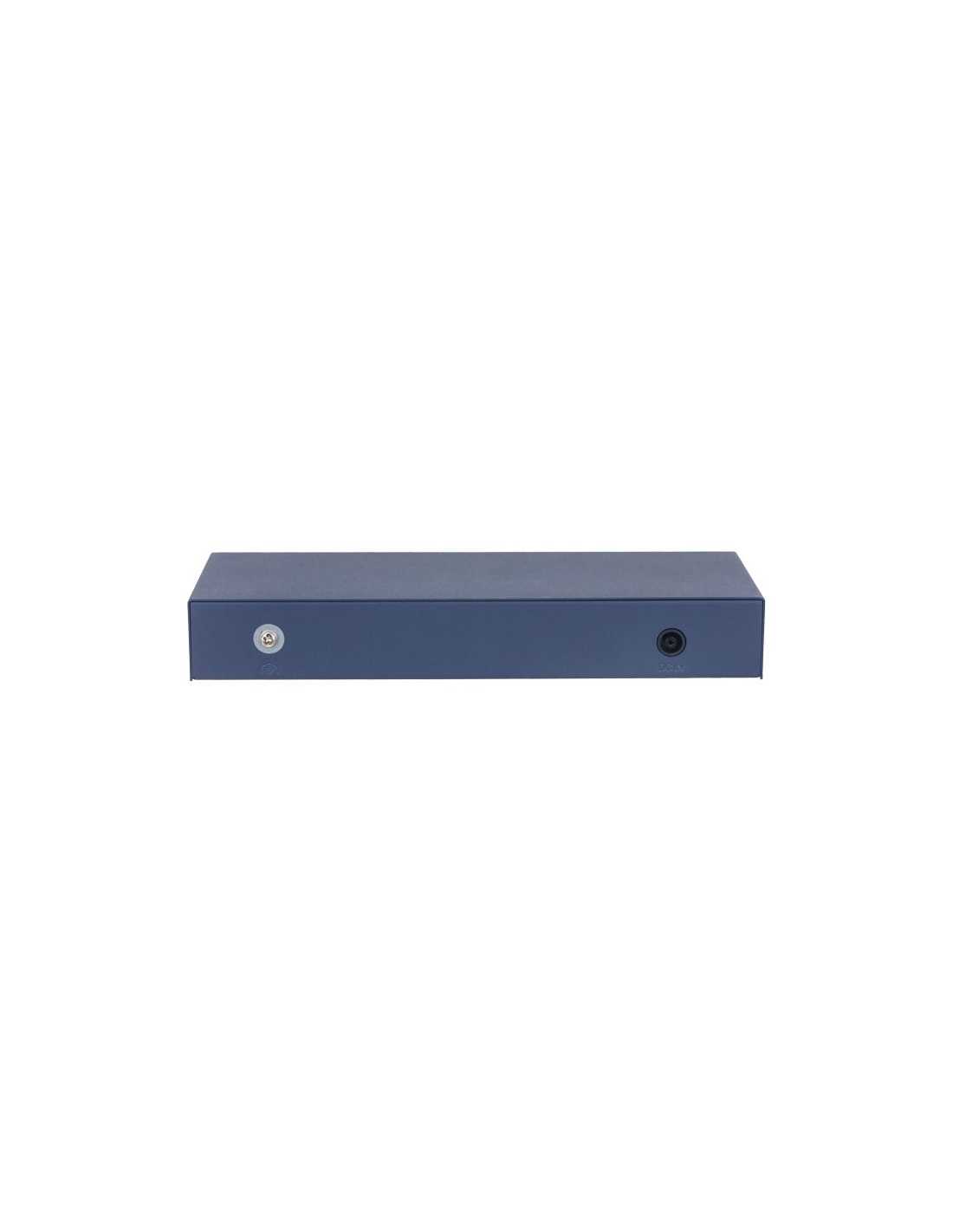

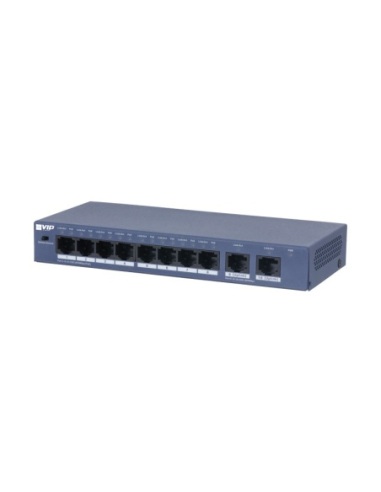

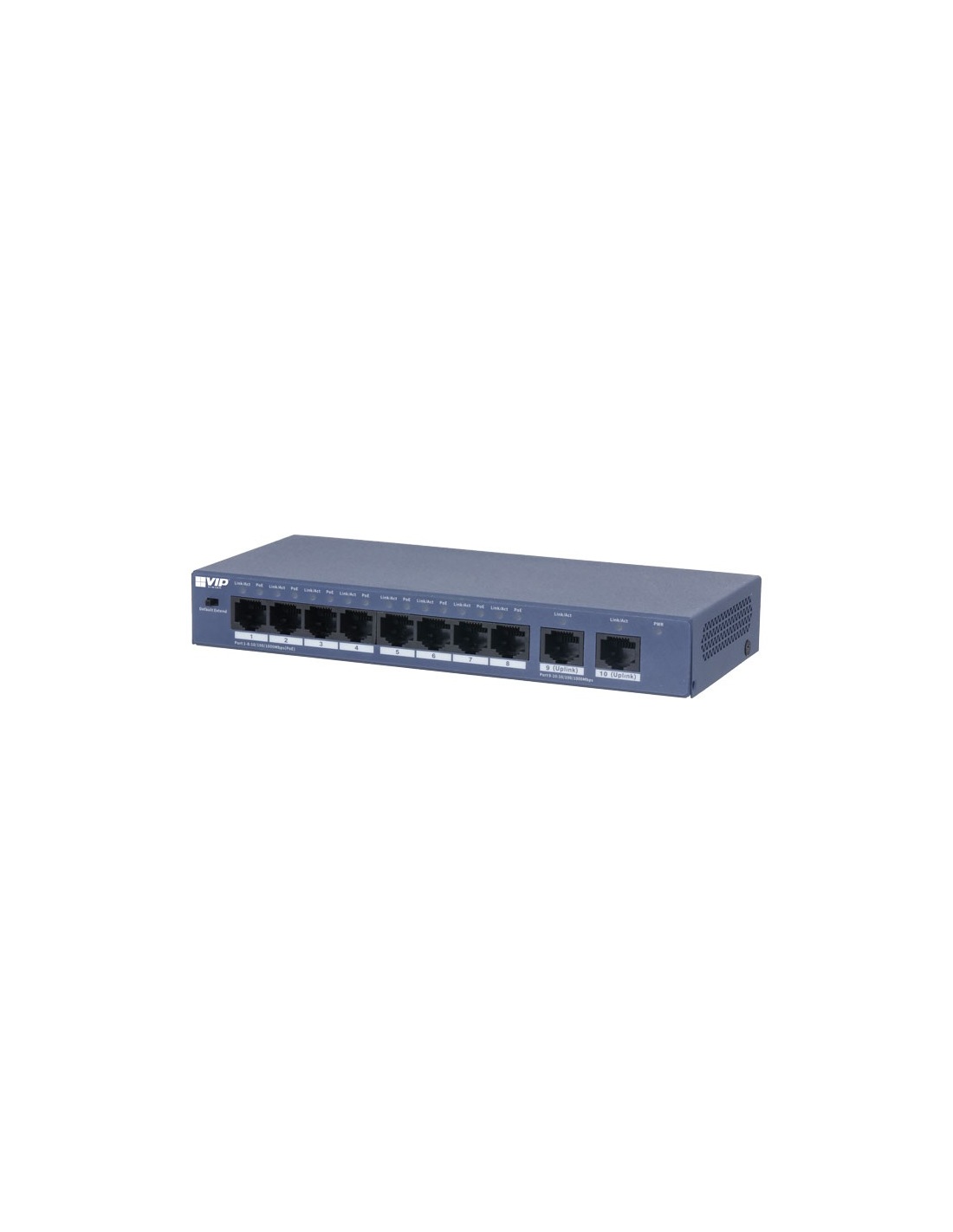

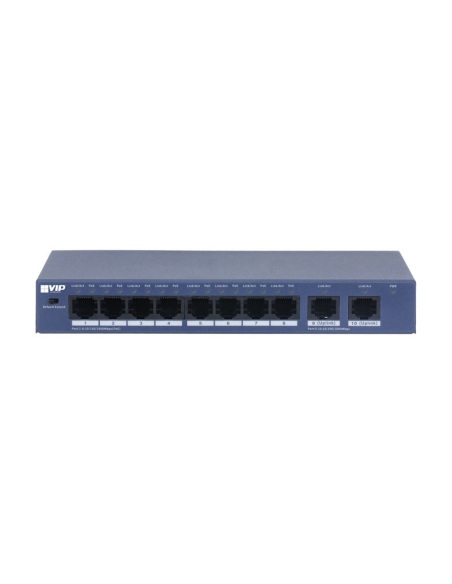

VIP Vision Unmanaged Gigabit 8-Port PoE+ Switch with 2× Gigabit Uplink Ports — VSPOE-SWB8U
Model VSPOE-SWB8U
The VIP Vision VSPOE-SWB8U is an unmanaged Gigabit PoE+ network switch providing high-speed data and power over Ethernet for edge deployments. Designed for CCTV, wireless access points, IP phones and access control, this switch combines eight powered Gigabit ports with two dedicated Gigabit uplinks for fast network backhaul.
With a 90W total PoE budget, extend mode support up to 250m (10Mbps), a robust full metal enclosure and simple plug-and-play operation, it’s an ideal choice for small networks needing reliable Gigabit performance and PoE+ delivery.
Key Features & Benefits
- 8× Gigabit 10/100/1000Mbps PoE+ device ports for powered edge connectivity.
- 2× Gigabit uplink ports for high-speed backhaul.
- Up to 30W PoE+ per port with 90W total power budget.
- Unmanaged, plug-and-play — no configuration needed.
- Extend mode support for PoE delivery up to ~250m at 10Mbps.
- Professional full metal enclosure for durability.
- 53VDC power supply included for ready deployment.
- Lightning overvoltage protection up to 6kV for resilience.
- High throughput capacity for smooth Gigabit switching.
Gigabit PoE+ performance with dual uplinks.
Deliver high-speed data and power for multiple edge devices in a compact, reliable package.
Real-World Applications
CCTV Networks — power and link multiple IP cameras with Gigabit speed.
Wireless Deployments — feed access points and maintain high uplink throughput.
VoIP & Access Control — support IP phones and control systems without separate injectors.
Small Office & Branch Sites — ideal where compact Gigabit switching and PoE+ delivery are essential.
Quick Specs
| Switch Type |
Unmanaged Gigabit PoE+ Switch |
| Device Ports |
8× 10/100/1000Mbps RJ45 (PoE+) |
| Uplink Ports |
2× 10/100/1000Mbps RJ45 |
| PoE Standard |
IEEE 802.3af / 802.3at (PoE+) |
| Total PoE Budget |
Up to 90W |
| Extend Mode |
Up to ~250m @ 10Mbps |
| Input Power |
53VDC |
| Lightning Protection |
Common Mode: 6kV / Differential Mode: 1kV |
| Warranty |
4 Years |
What’s in the Box
- 1× VIP Vision VSPOE-SWB8U unmanaged Gigabit PoE+ switch
- 53VDC power supply
Choose the VSPOE-SWB8U for high-speed Gigabit PoE+ switching with plenty of power and reliable uplinks.
