VIP Vision VSIPMPTZ-2G 2MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi - VSIPMPTZ-2G

VSIPMPTZ-2G
In Stock - Ready to Ship
$ 7,962.50
inc-GST
  • Stream ~ 2.0MP @ 50fps
  • 30x optical zoom lens
  • Auto tracking, 360° panning, -20° ~ 90° tilt adjustable
  • Low light colour performance at 0.004lx; 100m IR
  • 3G/4G, WiFi and wired networking options
  • Built-in GPS tracking
  • Anti-vibration for image stability
  • Built-in OLED with status display



VIP Vision Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi



VSIPMPTZ-2G



Featuring a powerful optical zoom, accurate pan/tilt/zoom performance and flexible network support including 3G/4G and WiFi, the VSIPMPTZ-2G is an all-in-one solution for capturing long-distance video surveillance in any setting.



Camera Features:



• Stream up to 2.0MP (1920 x 1080) at 50fps

• 30x optical zoom lens (61.2 ~ 2.4° viewing angles)

• Auto tracking, 360° panning, -20° ~ 90° tilt adjustable

• Low light colour performance at 0.004lx; 100m IR

• 3G/4G, WiFi and wired networking options

• Built-in GPS tracking

• Anti-vibration for image stability

• Built-in OLED with status display

• MicroSD slot for recording at the edge up to 128GB

• WDR, 2D/3D DNR; auto white balance; true day/night

• Soft magnetic composite base for flexible mounting

• Power via 24VDC (PSU included)

• IP66 weather resistant metal housing



VIP Vision VSIPMPPTZ-2G Datasheet (PDF)-1_1.jpgVIP Vision VSIPMPPTZ-2G Datasheet (PDF)-2_1.jpg

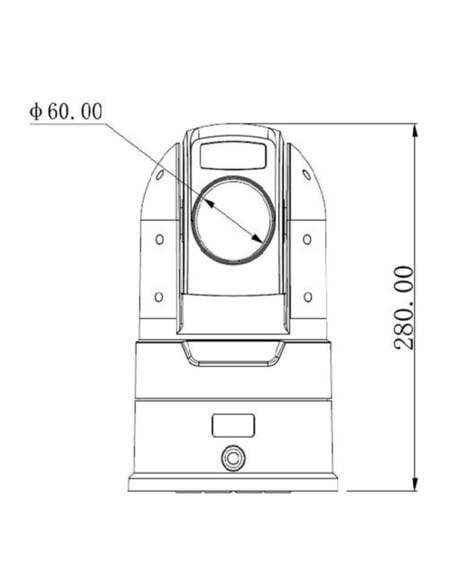

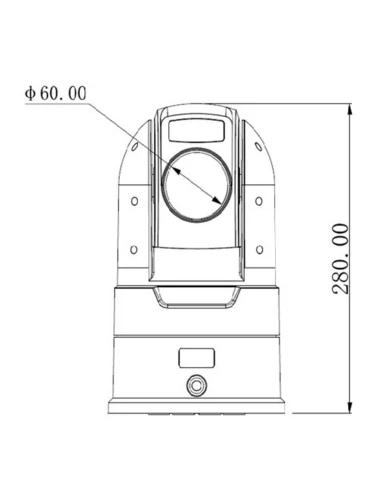

Dimensions
Ø171mm x 280mm
Ethernet
RJ-45 (10/100Base-T)
Housing
Metal
Net Weight
4.87kg
Operating Conditions
-20° ~ +55° C / Less than 90% RH
Power Supply
24VDC (6~36V)
Ingress Protection
IP66
Vandal Resistance
N/A
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Max. User Access
10 Users / 20 Users
Power Consumption
Video Compression
H.265 / H.264
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Series
Professional Series
Weather Resistance
Yes
Battery
10.05Ah / 109.45Wh (9 hours from full charge at lowest power consumption)
Focus
Auto/ Semiautomatic/ Manual
Interoperability
ONVIF / PSIA / CGI
Effective Pixels
1920 (H) x 1080 (V)
Image Sensor
1/1.9" 2.0MP CMOS
RS485
Yes
Alarm Interface
2 Inputs
Camera Type
PTZ Positioning
Max. Resolution
2.0 Megapixel
Field of View
Horizontal: 61.2° ~ 2.3° (30x Optical Zoom)
Lighting Compensation
BLC / HLC / WDR (120dB)
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°
Day/Night
Auto (ICR) / Color / B&W
Gain Control
Auto / Manual
Lens Type
Motorised Varifocal
Noise Reduction
2D/3D DNR
Tri-Axis Mounting
No
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Audio Interface
1 Input / Compression: PCM, G.711a, G.711u
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
ePoE
No
Infrared
Yes
Infrared System
4 x Infrared LED, 100m range, Auto/manual on/off control
Intelligent Functions
Motion Detection
IVS
No
Lens / Iris
6 ~ 180mm Motorised Lens
Min Illumination
0.004 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360°
Picture Control
Horizontal: 0° ~ 360° Vertical: -20° ~ 90°
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
RTMP Support
No
S/N Ratio
>54dB
Smart Scene Adaptive (SSA)
Yes
Streaming Method
Unicast / Multicast
Ultra Low Light Colour
Yes
Auto Tracking
Support
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
PTZ Speed
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
Start-up Action
Auto-restore to previous PTZ/lens status
Anti-Shake DSP
Support
External Interface
14-Core Aviation Connector (1: RJ45 Network Cable, 2: Φ5.5*2.1mm Power Port, 3: GPS Port, 4: RS232), 8-Core Aviation Connector (optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485)
