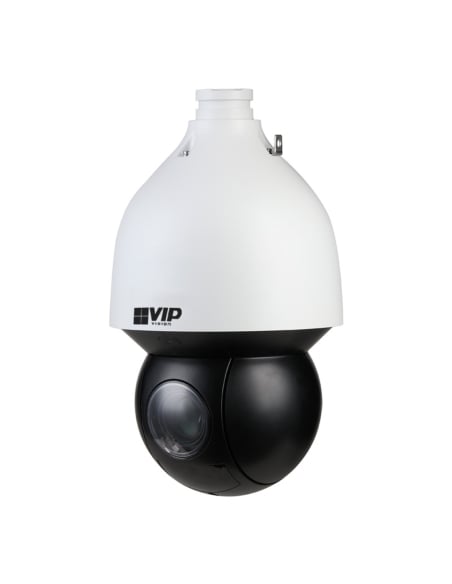

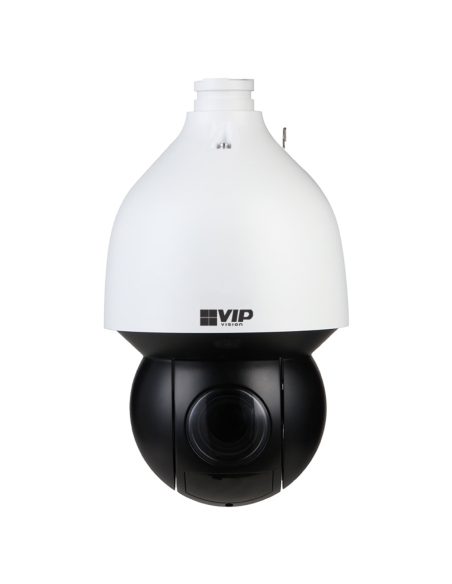

VIP Vision Professional AI Series PTZ 4MP VSIPPTZ-4IRP-I2

VIP Vision Professional AI Series 4.0MP 32x Zoom VSIPPTZ-4IRP-I2

VIP Vision Professional AI Series 4.0MP 32x Zoom PTZ Dome V2 - VSIPPTZ-4IRP-I2

Name: VIP Vision Professional AI Series 4.0MP 32x Zoom PTZ Dome V2 - VSIPPTZ-4IRP-I2
Brand: VIP Vision
SKU: VSIPPTZ-4IRP-I2
Price: 1117.5 AUD
Availability: InStock

Reference: VSIPPTZ-4IRP-I2

In Stock - Ready to Ship

$ 1,117.50

inc-GST

Stream up to 4.0MP (2560 x 1440) at 25fps
32x optical zoom lens (55.81° ~ 2.37° viewing angles)
Low light colour performance at 0.005lx; 150m infrared
Endless 360° panning and -15° ~ 90° tilt adjustable
MicroSD card slot for edge recording applications
Perimeter Protection to identify people & vehicles
Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms using any VIP Vision NVR
Power by PoE+ (802.3at) or 24VAC
IP67 weather-rated, lightweight dome housing

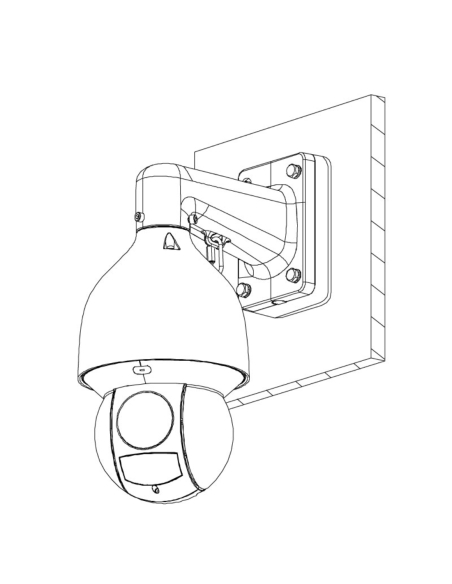

Includes wall mount bracket & 24VAC/3A PSU.

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

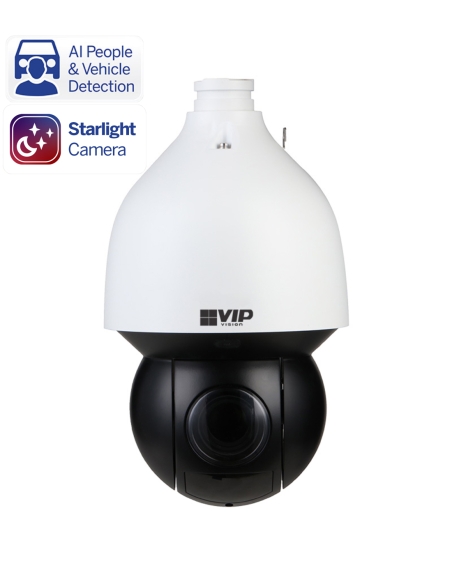

VIP Vision Professional AI Series 4.0MP 32x Zoom PTZ Dome v2

VSIPPTZ-4IRP-I2

The VSIPPTZ-4IRP-I2 offers a versatile surveillance experience, ensuring all areas are covered with up to 32x optical zoom, auto-tracking, and fast endless 360° panning. Experience impressive AI-powered video analytics and filter false alarms with AI face detection and AI Perimeter Protection technology, providing meaningful video event notifications in real-time.

Camera Features:

• Stream up to 4.0MP (2560 x 1440) at 25fps

• 32x optical zoom lens (55.81° ~ 2.37° viewing angles)

• Low light colour performance at 0.005lx; 150m infrared

• Endless 360° panning and -15° ~ 90° tilt adjustable

• MicroSD card slot for edge recording applications

• Perimeter Protection to identify people & vehicles

• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms using any VIP Vision NVR

• Power by PoE+ (802.3at) or 24VAC

• IP67 weather rated, lightweight dome housing

Includes wall mount bracket & 24VAC/3A PSU.

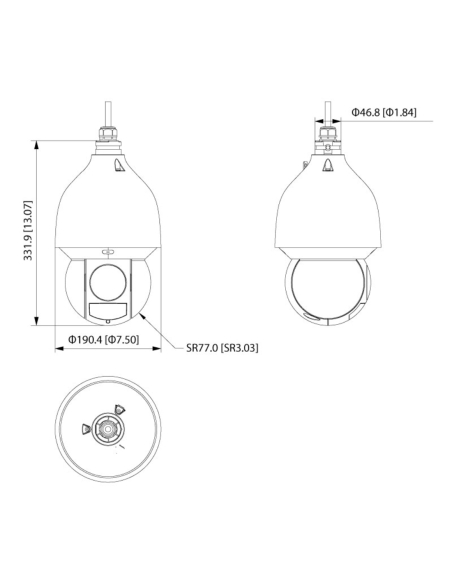

Dimensions: Ø190mm x 332mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal
Net Weight: 4.7kg
Operating Conditions: -40° ~ +70° C / Less than 95% RH
Power Supply: 24VAC/3A (±25%) / PoE+ (802.3at)
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.265/H.264: 3 kbps–20480 kbps
Frame Rate (Main): 4.0MP (1 ~25fps)
Frame Rate (Sub): D1(1 ~ 25fps)
Frame Rate (Third): 720p (1 ~ 25fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H /MJPEG
Resolution: 4.0MP (2560 x 1440) to CIF (352 x 288)
Series: Professional AI Series
Focus: Auto/Semi-Auto/Manual / 0.1m ~ 1.5m Min. Focus Distance
Interoperability: ONVIF Profile S&G&T; CGI
Effective Pixels: 2560 (H) x 1440 (V)
Image Sensor: 1/2.8’’ 4.0MP Starvis™ CMOS
RS485: N/A
Alarm Interface: 2 Inputs / 1 Output
Camera Type: PTZ
Max. Resolution: 4.0 Megapixel
Surge Protection: TVS 6000V Lightning Protection / Surge Protection
Field of View: 55.81° ~ 2.37° (H), 31.92° ~ 1.34° (V), 63.71° ~ 2.71° (D) (32x Optical Zoom)
Lighting Compensation: BLC / HLC / WDR (120dB)
Pan / Tilt Range: Pan: 0° ~ 360° (endless) / Tilt: -15° ~ 90° / Auto Flip 180°
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 2,124m
Gain Control: Auto / Manual
Identify (250px/m): 212m
Lens Type: Motorised Varifocal
Noise Reduction: 2D / 3D DNR
Observe (63px/m): 839m
Recognise (125px/m): 425m
White Balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
Audio Interface: 1 Input / 1 Output / Compression: G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: FTP; Micro SD card (256G); P2P
ePoE: N/A
Infrared System: 4 x Infrared LED, 150m range, Zoom Prio/Auto/Manual/Smart IR On/Off control
Lens / Iris: 4.8mm ~ 154mm F1.6~ F4.0 Motorised Lens
Min Illumination: 0.005 Lux/F1.6 (Colour), 0.0005 Lux/F1.6 (B/W)/, 0 Lux (IR Light On)
Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: -15° ~ 90°
Picture Control: Flip 0°/180°
Protocol: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
RAM / ROM: 1GB / 4GB
S/N Ratio: N/A
Smart Scene Adaptive (SSA): No
Streaming Method: Unicast / Multicast
Video Interface: N/A
Auto Tracking: Support
Modes / Presets: Up to 300 presets / 5 Pattern, 8 Tour, 5 scanning, Auto Pan, Auto Scan
PTZ Speed: Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
Start-up Action: Auto-restore to previous PTZ/lens status
Heat Map: N/A
Intelligent Search: Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
People Counting: N/A
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)
Digital Zoom: 16x
Event Triggers: Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Capture: N/A
Face Recognition: N/A
Image Stabilisation: Support
IVS Functions: Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Metadata: Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
Optical Defog: Support
Privacy Masking: Up to 24 areas, and up to 8 areas in the same view
Region of Interest: Support
SMD+: Filter motion detection alarms, recognises humans and vehicles from other moving objects
