Dahua TiOC WizSense Dual-LED 4MP+4MP x25 Zoom Auto Tracking IP PTZ Camera - DH-SDT4E425-4F-GB-A-PV1
Dahua DH-SDT4E425-4F-GB-A-PV1: a 4MP overview camera and a 4MP 25x PTZ in one housing. The overview spots a target and the PTZ tracks it, with warning lights and sound.
- ✓4MP 2.8 mm overview camera, 101° across
- ✓4MP 25x PTZ, 5–125 mm, identify to 250 m
- ✓PTZ IR 100 m and white light 50 m
- ✓Smart tracking, SMD 4.0, perimeter protection
- ✓Red-blue warning light and 11 alarm sounds
- ✓PoE+, IP66, wall bracket included
Description
Two 4MP cameras in one.
Wide overview plus a 25x PTZ that follows.

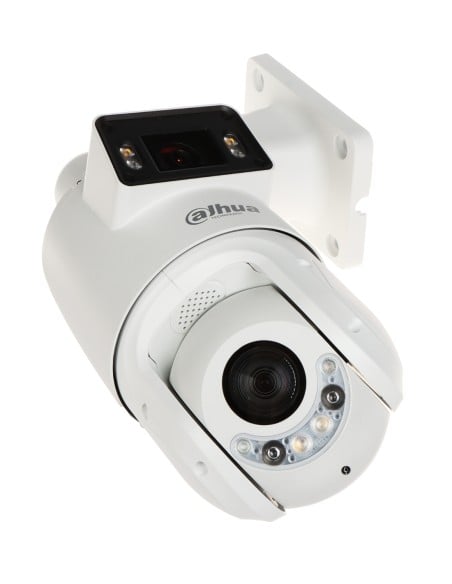

This is the DH-SDT4E425-4F-GB-A-PV1: a fixed 2.8 mm overview camera above a 25x zoom PTZ. When the overview camera sees a person or vehicle, the PTZ swings across and tracks them, with warning lights and a speaker to warn them off.
In one sentence: the DH-SDT4E425-4F-GB-A-PV1 is a Dahua X-Spans WizSense TiOC PTZ camera with a 4MP 2.8 mm overview camera and a 4MP 25x PTZ camera, smart tracking, Smart Dual Light+, red-blue light and sound deterrence, PoE+ and IP66.
Camera and wall bracket. Power adapter, recorder and cabling are separate.

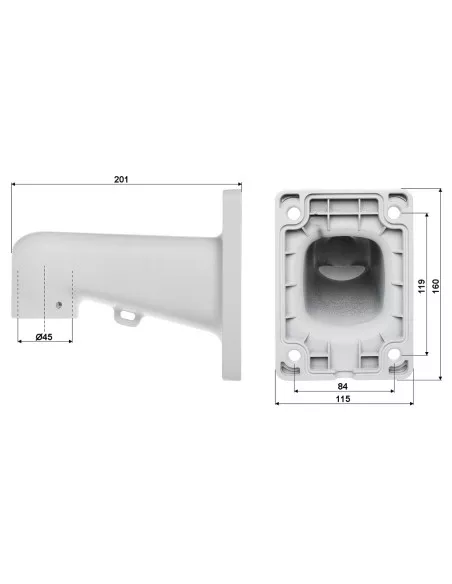

Dahua includes the PFB305W wall mount bracket. The 12 V DC 3 A power adapter is an optional extra, so plan on a PoE+ port or buy the adapter.
- DH-SDT4E425-4F-GB-A-PV1 dual-lens PTZ camera
- PFB305W wall mount bracket
- Cat5e or Cat6 cable to the camera
- An 802.3at (PoE+) switch or NVR port, or a 12 V DC 3 A adapter
- A Dahua AI NVR or other ONVIF recorder (two channels: overview and PTZ), or a microSD card up to 512 GB
- PFA150 for a pole or PFA151 for a corner, if the site needs one
Never lose the wide view while you zoom.
A normal PTZ sees only where it is pointing. Here the 2.8 mm overview camera keeps a 101° wide picture of the whole area, while the 25x PTZ below it zooms in. Perimeter rules on the overview camera can link to the PTZ, so it turns, zooms and follows the target on its own. Both cameras switch from black and white to colour together when someone walks in.

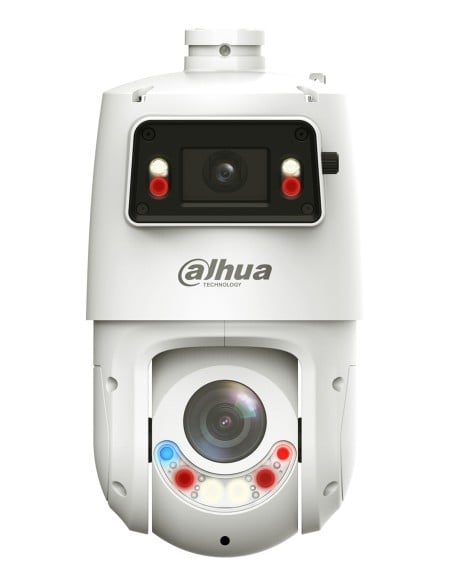

Two cameras
Overview on top, PTZ below.
Overview: 1/2.8" 4MP, 2.8 mm F1.0, 101° across, colour to 0.001 lux. PTZ: 1/2.8" 4MP STARVIS, 5–125 mm, 25x optical, 51.9° to 3.0° across, colour to 0.005 lux. Each streams 2560 × 1440 at up to 25/30 fps.
Night and deterrence
IR, white light and a warning.
PTZ: IR to 100 m and white light to 50 m. Overview: IR and white light to 30 m. Red-blue warning lights flash for 5 to 30 seconds, and the built-in speaker plays one of 11 alarm sounds or your own recording.
Mounting
Wall bracket in the box.

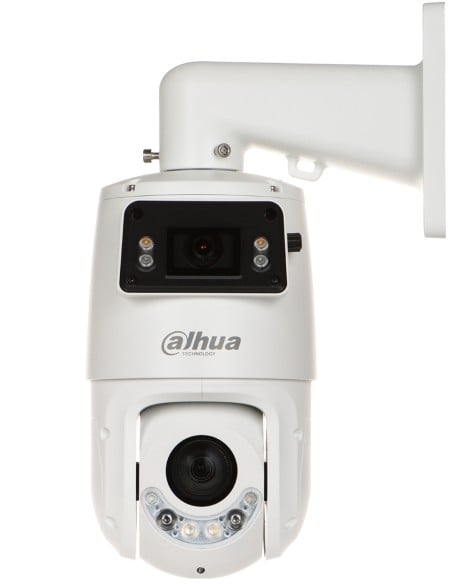

The PFB305W wall bracket is included. Add the PFA150 for a pole or the PFA151 for a corner. The camera measures 160 × 184.4 × 304.6 mm and weighs 3.41 kg.
How it goes in
From bracket to tracking.
01
Fix the bracket
Mount the included PFB305W on a solid wall, or add a pole or corner adaptor. Point the overview camera across the area you want watched.
02
Run the cable
Cat5e or Cat6 to an 802.3at (PoE+) port, or a 12 V DC 3 A adapter. Up to 25 W with lights, warning, PTZ and heater running.
03
Add both channels
Set the password, then add the camera to a Dahua NVR, DSS Pro or the DMSS app. The overview and PTZ cameras record as two channels.
04
Draw rules and link
Draw tripwire or intrusion rules on the overview camera and link them to the PTZ, then set the warning light and sound for each rule.
At a glance
DH-SDT4E425-4F-GB-A-PV1
Show specs
Overview camera
1/2.8" 4MP CMOS, 2.8 mm F1.0, H 101° V 53° D 120°
PTZ camera
1/2.8" 4MP STARVIS CMOS, 5–125 mm F1.6–F3.6, 25x optical, 16x digital
PTZ field of view
H 51.9°–3.0°; V 39.7°–2.2°
Resolution
Both cameras 2560 × 1440 at up to 25/30 fps
DORI (PTZ)
Detect 2,500 m; observe 987.5 m; recognise 500 m; identify 250 m
Low light
Overview colour 0.001 lux at F1.0; PTZ colour 0.005 lux at F1.6; 0 lux with lights on
Lighting
Overview: IR 30 m, white light 30 m. PTZ: IR 100 m, white light 50 m
Pan and tilt
PTZ pan 360° endless, tilt −15° to 90°, auto flip 180°; overview tilt 13° to 23°
PTZ speed
Manual pan to 200°/s, tilt to 120°/s; presets pan 240°/s, tilt 200°/s
PTZ functions
300 presets, 8 tours of 32 presets, 5 patterns, 5 scans, power-off memory
AI
Perimeter protection linked to the PTZ, auto tracking, SMD 4.0, Quick Pick, Smart Dual Light+
Active deterrence
Red-blue warning light, 5–30 s; 11 alarm sounds plus custom sounds
120 dB WDR, BLC, HLC, 2D and 3D noise reduction, EIS, electronic defog
Compression
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG on sub stream 1; 3 streams
Audio and alarm
1 line in; 1 line out or built-in speaker (one or the other); 2 alarm in, 1 alarm out
Storage
microSD up to 512 GB, FTP/SFTP, NAS
Network
RJ-45 10/100; ONVIF Profile S, G, T; up to 20 users
Power
12 V DC 3 A or PoE+ (802.3at); 12 W basic, 25 W max
Protection
IP66, TVS 6000 V lightning protection
Operating range
−40 °C to +65 °C, humidity 95% or less
Size and weight
160 × 184.4 × 304.6 mm (L × W × H), 3.41 kg
Software
DMSS, DSS Pro

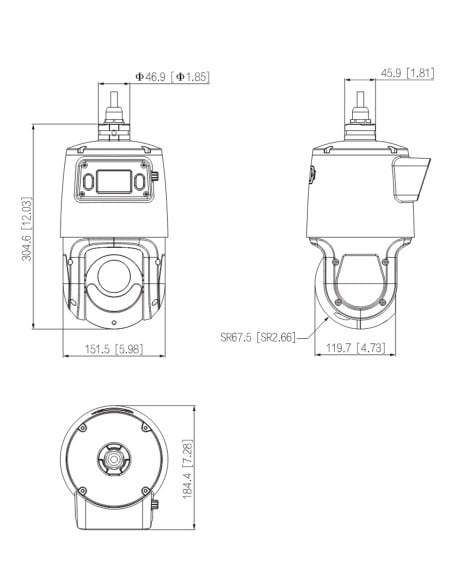

Units mm (inch). From Dahua's drawing for this model.
Pair it with
What this camera does not include
Power
A PoE+ port or 12 V adapter
No power adapter in the box. An 802.3at switch or NVR port powers it on one cable, or add Dahua's 12 V DC 3 A adapter.
Recorder
A Dahua AI NVR
Records both channels and makes Quick Pick search available. Any ONVIF Profile S, G or T recorder can also record it.
Mounting
Pole or corner parts
PFA150 pole mount or PFA151 corner mount with the included wall bracket. Dahua also lists PFB300C and PFB301C ceiling brackets with the PFA111 adaptor.
Where it is used
Where two cameras beat one.
Car parks
The overview keeps the whole lot in view while the PTZ follows a person or car.
Building sites
Warning lights and sound tell people to leave before anything goes missing.
Farms and sheds
Watch the yard and zoom on the gate, day or night.
Warehouse yards
Track movement around loading docks without losing the wide shot.
Depots and storage
Fence-climbing and intrusion rules start the tracking automatically.
Shopping centre edges
Cover entries and loading areas after hours from one mount.
Overview camera or PTZ camera
| Overview camera (top) | PTZ camera (bottom) | |
|---|---|---|
| Sensor | 1/2.8" 4MP CMOS | 1/2.8" 4MP STARVIS CMOS |
| Lens | 2.8 mm fixed, F1.0 | 5–125 mm, 25x optical, F1.6–F3.6 |
| View across | 101° | 51.9° to 3.0° |
| Movement | Tilt 13° to 23° | Pan 360° endless, tilt −15° to 90° |
| Colour in low light | 0.001 lux | 0.005 lux |
| IR | 30 m | 100 m |
| White light | 30 m | 50 m |
Both columns come from Dahua's DH-SDT4E425-4F-GB-A-PV1 datasheet (January 2025). The two cameras are in the same housing.
Common questions
What does dual lens mean here?
There are two 4MP cameras in one housing: a fixed 2.8 mm overview camera and a 25x zoom PTZ camera. Each records as its own channel.
How does the tracking work?
When a target enters the overview camera's view, the PTZ camera turns, zooms and focuses to follow it. Perimeter rules on the overview camera can link to the PTZ.
How far does the IR reach?
Up to 100 m on the PTZ camera and 30 m on the overview camera. The 100 m figure is for the PTZ camera only.
Does it have white light?
Yes. The PTZ camera's white light reaches 50 m and the overview camera's 30 m. Smart Dual Light+ switches both cameras to colour together when a target walks in.
What warning does it give?
Red-blue warning lights flashing for 5 to 30 seconds, and 11 alarm sounds through the built-in speaker. You can also import your own sound.
Is a power supply included?
No. Dahua lists the 12 V DC 3 A adapter as optional. The camera runs from an 802.3at (PoE+) port, drawing up to 25 W.
Is a bracket included?
Yes, the PFB305W wall mount bracket. Pole and corner mounting need the PFA150 or PFA151.
Can I talk through it?
It has a built-in speaker and a line-in for an external microphone. The speaker and the line-out cannot be used at the same time.
Can it be mounted outside?
Yes. It is rated IP66 with 6000 V lightning protection and runs from −40 °C to +65 °C. It has no IK impact rating listed.
Can it record without an NVR?
Yes, to a microSD card of up to 512 GB, FTP/SFTP or a NAS. Most sites use an NVR for longer storage.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G and T. The recorder must take two channels from it, and PTZ control and AI events depend on the recorder.
Who can install the cable?
Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Supported by InFront Technologies.
Help choosing the bracket, recorder or PoE switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE+ (802.3at) or a 12 V DC 3 A adapter, up to 25 W. There is no mains wiring in the camera. A new power point needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Working at height. At 3.41 kg plus the bracket, it needs a solid fixing and safe access equipment.
Neighbours. Flashing lights and alarm sounds can disturb nearby homes. Set the rules and schedules so they only fire when the site is closed.
What it does not do. No power adapter in the box, no IK impact rating and no Wi-Fi.
Figures. From Dahua's DH-SDT4E425-4F-GB-A-PV1 datasheet (January 2025).
