Dahua 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera - DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK
Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK: a black TiOC Duo bullet that splices two 4 MP lenses into one 180° image, with warm light, SMD 4.0, two-way audio and red-and-blue deterrence.
- ✓180° × 86° view, 4096 × 1860 at 20 fps
- ✓IR to 25 m, warm light to 20 m
- ✓SMD 4.0, human and vehicle tripwire and intrusion
- ✓Red and blue lights, siren and two-way talk
- ✓IP67 metal bullet, PoE 802.3af or 12 VDC
- ✓microSD up to 512 GB
Description

180° from one bullet.
Two 4 MP lenses, one stitched view.

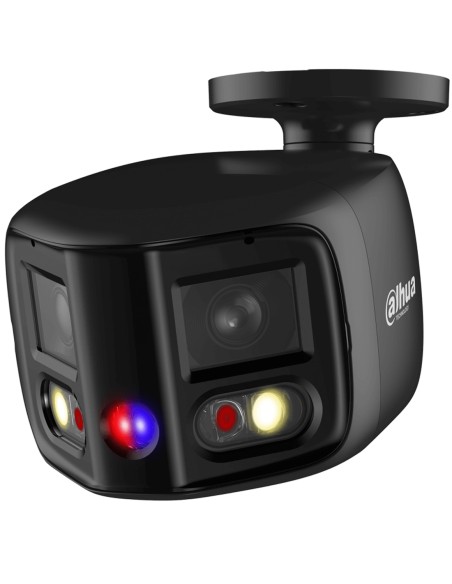

The DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK is a black Dahua WizSense 3 TiOC bullet that splices two 2.8 mm lenses into one 180° image of up to 4096 × 1860, with IR and warm light, two-way audio and red-and-blue deterrence lights.
In one sentence: the DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK is a Dahua WizSense 3 TiOC bullet in black that splices two 4 MP lenses into one 180° image (4096 × 1860), with 25 m IR, 20 m warm light, SMD 4.0, two-way audio, siren and light deterrence and 802.3af PoE.
Camera only. Recorder and cabling are separate.
This listing is one camera. It needs a PoE port for power and somewhere to store the footage.
- DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK bullet camera (black)
- A PoE NVR, or an 802.3af PoE switch (allow 10.3 W per camera)
- Cat5e or Cat6 cable to the camera
- A recorder, NAS or microSD card (up to 512 GB) for the footage
- Optional: Dahua PFA130-E junction box to cover the cable joins
One camera instead of two.
Two 1/2.7" sensors behind 2.8 mm F1.4 lenses are spliced into one picture 180° across and 86° high. A driveway, shopfront or yard that would usually need two cameras is covered from one mount, on one cable.

Front

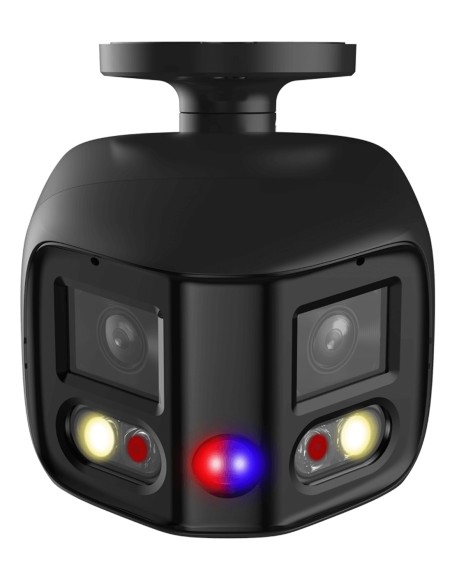

Two lenses. One 180° image.
Each 2.8 mm F1.4 lens covers half of the scene, and the camera splices them into one 4096 × 1860 image at up to 20 fps, 180° across and 86° high. DORI distances: detect 50.6 m, observe 20.2 m, recognise 10.1 m, identify 5.1 m.

Lights and deterrence
IR, warm light and red-and-blue warning lights.
Two IR LEDs reach 25 m and two warm lights reach 20 m. With Smart Dual Light the IR runs at night, and when a person or vehicle walks in the warm light comes on for a colour recording, then goes off again. The red and blue lights and the built-in speaker (110 dB at 10 cm) warn intruders off.

Housing
Metal, IP67, −40 °C to 60 °C.

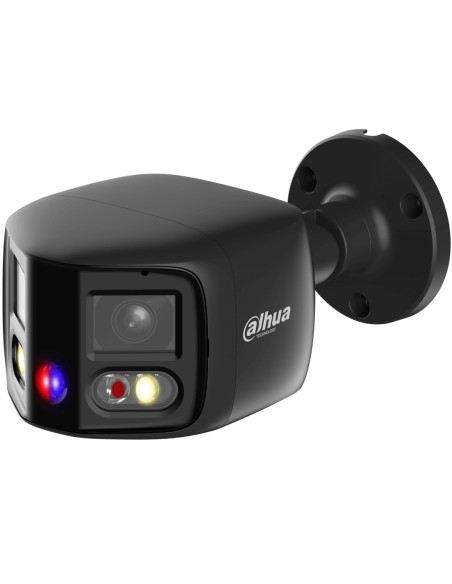

Metal bullet, 183.1 × 99.0 × 78.0 mm and 695 g. Pan 0–360°, tilt 0–77° and rotate 0–360° to set the view level. Wide-voltage 12 VDC input (±30%) or 802.3af PoE.
How it goes in
From cable to first alert.
01
Run one cable
Cat5e or Cat6 from the camera to a PoE NVR or an 802.3af switch. Allow up to 10.3 W per camera. 12 VDC also works.
02
Fix it in place
A Ø70.1 mm bracket base with Ø4.5 mm screw holes. Fix it to a wall, or use the PFA130-E junction box or PFA157 pole mount. Tilt and rotate until the 180° view sits level.
03
Add it to the recorder
Set the password in a browser or DMSS, then add it to a Dahua NVR, Smart PSS Lite or DSS. It also supports ONVIF Profile S, G and T.
04
Set rules and deterrence
Draw tripwire or intrusion zones, tick human, vehicle or both, then choose whether the lights or the speaker go off. One-tap disarming turns the alerts off when you are home.
At a glance
DH-IPC-PFW3849S-A180-AS-PV-ANZ-BLK
Show specs
Resolution
4096 × 1860 (8 MP) spliced, up to 20 fps
Field of view
180° horizontal, 86° vertical
Image sensor
Dual 1/2.7" progressive CMOS
Lens
Two fixed 2.8 mm, F1.4, M12; close focus 0.8 m
DORI
Detect 50.6 m, observe 20.2 m, recognise 10.1 m, identify 5.1 m
Low light
Colour 0.005 lux, B/W 0.0005 lux at F1.4; 0 lux with illuminator
Illumination
2 IR LEDs up to 25 m; 2 warm lights up to 20 m; Smart Dual Light
120 dB WDR, BLC, HLC, 3D NR, defog, 4 RoI areas, 4 privacy masks
Streams
Main 4096 × 1860, sub 1200 × 530, third 1920 × 860, each up to 20 fps
Compression
H.265, H.264, H.264H, H.264B, MJPEG (sub stream); AI H.265/H.264, Smart H.265+/H.264+
Bit rate
6 kbps to 16384 kbps
AI
SMD 4.0; intrusion and tripwire with human and vehicle classification; stay and loitering detection
With a Dahua NVR
Quick Pick (AI NVR), smart search, EPTZ tracking of alarm targets
Active deterrence
Red and blue lights plus sound alarm; built-in voices and custom voice import
Audio
Built-in dual mic and speaker (2 W, 110 dB at 10 cm), two-way talk; 1 in, 1 out (RCA)
Alarm
1 in (wet contact, 5 mA 3–5 VDC), 1 out (wet contact, 300 mA 12 VDC)
Storage
microSD up to 512 GB; FTP, SFTP, NAS
Network
RJ-45 10/100 Base-T; 20 users (64 Mbps total)
Interoperability
ONVIF Profile S, G, T; CGI
Power
12 VDC (±30%) or PoE 802.3af
Power draw
Basic 3.8 W PoE (3.4 W 12 VDC); max 10.3 W PoE (9 W 12 VDC)
Protection
IP67, metal housing
Operating range
−40 °C to 60 °C, humidity 95% or less
Size and weight
183.1 × 99.0 × 78.0 mm, 695 g net (870 g boxed)
Colour
Black
Software
Smart PSS Lite, DSS, DMSS (iOS and Android)

183.1 mm long including the bracket, 99.0 mm wide, 78.0 mm high. Bracket base Ø70.1 mm. Units mm (inch).
Pair it with
What this camera does not include
Recorder
A Dahua AI NVR
Records the camera on one cable each. An AI NVR adds Quick Pick to find people and vehicles in SMD events.
Power
An 802.3af PoE switch
If the recorder has no PoE ports. Allow up to 10.3 W per camera with lights and deterrence running.
Mounting
Dahua PFA130-E junction box
Covers the cable joins behind the bullet. Dahua also lists the PFA157 pole mount.
Storage
A microSD card
Optional, up to 512 GB, for recording in the camera or as a backup when the network drops.
Where it is used
Where a 180° bullet fits.
Driveways and front yards
Gate, driveway and front door in one view, with warm light for colour at night.
Shopfronts
Footpath, doors and windows from one mount, with lights and a siren to warn after hours.
Warehouses and yards
Roller doors and loading areas across a 180° arc, with human and vehicle filtering.
Car parks
A row of bays from the building wall, with tripwire and intrusion rules on the entry.
Farm sheds and gates
Metal IP67 housing rated −40 °C to 60 °C for exposed sheds and gateways.
Schools and clubs
Courtyards, car parks and entries where two cameras would leave a gap in the middle.
PFW3849S bullet or PDW3849 eyeball
| PFW3849S bullet (this camera) | PDW3849 eyeball | |
|---|---|---|
| Housing | Metal bullet | Metal eyeball |
| Size | 183.1 × 99.0 × 78.0 mm | Ø122 × 135.2 mm |
| Net weight | 695 g | 990 g |
| Power draw on PoE | 3.8 W basic, 10.3 W max | 4.95 W basic, 10.85 W max |
| Dahua junction box | PFA130-E | PFA137 |
| Image and view | 4096 × 1860, 180° × 86° | 4096 × 1860, 180° × 86° |
| Lights | 25 m IR, 20 m warm light | 25 m IR, 20 m warm light |
Figures from Dahua's DH-IPC-PFW3849S-A180-AS-PV and DH-IPC-PDW3849-A180-AS-PV datasheets. Sensors, lenses, lights, AI, audio and deterrence are the same; the housing, size and power draw differ.
Common questions
Is the picture really 180 degrees?
Yes. Two 2.8 mm lenses are spliced inside the camera into one image 180° across and 86° high, so you get one wide view instead of two separate ones.
What resolution does it record?
Up to 4096 × 1860 (8 MP) at 20 fps on the main stream. The sub stream is 1200 × 530 and the third stream is 1920 × 860.
Is a recorder included?
No. This listing is the camera only. It records to a Dahua NVR, a NAS, an FTP server or a microSD card of up to 512 GB.
How is it powered?
By 802.3af PoE, or 12 VDC (±30%) from a supply bought separately. It draws 3.8 W on PoE at basic load and up to 10.3 W with warm light, deterrence and AI running.
How far does it see at night?
The IR reaches 25 m and the warm light 20 m. In colour it works down to 0.005 lux at F1.4, and with the illuminators on it records at 0 lux.
What does the AI detect?
SMD 4.0 sorts people and vehicles from other movement. Intrusion and tripwire rules classify human and vehicle, and stay and loitering detection are built in.
What does the active deterrence do?
When a rule trips, the red and blue lights flash and the speaker plays an alarm sound or voice. Dahua includes several voices and you can import your own.
Can I talk through the camera?
Yes. Built-in dual microphones and a speaker support two-way talk. There is also one RCA audio input and one audio output.
Can it record without an NVR?
Yes. It records to a microSD card of up to 512 GB, or to a NAS, FTP or SFTP server.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. Quick Pick needs a Dahua AI NVR, and Dahua lists Smart PSS Lite, DSS and DMSS as its software.
Can it be mounted outside?
Yes. It is IP67 with a metal housing and runs from −40 °C to 60 °C at up to 95% humidity.
Is the black version different inside?
No. It is the same Dahua DH-IPC-PFW3849S-A180-AS-PV with the same lenses, lights, AI and audio, in a black housing.
Supported by InFront Technologies.
Help choosing the recorder, PoE switch or mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE (802.3af, up to 10.3 W) or 12 VDC (up to 9 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio and sirens. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphones on. Point the siren and lights so they do not disturb neighbours.
What it does not do. No optical zoom, no Wi-Fi, and the network port is 10/100 Mbps. It is not a recorder on its own beyond the microSD slot.
Figures. From Dahua's DH-IPC-PFW3849S-A180-AS-PV datasheet.
