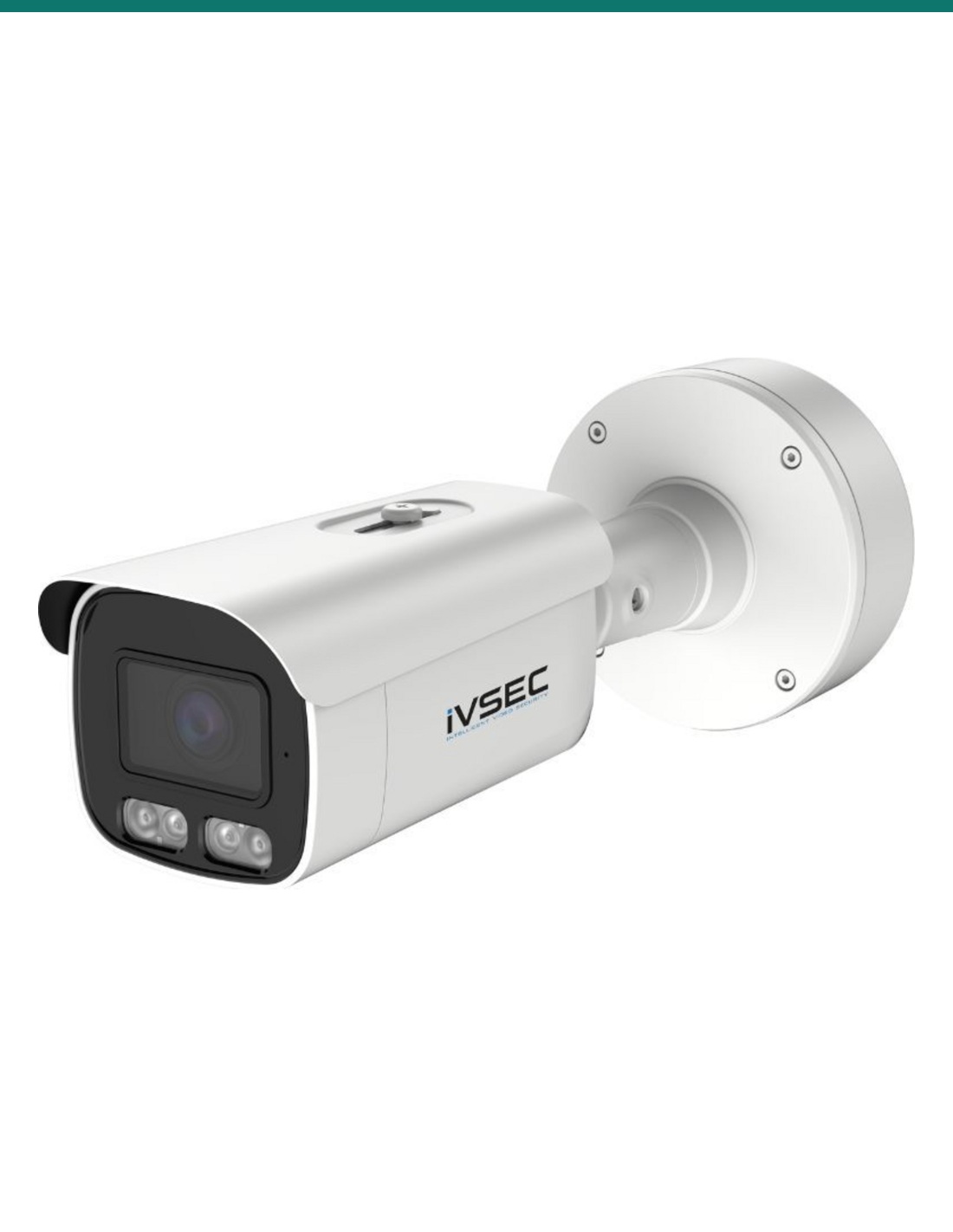

IVSEC IVNC529XA 8MP LPR bullet camera with 8-32 mm motorised lens, front view

IVSEC NC529XA bullet camera from below, lens and light windows

IVSEC NC529XA side view with underside grille and wall bracket

IVSEC NC529XA rear view with round wall base

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 5

IVSEC 8MP Motorised Bullet IP Camera 8–32mm 100m IR LPR — IVNC529XA

Name: IVSEC 8MP Motorised Bullet IP Camera 8–32mm 100m IR LPR — IVNC529XA
Brand: IVSEC
SKU: IVNC529XA
Price: 885 AUD
Availability: InStock

SKU IVNC529XA In Stock - Ready to Ship

$885.00 inc GST

IVSEC IVNC529XA: an 8MP bullet camera with a motorised 8–32 mm lens and on-camera licence plate recognition that can pass plates to a gate controller over Wiegand or HTTP.

✓8MP, 3840 × 2160 at 25 fps
✓8–32 mm motorised zoom, 40° to 14°
✓Plate recognition under 120 km/h, Wiegand and HTTP out
✓IR to 80 m plus warm white light
✓Built-in microphone and speaker
✓IP67 and IK10, PoE 802.3af or 12 V DC

IVSEC · 8MP Bullet · Licence Plate Recognition

8 to 32 mm zoom. Plates read on the camera.
Wiegand and HTTP out to your gate.

The IVSEC NC529XA is an 8MP bullet camera with a motorised 8 to 32 mm lens for long views, on-camera licence plate recognition for vehicles under 120 km/h, a built-in microphone and speaker, and an IP67, IK10 housing.

In one sentence: the IVSEC IVNC529XA is a wired 8MP PoE bullet camera with a motorised 8–32 mm lens (14° to 40° view), licence plate recognition under 120 km/h with Wiegand and HTTP output, IR to 80 m and an IP67, IK10 housing.

Camera only. Recorder, cable and gate controller are separate.

This listing is one bullet camera. It needs a network cable back to a PoE port, and a recorder or VMS to keep the footage. To open a gate from a plate it also needs an access controller that takes Wiegand or HTTP.

In the box

NC529XA bullet camera
Printed quick user guide
Installation template
Mounting screws and plugs

You also need

An IVSEC NVR, or another ONVIF Profile S, G, T or M recorder or VMS
Cat5e or Cat6 cable to the camera
A PoE (802.3af) port or switch, or a 12 V DC supply
An access controller with a Wiegand or HTTP input, if it will open a gate
IV2422X junction box if you want the cable tail hidden

One camera for the driveway: record it and read the plate.

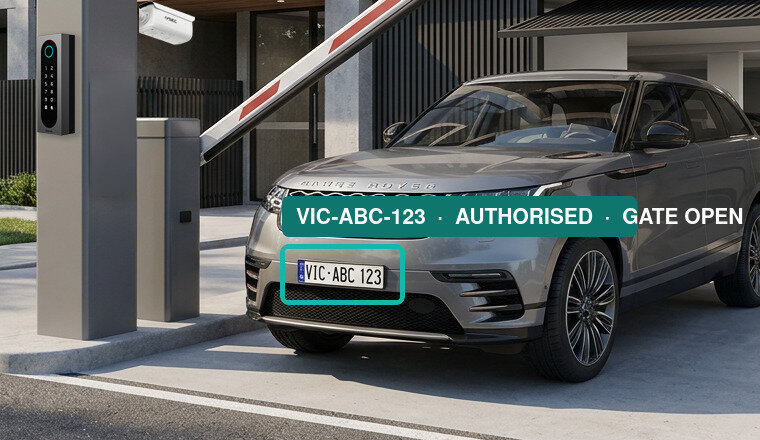

The 8 to 32 mm motorised lens narrows the view to 14° so a plate fills the frame at the gate, and you set the zoom and focus from the recorder, not a ladder. The camera reads the plate itself and can pass it to an access controller over Wiegand or HTTP, while it records 8MP video of every vehicle.

IVSEC NC529XA bullet camera seen from below, sun hood, lens window and light windows

Lens and lights

8–32 mm motorised zoom.

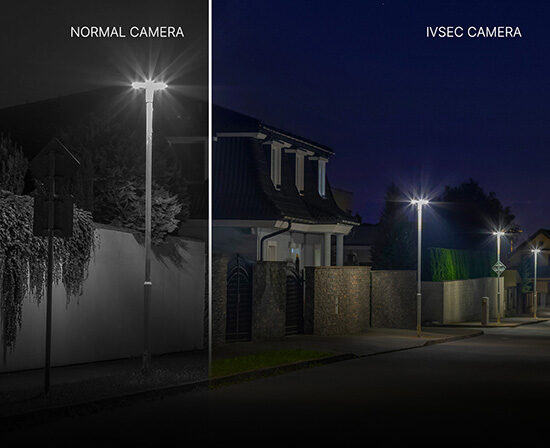

3840 × 2160 at 25 fps. The motorised lens covers 40° at the wide end down to 14° at full zoom. Warm white light and IR sit beside the lens; IVSEC rates the IR to 80 m, and day and night switching is automatic.

Underside

Speaker, microphone and microSD.

IVSEC lists a built-in microphone and speaker, so you can listen and talk at the gate. There is a microSD / SDHC slot for recording in the camera, plus audio, alarm, RS-485 and Wiegand connections.

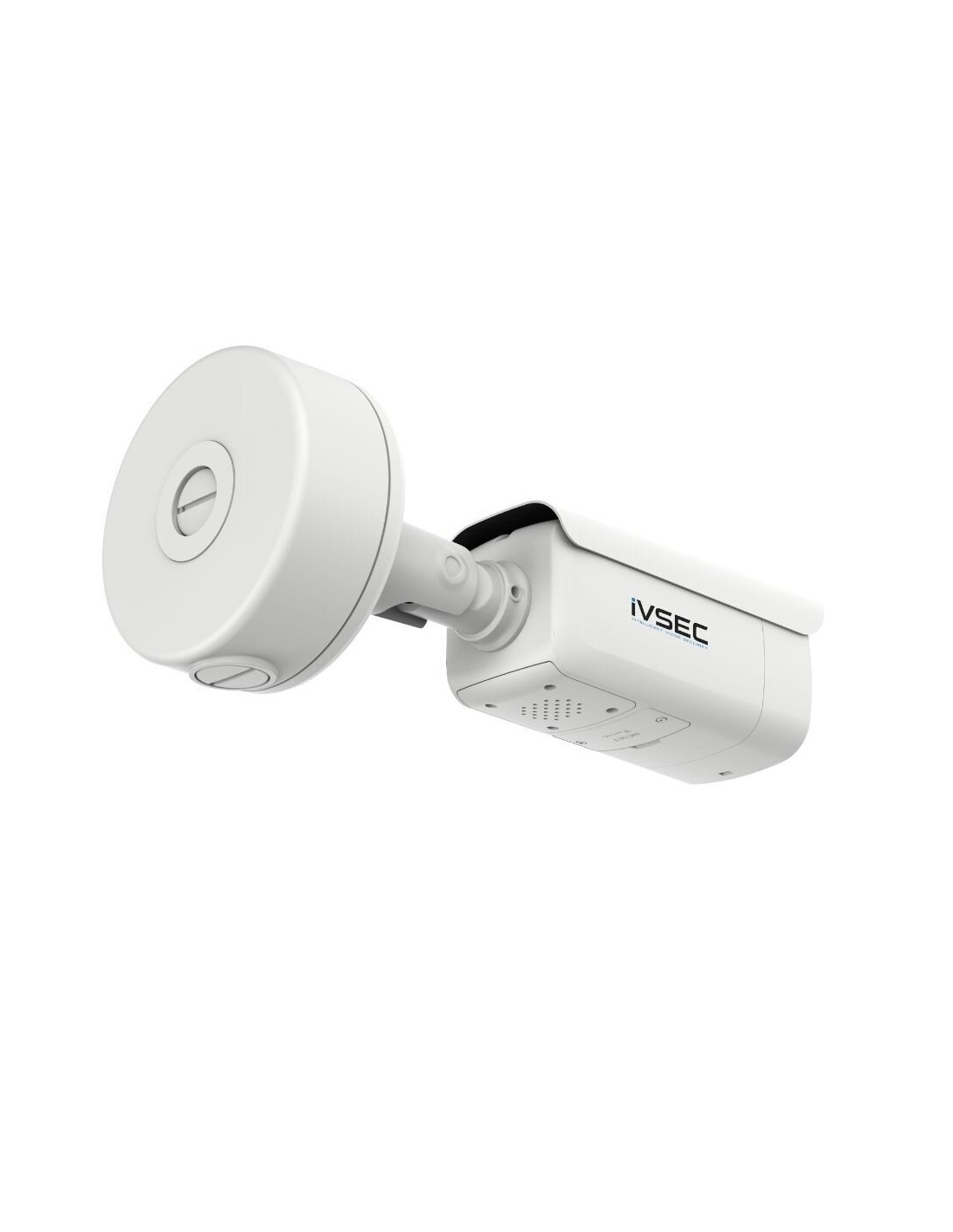

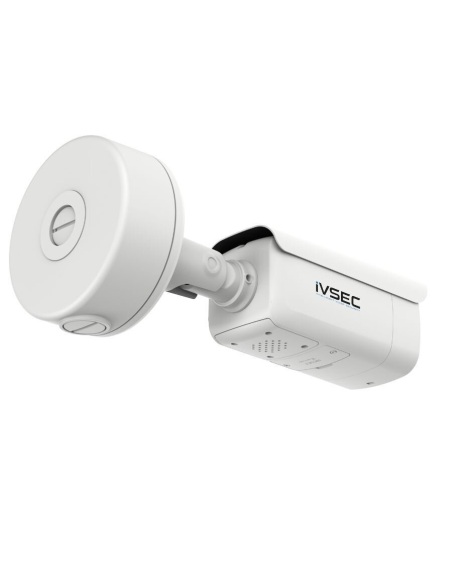

IVSEC NC529XA from behind, showing the round wall base and bracket arm

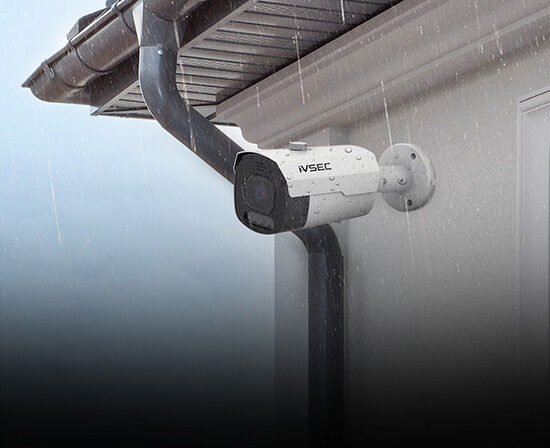

Housing

IP67 and IK10.

135 × 135 × 354 mm and 1.5 kg, rated IP67 for weather and IK10 for impact, from −35 °C to 60 °C. IVSEC lists the IV2422X junction box as its accessory for a neat cable entry.

How it goes in

From the wall to reading plates.

Pick the spot

Mount it so it looks along the lane at the gate, not straight across it, with the plate in view as vehicles slow. Use the installation template to mark the holes.

Run the cable

Run Cat5e or Cat6 to a PoE (802.3af) port on the recorder or a switch, or use a 12 V DC supply. Add the IV2422X junction box to hide the tail.

Add it to the recorder

Find it with IVSEC's Device Search / Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.

Zoom, focus and set the plate list

Zoom the motorised lens onto the lane, switch on plate recognition and, if a gate is to open, connect the Wiegand or HTTP output to your access controller.

At a glance

IVNC529XA

Show specs

Resolution

8MP, 3840 × 2160, up to 25 fps

Lens

8–32 mm motorised zoom, 40° to 14° horizontal

Image sensor

1/2.8" progressive CMOS in the spec table (the overview says 1/1.8")

Night vision

IR up to 80 m, warm white light, auto day/night

Licence plates

Plate detection and recognition for vehicles under 120 km/h; output over HTTP or Wiegand

Video analytics

Face recognition, human and vehicle detection, line crossing, perimeter intrusion, cross counting, crowd density, queue length, heat map, stationary object, rare sound

Audio

Built-in microphone and speaker, plus audio in and out

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Storage

microSD / SDHC card slot

Network

RJ45 10/100 Mbps; ONVIF Profile S/G/T/M (firmware 21.12 or later), HTTP API

Connectors

RJ45, DC power, analog video out, audio in and out, 2 alarm in or out, RS-485, Wiegand, reset button

Power

PoE (IEEE 802.3af) or 12 V DC, under 13 W

Protection

IP67 weatherproof, IK10 vandal resistant

Size and weight

135 × 135 × 354 mm, 1.5 kg

Operating range

−35 °C to 60 °C, humidity 90% or less

Software

Device Search / Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app (QR code)

Warranty

3 years

Pair it with

What this camera does not include

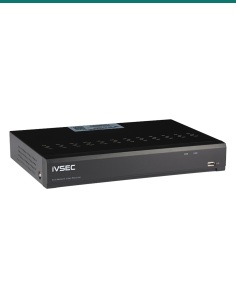

Recorder

An IVSEC NVR

Records the 8MP stream and lets you zoom and focus the lens. Any ONVIF Profile S, G, T or M recorder can also be used.

Gate

An access controller

To open a boom gate, roller door or sliding gate from a plate, the controller needs a Wiegand or HTTP input. Ask us what suits your gate.

Mounting

IV2422X junction box

IVSEC's listed accessory for this camera: a conduit box behind the base that houses the cable tail.

Power

A PoE port or switch

One 802.3af PoE port per camera, or a 12 V DC supply. The camera draws under 13 W.

Where it is used

Where a plate-reading bullet earns its place.

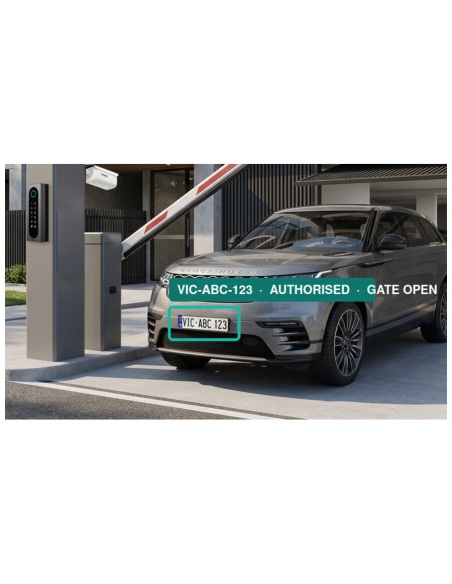

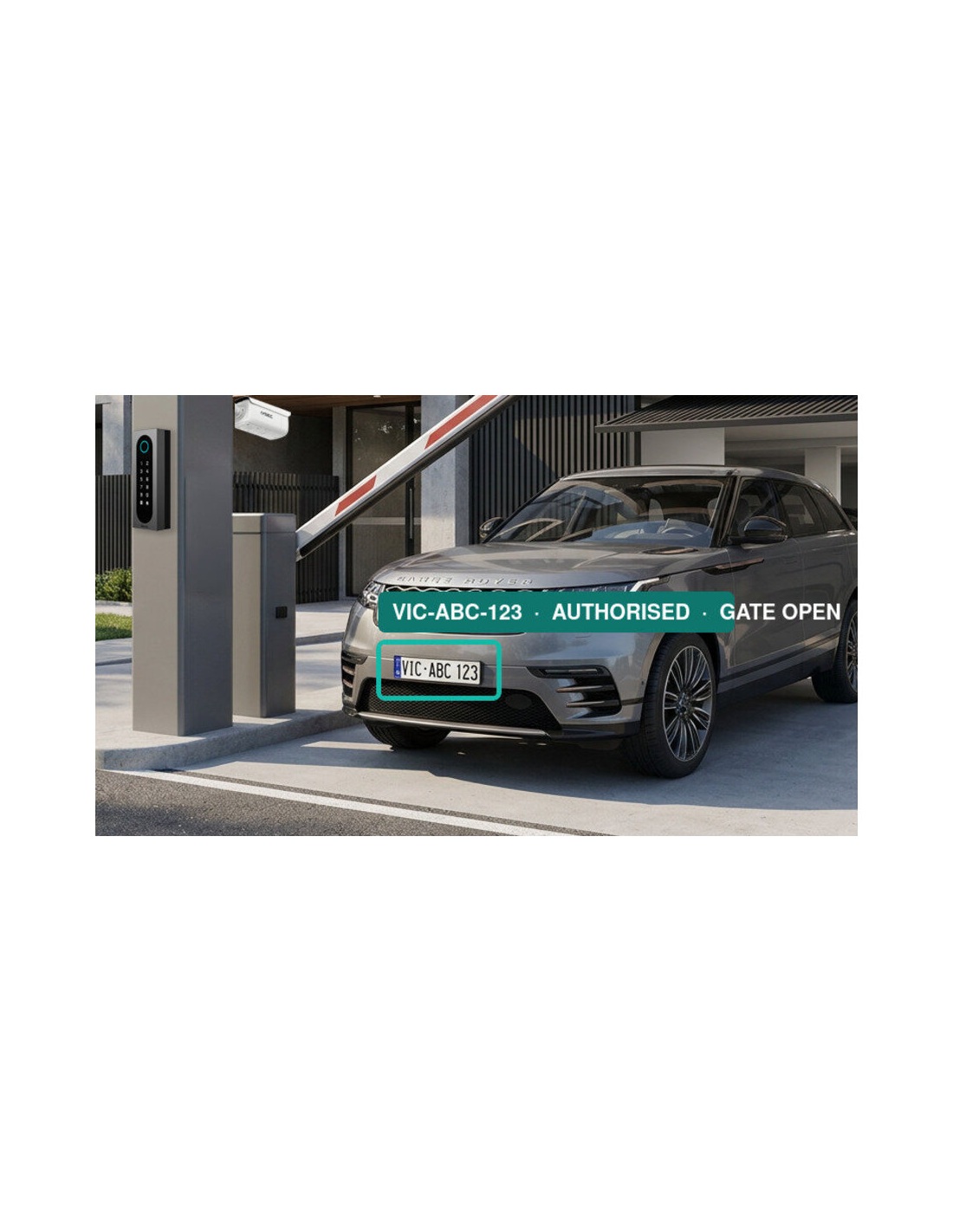

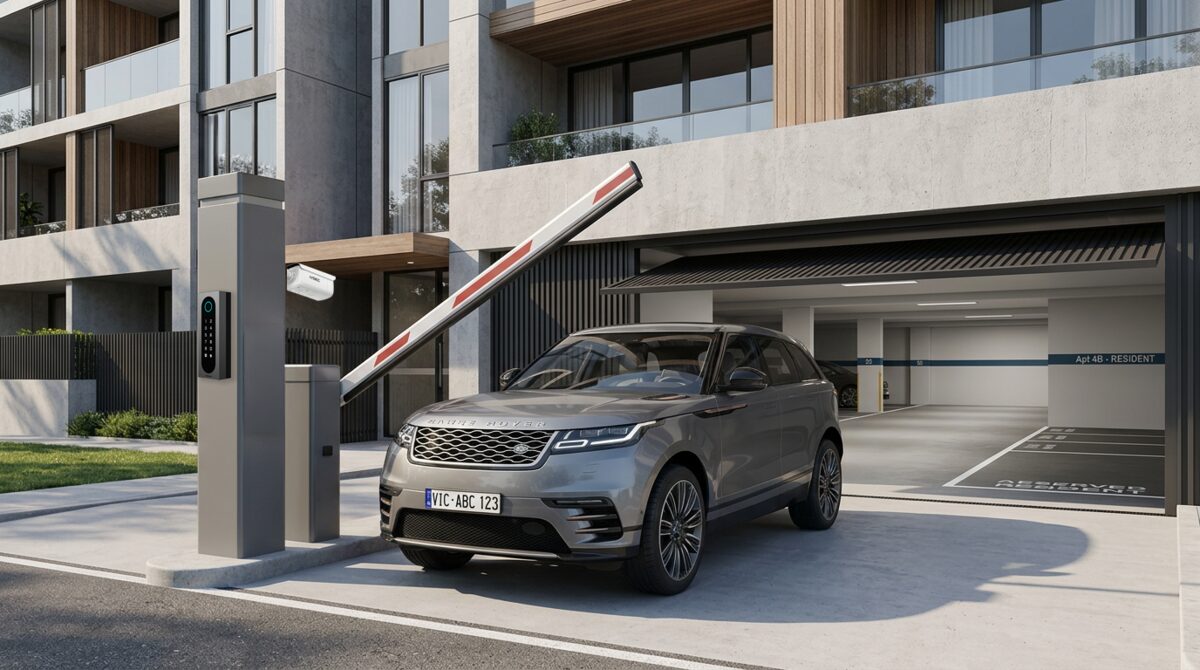

Apartment and strata car parks

Read residents' plates at the boom gate and pass them to the access controller.

Business entrances

Log every vehicle in and out of the yard, with an 8MP record of each one.

Gated homes and acreage

A long driveway or gate, zoomed in with the 8–32 mm lens.

Depots and warehouses

Trucks at the gatehouse and loading lanes, day and night with IR to 80 m.

Schools and clubs

Staff car parks and service gates, with alerts for vehicles out of hours.

Long fences and laneways

A narrow 14° view to watch a long boundary from one end.

IVNC529XA or IVNC531XB

	IVNC529XA (this camera)	IVNC531XB
Lens	8–32 mm motorised, 40° to 14°	2.8–12 mm motorised, 111° to 33°
Licence plates	Detection and recognition, under 120 km/h	Plate detection listed
Access control output	Wiegand and HTTP	Not listed
Night vision	IR to 80 m, warm white light	IR to 45 m
Audio	Built-in microphone and speaker	Input for an external microphone
Power	PoE 802.3af or 12 V DC, under 13 W	PoE 802.3af or 12 V DC, under 9 W
Weight	1.5 kg	0.87 kg

Figures from IVSEC's NC529XA datasheet (updated 12 October 2026) and NC531XB datasheet (updated 19 October 2026). Both are 8MP motorised bullets; the NC529XA is the long-range plate reader, the NC531XB the wider general-purpose camera.

Common questions

Does it read number plates by itself?

Yes. Plate detection and recognition run on the camera for vehicles under 120 km/h, so no separate recognition server is needed.

Can it open a gate?

Yes, through an access controller. The camera sends the plate over Wiegand or HTTP, and the controller decides whether to open the boom gate, roller door or sliding gate.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G, T or M recorder or VMS, or a microSD card in the camera.

How far can it zoom?

The motorised lens runs from 8 mm to 32 mm, narrowing the view from 40° across to 14°. Zoom and focus are set remotely.

How far does it see at night?

IVSEC rates the IR to 80 m. It also has a warm white light, and day and night switching is automatic.

How is it powered?

Over the network cable from an 802.3af PoE port or switch, or from a 12 V DC supply. It draws under 13 W.

Does it record sound?

Yes. IVSEC lists a built-in microphone and speaker, plus audio in and out connectors. Check your state's surveillance laws before recording audio.

What size is the image sensor?

IVSEC's spec table says 1/2.8" progressive CMOS, while its overview text says 1/1.8". Confirm with us if the sensor size matters for your job.

Can it be mounted outside?

Yes. It is rated IP67 against weather and IK10 against impact, and runs from −35 °C to 60 °C.

What other analytics does it have?

Face recognition, human and vehicle detection, line crossing, perimeter intrusion, cross counting, crowd density, queue length, heat map, stationary object and rare sound detection.

What is the difference from the NC531XB?

The NC529XA has a longer 8–32 mm lens, plate recognition with Wiegand and HTTP output, IR to 80 m and a built-in speaker. The NC531XB has a wider 2.8–12 mm lens and IR to 45 m.

What warranty does it have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help planning the camera position for plate reading, or matching it to a gate controller: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs from PoE or 12 V DC, under 13 W. There is no mains wiring in the camera. A new power point needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Gate motor wiring is for a licensed electrician or gate technician.

Audio and privacy. Recording people, conversations and vehicles is covered by state and territory surveillance and privacy laws. Use signage and check the rules before you switch on audio.

What it does not do. No Wi-Fi, no battery and no 4G. It does not open a gate by itself: it needs an access controller.

Figures. From IVSEC's NC529XA datasheet, updated 12 October 2026.

Power Supply: PoE IEEE 802.3af / DC 12V
Audio: Built-in microphone & speaker, audio in/out
Operating temperature: -35°C to +60°C
Frame Rate (Main): 25fps @ 8MP
Maximum Resolution: 8
Power Consumption: 13 W (max)
Video Resolution: 3840 x 2160
Image Sensor: 1/2.8″ Progressive CMOS
Lens: 8 – 32 mm (H.FOV: 14 to 40°)
Camera Type: Bullet
Day/Night: Auto
Lens Type: Motorised Zoom
Edge Storage: microSD/SDHC card
LED: Warm White & IR
Image Enhancement: Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
ONVIF: Profile S/G/T/M (firmware 21.12+), HTTP API
Warranty: 3 years
IK Rating: IK10
IR Distance: 80
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
IP Rating: IP67
Smart Analytics: LPR (to 120km/h), Face Recognition, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing
