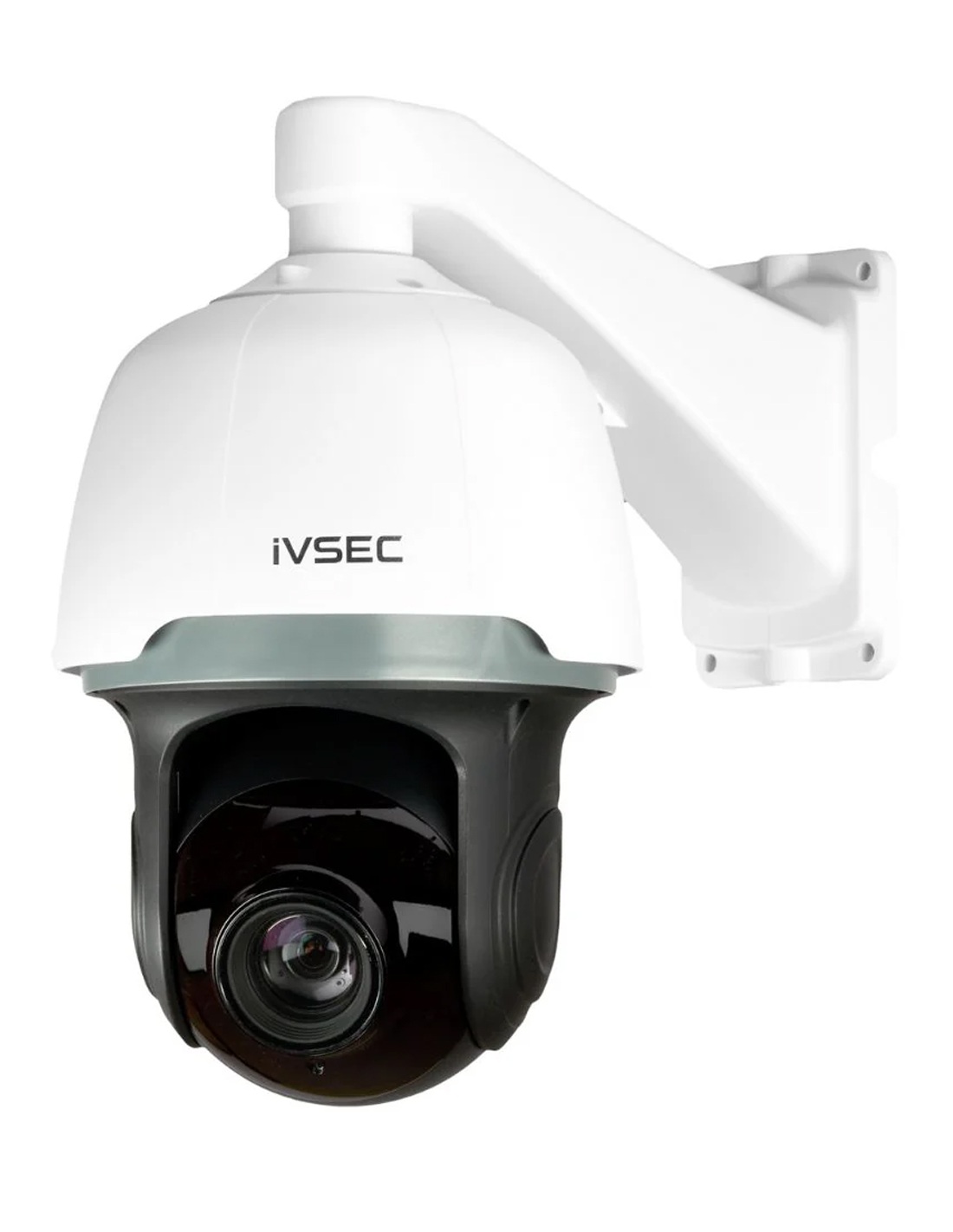

• NC692XA PTZ camera
• Printed quick user guide
• Installation template
• Mounting bracket screws and plugs

• An IVSEC NVR or another ONVIF Profile S, G or T recorder
• Cat5e or Cat6 cable to the camera
• A PoE+ (IEEE 802.3at) port or a 12 V DC supply, up to 26 W
• IV2488X pole mount bracket for a pole

01

Plan the mount

Pick a solid wall or pole with a clear 360° view. The camera weighs 2.52 kg; use the IV2488X bracket on a pole.

02

Run cable and power

Run Cat5e or Cat6 to a PoE+ (IEEE 802.3at) recorder or switch port, or use a 12 V DC supply. It draws up to 26 W.

03

Add it to the recorder

Find it with the IVSEC Device Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF Profile S, G or T recorder.

04

Set presets and rules

Save preset views, then draw line crossing or intrusion zones and turn on auto-tracking for the alarms you want followed.

Recorder

An IVSEC NVR

Records the 8MP stream and controls the PTZ, presets and tracking. Any ONVIF Profile S, G or T recorder can also be used.

Power

A PoE+ port

IEEE 802.3at PoE or 12 V DC, up to 26 W. Use a PoE+ recorder or switch port, or ask us about an injector.

Mounting

IV2488X pole mount bracket

IVSEC's listed accessory for fixing the camera to a pole or post.

Storage

A microSD card

Optional, for recording in the camera or as a backup when the network drops.

Car parks

4K detail across a large lot, zooming in on people and vehicles.

Warehouses and yards

Follow movement along fences, gates and loading docks with auto-tracking.

Construction sites

Watch the whole site from one pole with line crossing and intrusion alarms.

Farms and rural properties

Cover sheds, machinery and driveways with long zoom and IR to 100 m.

Schools and councils

Ovals, car parks and public spaces from a single high mounting point.

Cold and exposed sites

Rated from −30 °C to 60 °C with an IK10 vandal resistant housing.

How far can it zoom?

25x optical, from 5 mm to 125 mm. IVSEC lists the view narrowing from 53.3° across at the wide end to 3.8° at full zoom.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G or T recorder, or a microSD card in the camera.

How is it powered?

From a PoE+ (IEEE 802.3at) port or a 12 V DC supply. It draws up to 26 W, so use a PoE+ port, not a basic 802.3af one.

How far does it see at night?

Up to 100 m with its built-in IR illuminators. Day and night switching is automatic.

Can it follow a person or vehicle?

Yes. IVSEC lists auto-tracking along with intrusion detection and line crossing, so it can follow a target after an alarm.

Is it IP66 or IP67?

IVSEC's spec table rates it IP67 and its overview text says IP66, so treat it as at least IP66. It is also IK10 vandal resistant.

What analytics does it have?

Face recognition, human and vehicle detection, perimeter intrusion, line crossing, stationary object, crossing counting and heat map. Licence plate recognition is not listed.

Does it record sound?

Only with an external microphone on its audio input. It has no built-in microphone or speaker. Check your state's surveillance laws before recording audio.

How do I mount it on a pole?

Use the IV2488X pole mount bracket, which IVSEC lists as the accessory for this camera. It weighs 2.52 kg.

Should I choose the NC693ADX instead?

Choose the NC693ADX for a 37x zoom, a bigger sensor, deterrent lights, a speaker and plate recognition. Choose the NC692XA for 30 fps, a standard PoE+ or 12 V supply, under 26 W and 2.52 kg.

Does it work in the cold?

Yes. It is rated from −30 °C to 60 °C with humidity of 90% or less.

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Any new power point needs a licensed electrician.
