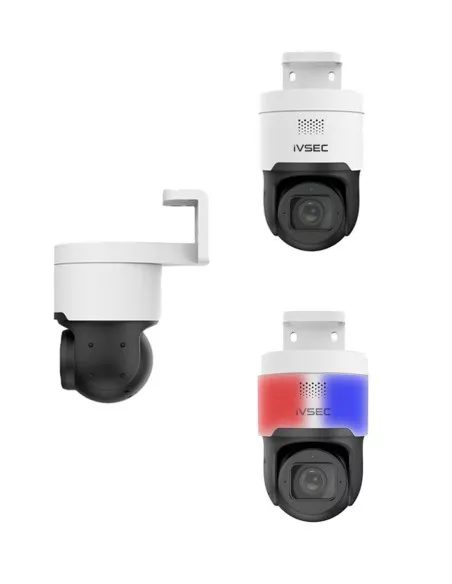

IVSEC 8MP 4K Ultra-HD PTZ Security Camera with Motorised Pan Tilt Zoom Night Vision and 2-Way Audio - IVNC522XA
IVSEC NC522XA: a compact 8MP 4K PTZ camera with a 2.8 to 12 mm motorised zoom, red and blue deterrent lights and a built-in microphone and speaker, powered by one PoE cable.
- ✓8MP 4K, 1/2.7" sensor, 25 fps
- ✓2.8–12 mm motorised zoom, pan and tilt, presets
- ✓IR night vision to 30 m
- ✓Red and blue deterrent lights, mic and speaker
- ✓Human and vehicle tracking (pan and tilt)
- ✓IP66, IK08, PoE 802.3at or 12 V DC
Description

8MP pan, tilt and zoom.
Red and blue lights, mic and speaker.
The IVSEC NC522XA is a compact 4K PTZ camera for homes and small sites: a 2.8 to 12 mm motorised zoom, flashing red and blue deterrent lights, a built-in microphone and speaker, and one PoE cable for power and video.
In one sentence: the IVSEC IVNC522XA is a compact 8MP 4K PTZ camera with a 2.8 to 12 mm motorised zoom, 30 m IR night vision, red and blue deterrent lights, a built-in microphone and speaker, human and vehicle tracking and an IP66 housing, powered by PoE.
Camera only. Recorder and network cable are separate.
This listing is one PTZ camera. It needs a recorder, VMS or the IVSEC app, and one Cat5e or Cat6 cable to a PoE+ (IEEE 802.3at) port or a 12 V DC supply.
- NC522XA PTZ camera
- Printed quick user guide
- Installation template
- Mounting screws and plugs
- An IVSEC NVR or another ONVIF Profile S, G or T recorder
- Cat5e or Cat6 cable to the camera
- A PoE+ (IEEE 802.3at) port or a 12 V DC supply
- A microSD card if you want recording in the camera
One small camera that turns to where it matters.
Pan and tilt the head from your phone or recorder, zoom from a 113° wide view down to 31.4°, and save presets for the gate, the door and the driveway. When it spots a person or vehicle it can turn to follow them, flash red and blue and let you talk through the built-in speaker.

Deterrence

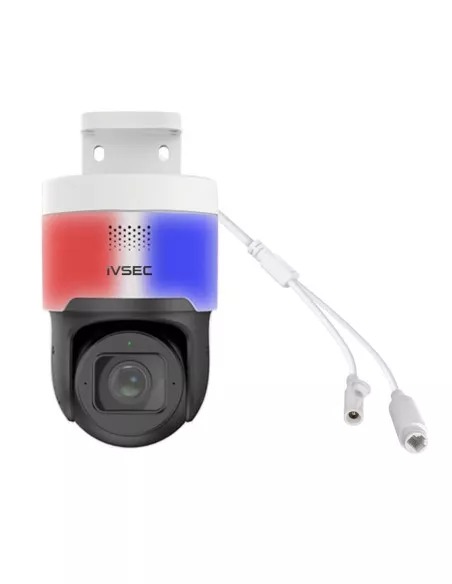

Red and blue lights that people notice.
The band around the body flashes red and blue on an alarm, and IVSEC describes the camera as a deterrent with flashing lights and a siren through the built-in speaker. The cable tail carries the RJ45 network plug and a 12 V DC socket.

Lens
2.8 to 12 mm motorised zoom.
3840 × 2160 at 25 fps from a 1/2.7" progressive CMOS sensor. Zoom from a 113° wide view to 31.4°, with IR night vision to 30 m and automatic day and night switching.

Housing

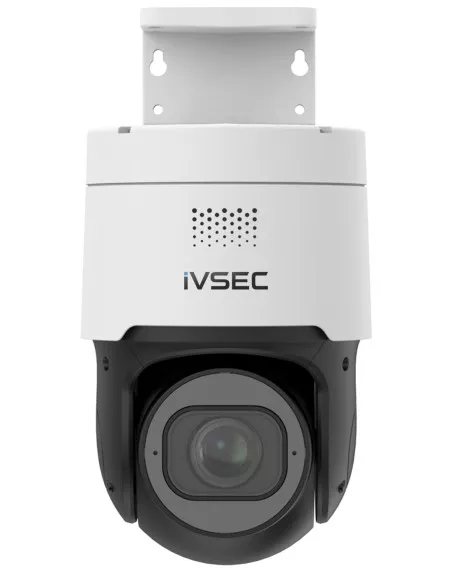

IP66 and IK08, mic and speaker built in.
238 × 167 × 167 mm and 1.00 kg, rated IP66 for weather and IK08 for impact, from −20 °C to 60 °C. The grille above the logo is the built-in speaker and microphone for two-way talk.
How it goes in
From wall to first preset.
01
Pick the spot
Choose a wall or eave with a clear view of the area you want to cover. Mark the holes with the installation template; the camera weighs 1.00 kg.
02
Run the cable
Run Cat5e or Cat6 to a PoE+ (IEEE 802.3at) recorder or switch port, or use a 12 V DC supply. Seal the cable tail joints from the weather.
03
Add it to the recorder
Find it with the IVSEC Device Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF Profile S, G or T recorder.
04
Set presets and alarms
Save preset views, then draw line crossing or intrusion zones and choose tracking, the red and blue lights and the speaker for each alarm.
At a glance
NC522XA
Show specs
Resolution
8MP, 3840 × 2160, 25 fps
Image sensor
1/2.7" progressive CMOS
Lens
2.8–12 mm motorised zoom, 113° to 31.4° horizontal
Movement
Motorised pan and tilt; presets only (no cruise, tour, line scan or pattern scan)
Tracking
Human and vehicle tracking with pan and tilt, no zoom while tracking
Night vision
IR up to 30 m, auto day/night
Deterrence
Red and blue flashing lights
Audio
Built-in microphone and speaker
Video analytics
Face recognition, human and vehicle detection, perimeter intrusion, line crossing, stationary object, crossing counting, heat map, crowd density, queue length, licence plate detection
Compression
H.265+, H.265, H.264+, H.264, MJPEG; 3 streams
Image settings
Defog, 3D noise reduction, backlight, white balance, shutter, exposure, mirror and flip
Storage
microSD / SDHC card slot; Dropbox cloud option
Network
RJ45 10/100 Mbps; ONVIF Profile S/G/T (firmware 21.12 or later), HTTP API
Connectors
RJ45, DC power input, reset button
Power
PoE IEEE 802.3at or 12 V DC; under 13 W
Protection
IP66 weatherproof, IK08 impact rated
Size and weight
238 × 167 × 167 mm, 1.00 kg
Operating range
−20 °C to 60 °C, humidity up to 90%
Software
IVSEC Device Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app
Warranty
3 years
Pair it with
What this camera does not include
Recorder
An IVSEC NVR
Records the 8MP stream and controls pan, tilt, zoom and presets. Any ONVIF Profile S, G or T recorder can also be used.
Power
A PoE+ port
IVSEC lists IEEE 802.3at PoE or 12 V DC. Use a PoE+ recorder or switch port, or ask us about an injector.
Cable
Cat5e or Cat6
One cable run from the camera back to the recorder or switch carries power and video.
Storage
A microSD card
Optional, for recording in the camera or as a backup if the network drops.
Where it is used
Where a compact PTZ fits.
Homes and driveways
Swing between the front door, the drive and the street from the app, with lights and a voice warning at night.
Shopfronts
Watch the entry and the counter from one camera and save a preset for each.
Small car parks
Follow a person or vehicle across the lot with pan and tilt tracking.
Farm sheds and yards
Turn to the gate, the shed or the machinery as needed from one mounting point.
Workshops and warehouses
Cover roller doors and loading areas, with red and blue lights after hours.
Schools and community halls
Keep an eye on entries and play areas with presets and alarms.
NC522XA or NC692XA
| NC522XA (this camera) | NC692XA | |
|---|---|---|
| Size class | Compact PTZ, 1.00 kg | Full-size speed dome, 2.52 kg |
| Lens | 2.8–12 mm, 113° to 31.4° | 5–125 mm 25x, 53.3° to 3.8° |
| Image sensor | 1/2.7" CMOS | 1/2.8" CMOS |
| Frame rate at 8MP | 25 fps | 30 fps |
| IR distance | Up to 30 m | Up to 100 m |
| Deterrent lights | Red and blue | IR only |
| Audio | Built-in mic and speaker | External mic input, audio in and out |
| Protection | IP66, IK08 | IP67, IK10 |
| Power | PoE 802.3at or 12 V DC; under 13 W | PoE 802.3at or 12 V DC; under 26 W |
| Size | 238 × 167 × 167 mm | 276 × 160 × 127 mm |
Both are 8MP IVSEC PTZ cameras. The NC522XA is the small, lower-cost style for close range with deterrence and two-way audio; the NC692XA zooms much further for big sites. Figures from IVSEC's NC522XA datasheet (21 October 2026) and NC692XA datasheet (12 October 2026).
Common questions
Does it zoom?
Yes. The 2.8 to 12 mm motorised lens zooms from a 113° wide view to 31.4°, and the head pans and tilts.
Is a recorder included?
No. This listing is the camera only. It works with an IVSEC NVR, any ONVIF Profile S, G or T recorder, the IVSEC app, or a microSD card in the camera.
How is it powered?
From one network cable on a PoE+ (IEEE 802.3at) port, or from a 12 V DC supply. It draws under 13 W.
Can it patrol between presets?
No. IVSEC says it supports presets only, not watch mode, cruise mode, line scan, tour or pattern scan. You can jump to a saved preset at any time.
Can it follow a person or vehicle?
Yes, with pan and tilt. IVSEC links human and vehicle tracking to the pan and tilt motor, but the camera does not zoom while tracking.
How far does it see at night?
Up to 30 m with its IR illuminators. Day and night switching is automatic.
What do the red and blue lights do?
They flash on an alarm to warn people off. IVSEC describes the camera as a deterrent with flashing lights and a siren through its built-in speaker.
Does it have two-way audio?
Yes. A microphone and speaker are built in, so you can listen and talk through the IVSEC app or software. Check your state's surveillance laws before recording sound.
Can it go outside?
Yes. It is rated IP66 against weather and IK08 against impact, and runs from −20 °C to 60 °C.
What analytics does it have?
Face recognition, human and vehicle detection, perimeter intrusion, line crossing, stationary object, crossing counting, heat map, crowd density, queue length and licence plate detection.
What is the difference from the NC692XA?
The NC522XA is a compact 1.00 kg PTZ with a 2.8 to 12 mm lens, red and blue lights and a built-in mic and speaker. The NC692XA is a 2.52 kg speed dome with a 25x zoom and IR to 100 m.
Who can install the cable?
Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Any new power point needs a licensed electrician.
Supported by InFront Technologies.
Help choosing the recorder, PoE switch or mounting: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. Runs from PoE or 12 V DC, under 13 W. There is no mains wiring; a new power point needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Working at height. Use safe access equipment when mounting on eaves or high walls.
Audio and privacy. Recording conversations and filming beyond your boundary are covered by state and territory surveillance laws. Check them and use signage.
What it does not do. No Wi-Fi, no battery, no cruise, tour or pattern patrols, no zoom while tracking, and no gigabit network port (10/100 Mbps).
Figures. From IVSEC's NC522XA datasheet, updated 21 October 2026.
- Type
- iVSEC CCTV IP Camera
- Maximum Resolution
- 8MP 4K UHD (3840x2160)
- Connectivity
- Ethernet IP Cabling Cat5e/Cat6
