Akuvox S532 Black In-Wall Rain Cover for Flush-Mounted S532 — AK-S532BINH

SKU AK-S532BINH In Stock - Ready to Ship
$57.30 inc GST

Akuvox AK-S532BINH is the in-wall rain cover for a flush-mounted S532 keypad door phone. It is an open black frame with a hood: it sits around the recessed S532 at the wall face and shelters the camera, display and keypad from rain and overhead sun.

  • ✓Rain cover for a flush-mounted Akuvox S532
  • ✓Open frame, 312 × 110 mm, hood projects 52.5 mm at the top
  • ✓Use with the S532 in-wall installation kit
  • ✓Black finish


Akuvox · S532 · In-wall rain cover

Shelter a recessed S532.
Hood frame for flush installs.

The AK-S532BINH is Akuvox’s rain cover for an S532 set into the wall with the in-wall kit. Unlike the on-wall cover it has no back plate — it is a frame that surrounds the recessed door phone.

This SKU is the rain cover only.

You receive the black S532 in-wall rain cover. The S532 door phone and the S532 in-wall installation kit are sold separately.

In the box
  • Akuvox S532 in-wall rain cover (black)
What you also need (sold separately)
  • Akuvox S532 door phone
  • S532 in-wall installation kit

A flush finish that still sheds rain.

Recessing the S532 gives a clean façade but leaves the glass and keys facing the weather. The hood frame adds a lip over the top and sides without hiding the panel.

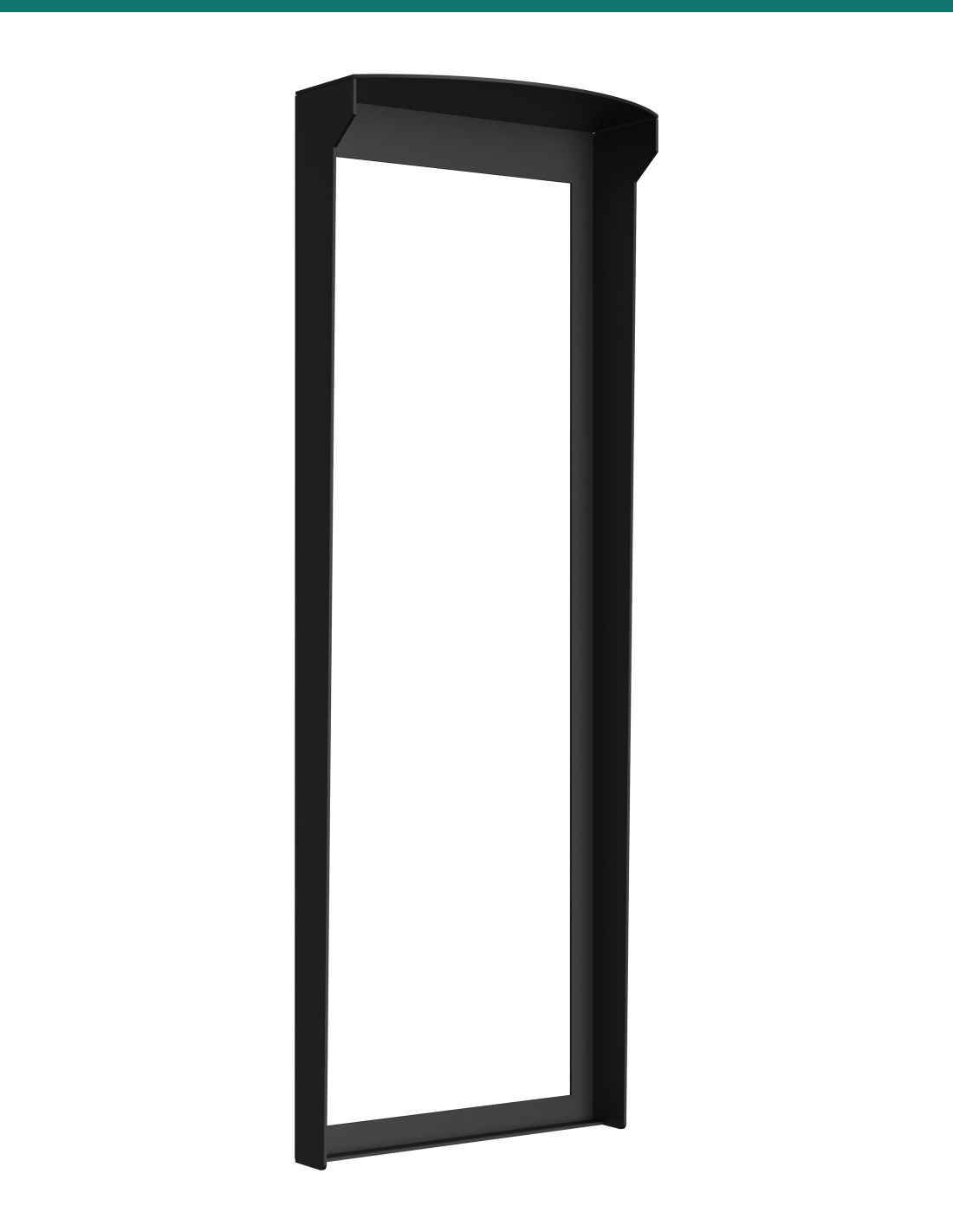

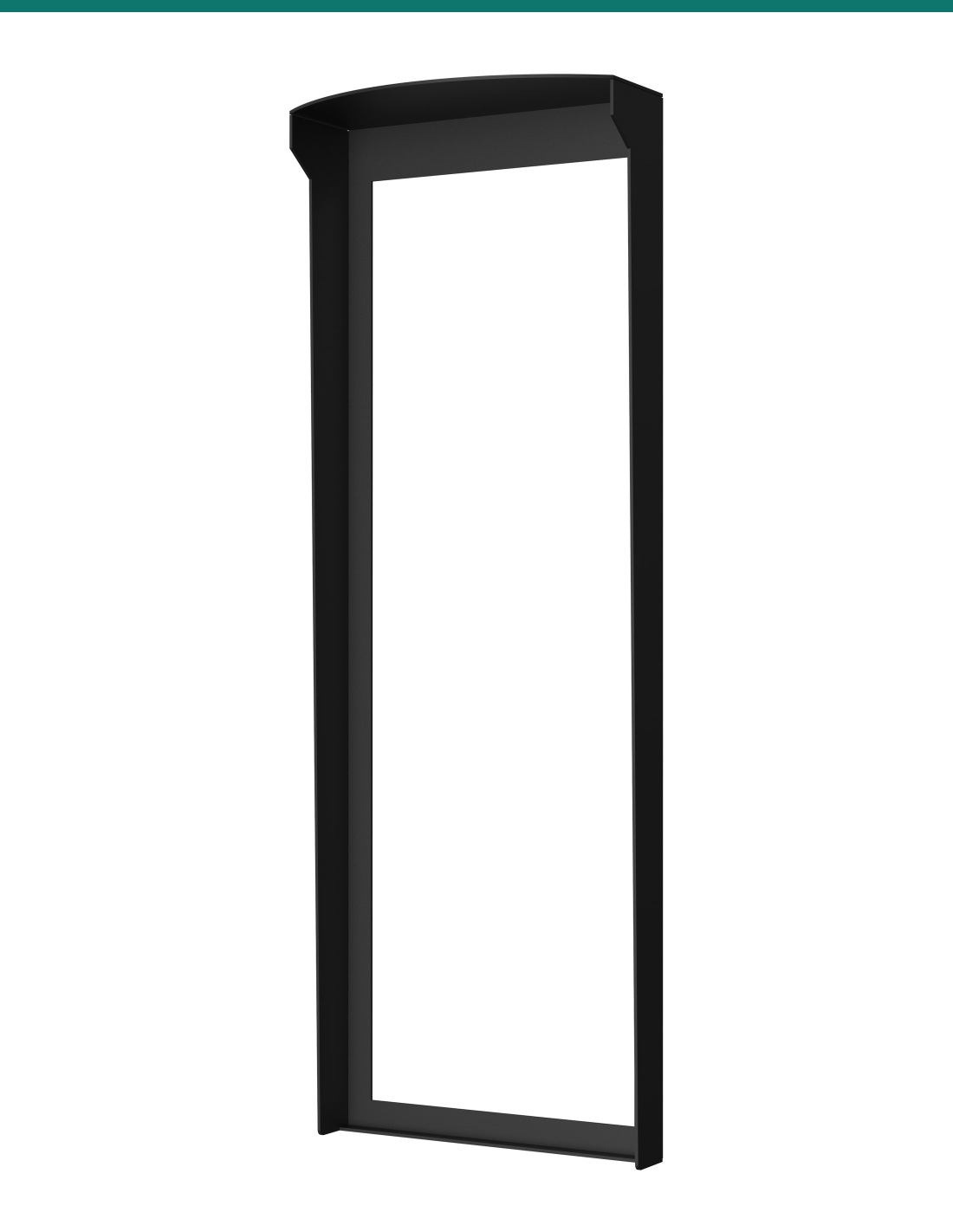

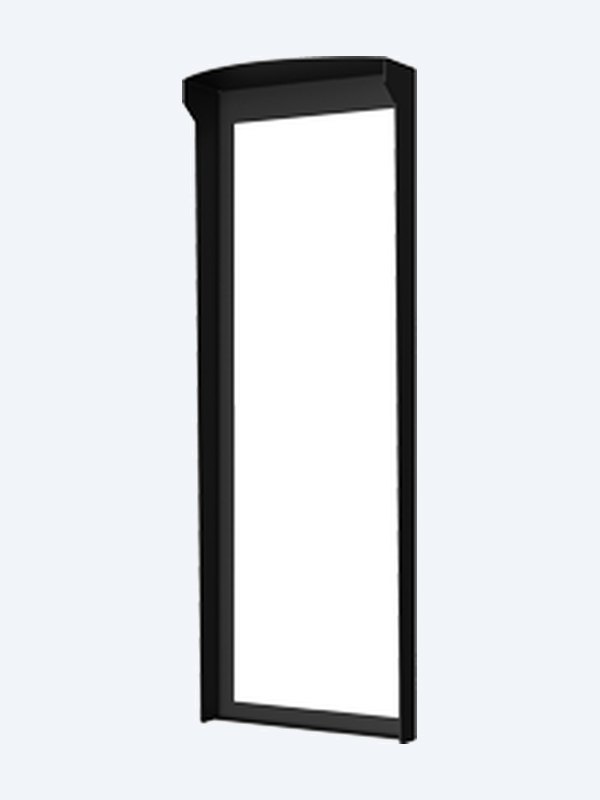

Akuvox S532 black in-wall rain cover

Design

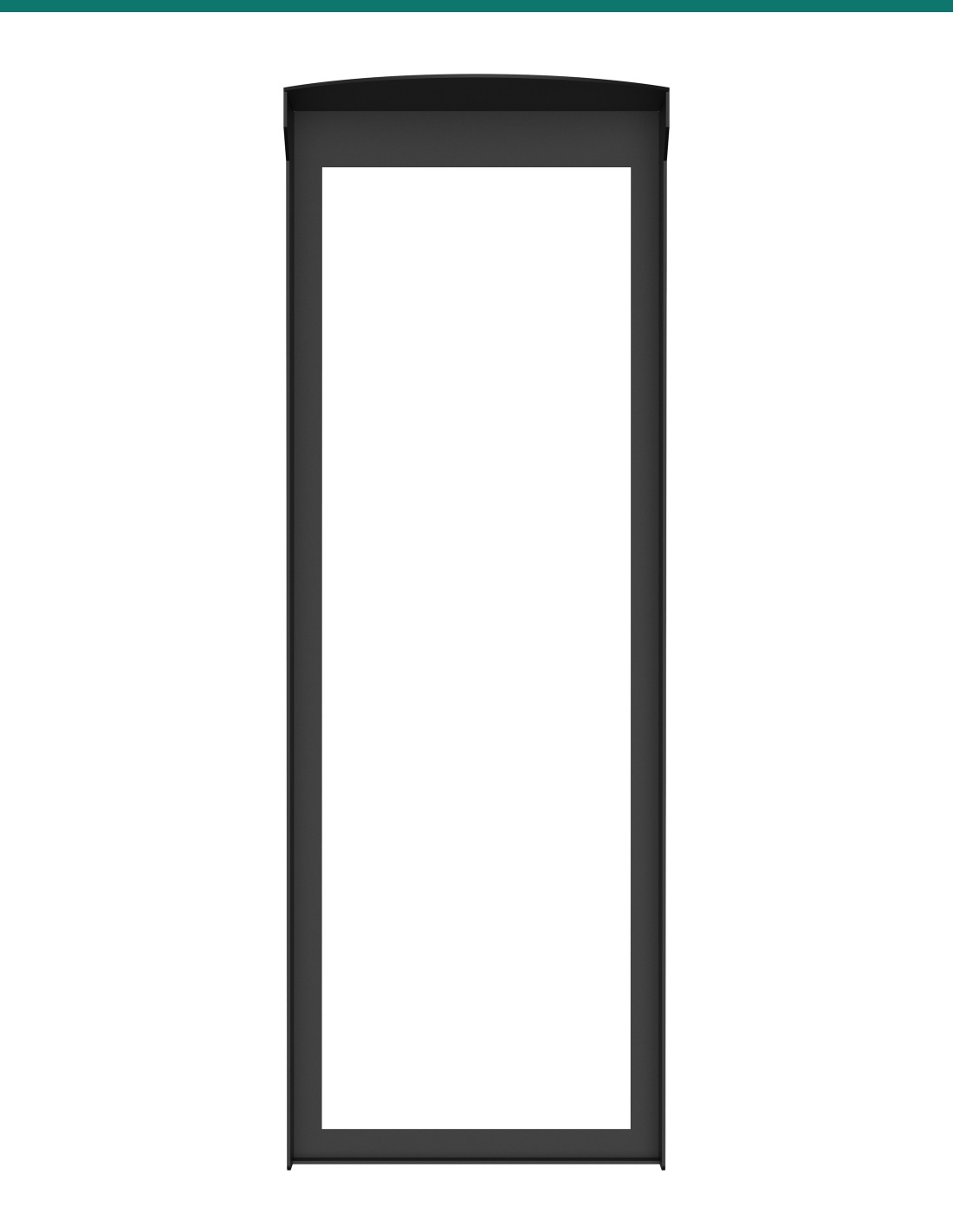

An open frame with a hood.

The cover is a black frame that sits at the wall face around the recessed S532, with a curved hood over the top and tapered sides.

It measures 312 × 110 mm and projects 52.5 mm at the top, tapering to 16.8 mm at the bottom.

Fit

For the S532 in the wall.

Designed for the 301 × 106 mm S532 when it is flush-mounted with the S532 in-wall installation kit.

It is not for surface installs — an S532 on the wall surface uses the on-wall rain cover with its own back plate.

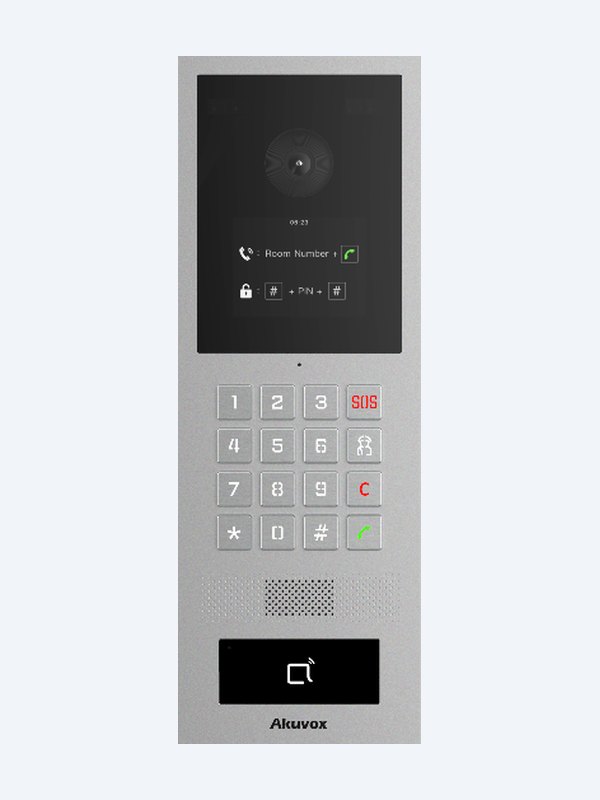

Akuvox S532 keypad door phone

Pair it with

Fits the Akuvox S532

Door phone

Akuvox S532

Keypad SIP video door phone with 2.8″ display, card reader and BLE.

Mounting

S532 in-wall installation kit

Flush box and bracket that recess the S532 into the wall.

Watch

See it in action

Akuvox S532 retrofit-friendly door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How is it different from the on-wall rain cover?

The in-wall cover is an open frame for a recessed S532. The on-wall cover has a back plate and a deeper 82.3 mm hood for an S532 mounted on the wall surface.

Do I need the in-wall kit?

Yes. The S532 is recessed with the S532 in-wall installation kit and the cover frames it at the wall face.

How far does it stick out?

52.5 mm at the top, tapering to 16.8 mm at the bottom.

Does it cover the keypad or card reader?

No. The face of the S532 stays open; the hood and tapered sides shelter it from rain and overhead sun.

Does it change the mounting height?

No. Akuvox’s drawing keeps the camera centre at 1,500 mm, with the bottom of the cover about 1,244 mm above the ground.

Is the door phone included?

No. This SKU is the rain cover only.

Protect exposed flush installs.

Fit it wherever a recessed S532 faces the weather. Surface-mounted S532 units use the S532 on-wall rain cover instead.

Colour
Black
Brand
Akuvox
Size
312 × 110 mm (H × W)
Warranty
Australian warranty
Product Type
Rain cover (in-wall)
Model
S532 in-wall rain cover
Use With
S532 in-wall installation kit
Compatible with
Akuvox S532 door phone (flush-mounted)
Projection
52.5 mm at the top, 16.8 mm at the bottom
