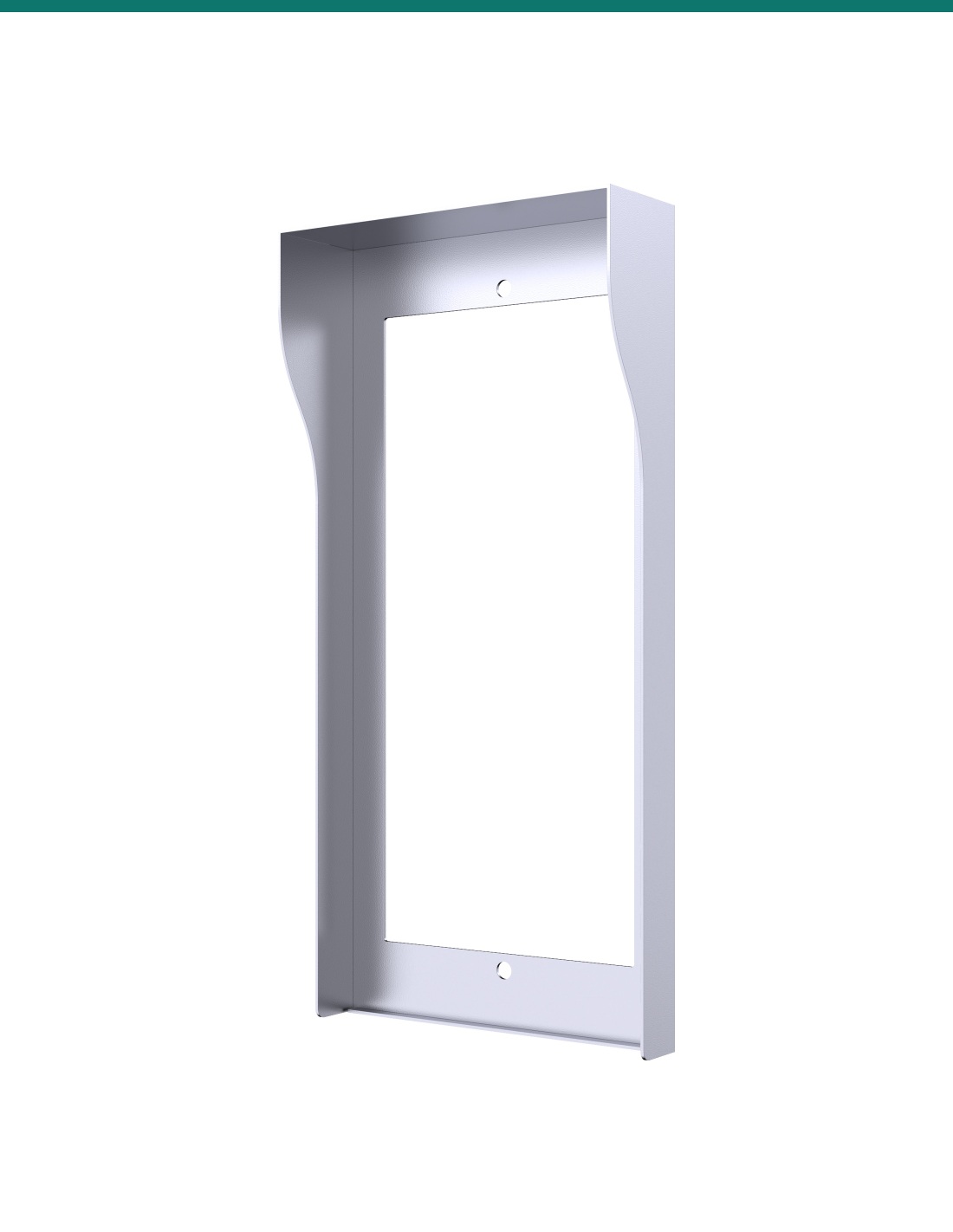

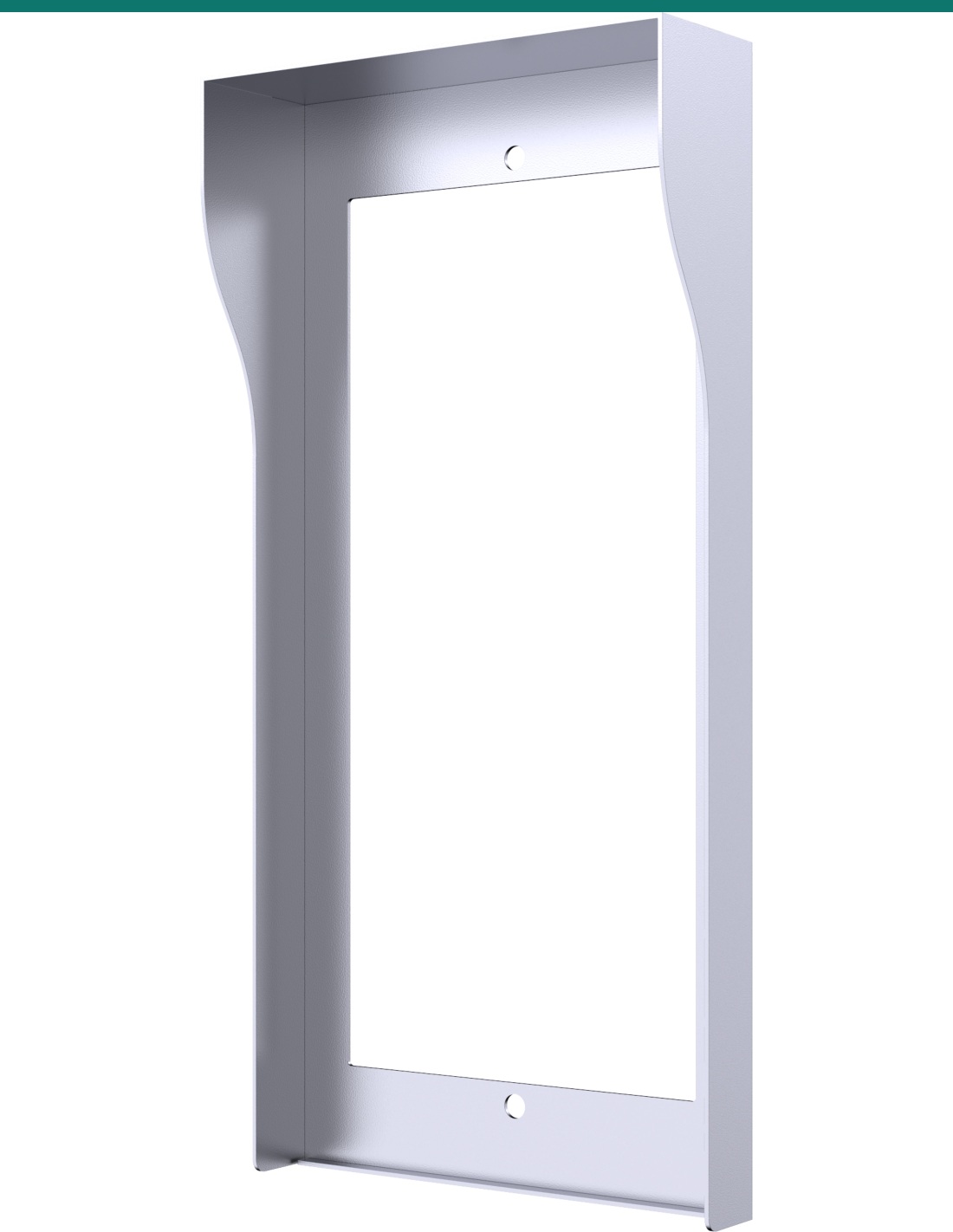

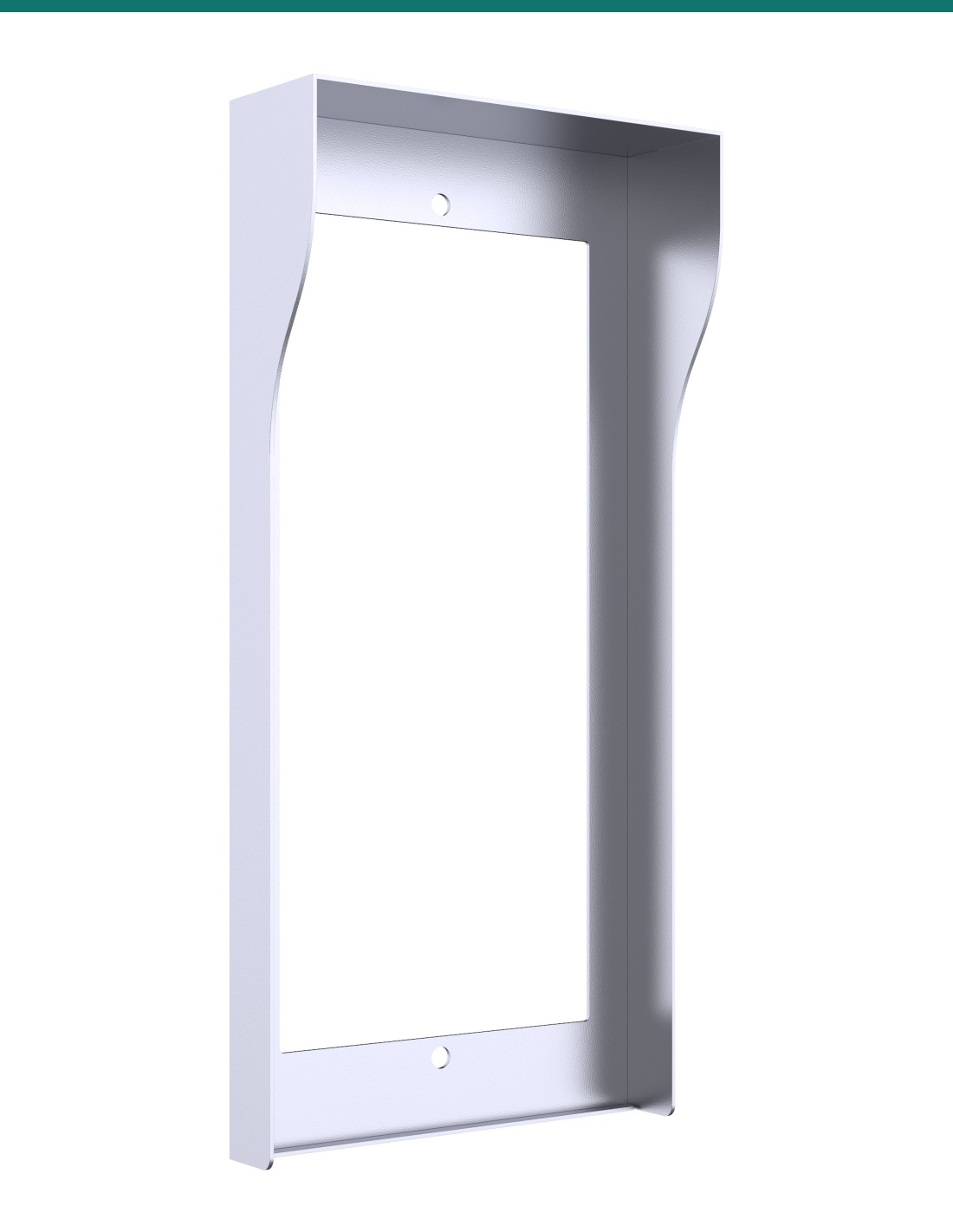

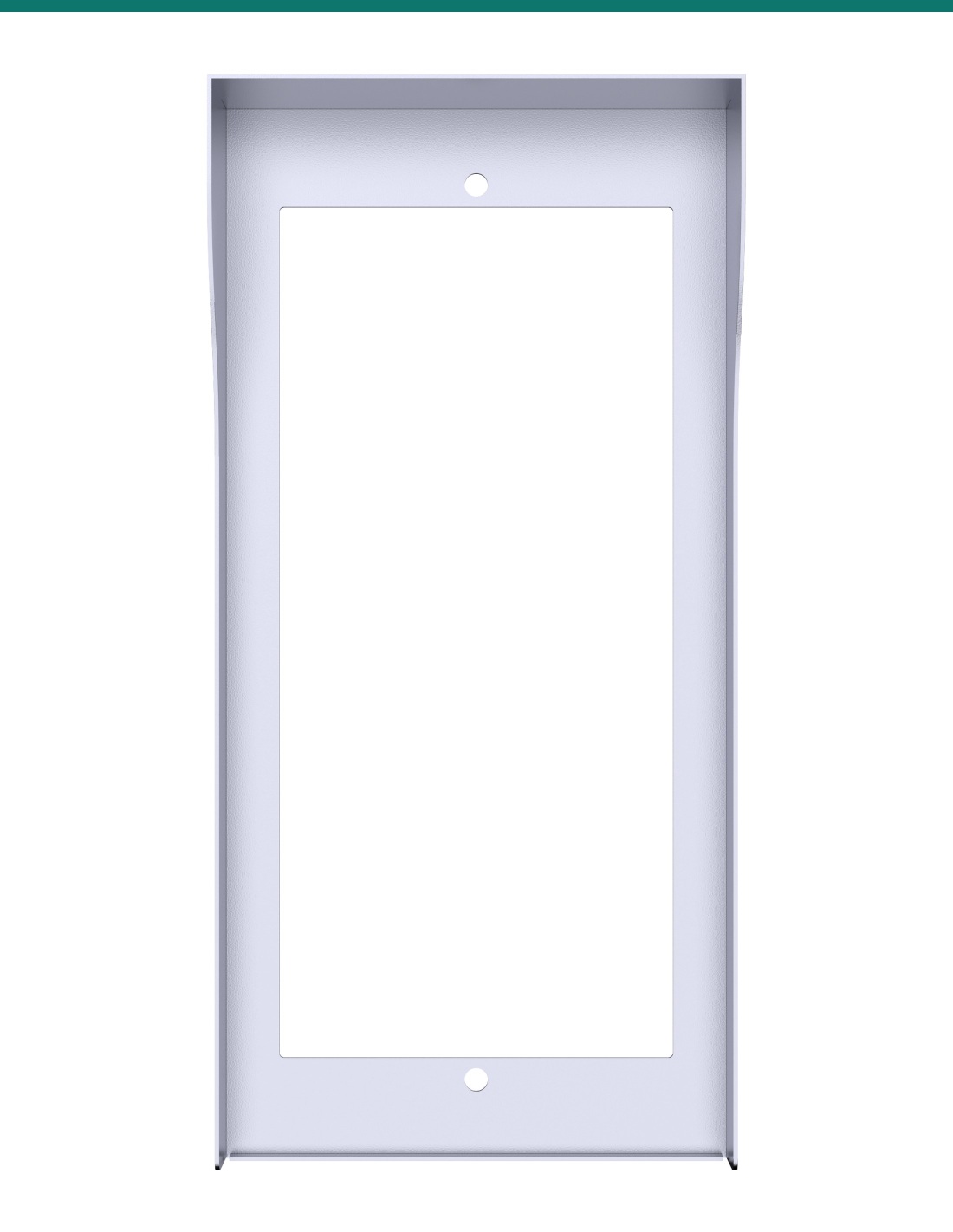

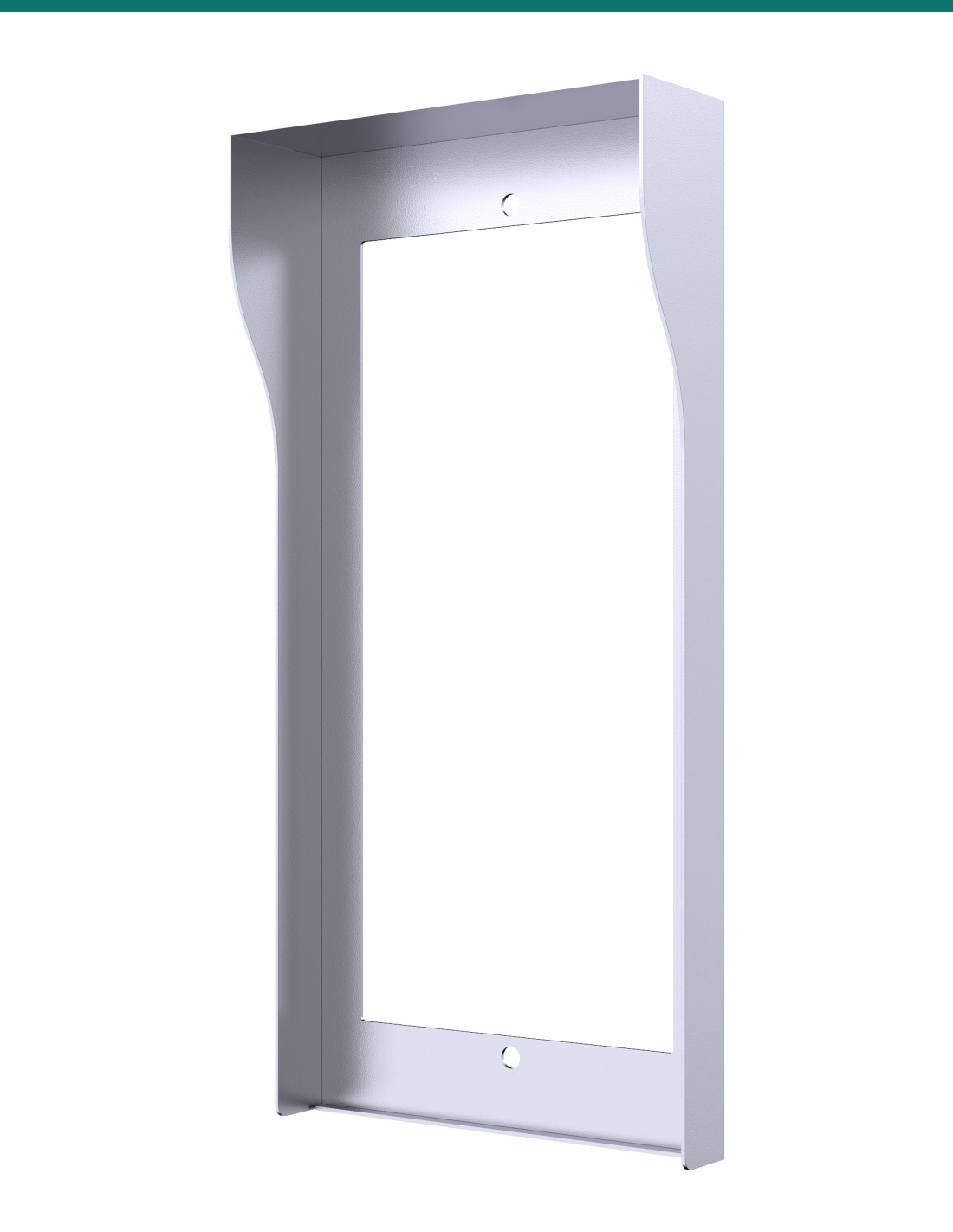

Akuvox R20K / R25K / R20B Silver In-Wall Rain Hood — AK-R20KBINH

SKU AK-R20KBINH In Stock - Ready to Ship
$58.00 inc GST

Akuvox R20K / R25K / R20B in-wall rain hood in silver is a rain canopy for the 185 × 84.5 mm R20K keypad, R25K fisheye and R20B 2–5 button door phones. It keeps rain and overhead sun off the camera, keypad or buttons and card reader on flush-mounted stations.

  • ✓Silver in-wall rain hood for the R20K, R20K-L, R25K and R20B
  • ✓229.5 × 111 mm frame, 33 mm deep at the top
  • ✓Shields the camera, keypad or buttons and reader from rain and glare
  • ✓On-wall installs use the on-wall rain hood instead


Akuvox · R20K / R25K / R20B · Silver in-wall rain hood

Weather cover for the R20 keypad family.
Silver, in-wall.

The AK-R20KBINH is the Akuvox in-wall rain cover for the taller R20 housing — 185 × 84.5 mm — shared by the R20K keypad door phone, the R25K fisheye keypad model and the R20B with 2, 3, 4 or 5 call buttons.

Rain hood only.

You receive the silver in-wall rain hood. The door phone and in-wall kit are sold separately.

In the box
  • Akuvox R20K / R25K / R20B in-wall rain hood (silver)
What you also need (sold separately)
  • Akuvox R20K, R20K-L, R25K or R20B door phone
  • R20K / R25K / R20B in-wall installation kit

A clearer picture, rain or shine.

Water on the lens and harsh overhead sun are what spoil most door pictures. The hood deals with both and keeps the keypad and reader drier.

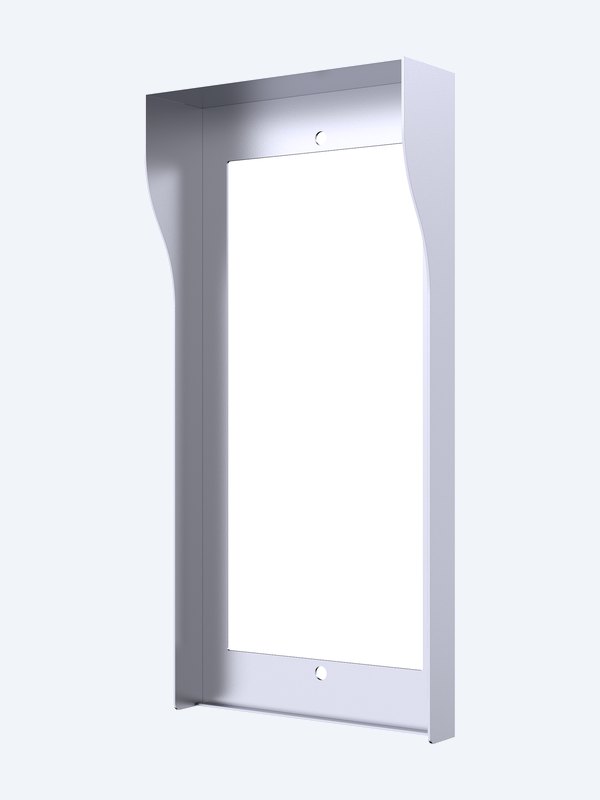

Akuvox R20K / R20B silver in-wall rain hood

Protection

Rain runs off, not across the lens.

The canopy covers the top and both sides of the station, so rain sheds clear of the camera window, keypad and card-reader area.

It also cuts overhead sun on the camera, which helps on exposed north- and west-facing entries.

Fit

One hood for the whole 185 mm family.

R20K, R20K-L, R25K and every R20B button version share the same 185 × 84.5 × 24 mm housing, so one hood covers them all.

Frames a flush-mounted station: it is fitted with the R20K / R25K / R20B in-wall installation kit, so the hood, station and flush box lock together.

Pair it with

Pairs with

Door phone

Akuvox R20K, R25K or R20B

Keypad, fisheye-keypad and multi-button door phones in the 185 × 84.5 mm housing, including the R20K-L.

Flush

R20K / R25K / R20B in-wall kit

The flush box and frame this hood is made to go with.

Watch

See it in action

Akuvox R20K video door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

Akuvox R20K, R20K-L, R25K and R20B (2, 3, 4 or 5 buttons). It does not fit the shorter R20A / R25A, which have their own hoods.

On-wall or in-wall — which do I need?

On-wall for a surface-mounted station on its wall bracket; in-wall for a station recessed with the in-wall kit. This is the in-wall hood.

How big is it?

229.5 mm tall and 111 mm wide, standing 33 mm off the wall at the top and 10.3 mm at the bottom.

Do I need the in-wall kit as well?

Yes. The hood frames a station that is already recessed with the R20K / R25K / R20B in-wall installation kit.

What is different about the black version?

Only the finish (AK-R20KBINH-BLACK).

Choose by install type and finish.

Pick silver to match a silver R20K or R20B; the black version is AK-R20KBINH-BLACK. For a surface install use AK-R20KBONH-BLACK.

Installation & safety notice

Frames a flush-mounted station: it is fitted with the R20K / R25K / R20B in-wall installation kit, so the hood, station and flush box lock together.

Colour
Silver
Brand
Akuvox
Mounting
In-Wall (flush) installs
Size
229.5 × 111 × 33 mm (H × W × D)
Warranty
Australian warranty
Product Type
Rain hood
Model
R20K / R20B in-wall rain hood
Compatible with
Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons)
Used With
R20K / R25K / R20B in-wall installation kit
Akuvox R20K-L black LTE SIP video door phone — front Akuvox R20K-L black LTE SIP video door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20K-L Black LTE-Ready SIP Video Door Phone with Keypad — AK-R20K-BLACK-L

Akuvox
AK-R20K-BLACK-L
$ 898.50
Akuvox R20K-L in black is the LTE version of the R20K keypad door phone: a SIM slot and cellular antenna let it run over 4G where data cabling is impractical. Fit the Akuvox LTE module (sold separately) for cellular, or run it on Ethernet.✓SIM slot for LTE — bands include 1, 3, 5, 7 and 28 used in Australia✓LTE module sold separately or in...
Akuvox R25K black door phone — front Akuvox R25K black door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R25K Black 4MP Wide-Angle SIP Video Door Phone with Keypad — AK-R25K-BLACK

Akuvox
AK-R25K-BLACK
$ 576.50
Akuvox R25K in black is a keypad SIP video door phone with a 4 MP fisheye camera that sees 150° both across and top to bottom — faces, the whole porch and parcels at the door. Card, NFC and PIN entry, two lock relays, IP65 aluminium, PoE.✓4 MP fisheye camera, 150° (H) / 150° (V), 2K at 30 fps, IR night lighting✓Backlit keypad plus 13.56 MHz...
Akuvox R20K black SIP video door phone with keypad — front
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20K Black SIP Video Door Phone with Keypad and Card Reader — AK-R20K-BLACK

Akuvox
AK-R20K-BLACK
$ 498.50
Akuvox R20K in black is a compact keypad SIP video door phone for apartment and office entries. A 2 MP wide-angle camera, PIN, card and NFC entry, two lock relays and an IP65 aluminium front in a dark finish that disappears into modern façades. PoE powered.✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting✓Numeric keypad...
Akuvox R20B 5-button door phone — front Akuvox R20B 5-button door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Modular Door Phones

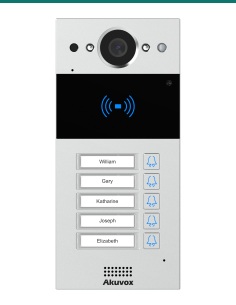

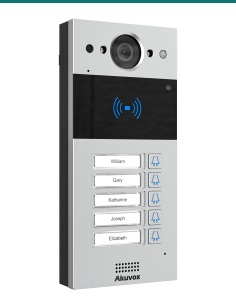

Akuvox R20B 5-Button Silver SIP Video Door Phone with Card Reader — AK-R20B5BONWALL
