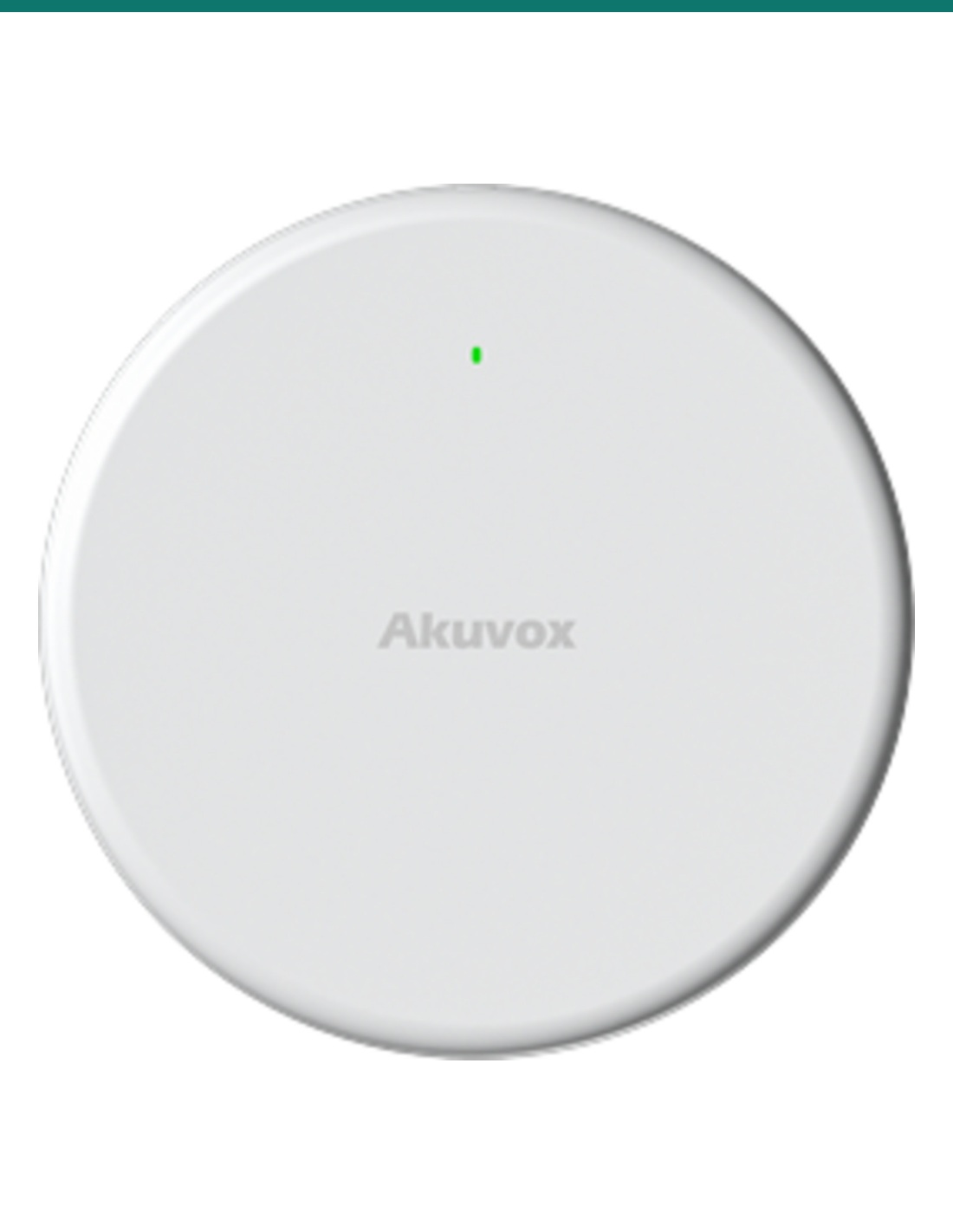

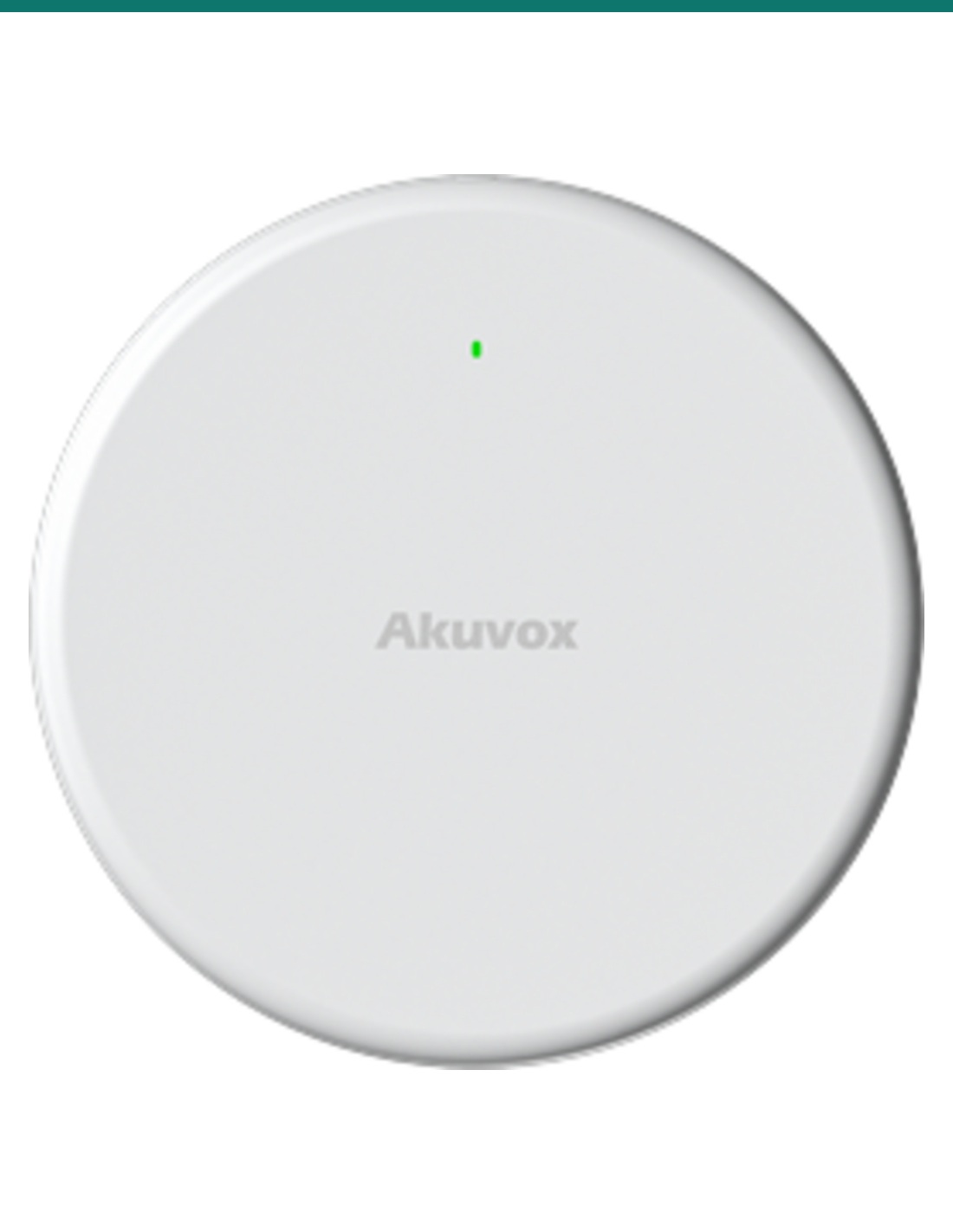

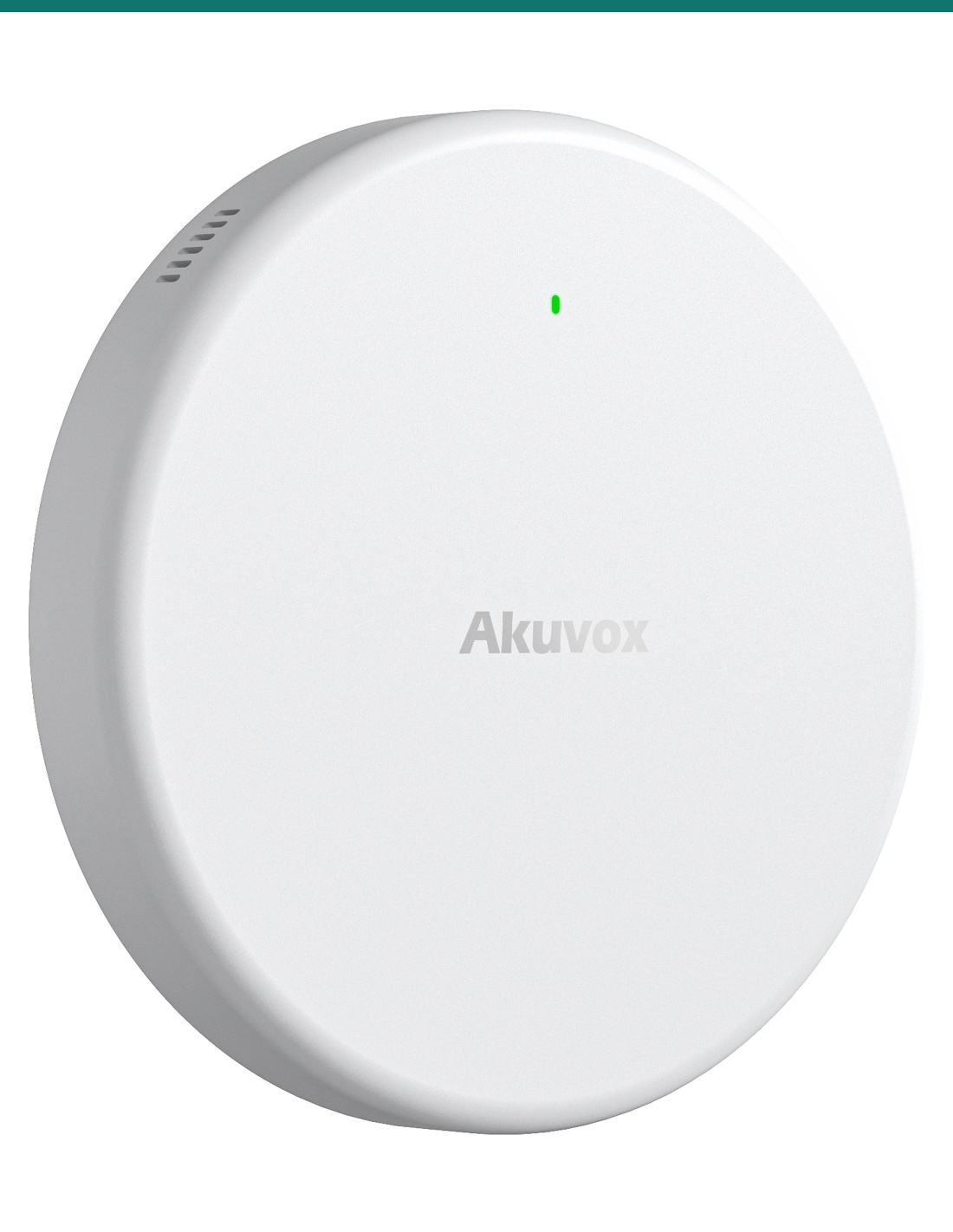

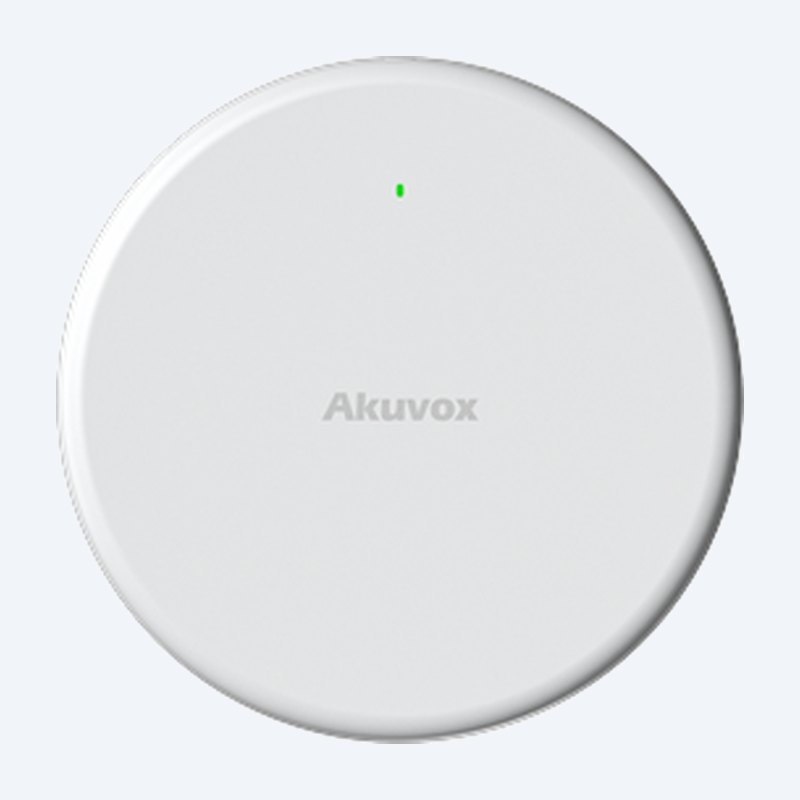

Akuvox MR01 White mmWave Fall-Detection Radar Sensor — AK-MR01
AK-MR01
In Stock - Ready to Ship $ 548.50
inc-GST
or 4 interest-free payments of $137.12 with
Akuvox MR01 is a 60 GHz mmWave radar that watches for falls and bed exits without a camera, then raises an alert through Akuvox SmartPlus and its own buzzer. Mount it on the wall or ceiling and power it by PoE or USB-C. Stocked in Australia by Infront Technologies.
- ✓Fall and bed-exit detection with multi-person tracking — no camera
- ✓Covers about 6 × 4 m from the ceiling, or 5 m at 140° from a wall
- ✓PoE or 5 V 2 A USB-C power; Wi-Fi or wired network
- ✓Alarm buzzer, speaker and 1 relay output · Ø110 × 24 mm
Akuvox · MR01 · Fall-detection radar
Watching for falls.
Without a camera.
The AK-MR01 is Akuvox’s AI fall-detection radar. It uses millimetre-wave sensing instead of video, so bedrooms and bathrooms stay private while staff or family still get an alert.
This SKU is the radar sensor.
Per the Akuvox quick guide the box includes side and top mounting brackets, wiring cover, rubber plugs, pin cable, USB Type-C cable, screws, anchors and a diode. PoE switch or USB power supply is sold separately.
In the box

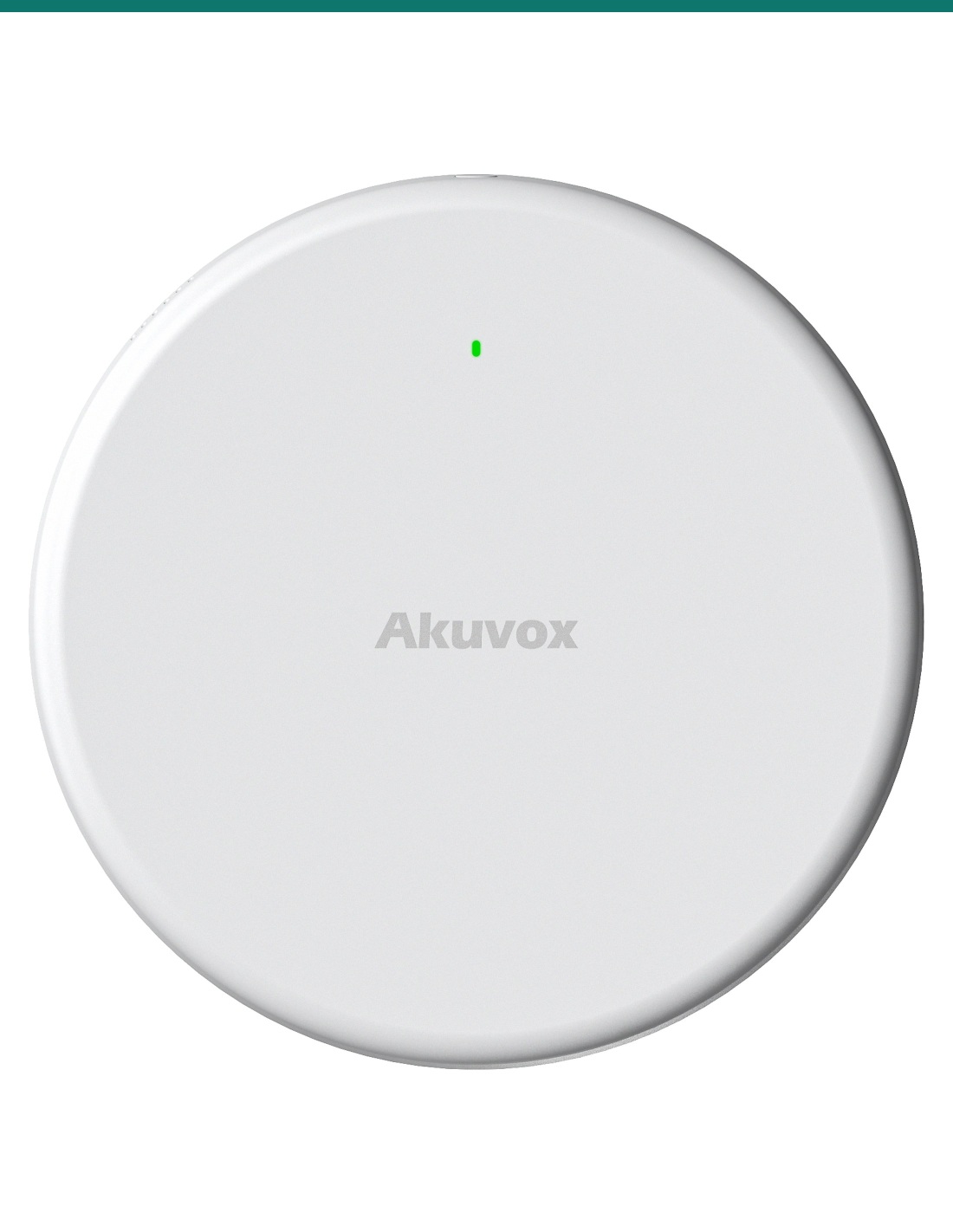

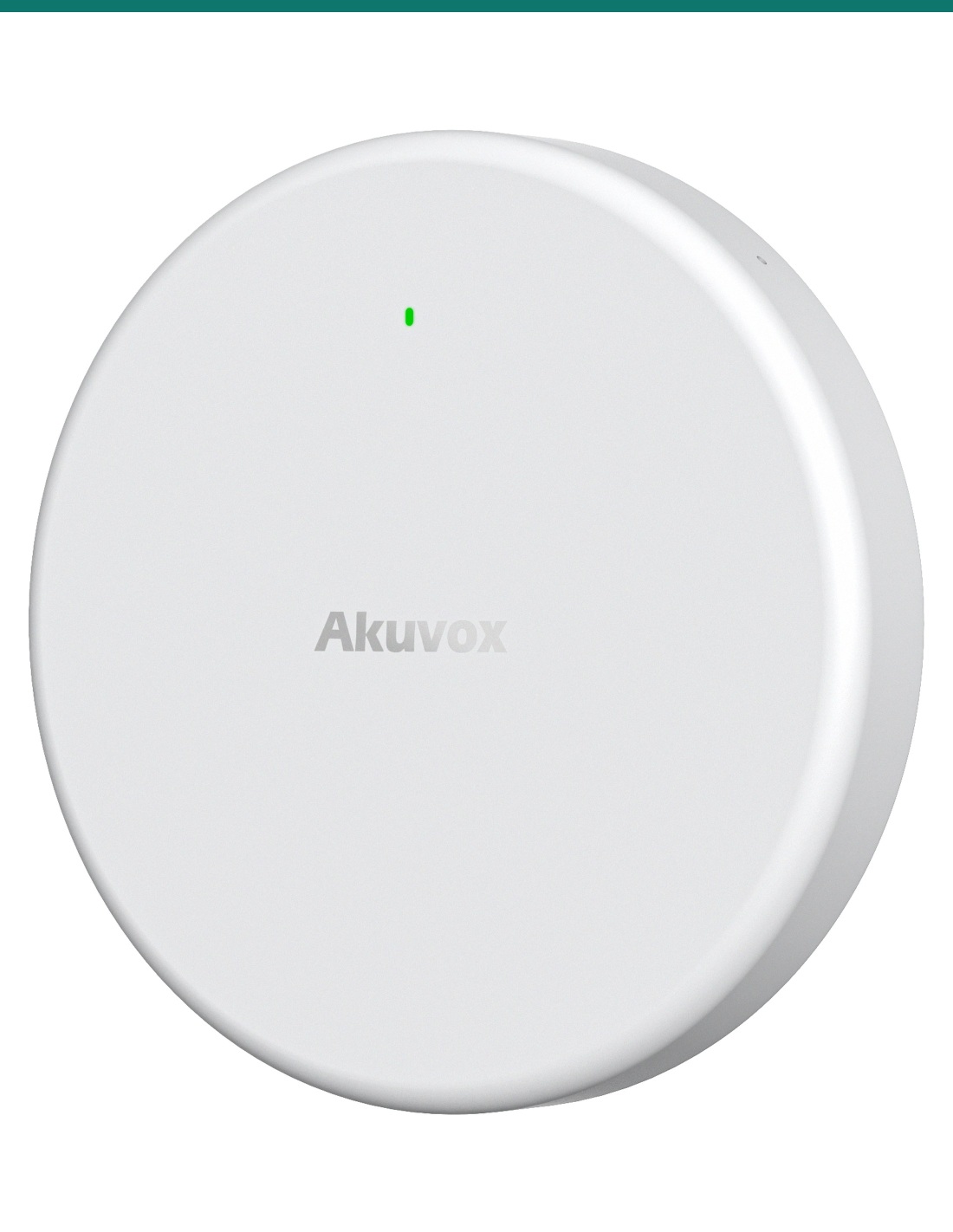

- Akuvox MR01 radar sensor

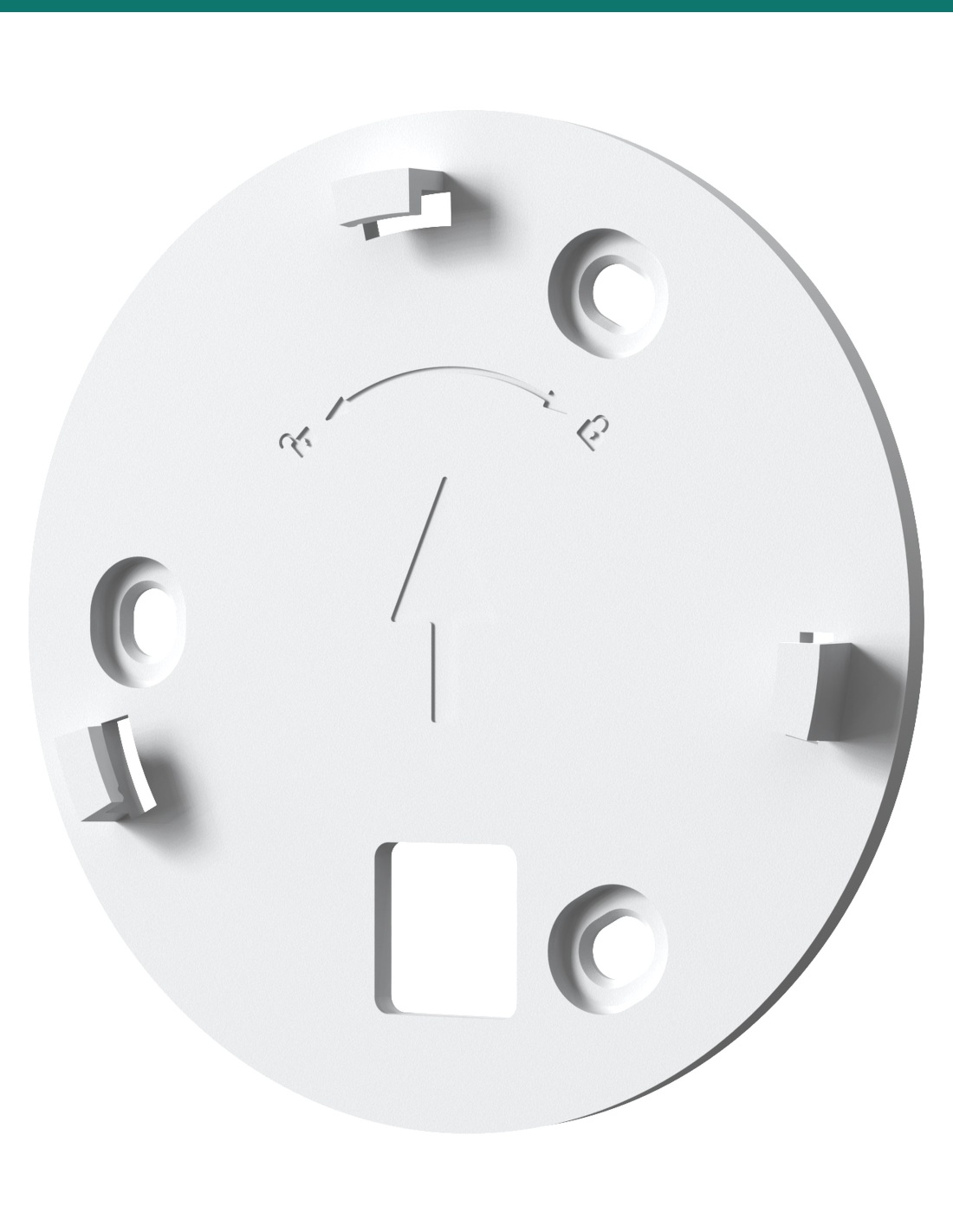

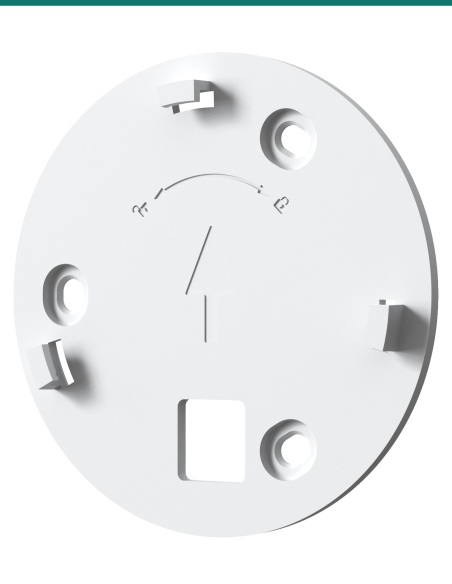

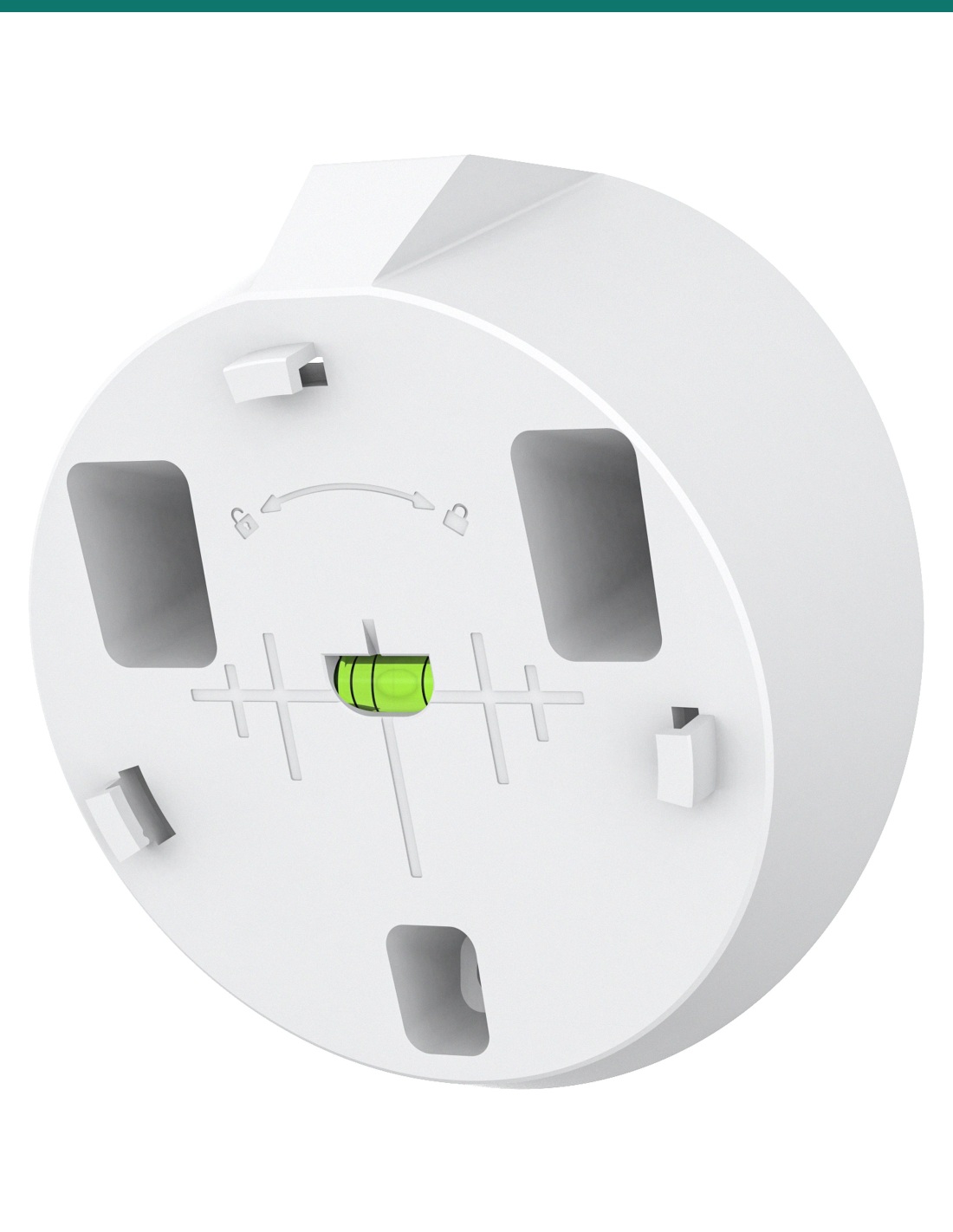

- Side and top mounting brackets
- Wiring cover, rubber plugs and pin cable
- USB Type-C cable
- Screws, anchors and diode
What you also need(sold separately)
- PoE switch or 5 V 2 A USB-C power supply
- Network (PoE cable or Wi-Fi)
- Akuvox SmartPlus account for app alerts

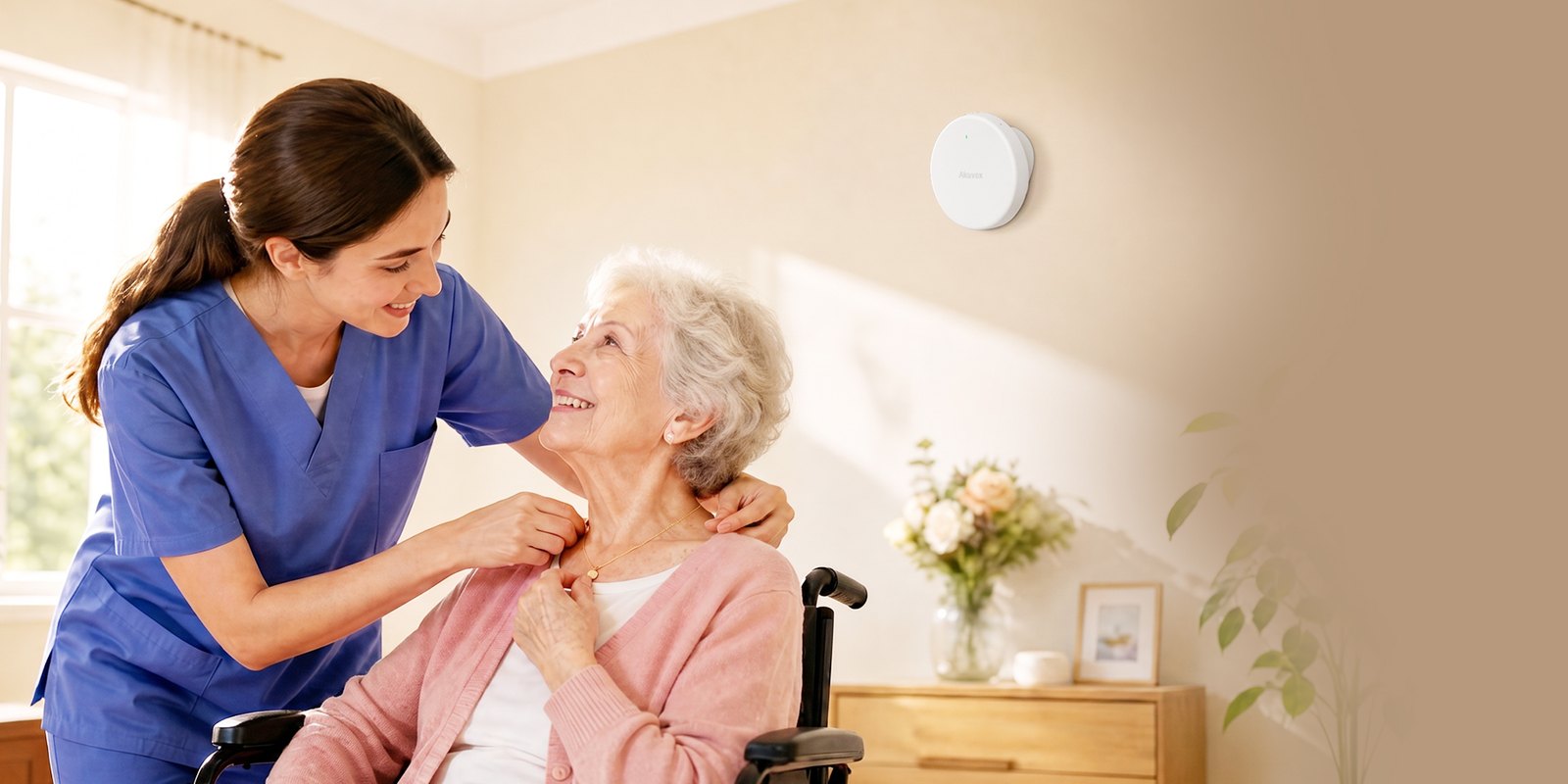

Privacy-first monitoring.
Suited to aged care rooms, assisted living and people living alone. Radar reads movement and posture, not faces.
Detect
Falls and bed exits.
The 60–61 GHz FMCW radar with 4 transmit and 4 receive antennas tracks multiple people and recognises falls and someone leaving a bed.
Alerts reach carers through Akuvox SmartPlus, with a local alarm buzzer and a relay output for local alarm equipment.
Mount
Ceiling or wall.
From the ceiling it covers about 6 × 4 m. On a wall it looks up to 5 m ahead across a 140° fan.

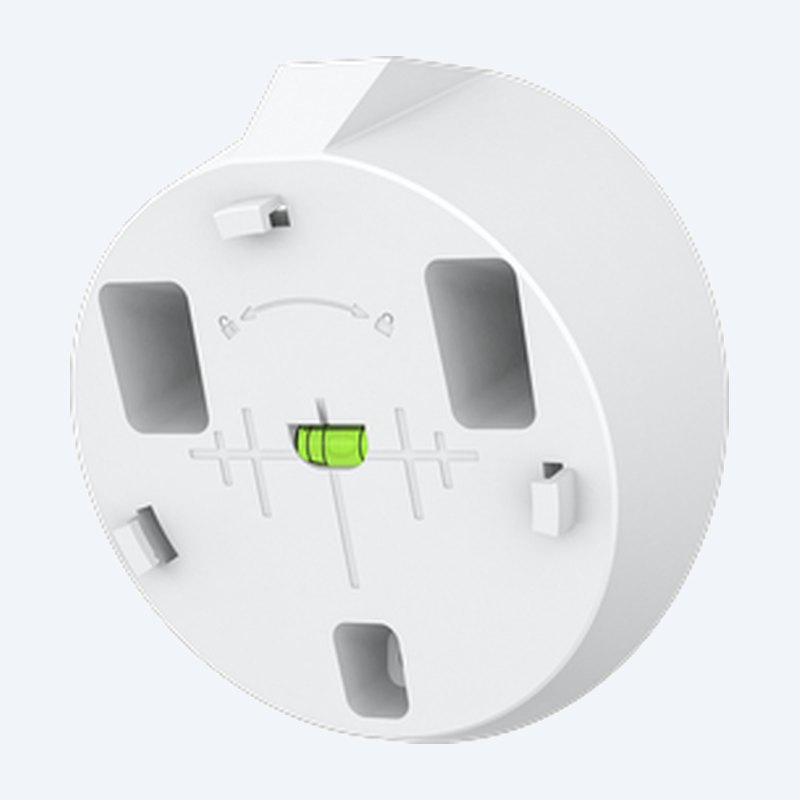

Side and top brackets are supplied. Run PoE for one-cable installs, or use USB-C power with Wi-Fi.
At a glance
Key specs — AK-MR01
- Brand
- Akuvox
- Reference
- AK-MR01
- Detection
- Fall, bed exit, multi-person
- Radar
- 60–61 GHz FMCW, 1 GHz bandwidth, 4T4R, 11 dBm
- Coverage
- Ceiling 6 × 4 m; wall 5 m ahead, 140°
- Network
- RJ45 PoE (IEEE 802.3); Wi-Fi 802.11b/g/n
- Power
- PoE or 5 V 2 A USB Type-C
- Outputs
- 1 relay, alarm buzzer, 1 speaker
- Mounting
- Wall or ceiling (brackets included)
- Material / colour
- Plastic, white
- Size
- Ø110 × 24 mm
- Working temperature
- −10 °C to +45 °C
- Warranty
- Australian warranty via Infront Technologies
Pair it with
Works alongside
Phone
Akuvox R15P
Big-button SIP phone with SOS key for seniors.
Monitor
Akuvox S562
Indoor monitor for staff stations and residents.
Watch
See it in action
Answers
Common questions
Does it use a camera?
No. It is a millimetre-wave radar, so no images are captured.
How are alerts sent?
Through the Akuvox SmartPlus cloud and app, plus the built-in buzzer and a relay output for local alarms.
How much area does it cover?
About 6 × 4 m when ceiling-mounted, or 5 m ahead at 140° when wall-mounted.
Is it a medical device?
No. Akuvox states the MR01 is not a medical device and should support, not replace, care staff and emergency procedures.
Safer rooms, local stock.
Order the MR01 from Infront Technologies for Australian stock and help planning coverage across aged care and assisted-living rooms.
Installation & safety notice
Low-voltage product (SELV). Powered by PoE (IEEE 802.3) or 5 V 2 A over USB Type-C, per the Akuvox MR01 datasheet. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Material
- Plastic
- Detection
- Falls, bed exit, multiple people
- Power
- PoE or 5 V 2 A USB Type-C
- Colour
- White
- Brand
- Akuvox
- Outputs
- 1 relay output, buzzer, speaker
- Mounting
- Wall or ceiling
- Network
- PoE (IEEE 802.3) or Wi-Fi 802.11b/g/n
- Size
- Ø110 × 24 mm
- Warranty
- Australian Warranty via Infront Technologies
- Product Type
- mmWave fall-detection radar sensor
- Model
- MR01
- Coverage
- 6 × 4 m (ceiling); 5 m, 140° (wall)
- Radar
- 60–61 GHz FMCW, 4T4R
