Akuvox X912 Black Thick On-Wall Mounting Bracket for X912K and X912S — AK-X912ONWALLBT

SKU AK-X912ONWALLBT In Stock - Ready to Ship
$57.30 inc GST

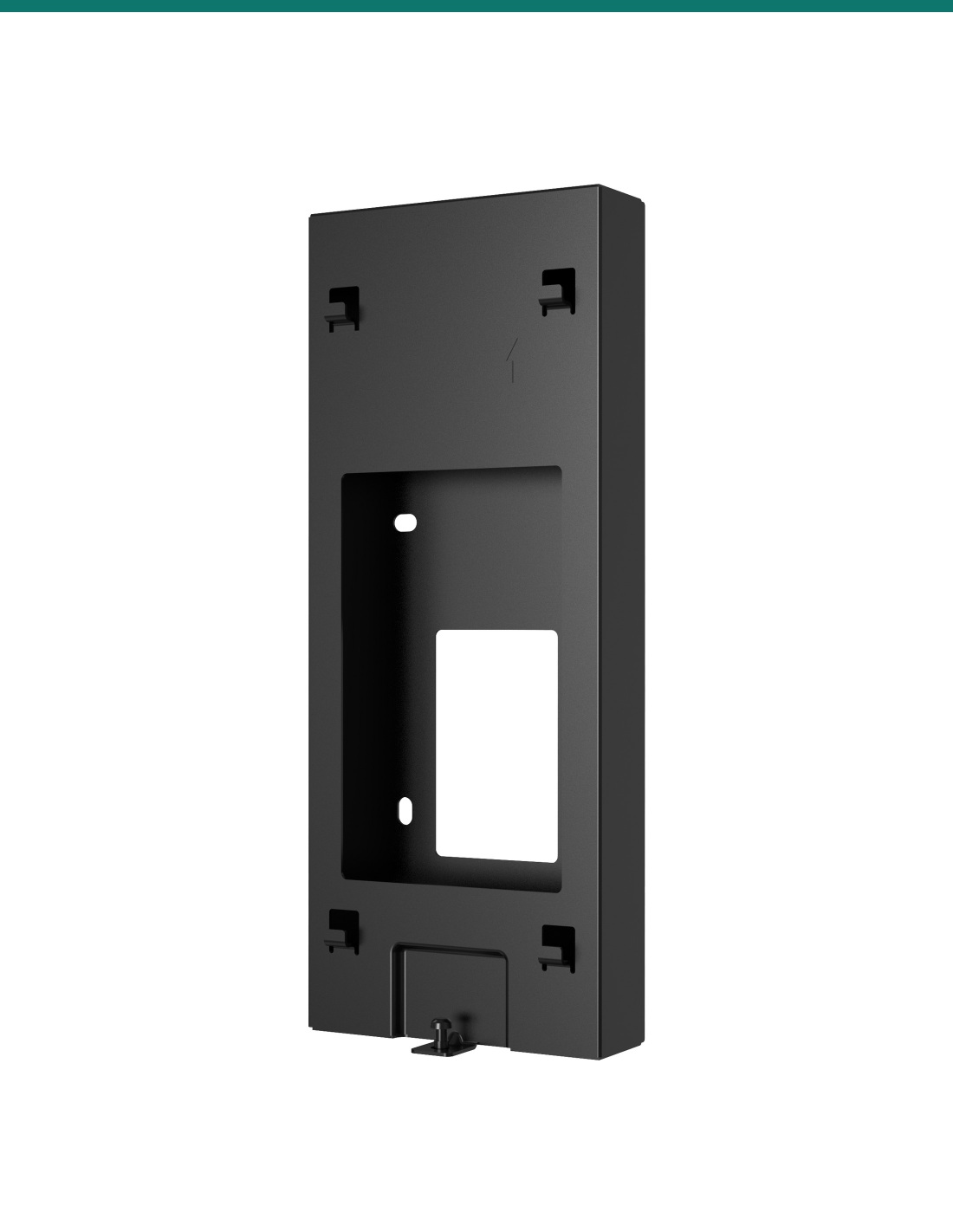

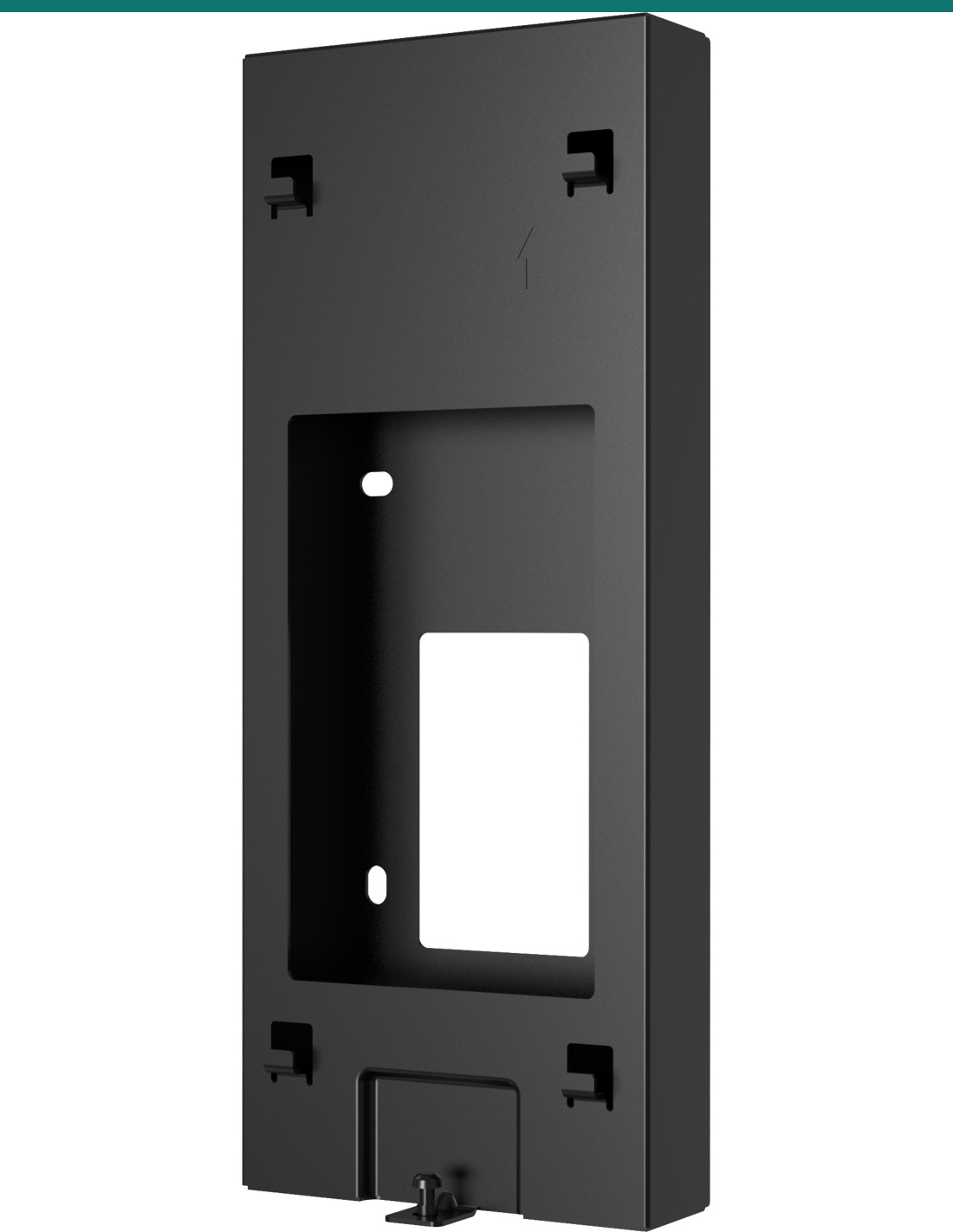

Akuvox AK-X912ONWALLBT is the thick version of the X912’s on-wall bracket. Where the bracket supplied with every X912 is a flat plate, this one is a 27 mm deep box with 21.3 mm conduit entries: it stands the door station off the wall and encloses the cabling behind it, with the same hanging hooks and bottom lock so an X912K or X912S hangs on exactly as normal.

  • ✓Box-style surface bracket, 230.5 × 93 × 27 mm
  • ✓21.3 mm conduit entries for surface-run cable
  • ✓Same four hanging hooks and bottom locking point as the standard X912 bracket
  • ✓Fits the Akuvox X912K and X912S

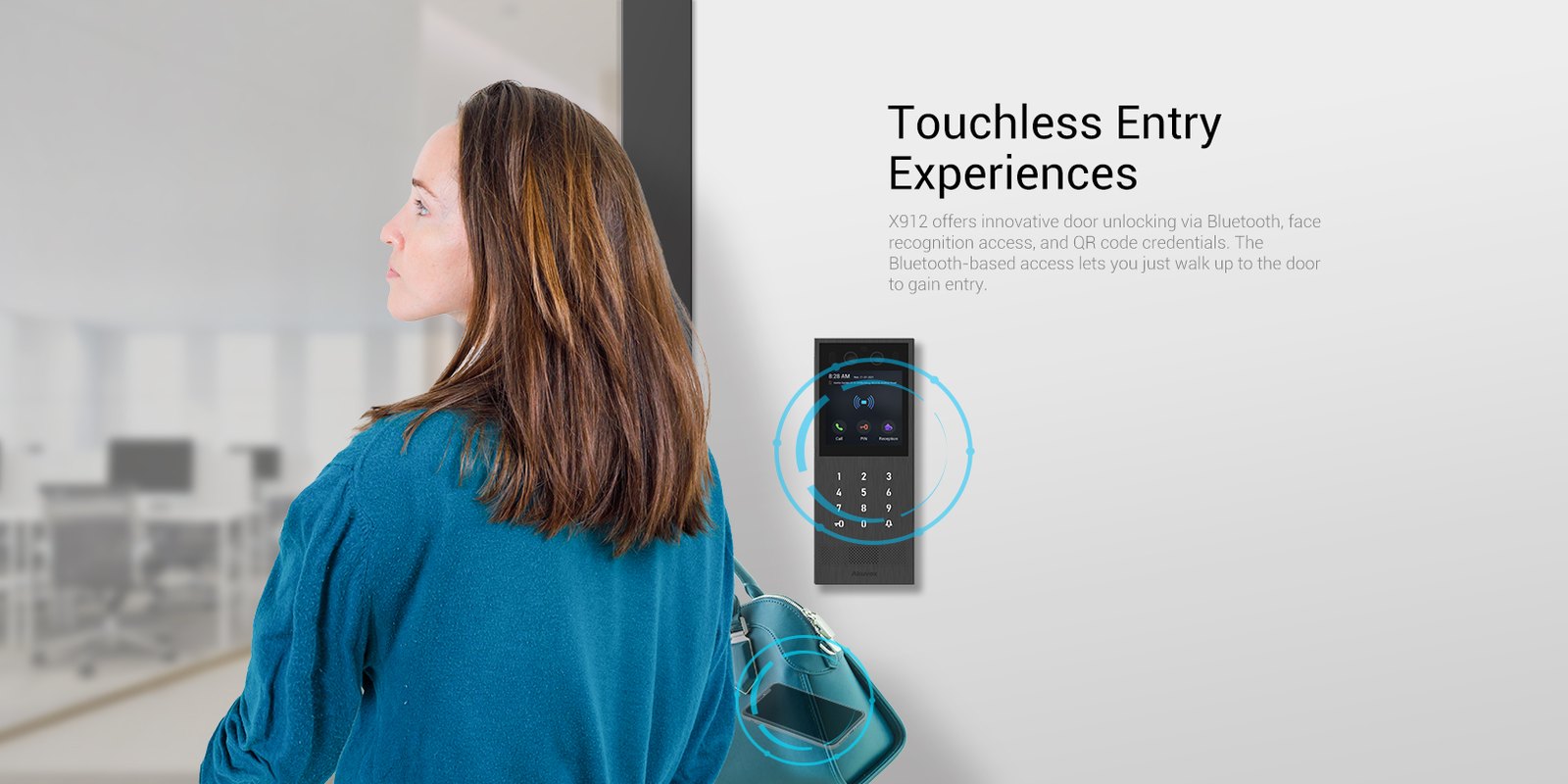

Akuvox X912 door phone surface-mounted at an office entrance
Akuvox · X912 · Thick on-wall bracket

A deeper surface mount for the X912.
Same hooks, more depth.

The AK-X912ONWALLBT is Akuvox’s “On-Wall Mounting Bracket – Thick” for the X912 series. It replaces the flat bracket in the X912 box with a black box-style bracket, so the door station sits further off the wall.

This SKU is the thick bracket only.

You receive the black X912 thick on-wall bracket. The X912 door phone is sold separately; it comes with the standard flat bracket, wall template, wall anchors and screws.

In the box
  • Akuvox X912 thick on-wall mounting bracket (black)
What you also need (sold separately)
  • Akuvox X912K or X912S door phone
  • Wall fixings to suit the surface

Surface-mount with room behind the station.

The flat bracket supplied with the X912 holds the station close to the wall, with cables coming straight out of the wall behind it. The thick bracket keeps the same hang-on mounting but adds 27 mm of depth and 21.3 mm conduit entries, so cable can also arrive in surface conduit.

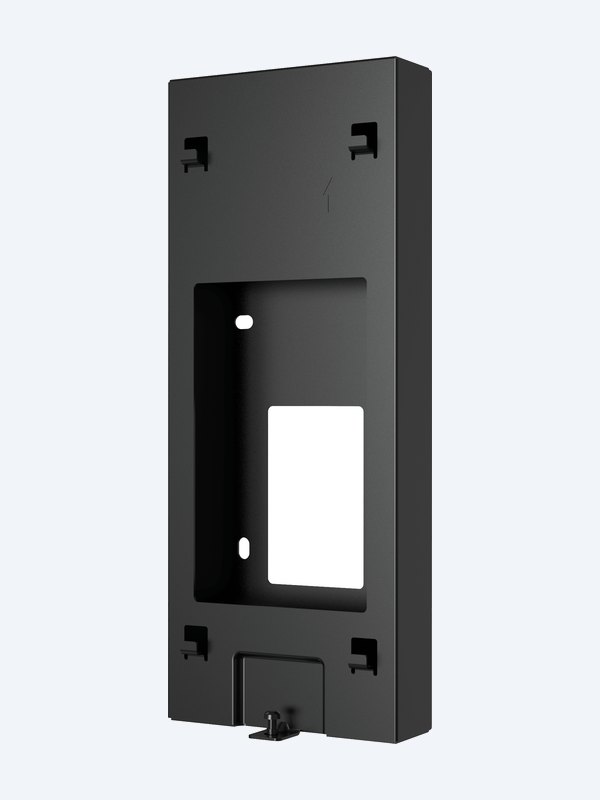

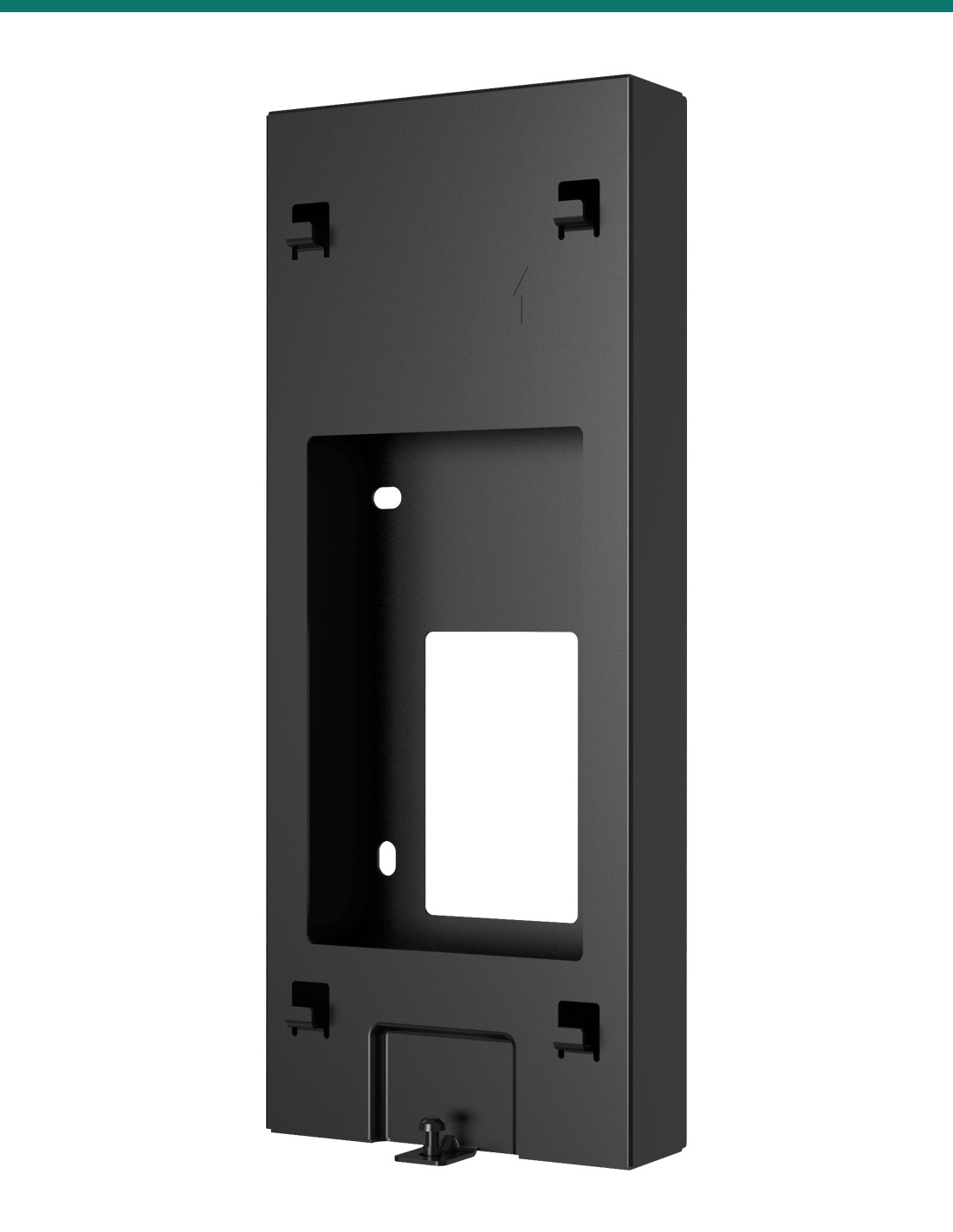

Akuvox X912 black thick on-wall bracket

Fit

Hangs the X912 the same way.

The front carries four hooks and a locking point at the bottom, matching the flat bracket in the X912 box: line up the slots on the back of the station, hang it on and push down until it clicks into place.

An opening in the back lines up with a cable outlet in the wall, and 21.3 mm conduit entries take surface-run conduit into the enclosed space behind the station.

Which mount

Thick, flat, angled or flush.

Use the flat bracket supplied with the X912 for the slimmest surface mount, or this thick bracket when you want the station to stand further off the wall.

For a recessed finish choose the X912 in-wall installation kit; to turn the station 30° towards the path, use the X912 angle bracket.

Pair it with

Fits the Akuvox X912 door phones

Door phone

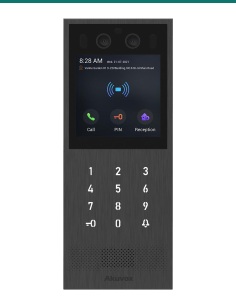

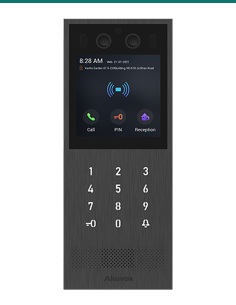

Akuvox X912K / X912S

Face-recognition SIP door phones with keypad; both hang on this bracket.

Angle

X912 angle bracket

Turns the station 30° left or right on a side wall.

Flush

X912 in-wall installation kit

Recesses the X912 into the wall instead.

Watch

See it in action

Akuvox X912 door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox X912 series — X912K and X912S.

How is it different from the bracket in the X912 box?

The supplied bracket is a 5 mm flat plate. This thick version is a 27 mm deep box with the same hooks and bottom lock, plus 21.3 mm conduit entries.

Can I bring cable in through surface conduit?

Yes. The conduit entries take 21.3 mm conduit, so cable doesn’t have to come out of the wall directly behind the station.

How big is it?

230.5 mm high, 93 mm wide and 27 mm deep — just inside the outline of the 233.5 × 94 mm X912.

Is the door phone included?

No. This SKU is the bracket only; the X912 is sold separately.

Can I flush-mount instead?

Yes — use the X912 in-wall installation kit for a recessed finish.

Choose the right X912 mount.

Thick bracket for a deeper surface mount, in-wall kit for a recessed finish, angle bracket to turn the station towards the path.

Colour
Black
Brand
Akuvox
Mounting
Surface, on-wall
Size
230.5 × 93 × 27 mm (H × W × D)
Warranty
Australian warranty
Product Type
On-wall mounting bracket
Model
X912 on-wall mounting bracket - thick
Cable Entry
Ø21.3 mm conduit entries plus rear opening
Compatible with
Akuvox X912K and X912S
Style
Box-style (thick) bracket with 4 hanging hooks
