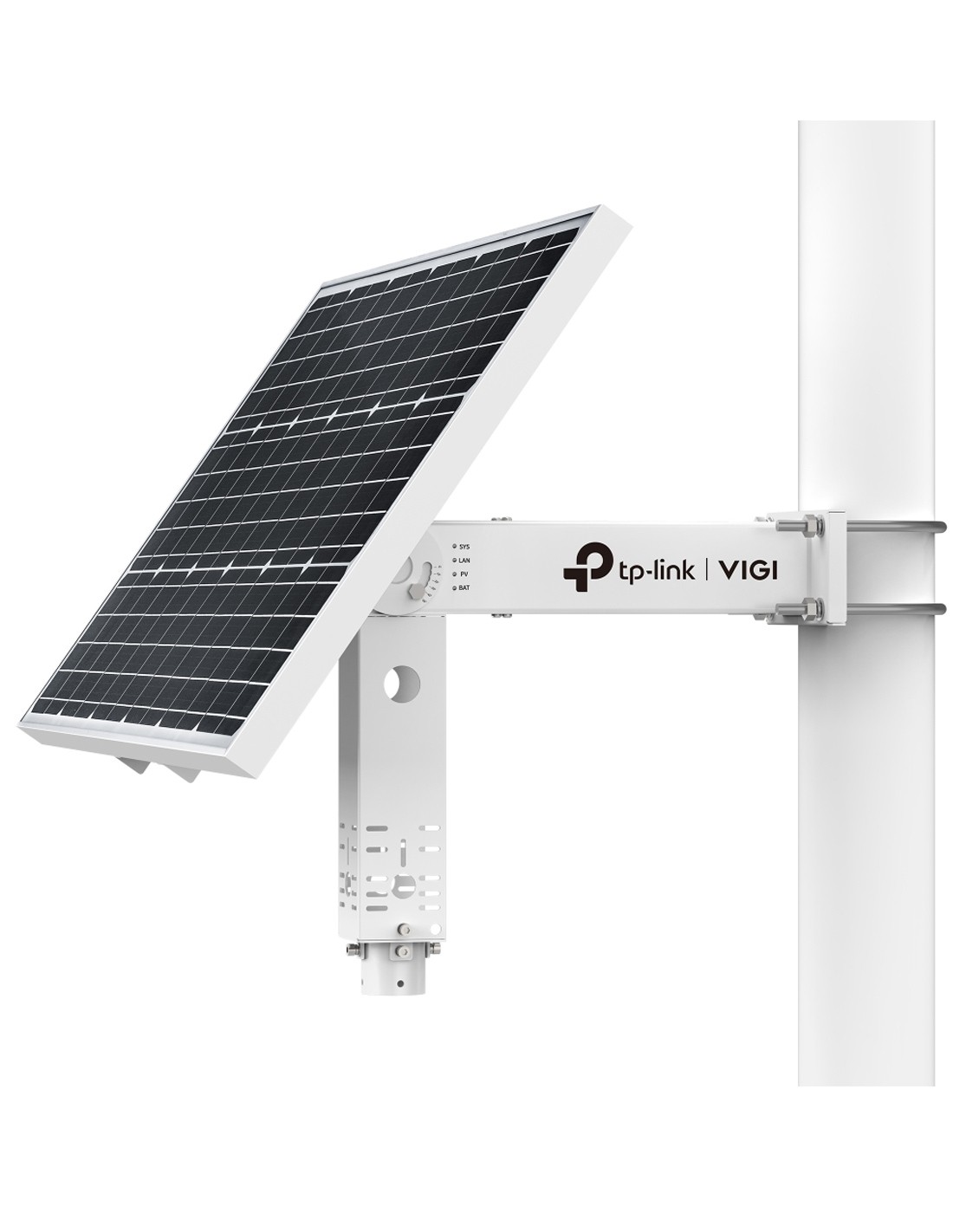

TP-Link VIGI-SP6020 • 60 W Solar Panel + 20.8 Ah Li-Ion Battery
Intelligent Outdoor Power Supply System | IP 66 Weatherproof

Key Features

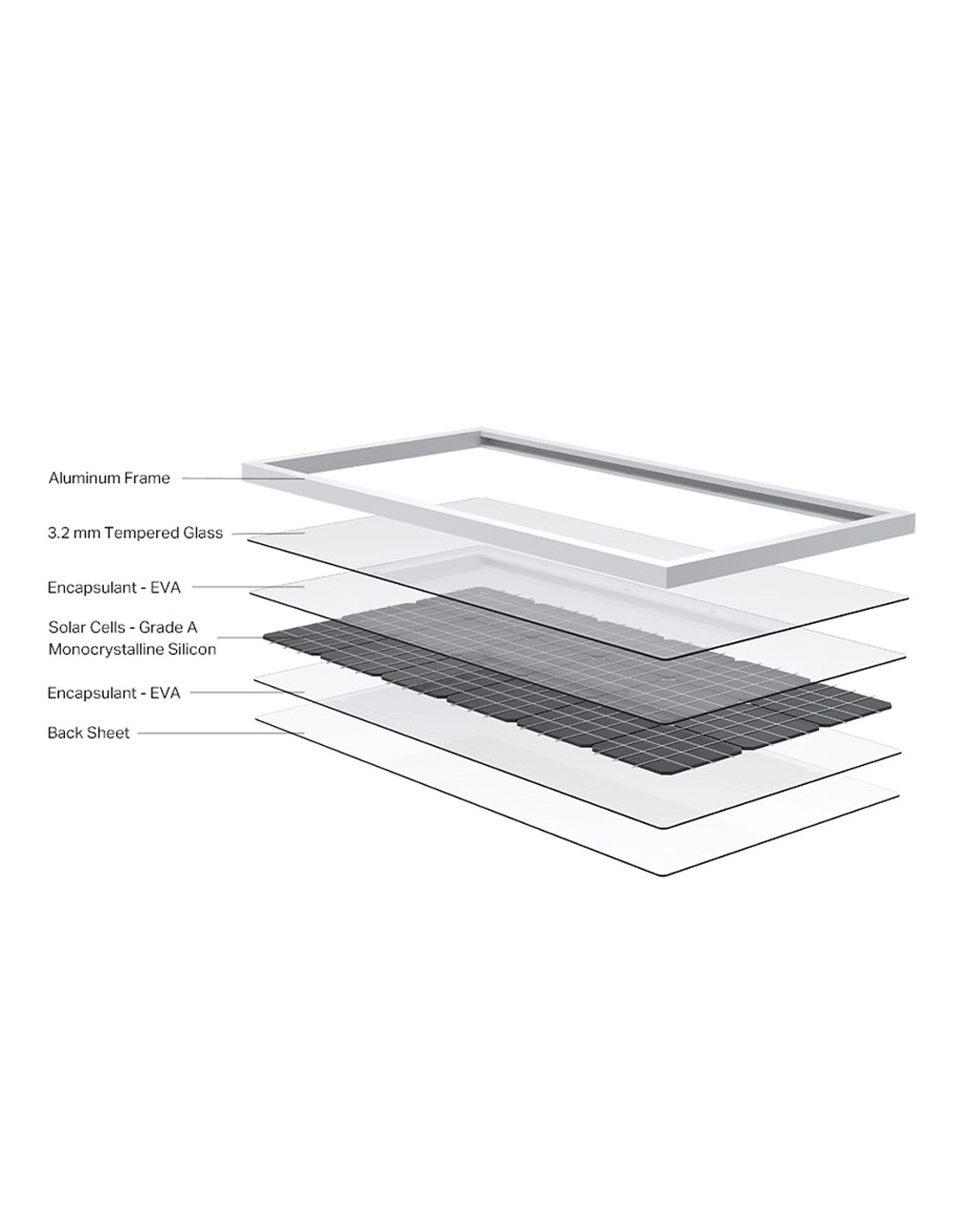

- 60 W High-Efficiency PV Panel generates reliable power all year-round.
- 20.8 Ah / 10.8 V Li-Ion Battery provides up to 3 days* of back-up energy.
- 3 × DC Output Ports to run cameras, wireless bridges or other 12 V devices.
- MPPT Smart Charger maximises harvest & extends battery service life.
- Auxiliary Battery Heating for safe charging below 0 °C.

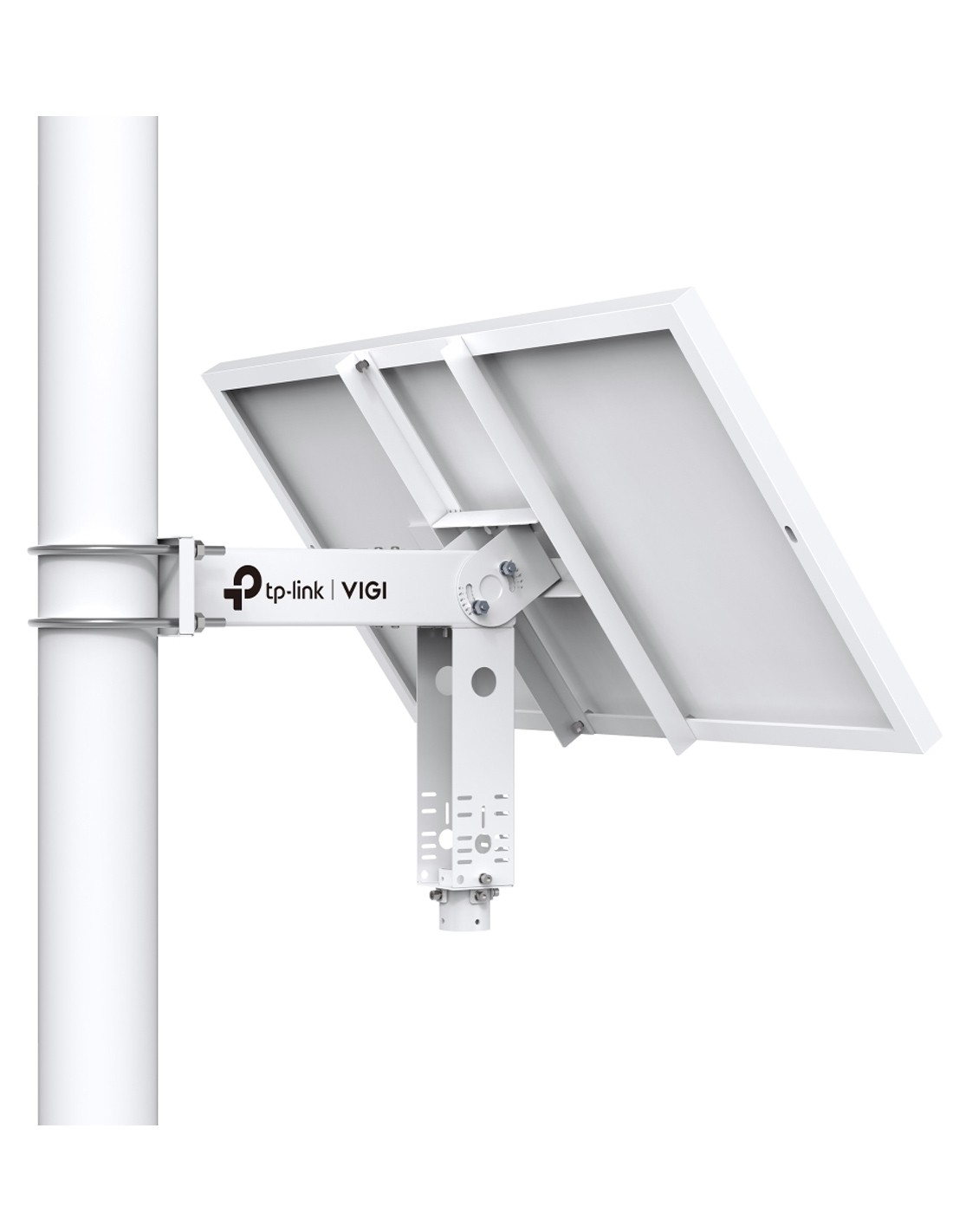

- Adjustable Tilt Bracket – 5°, 15°, 25°, 35°, 45°, 55° presets for any latitude.
- Modular Design ships panel, battery & bracket separately for easy handling.
- Remote Management – live stats, low-battery alerts, firmware updates & reboot.
- IP 66 Aluminium Housing – dust-tight & storm-proof.
- 3-Year TP-Link AU Warranty.
Real-World Applications
- Remote gates, driveways & farm entrances needing 4 G surveillance
- Pop-up construction sites or mining camps without grid power
- Wildlife cameras & environmental monitoring in national parks
- Outdoor events, festivals & car-park security towers
- Temporary network links (wireless bridges) to off-grid sheds & barns
- Fail-safe power for routers / IoT sensors during mains outages
Typical System Combinations

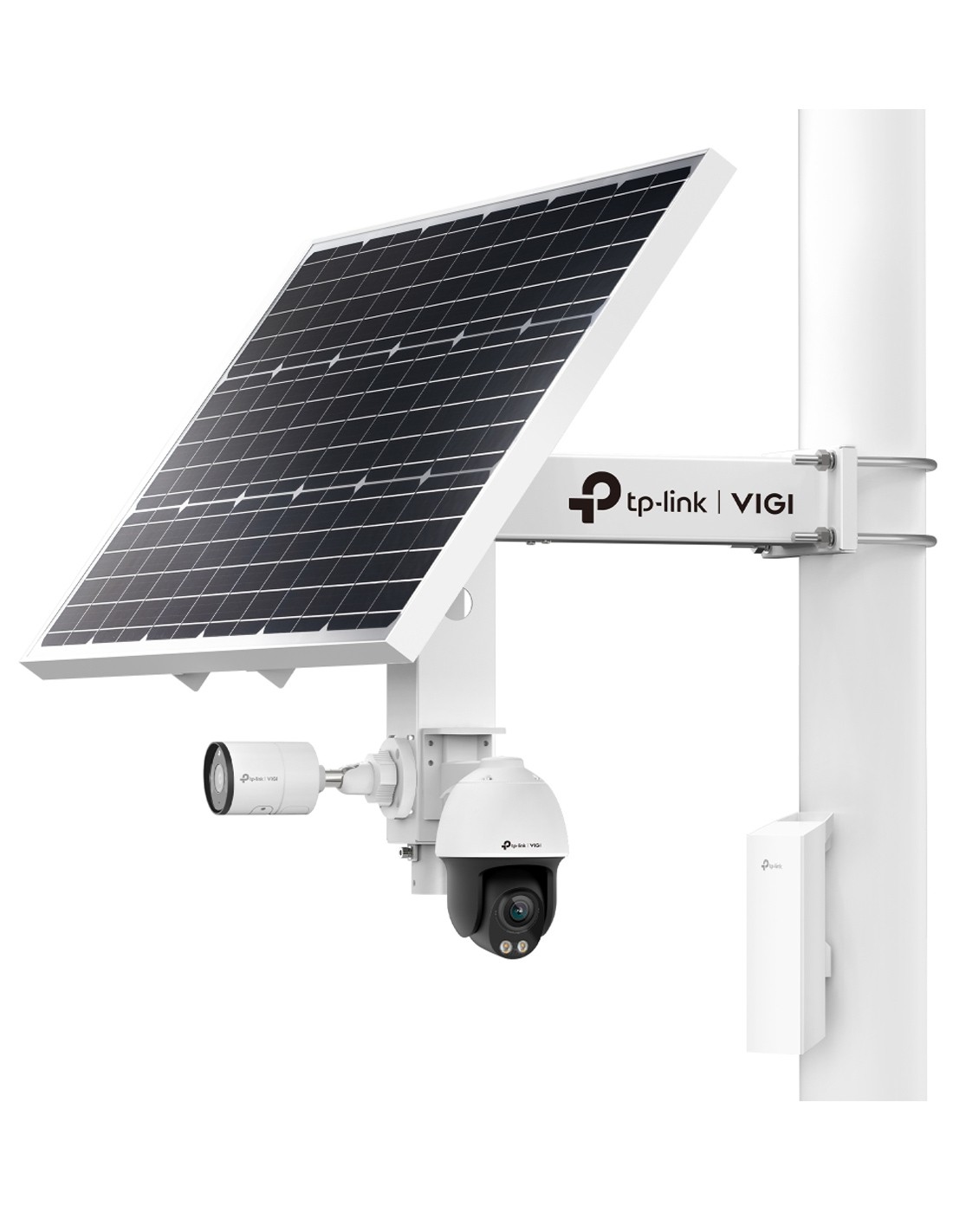

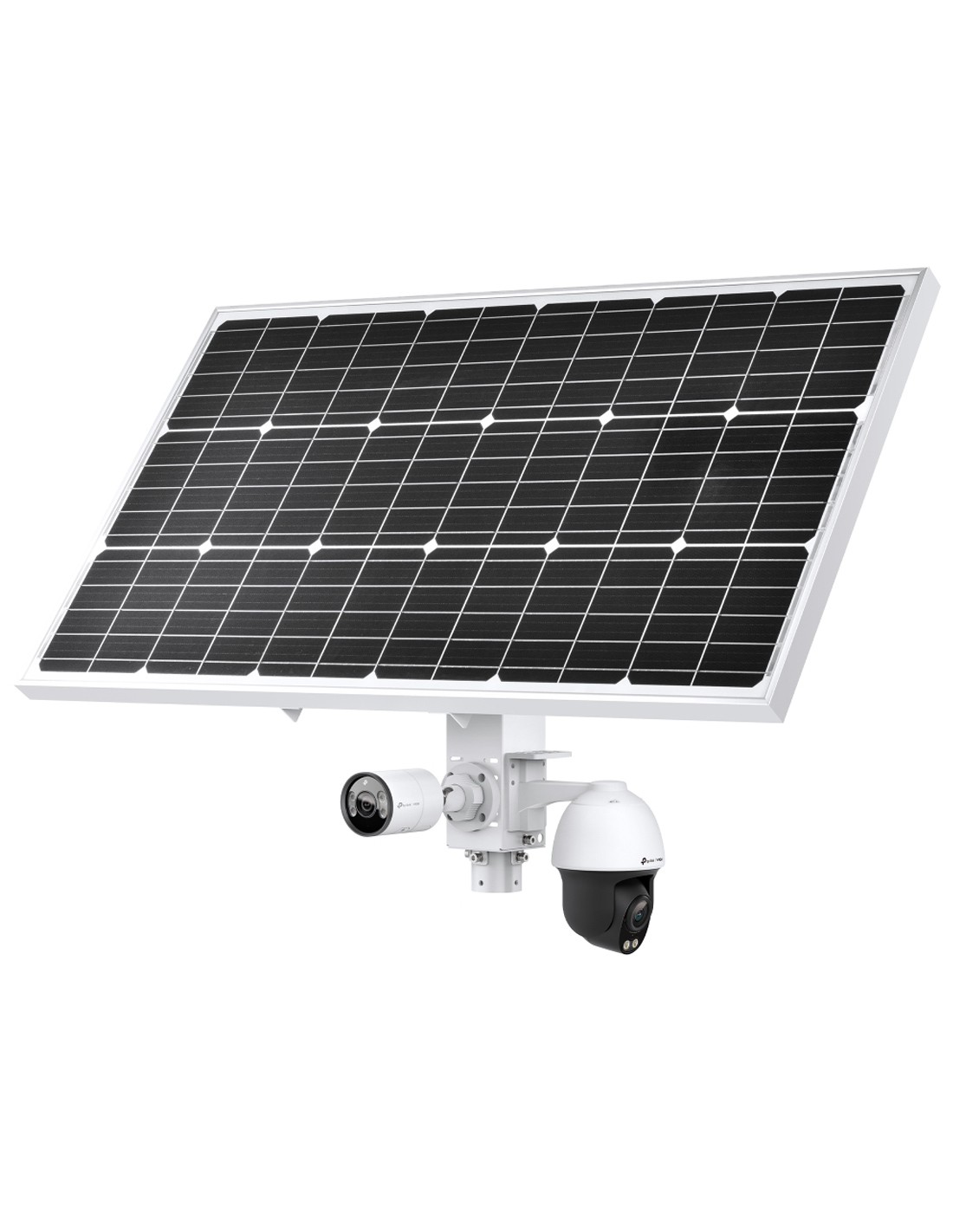

VIGI-SP6020 | 4 G Cameras

VIGI-SP6020 | Wireless Bridge & Bullet Cameras

Remote Management Snapshots



Specification |
Details |
Panel Output |
60 W @ 18 V DC (22 % efficiency) |
Battery Capacity |
20.8 Ah @ 10.8 V (225 Wh) |
DC Outputs |
3 × 12 V DC screw terminals |
Charging Controller |
MPPT + temperature-compensated algorithms |
Operating Temp |
–30 °C to +60 °C (aux heater auto-on < 0 °C) |
Bracket Tilt |
5° 15° 25° 35° 45° 55° presets |
Weather Rating |
IP 66 (dust-tight & high-pressure jet resistant) |

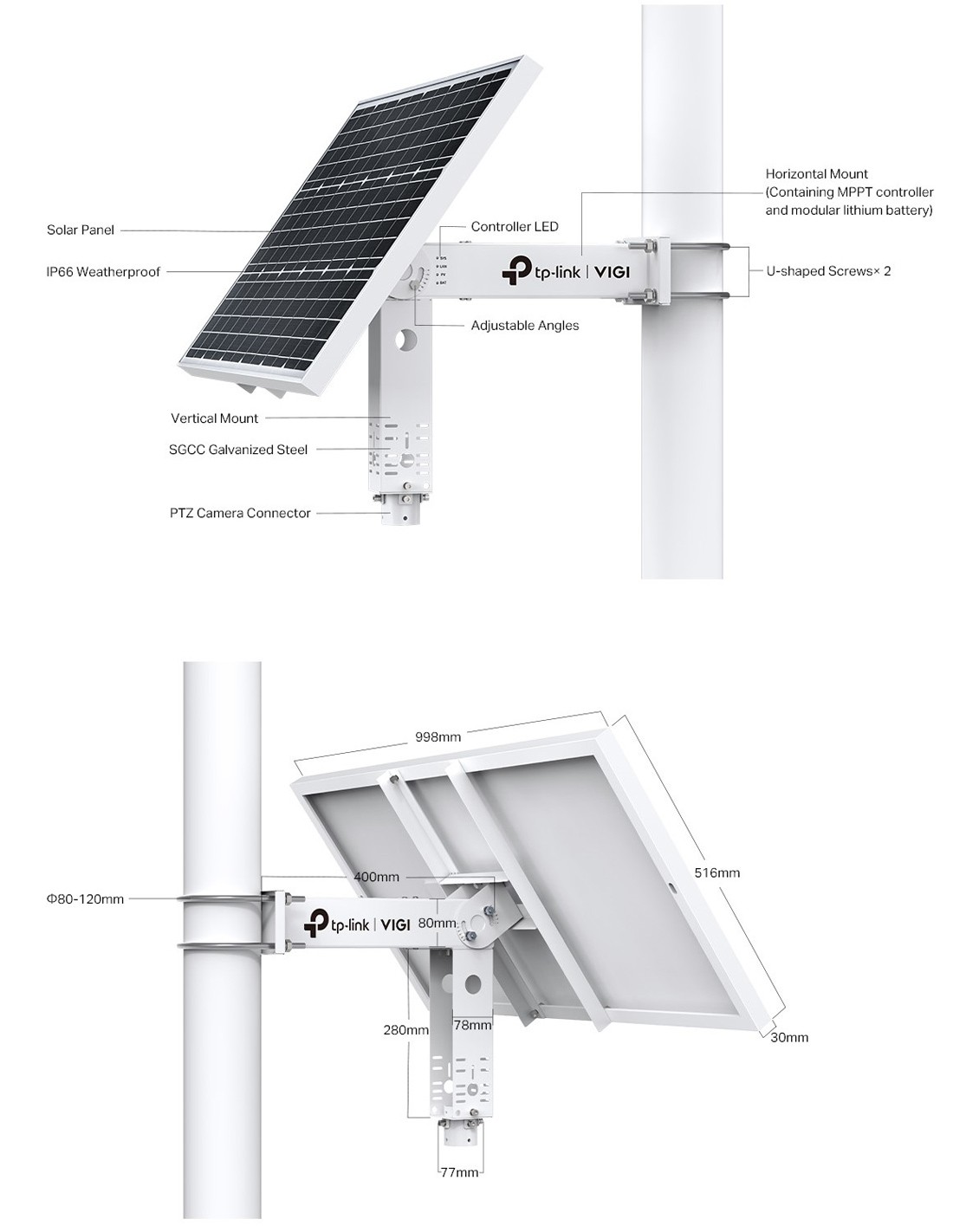

Dimensions (Panel) |
845 × 560 × 30 mm |
Warranty |
3 Years (panel, battery & controller) |
