TP-Link VIGI Network Camera Pole Mounting Bracket VMB-350

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350

Name: TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350
Brand: TP-Link
SKU: VMB-350
Price: 39 AUD
Availability: InStock

Reference: VMB-350

In Stock - Ready to Ship

$ 39.00

inc-GST

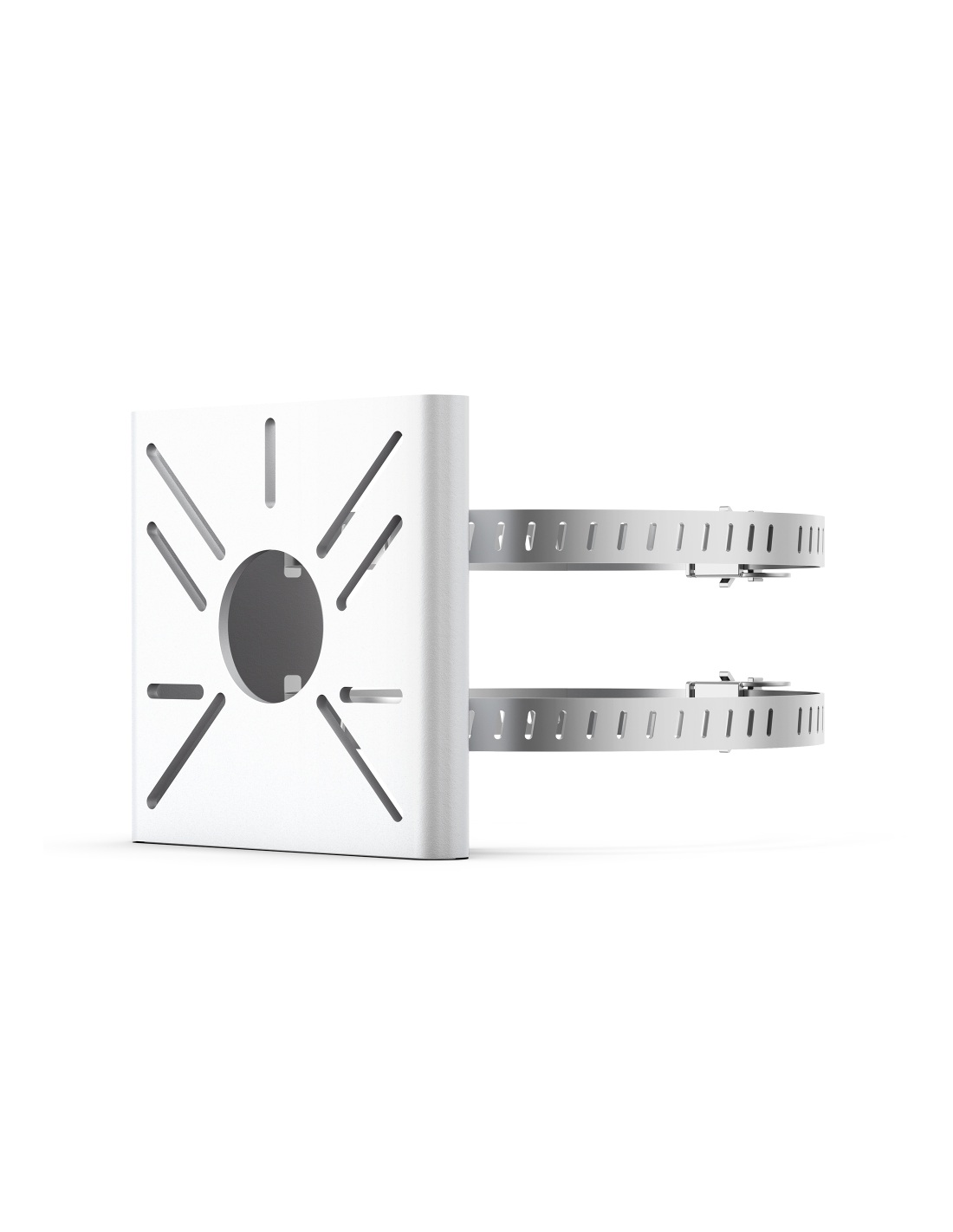

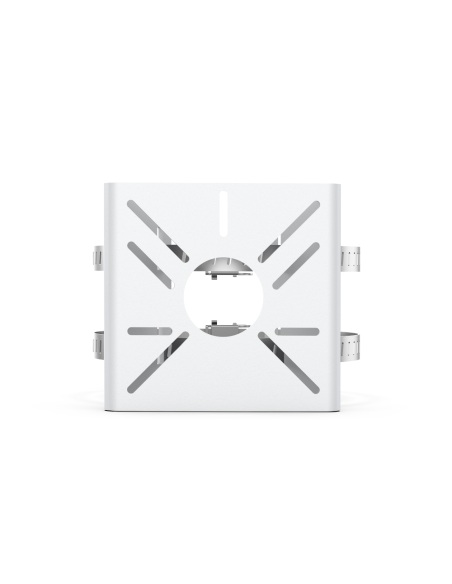

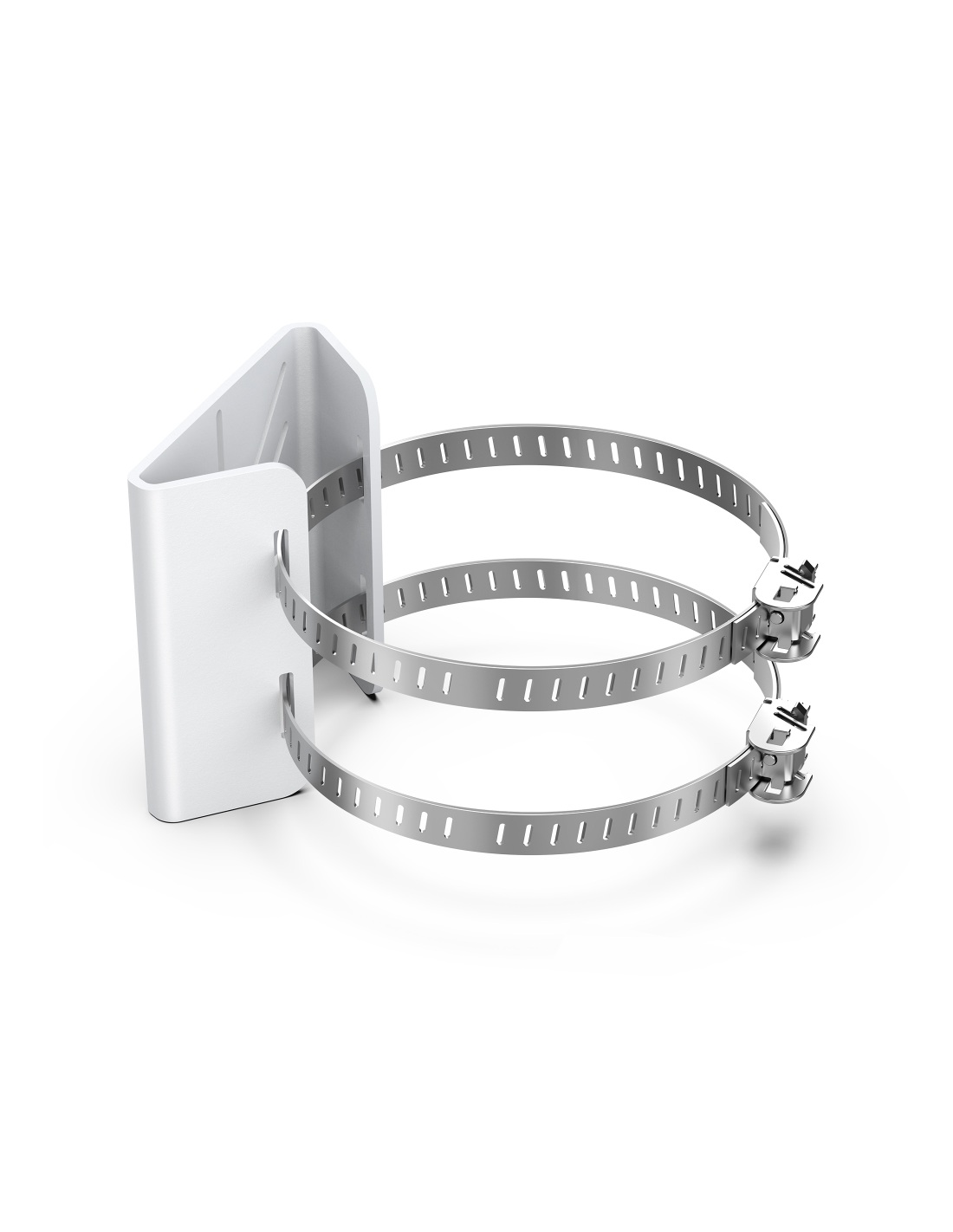

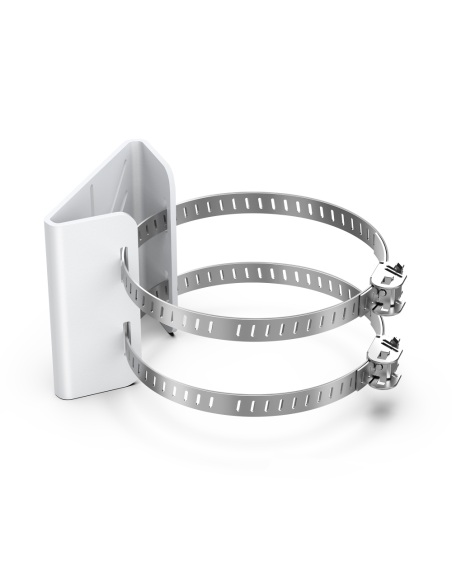

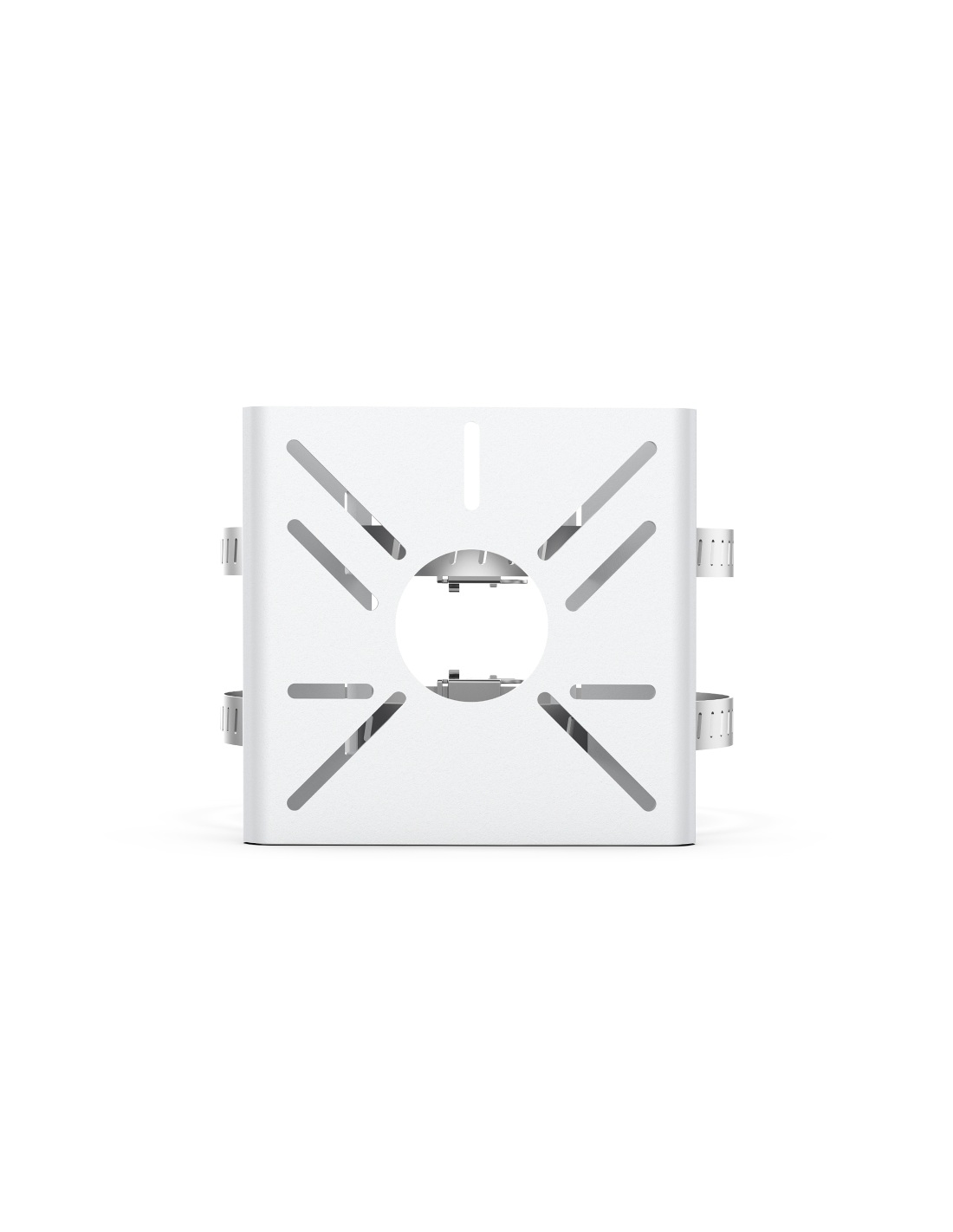

SGCC galvanised + stainless steel pole mounting bracket
Fits poles 70–130 mm diameter
Dimensions: 105 × 100 × 39 mm (4.1 × 3.9 × 1.5 in)
Weight: 392.25 g · VIGI White
For listed bullet and pan-tilt cameras only
Not a junction box — pair with VJB-300 / VJB-305 for cable enclosure

TP-Link VIGI VMB-350

Pole bracket for VIGI bullets and pan-tilt cameras.

Overview

SGCC + stainless pole bracket for listed bullet and pan-tilt cameras on 70–130 mm poles. 105 × 100 × 39 mm · 392.25 g. Not a junction box.

POLE BRACKET — NOT A JUNCTION BOX

Clamps a listed bullet or PT to a round pole. For enclosed cable joins add VJB-300 or VJB-305. Not for dome / turret / fisheye.

In the box

VIGI VMB-350 mounting bracket
Mounting accessories
Installation guide

What you also need (sold separately)

Compatible bullet or PT camera
Round pole 70–130 mm
Optional VJB-300 / VJB-305 for terminations

BUILD

Outdoor steel. VIGI White.

SGCC galvanised + stainless. 105 × 100 × 39 mm · 392.25 g — sits cleanly on common CCTV poles.

POLE

70–130 mm diameter.

Measure the post before ordering. Confirm the pole can carry camera + bracket load.

FIT

Bullets and PT only.

Listed C3xx bullets, C540 PT and InSight bullets. Domes / turrets / fisheye → VJB wall boxes, not this clamp.

Install in four steps

Measure the poleConfirm 70–130 mm diameter and structural capacity.
Fit the bracketPosition at height; tighten per the installation guide.
Mount the cameraBolt the listed bullet or PT to the bracket.
Manage cablesDress Ethernet; add VJB-300 / VJB-305 if you need an enclosed join.

Compatible camera models

From TP-Link Australia’s VIGI accessory matrix. Listed models and higher hardware versions are supported.

InSight

InSight LPR345Z · InSight S345-4G · InSight S345S · InSight S345ZI · InSight S355 · InSight S385 · InSight S385DPS · InSight S385PI

Pan Tilt (C540)

VIGI C540 · VIGI C540-4G · VIGI C540-W · VIGI C540S · VIGI C540V

Bullet (C3xx)

VIGI C320I · VIGI C330 · VIGI C330I · VIGI C340 · VIGI C340-W · VIGI C340I · VIGI C340S · VIGI C345 · VIGI C350 · VIGI C355 · VIGI C385

Source: tp-link.com/au/vigi-accessories/product-list/ (VMB-350 filter).

Key specs — VMB-350

Specification	Detail
Product type	VIGI Network Camera Pole Mounting Bracket
Model	VMB-350
Material	SGCC galvanised and stainless steel
Appearance	VIGI White
Pole diameter	70–130 mm
Product dimensions	105 × 100 × 39 mm (4.1 × 3.9 × 1.5 in)
Weight	392.25 g
Compatibility	24 listed bullet / PT models
Package contents	Mounting bracket, mounting accessories, installation guide
Warranty	Australian warranty via Infront Technologies

Pair it with

BULLET: VIGI C355 / C385 — Full-colour bullets commonly paired with VMB-350 on carpark and fence poles.
PT: VIGI C540 / C540-4G — Pan-tilt site cameras on poles — junction via VJB-300 when needed.
INSIGHT: S345ZI / S385PI / LPR345Z — InSight bullets on the same pole bracket matrix.
JUNCTION: VJB-300 or VJB-305 — Add the matching junction box when terminations must be enclosed.

Frequently asked questions

Is VMB-350 a junction box?

No. It is a pole mounting bracket only. For enclosed cable joins use VJB-300 or VJB-305 as listed for your camera.

Will it fit a dome camera?

No. Domes / turrets / fisheye are not on the VMB-350 AU list. Use the appropriate VJB wall junction box.

What pole size?

70–130 mm diameter. Measure before you buy.

Aluminium or steel?

TP-Link specifies SGCC galvanised and stainless steel — not aluminium.

Need a proper VIGI pole mount for 70–130 mm posts?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected] for a compatibility check before you order.

Installation note. The VMB-350 is a passive mounting accessory. Confirm the wall or pole can support at least three times the combined camera + mount weight. Concealed customer cabling must be installed by an ACMA-registered cabler (AS/CA S009). Verify your camera against the current AU matrix before ordering.

Dimensions: 105 × 100 × 39 mm
Weight: 392.25 g
Material: SGCC galvanised and stainless steel
Colour: VIGI White
Brand: TP-Link
Pole Diameter: 70–130 mm
Package Contents: Mounting bracket, mounting accessories, installation guide
Warranty: Australian Warranty via Infront Technologies
Product Type: Network Camera Pole Mounting Bracket
Product Family: VIGI Accessory
Model: VMB-350
Compatibility: Listed VIGI / InSight bullet and PT cameras
