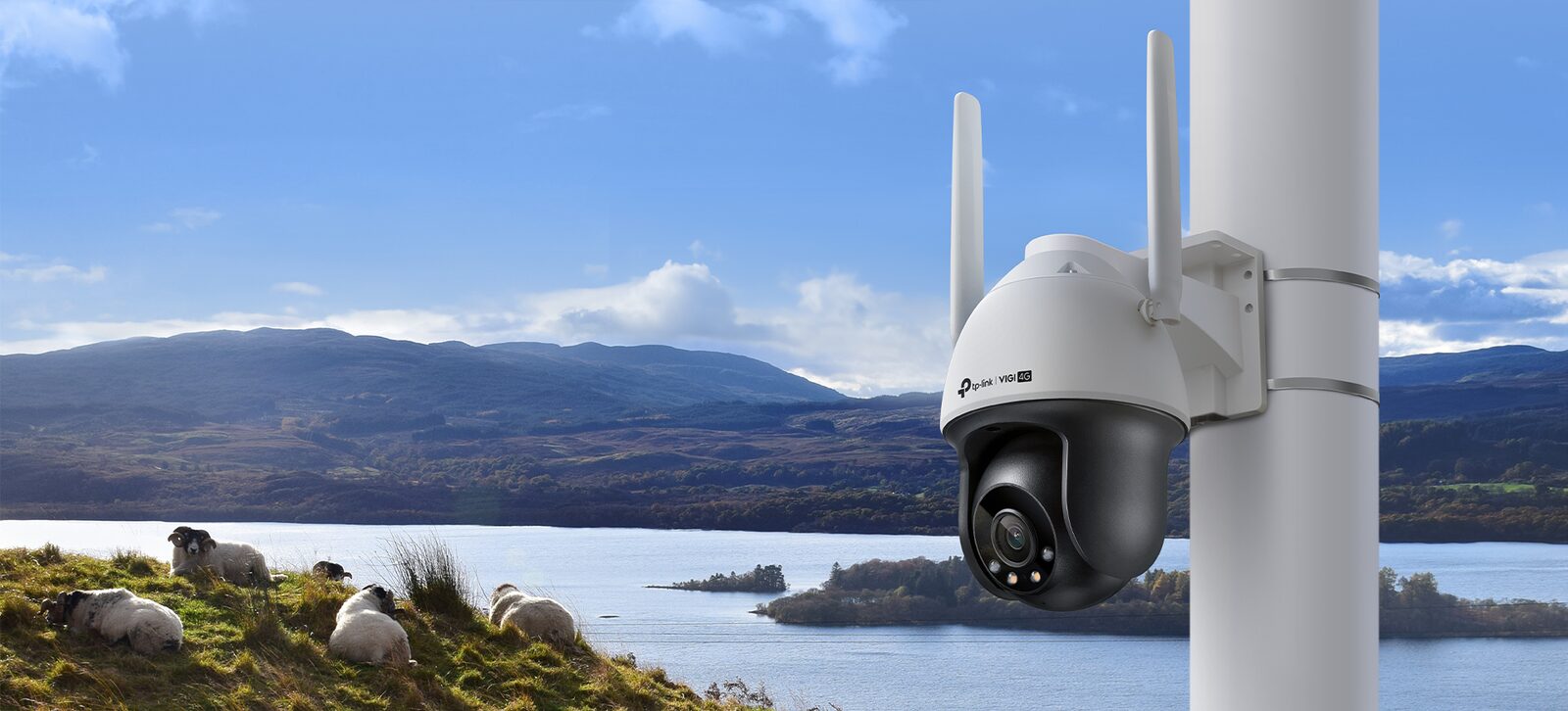

VIGI C540-4G 4MP 4G pan-tilt camera with its two antennas

VIGI SP6020 60W solar panel on the pole arm that holds the battery and controller

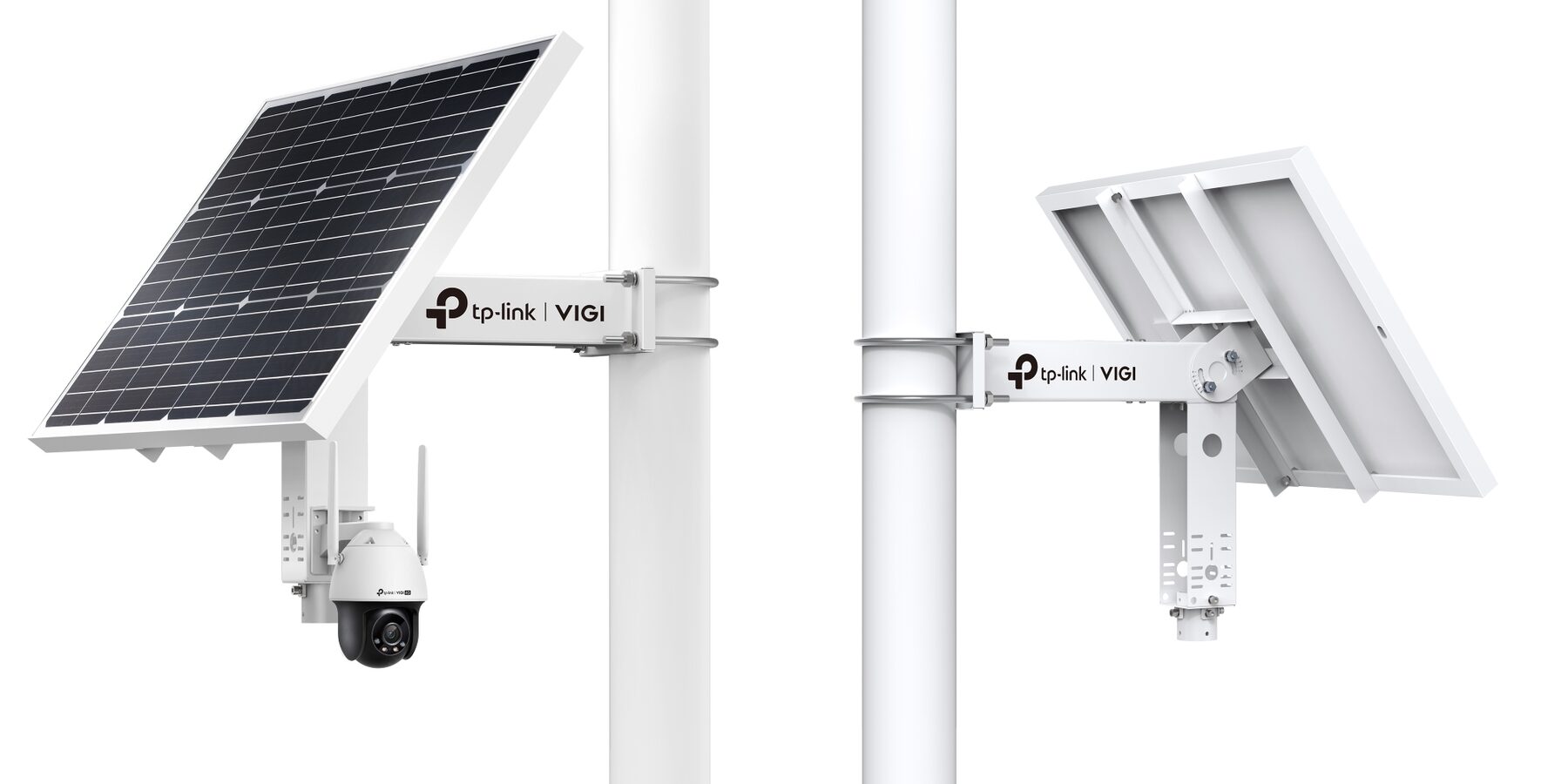

Rear of the VIGI SP6020 solar panel with the pole clamp and camera arm

Nano-SIM card slot on the VIGI C540-4G camera

1 / 5

TP-Link VIGI 4G Solar Security Camera Kit, Farms, Sites & Remote Properties, 4MP Pan Tilt, 60W Solar - VIGI-C540-4G-SP6020

Name: TP-Link VIGI 4G Solar Security Camera Kit, Farms, Sites & Remote Properties, 4MP Pan Tilt, 60W Solar - VIGI-C540-4G-SP6020
Brand: TP-Link
SKU: VIGI-C540-4G-SP6020
Price: 710.4 AUD
Availability: InStock

SKU VIGI-C540-4G-SP6020 In Stock - Ready to Ship

$710.40 inc GST $888.00 Save 20%

Ends in

A security camera for places with no power and no internet. Bolt it to a pole, add a 4G SIM, and watch your farm gate, shed, building site or holiday home from your phone.

Runs on sun: 60W solar panel and self-heating 20.8Ah lithium battery, about 4.3 days with no sun.
Online over 4G: Nano-SIM on Telstra, Optus or Vodafone, including the 700 MHz rural band.
Sees the whole area: 4MP pan-tilt camera, 348° left-right, 120° up-down, follows people and vehicles.
Colour at night: white light to 30 m, plus a speaker and siren-style warning to move people on.
Records on site: microSD card up to 512GB, so footage is kept even when the signal drops.

You add: a 4G data SIM, a microSD card (pick one below) and a pole 80–120 mm across.

Free delivery Australia-wide. In stock and dispatched from Queensland.

Add a microSD card

Records footage on the camera itself. Added to your cart as a separate item.

No card 32GB 64GB 128GB 256GB

Quantity	Unit price	You Save
2	$ 689.50	$ 397.00
4	$ 674.75	$ 853.00

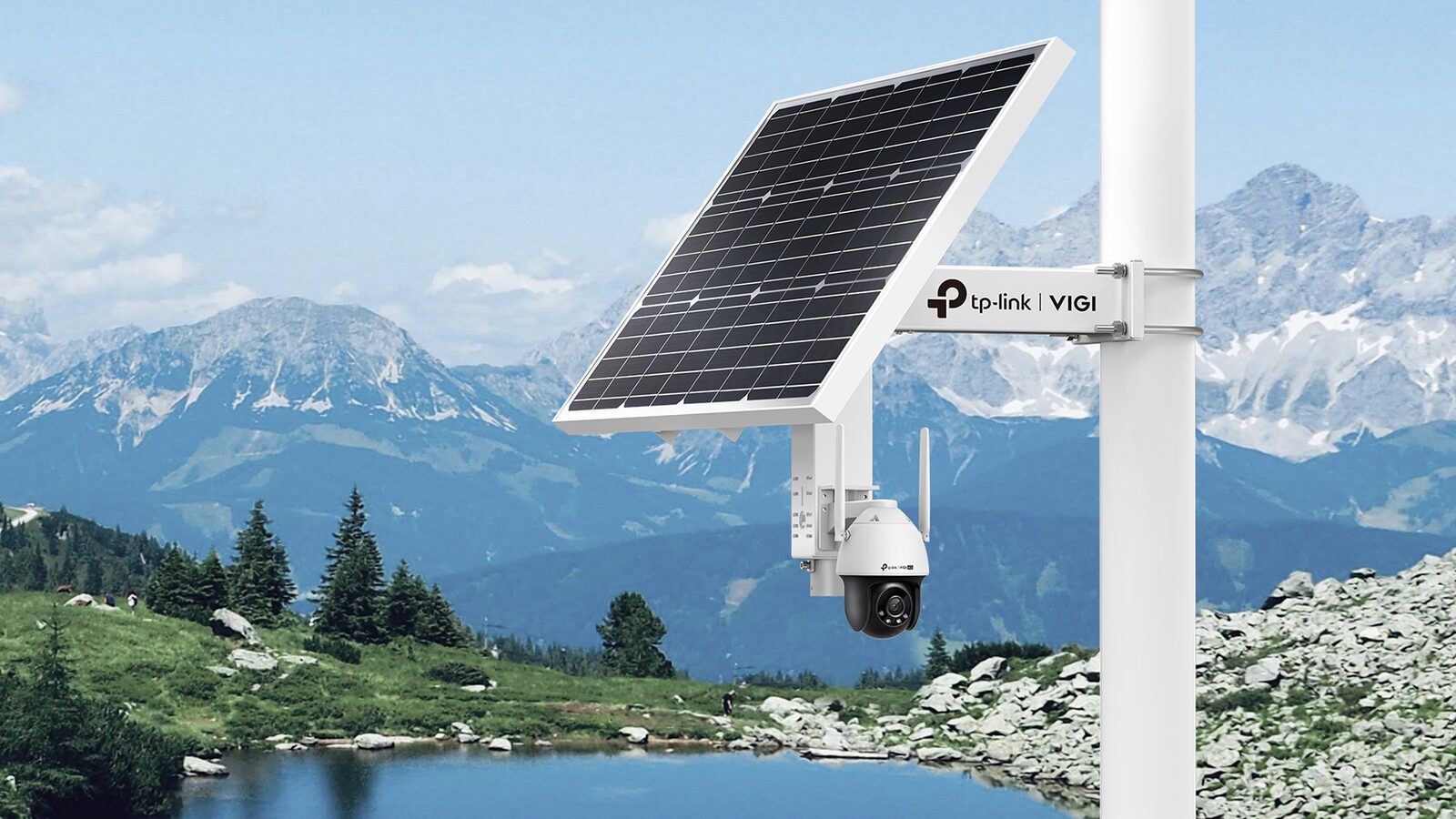

TP-Link VIGI C540-4G camera under the VIGI SP6020 60W solar panel on a pole

TP-Link VIGI · 4G solar camera kit

A pan-tilt camera on its own power.
No mains. No NBN. No trench.

This is the VIGI-C540-4G-SP6020: the VIGI C540-4G 4MP full-colour pan-tilt camera and the VIGI SP6020 60W solar power system, sold together. Add a Nano-SIM and a pole and it runs anywhere with sun and 4G coverage.

In one sentence: the VIGI-C540-4G-SP6020 is a TP-Link pole-mounted kit that pairs a 4MP full-colour 4G pan-tilt camera with a 60W solar panel and a self-heating 10.8V 20.8Ah lithium battery, for sites with no power or internet.

Camera and solar system included. SIM, pole and memory card are not.

The kit ships as two cartons: the camera, and the solar system with its bracket.

In the box

VIGI C540-4G camera, power adapter, mounting accessories and waterproof cable fittings
VIGI SP6020 solar power system: 60W panel, 20.8Ah battery and controller, with mounting accessories
Quick start guides

You also need

A 4G data Nano-SIM
A pole, 80–120 mm diameter
A microSD card, up to 512GB, to record on the camera

For the gate, the shed and the site with no power.

TP-Link’s model for one C540-4G on this system is 4.3 days of running through consecutive rainy days, and 1.8 sunny days to recharge from empty while it keeps recording. For shaded or cloudy sites, the SP6030 version of this kit has a 31.2Ah battery, rated 6.4 days.

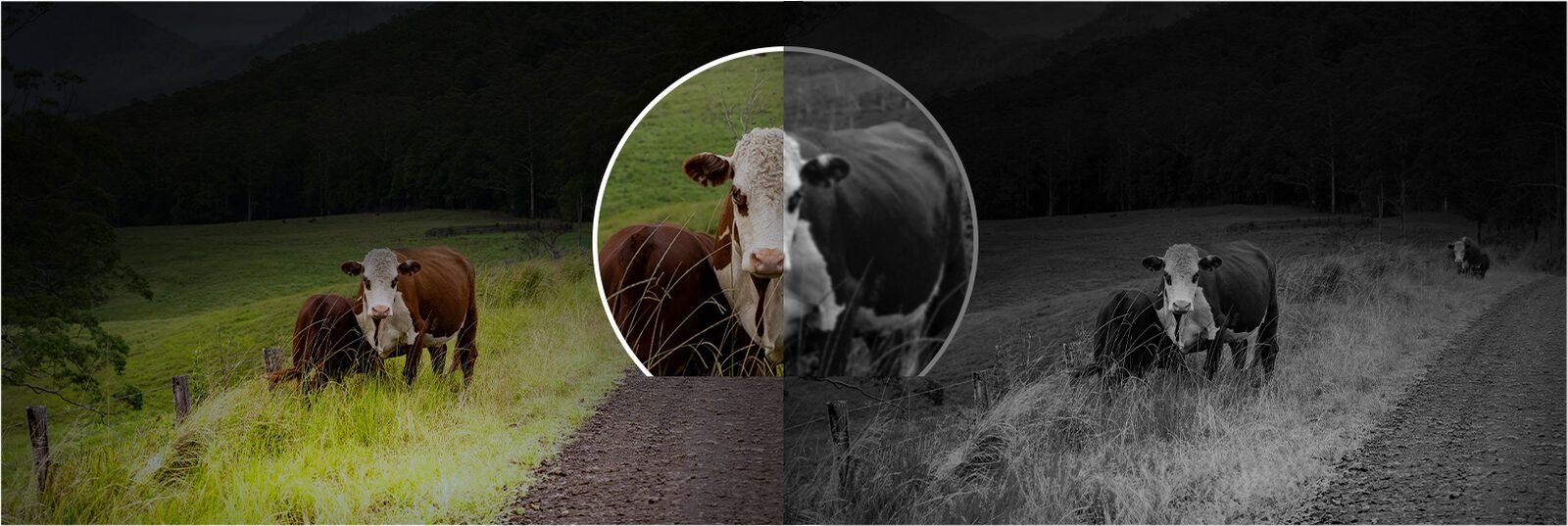

Night view of cattle in full colour on the left and black-and-white infrared on the right

Full colour at night (left) against a typical infrared picture (right). Two white LEDs light the scene to 30 m, and colour sensitivity goes down to 0.005 lux. Switch to the two 850 nm infrared LEDs, also 30 m, when you would rather not light the area up.

Camera

4MP. 348° across, 120° up and down.

A 1/3.06-inch sensor at 2560 × 1440 behind a 4 mm F1.6 lens with an 80° horizontal view. Save up to 300 presets and 8 patrols, or let auto tracking follow a person or vehicle. Human and vehicle detection cuts out alerts for animals and moving trees, and the built-in speaker can sound a warning while the white light flashes.

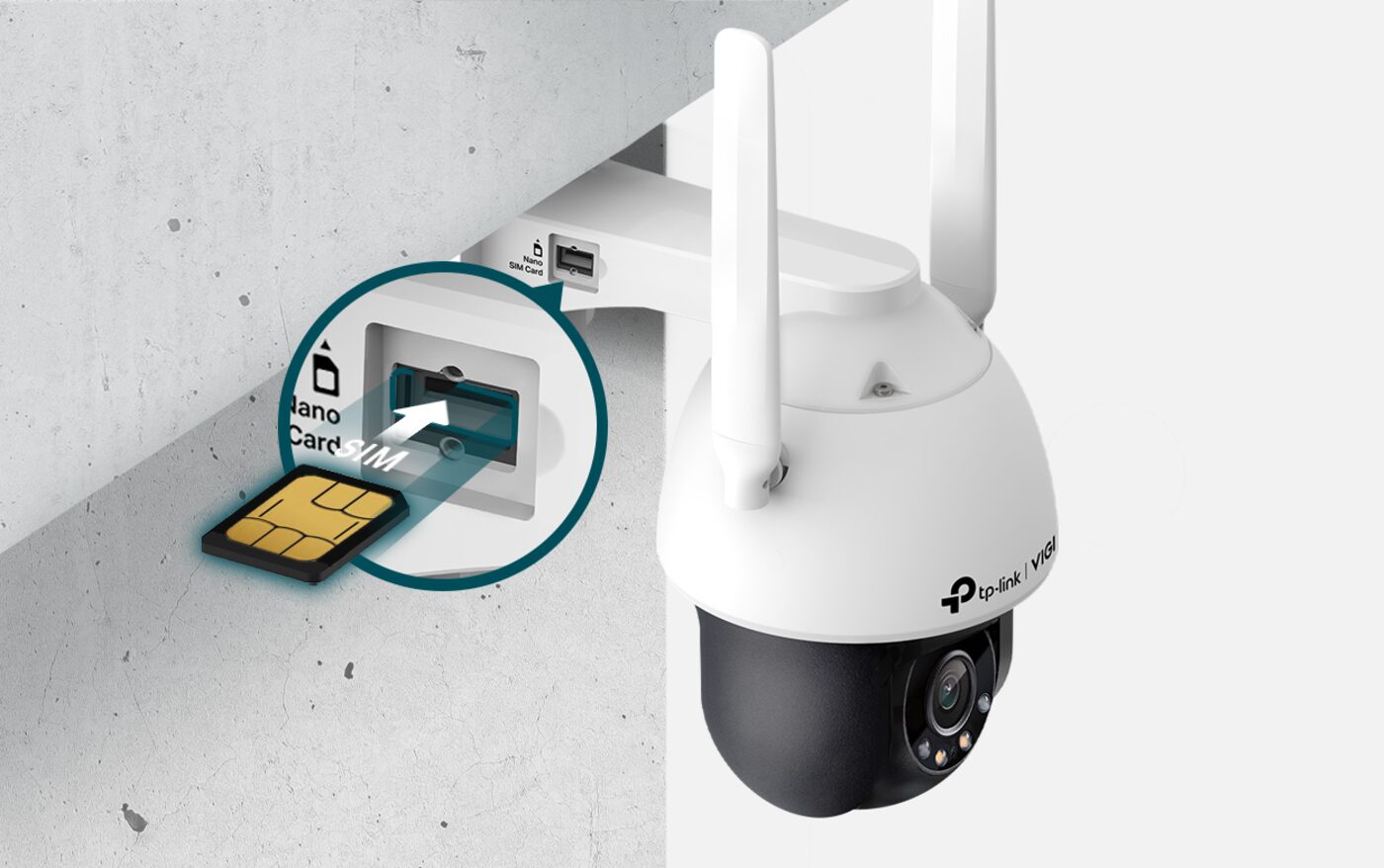

Nano-SIM card going into the slot on the VIGI C540-4G mounting arm

Nano-SIM in, and it is online.

LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28 and TDD bands 38, 40 and 41, through two external antennas. The main stream runs from 256 Kbps to 3 Mbps with H.265+, so you decide how much data it uses. Footage records to a microSD card in the camera, up to 512GB, whether or not the signal holds.

Solar

60W panel. A battery that heats itself.

A Grade-A monocrystalline panel, 690 × 516 × 30 mm, under 3.2 mm tempered glass in an aluminium frame, on a galvanised steel bracket that tilts from 5° to 55°. The MPPT controller charges a 10.8 V 20.8 Ah lithium battery that warms itself, so it charges down to −30 °C. Battery level, power use and low-battery alerts show in the VIGI app.

How it goes in

From the pole to the first alert.

Check signal and sun

Test 4G coverage at the pole with your SIM. Pick a spot where the panel faces north with no shade through the day.

Clamp it to the pole

The bracket fits a pole of 80 to 120 mm diameter. Set the panel tilt from 5° to 55°, close to your latitude.

SIM, card and power

Fit the Nano-SIM and a microSD card in the camera, then plug the camera’s 12 V DC lead into one of the three outputs on the solar system.

Add it to the VIGI app

Add the camera, draw the detection areas for people and vehicles, and turn on alerts. Battery level and power use show in the app too.

At a glance

VIGI-C540-4G-SP6020

Show specs

Kit

VIGI C540-4G camera + VIGI SP6020 solar power system

Camera

4MP full-colour 4G pan-tilt, 2560 × 1440

Image sensor

1/3.06" progressive scan CMOS

Lens

4 mm F1.6, fixed. 80° horizontal, 43° vertical, 94° diagonal

Pan and tilt

Pan 0–348°, tilt 0–120°, 8–44°/s

Presets and patrols

300 presets, 8 patrols of up to 8 presets, auto tracking

Night light

2 white LEDs to 30 m, 2 IR LEDs (850 nm) to 30 m

Minimum illumination

Colour 0.005 lux; 0 lux with IR or white light

Compression

H.265+ / H.265 / H.264+ / H.264

Bit rate

Main stream 256 Kbps–3 Mbps, sub-stream 64–512 Kbps


DWDR, 3D DNR, BLC, HLC, Smart IR, up to 4 privacy masks

Smart detection

Human and vehicle classification, intrusion, line crossing, region entering and exiting, object left or removed, abnormal sound, tampering

Deterrence

Audible warning and flashing white light

Audio

Two-way, built-in microphone and speaker

Mobile network

4G LTE Cat 4, Nano-SIM. FDD B1/3/5/7/8/20/28, TDD B38/40/41

Antennas

2 external omni dipoles, 690–960 and 1710–2690 MHz

Storage

microSD up to 512GB (card not included)

Apps

VIGI App, VIGI Security Manager, web browser, cloud, ONVIF Profile S

Camera power

12 V DC 1 A, 5.5 mm plug

Camera body

IP66, −30 °C to 60 °C, 120 × 182 × 201 mm without antennas, 0.69 kg

Solar panel

60 W, 18 V monocrystalline, 690 × 516 × 30 mm, 3.2 mm tempered glass

Panel tilt

5° / 15° / 25° / 35° / 45° / 55°

Battery

Lithium 10.8 V 20.8 Ah, 12.6 V max output, over 500 cycles, self-heating

Battery charging

0–45 °C, or −30 °C to 45 °C with heating

Battery discharging

−20 °C to 60 °C, or −30 °C to 60 °C with heating

Power outputs

3 × 5.5 mm DC: two at 9–12.6 V 2 A, one at 12 V 2 A

Controller

MPPT, 1 × 10/100 RJ45, SYS / LAN / PV / BAT lights

Protection

Overdischarge, high and low temperature, remote reboot and firmware update

Pole

80–120 mm diameter (not included)

No-sun running (TP-Link model)

4.3 days; 1.8 sunny days to recharge under load

Solar system weight

13 kg; carton 800 × 615 × 225 mm, 14.5 kg

Certifications

Camera CE, RCM, RoHS. Solar system CE, FCC, IC, IP66; battery CB, PSE

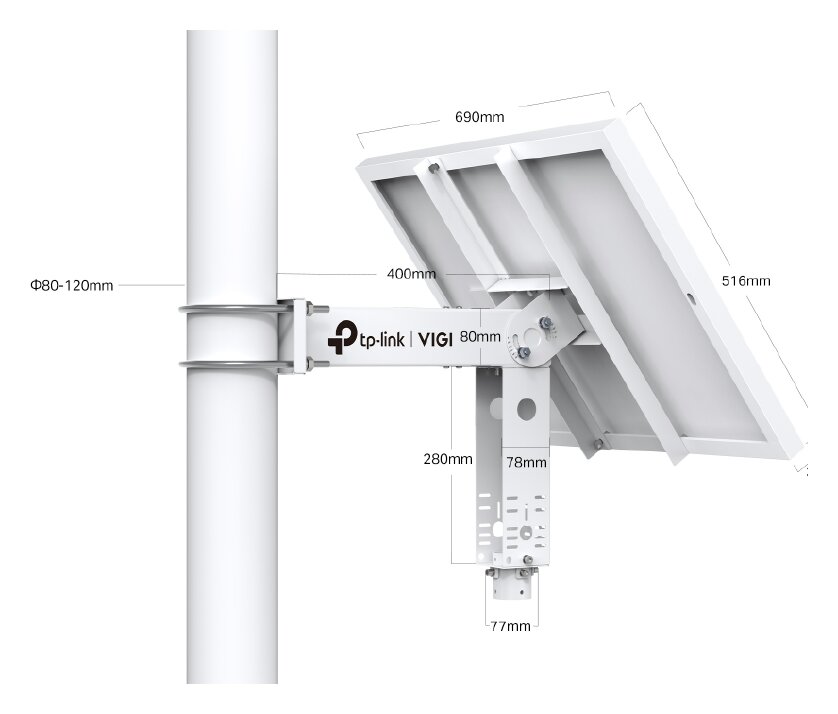

VIGI SP6020 dimensions: 690 by 516 mm panel, 400 mm arm, 80 to 120 mm pole

SP6020 drawing. Panel 690 × 516 mm, arm 400 mm from the pole, pole 80–120 mm diameter. The camera is 120 × 182 × 201 mm without antennas.

Pair it with

What this kit does not include

Storage

A high-endurance microSD card

Up to 512GB. Our SanDisk High Endurance 256GB suits continuous recording.

Data

A 4G Nano-SIM

From a carrier with coverage at the pole. A data-only plan is enough.

Mounting

A pole, 80–120 mm

Not included. Allow for a 13 kg system and a 690 × 516 mm panel in the wind.

More battery

The SP6030 kit

The VIGI-C540-4G-SP6030 has the same camera and panel with a 31.2Ah battery.

Where it is used

Places a cable will not reach.

Farm gates and sheds

Watch a gate, a fuel tank or a machinery shed a long way from the house.

Construction sites

Up on a pole before the power is connected. Move it when the job moves.

Rural driveways

See who comes in, in colour at night, and talk to them through the speaker.

Pumps and water tanks

Keep an eye on remote infrastructure with no power or data line to it.

Depots and yards

Cover a laydown yard or car park where trenching a cable is not worth it.

Holiday homes and blocks

Check on an empty property or vacant land from the VIGI app.

Empty and vacant buildings

Watch a building waiting on sale, lease or demolition, without paying to keep power and internet connected.

Building and fit-out security

Cover doors, roller shutters and materials on a fit-out before the alarm and CCTV go in.

Rural homes and acreage

Keep an eye on the house, sheds and boundary when you are away, with alerts for people and vehicles.

Cattle yards and stock water

Check troughs, yards and loading ramps from your phone and save a long drive out.

Orchards, vineyards and hay sheds

Watch fruit, equipment and hay stores during harvest, when theft is most likely.

Hobby farms and horse paddocks

See the paddock, the float and the tack room from the house or from town.

Car yards and storage yards

Colour video of every vehicle that comes in after hours, with a warning light and voice to move people on.

Containers and laydown yards

Watch site containers, tools and materials where there is no power to run a camera.

Boat ramps, marinas and jetties

Keep watch over moorings, trailers and fuel at the water, with 4G instead of a cable.

Events, markets and festivals

Put a camera up for a weekend or a season, then take it down and use it at the next one.

Sports grounds and clubs

Cover canteens, sheds and car parks at grounds where the power is far from where you need the camera.

Caravan parks and campgrounds

Watch the entry, the amenities and the boat park without trenching new power.

Quarries, mine gates and utilities

Monitor remote gates, substations, bores and telco huts on a 4G connection.

Councils and community halls

Deter vandalism and dumping at halls, parks and reserves with a camera that powers itself.

How the VIGI-C540-4G-SP6020 compares

	SP6020 kit (this page)	SP6030 kit
Camera	VIGI C540-4G	VIGI C540-4G
Solar panel	60 W, 18 V	60 W, 18 V
Battery	10.8 V 20.8 Ah	10.8 V 31.2 Ah
No-sun running*	4.3 days	6.4 days
Recharge from empty*	1.8 sunny days	2.7 sunny days
Solar system weight	13 kg	14 kg

The SP6020 and SP6030 datasheets are identical apart from battery capacity and weight. *TP-Link’s modelled figures for one C540-4G; season, shade and panel angle change real results.

Common questions

Does this kit need mains power or an internet connection?

No. The camera runs from the 60W solar panel and 20.8Ah battery, and sends video over 4G through a Nano-SIM. It needs sun on the panel and 4G coverage at the pole.

Is a SIM card included?

No. Use a 4G data Nano-SIM from a carrier with coverage at the site. The pole and the microSD card are not included either.

Which mobile bands does the camera support?

LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28, and TDD bands 38, 40 and 41. It also lists WCDMA bands 1, 5 and 8, but Australian 3G networks have closed, so use a 4G plan.

How long does it run with no sun?

TP-Link’s model for one C540-4G on the SP6020 is 4.3 days of consecutive rainy days, and 1.8 sunny days to recharge from empty while running. Season, shade and panel angle change the result. The SP6030 kit is rated 6.4 days.

Does it keep recording if the 4G signal drops?

Yes, to a microSD card in the camera, up to 512GB. You need 4G coverage to watch it live, play footage back remotely or get alerts.

Can it see in colour at night?

Yes. Two white LEDs light the scene to 30 m for colour video, with colour sensitivity down to 0.005 lux. It can also use two 850 nm infrared LEDs to 30 m for black-and-white night video.

How far does it pan and tilt?

Pan is 0° to 348° and tilt is 0° to 120°. It stores 300 presets and 8 patrols, and auto tracking can follow a person or vehicle. The lens is a fixed 4 mm with an 80° horizontal view; there is no optical zoom.

What size pole do I need?

A pole of 80 to 120 mm diameter, not included. The bracket arm holds the panel 400 mm off the pole, and the panel is 690 × 516 × 30 mm. The solar system weighs 13 kg.

Will the battery work in cold weather?

Yes. The battery heats itself, so it charges from −30 °C to 45 °C and runs from −30 °C to 60 °C. The camera is rated −30 °C to 60 °C.

How much mobile data does it use?

It uses data when you watch live, play back remotely or receive alerts. Recording to the microSD card uses none. The main stream bit rate is adjustable from 256 Kbps to 3 Mbps, with H.265+ compression.

Can I talk to people through the camera?

Yes. It has a built-in microphone and speaker for two-way audio, and it can sound an audible warning and flash its white light when it detects someone.

Who sells and supports the VIGI-C540-4G-SP6020 in Australia?

Infront Technologies stocks it, ships it from Australia and supports the warranty. The camera and solar system datasheets are on the Attachments tab.

What warranty does it have?

3 years, under TP-Link Australia's warranty for the VIGI camera and solar power system. Contact us first and we will look after the claim.

Supported by Infront Technologies.

Camera and solar system datasheets attached. Call 1300 736 970 for help picking a site, a SIM plan or a bigger battery. Trade pricing is on the account.

Installation and safety

Extra-low voltage. The camera runs on 12 V DC from the solar system. There is no mains connection on the pole and no electrician is needed for the kit itself.

Working at height. The solar system weighs 13 kg and the panel catches the wind. Use a pole and footing rated for the load, and the right access equipment to fit it.

What it does not do. There is no optical zoom (fixed 4 mm lens), no SIM, pole or memory card in the box, and it will not work on 3G. Figures are from the TP-Link VIGI C540-4G (4mm) 1.0 and VIGI SP6020 1.0 datasheets.
