In Stock - Ready to Ship

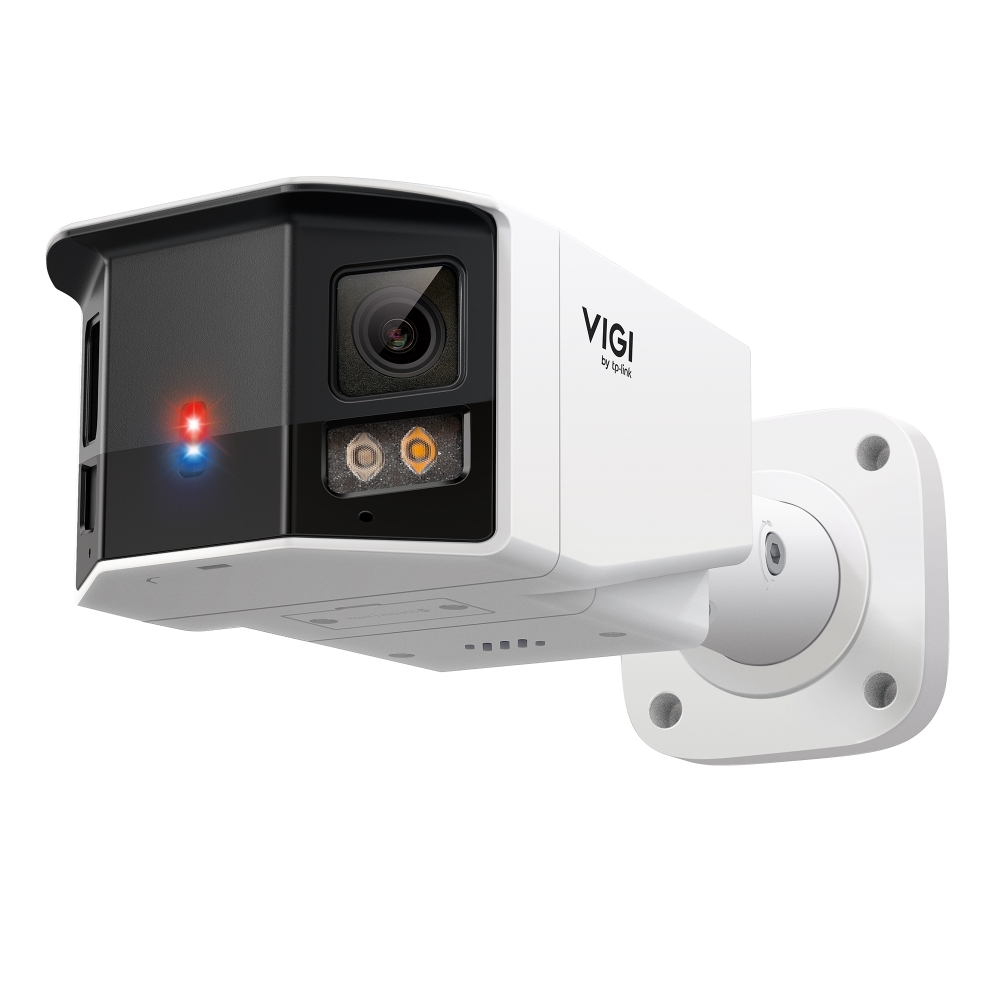

VIGI InSight 8MP Panoramic Bullet Camera 180° View, Colour Night Vision & AI Detection - InSight-S385DPS
InSight-S385DPS
In Stock - Ready to Ship $ 698.00
inc-GST
- 8MP ColourPro panoramic bullet
- Weather / protection: IP67 · IK10
- Max resolution: 5456×1520
- See specifications for lens options
- Standalone camera — NVR and mounts sold separately
TP-Link VIGI InSight S385DPS
8MP ColourPro panoramic bullet
Overview
The InSight-S385DPS is a Dual-lens 180° panoramic 4K bullet with ColourPro, active deterrence, IP67 + IK10.
Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

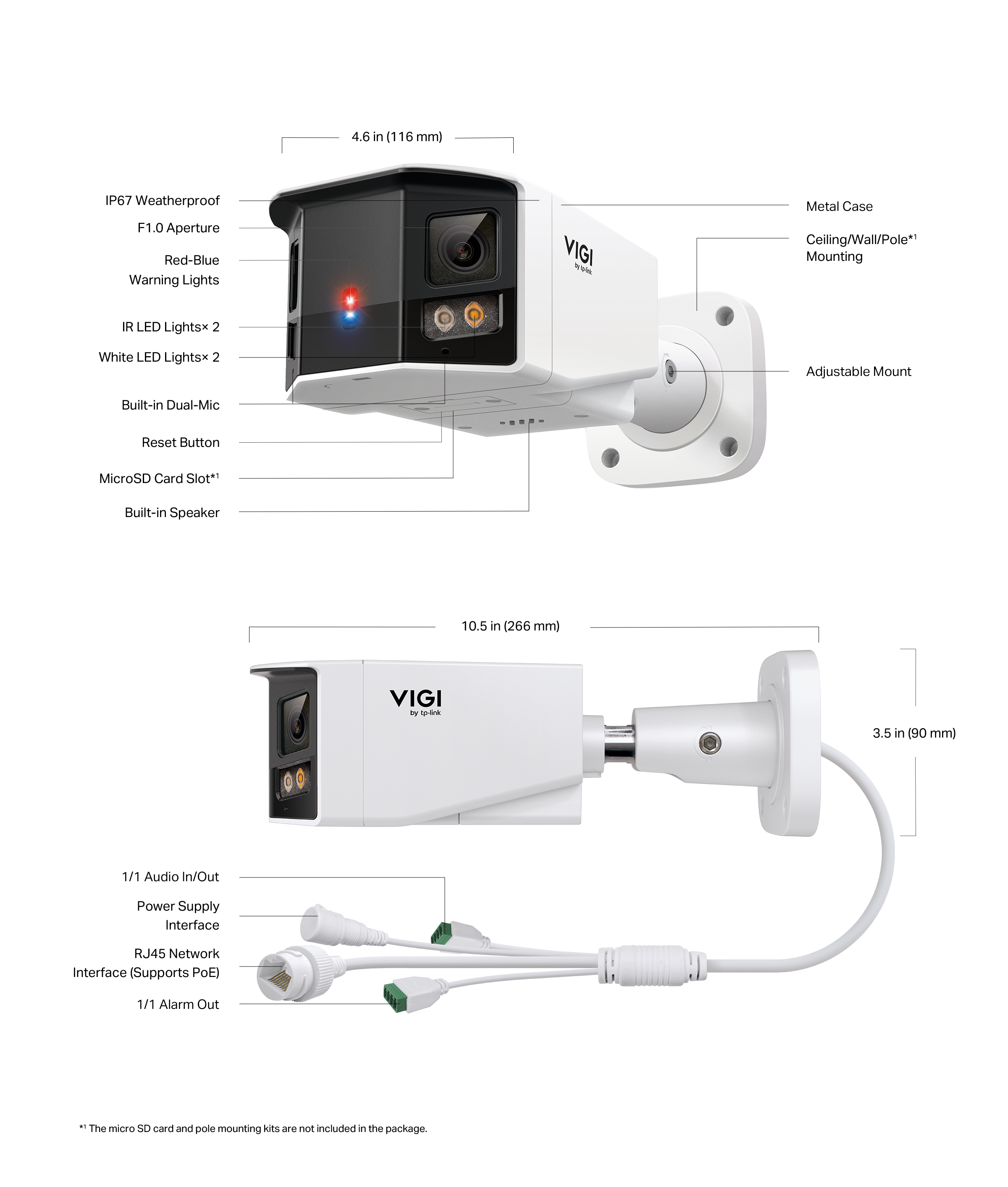

BUILD
8MP ColourPro panoramic bullet
Dual-lens 180° panoramic 4K bullet with ColourPro, active deterrence, IP67 + IK10. Official protection: IP67 · IK10.
PERFORMANCE
Resolution 5456×1520
Designed for Australian installs with PoE-friendly networking and VIGI / InSight management apps.
Key specs
| Specification | Detail |
|---|---|
| Max. resolution | 5456×1520 |
| Focal length | 5 mm |
| Image sensor | Dual 1/1.79” Progressive Scan CMOS |
| Protection | IP67 Weatherproof, IK10 Vandal-Proof |
| Power | • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W |
| Net weight | 1.12 kg |
Full specifications are in the Specifications tab. Source: TP-Link Australia.
Recommended mounts
Official AU accessory matrix. Confirm your exact model before ordering.
- VJB-305 — larger InSight junction box where listed
- VMB-350 — pole bracket for 70–130 mm poles (bullet / PT)
Frequently asked questions
What weather / vandal rating does TP-Link publish?
TP-Link Australia lists IP67 · IK10 for this model.
Which junction box or pole mount do I need?
On the AU accessory matrix this camera maps to: VJB-305 — larger InSight junction box where listed; VMB-350 — pole bracket for 70–130 mm poles (bullet / PT).
Is this a kit?
No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.
Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].
Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.
- Net Weight
- 1.12 kg
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Power
- • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W
- Brand
- TP-Link
- Image Sensor
- Dual 1/1.79” Progressive Scan CMOS
- Lens
- 5 mm
- Max. Resolution
- 5456×1520
- Warranty
- Australian Warranty via Infront Technologies
- Product Family
- VIGI InSight
- Model
- S385DPS
In Stock - Ready to Ship
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | Dual 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 5 mm |
| Aperture | Dual F1.0 |
| FOV | • Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180° |
| Lens Mount | M16 |
| DORI Distance | 5mm:• D: 249 ft (76 m)• O: 95 ft (29 m)• R: 46 ft (14 m)• I: 23 ft (7 m) |
| ILLUMINATOR | |
| IR LED | • Quantity: 2• Range: 164 ft (50 m)†• Wavelength: 850 nm |
| White LED | • Quantity: 2• Range: 164 ft (50 m)† |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 5456×1520 |
| Main Stream | • Frame Rate：50Hz：1fps 5fps 10fps 15fps 20fps 25fps 60Hz：1fps 5fps 10fps 15fps 20fps 24fps • Resolution:5456×1520, 4096×1152, 2160×608Note: Enabling people counting or object attribute analysis limits the frame rate to 20fps. |
| Sub-Stream | • Frame Rate：50Hz：1fps 5fps 10fps 15fps 20fps 25fps 60Hz：1fps 5fps 10fps 15fps 20fps 24fps • Resolution:2160×608, 1280×360Note: Enabling people counting or object attribute analysis limits the frame rate to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm OutRed-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 1.12 kg |
| Power Supply | • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal-Proof |
| Product Dimensions (L x W x H) | 10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
