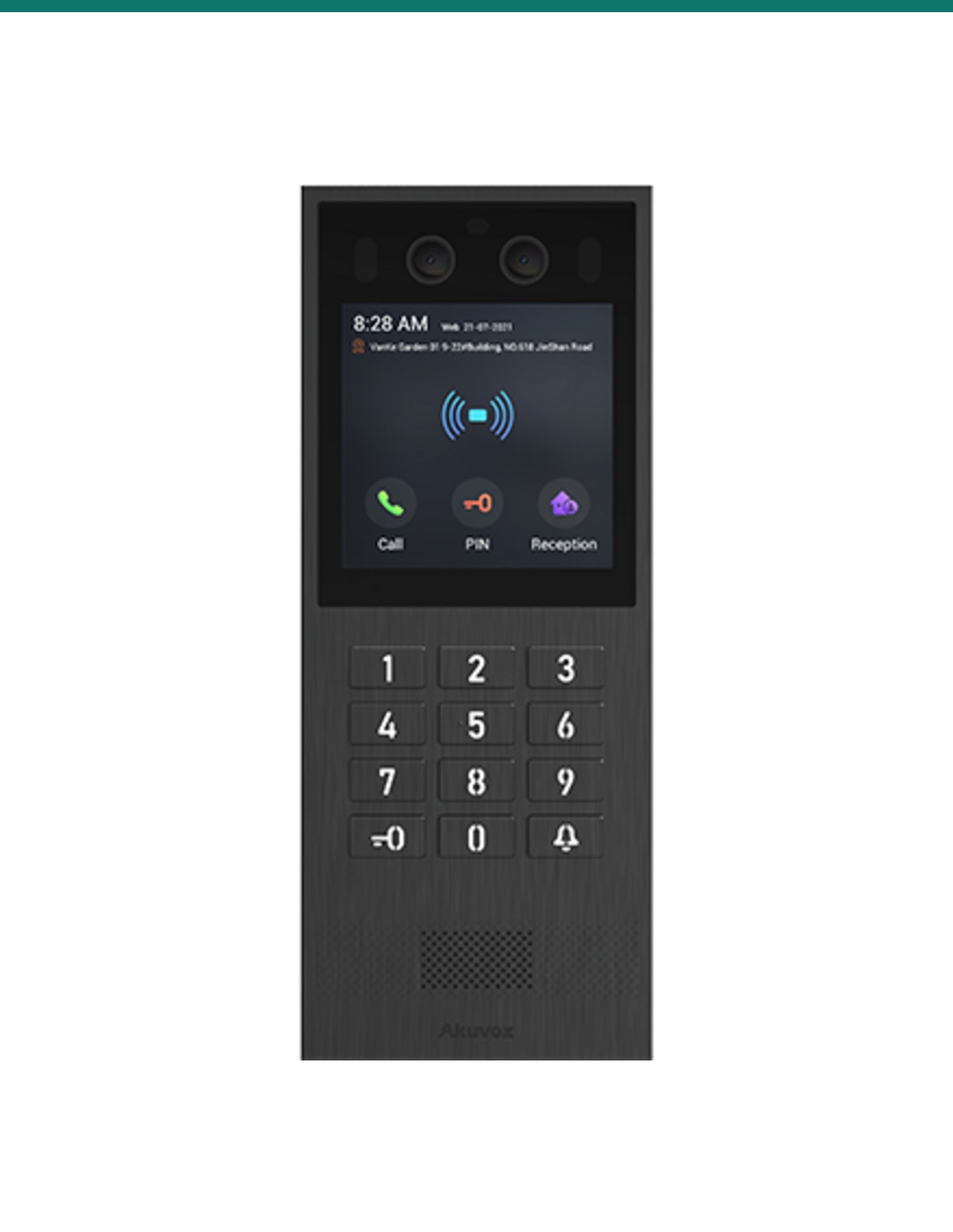

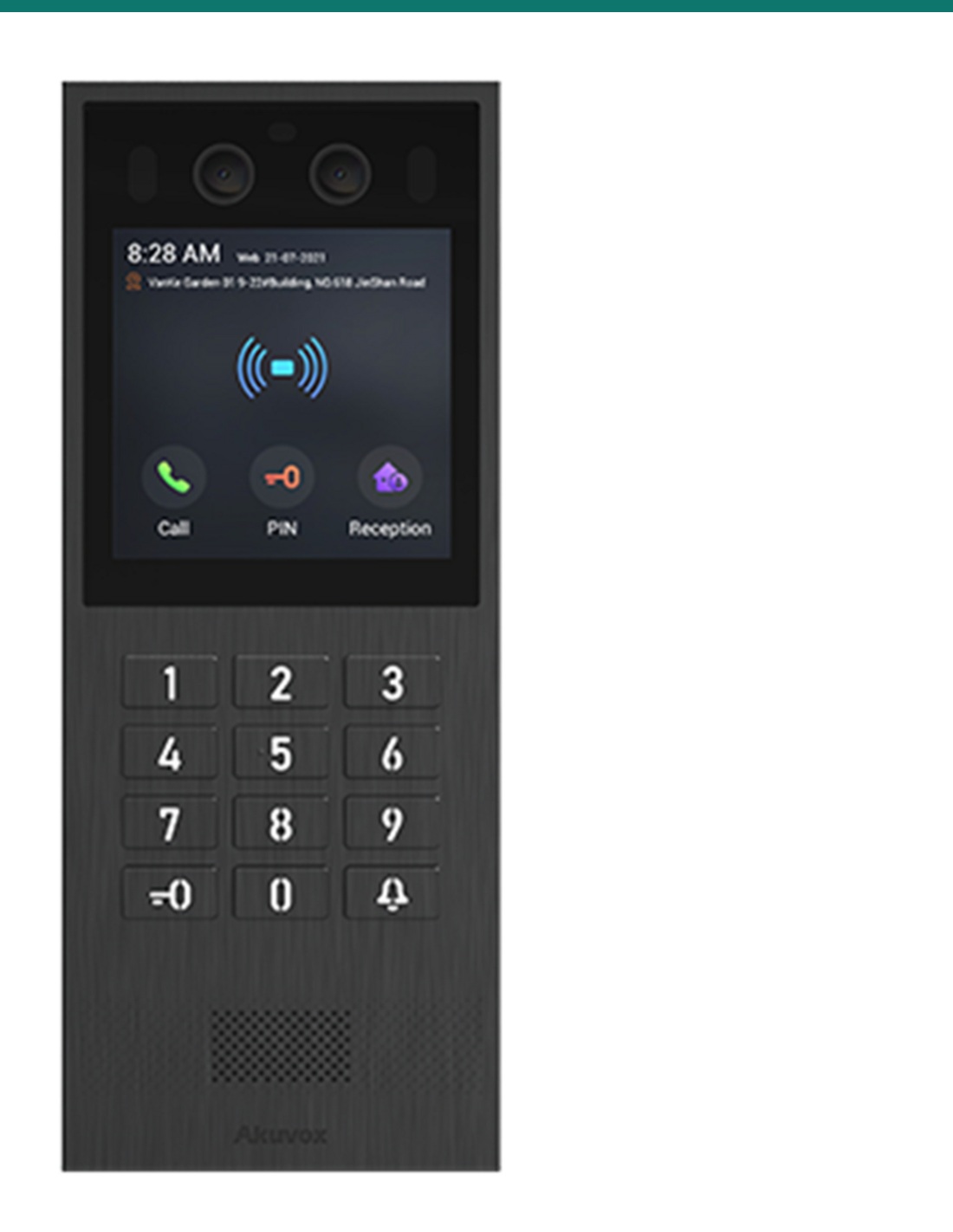

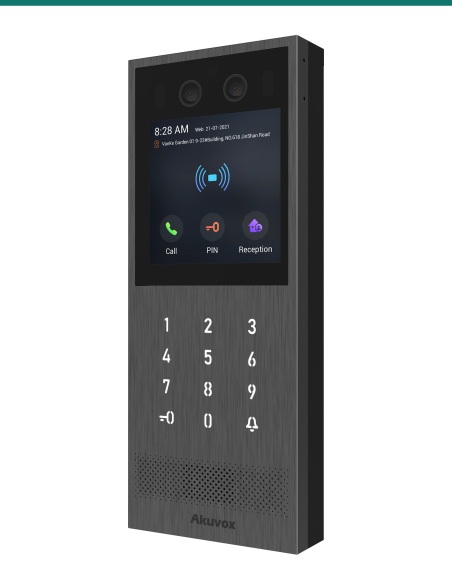

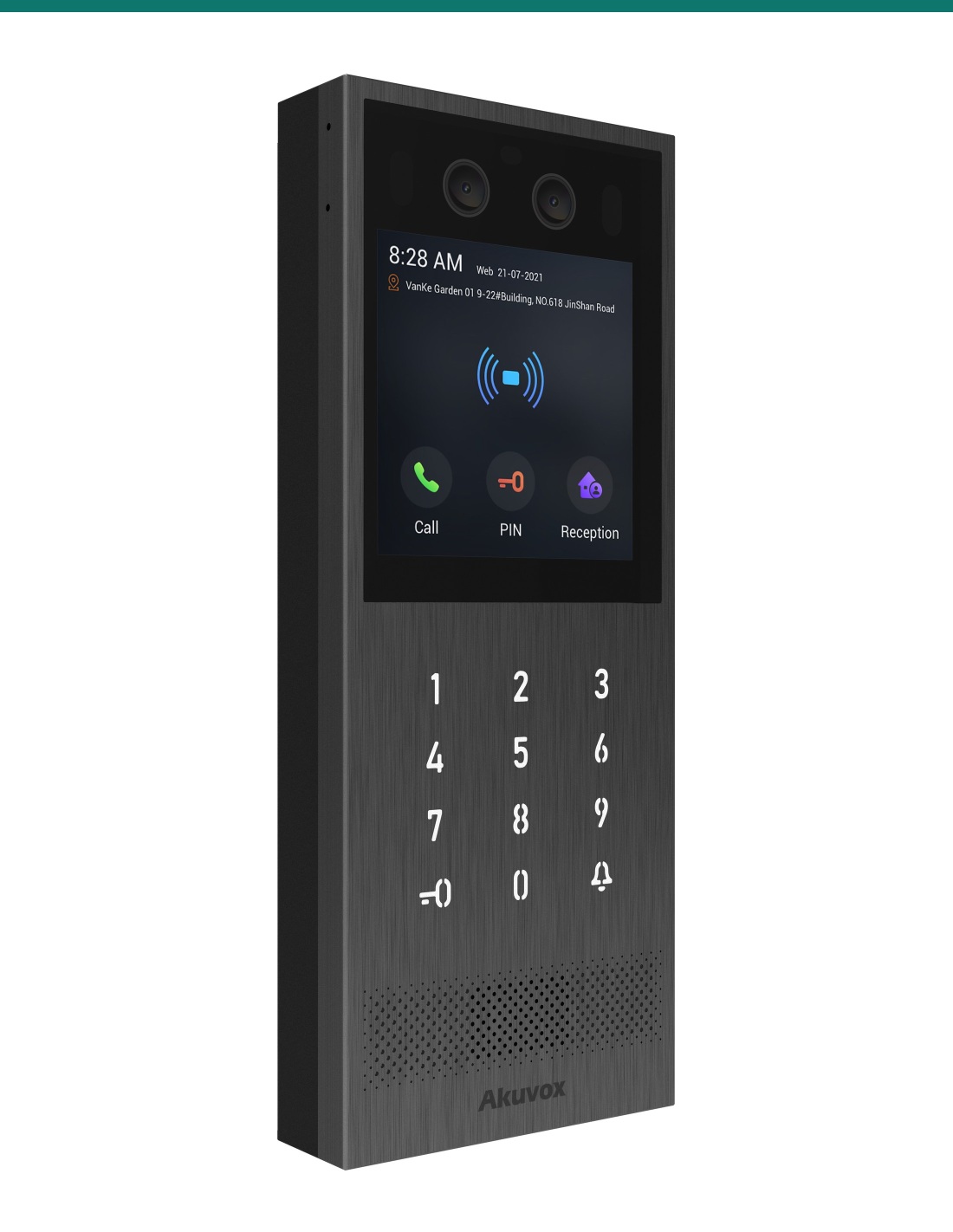

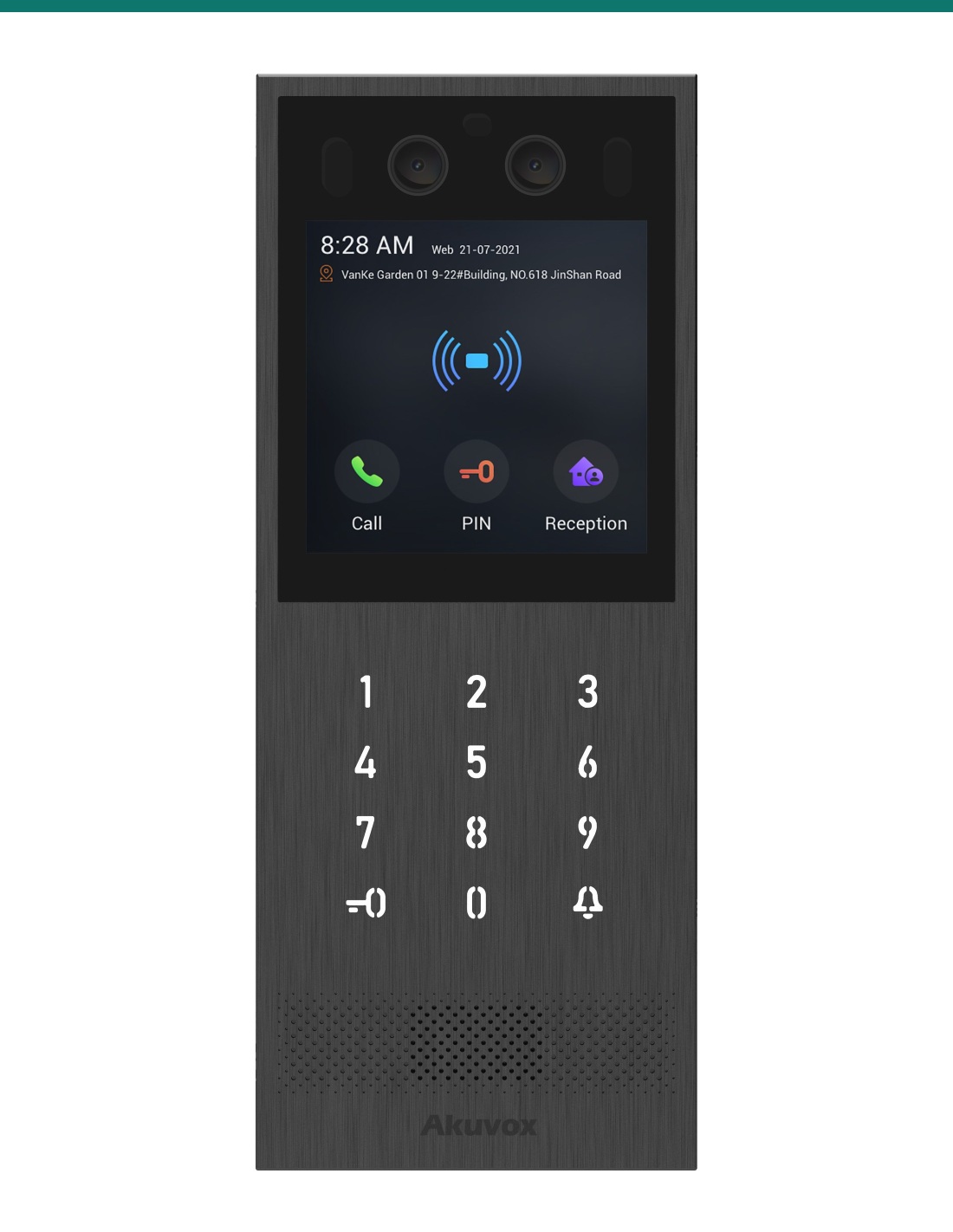

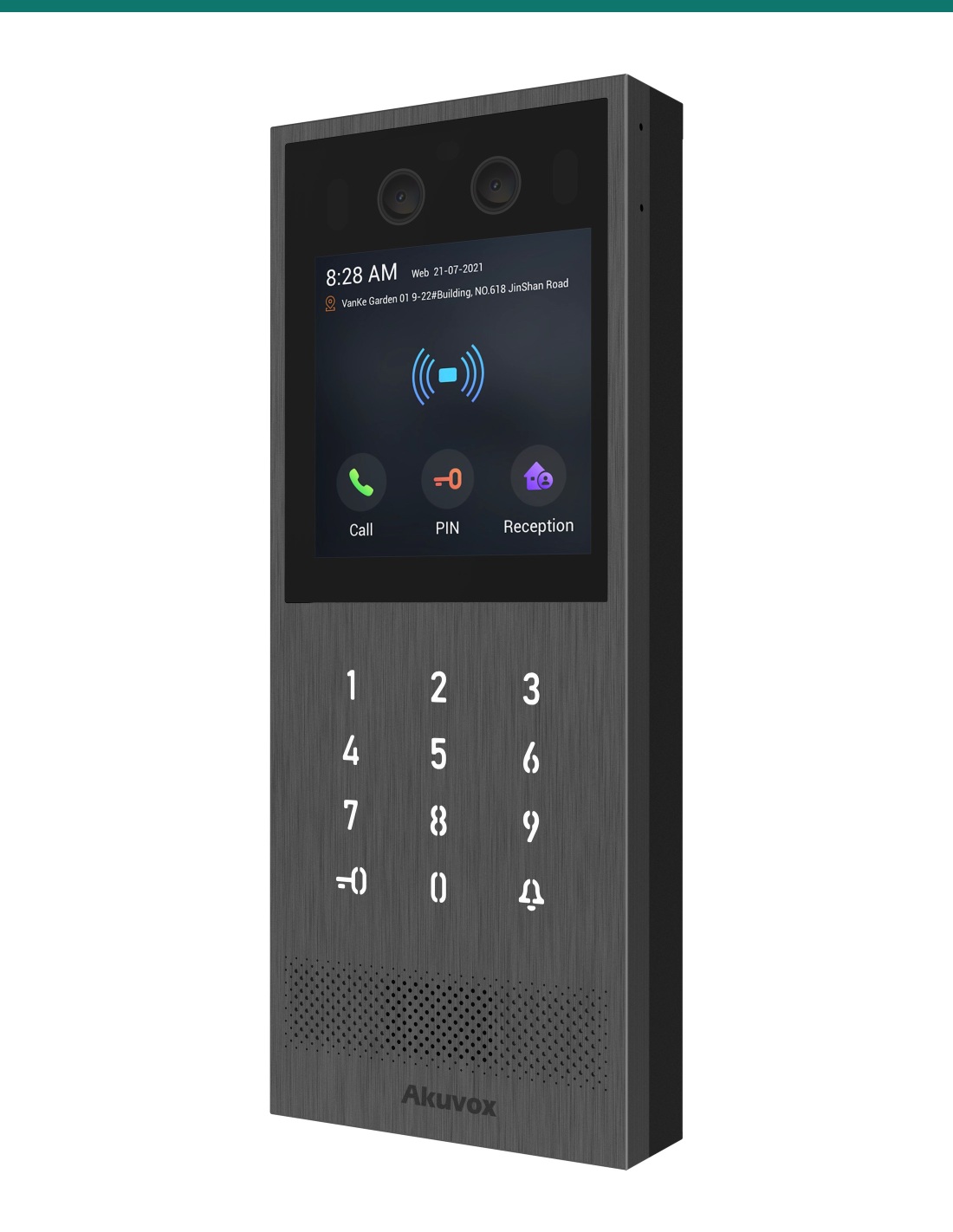

Akuvox X912K Aluminium 4″ Facial Recognition SIP Door Phone with Keypad — AK-X912K

SKU AK-X912K In Stock - Ready to Ship
$1,788.50 inc GST

Akuvox X912K pairs a 4-inch touchscreen with a physical numeric keypad and facial recognition in a slim 94 mm aluminium door station. Residents enter by face, card, PIN, Bluetooth or QR code; visitors call from the screen or keypad. IP65 / IK08, PoE+.

  • ✓4″ touchscreen (480 × 480) plus a physical numeric keypad
  • ✓Dual 2 MP cameras with liveness detection, 125° (H) / 65° (V), face recognition under 200 ms
  • ✓20,000 faces · 100,000 cards · 20,000 PINs · 2 relays, 3 inputs
  • ✓PoE 802.3at or 12 V DC · IP65 / IK08 · wall bracket included


Akuvox · X912K · Facial recognition keypad door phone

Face recognition with real keys.
A slim station for doors and gates.

The AK-X912K is the physical-keypad version of Akuvox’s X912 door phone. A 4-inch square touchscreen, two 2 MP cameras and a 13.56 MHz / 125 kHz card reader sit above a tactile numeric keypad in a 233.5 × 94 mm aluminium panel.

The X912K door station with its wall bracket.

You receive the X912K with its wall-mounting bracket, template, fixings and wiring accessories, ready to surface-mount. The in-wall kit, rain covers, angle bracket, indoor monitors, PoE switch and lock hardware are sold separately.

In the box
  • Akuvox X912K door station
  • Wall-mounting bracket, wall template, 5 screws and wall anchors
  • Wiring cover, cable plugs, sealing plugs and 2 diodes
  • Allen wrench, installation rope and cleaning cloths
What you also need (sold separately)
  • PoE+ 802.3at switch / injector, or 12 V DC supply
  • Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU
  • X912 in-wall kit for flush mounting; rain cover or angle bracket where needed

Keys for gloves, faces for everyone else.

A physical keypad suits gates, gloved hands and users who prefer to feel each press. Residents can skip it entirely and enter by face, card, Bluetooth or QR code.

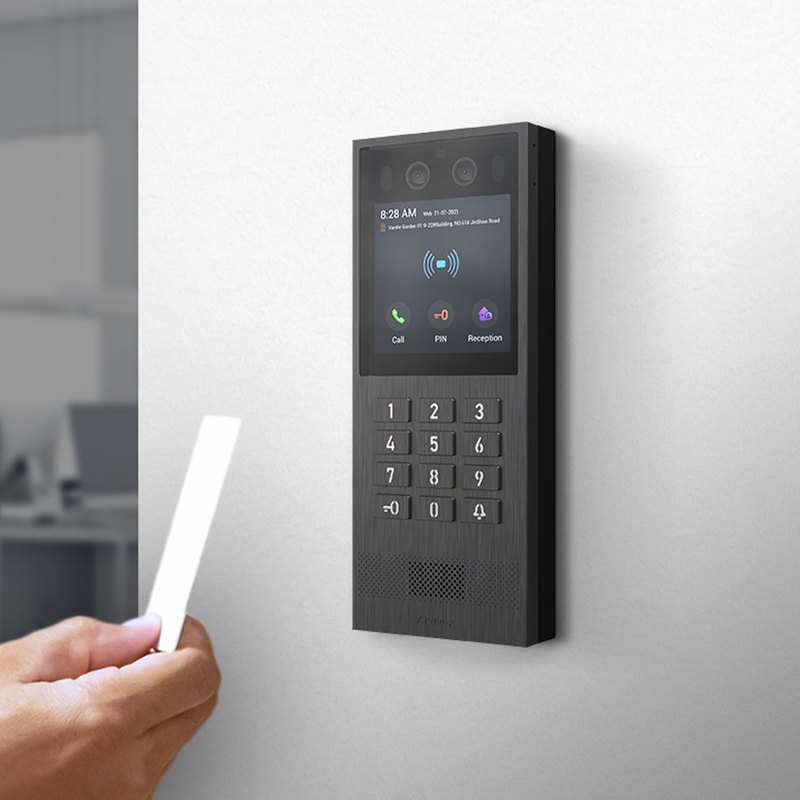

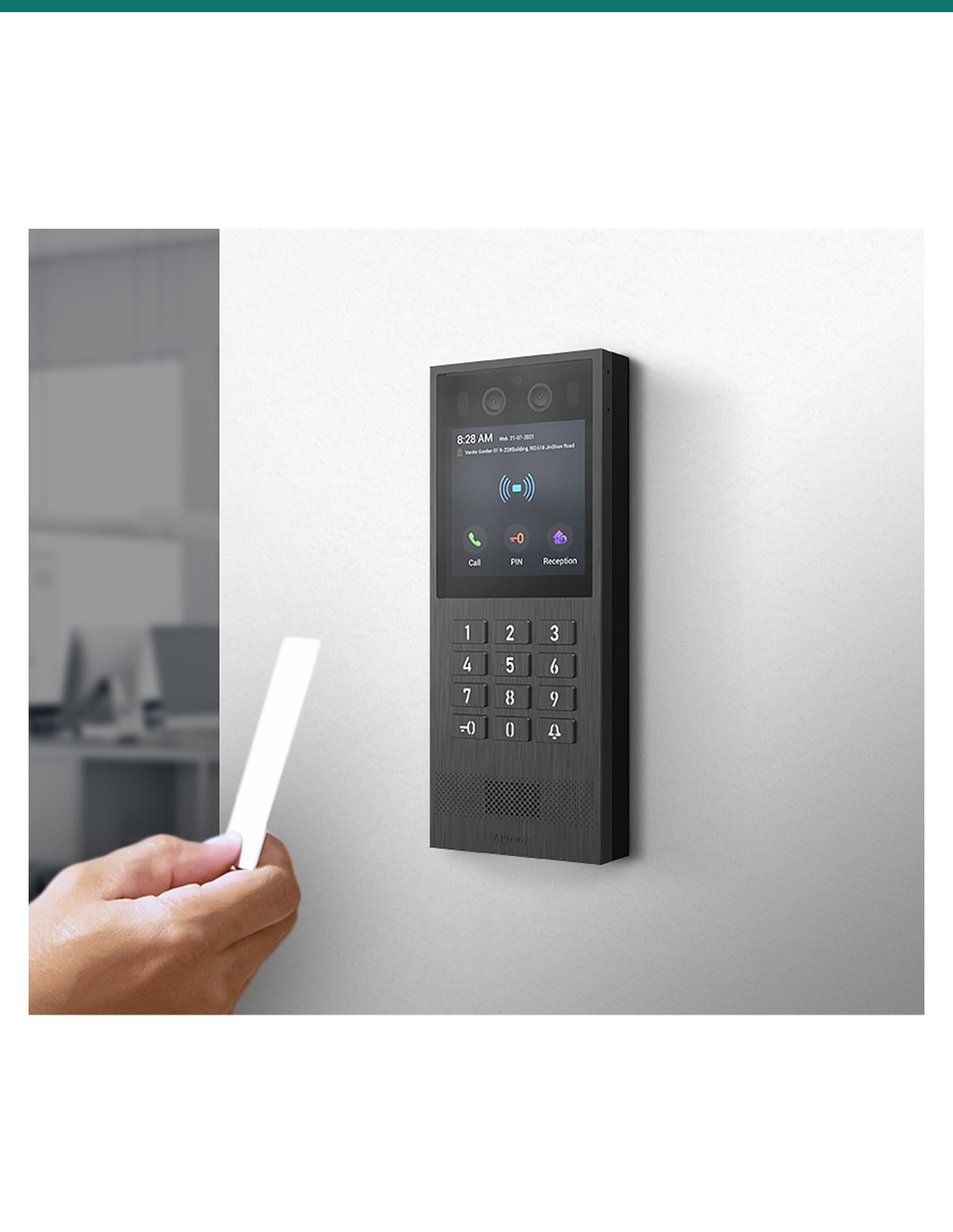

Card being presented to an Akuvox X912K on a wall

Access

Face, card, PIN, BLE or QR.

Akuvox quotes face recognition in under 200 ms at 99.7% accuracy, with up to 20,000 face templates, 100,000 cards and 20,000 PINs stored on the station.

The reader handles 13.56 MHz and 125 kHz EM, MIFARE and DESFire EV1 / EV2 / EV3 cards. Bluetooth 5.0 enables hands-free entry from the SmartPlus app.

Build

Two relays, three inputs, IP65.

Two relays and three inputs control a door and a gate with exit buttons and door sensors, plus Wiegand in/out and RS485 for access control panels.

The aluminium-alloy panel is rated IP65 and IK08 and works from −20 °C to +60 °C. It surface-mounts on the supplied bracket, or flush with the X912 in-wall kit.

How it works

From bare wall to recognised face.

01

Fit the bracket

Fix the supplied wall bracket with the template, or install the X912 in-wall kit for flush. Add a rain cover or angle bracket where the site needs one.

02

Wire and power

Connect PoE 802.3at or 12 V DC, then the lock relays, exit buttons and door sensor inputs.

03

Register and enrol

Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then enrol faces, cards and PINs.

04

Test the door

Check face entry day and night, make a test call and confirm each relay releases its lock.

Pair it with

Builds a complete door entry system

Flush

X912 in-wall installation kit

Box, bracket and frame to recess the station; the surface bracket is already in the box.

Weather

X912 rain cover

On-wall and in-wall rain covers shelter the panel at exposed entrances.

Angle

X912 angle bracket

Mounts the X912 at an angle on the wall.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the X912 call Akuvox indoor monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

The door camera can be added to an ONVIF or RTSP-capable NVR and recorded alongside your CCTV.

Akuvox SmartPlus

Residents answer calls, unlock by Bluetooth and share QR-code keys from the SmartPlus app; SmartPlus can also link third-party emergency alarm systems to the X912.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Akuvox X912 door phone overview
Opening doors and making calls on the X912
Adding an admin card on the X912

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What is the difference between the X912K and X912S?

Same electronics, cameras, capacity and 233.5 × 94 × 34 mm size. The X912K has an aluminium-alloy front with a physical keypad, rated IK08. The X912S has a stainless steel front with a touch keypad, rated IK10.

How many users, faces and cards does it hold?

Up to 20,000 users, 20,000 face templates, 100,000 cards, 20,000 PINs and 5,000 contacts.

How does it stop someone using a photo to get in?

Alongside the 2 MP main camera, a second 2 MP camera and a TOF sensor handle face-liveness detection. Face recognition takes under 200 ms at 99.7% accuracy.

What power does it need?

IEEE 802.3at PoE+ or a 12 V DC supply. It also provides a 12 V / 1 A output for a lock or reader.

Is a mounting bracket included?

Yes. The box includes the wall-mounting bracket, template, screws and wall anchors for a surface mount. For a flush finish add the X912 in-wall installation kit; rain covers, a thick on-wall bracket and a 30° angle bracket are also available.

Which cards and phones can open the door?

13.56 MHz and 125 kHz EM, MIFARE and DESFire EV1 / EV2 / EV3 cards, NFC on Android phones, Bluetooth (BLE 5.0) and QR codes from the SmartPlus app, plus PIN and face.

Will it record to my existing NVR?

Yes. The X912 supports ONVIF and RTSP, so ONVIF-capable NVRs can add the door camera as a channel.

Is there an HID card version?

Akuvox makes a separate X912K HID iCLASS version. This X912K reads standard 13.56 MHz and 125 kHz EM, MIFARE and DESFire credentials.

A compact face-recognition station with a proper keypad.

Choose the X912K for offices, apartment entrances and gates that want facial recognition and tactile keys in a narrow panel.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 12 V DC supply. A 12 V / 1 A output is available for a lock or reader.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Keypad
Physical numeric keypad
Power
PoE 802.3at or 12 V DC
Colour
Tarnish (dark grey)
Capacity
20,000 faces, 100,000 cards, 20,000 PINs
Working Temperature
−20 °C to +60 °C
Brand
Akuvox
Display
4″ colour touchscreen, 480 × 480
Protection
IP65 / IK08
Face Recognition
Under 200 ms, 99.7% accuracy, liveness detection
Camera
2 MP main + 2 MP auxiliary, 125° (H) / 65° (V)
Size
233.5 × 94 × 34 mm (H × W × D)
Warranty
Australian warranty
Product Type
Facial recognition SIP door station
Model
X912K
Finish
Aluminium-alloy front panel
RF Reader
13.56 MHz and 125 kHz
I/O
2 relays, 3 inputs, Wiegand, RS485
OS
Linux
Unlock
Face, card, PIN, QR code, BLE, NFC, DTMF
Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MGGR-GS-POE30W-MG Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MGGR-GS-POE30W-MG 2
CompareComparing Quick view
In stock
Grandstream POE Injector

Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MG

Grandstream
GR-GS-POE30W-MG
$ 42.59
Single-port PoE+ power injector Supports 2.5GbE multi-gigabit speeds Delivers up to 30W PoE+ power IEEE 802.3af / 802.3at compliant Ideal for Wi-Fi 6 / 6E access points Data-only + data-and-power ports Plug-and-play operation Built-in power and surge protection Compact desktop or wall-mount design No switch or configuration required
Akuvox F08 white MIFARE 1K key fob — front Akuvox F08 white MIFARE 1K key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox F08 White 13.56 MHz MIFARE 1K Key Fob — AK-FOB-F08

Akuvox
AK-FOB-F08
$ 1.40
Akuvox F08 is a white teardrop key fob with a 13.56 MHz MIFARE 1K-compatible chip. Clip it on a key ring and tap it on an Akuvox door phone or access terminal. Sold as a single fob.✓Fudan F08 chip, MIFARE Classic 1K compatible, 13.56 MHz✓ISO 14443A · 1K EEPROM · 100,000 write cycles✓White PVC teardrop with key-ring hole, 40.9 × 32.5 ×...
Akuvox X912 black thick on-wall mounting bracket
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

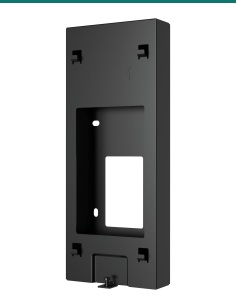

Akuvox X912 Black Thick On-Wall Mounting Bracket for X912K and X912S — AK-X912ONWALLBT

Akuvox
AK-X912ONWALLBT
$ 57.30
Akuvox AK-X912ONWALLBT is the thick version of the X912’s on-wall bracket. Where the bracket supplied with every X912 is a flat plate, this one is a 27 mm deep box with 21.3 mm conduit entries: it stands the door station off the wall and encloses the cabling behind it, with the same hanging hooks and bottom lock so an X912K or X912S hangs on exactly as...

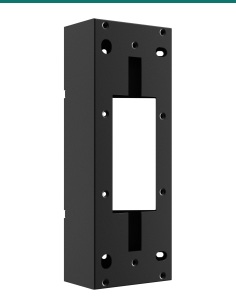

Akuvox X912 black angle bracket — front Akuvox X912 black angle bracket — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

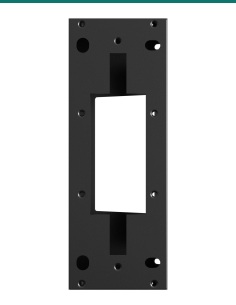

Akuvox X912 Black 30° Angle Bracket for X912K and X912S Door Phones — AK-X912ANGLE

Akuvox
AK-X912ANGLE
$ 75.90
Akuvox AK-X912ANGLE is the angle (rotary) bracket for the X912 door phone. Fixed to the wall one way round or the other, it turns the station 30° to the left or right, so an X912K or X912S on a side wall or gate pier faces the visitor instead of the far wall. The X912’s own wall bracket screws onto it.✓Turns the X912 30° left or right — fit it...

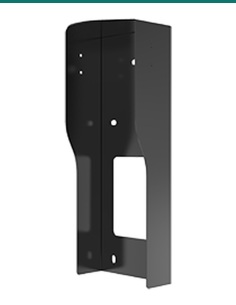

Akuvox X912 black on-wall rain cover — right three-quarter view Akuvox X912 black on-wall rain cover — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

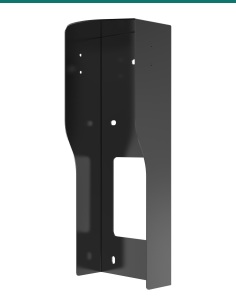

Akuvox X912 Black On-Wall Rain Cover for X912K and X912S Door Phones — AK-X912ONWALLH

Akuvox
AK-X912ONWALLH
$ 57.30
Akuvox AK-X912ONWALLH is the black rain cover for a surface-mounted X912 door phone. The X912’s own wall-mounting bracket sits inside the cover and the two are fixed to the wall together, so the hood wraps the top and sides of the X912K or X912S and keeps rain off the screen, camera and keypad.✓Black hood for surface-mounted Akuvox X912K and X912S...
Akuvox X912 black in-wall rain cover — right three-quarter view Akuvox X912 black in-wall rain cover — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

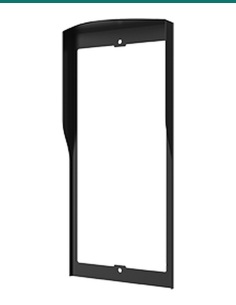

Akuvox X912 Black In-Wall Rain Cover for X912K and X912S Door Phones — AK-X912INWALLH

Akuvox
AK-X912INWALLH
$ 57.30
Akuvox AK-X912INWALLH is the black rain cover for a flush-mounted X912 door phone. It fits between the flush-mounting bracket and the box of the X912 in-wall installation kit, framing the X912K or X912S with a hood across the top that keeps rain off the screen and camera.✓Black hood frame for flush-mounted Akuvox X912K and X912S door...

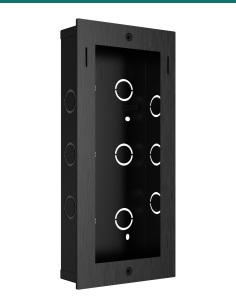

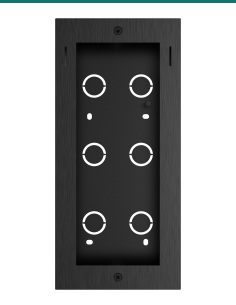

Akuvox X912 in-wall box and decoration panel — front Akuvox X912 in-wall box and decoration panel — front 2
