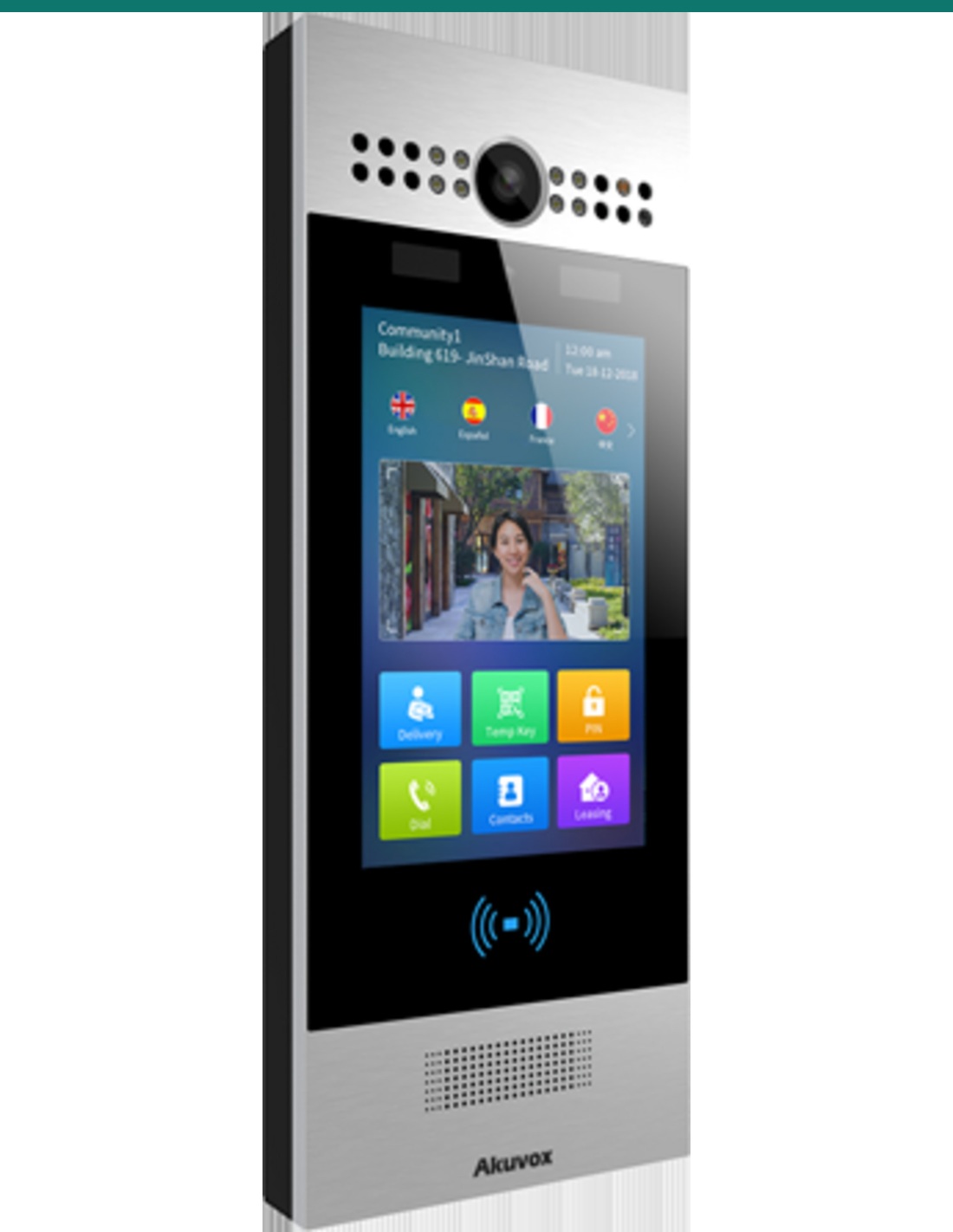

Akuvox R29C facial recognition door phone — front

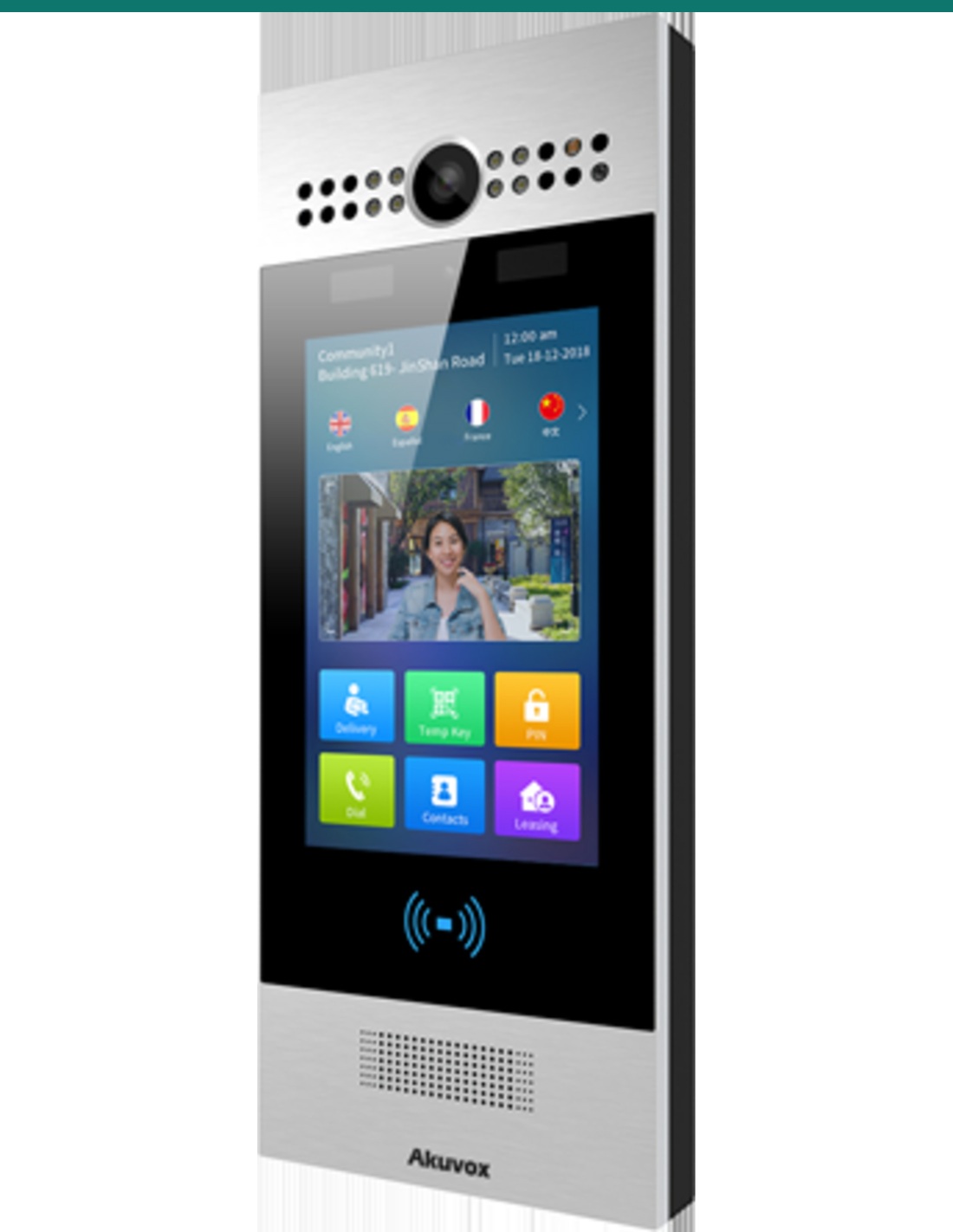

Akuvox R29C silver door phone — left three-quarter view

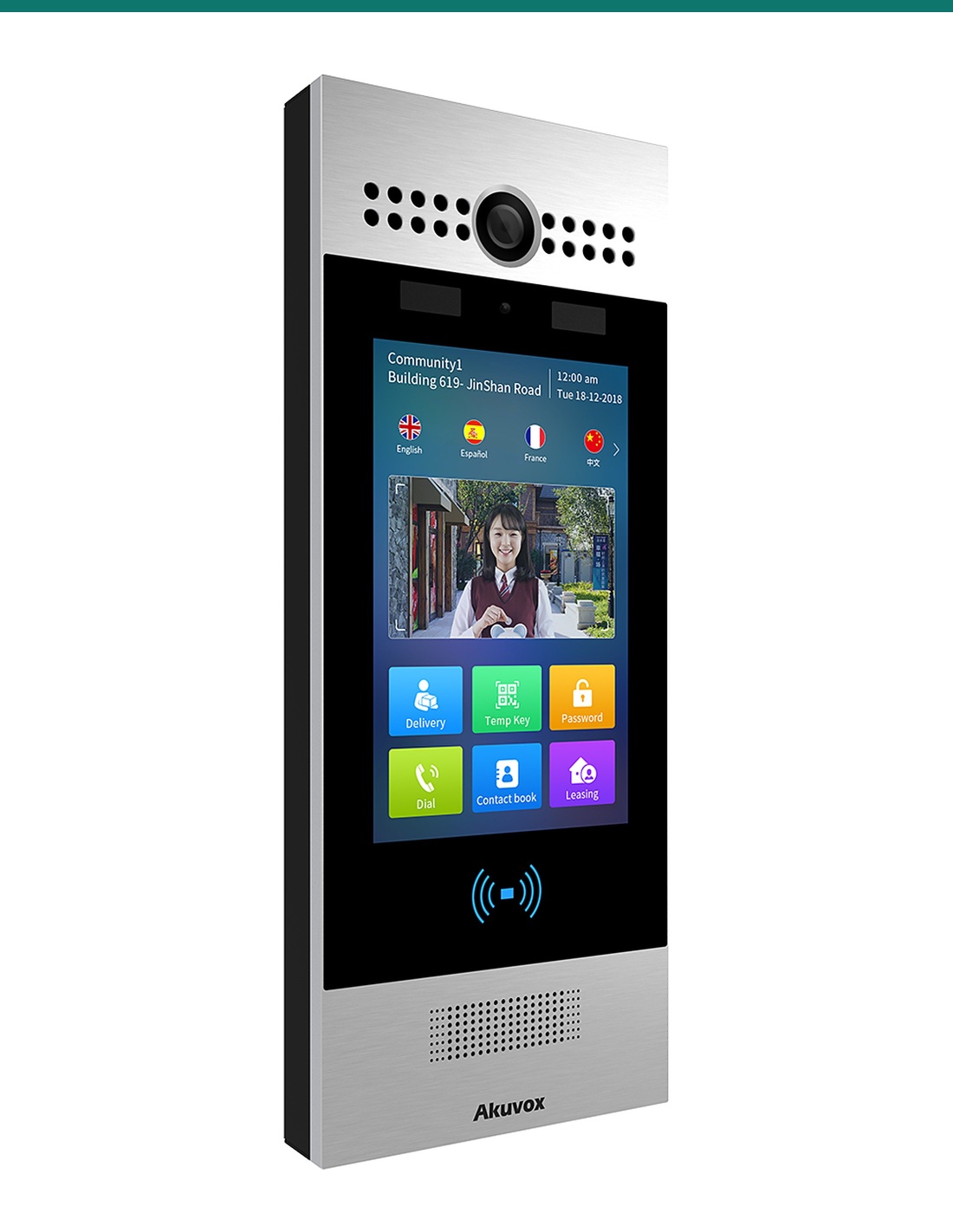

Akuvox R29C silver door phone — right three-quarter view

Akuvox R29C 7″ Android Facial Recognition Door Phone with QR and Bluetooth Entry — AK-R29C

AK-R29C
In Stock - Ready to Ship
$ 2,278.00
inc-GST

or 4 interest-free payments of $569.50 with

Akuvox R29C is a 7-inch Android door phone with facial recognition for apartment buildings, offices and gated sites. A 2 MP main camera and 1 MP auxiliary camera for face liveness, a searchable touch directory and three relays sit in a silver aluminium panel. Card, PIN, QR and BLE entry, PoE.

  • ✓7″ IPS capacitive touchscreen (800 × 1280) on Android
  • ✓2 MP main + 1 MP auxiliary camera, 105° (H) / 55° (V), 1080p at 25 fps
  • ✓20,000 faces · 100,000 cards · 20,000 PINs · 3 relays, 3 inputs
  • ✓PoE 802.3at or 12 V DC · IP65 / IK06 · 324 × 130 × 27 mm


Akuvox · R29C · Android facial recognition door phone

Your face is your key.
A 7-inch Android door phone with dual cameras.

The AK-R29C is the facial recognition model of Akuvox’s R29 series. A 7-inch Android touchscreen, a 2 MP main camera and a 1 MP auxiliary camera for liveness detection, a dual-frequency card reader and three relays sit in a 324 × 130 mm silver aluminium panel.

This SKU is the R29C door station only.

You receive the R29C main unit with its wiring accessories. Choose the R29 on-wall or in-wall installation kit, and a rain hood for exposed entrances — sold separately, as are indoor monitors, PoE switch and lock hardware.

In the box
  • Akuvox R29C door station
  • Accessory pack and quick guide
What you also need (sold separately)
  • R29 on-wall or in-wall installation kit
  • PoE 802.3at switch / injector, or 12 V DC supply
  • Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU

No cards or codes needed.

Residents are recognised at the door and walk in. Visitors search the touch directory, couriers and service staff get their own navigation options, and guests can be sent a QR code.

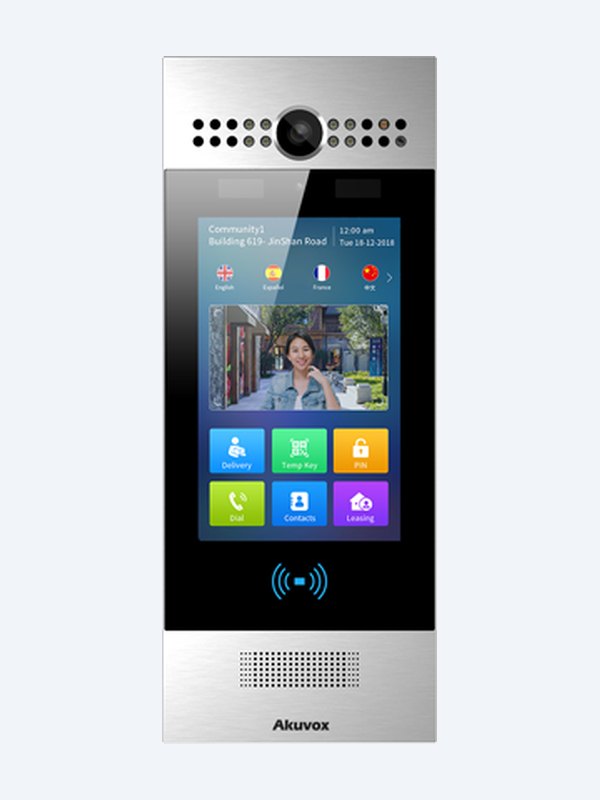

Akuvox R29C door phone with dual cameras

Recognition

Dual cameras stop spoofing.

The 2 MP main camera and 1 MP auxiliary camera work together for face liveness detection, so a printed or on-screen photo is not accepted as a resident.

Up to 20,000 face templates are stored on the station. Video streams in H.264 at 1080p / 25 fps across 105° (H) / 55° (V), with IR LEDs for night calls and white LEDs to light QR codes.

Interface

A touch directory that guides visitors.

The 7-inch capacitive touchscreen (800 × 1280) runs a searchable directory with an audio guide and navigation options for visitors, delivery people and service providers.

Screens and information can be customised for your building. Android also lets integrators add third-party apps.

How it works

From bare wall to recognised face.

01

Fit the kit

Install the R29 on-wall or in-wall kit, plus rain hood at exposed entrances.

02

Wire and power

Connect PoE 802.3at or 12 V DC, then the lock relays, exit buttons and door sensor inputs.

03

Register and enrol

Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then enrol faces, cards and PINs.

04

Test the door

Check face entry day and night, make a test call and confirm each relay releases its lock.

Pair it with

Builds a complete door entry system

Mount

R29 on-wall or in-wall kit

Required to mount the station on the wall surface or flush in a cavity.

Weather

R29 rain hood

On-wall and in-wall rain hoods shelter the screen at exposed entrances.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Works with

Platforms and integrations

SIP PBX and softphones

SIP v1 / v2 lets the R29C call Akuvox indoor monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

Add the entrance camera to an ONVIF or RTSP-capable NVR and record it with the rest of your CCTV.

Akuvox SmartPlus

Residents answer calls and unlock from the SmartPlus app, which can also show extra third-party IP cameras alongside the R29.

Alarm systems via SmartPlus

The R29 is on Akuvox’s list for third-party emergency alarm integration through SmartPlus, including one-click opening of public gates.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Akuvox R29C touchless door entry intercom overview
Opening doors and making calls on the R29
Configuring the tamper alarm on the R29
Changing the system PIN on the R29

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is a mounting kit included?

No. Use the R29 on-wall or in-wall installation kit, sold separately. Matching on-wall and in-wall rain hoods are also available.

What power does it need?

IEEE 802.3at (PoE+) or a 12 V DC supply on the DC connector. Standard 802.3af PoE is not enough.

How many residents and credentials does it hold?

Up to 20,000 users, 20,000 face templates, 100,000 cards and 20,000 PINs.

Can photos fool the face reader?

The R29C pairs its 2 MP main camera with a 1 MP auxiliary camera for liveness detection, so photos and screens are rejected.

Which cards and phones work?

13.56 MHz and 125 kHz cards — EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa — plus NFC on Android phones, Bluetooth (BLE 5.0) and QR codes.

Will it record to my NVR?

Yes. The R29C supports ONVIF and RTSP, so ONVIF-capable NVRs can add it as a camera channel.

What temperature range does it cover?

Working temperature is −20 °C to +55 °C at 10–90% humidity, with IP65 and IK06 ratings. Add an R29 rain hood where the screen faces the weather.

What mounting height does Akuvox show?

The R29 drawings place the bottom of the panel at 1,212 mm, keeping the camera centre no higher than 1,500 mm.

A proven Android entrance panel.

Choose the R29C for apartment buildings, offices and gated communities that want a 7-inch touch directory and facial recognition.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 12 V DC supply.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3at or 12 V DC
Colour
Silver
Capacity
20,000 users · 20,000 faces · 100,000 cards · 20,000 PINs
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Display
7″ IPS capacitive touchscreen, 800 × 1280
Bluetooth
BLE 5.0
Field of View
105° (H) / 55° (V)
Protection
IP65 / IK06
Camera
2 MP main + 1 MP auxiliary
Size
324 × 130 × 27 mm (H × W × D)
Warranty
Australian warranty
Video
H.264, up to 1920 × 1080 at 25 fps
Product Type
Facial recognition SIP door station
Model
R29C
Finish
Aluminium front panel
RF Reader
13.56 MHz and 125 kHz, NFC (Android phones)
I/O
3 relays, 3 inputs, Wiegand in/out, RS485
OS
Android
Unlock
Face, card, PIN, QR code, BLE, NFC, DTMF
Card Types
EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MGGR-GS-POE30W-MG Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MGGR-GS-POE30W-MG 2
CompareComparing Quick view
In stock
Grandstream POE Injector

Grandstream 2.5Gb PoE+ Injector 30W – GR-GS-POE30W-MG

Grandstream
GR-GS-POE30W-MG
$ 42.59
Single-port PoE+ power injector Supports 2.5GbE multi-gigabit speeds Delivers up to 30W PoE+ power IEEE 802.3af / 802.3at compliant Ideal for Wi-Fi 6 / 6E access points Data-only + data-and-power ports Plug-and-play operation Built-in power and surge protection Compact desktop or wall-mount design No switch or configuration required
Akuvox Bkey Bluetooth key fob — front Akuvox Bkey Bluetooth key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox Bkey Black Bluetooth Door-Opening Key Fob — AK-BKEY

Akuvox
AK-BKEY
$ 19.50
Akuvox Bkey is a Bluetooth key fob with one button. Press it as you approach and a compatible Akuvox door phone or access terminal unlocks — up to 15 m away on long-range models. Encrypted BLE, a CR2032 battery and a key-ring loop. Sold as one fob.✓Press-to-open over encrypted Bluetooth Low Energy✓Akuvox-tested range up to 15 m (R29C, X915...
Akuvox F08 white MIFARE 1K key fob — front Akuvox F08 white MIFARE 1K key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox F08 White 13.56 MHz MIFARE 1K Key Fob — AK-FOB-F08

Akuvox
AK-FOB-F08
$ 1.40
Akuvox F08 is a white teardrop key fob with a 13.56 MHz MIFARE 1K-compatible chip. Clip it on a key ring and tap it on an Akuvox door phone or access terminal. Sold as a single fob.✓Fudan F08 chip, MIFARE Classic 1K compatible, 13.56 MHz✓ISO 14443A · 1K EEPROM · 100,000 write cycles✓White PVC teardrop with key-ring hole, 40.9 × 32.5 ×...
Akuvox R29 black in-wall rain hood — front Akuvox R29 black in-wall rain hood — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

Akuvox R29 Black In-Wall Rain Hood — AK-R29INWALLH

Akuvox
AK-R29INWALLH
$ 59.70
Akuvox R29 in-wall rain hood in black wraps the top and sides of an R29 series door phone, keeping rain and overhead sun off the 7″ touch screen, cameras and card reader. It fixes together with the R29 in-wall installation kit, so the station hangs and locks exactly as normal.✓Black in-wall rain hood for the Akuvox R29 series✓330.2 mm tall...
Akuvox R29 in-wall installation kit — flush box Akuvox R29 in-wall installation kit — flush box 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

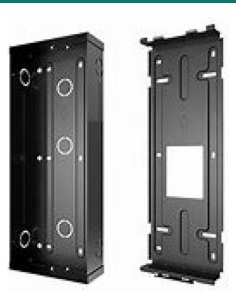

Akuvox R29 In-Wall Installation Kit with Flush Box — AK-R29INWALLK
