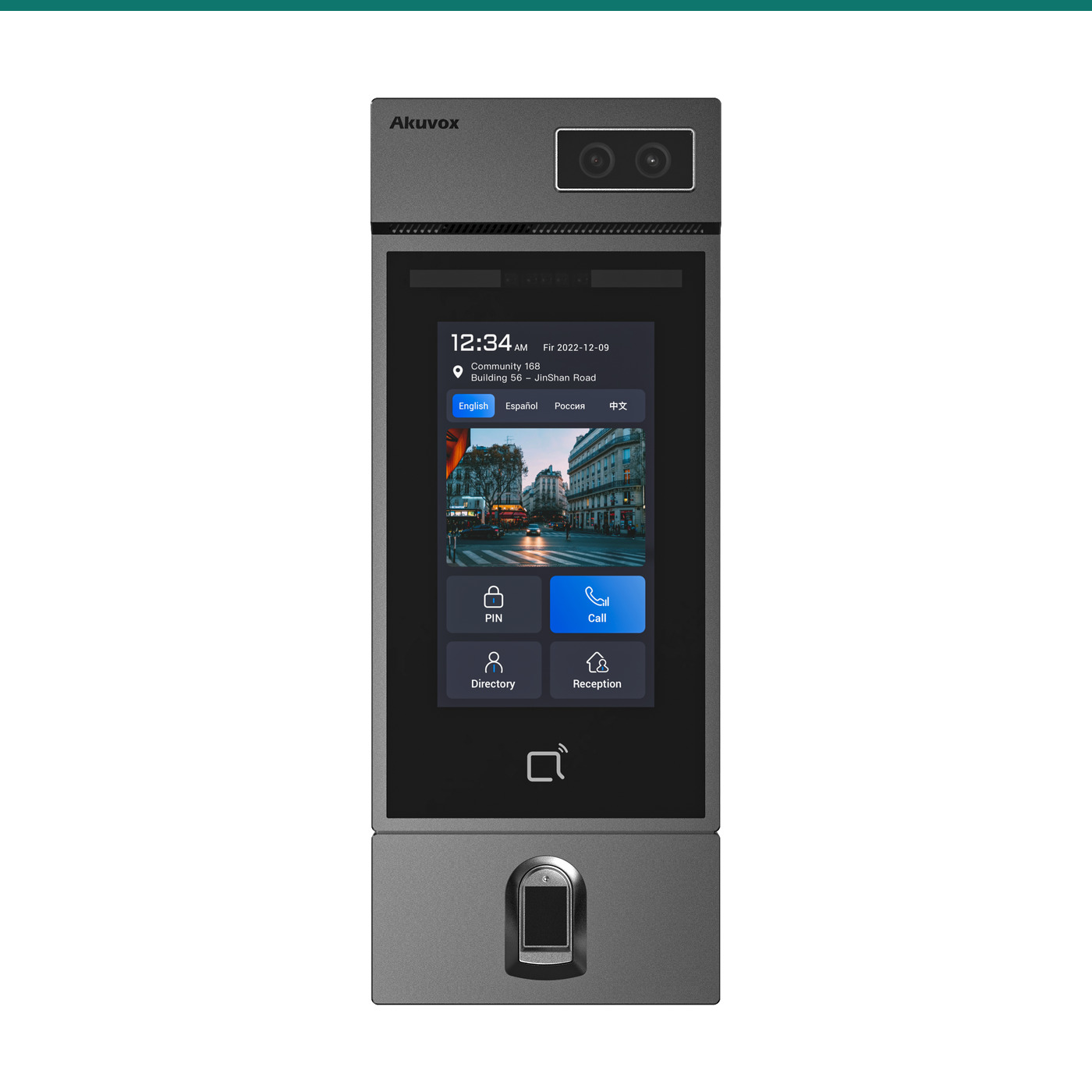

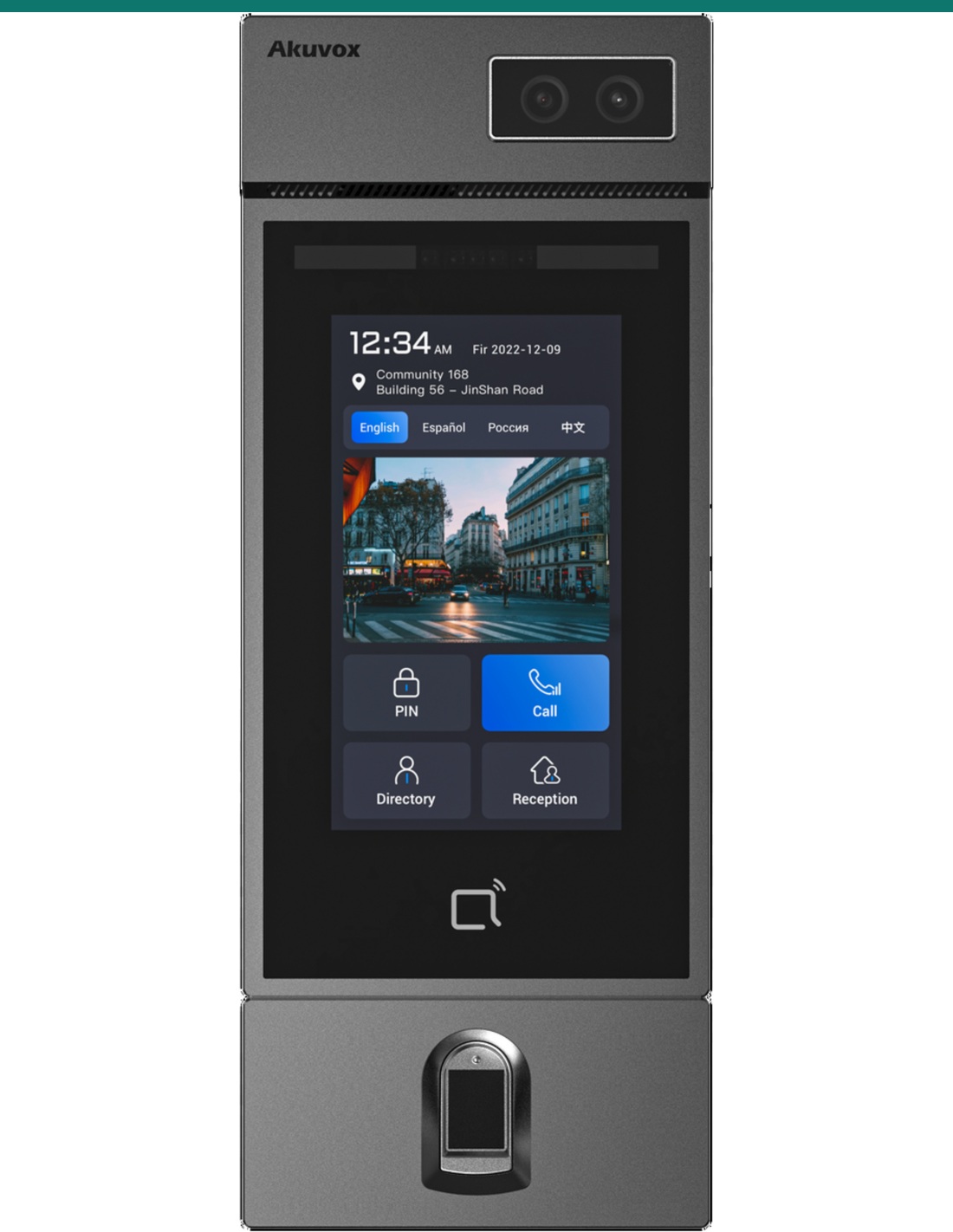

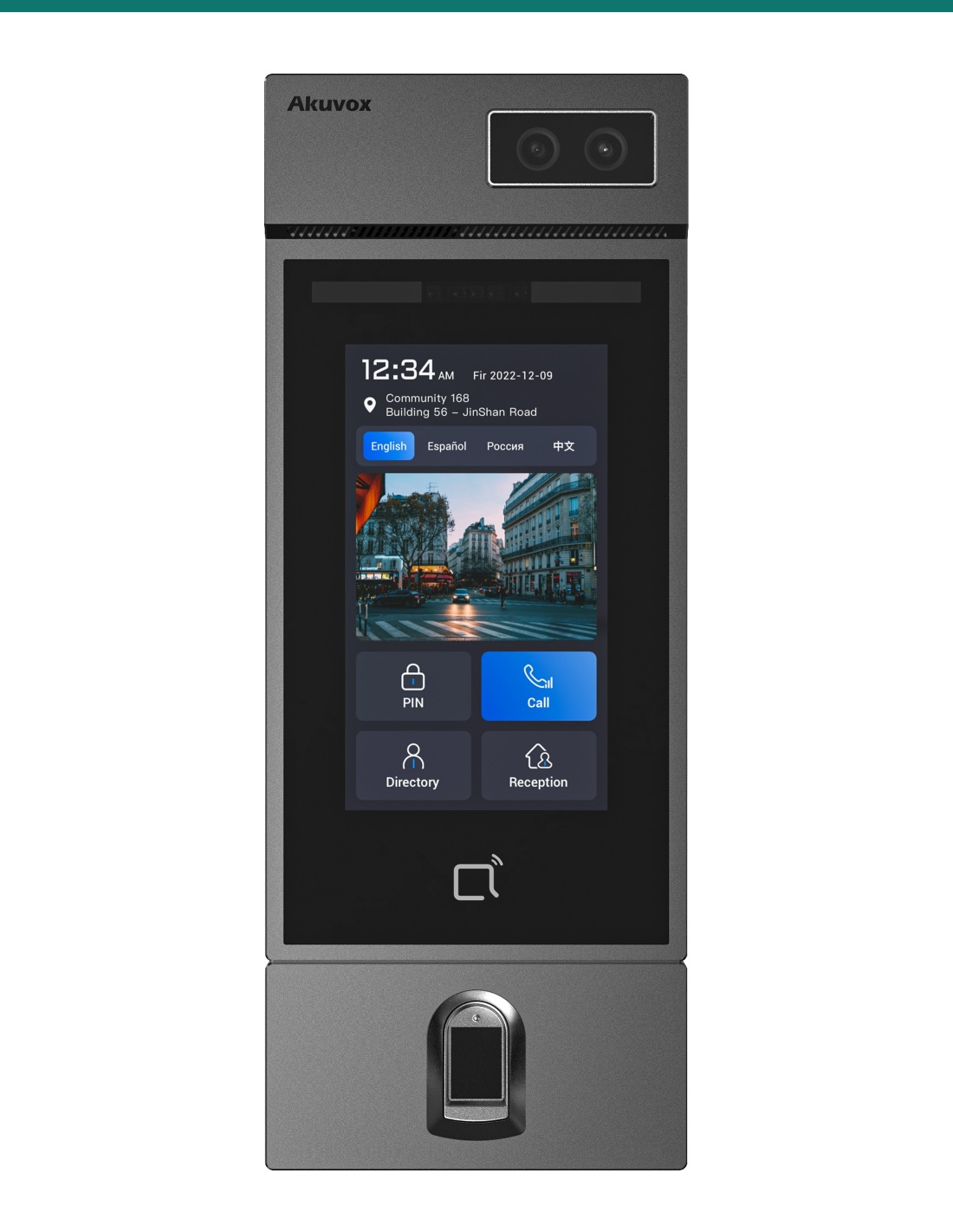

Akuvox S535 with fingerprint module — front, fingerprint module fitted

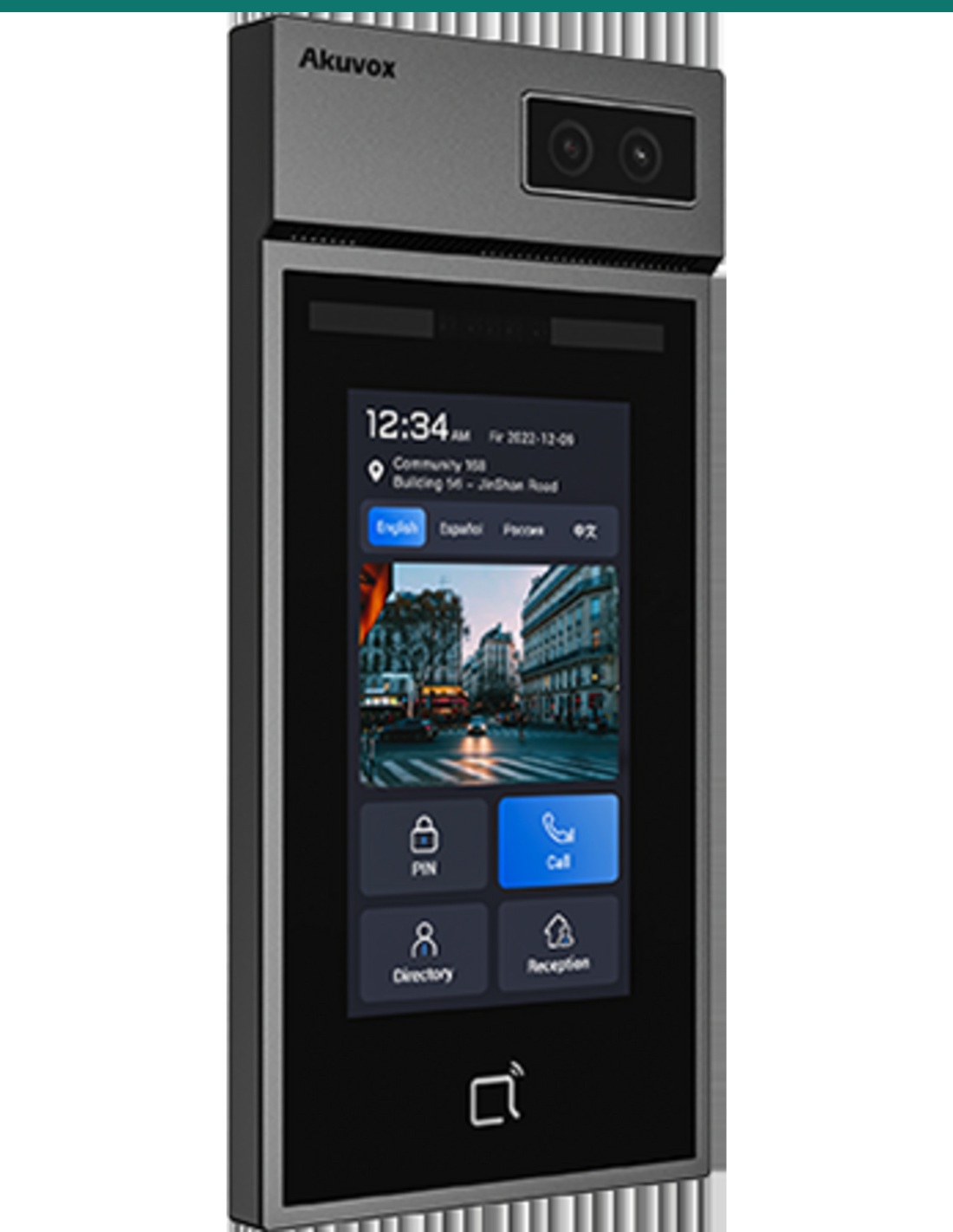

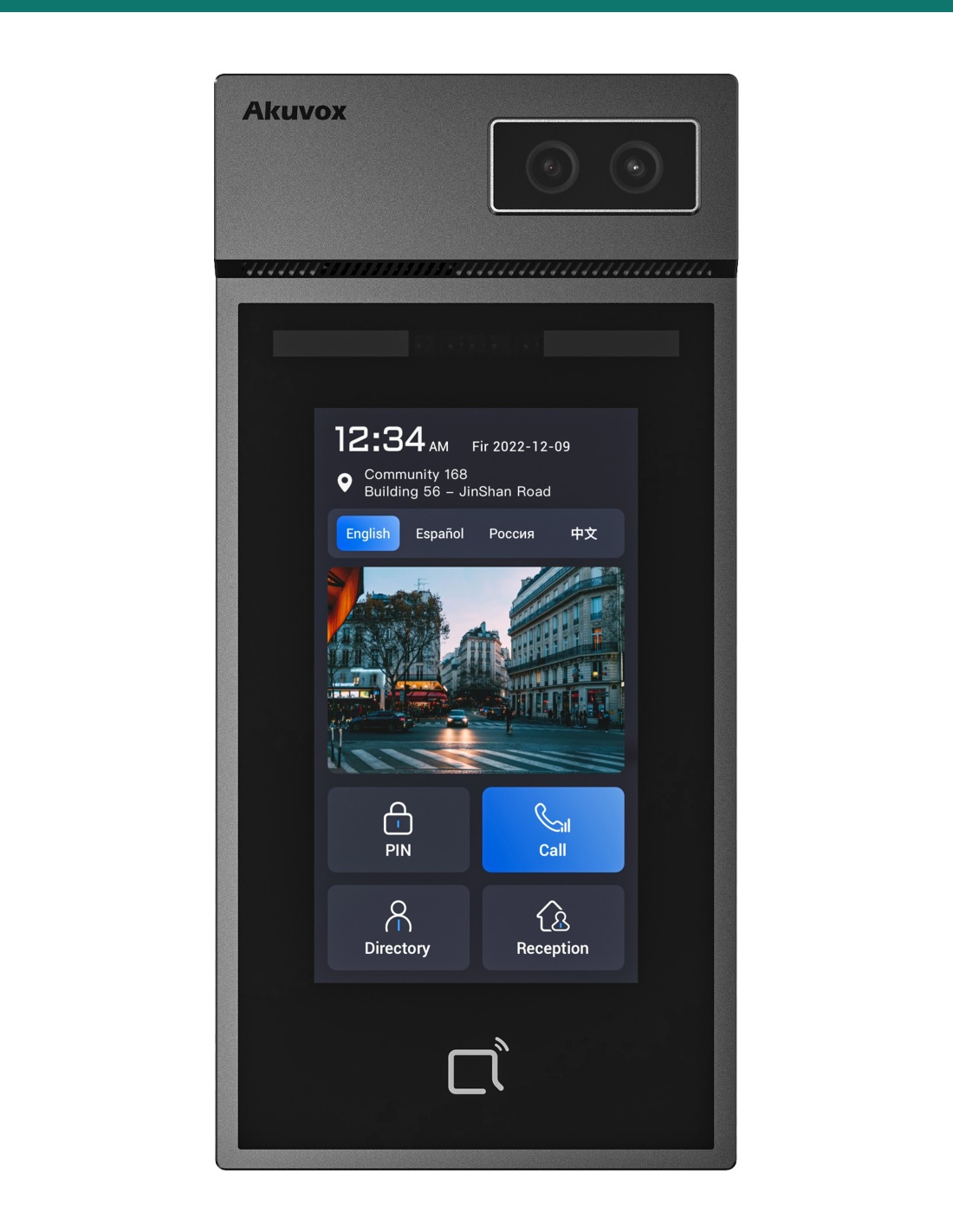

Akuvox S535 with fingerprint module — S535 door phone on its own

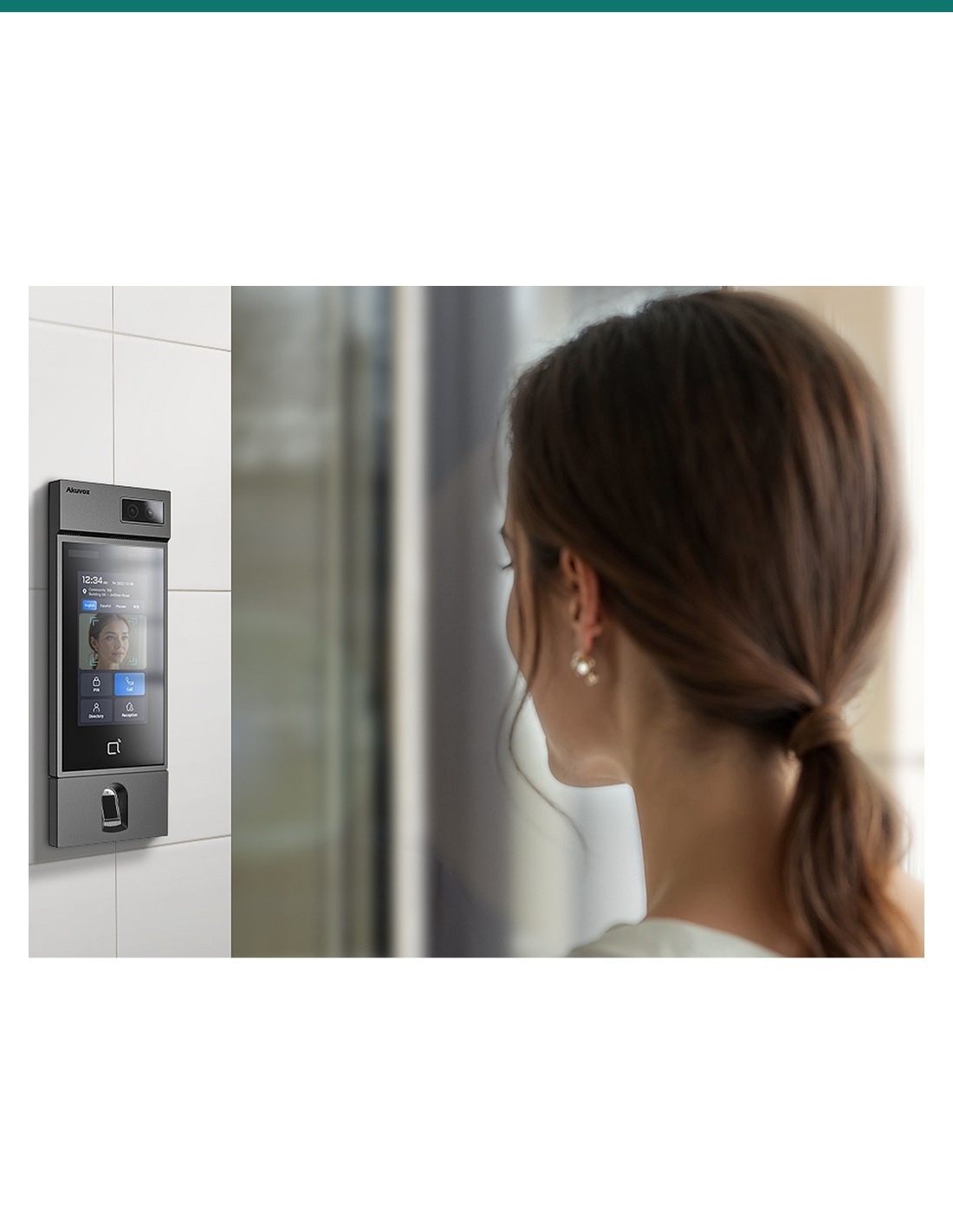

Akuvox S535 with fingerprint module at an apartment entrance

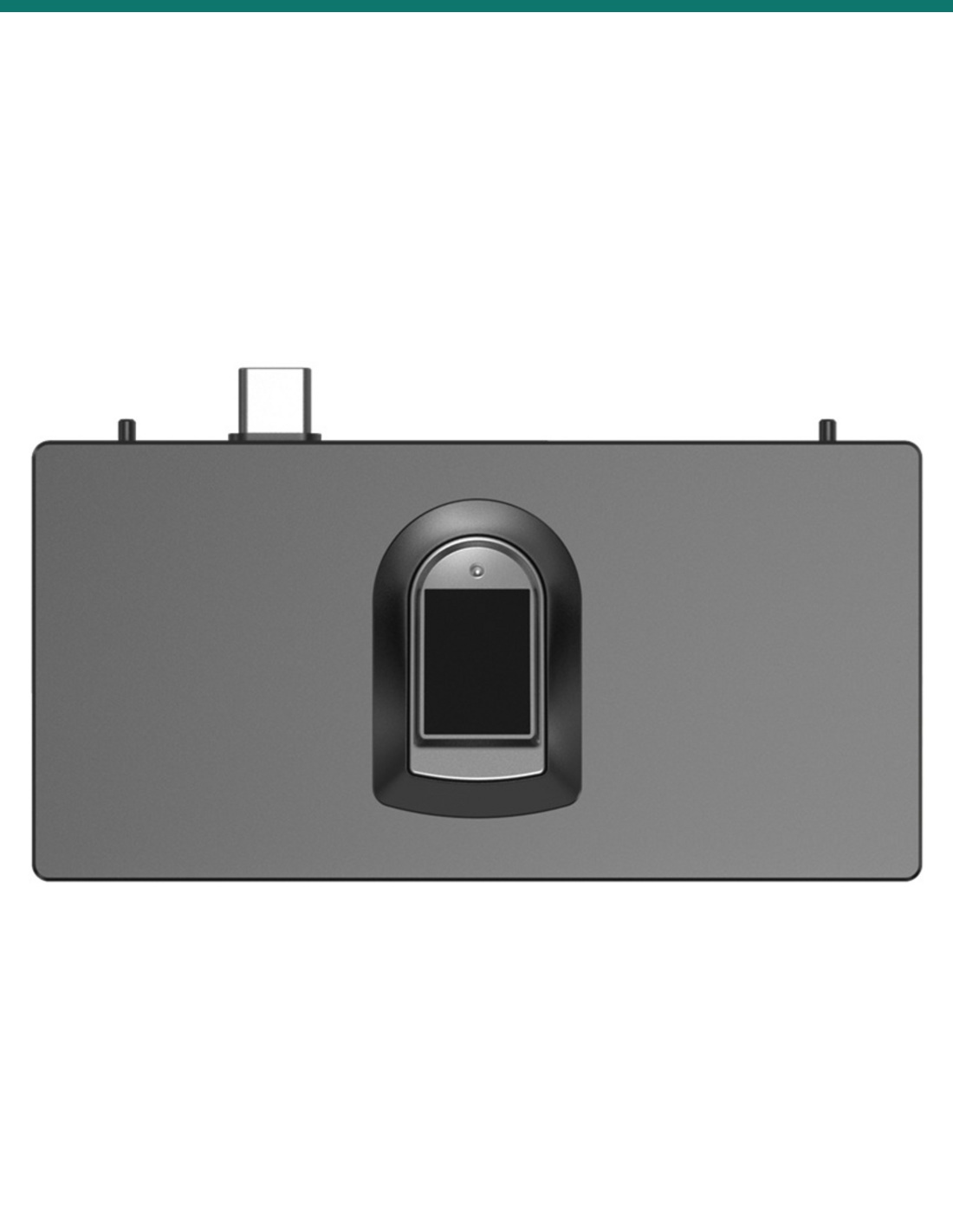

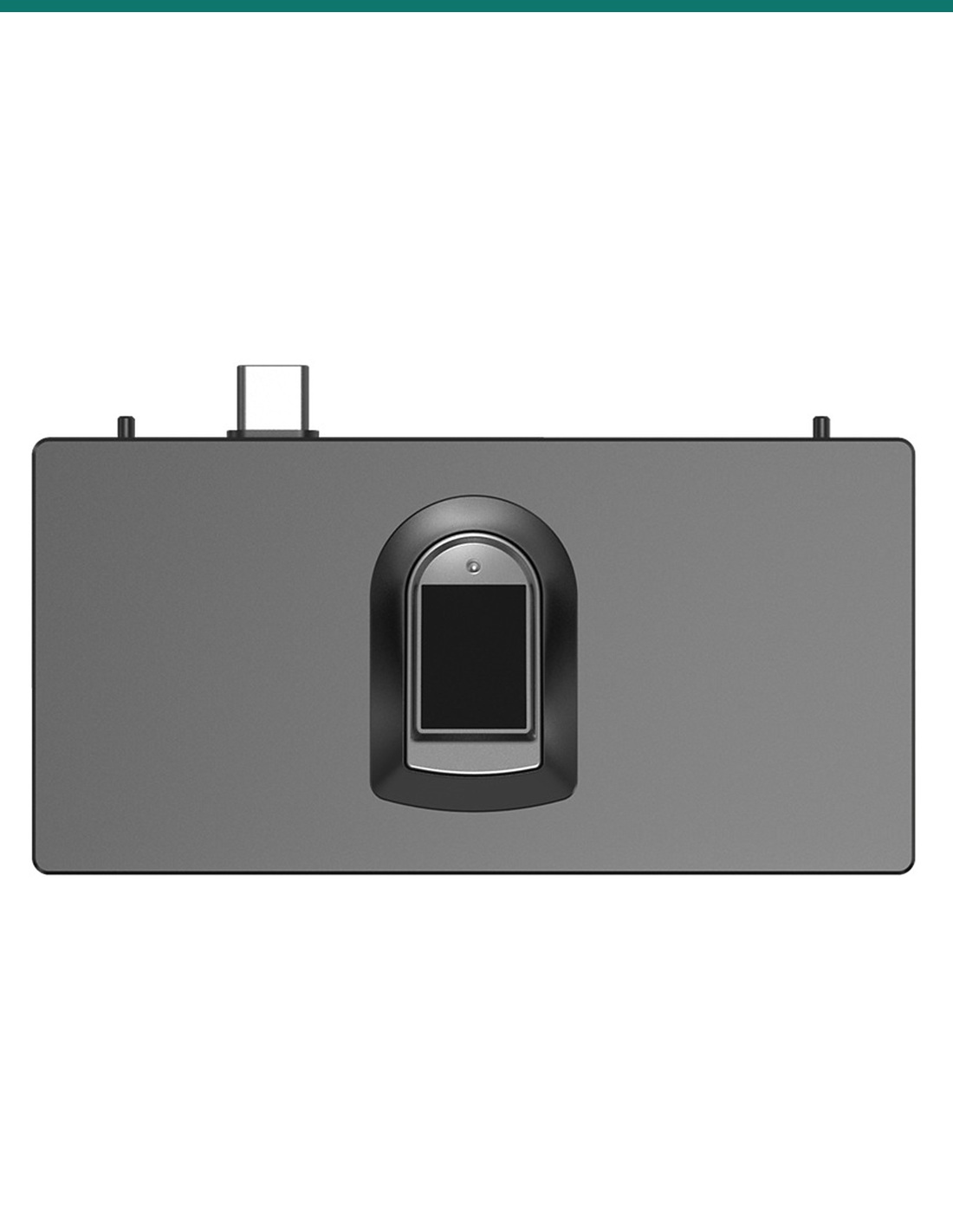

Akuvox S535 fingerprint expansion module

Akuvox S535 5″ Facial Recognition Door Phone with Fingerprint Module Kit — AK-S535-F-KIT

AK-S535-F-KIT
In Stock - Ready to Ship
$ 1,328.50
inc-GST

or 4 interest-free payments of $332.12 with

Akuvox S535 fingerprint kit pairs the 5-inch facial recognition door phone with its fingerprint expansion module — two biometrics plus card, PIN, Bluetooth and QR entry on one 100 mm-wide plate. IP66 / IK08 aluminium, PoE+.

  • ✓S535 door phone and fingerprint expansion module in one SKU
  • ✓Face, fingerprint, card, PIN, BLE and QR code entry
  • ✓20,000 face templates and 20,000 finger templates
  • ✓PoE 802.3at or 12 V DC · IP66 / IK08 · 260 × 100 × 27 mm assembled

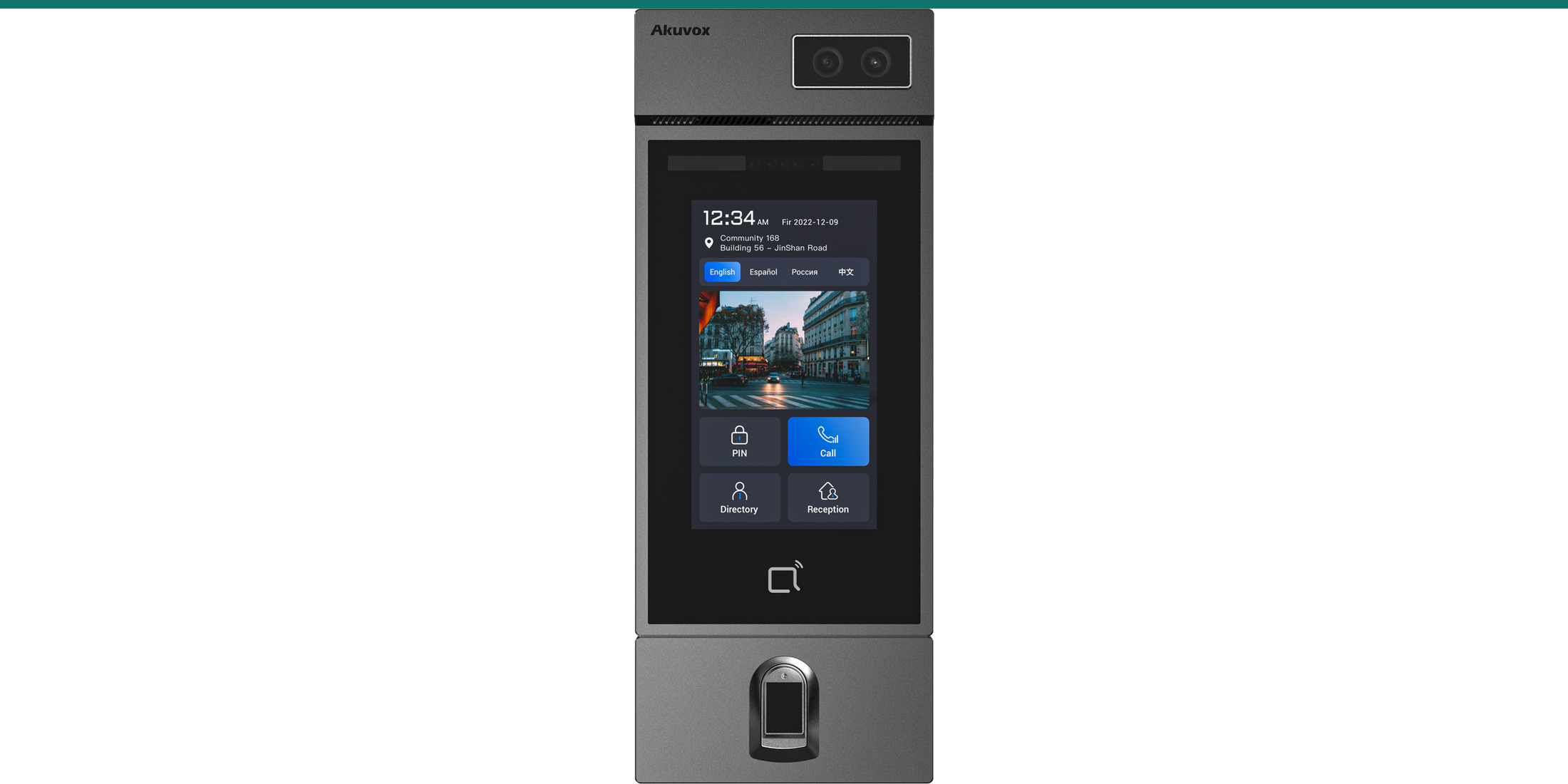

Akuvox S535 with fingerprint module and its six entry options
Akuvox · S535 · Fingerprint kit

Face or finger. Either way, they’re in.
S535 with the fingerprint module.

The AK-S535-F-KIT bundles Akuvox’s S535 5-inch facial recognition door phone with the S535 fingerprint expansion unit. The module plugs into the expansion port under the screen, adding a finger reader for staff, workplaces and anyone who prefers not to use face entry.

This kit is the S535 door station plus the fingerprint module.

You receive the S535 main unit with its wiring accessories and the fingerprint expansion module with its fixing screws. The mounting box is not included — use the S535 box made for an expansion module.

In the box
  • Akuvox S535 door station
  • S535 fingerprint expansion module and 2 shoulder screws
  • Wiring cover, cable plugs, 9-pin and 6-pin cables
  • Torx wrench, screws and diode
What you also need (sold separately)
  • S535 on-wall or in-wall box for use with a module
  • PoE 802.3at switch / injector, or 12 V DC 2–3 A supply
  • Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU

Six ways in, one plate.

Residents walk up and are recognised by face. Staff press a finger. Visitors call from the directory, contractors use a QR code or PIN, and everyone else taps a card or their phone.

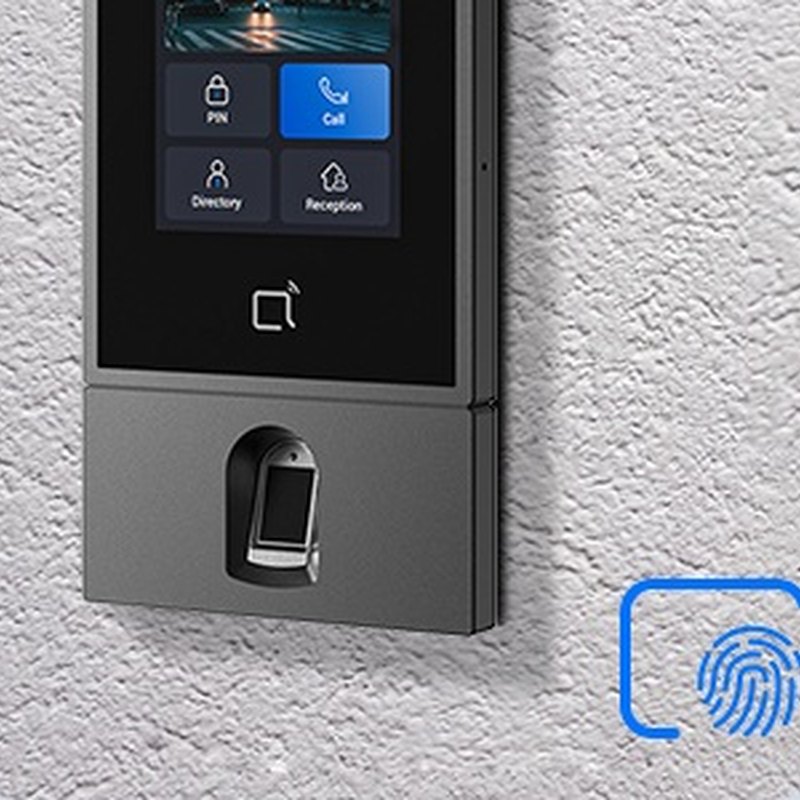

Akuvox S535 fingerprint expansion module fitted under the door phone

Fingerprint

A finger reader under the screen.

The fingerprint module fits the S535 expansion port and stores up to 20,000 finger templates alongside 20,000 faces, 100,000 cards and 100,000 PINs.

It connects directly to the station — no extra cabling — and takes the plate from 210 mm to 260 mm tall. Fingers are enrolled from the device or the web portal.

Built for outside

IP66, IK08 and −40 °C rated.

Aluminium front panel, IP66 against water and dust and IK08 for impact, rated −40 °C to +55 °C.

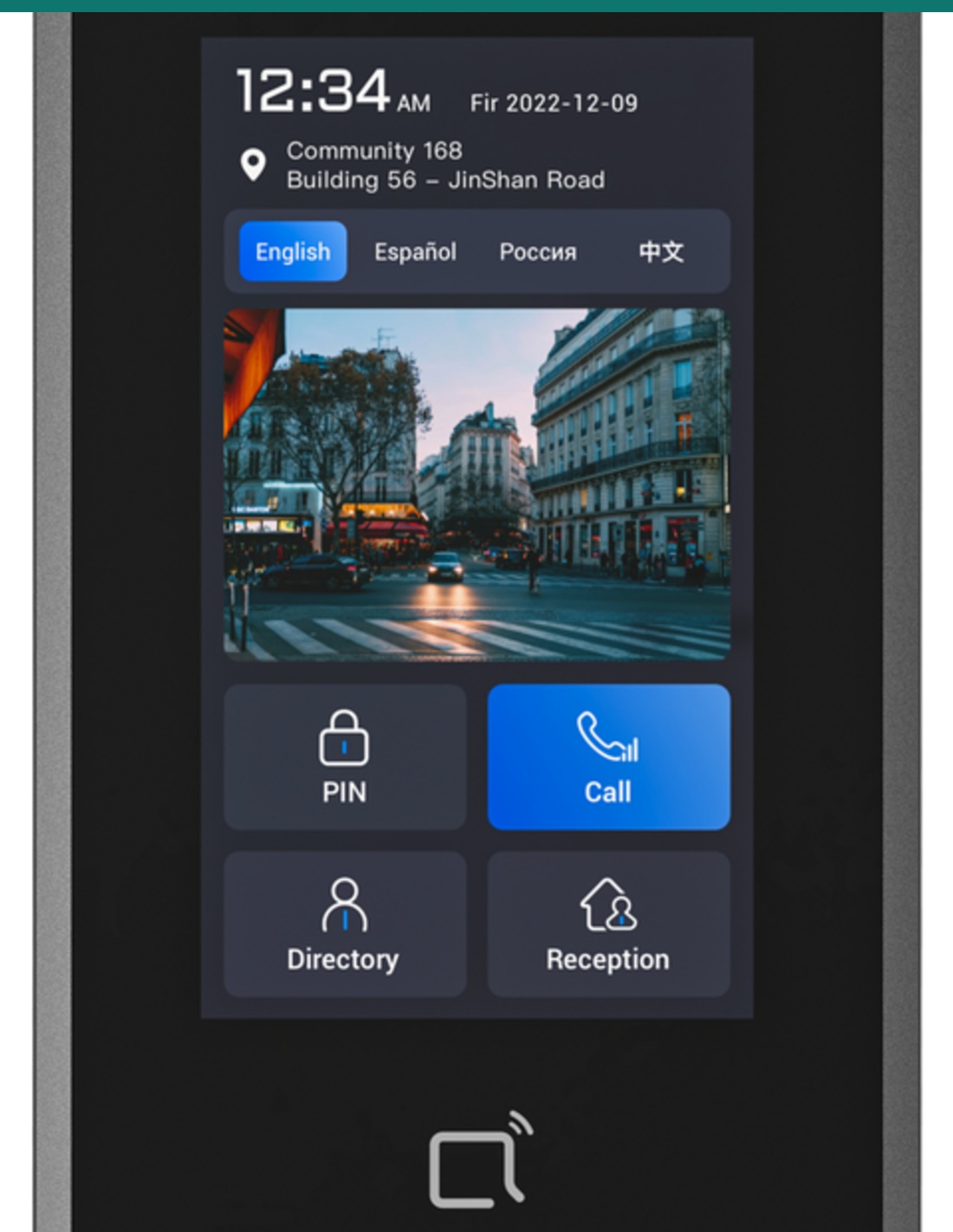

A 5-inch 720 × 1280 touchscreen with a 2 MP main camera and a second 2 MP camera for face-liveness checks. Face matching takes under 200 ms at 99.7% accuracy.

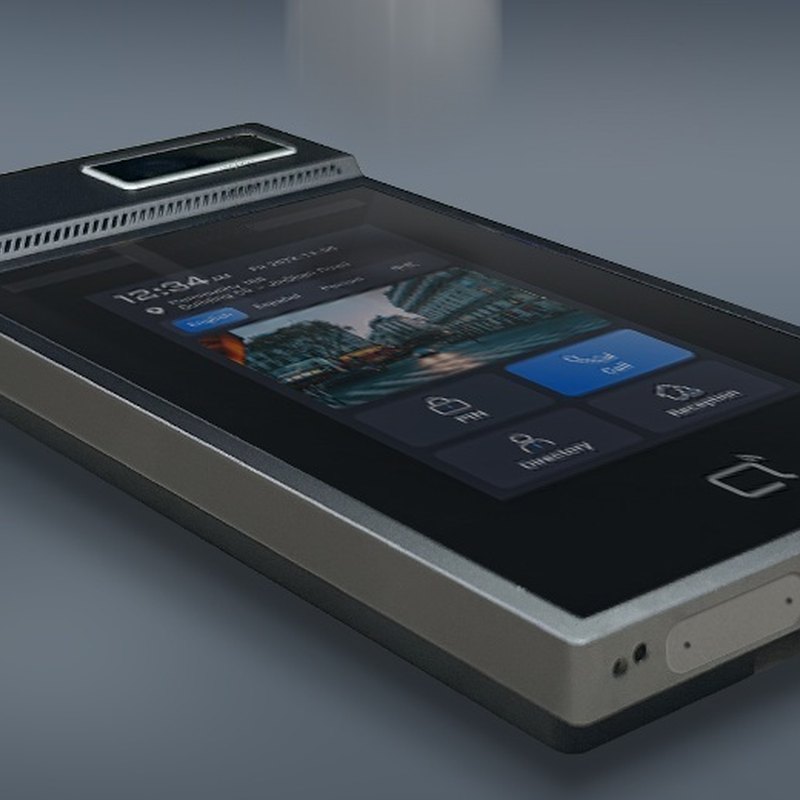

Akuvox S535 aluminium door phone rated IP66 and IK08

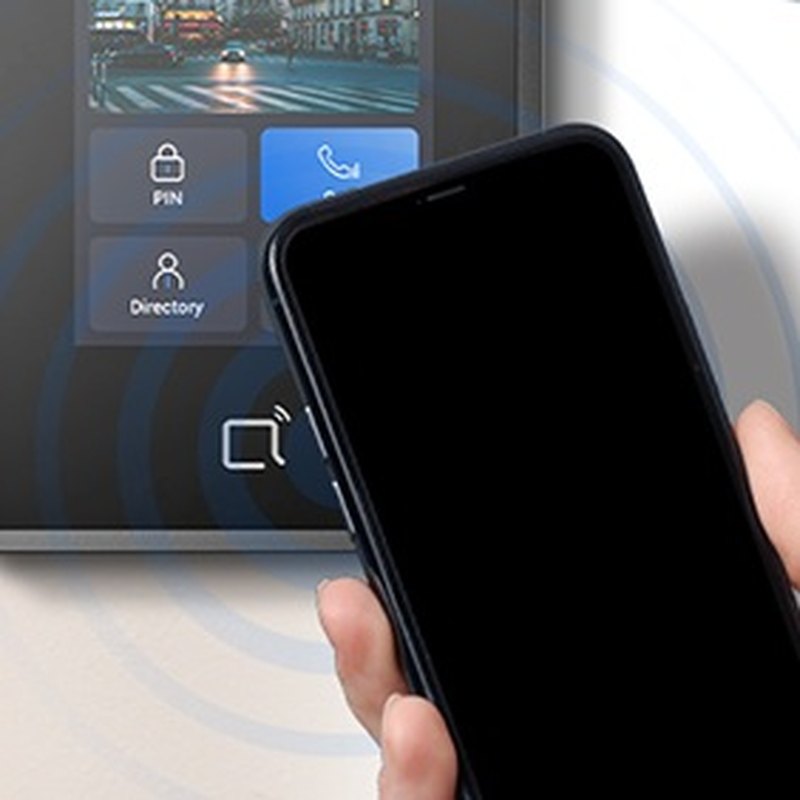

Phone tapped to an Akuvox S535 door phone for Bluetooth entry

Mobile access

Phones work too.

BLE 5.0 supports hands-free entry, tap-to-go and shake-to-open with the Akuvox SmartPlus app, plus NFC and the Akuvox Bkey fob.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE, DESFire EV2 / EV3 and FeliCa cards. One relay, two inputs, Wiegand and RS485 link to locks and access controllers.

How it works

From bare wall to enrolled finger.

01

Fit the box

Install the S535 on-wall or in-wall box for use with a module — it is taller than the standard box.

02

Attach the module

Remove the expansion port cover, plug in the fingerprint module and secure it with the shoulder screws.

03

Wire and power

Connect PoE+ or 12 V DC and the lock, then register to Akuvox monitors, SmartPlus or your SIP PBX.

04

Enrol and test

Enrol faces and fingers, place a test call and confirm the relay releases the door.

Pair it with

Builds a complete door entry system

Mount

S535 box for use with modules

The taller in-wall or on-wall box made for the S535 plus one expansion module.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards for anyone not using face or finger.

Lock

Electric lock / maglock

The relay switches your lock power supply. Strike, maglock and PSU are separate items.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the S535 call Akuvox monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

Record the 1080p HDR entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.

Akuvox SmartPlus

Residents answer video calls, open the door and use Bluetooth or QR-code entry from the SmartPlus app.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Installing the S535 with an expansion module
Akuvox S535 face recognition door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is this only the fingerprint module?

No. This kit includes the S535 door station and the fingerprint module. The module on its own is AK-S535-F.

Which mounting box do I need?

The S535 on-wall or in-wall box made for modules. The standard S535 box is too short for the 260 mm assembled height; flush installs need a 255.5 × 94 × 34 mm opening.

How many fingerprints can it store?

Up to 20,000 finger templates, alongside 20,000 faces, 100,000 cards and 100,000 PINs.

What power does it need?

IEEE 802.3at PoE+, or a 12 V DC 2 A supply — 3 A if the 12 V / 500 mA output also powers a lock or reader.

Can I still use face entry?

Yes. Face, fingerprint, card, PIN, Bluetooth, NFC and QR code all work side by side, so each user can pick the method that suits them.

Will it record to my NVR?

Yes. The S535 supports ONVIF and RTSP, so most ONVIF-capable NVRs can add it as a camera channel.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

Two biometrics.

Choose the fingerprint kit for offices, clubs and residential sites where a finger is faster than a card.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE+ or a 12 V DC, 2 A supply (3 A with the 12 V output in use). Power the station off before fitting or removing the module.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3at or 12 V DC 2–3 A
Colour
Dark grey
Capacity
20,000 faces, 20,000 fingerprints, 100,000 cards
Working Temperature
−40 °C to +55 °C
Brand
Akuvox
Display
5″ IPS touchscreen, 720 × 1280
Protection
IP66 / IK08
Face Recognition
Under 200 ms, 99.7% accuracy
Camera
2 MP main + 2 MP face-liveness, 116° (H) / 62° (V)
Size
260 × 100 × 27 mm (H × W × D) assembled
Warranty
Australian warranty
Video
H.264, HDR, 1080p at 30 fps
Product Type
Facial recognition door station kit
Model
S535 + fingerprint module
Finish
Aluminium front panel
RF Reader
13.56 MHz and 125 kHz, NFC
I/O
1 relay, 2 inputs, Wiegand, RS485, 12 V / 500 mA output
OS
Linux
Unlock
Face, fingerprint, card, PIN, BLE, NFC, QR code
Card Types
EM, MIFARE, DESFire EV2 / EV3, FeliCa
