Akuvox R20B three-button SIP video door phone with card reader

Akuvox R20B 3-Button SIP Video Door Phone — AK-R20B3BONWALL

Name: Akuvox R20B 3-Button SIP Video Door Phone — AK-R20B3BONWALL
Brand: Akuvox
SKU: AK-R20B3BONWALL
Price: 392.43 AUD
Availability: InStock

Reference: AK-R20B3BONWALL

In Stock - Ready to Ship

$ 392.43

inc-GST

Akuvox R20B (3-button, on-wall) is a compact SIP video door phone for three apartments, offices or gates. Three call buttons with name plates, a 2 MP wide-angle camera and a built-in 13.56 MHz / 125 kHz card reader. IP65 aluminium body, PoE. Stocked in Australia by Infront Technologies.

✓Three call buttons with name plates — R20BX3 hardware
✓2 MP camera, 110° (H) / 58° (V), H.264 up to 1080p
✓RFID 13.56 MHz and 125 kHz · 2 relays · SIP and ONVIF
✓PoE 802.3af, IP65, on-wall 185 × 85 × 24 mm

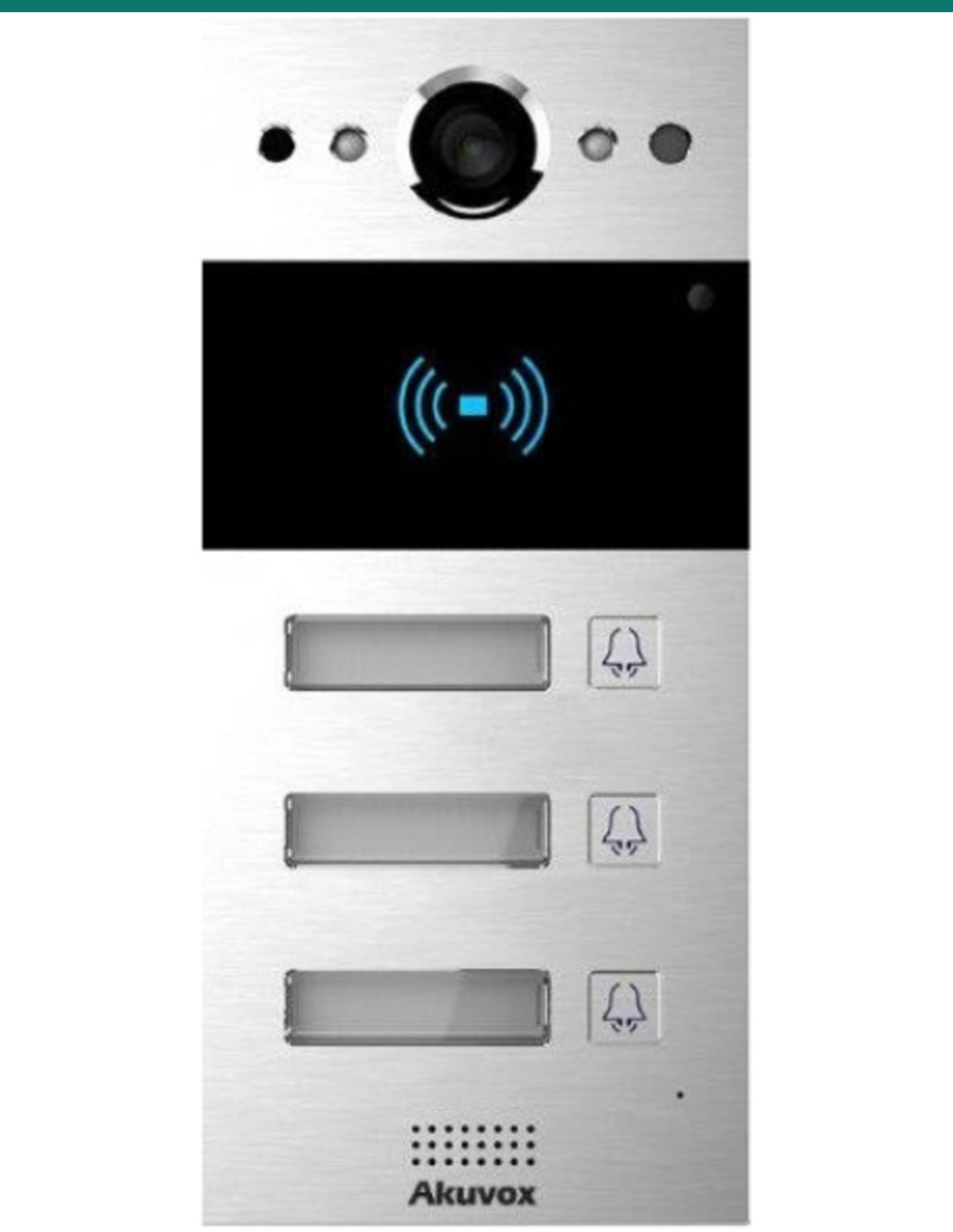

Akuvox R20B three-button SIP video door phone

Akuvox · R20B · 3-button door station

Three buttons. Clear video.
A compact SIP door phone, not a mounting kit.

The AK-R20B3BONWALL is Akuvox’s R20BX3: three call buttons, 2 MP camera and card reader in an IP65 aluminium panel. Typical for small MDUs and shared commercial entries.

This SKU is the on-wall door station.

You receive the R20B three-button video door phone. An indoor monitor, electric lock, PoE injector and any flush box or rain cover are sold separately. It is not a bracket or accessory.

In the box

Akuvox R20BX3 on-wall door phone
Mounting hardware (where supplied)
Quick-start documentation

What you also need (sold separately)

Compatible Akuvox indoor monitor or SIP endpoint
PoE 802.3af
Lock hardware on the two relay outputs

Unsure what’s compatible? See Pair it with below or contact us before ordering.

Built for tight entries.

This listing is the three-button on-wall R20B (R20BX3 datasheet V4.0): Linux, SIP, ONVIF, two relays, card reader.

Buttons

Three name plates, three calls.

Each row is a label window plus a bell button. Map each button to a different indoor station or ring group.

Need two buttons or five? Those are different R20B SKUs — the camera and reader stay the same.

Video

See the landing before you unlock.

2 MP CMOS, 110° × 58°, H.264 up to 1080p / 30 fps, IR for night, ONVIF for an NVR.

Two-way SIP audio with echo cancellation.

Access

Card reader and lock relays on board.

13.56 MHz and 125 kHz RFID, two relays, two inputs, Wiegand and RS485.

IP65 aluminium. On-wall 185 × 85 × 24 mm.

How it works

From doorbell to door.

Choose on-wall or flush

This SKU is the on-wall body. Flush work needs the R20B in-wall box.

PoE and SIP

802.3af to the RJ45, then register to indoor monitors or a SIP PBX.

Label the three buttons

Print name plates and map each button to the right indoor station.

Enrol cards if you use them

Load EM / MIFARE / DESFire credentials on the web portal.

At a glance

Key specs — AK-R20B3BONWALL

Brand: Akuvox
Family: R20B compact SIP door phone
Camera: 2 MP, 110° (H) / 58° (V), automatic lighting
Video: H.264 up to 1080p / 30 fps
Audio: SIP two-way with echo cancellation
RF reader: 13.56 MHz and 125 kHz
I/O: 2 relays, 2 inputs, Wiegand, RS485, 1× RJ45 10/100
Power: PoE 802.3af
Protection: IP65
Body: Aluminium-alloy front panel
On-wall size: 185 × 85 × 24 mm (H × W × D)
Operating temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies
This SKU: R20BX3 on-wall (AK-R20B3BONWALL)
Call buttons: 3
Capacity: 4,000 users · 1,000 contacts · 20,000 cards

Pair it with

Typical building blocks

Indoor

Akuvox indoor monitor

Pair with a compatible Akuvox SIP indoor station so residents can see and speak to visitors.

Flush

R20B in-wall box

If the plate must sit flush, add the R20K/R20B in-wall installation kit.

Lock

Electric lock / maglock

Door station relays switch a lock PSU — they are not a complete lock kit on their own.

Network

PoE switch or injector

Use a PoE switch or injector that matches the station’s IEEE class (af or at).

Answers

Common questions

Is this a mounting accessory?

No. It is the three-button video door phone.

Difference versus the two-button SKU?

Button count only (R20BX3 vs R20BX2). Camera, reader, PoE and IP65 rating match.

PoE class?

IEEE 802.3af.

Outdoor?

IP65. Add a rain cover where the soffit does not shelter the panel.

Stocked for Australian installs.

Order R20B three-button through Infront Technologies when three name plates on one compact SIP station is the brief.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20BX3 datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
